STG50227 Starter Drive Bendix Gear SMU5001 220-54004 ZN0749 for Kawasaki Polaris Yamaha ATV PWC UTV Snowmobile | 19T CCW Replacement

3 Reviews

Add Your Review

US$33.00

ITEMNO： STG50227

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    STG50227 Starter Drive Bendix Gear SMU5001 220-54004 ZN0749 for Kawasaki Polaris Yamaha ATV PWC UTV Snowmobile | 19T CCW Replacement

    Part Numbers

    Arrowhead: SMU5001 / 220-54004

    Arrowhead (OEM): ZN0749 / SMU5017

    Accurate: 4-973

    ARCO Marine: DV700

    Barsanco: 725-001

    Dubois: A207121

    J&N Electrical Products: 220-54001 / 220-54004

    Kawasaki: 13101-3701 / 13101-3703 / 13101-3705 / 13101-3706 / 13101-3708

    MES Motorcycle & Marine: 3270M

    Product Description

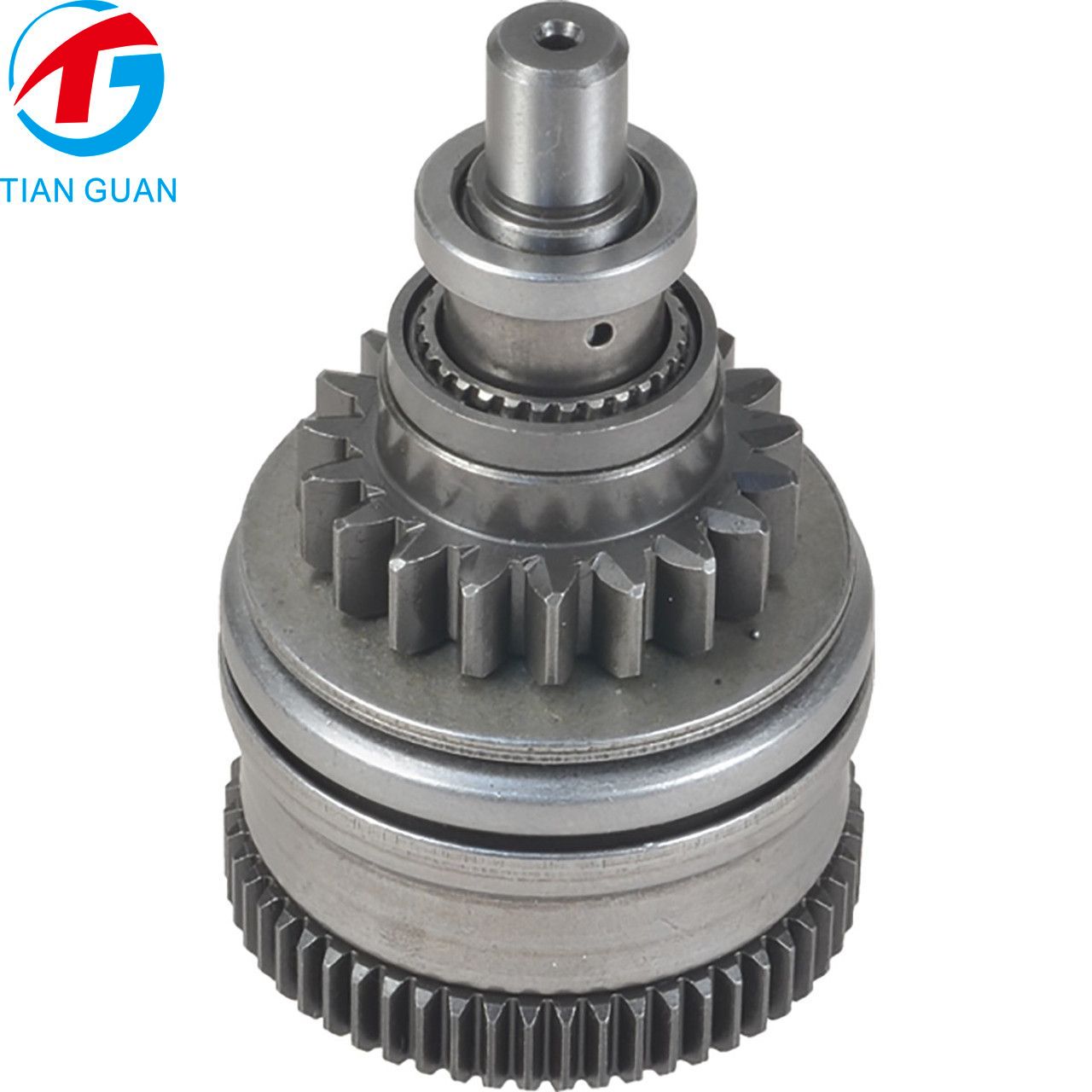

    The STG50227 Starter Drive is a new aftermarket drive assembly designed for selected Kawasaki, Polaris, and Yamaha recreational vehicles, including personal watercraft (PWC), ATVs, UTVs, snowmobiles, and sportboats.

    Featuring a 19-tooth drive gear, counterclockwise rotation, and a roller-type clutch, this starter drive transfers torque during engine cranking and disengages when the engine starts. Its cross-reference numbers include Arrowhead SMU5001, ZN0749, Kawasaki 13101-series numbers, Polaris 3240120 and 3240122, and Yamaha 6M6-8183E-series numbers.

    Before ordering, compare the original part number, gear dimensions, tooth count, and clutch configuration to confirm fitment.

    Product Specifications

    SpecificationDetails
    Product TypeStarter Drive Assembly / Bendix Gear
    ConditionNew Aftermarket Part
    Unit TypeDrive Assembly
    RotationCounterclockwise (CCW)
    Number of Drive Gear Teeth19T
    Drive Gear Outside Diameter44.3 mm
    Overall Length107.5 mm
    Clutch TypeRoller / Gear Reduction (GR)
    Secondary Drive Gear Teeth55T
    Secondary Drive Gear Outside Diameter57.6 mm
    Compatible EquipmentSelected Kawasaki, Polaris, and Yamaha vehicles
    Estimated Net Weight 0.5 kg


    OEM / Cross Reference Numbers

    Brand / CategoryReference Part Numbers
    ArrowheadSMU5001, 220-54004
    Arrowhead (OEM)ZN0749, SMU5017
    Accurate4-973
    ARCO MarineDV700
    Barsanco725-001
    DuboisA207121
    J&N Electrical Products220-54001, 220-54004
    Kawasaki13101-3701, 13101-3703, 13101-3705, 13101-3706, 13101-3708
    MES Motorcycle & Marine3270M
    PIC6191-2980
    Polaris3240120, 3240122, 4010418, 4012033, 4012614, 4060119
    RCP0749
    Tucker Rocky495777, 49-5777
    WAI54-8501
    Wilson Small Engine61-26-14046
    Yamaha6M6-8183E-00-00, 6M6-8183E-01-00
    ZEN0749, 1.01.0749.0

    Compatible Applications

    Kawasaki Personal Watercraft (PWC)

    ModelYearEngine
    JB650 Jet Mate1989–1992650cc
    JF650 TS1989–1996650cc
    JF650 X-21988–1995650cc
    JH1100 1100 ZXi1996–20031071cc
    JH1100 Ultra 130 D.I.2001–20041071cc
    JH750 750 SS1992–1997743cc
    JH750 750 ZXi1995–1997743cc
    JH750 Super Sport XI1993–1997743cc
    JH750 Xi Sport1998–1999743cc
    JH750 XiR1994743cc
    JH900 900 ZXi1995–1997891cc
    JS650 650 SX1987–1993650cc
    JS750 750 SX1992–1995743cc
    JS750 750 SXi1995–1997743cc
    JS750 750 SXi Pro1998–2002743cc
    JS800 SX-R2003–2012781cc
    JT1100 1100 STX1997–19991071cc
    JT1100 1100 STX D.I.2000–20031071cc
    JT750 750 STX1998743cc
    JT750 ST1994–1995743cc
    JT750 STS1995–1997743cc
    JT900 900 STS2001–2002891cc
    JT900 900 STX1997–2006891cc

    Polaris ATVs

    ModelYearEngine
    Sportsman 6002003–2004597cc
    Sportsman 600 Twin2004–2005597cc
    Sportsman 7002002–2006683cc
    Sportsman 700 EFI2005–2007683cc
    Sportsman 700 MV72005683cc
    Sportsman 700 X2 EFI2008683cc
    Sportsman 800 6x6 EFI2010–2014760cc
    Sportsman 800 6x6 Forest2012–2014760cc
    Sportsman 800 EFI2005–2014760cc
    Sportsman 800 Forest2012–2014760cc
    Sportsman 800 HO EFI2008–2009760cc
    Sportsman 800 Touring EFI2008–2009760cc
    Sportsman 800 X2 EFI2007–2009760cc

    Polaris Personal Watercraft (PWC)

    ModelYearEngine
    Freedom2002–2004701cc
    Genesis1999–20021165cc
    Genesis FFI20001165cc
    Genesis Ficht19991165cc
    Genesis I2001–20041165cc
    Hurricane1996–1997701cc
    MSX 1402003–20041192cc
    Octane2002–2004777cc
    Pro 12002000–20011165cc
    Pro 7851999–2000779cc
    SL 105019971051cc
    SL 6501992–1995650cc
    SL 650 STD1995650cc
    SL 7001996–1997701cc
    SL 700 Deluxe1997701cc
    SL 7501993–1995750cc
    SL 7801996–1997779cc
    SL 9001996–1997900cc
    SLH1998–2001701cc
    SLT 7001996–1997701cc
    SLT 7501994–1995750cc
    SLT 7801996–1997779cc
    SLTH1998–1999701cc
    SLTX1996–19991051cc
    SLX1999–20011051cc / 1165cc
    SLX 7801995–1996779cc
    SLX Pro 7851997–1998779cc
    SLXH19981051cc
    Virage2000–2004701cc
    Virage I2002–2004777cc
    Virage TX2000–20021165cc
    Virage TXI2001–20021165cc

    Polaris Snowmobiles

    ModelYearEngine
    Frontier Classic2003–2004784cc
    Frontier Touring2003–2005784cc

    Polaris Utility Vehicles (UTVs)

    ModelYearEngine
    Ranger 6x6 700 EFI2006–2009683cc
    Ranger 6x6 800 EFI2010–2014760cc
    Ranger 700 4x42005683cc
    Ranger 700 4x4 EFI2007–2009683cc
    Ranger 700 4x4 EFI Crew2008–2009683cc
    Ranger 800 4x4 EFI2010–2014760cc
    Ranger 800 4x4 EFI Crew2010–2014760cc
    Ranger XP 8002012760cc
    RZR 4 8002010–2014760cc
    RZR 4 800 International2011760cc
    RZR 8002008–2014760cc
    RZR S 8002009–2014760cc
    RZR S 800 International2009–2014760cc

    Yamaha Personal Watercraft (PWC)

    ModelYearEngine
    FX700 FX11994–1995701cc
    GP12001997–20021176cc
    GP13002003–20081300cc
    GP7601997–2000760cc
    GP8001998–2005784cc
    RA1100 Wave Raider1995–19961100cc
    RA700 Wave Raider1994–1997701cc
    RA760 Wave Raider1996760cc
    SJ650 SuperJet1990–1993650cc
    SJ700 SuperJet1994–2011701cc
    SUV12001999–20041176cc
    WB700 Wave Blaster1993–1996701cc
    WB760 Wave Blaster1996–1997760cc
    WR650 WaveRunner LX1990–1993650cc
    WRA650 WaveRunner III1990–1996650cc
    WRA700 WaveRunner III1996–1997701cc
    WRA700 WaveRunner III GP1994–1995701cc
    WRB650 WaveRunner VXR1991–1995650cc
    WRB700 WaveRunner Pro VXR1993–1994701cc
    WVT1100 Wave Venture1996–19971100cc
    WVT700 Wave Venture1995–1998701cc
    XL12001998–20001176cc
    XL7001999–2004701cc
    XL7601998–1999760cc
    XL8002000–2001784cc
    XLT12002001–20051176cc
    XLT8002002–2004784cc

    Yamaha Sportboats

    ModelYearEngine
    EXS1200 Exciter1998–1999All listed
    EXT1100 Exciter1996, 1998All listed
    EXT1200 Exciter1998–1999All listed
    LST12002000–2005All listed

  • PRODUCT HIGHLIGHTS

    Product Highlights

    Broad Equipment CompatibilityPrecision Gear DimensionsReliable Drive Engagement
    Listed for selected Kawasaki, Polaris, and Yamaha ATVs, PWCs, UTVs, snowmobiles, and sportboats19-tooth drive gear, 44.3 mm gear OD, and 107.5 mm overall lengthRoller-type clutch with CCW rotation for compatible starter assemblies
