STG50247 Starter Motor 808498 228000-8020 LG808726 for John Deere GT235 LX288 Lawn Tractors | 12V 0.8kW 15T CCW DD Replacement

PRODUCT DETAILS

Product Description

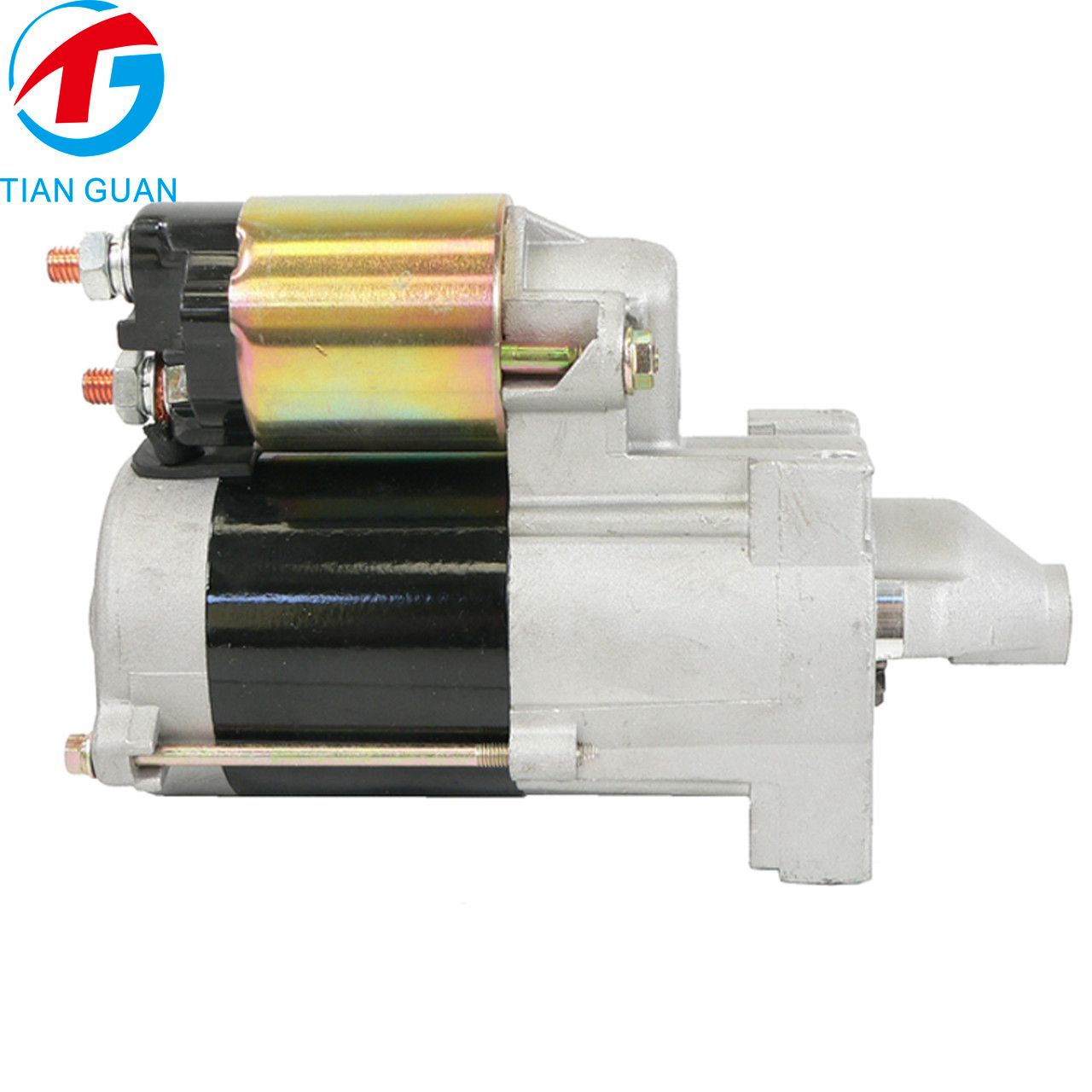

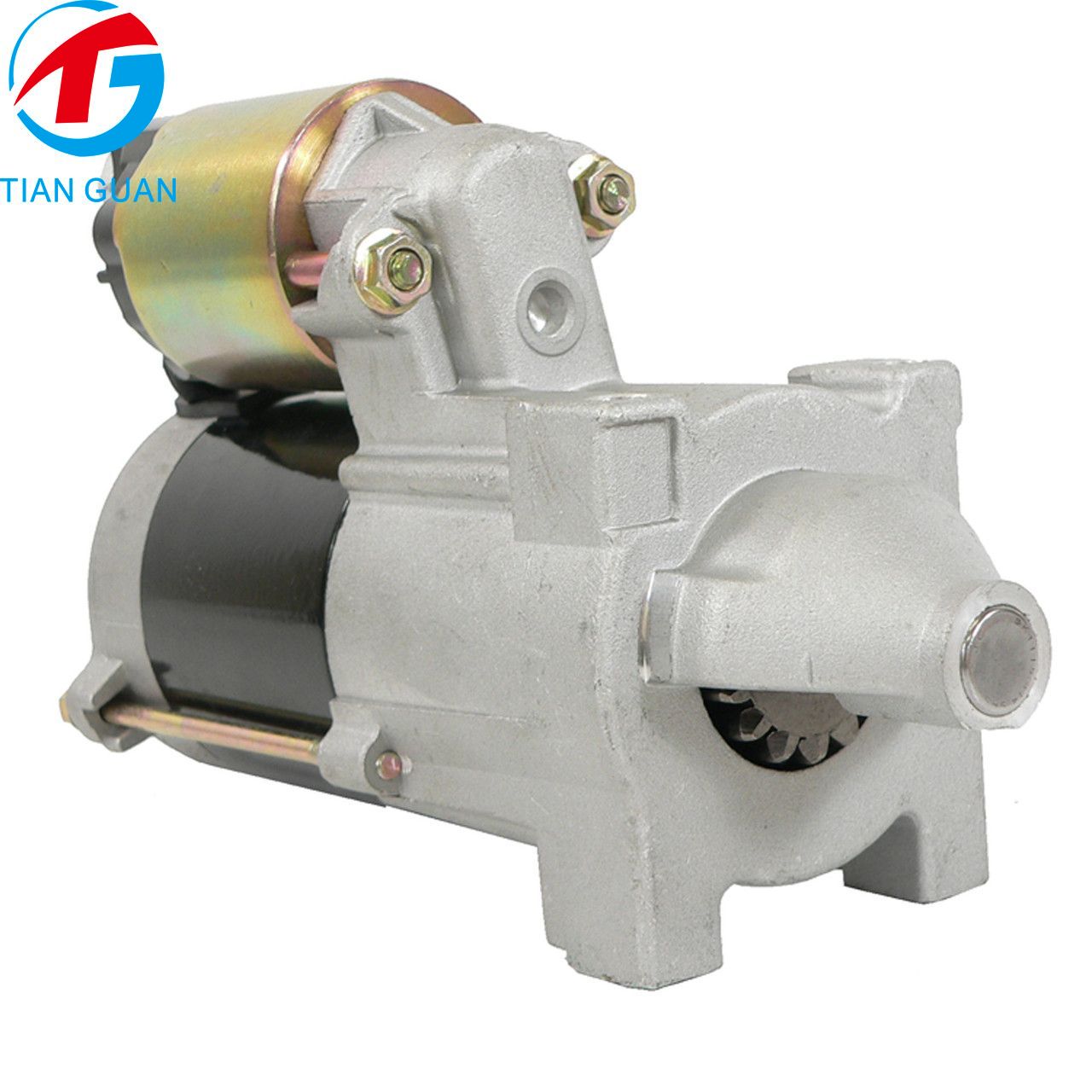

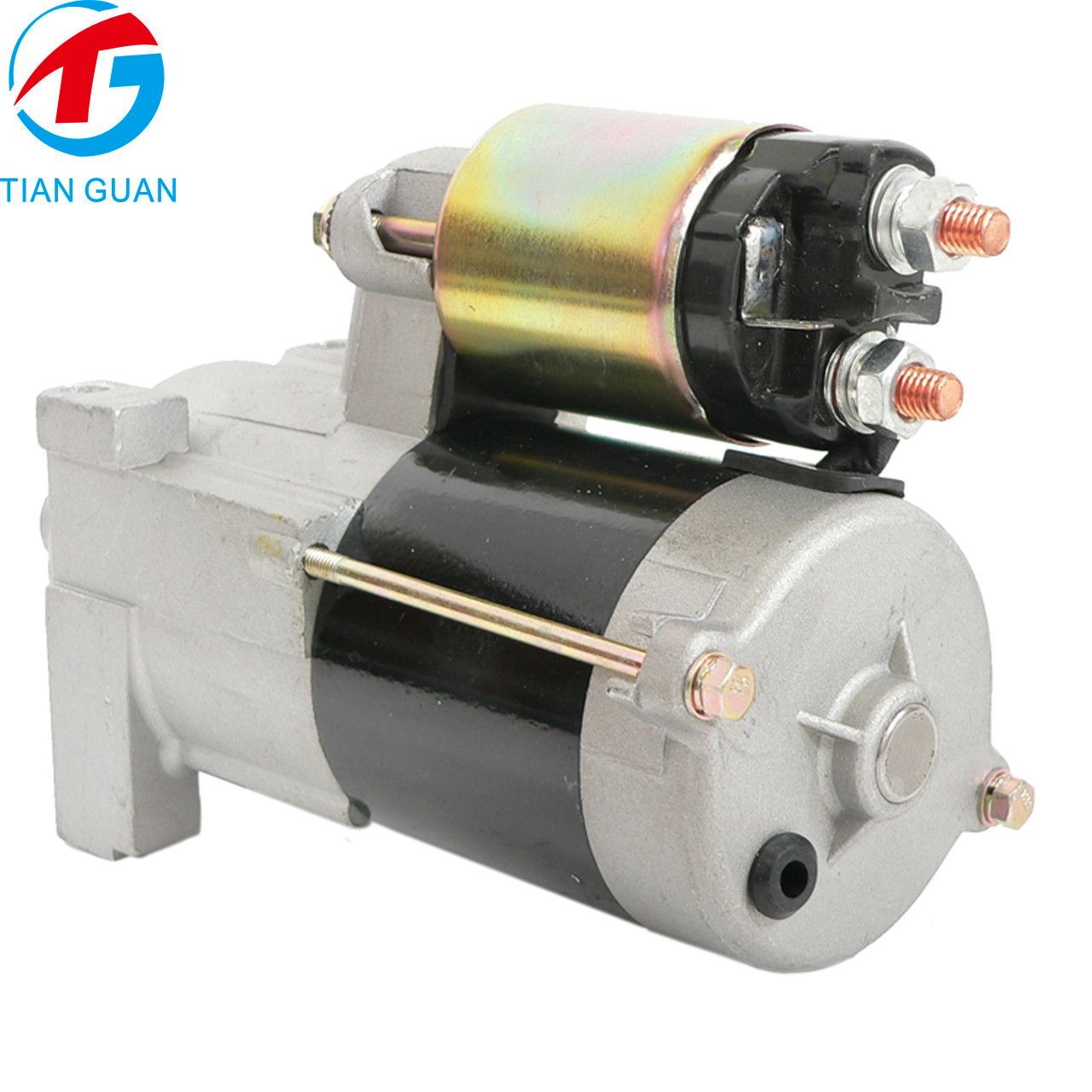

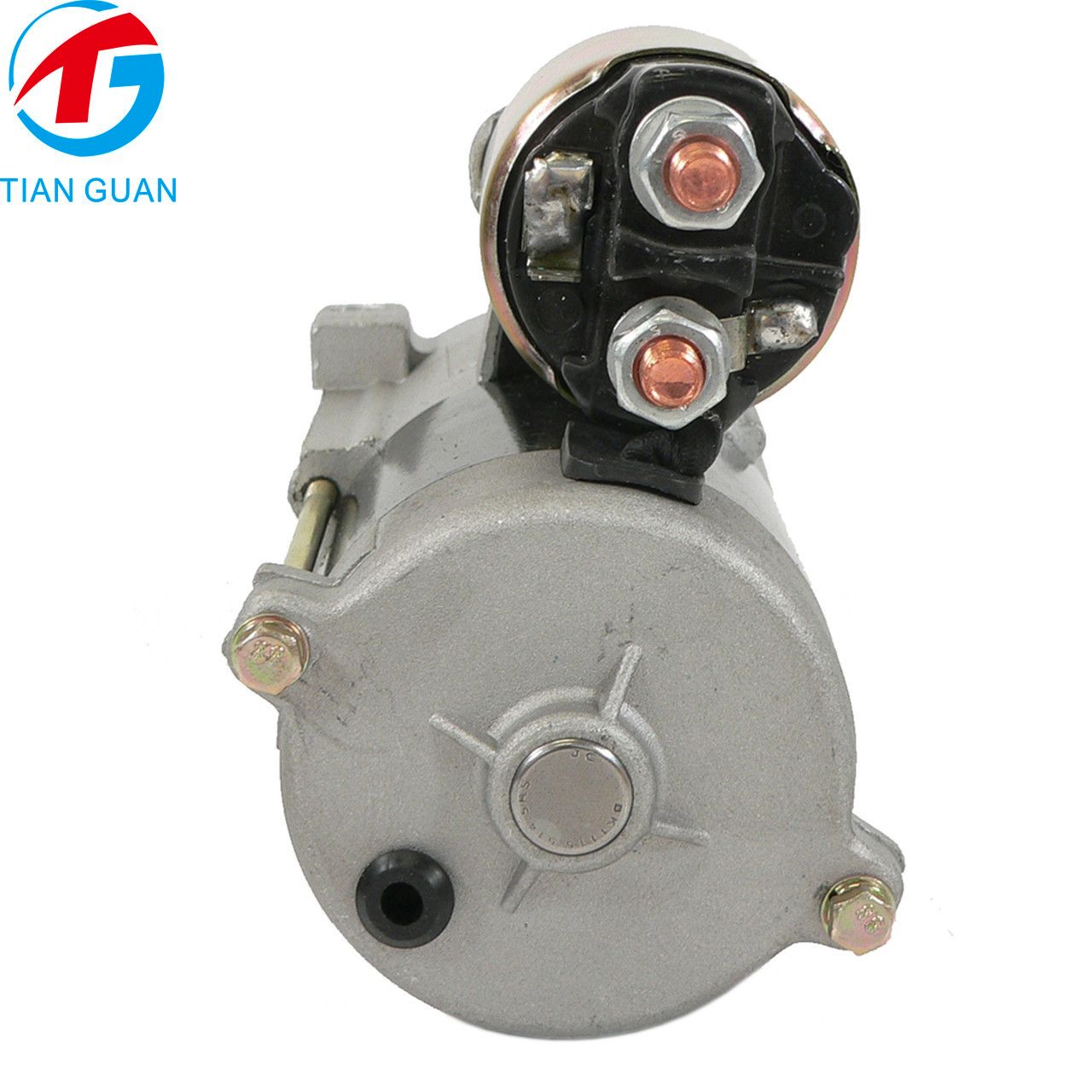

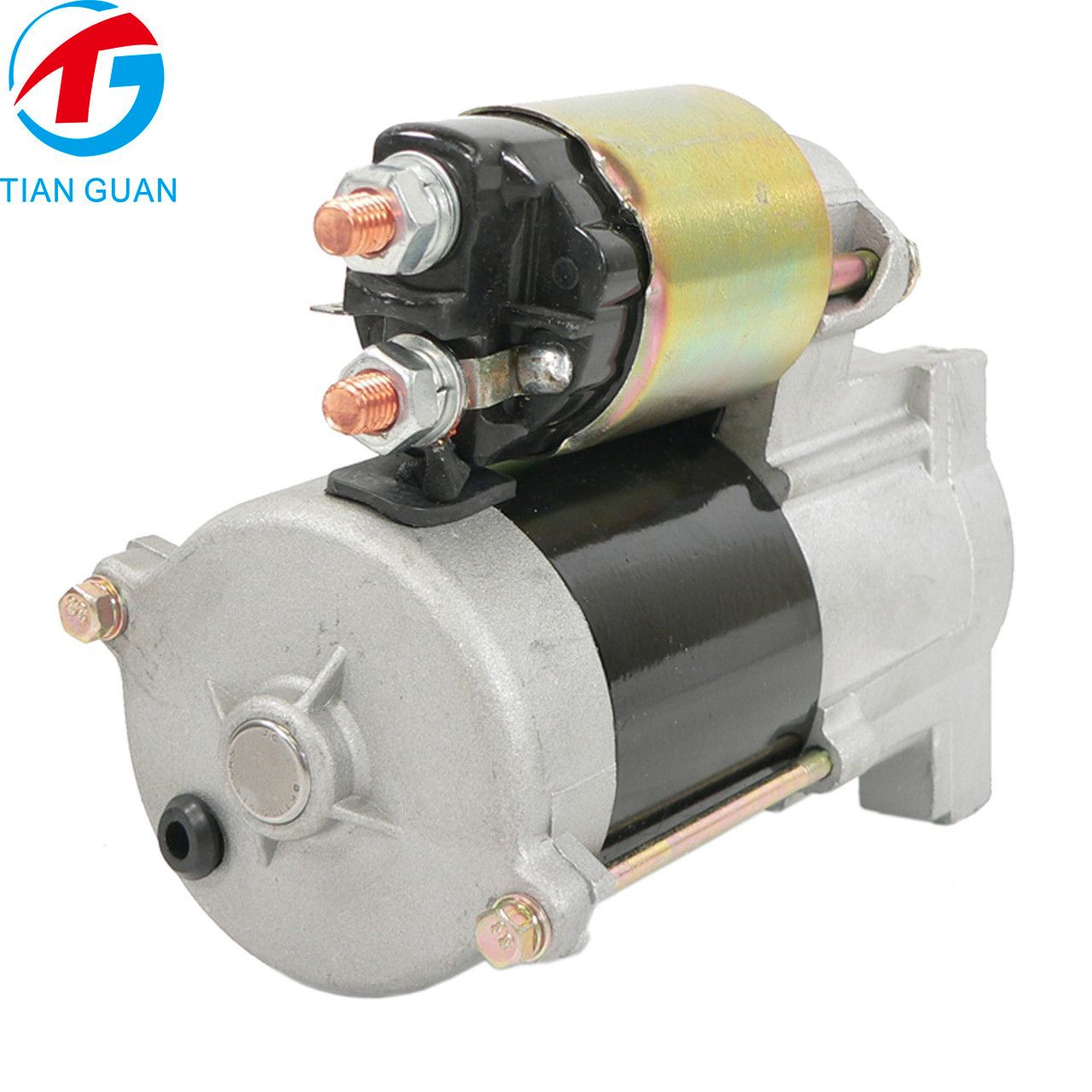

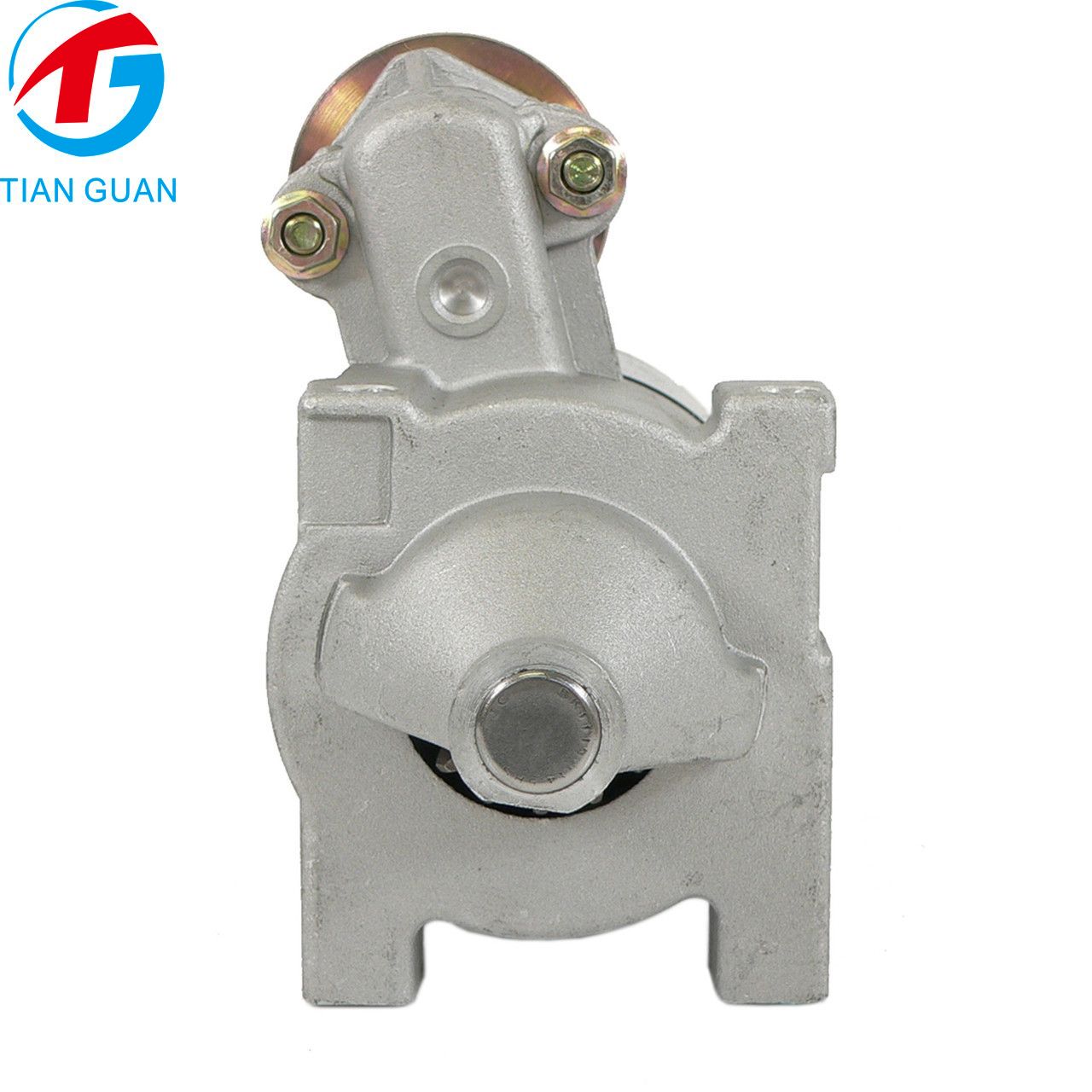

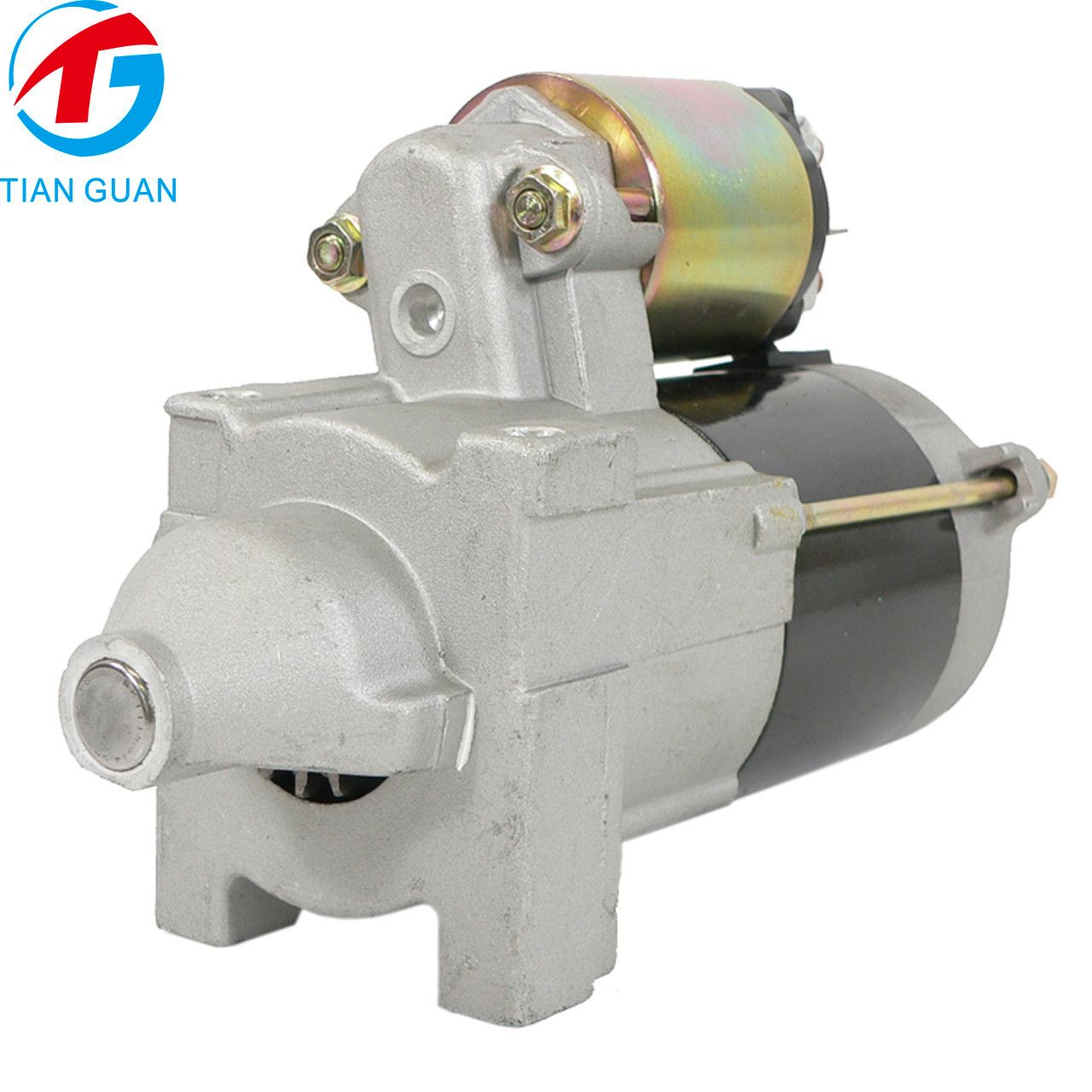

The STG50247 Starter Motor is a new aftermarket replacement designed for compatible John Deere lawn and garden tractors equipped with Briggs & Stratton engines. It operates on a 12V electrical system and delivers 0.8kW of starting power, with a 15-tooth pinion and counterclockwise (CCW) rotation.

Featuring a direct-drive (DD) design, this starter cross-references Briggs & Stratton 808498, Denso 228000-8020, John Deere LG808726, and other listed aftermarket part numbers. These cross-references help identify a suitable replacement for compatible original starter assemblies.

Listed applications include John Deere GT235 and LX288 lawn tractors with Briggs & Stratton engines. The source also references an 18HP Briggs & Stratton engine and the John Deere LX277. Confirm the original starter number, engine configuration, and mounting details before ordering.

Key Features

• 12V Starting System: Designed for compatible lawn and garden tractor applications.

• 0.8kW Output: Provides starting power for compatible Briggs & Stratton engines.

• 15-Tooth Pinion: Counterclockwise rotation with a direct-drive configuration.

• Broad Cross-Reference Support: Includes John Deere, Briggs & Stratton, Denso, Arrowhead, and other references.

Product Specifications

Compatible Applications
