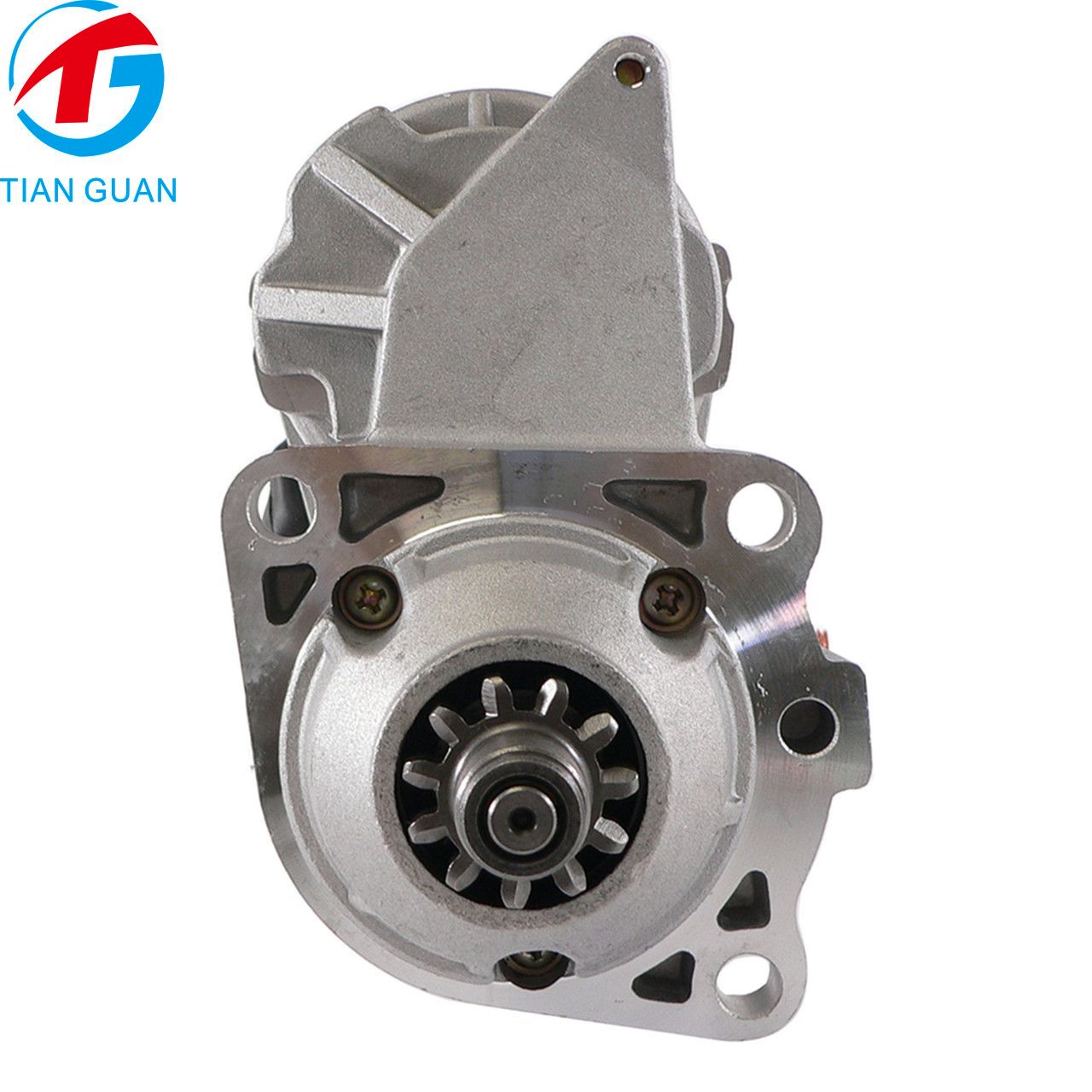

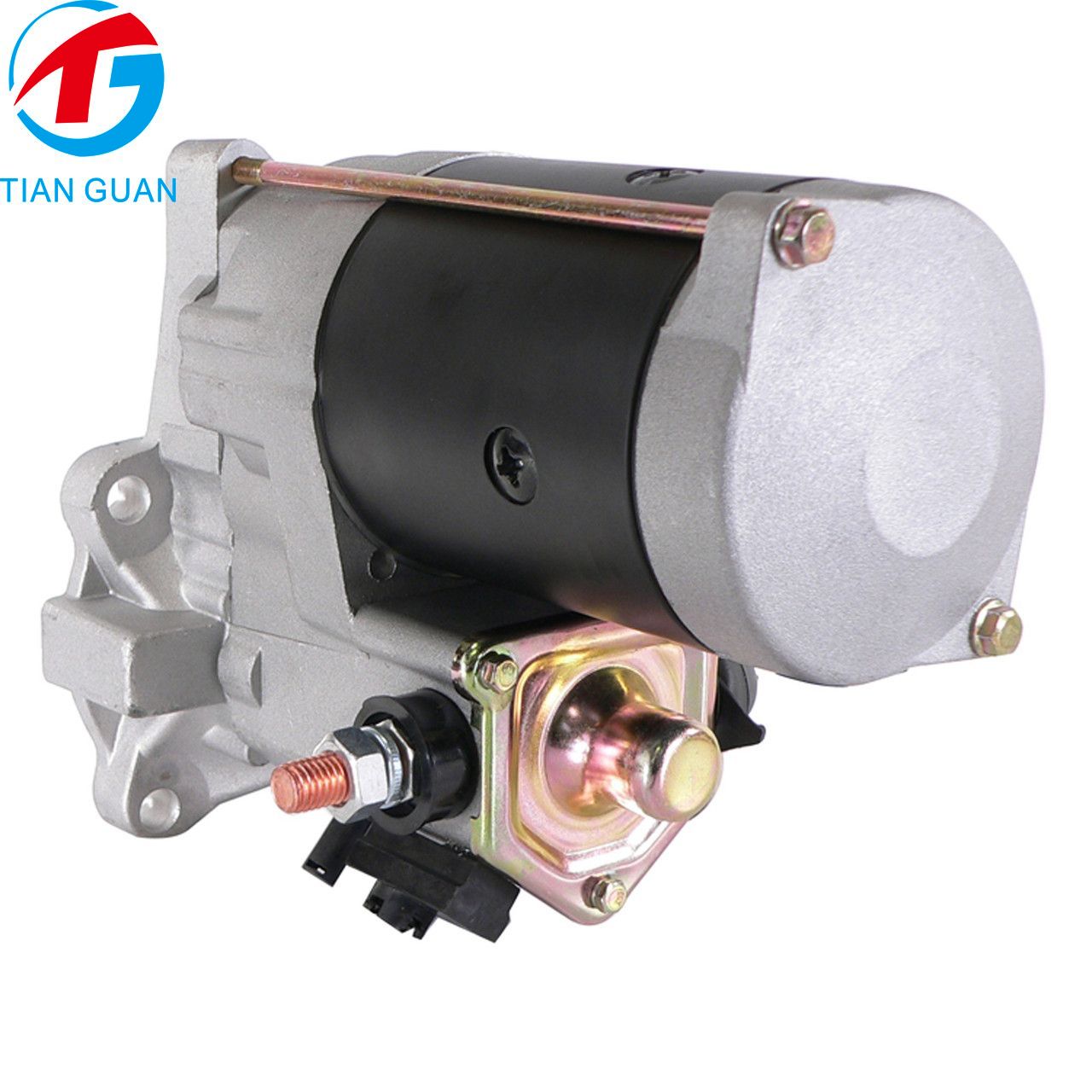

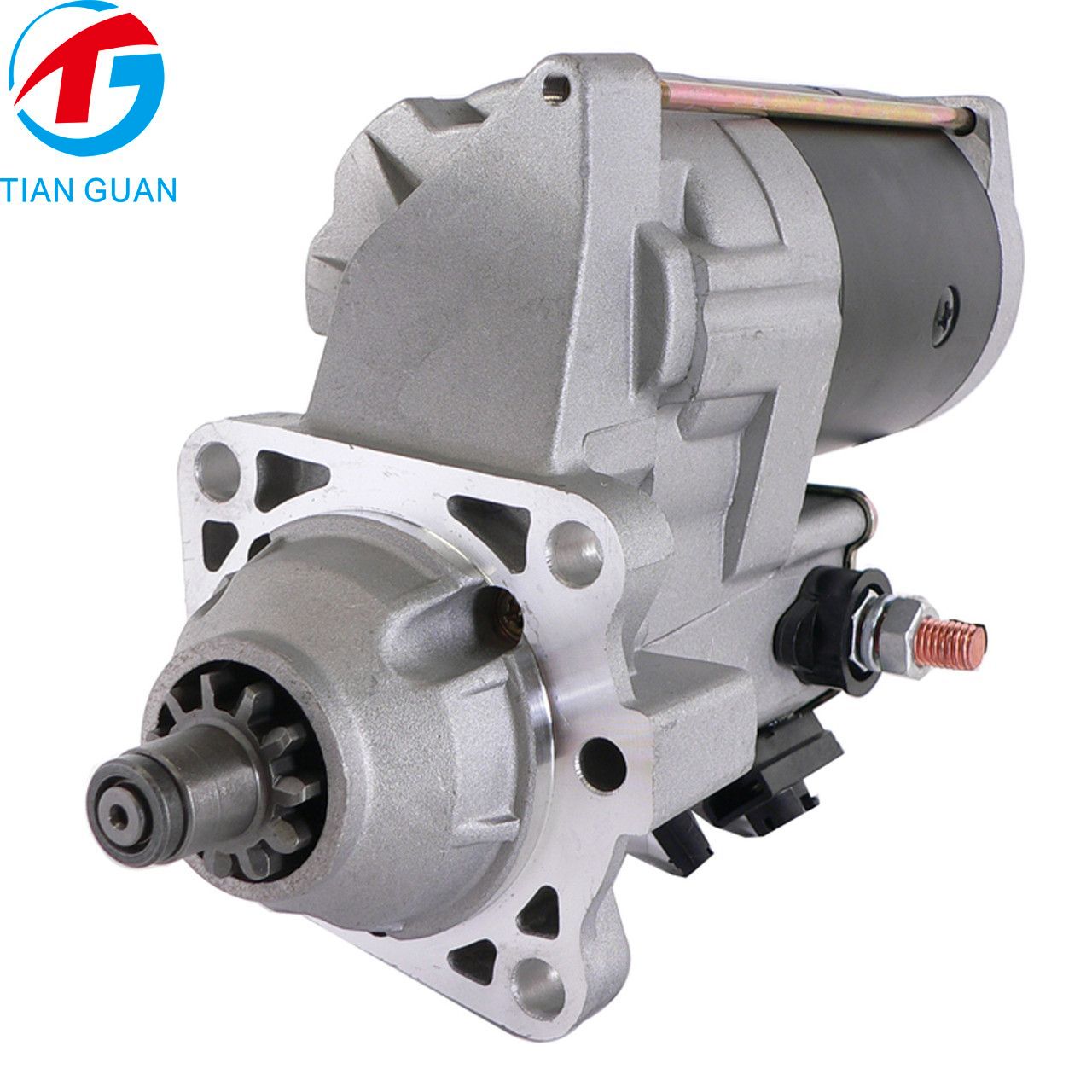

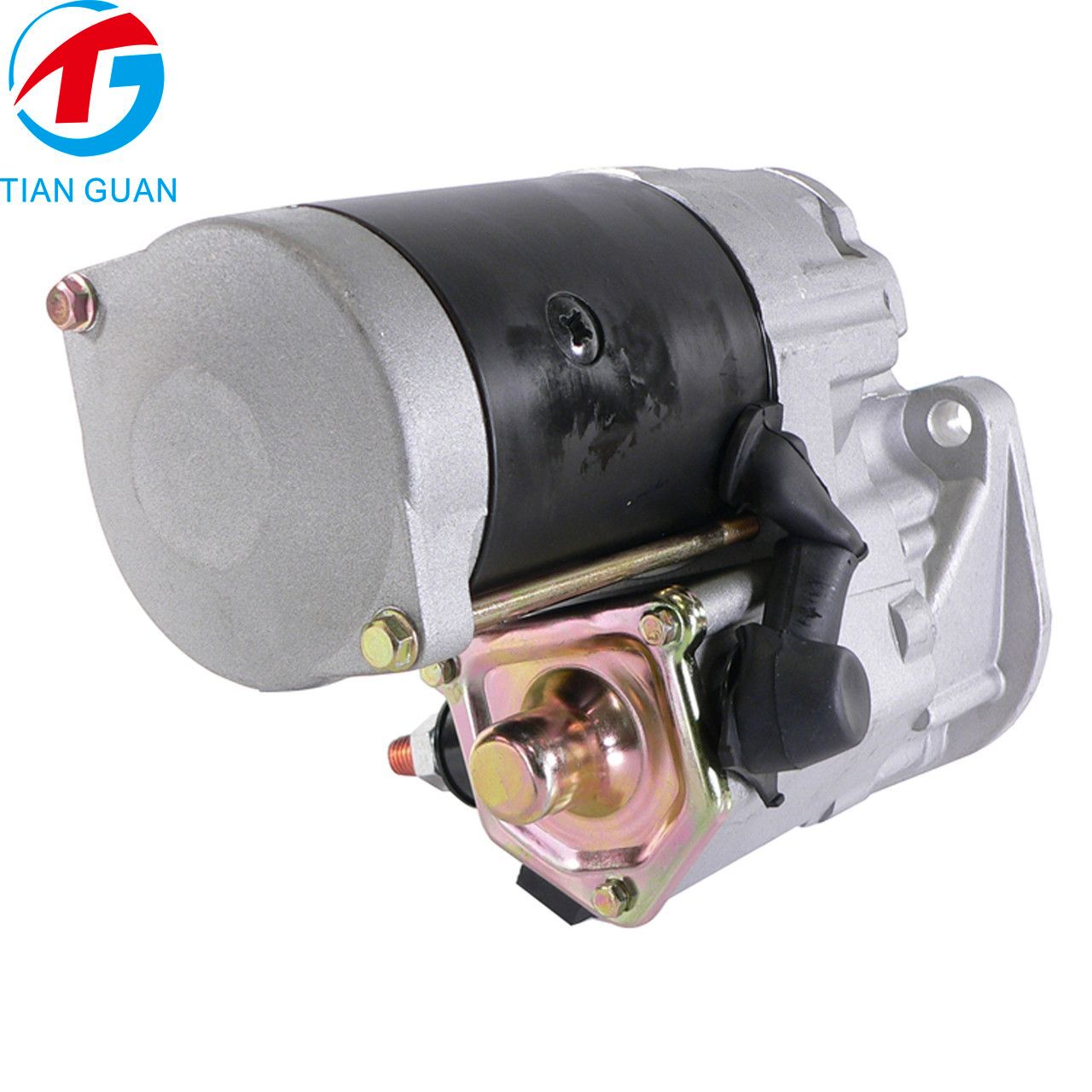

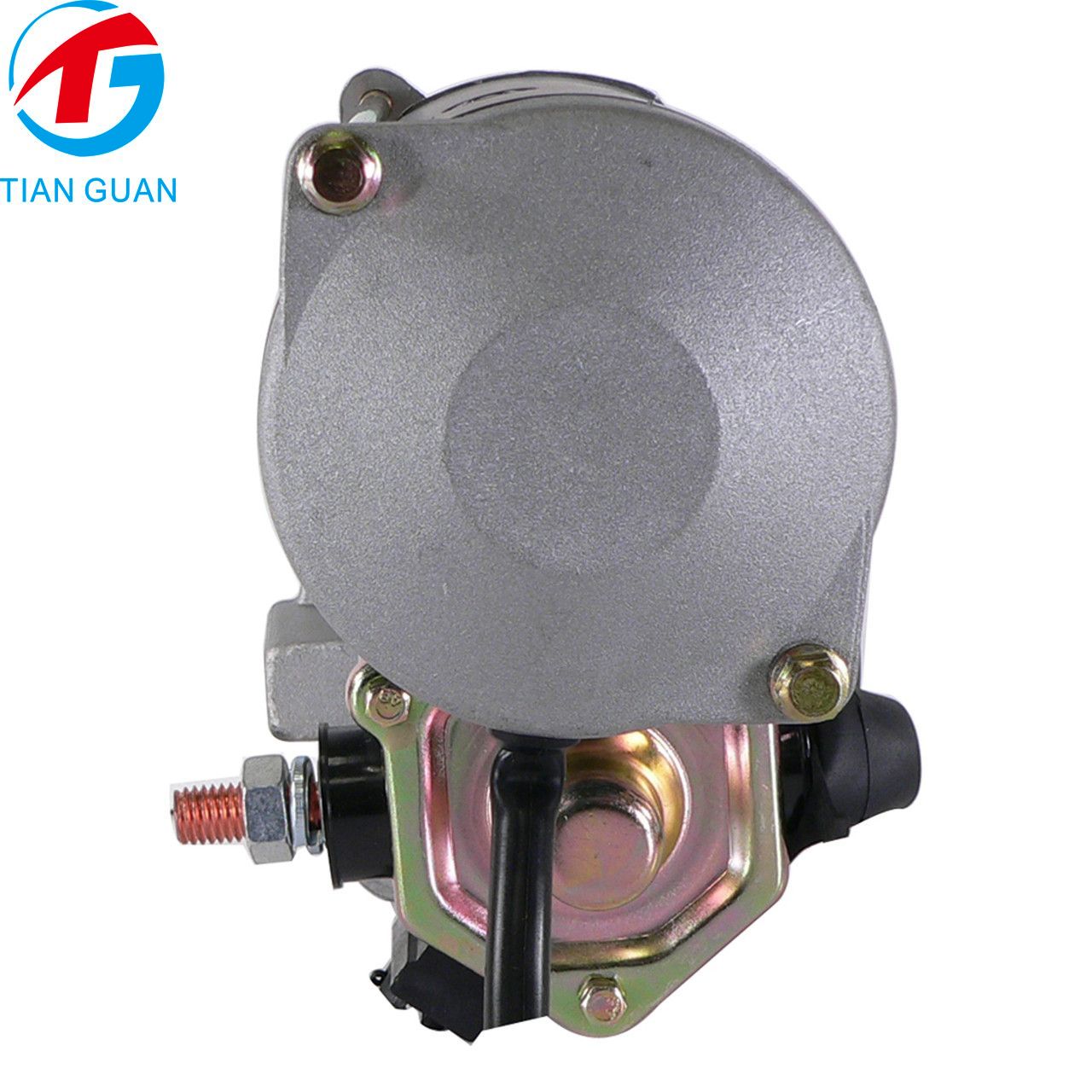

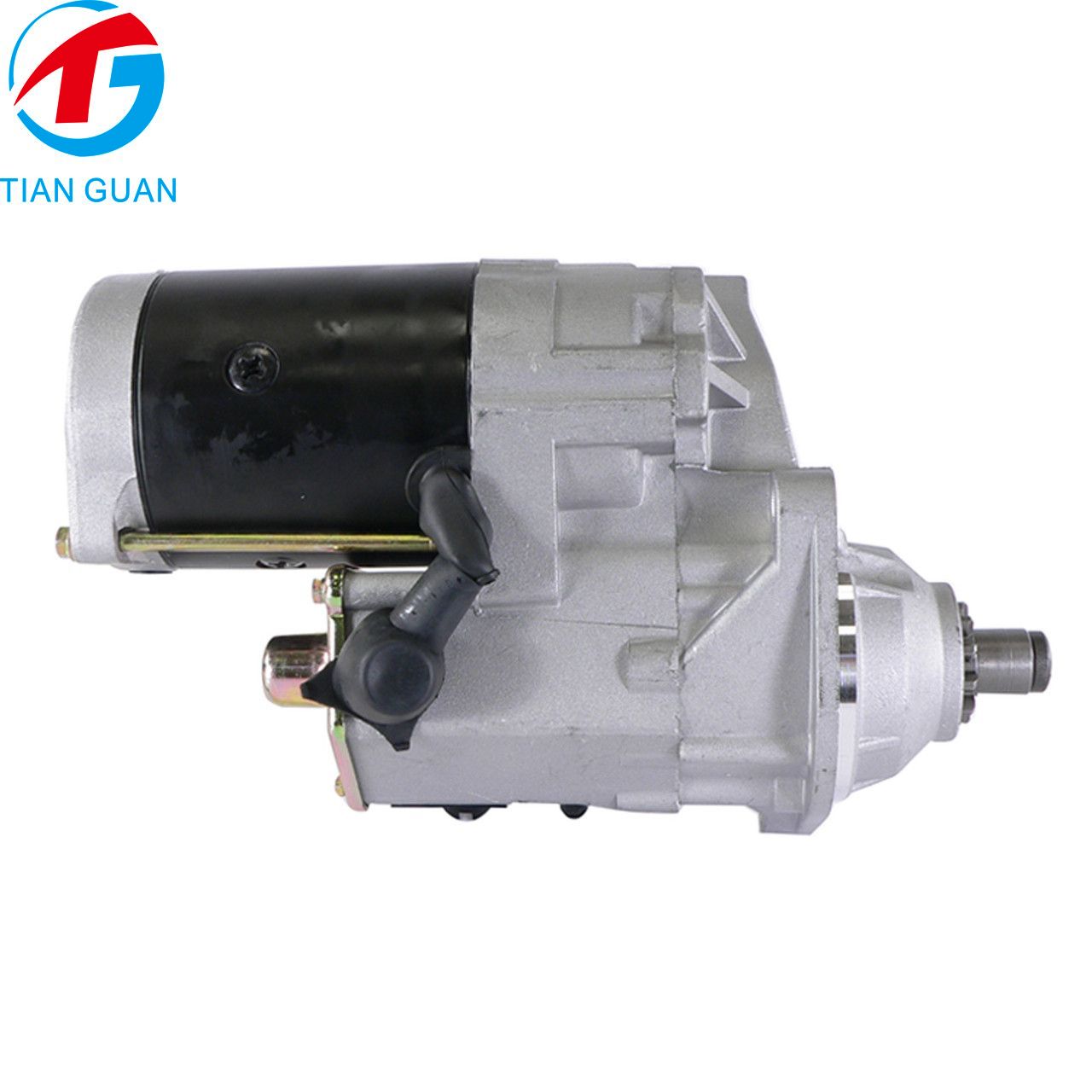

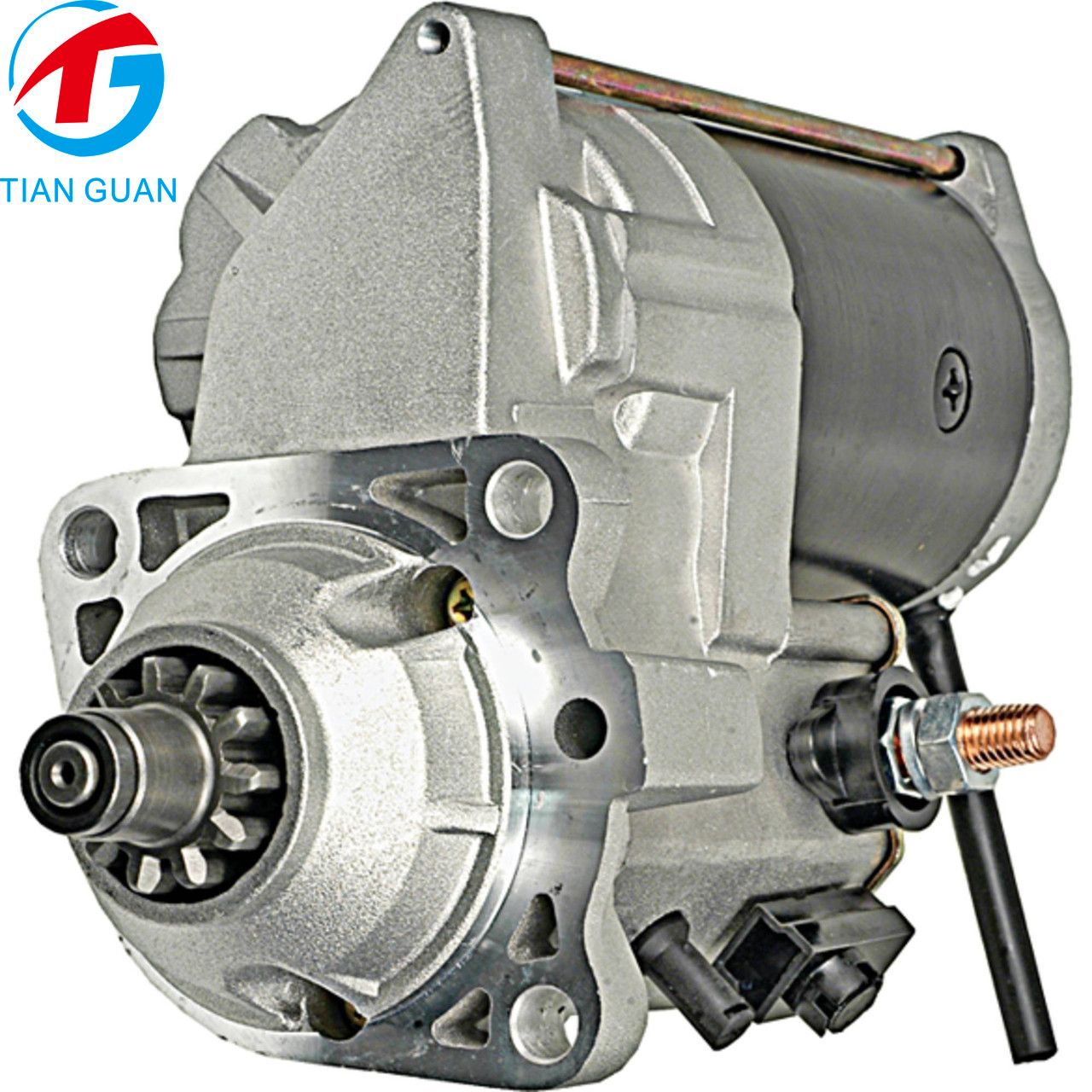

Starter Motor 410-52122 228000-6550 228000-6551 228000-6552 18455 18455N for John Deere 1450 1550 7455 7460 450G 455G 550G 555G 650G

Part Numbers

ARROWHEAD: SND0363, 410-52122

ARROWHEAD (OEM): ND228000-6552

DENSO: 228000-6550, 228000-6551, 228000-6552

J & N: 410-52122

JLG: 7026921

JOHN DEERE: RE70474, RE70960, RE79474, SE501405, TY24441

LESTER: 18455

WAI: 2-2973-ND

Product Description

This Starter Motor is a high-quality aftermarket replacement starter designed for a wide range of John Deere agricultural, construction, forestry, marine and industrial equipment. It features a 12V electrical system, 4.8kW output, 11-tooth pinion, clockwise rotation and OSGR starter design.

The starter is a replacement for the specified Denso 228000-6550, 228000-6551 and 228000-6552 units and is compatible with various John Deere combines, cotton pickers, crawlers, marine engines, loaders, sprayers and windrowers.

• Unit Type: Starter

• Part Type: Unit

• Voltage: 12V

• Power: 4.8 kW

• Rotation: CW

• Teeth: 11T

• Starter Type: OSGR

• Application: John Deere Equipment

• Condition: Aftermarket

• Weight: 10.6 kg

Specifications

Fitment

John Deere Combines: 1450 CWS, 1550 CWS.

John Deere Cotton Pickers: 7455, 7460 with John Deere 6.8L engine, 9935.

John Deere Crawlers: 450G 1993-On with JD 4045D 70HP Diesel, 455G with JD 4.5L 70HP Diesel, 550G 1993-On, 555G with JD 4.5L 90–99HP Diesel, 650G 1993-On.

John Deere Marine Engines: 4039DFM Code 3007, 4039DFM Code 3017, 4045DFM50 Code 3010, 4045TFM Code 3007, 4045TFM Code 3017.

John Deere Loaders: 324H, 330B Log Loader, 335 Log Loader, 335C Log Loader with JD 6.8L 170HP Diesel, 344H, 344J with JD 4.5L 97HP Diesel, 430B Log Loader, 435 Log Loader, 435C Log Loader, 437C Log Loader.

John Deere Sprayer: 6700.

John Deere Windrower: 4990.
