STG50283 Starter Motor AM875415 AM876224 AM877284 AM879743 MIA10300 for John Deere Cub Cadet Yanmar Diesel Engines
Replacement Part Number
| Brand | Part Number |
|---|
| ANDRE NIERMANN | 15735, 17110 |
| API MARINE | 17007 |
| ARROWHEAD (OEM) | IMI214-005, IMI25214-005, ND228000-7111, ND9722809-711 |
| ARROWHEAD | SND0399, 410-52151 |
| ATLANTIC | 1400-0132 |
| BARSANCO | 610-18178 |
| BOBCAT | 6649225 |
| CARGO | 110485, 112374 |
| CUB CADET | CY-129429-77011 |
| DENSO | 128000-7300, 128000-7301, 228000-7110, 228000-7111 |
| DENSO REMAN | 9722809-711 |
| DIXIE | S-80001, S-8868 |
| DIXIE NEW | 246-20114 |
| EMP PARTS | APR-39 |
| EMS | 18178N |
| HITACHI | S13-41, S13-41A, S13-41B, S13-41C, S13-41D, S13-78 |
| J & N | 410-44037, 410-44037R, 410-52151, 410-52339 |
| JOHN DEERE | AM875415, AM876224, AM877284, AM879743, MIA10300, TY25234, TY25235 |
| KOMATSU | YM121254-77010, YM121254-77011 |
| LESTER | 18178, 18204 |
| LUCAS ELECTRICAL EUROPE | LRS02730 |
| MINNPAR | 57-1312 |
| PIC | 190-505B, 190-505C |
| RCP | ST-18178 |
| TAKEUCHI | T12125477010, T12125477011, T12125477012 |
| WAI | 18178N, 2-2016-HI |
| WILSON / WILSON HD | 91-29-5325 |
| WOOD AUTO | STR70004 |
| YANMAR | 121254-77010, 121254-77011, 121254-77012, 121254-77019, 129429-77010, 129429-77011, 171058-77010, YM129429-77010 |
Specification
| Item | Specification |
|---|
| Product Type | Starter Motor |
| Condition | Aftermarket Part |
| Voltage | 12V |
| Power | 2.0KW |
| Rotation Direction | CW (Clockwise) |
| Teeth | 15T |
| Starter Type | OSGR |
| Application | John Deere / Cub Cadet / Yanmar Diesel Engines |
| Weight | 6.3 KG |
Compatible Engines
Yanmar 3T84
Yanmar 3TN82
Yanmar 3T95
Yanmar 4T95
Yanmar 4T95T
Yanmar 4TN82
Yanmar 4TN84
Yanmar 4TNE84
Yanmar 4TNV88
Yanmar 4LH-DTE
Yanmar 4LH-HTE
Yanmar 4LH-STE
Yanmar 4LH-TE
Yanmar 4LHA-DTE
Yanmar 4LHA-DTZ
Yanmar 4LHA-HTE
Yanmar 4LHA-HTZE
Yanmar 4LHA-STE
Yanmar 4LHA-STZE
Yanmar KM5A
Applications
Cub Cadet
John Deere Skid Steer Loaders
575 – 1987-1994 – Yanmar 33HP Diesel
6675 – 1994-1998 – Yanmar 42HP Diesel
675 – 1987-1989 – Yanmar 4TNA82
675B – 1987-1994 – Yanmar 4TNA82
7775 – 1994-1998 – Yanmar 49HP Diesel
John Deere Tractor Loaders
John Deere Utility Tractors
1070 – 1989-1996 – Yanmar 4TN84 Diesel
4005 – Yanmar 41.5HP Diesel
4044M – Yanmar 43.1HP Diesel
4044R – Yanmar 43.1HP Diesel
4052M – Yanmar 51.5HP Diesel
4052R – Yanmar 51.5HP Diesel
4066M – Yanmar 65.9HP Diesel
4066R – Yanmar 65.9HP Diesel
4500 – Yanmar 39HP Diesel
4510 – Yanmar 39HP Diesel
4600 – Yanmar 43HP Diesel
4610 – Yanmar 44HP Diesel
4700 – Yanmar 48HP Diesel
4710 – Yanmar 48HP Diesel
990 – Yanmar 4TNE84 Diesel
Yanmar Engines & Equipment
3D84-1C Engine
3T95 Engine
4T95 Engine
4T95T Engine
4TN82 Engine
4TN84 Engine
4LH Series Marine Engines
KM5A Marine Engine
YM6000 Tractor – 3T95 / 4T95 Engine
YM7000 Tractor – 4T95 Engine
Various Yanmar Generator Sets
Various Yanmar Tractors
About This Item

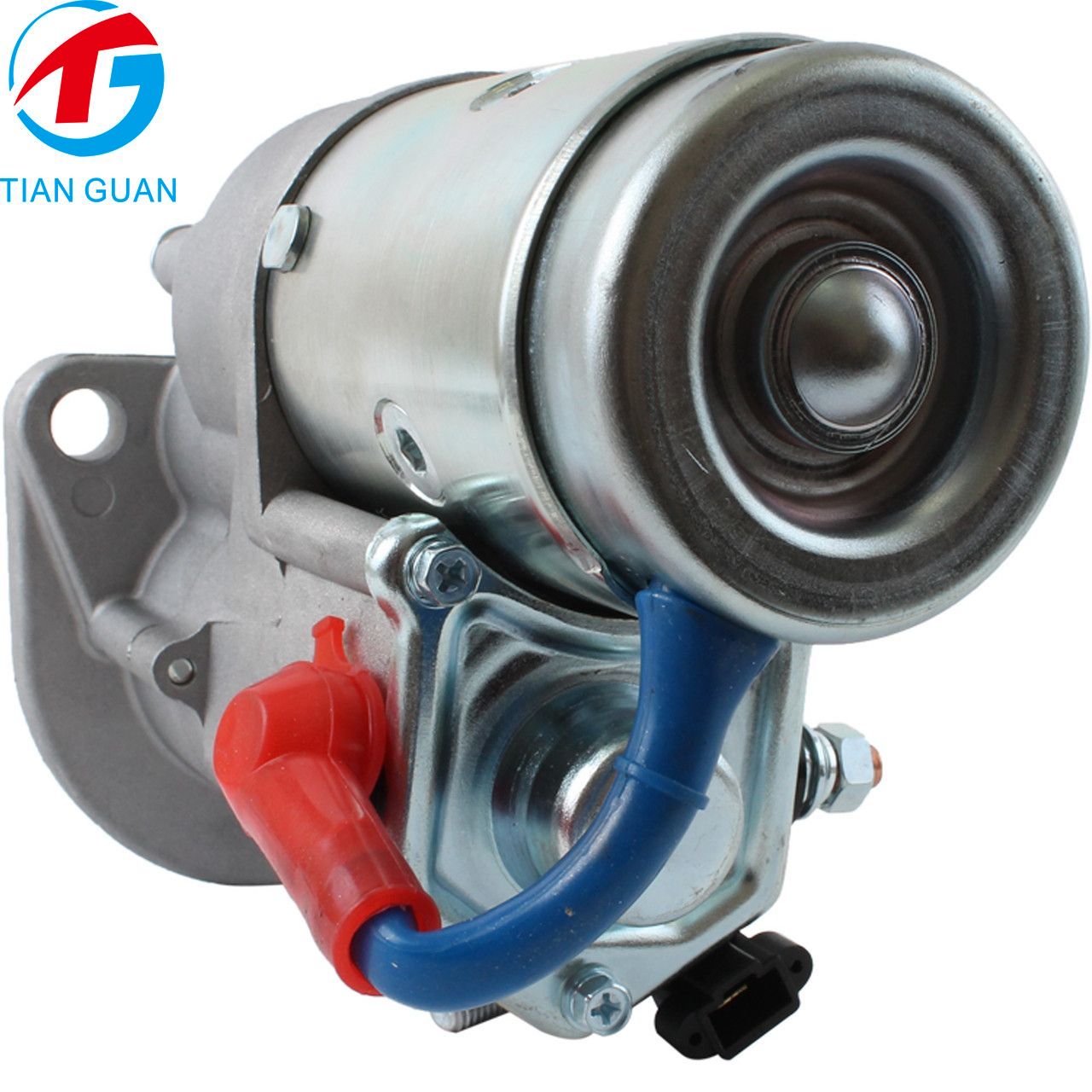

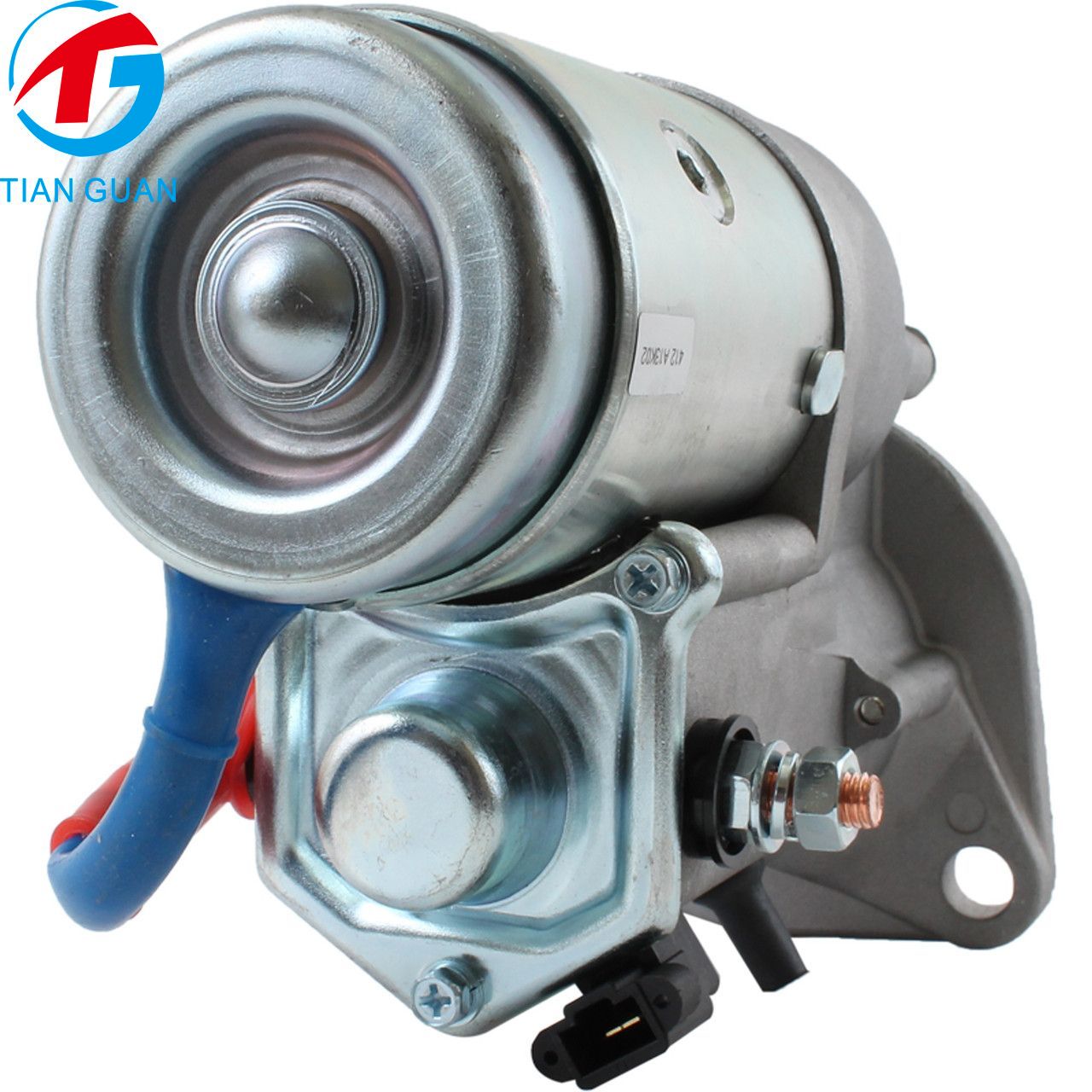

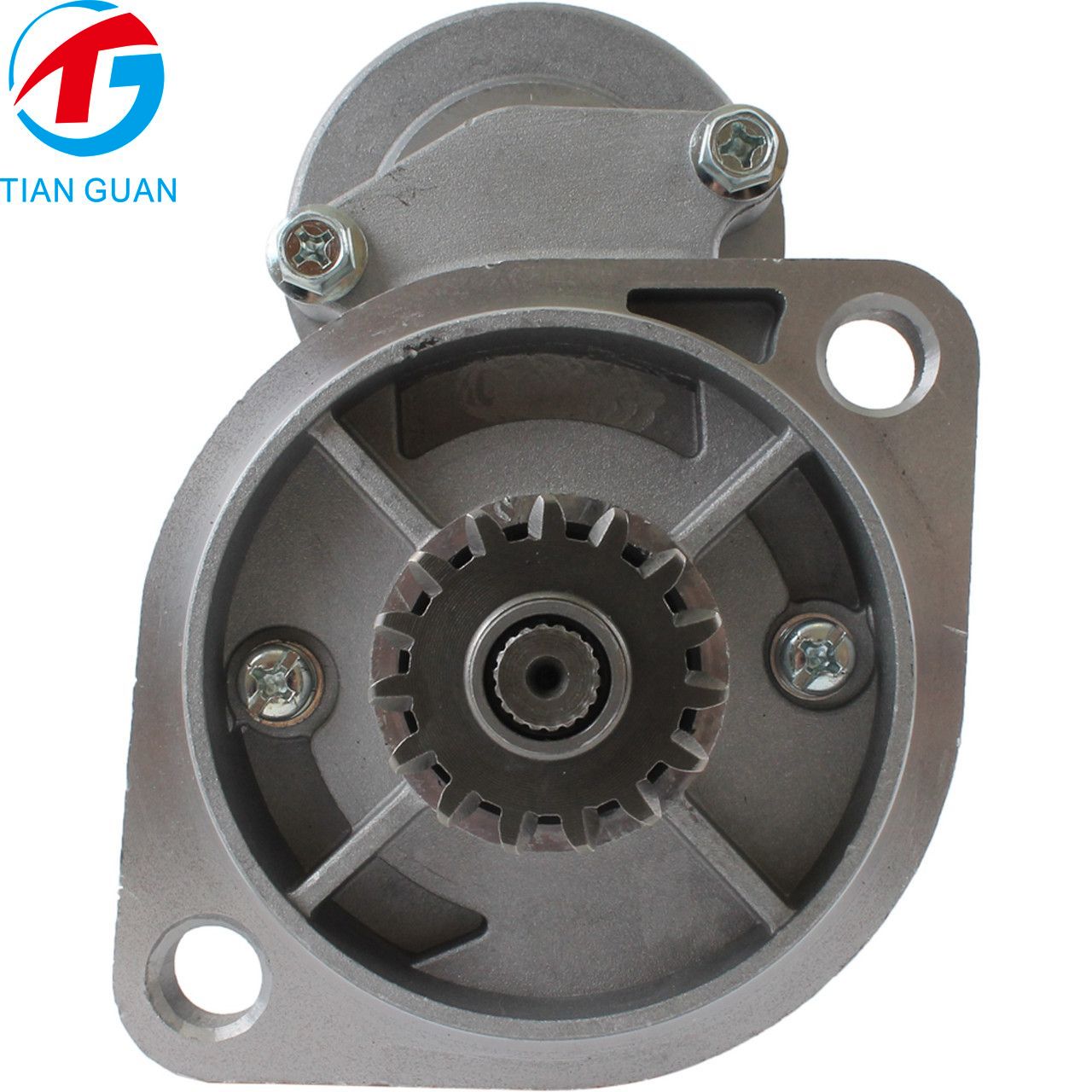

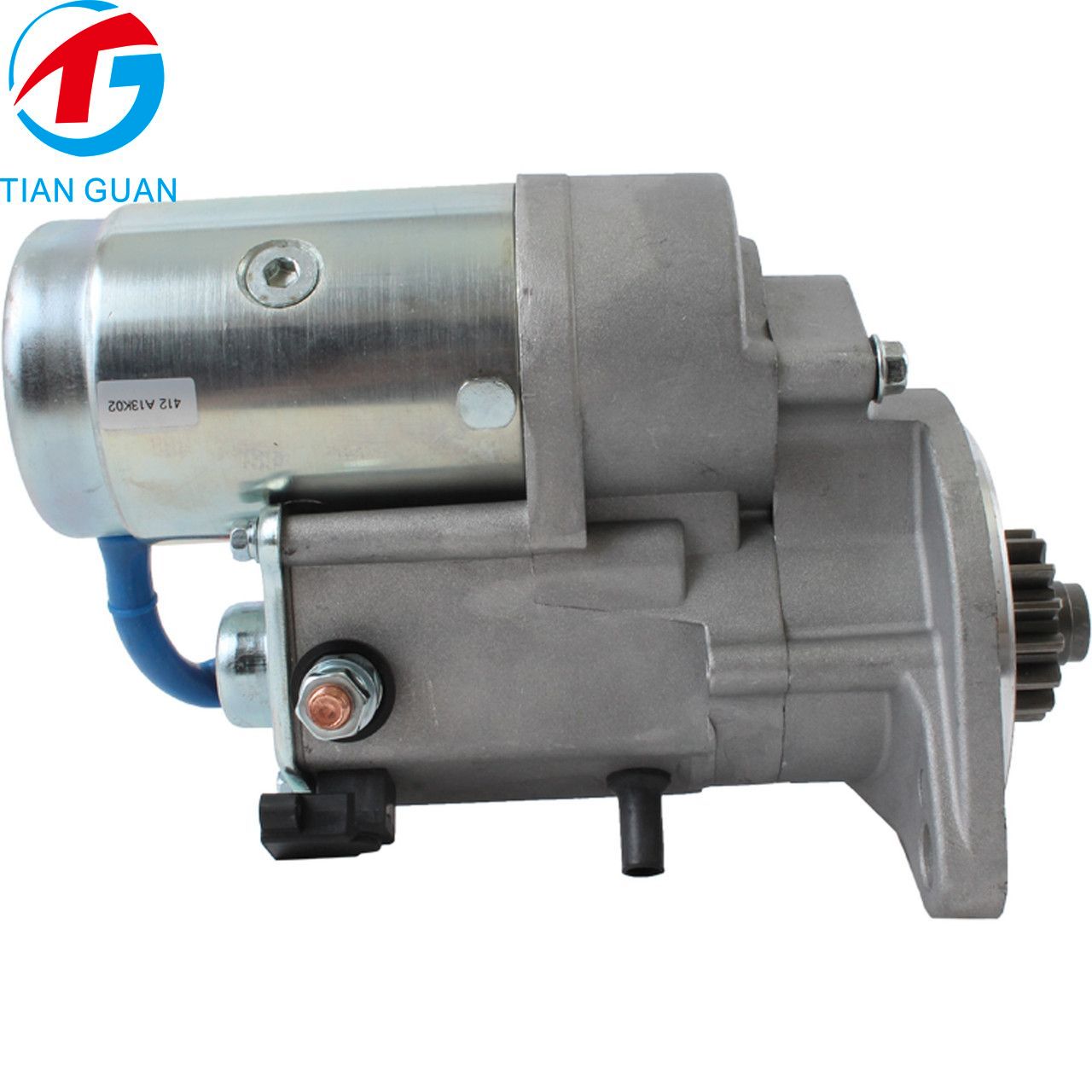

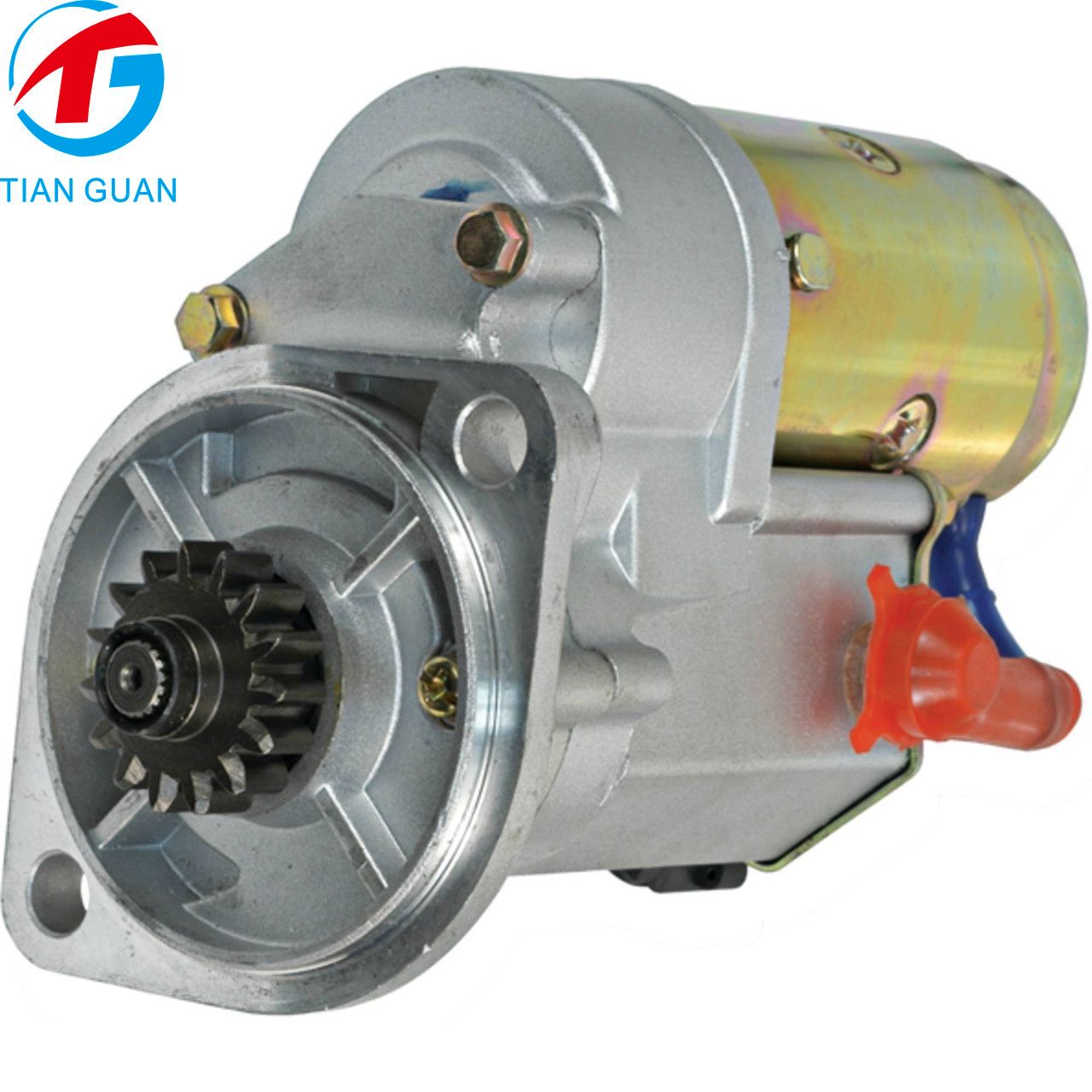

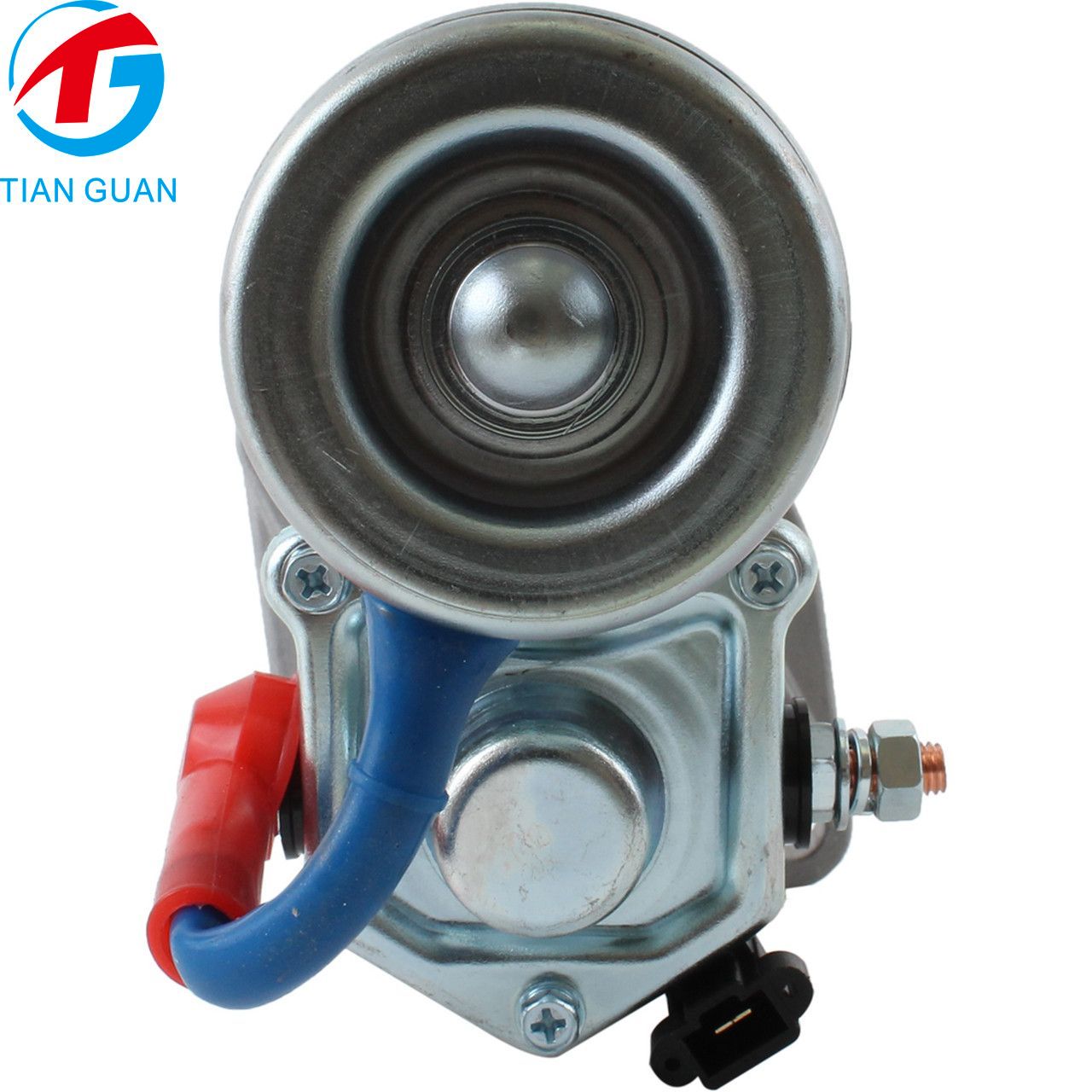

This 12V 2.0KW Starter Motor is an aftermarket replacement starter featuring an OSGR design, clockwise rotation and 15-tooth pinion. It is designed for a wide range of Yanmar diesel engines and compatible John Deere and Cub Cadet equipment.
The starter cross-references multiple part numbers from John Deere, Yanmar, Hitachi, Denso, Arrowhead, Lester, WAI and other manufacturers, making it suitable for replacement and repair applications.
Product Highlights
| Feature | Description |
|---|
| 12V / 2.0KW | Provides reliable engine cranking power for compatible diesel engines |
| 15T CW Pinion | 15-tooth pinion with clockwise rotation for proper engine engagement |
| OSGR Design | Heavy-duty starter configuration for agricultural, marine and industrial applications |
| Wide Compatibility | Fits selected John Deere, Cub Cadet and Yanmar equipment |
| Aftermarket Replacement | Designed as a replacement for compatible original starter motors |
Package Includes
Compatibility Note
Please verify the original starter part number, engine model, voltage, power, rotation direction, teeth count, mounting configuration and electrical connections before ordering.
Some listed applications cover multiple production years and engine configurations. Please confirm the original starter number before purchase to ensure proper fitment.
