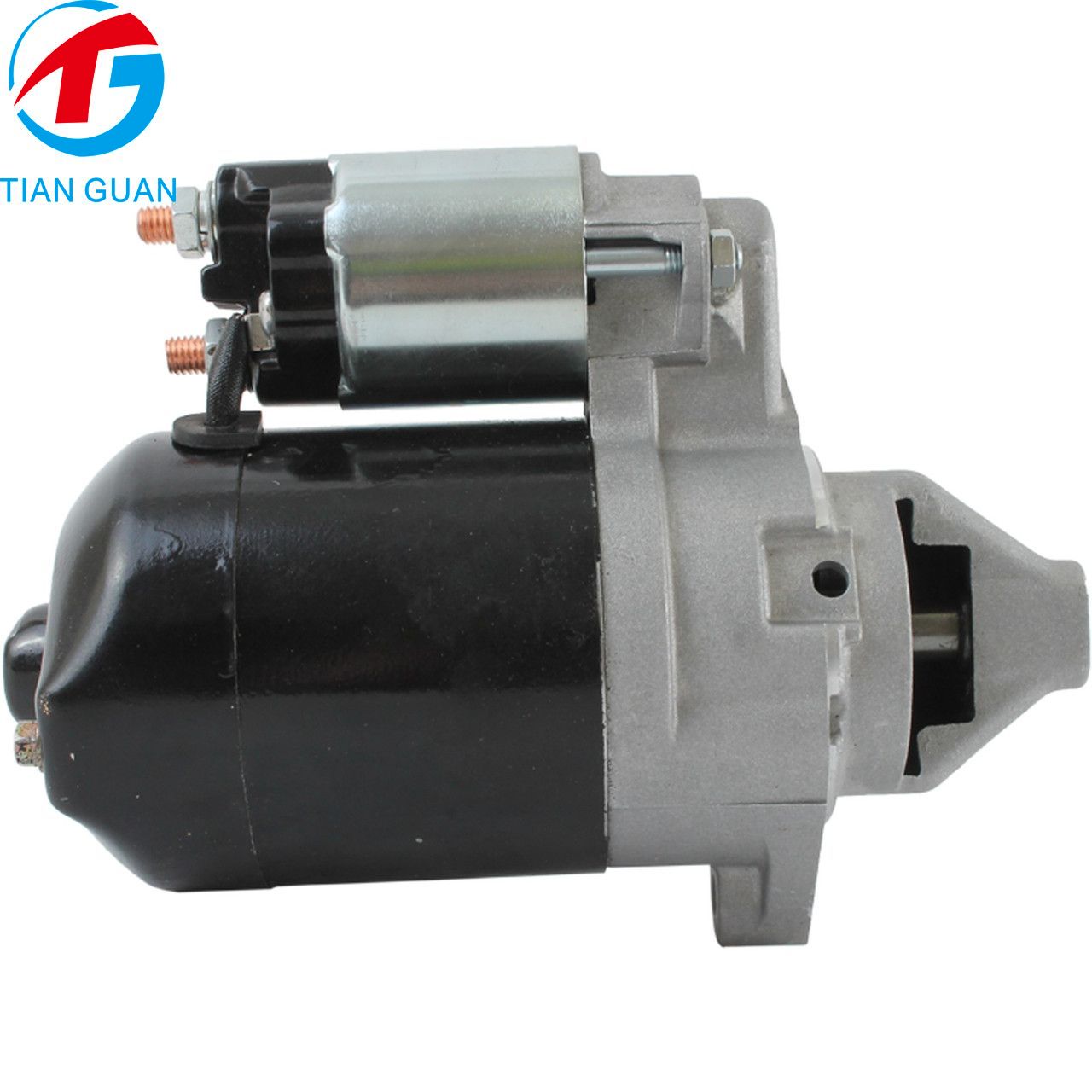

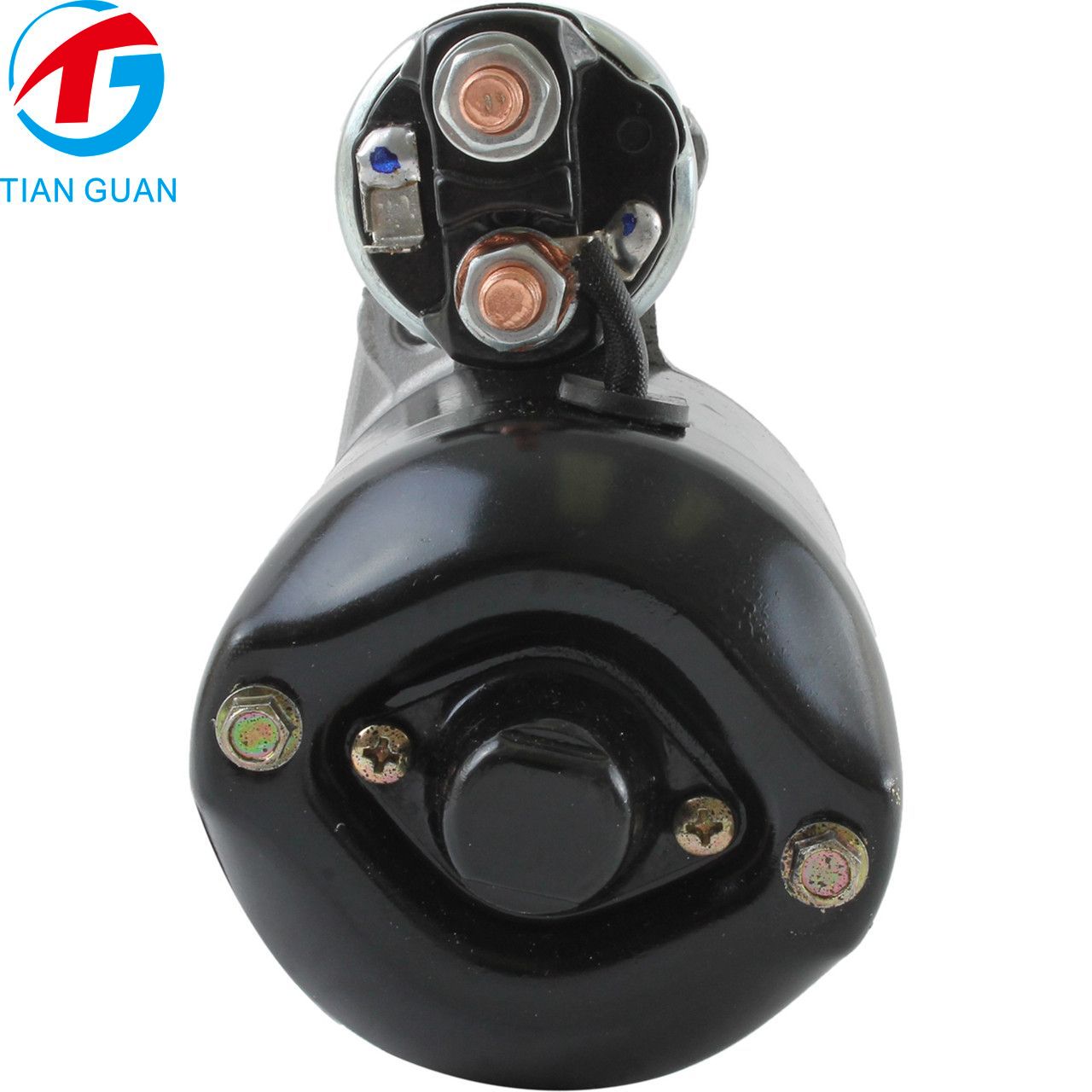

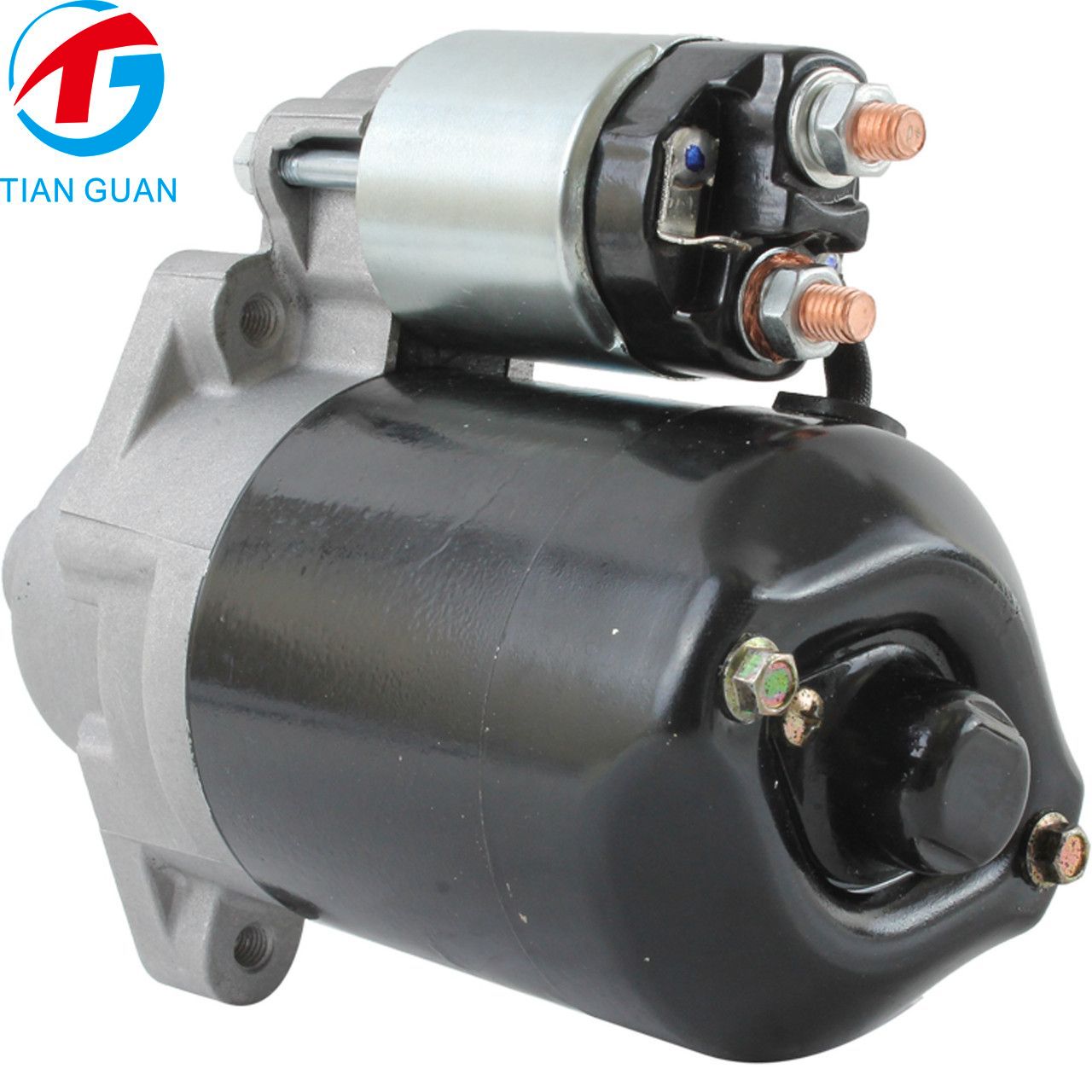

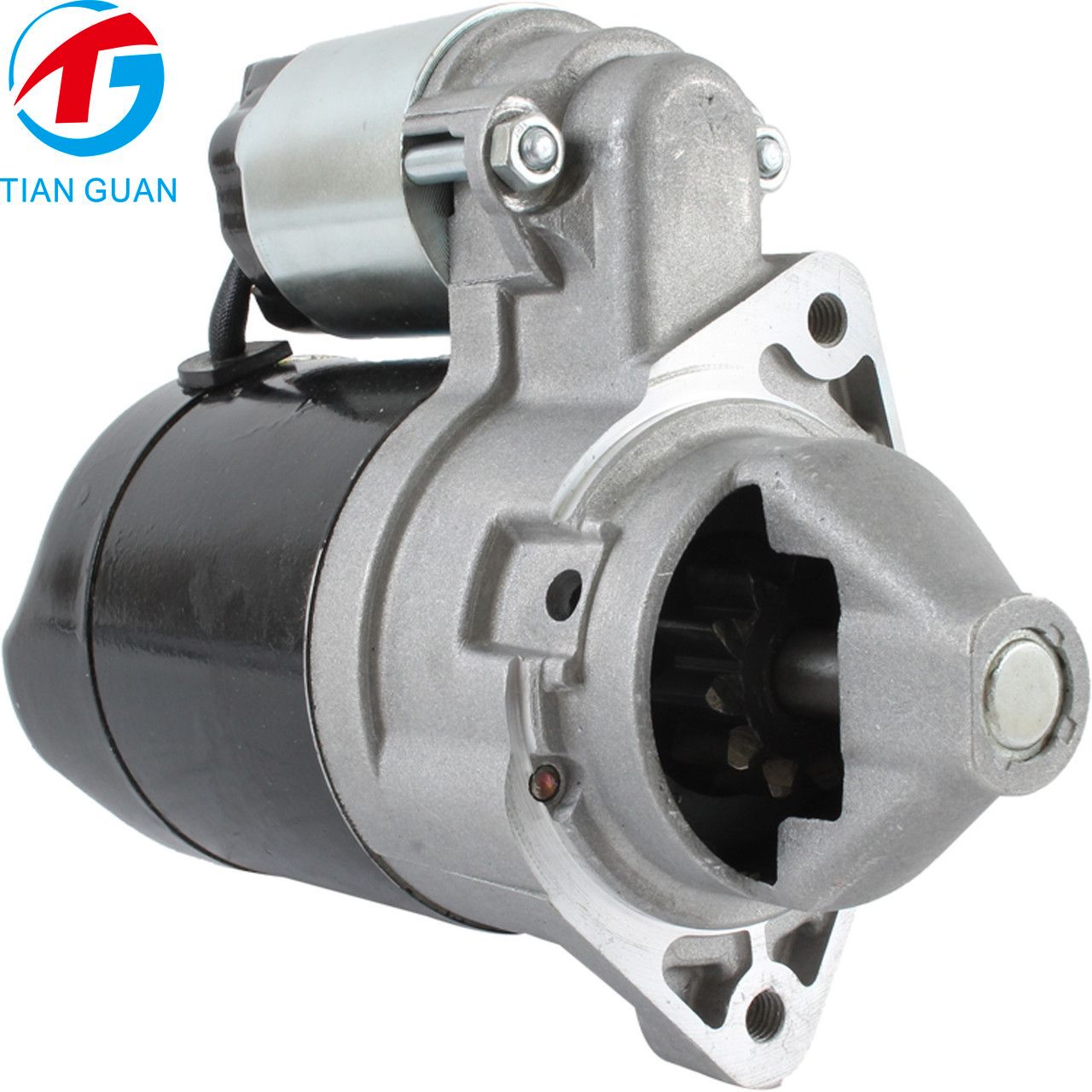

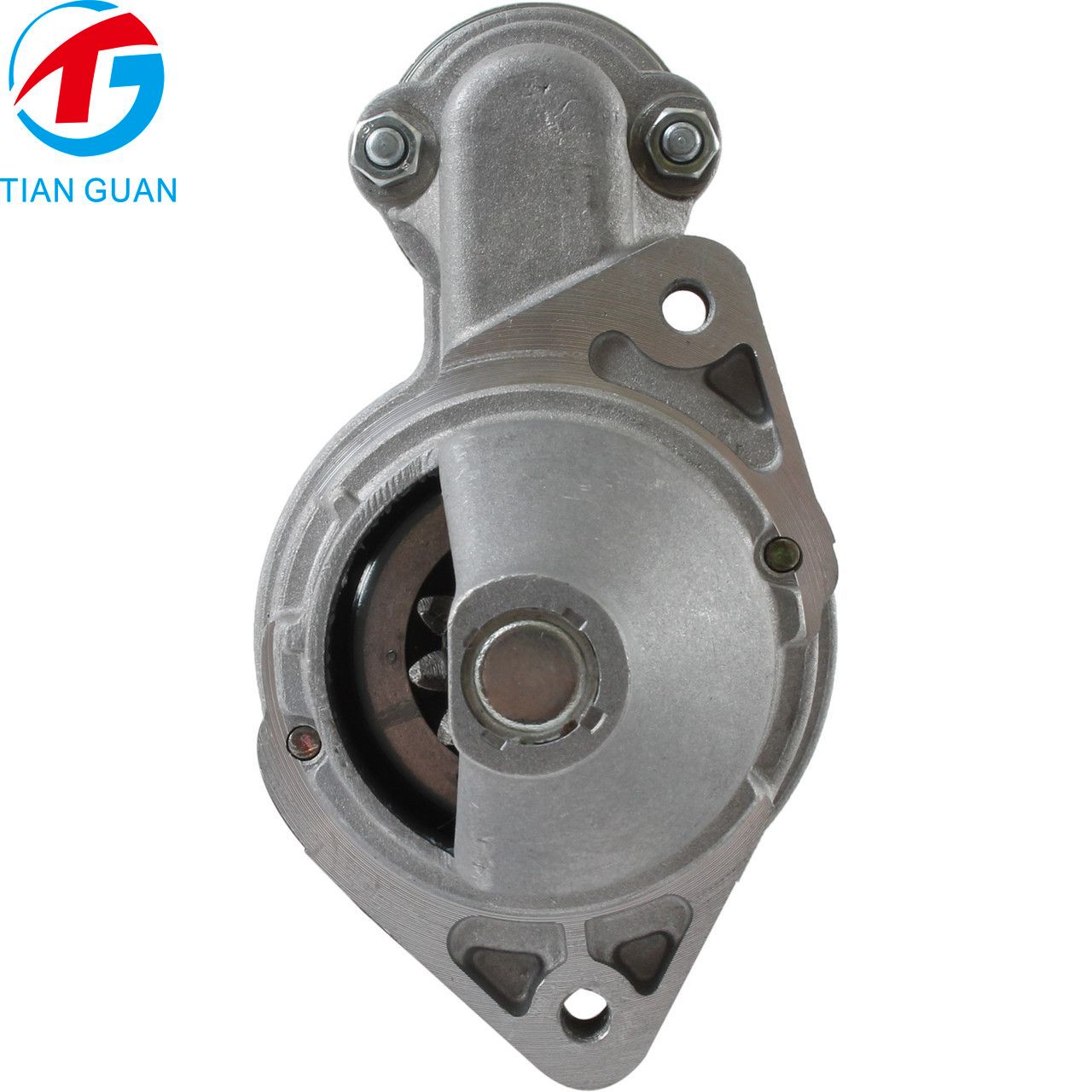

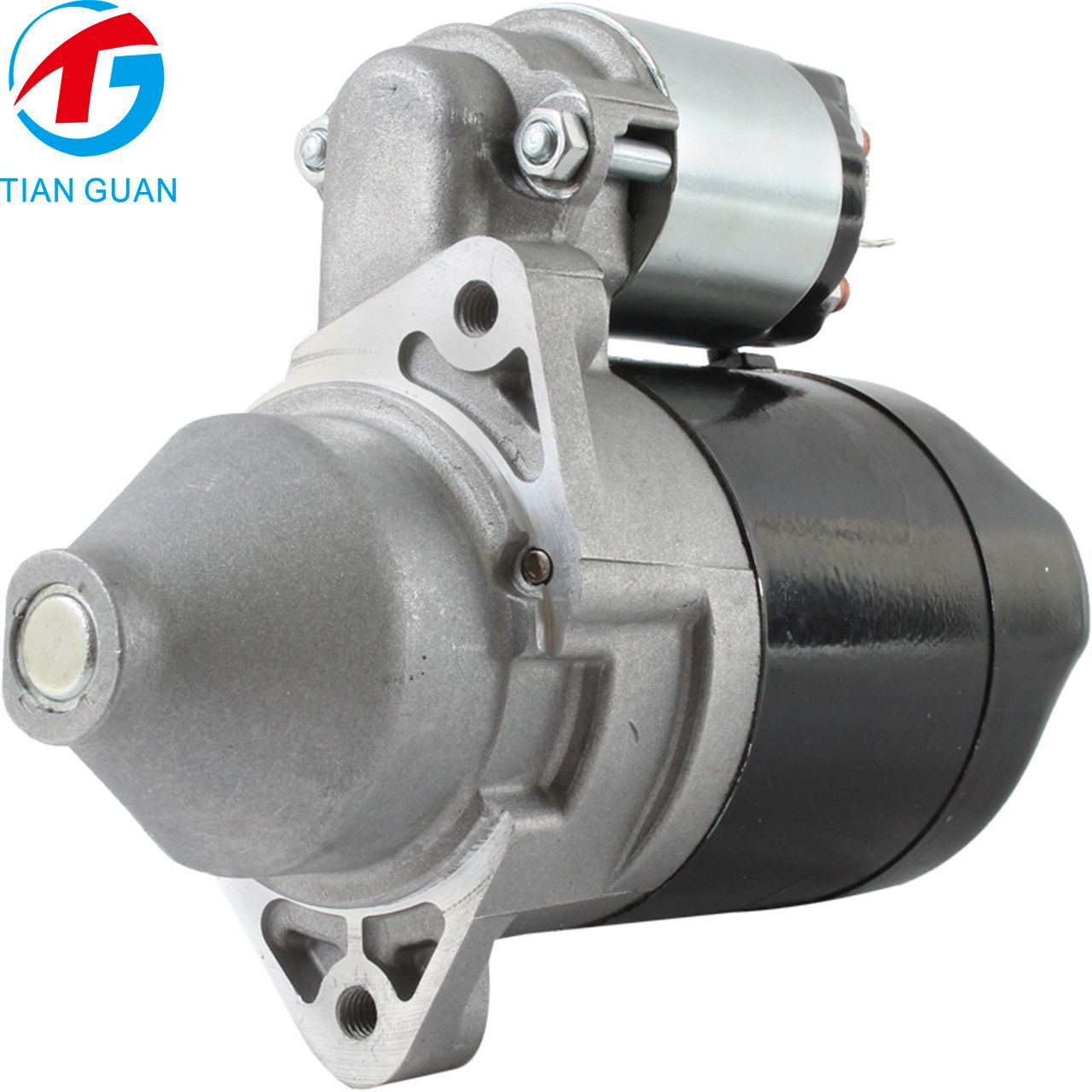

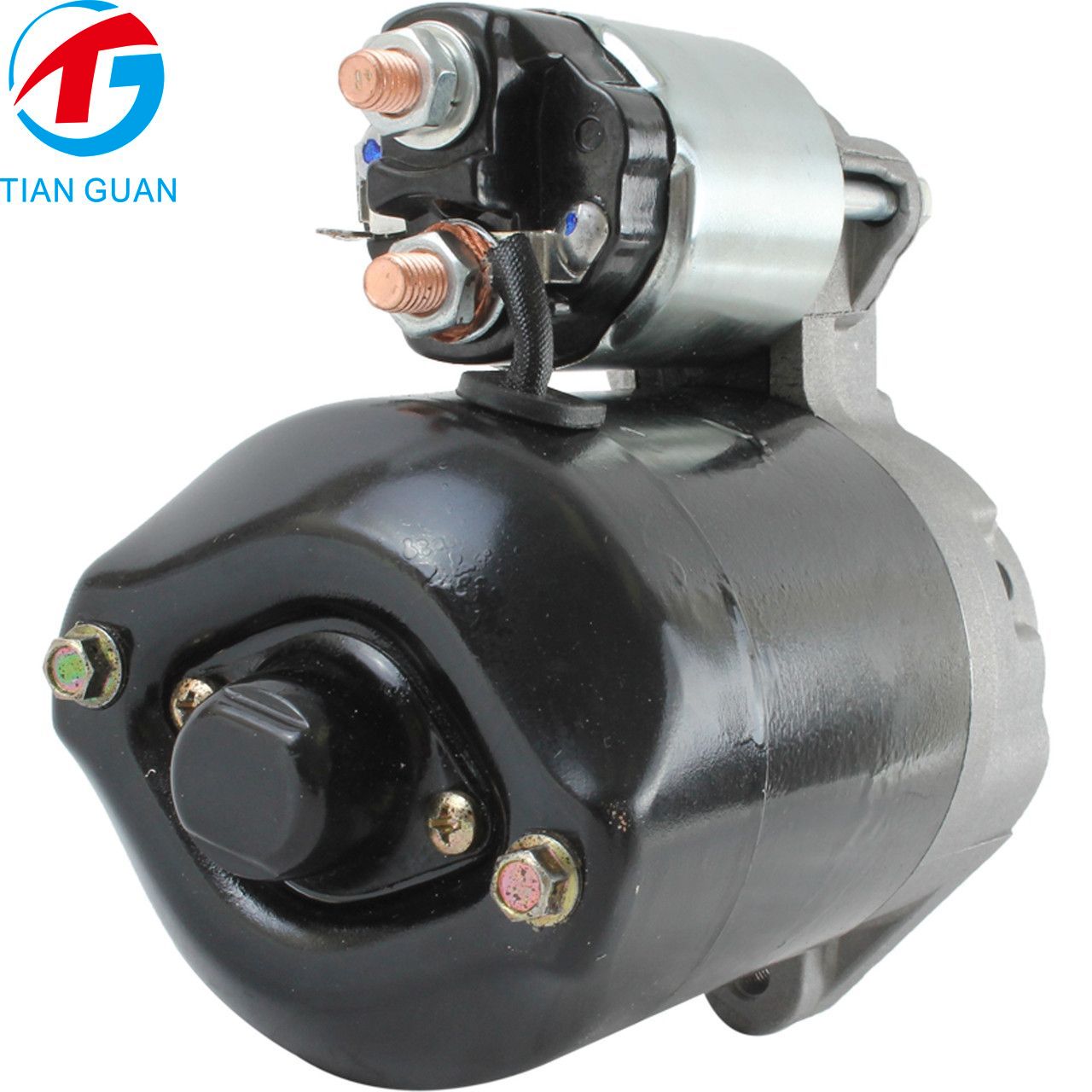

STG50477 Starter Motor AM102382 AM106948 128000-2810 KW10552 for John Deere F525 180 185 260 265 Toro | 12V 0.8KW 11T CCW DD Replacement

3 Reviews

Add Your Review

US$132.00

ITEMNO： STG50477

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS




    STG50477 Starter Motor AM102382 AM106948 128000-2810 KW10552 for John Deere F525 180 185 260 265 Toro | 12V 0.8KW 11T CCW DD Replacement

    Part Numbers

    John Deere: AM102382 / AM106948 / AM105948

    Kawasaki: 21163-2069 / 21163-2085

    Denso: 128000-2810 / 128000-7070

    Product Description

    STG50477 Starter Motor is a new aftermarket replacement designed for selected John Deere lawn mowers, garden tractors, and Toro lawn tractors equipped with compatible Kawasaki gasoline engines.

    Featuring a 12V, 0.8KW, 11-tooth, counterclockwise-rotation Direct Drive (DD) design, this starter motor provides dependable cranking performance for lawn and garden equipment.

    The starter is cross-referenced with John Deere AM102382 and AM106948, Kawasaki 21163-2069 and 21163-2085, Denso 128000-2810 and 128000-7070, and Lester 18000. Compatible applications include the John Deere F525 and selected 180, 185, 260, and 265 tractors, along with certain Toro models. Verify the original starter's tooth count and mounting configuration before ordering.

    Product Specifications

    PropertyValue
    Product ModelSTG50477
    Part NumberAM102382 / AM106948
    Unit TypeStarter
    Product TypeLawn Mower / Garden Tractor Starter
    Unit Type / BrandDENSO
    Voltage12V
    Power Output0.8KW
    Number of Teeth11T
    RotationCCW
    Starter TypeDD (Direct Drive)
    Gear Outside Diameter35.9mm / 1.413in
    Overall Length154.5mm
    Engine TypeKawasaki Gasoline Engine
    Compatible Engine ModelKawasaki FC540V
    ApplicationLawn Mower / Garden Tractor
    ConditionNew Aftermarket
    Weight4.4 kg

    OEM / Cross Reference Table

    Brand / CategoryPart Number
    John DeereAM102382 / AM106948 / AM105948
    Kawasaki21163-2069 / 21163-2085
    Denso128000-2810 / 128000-7070
    ArrowheadSND0286 / ND128000-2810 / ND128000-7070
    Lester18000
    ToroKW10552 / KW10716 / KW10744
    DelcoRS41284

    Compatible Applications

    MAKETYPE MODEL YEAR ENGINE
    JOHN DEEREMisc. Lawn Equipment (By Engines)Various ModelsAllKawasaki 17HP #112001- ON
    JOHN DEEREMowers - FrontF5251990 - OnKawasaki 17HP
    JOHN DEEREMowers - Walk BehindCommercial ModelsAllKawasaki 17HP
    JOHN DEERETractor1851986Kawasaki Engine
    JOHN DEERETractor1851987Kawasaki Engine
    JOHN DEERETractor1851988Kawasaki Engine
    JOHN DEERETractor1851989Kawasaki Engine
    JOHN DEERETractor1851990Kawasaki Engine
    JOHN DEERETractors - Lawn1801986Kawasaki 17HP
    JOHN DEERETractors - Lawn1801987Kawasaki 17HP
    JOHN DEERETractors - Lawn1801988Kawasaki 17HP
    JOHN DEERETractors - Lawn1801989Kawasaki 17HP
    JOHN DEERETractors - Lawn1801990Kawasaki 17HP
    JOHN DEERETractors - Lawn1851986Kawasaki 17HP
    JOHN DEERETractors - Lawn1851987Kawasaki 17HP
    JOHN DEERETractors - Lawn1851988Kawasaki 17HP
    JOHN DEERETractors - Lawn1851989Kawasaki 17HP
    JOHN DEERETractors - Lawn1851990Kawasaki 17HP
    JOHN DEERETractors - Lawn2601988Kawasaki 17HP
    JOHN DEERETractors - Lawn2601989Kawasaki 17HP
    JOHN DEERETractors - Lawn2601990Kawasaki 17HP
    JOHN DEERETractors - Lawn2601991Kawasaki 17HP
    JOHN DEERETractors - Lawn2651988Kawasaki 17HP
    JOHN DEERETractors - Lawn2651989Kawasaki 17HP
    JOHN DEERETractors - Lawn2651990Kawasaki 17HP
    JOHN DEERETractors - Lawn2651991Kawasaki 17HP
    JOHN DEERETractors - Lawn2651992Kawasaki 17HP
    JOHN DEERETractors - Lawn2651993Kawasaki 17HP
    JOHN DEERETractors - Lawn2651994Kawasaki 17HP
    KAWASAKISmall EngineVarious ModelsAllFC540V Engine (Early)
    TOROTractors - Lawn227-5 Tractor1988Kawasaki 17HP
    TOROTractors - Lawn227-5 Tractor1989Kawasaki 17HP
    TOROTractors - Lawn227-5 Tractor1990Kawasaki 17HP
    TOROTractors - Lawn252-H Tractor1988Kawasaki 12.5HP
    TOROTractors - Lawn252-H Tractor1989Kawasaki 12.5HP
    TOROTractors - Lawn257-H Tractor1988Kawasaki 17HP
    TOROTractors - Lawn257-H Tractor1989Kawasaki 17HP

  • PRODUCT HIGHLIGHTS

    Product Highlights

    12V 0.8KW 11T DD StarterJohn Deere Lawn EquipmentKawasaki Engine Compatibility
    CCW Rotation DesignF525 / 180 / 185 / 260 / 265FC540V Engine Applications
    35.9mm Gear ODToro Lawn Tractor ApplicationsAM102382 / AM106948 Replacement
