STG50528 Starter Motor RE500819 for John Deere 5510 5615 5715 5715HC Tractor | 12V 3.0KW 11T CW PLGR Replacement

3 Reviews

Add Your Review

US$138.00

ITEMNO： STG50528

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

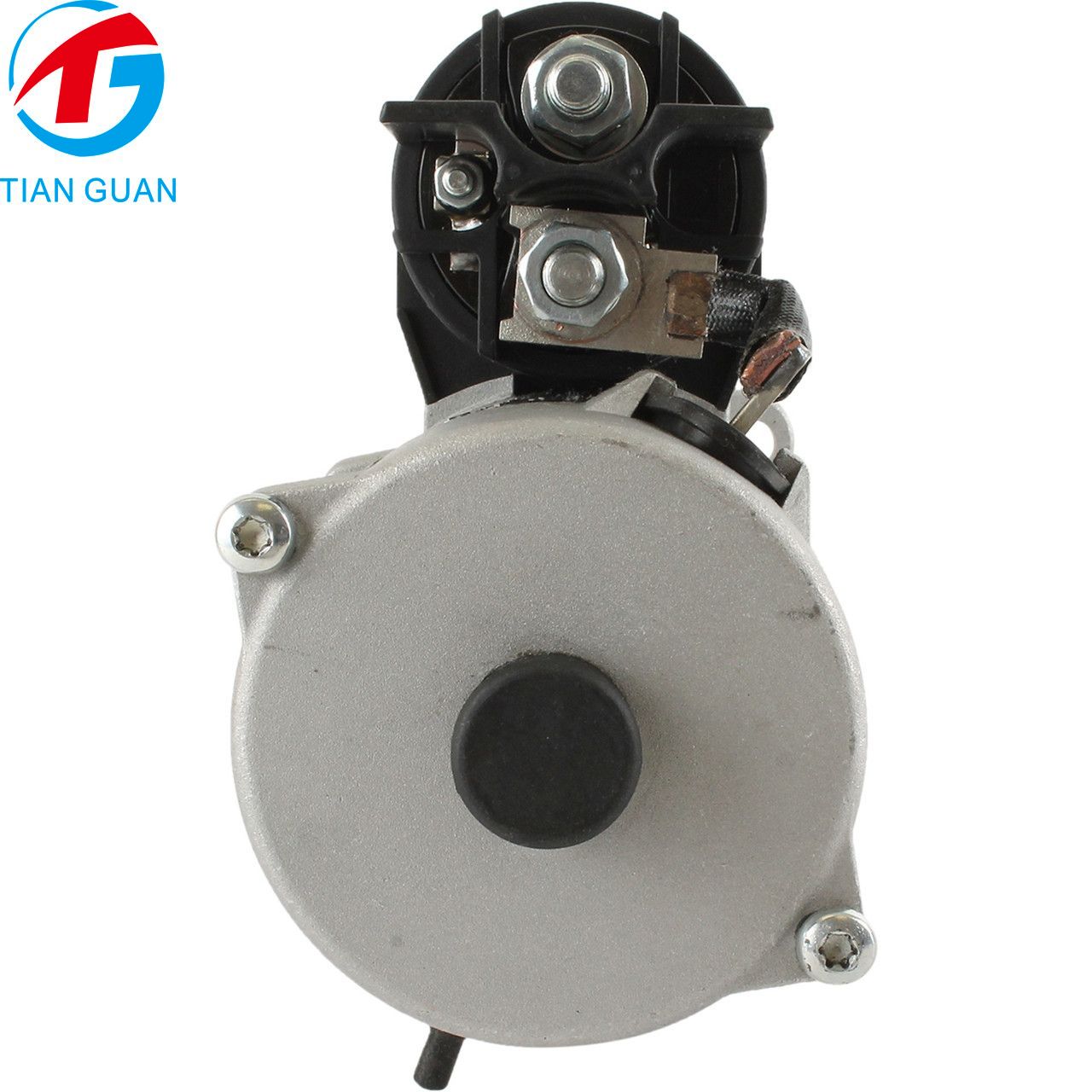

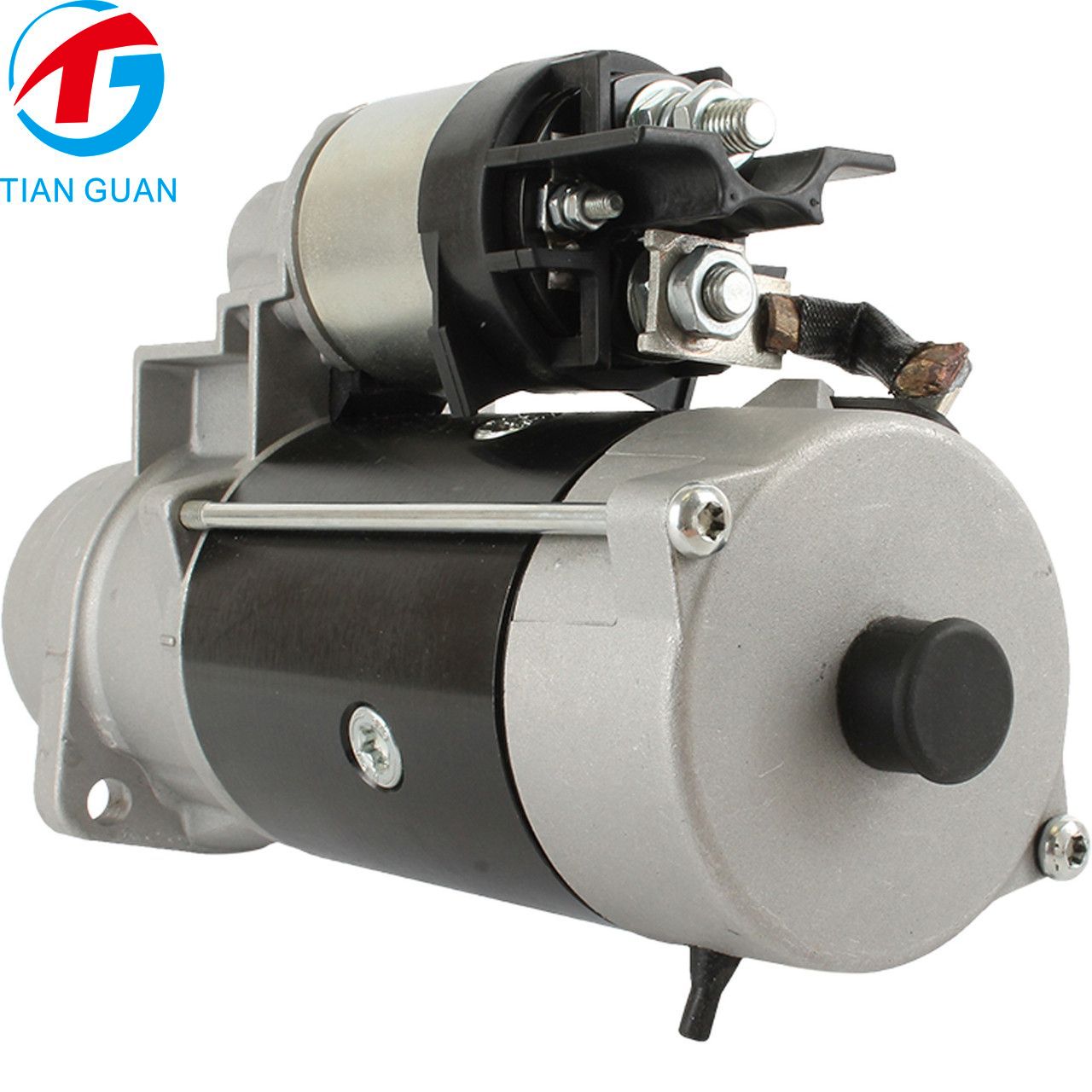

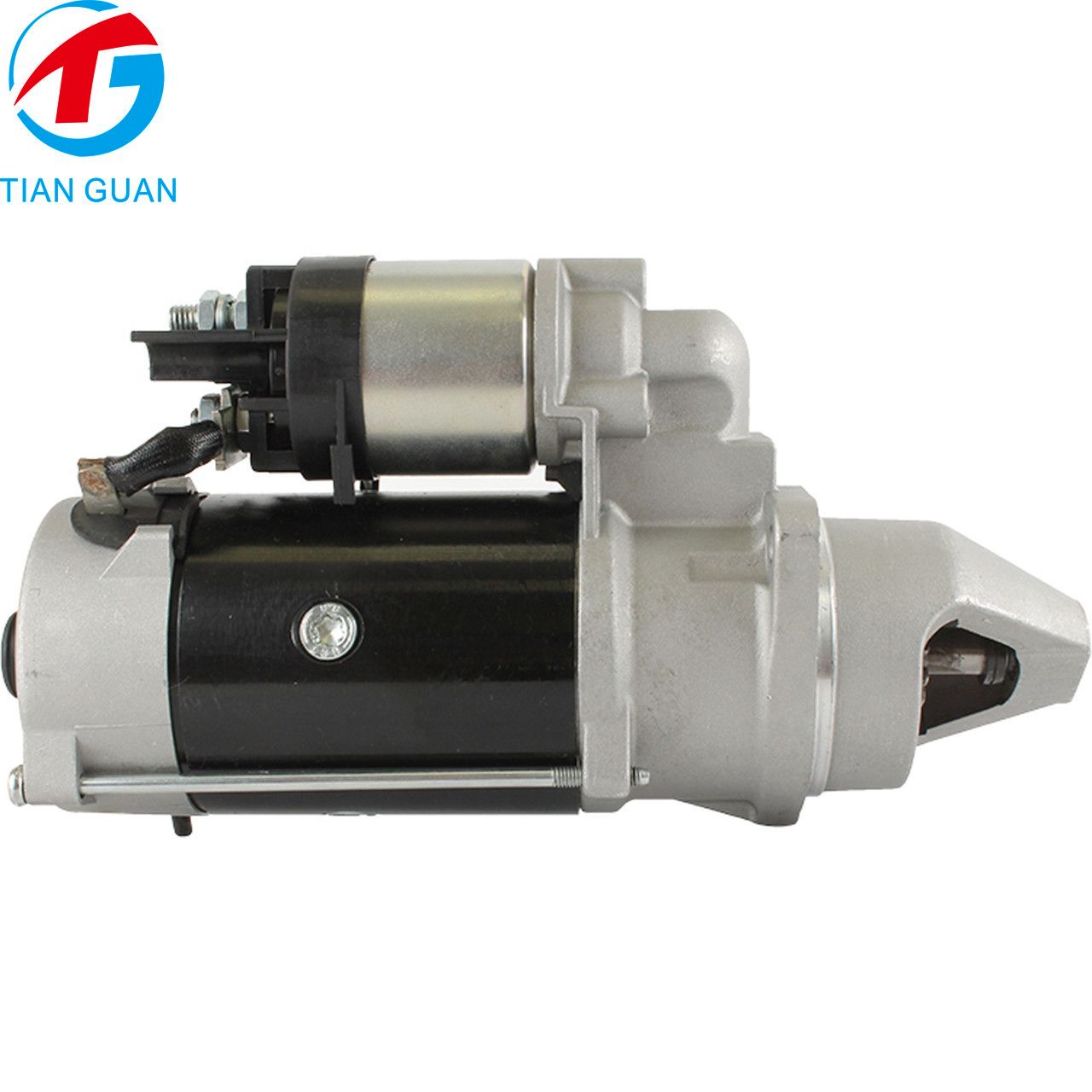

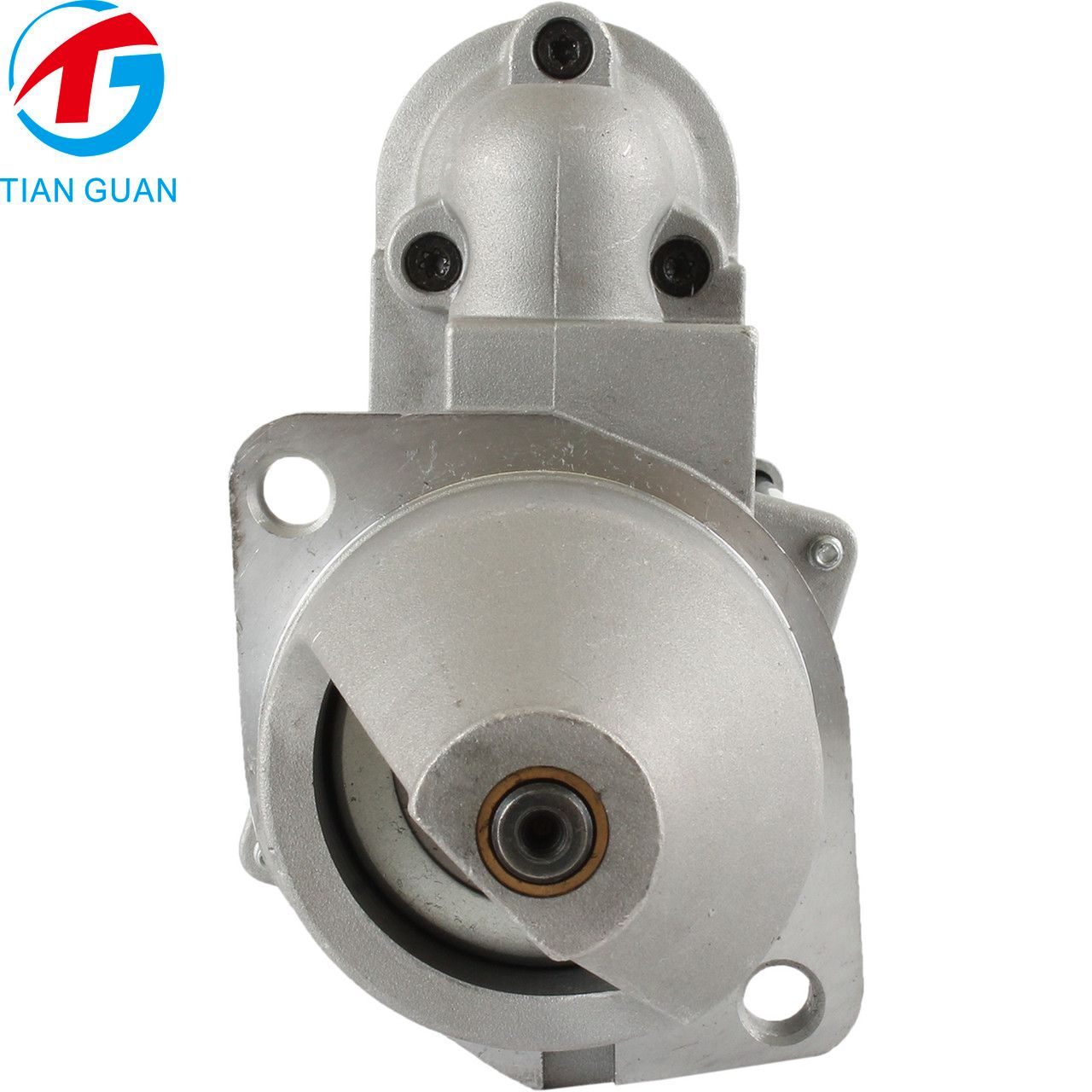

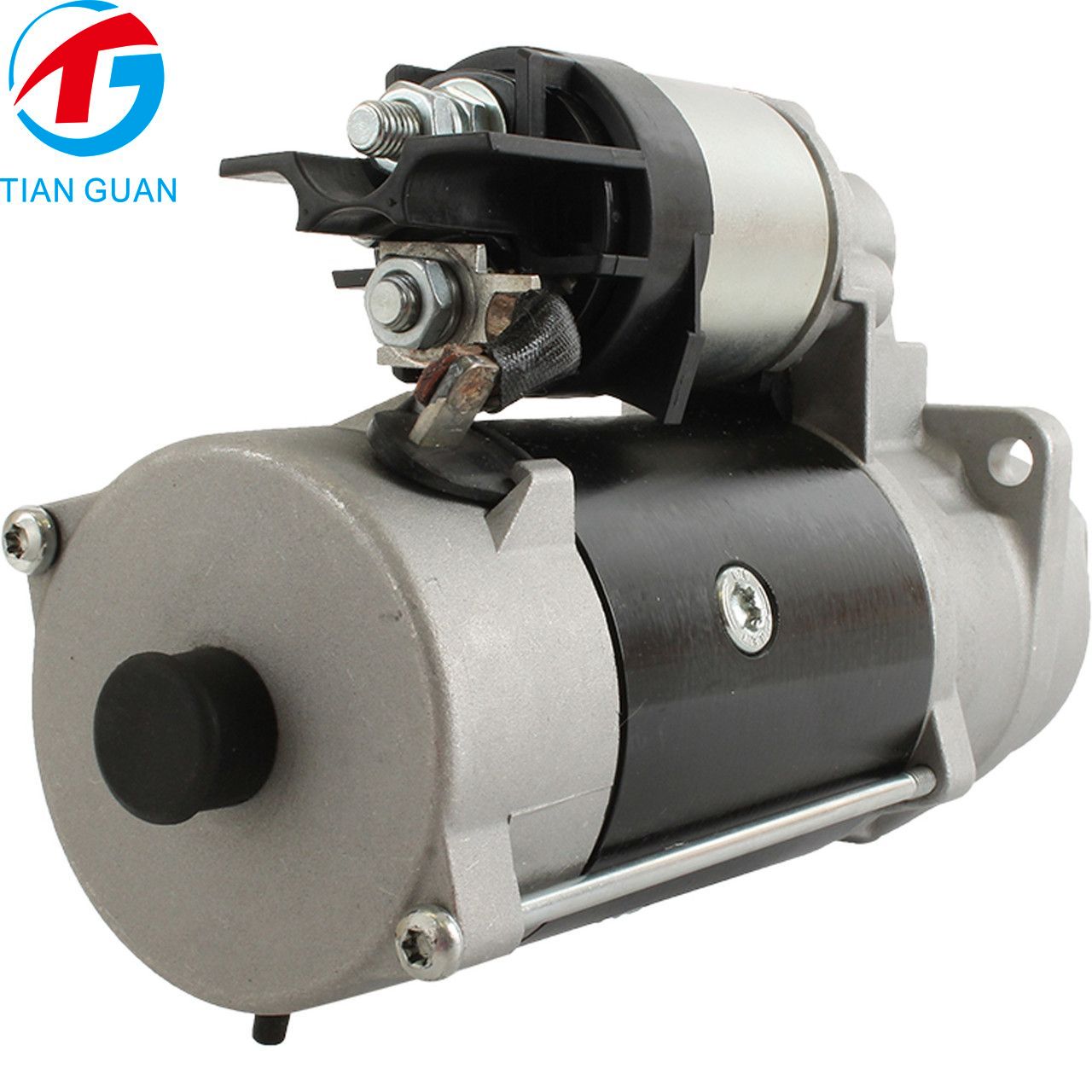

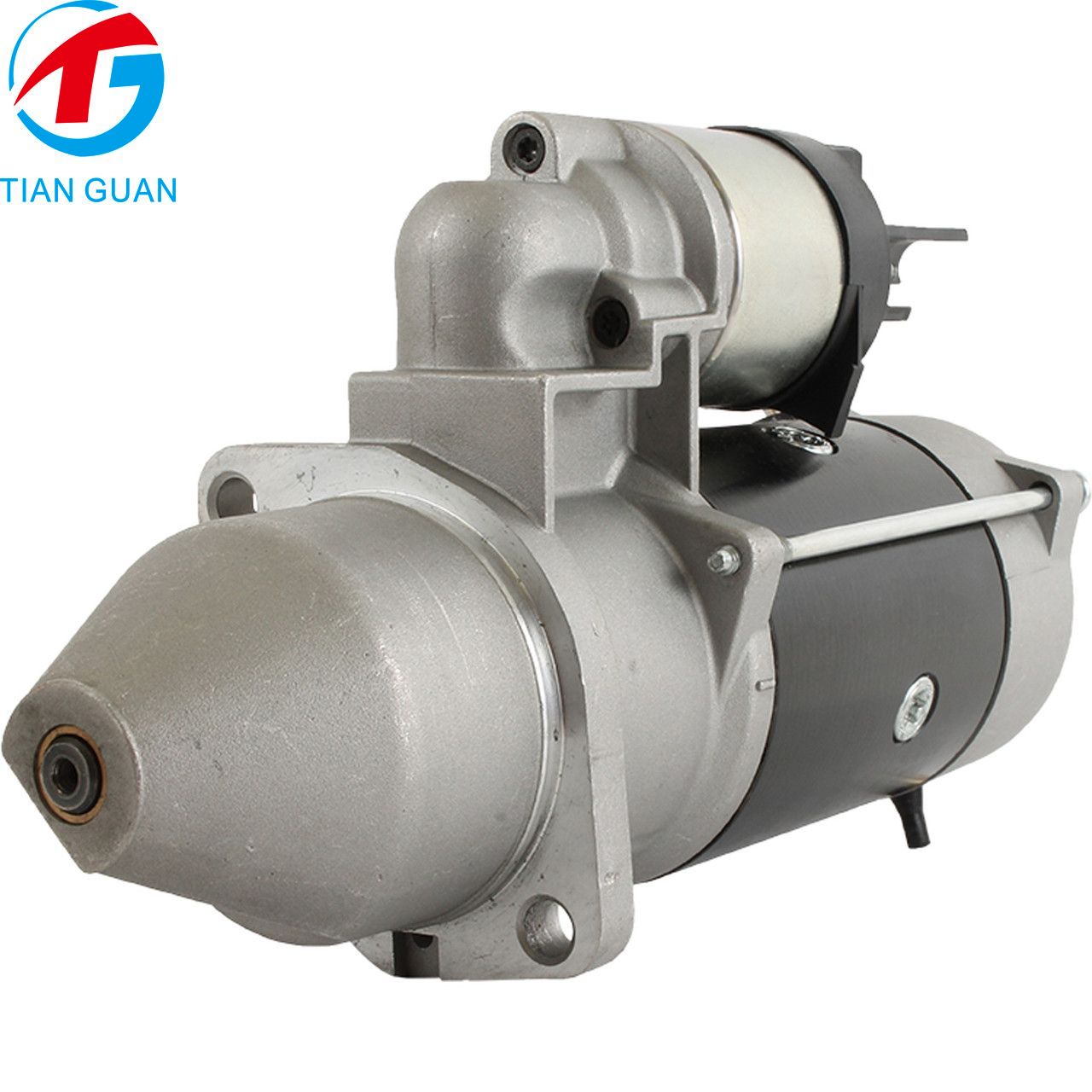

    STG50528 Starter Motor RE500819 for John Deere 5510 5615 5715 5715HC Tractor | 12V 3.0KW 11T CW PLGR Replacement

    OEM / Reference Part Numbers:
    JOHN DEERE: RE500819 / RE501689 / RE519975 / SE501854 / RE501298 / SE5011402 / SE501425
    BOSCH: 0-001-230-005 / 0001230005
    LESTER: 18359
    ARROWHEAD: SBO0239 / IS0793 / MS89
    MAHLE: MS89
    WAI: 18359N
    J&N: 410-24070
    CARGO: 113478
    LETRIKA: IS0793

    Product Description

    STG50528 is a heavy-duty replacement starter motor for John Deere agricultural tractors and combines, including the 5510, 5615, 5715 and 5715HC. John Deere lists RE500819 as the original motor and RE519975 as a 12V, 3.4 kW starter motor kit substitute.

    Current replacement catalogs specify this starter family as a 12V, 3.0KW, 11-tooth, clockwise (CW) PLGR/planetary gear reduction starter.

    Product Specifications

    PropertyValue
    Product ModelSTG50528
    Main OEMRE500819
    Voltage12V
    Power Output3.0KW
    Starter TypePLGR / Planetary Gear Reduction
    RotationCW
    Teeth Count11T
    Gear OD34 mm
    Mounting Ear Hole 110.0 mm
    Mounting Ear Hole 210.0 mm
    ApplicationJohn Deere Tractor / Combine
    ConditionNew Aftermarket

    OEM / Cross Reference Table

    BrandPart Number
    JOHN DEERERE500819 / RE501689 / RE519975 / SE501854 / RE501298 / SE5011402 / SE501425
    BOSCH0-001-230-005 / 0001230005
    LESTER18359
    ARROWHEADSBO0239 / IS0793 / MS89
    MAHLEMS89
    WAI18359N
    J&N ELECTRICAL PRODUCTS410-24070
    CARGO113478
    LETRIKA (ISKRA)IS0793
    OTHER REFERENCE120-6042 / 91-15-7088


    Compatible Applications



    MAKETYPE MODEL YEAR ENGINE
    JOHN DEERECombine2254AllAll
    JOHN DEERETractor5080MAllJD 4-276 80HP Dsl
    JOHN DEERETractor5080RAllJD 4-276 80HP Dsl
    JOHN DEERETractor5090MAllJD 4-276 90HP Dsl
    JOHN DEERETractor5090RAllJD 4-276 90HP Dsl
    JOHN DEERETractor5410AllJD 4-276 81HP Dsl
    JOHN DEERETractor5415AllJD 4-276 74HP Dsl
    JOHN DEERETractor5415HAllJD 4-276 74HP Dsl
    JOHN DEERETractor5415NAllJD 4-276 74HP Dsl
    JOHN DEERETractor5510AllJD 4-276 89HP Dsl
    JOHN DEERETractor5615AllJD 4-276 90.5HP Dsl
    JOHN DEERETractor5715AllJD 4-276 89HP Dsl
    JOHN DEERETractor5715HCAllJD 4-276 89HP Dsl
    JOHN DEERETractor6205AllAll
    JOHN DEERETractors - Utility5410AllJD PT 4.5L 81HP Dsl
    JOHN DEERETractors - Utility5420AllJD PT 4.5L 81HP Dsl
    JOHN DEERETractors - Utility5420NAllJD PT 4.5L 81HP Dsl
    JOHN DEERETractors - Utility5510AllJD PT 4.5L 89HP Dsl
    JOHN DEERETractors - Utility5510NAllJD PT 4.5L 89HP Dsl
    JOHN DEERETractors - Utility5520AllJD PT 4.5L 89HP Dsl
    JOHN DEERETractors - Utility5520NAllJD PT 4.5L 89HP Dsl

    Weight & Package Information

    ItemValue
    Net Weight5.2 KG
    Gross Weight6.2 KG
    Package Size38 × 27 × 25 CM


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    John Deere 5510 / 5615 / 5715 Replacement12V 3.0KW High-Torque Starter11T CW PLGR Design
    RE500819 CompatiblePlanetary Gear ReductionHeavy-Duty Tractor Application
    Bosch 0-001-230-005 Cross Reference34 mm Gear ODReliable Diesel Starting Performance
