STG50542 Starter 3001007 376253 SNK0009 410-12122 323-438 CM-8005 4917197 013275 018383 150102 15031 for Hyster H280XL2 Lift Trucks

Part Numbers:
HYSTER 3001007, 376253
ARROWHEAD SNK0009, 410-12122, IMI25002-002, IS1056, MS486, NK0-23000-1878
AC DELCO 323-438
ACE CM-8005
ALLIS CHALMERS 4917197
ANDRE NIERMANN 013275, 018383
API MARINE 150102, 15031
ATLANTIC 2100-0100
BARSANCO 510-6572, 510-6584, 610-110
BOWERS BSO7199R, BSO7200R
CARGO 111041
DELCO 10461446, 10461447, 10465044, 10465046, 10496881, 1107580, 1109542, 1109550, 1113275, 1113278, 1998336, 1998383, 1998387, 1998479, 1998481
DIXIE NEW 201-28107
DIXIE TS-1439, TS-1579
FAMILY 20MT, 22MT, 27MT, 28MT
J & N 410-12122, 410-12562, 410-12755
LESTER (OLD) 6537
LESTER 4389, 6167, 6584
LETRIKA (ISKRA) AFTERMARKET IS 1056
MAHLE (OLD) MS621
MAHLE MS486
MINNPAR 57-1295, 57-1318
NIKKO DENKI 02-23-1005
NIKKO 0-23000-1878, 0-61000-0070
NSA STR-7054
PIC 140-828, 140-828D, 140-828E, 140-828G, 140-926
RCP 23490A, ST-6584
REFERENCE NUMBER NA001621
REMY LIGHT DUTY 63163, 63178
UNIPOINT STR-7054
USA INDUSTRIES 6584
WAI SALES 50-8406, 50-8406-1, 50-8406-2
WAI 50-8406
WILSON HD 91-01-4258, 91-01-4312
WILSON SMALL ENGINE 71-01-6584
WILSON 91-01-4258, 91-01-4312
WOOD AUTO STR7054, STR7064
YALE 2200073-44
ZM 80.280.09

Compatible Models: Hyster H280XL2 Lift Trucks | Allis Chalmers Lift Trucks AC-C 35/40/45/50/55, FD-30, FD-40/50, FD-60/70/80, FD-100/120, FP-40/50, FPD-40/50, FPD-60/70/80, AT-40/50/60/70/80, AT-100/120, RT-40/50/60/70/80, RT-100/120 | Lincoln Welder (Perkins Engine) | Perkins Industrial 3.152, 4.203, 4.236, 6-354 | Toro Parkmaster
Weight: 8.3 KG

Product Overview

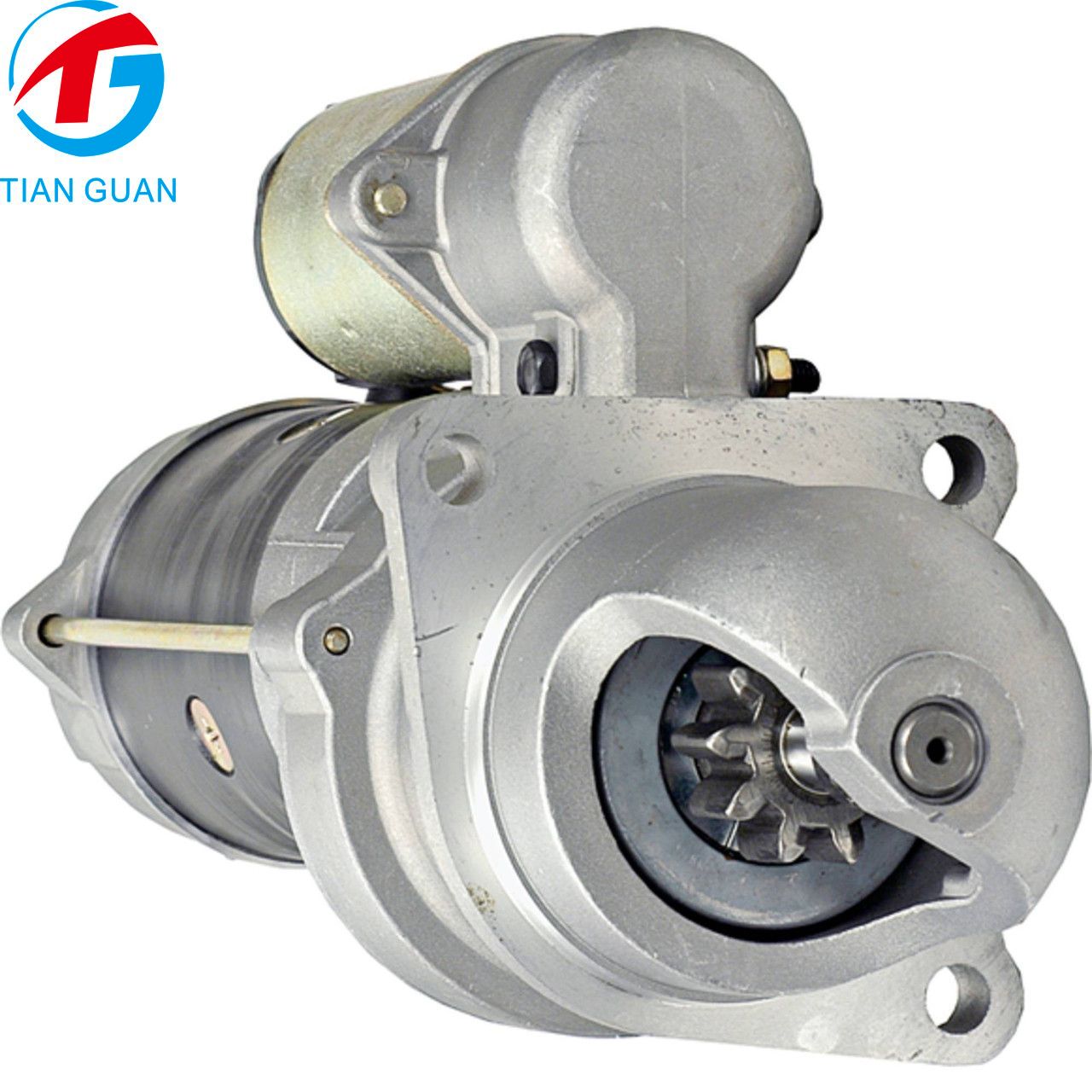

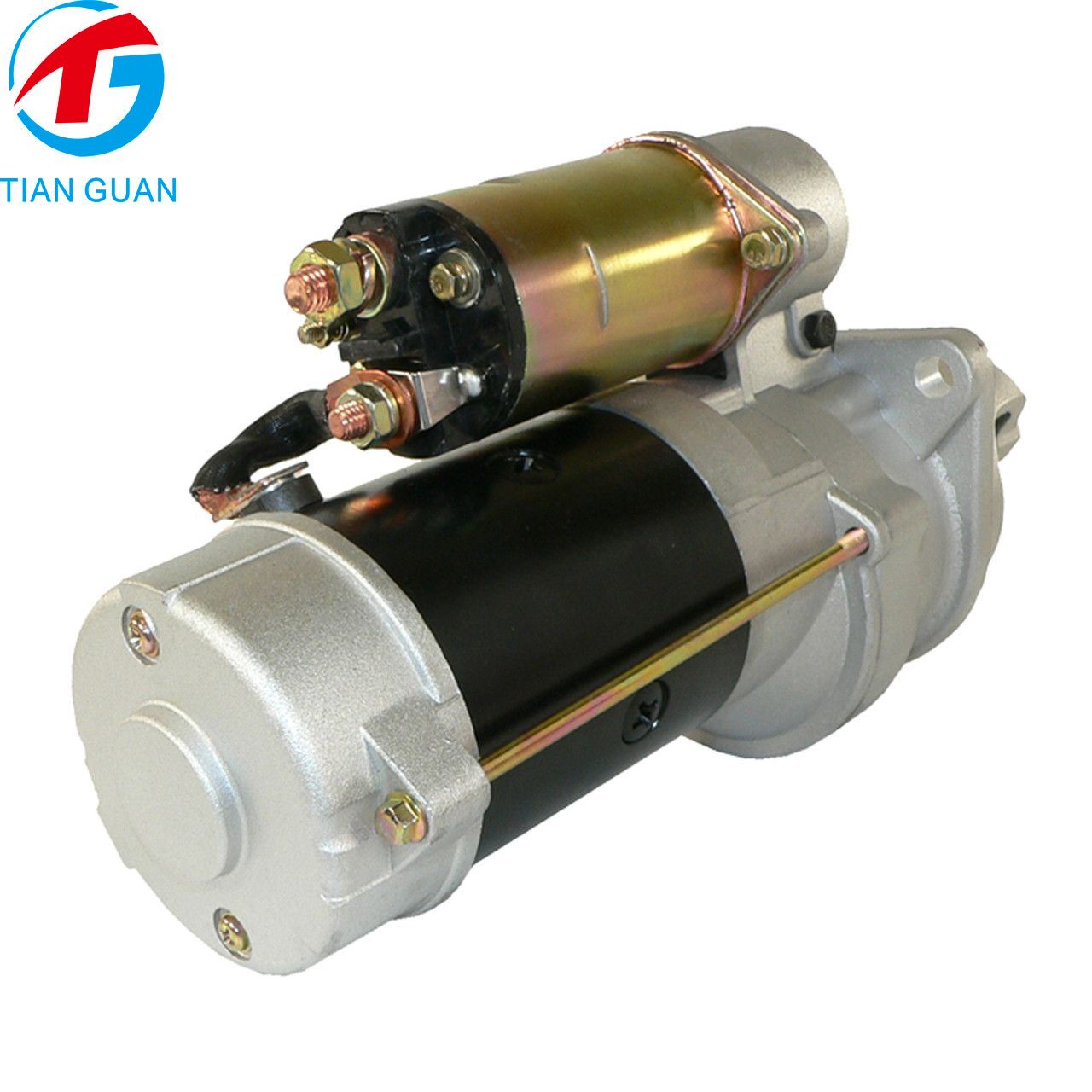

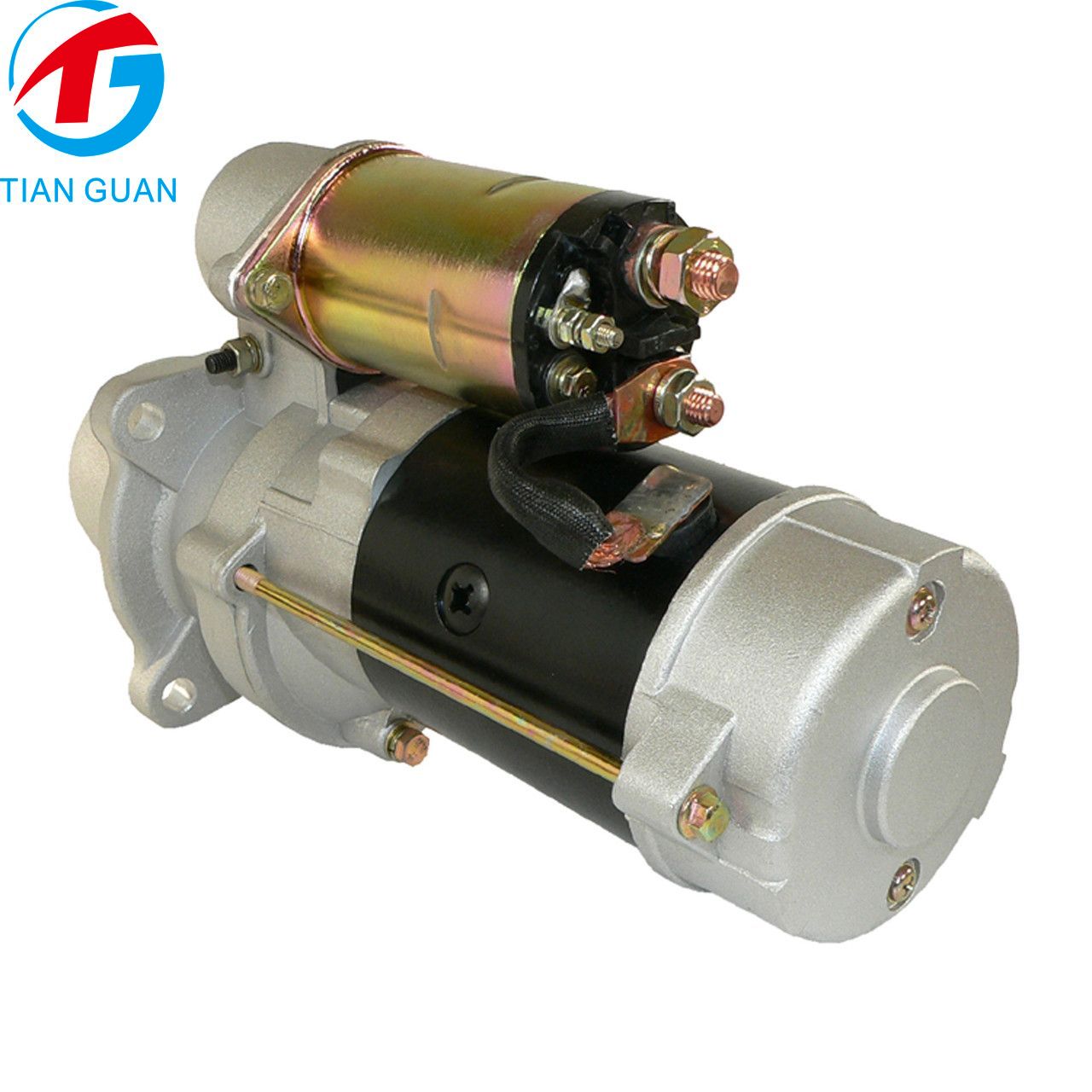

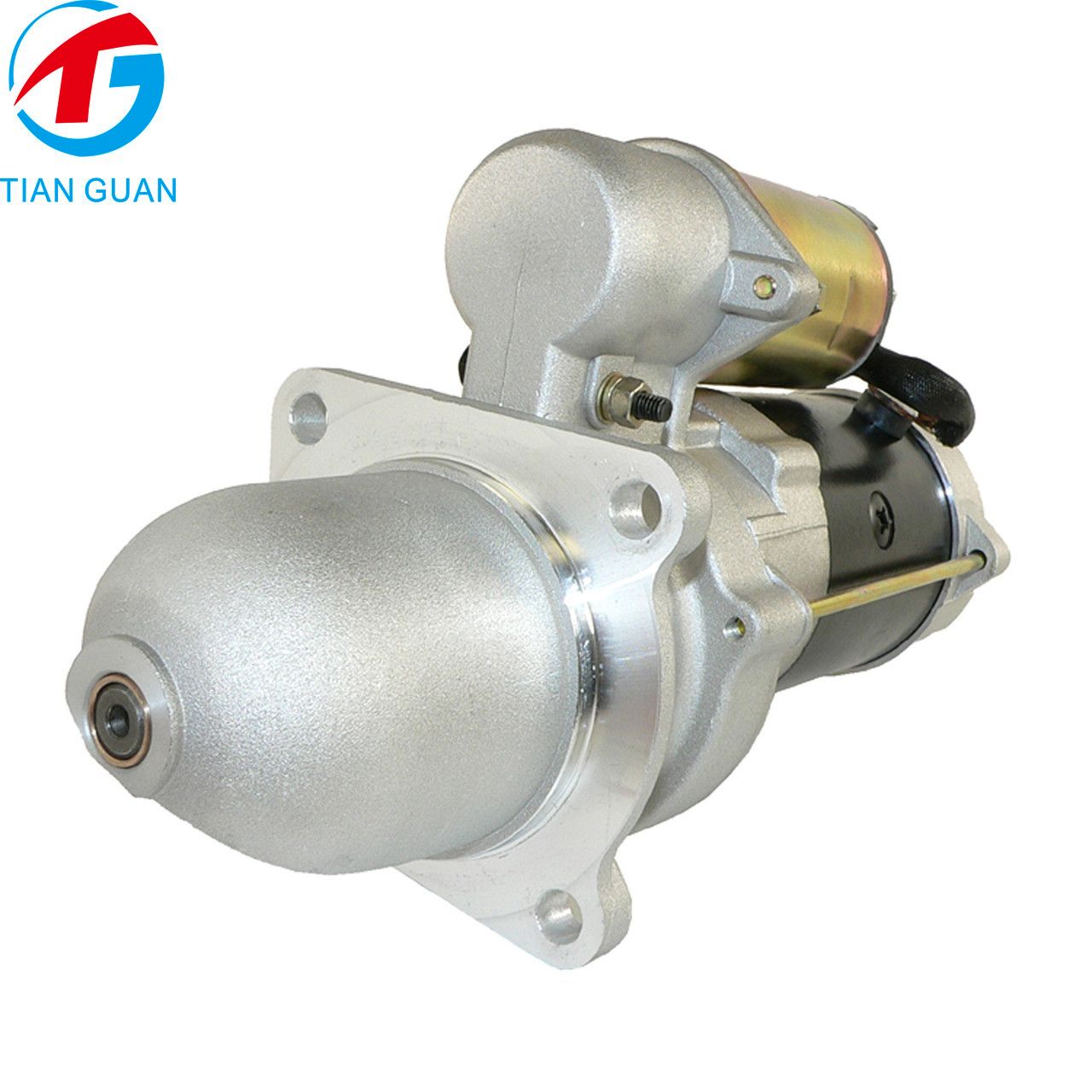

STG50542 is a heavy-duty aftermarket starter motor designed for Hyster H280XL2 lift trucks, as well as Allis Chalmers lift trucks, Lincoln welders, Perkins industrial engines, and Toro Parkmaster equipment. It directly replaces OEM part numbers 3001007, 376253, SNK0009, 410-12122, 323-438, CM-8005, 4917197, 013275, 018383, 150102, and 15031, delivering reliable cranking performance for industrial and material handling applications.

Key Specifications

Compatibility

• Compatible Models:

• Hyster H280XL2 Lift Trucks

• Allis Chalmers Lift Trucks: AC-C 35/40/45/50/55 (1973, D-175), FD-30 (1964–1973, D-175), FD-40/50 (1964–1973, D-175), FD-60/70/80 (1964–1973, D-262), FD-100/120 (1967–1973, D-262), FP-40/50 (1973, D-175), FPD-40/50 (1964–1972, D-175), FPD-60/70/80 (1964–1972, D-262)

• Allis Chalmers Rough Terrain: AT-40/50 (1964–1968, D-175), AT-60/70/80 (1964–1968, D-262), AT-100/120 (1964–1968, D-262), RT-40/50 (1964–1965, D-175), RT-60/70/80 (1964–1965, D-262), RT-100/120 (1964–1965, D-262)

• Lincoln Welder: Perkins Engine (1996–On)

• Perkins Industrial: 3.152 (1975, 1983–1986), 4.203 (1983–1984), 4.236 (1983–1986), 6-354 (1986)
