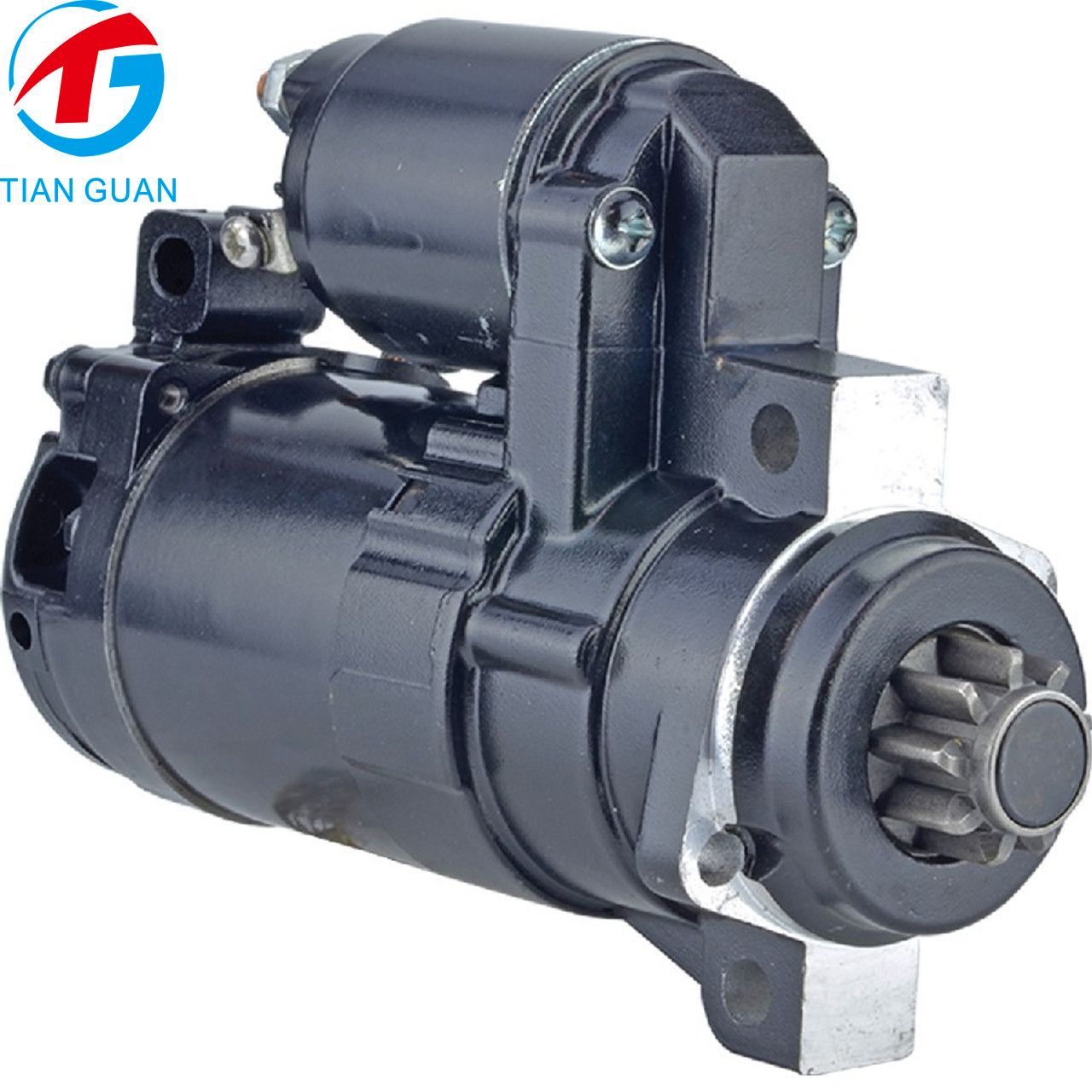

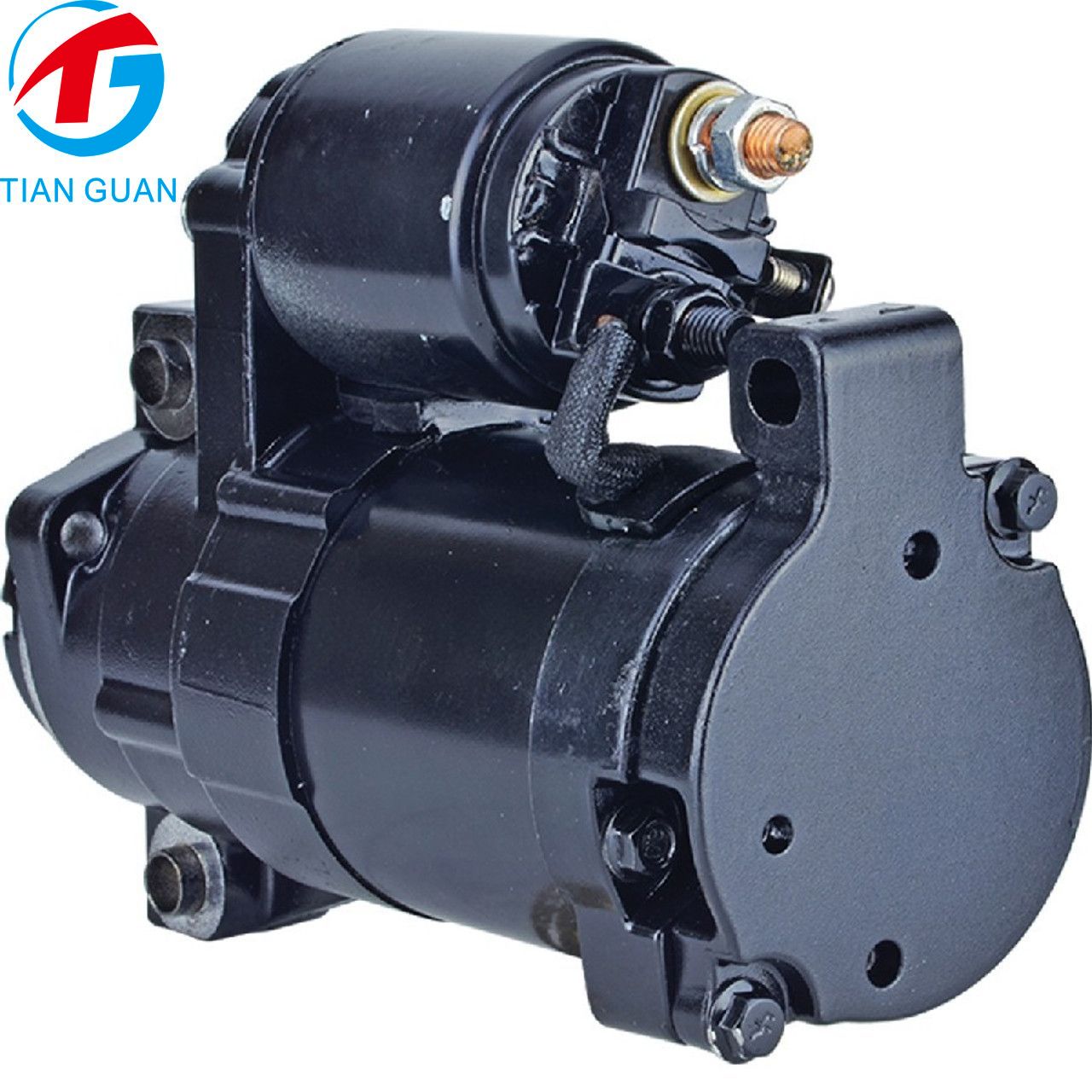

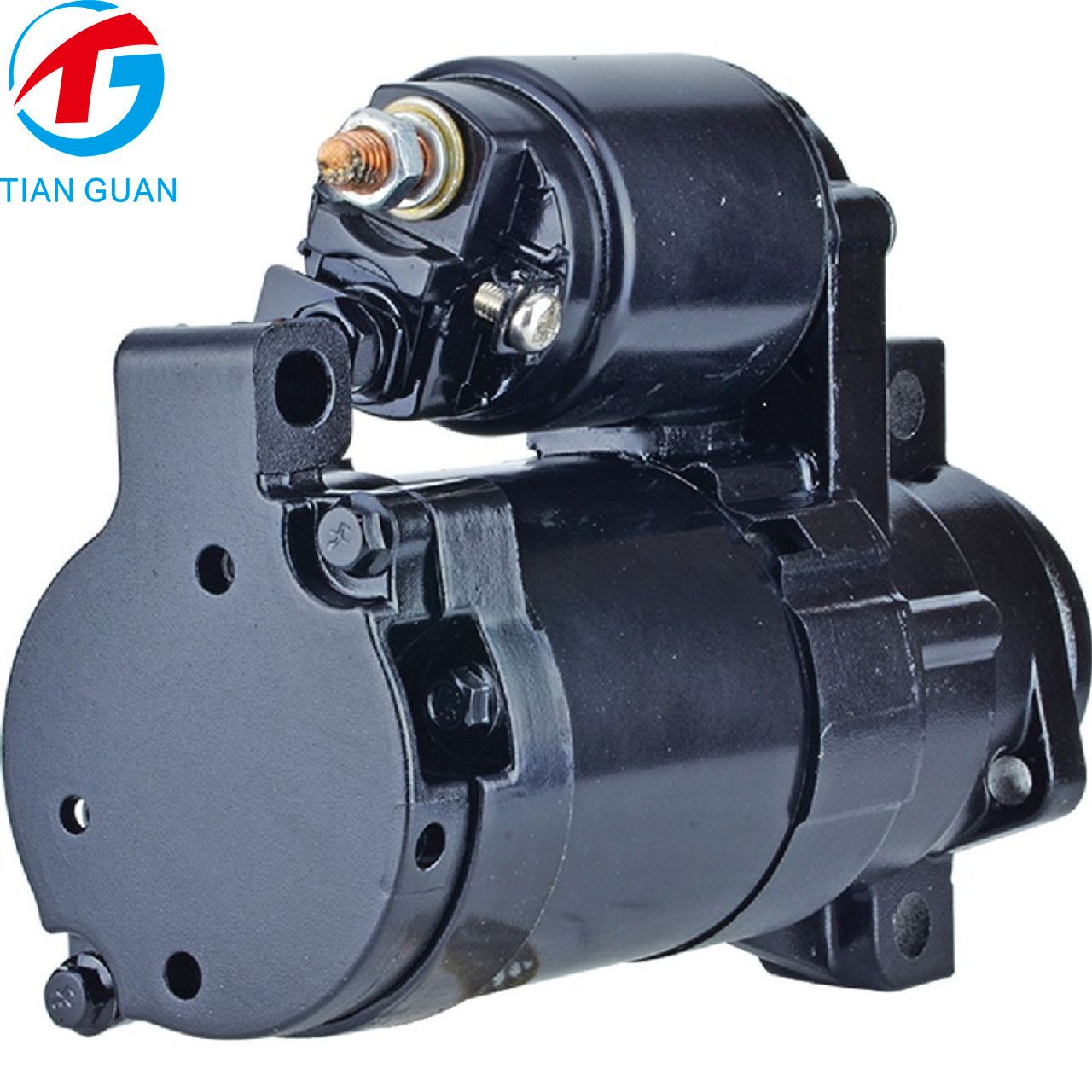

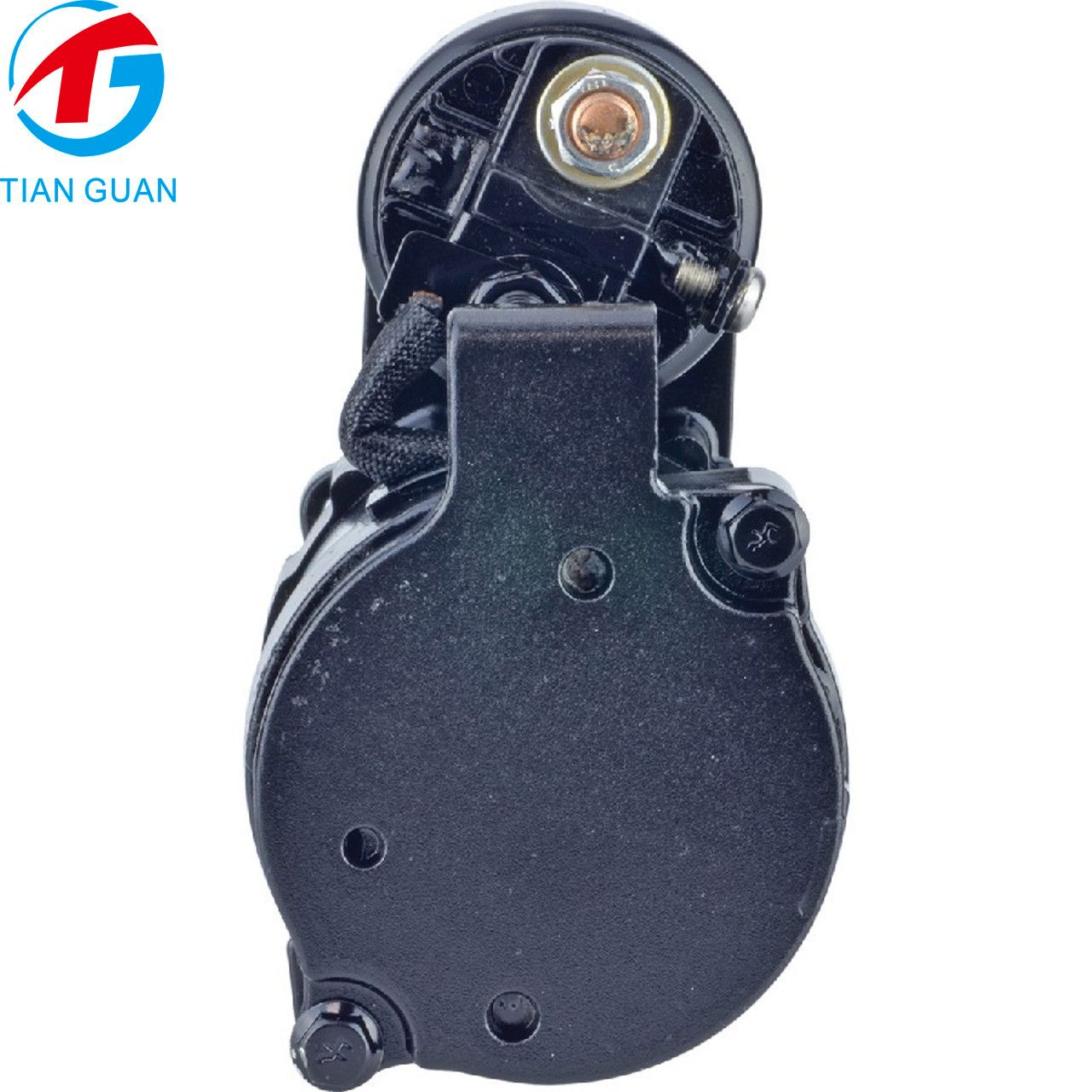

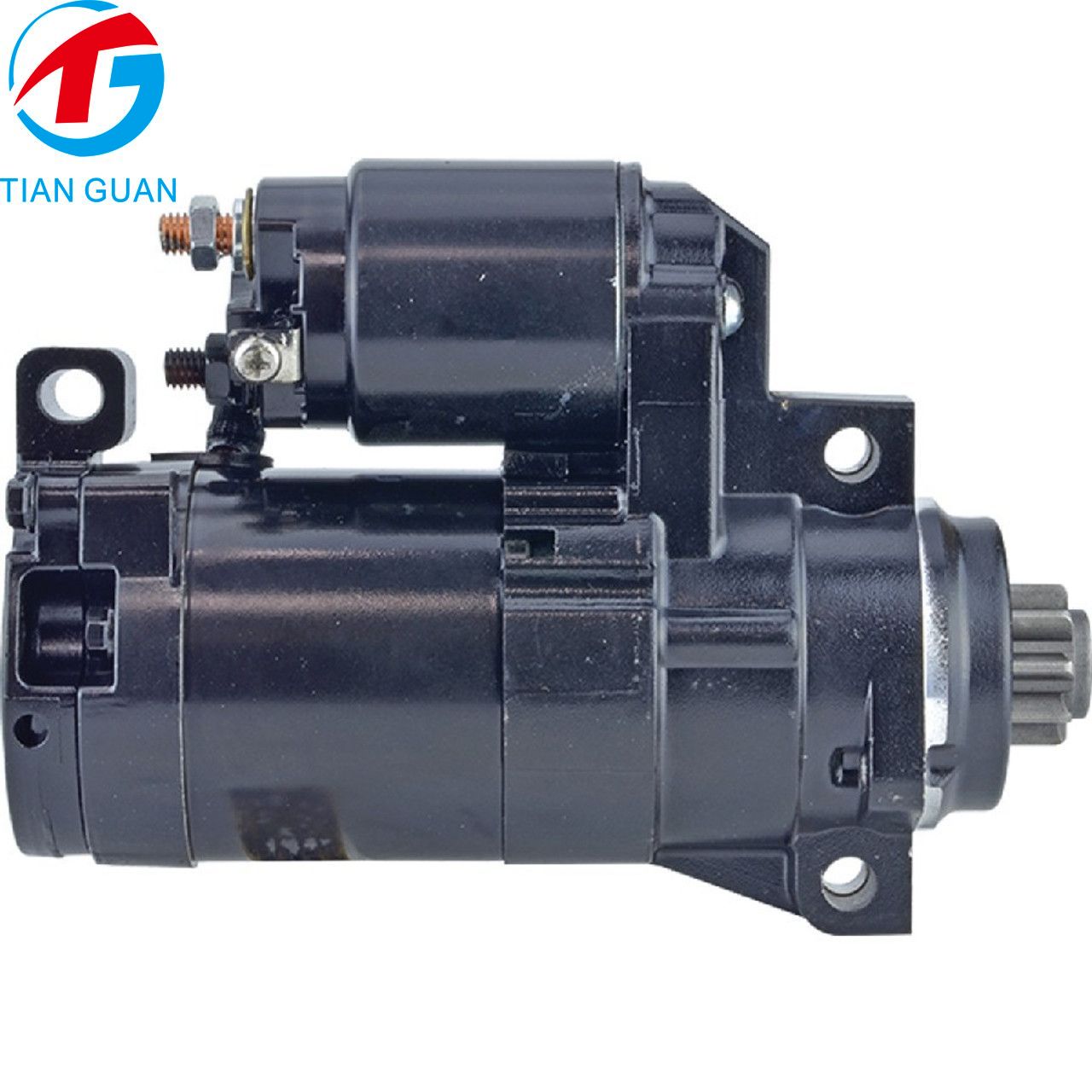

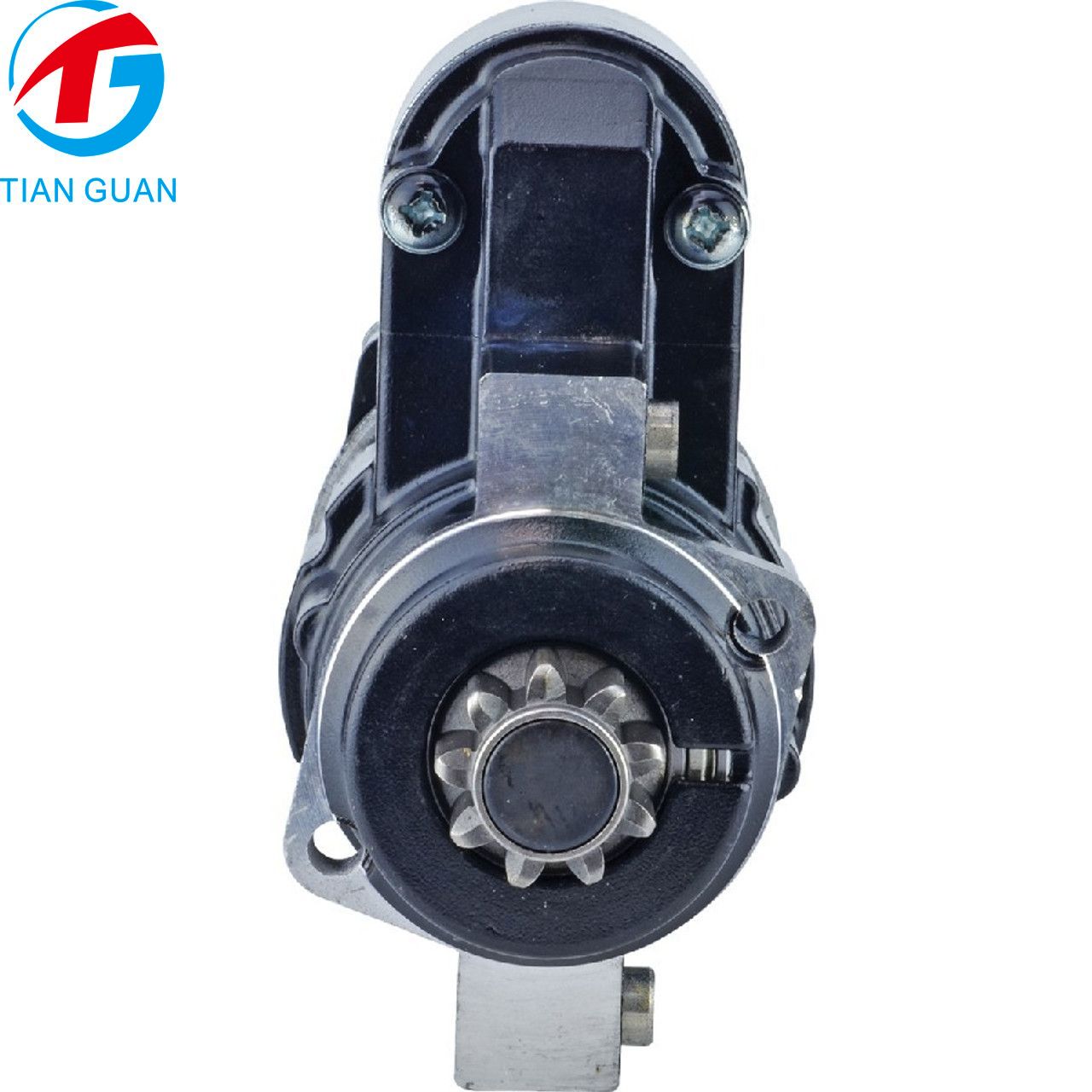

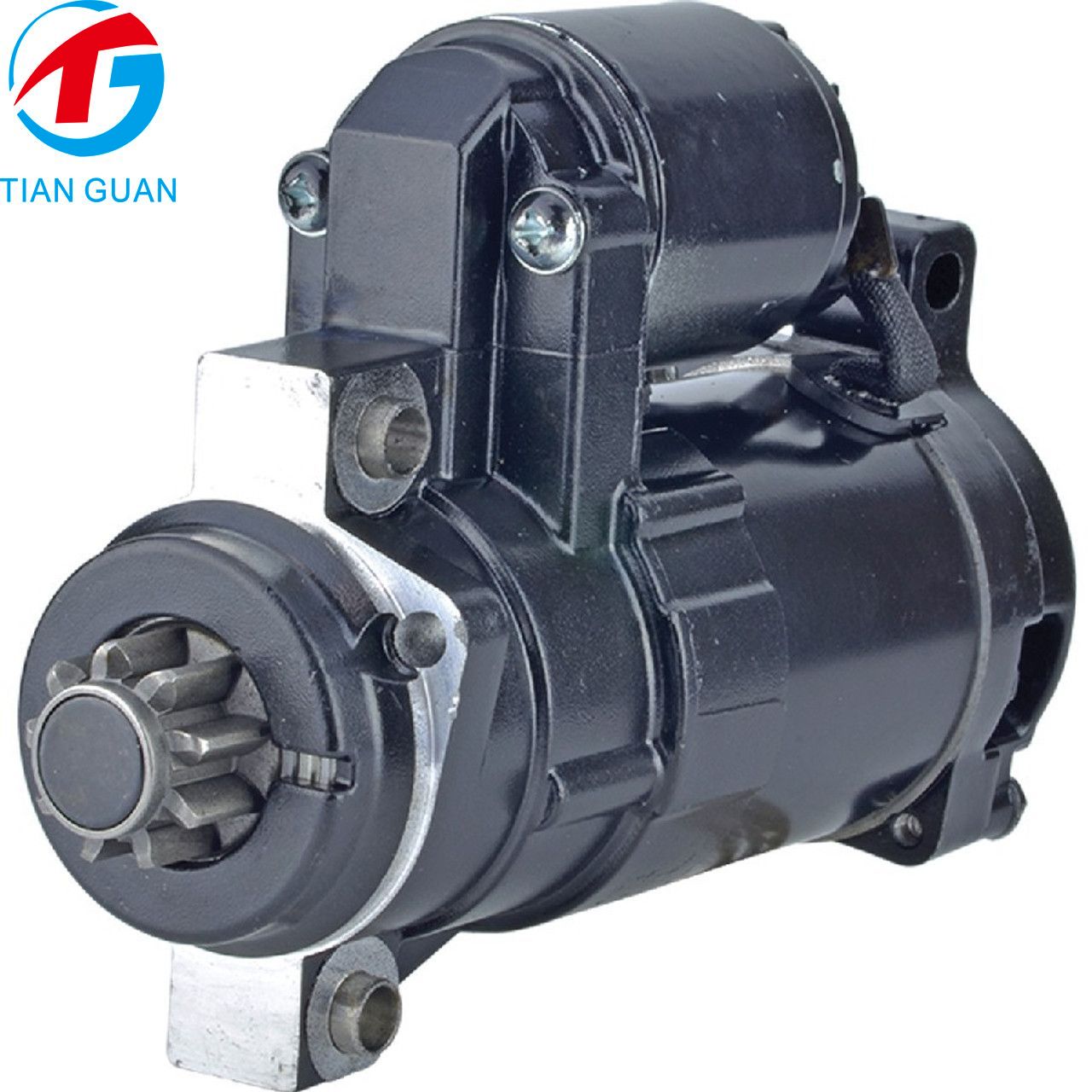

Starter Motor 6BG-81800-00-00 M0TA5071 – 12V Replacement for Yamaha Marine F25LA, F25LEA, F25LEHA

3 Reviews

Add Your Review

ITEMNO： STG50574

OUT OF STOCK

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    Starter Motor 6BG-81800-00-00  M0TA5071 – 12V Replacement for Yamaha Marine F25LA, F25LEA, F25LEHA

    OEM & Cross Reference Numbers

    BrandPart Number
    ARROWHEAD410-48368 / M0TA5071
    J & N410-48368
    MITSUBISHIM0TA5071
    YAMAHA6BG-81800-00-00

    ⚙️ Product Specifications

    ItemSpecification
    Item ConditionAftermarket Part
    Unit TypeStarter Motor
    Starter TypePMGR
    Voltage12V
    RotationCCW (Counter Clockwise)
    Power Output1.0 kW
    Teeth9 Teeth
    Gear Outside Diameter1.13 in / 28.7 mm
    Overall Length6.26 in / 159 mm
    Mounting Ear Holes (2)8.7 mm (Unthreaded)
    Mounting Ear Hole (1)10.5 mm × 8.5 mm (Slotted)
    Registry Outside Diameter2.362 in / 60 mm
    Electrical ConnectionsM8 B+ & Motor Studs, M5 Threaded S Tab

    ? Vehicle Application

    ManufacturerApplication
    Yamaha Marine25–40HP Outboard Engines
    Model Years2006-ON




    MAKETYPE MODEL YEAR ENGINE
    YAMAHAOutboard MotorsF25LA201025HP
    YAMAHAOutboard MotorsF25LA201125HP
    YAMAHAOutboard MotorsF25LA201225HP
    YAMAHAOutboard MotorsF25LA201325HP
    YAMAHAOutboard MotorsF25LA201425HP
    YAMAHAOutboard MotorsF25LA201525HP
    YAMAHAOutboard MotorsF25LA201625HP
    YAMAHAOutboard MotorsF25LA201725HP
    YAMAHAOutboard MotorsF25LA201825HP
    YAMAHAOutboard MotorsF25LEA201025HP
    YAMAHAOutboard MotorsF25LEA201125HP
    YAMAHAOutboard MotorsF25LEA201225HP
    YAMAHAOutboard MotorsF25LEA201325HP
    YAMAHAOutboard MotorsF25LEA201425HP
    YAMAHAOutboard MotorsF25LEA201525HP
    YAMAHAOutboard MotorsF25LEA201625HP
    YAMAHAOutboard MotorsF25LEA201725HP
    YAMAHAOutboard MotorsF25LEA201825HP
    YAMAHAOutboard MotorsF25LEHA201025HP
    YAMAHAOutboard MotorsF25LEHA201125HP
    YAMAHAOutboard MotorsF25LEHA201225HP
    YAMAHAOutboard MotorsF25LEHB201325HP
    YAMAHAOutboard MotorsF25LEHB201425HP
    YAMAHAOutboard MotorsF25LEHB201525HP
    YAMAHAOutboard MotorsF25LEHB201625HP
    YAMAHAOutboard MotorsF25LEHB201725HP
    YAMAHAOutboard MotorsF25LEHB201825HP
    YAMAHAOutboard MotorsF25LMHA201025HP
    YAMAHAOutboard MotorsF25LMHA201125HP
    YAMAHAOutboard MotorsF25SEA201025HP
    YAMAHAOutboard MotorsF25SEA201125HP
    YAMAHAOutboard MotorsF25SEA201225HP
    YAMAHAOutboard MotorsF25SEA201325HP
    YAMAHAOutboard MotorsF25SEA201425HP
    YAMAHAOutboard MotorsF25SEA201525HP
    YAMAHAOutboard MotorsF25SEA201625HP
    YAMAHAOutboard MotorsF25SEA201725HP
    YAMAHAOutboard MotorsF25SEA201825HP
    YAMAHAOutboard MotorsF25SEHA201025HP
    YAMAHAOutboard MotorsF25SEHA201125HP
    YAMAHAOutboard MotorsF25SEHA201225HP
    YAMAHAOutboard MotorsF25SEHA201325HP
    YAMAHAOutboard MotorsF25SEHA201425HP
    YAMAHAOutboard MotorsF25SEHA201525HP
    YAMAHAOutboard MotorsF25SEHA201625HP
    YAMAHAOutboard MotorsF25SEHA201725HP
    YAMAHAOutboard MotorsF25SEHA201825HP
    YAMAHAOutboard MotorsF30LA201430HP
    YAMAHAOutboard MotorsF30LA201530HP
    YAMAHAOutboard MotorsF30LA201630HP
    YAMAHAOutboard MotorsF30LA201730HP
    YAMAHAOutboard MotorsF30LA201830HP
    YAMAHAOutboard MotorsF30LEHA201430HP
    YAMAHAOutboard MotorsF30LEHA201530HP
    YAMAHAOutboard MotorsF30LEHA201630HP
    YAMAHAOutboard MotorsF30LEHA201730HP
    YAMAHAOutboard MotorsF30LEHA201830HP
    YAMAHAOutboard MotorsF40JEA200940HP
    YAMAHAOutboard MotorsF40JEA201040HP
    YAMAHAOutboard MotorsF40JEA201140HP
    YAMAHAOutboard MotorsF40JEA201240HP
    YAMAHAOutboard MotorsF40JEA201340HP
    YAMAHAOutboard MotorsF40JEA201440HP
    YAMAHAOutboard MotorsF40JEA201540HP
    YAMAHAOutboard MotorsF40JEA201640HP
    YAMAHAOutboard MotorsF40JEA201740HP
    YAMAHAOutboard MotorsF40JEA201840HP
    YAMAHAOutboard MotorsF40JEHA200940HP
    YAMAHAOutboard MotorsF40JEHA201040HP
    YAMAHAOutboard MotorsF40JEHA201140HP
    YAMAHAOutboard MotorsF40JEHA201240HP
    YAMAHAOutboard MotorsF40JEHA201340HP
    YAMAHAOutboard MotorsF40JEHA201440HP
    YAMAHAOutboard MotorsF40JEHA201540HP
    YAMAHAOutboard MotorsF40JEHA201640HP
    YAMAHAOutboard MotorsF40JEHA201740HP
    YAMAHAOutboard MotorsF40JEHA201840HP
    YAMAHAOutboard MotorsF40LA200940HP
    YAMAHAOutboard MotorsF40LA201040HP
    YAMAHAOutboard MotorsF40LA201140HP
    YAMAHAOutboard MotorsF40LA201240HP
    YAMAHAOutboard MotorsF40LA201340HP
    YAMAHAOutboard MotorsF40LA201440HP
    YAMAHAOutboard MotorsF40LA201540HP
    YAMAHAOutboard MotorsF40LA201640HP
    YAMAHAOutboard MotorsF40LA201740HP
    YAMAHAOutboard MotorsF40LA201840HP
    YAMAHAOutboard MotorsF40LEHA200940HP
    YAMAHAOutboard MotorsF40LEHA201040HP
    YAMAHAOutboard MotorsF40LEHA201140HP
    YAMAHAOutboard MotorsF40LEHA201240HP
    YAMAHAOutboard MotorsF40LEHA201340HP
    YAMAHAOutboard MotorsF40LEHA201440HP
    YAMAHAOutboard MotorsF40LEHA201540HP
    YAMAHAOutboard MotorsF40LEHA201640HP
    YAMAHAOutboard MotorsF40LEHA201740HP
    YAMAHAOutboard MotorsF40LEHA201840HP
    YAMAHAOutboard MotorsT25LA201025HP
    YAMAHAOutboard MotorsT25LA201125HP
    YAMAHAOutboard MotorsT25LA201225HP
    YAMAHAOutboard MotorsT25LA201325HP
    YAMAHAOutboard MotorsT25LA201425HP
    YAMAHAOutboard MotorsT25LA201525HP
    YAMAHAOutboard MotorsT25LA201625HP
    YAMAHAOutboard MotorsT25LA201725HP
    YAMAHAOutboard MotorsT25LA201825HP
