STG50590 Starter 8200037 8300020 410-12693 113550 10461334 19011500 19011505 19011531 for Mack CH Series 2000-2006 – 12V 11T Delco 39MT

Part Numbers

ARROWHEAD: SDR0320, 410-12693, D8200288, D8200308
CARGO: 113550
DELCO: 10461334, 19011500, 19011505, 19011531, 8200037
DELCO NEW SERVICE: 8200288
DELCO REMAN: 8300020
DELCO ROTATABLE DEF: 8200308
J & N: 410-12233, 410-12322, 410-12467, 410-12640, 410-12693, 410-12704, 410-12712, 410-12752, 410-12236
LESTER: 6801, 6802, 6812
NSA: STR-4290, STR-4292

Product Description

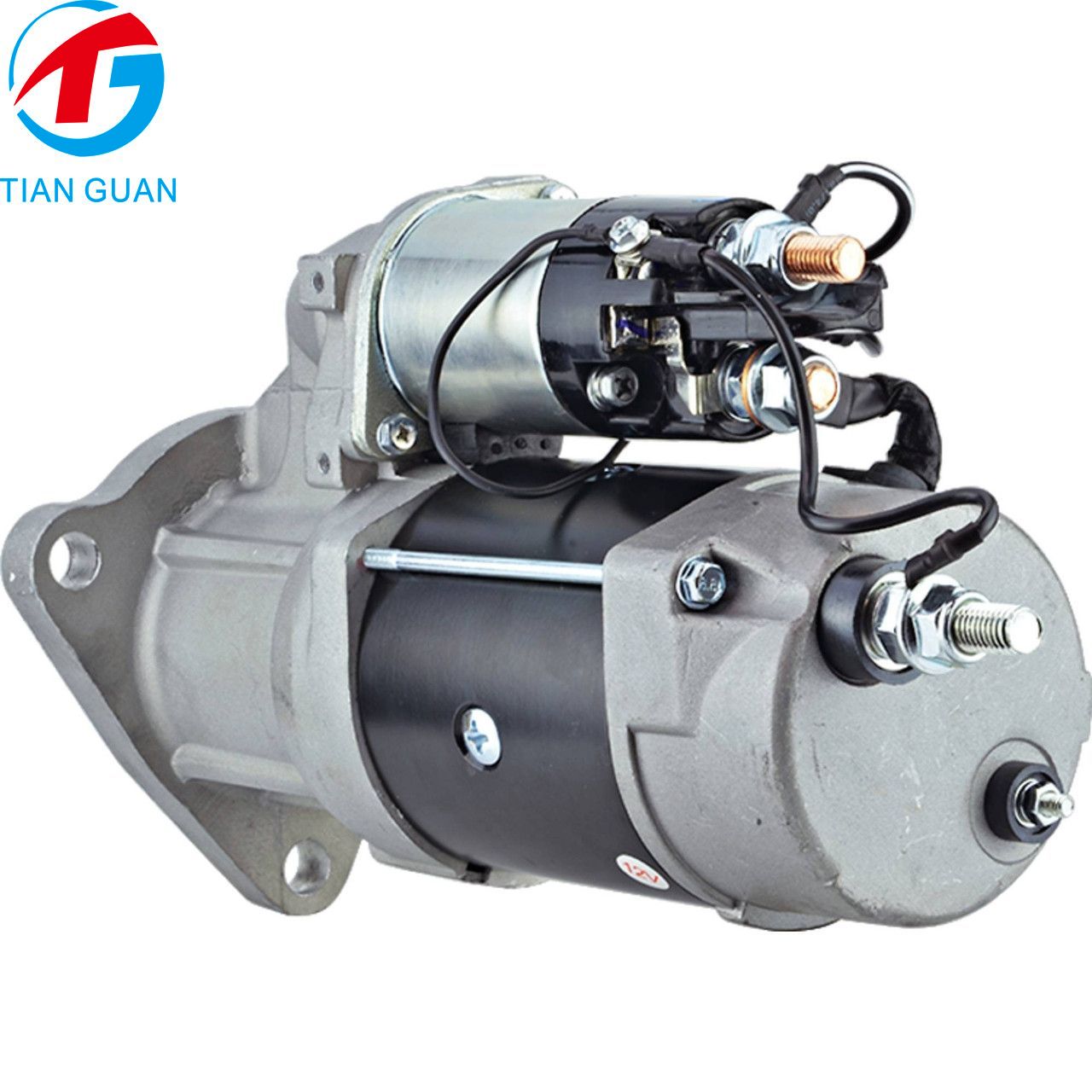

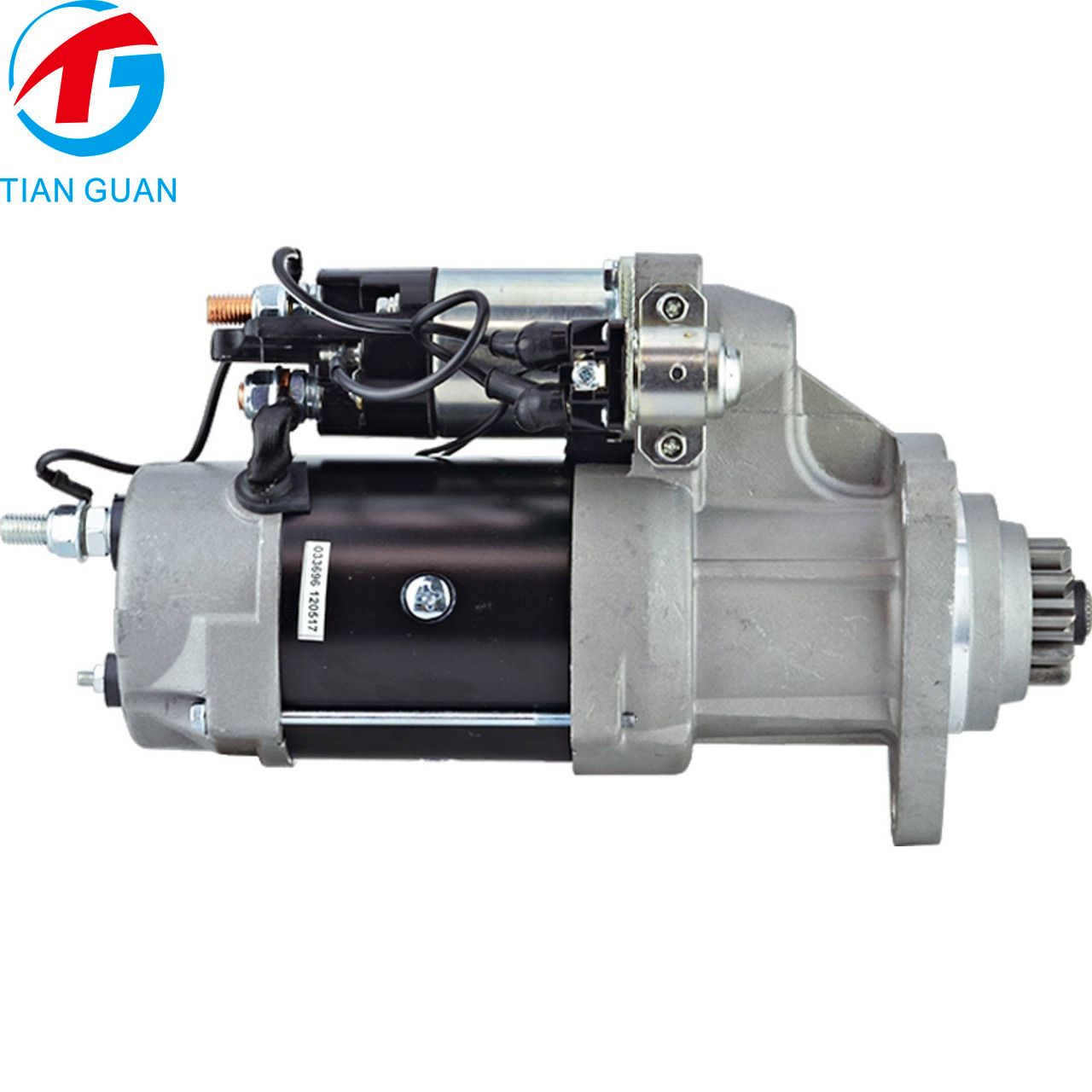

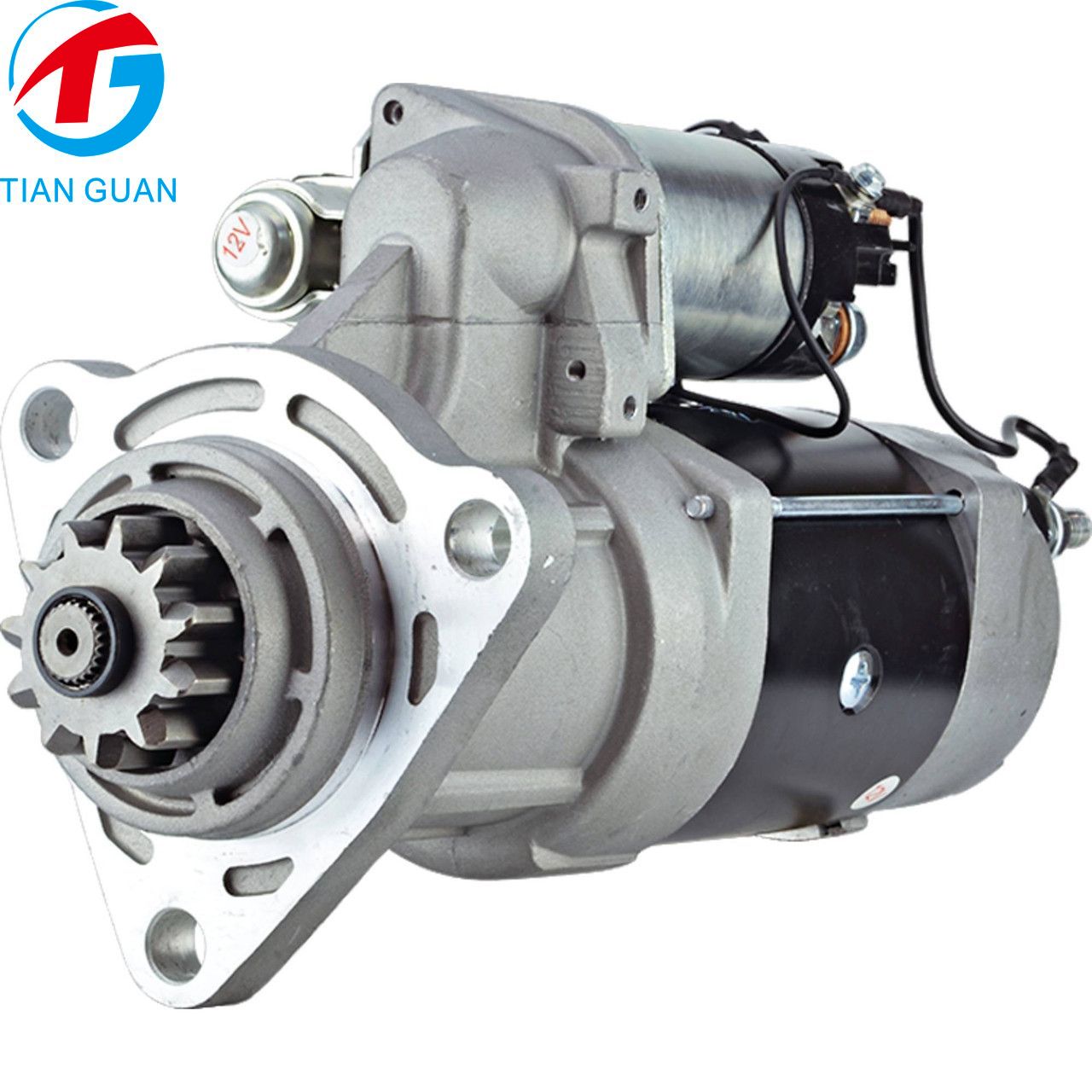

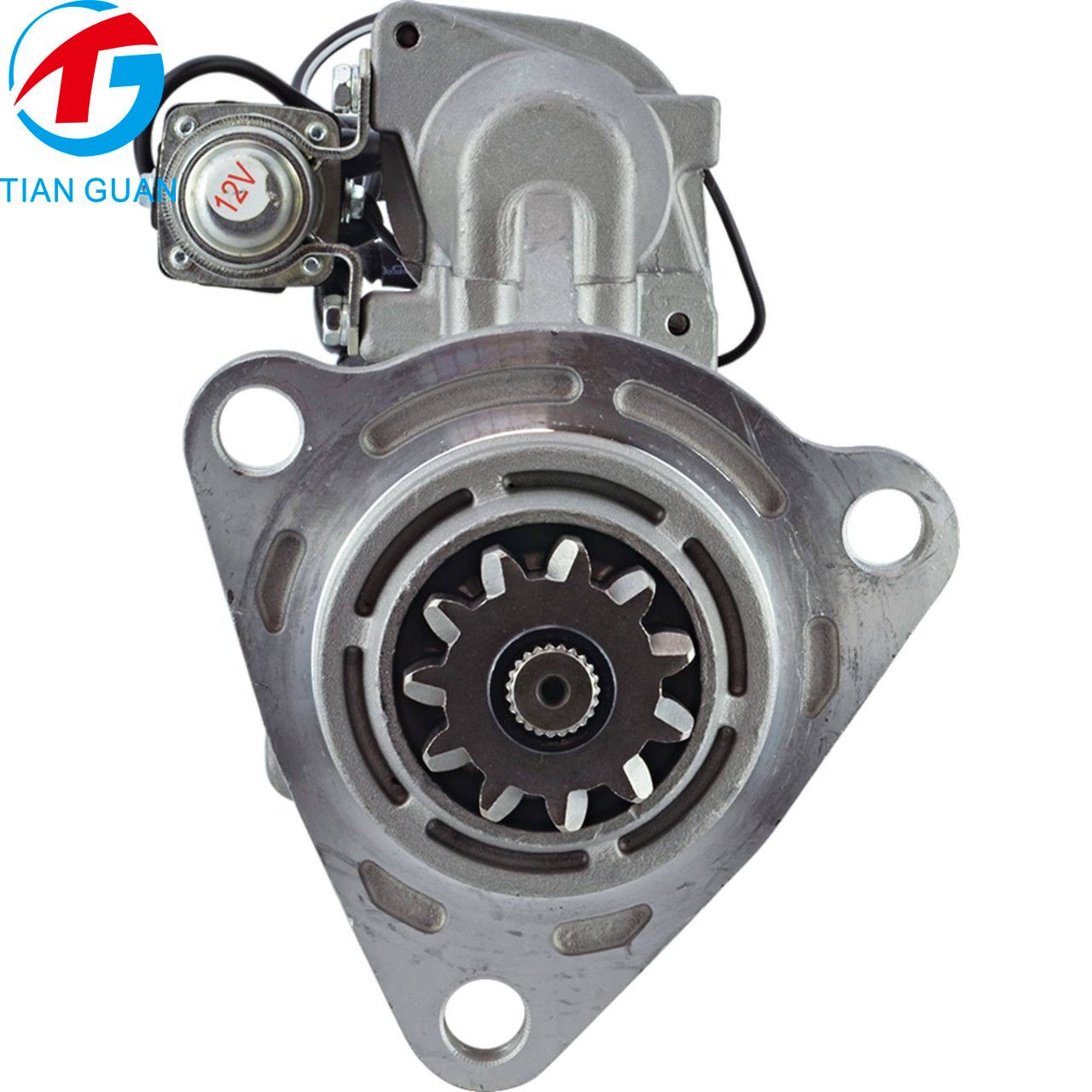

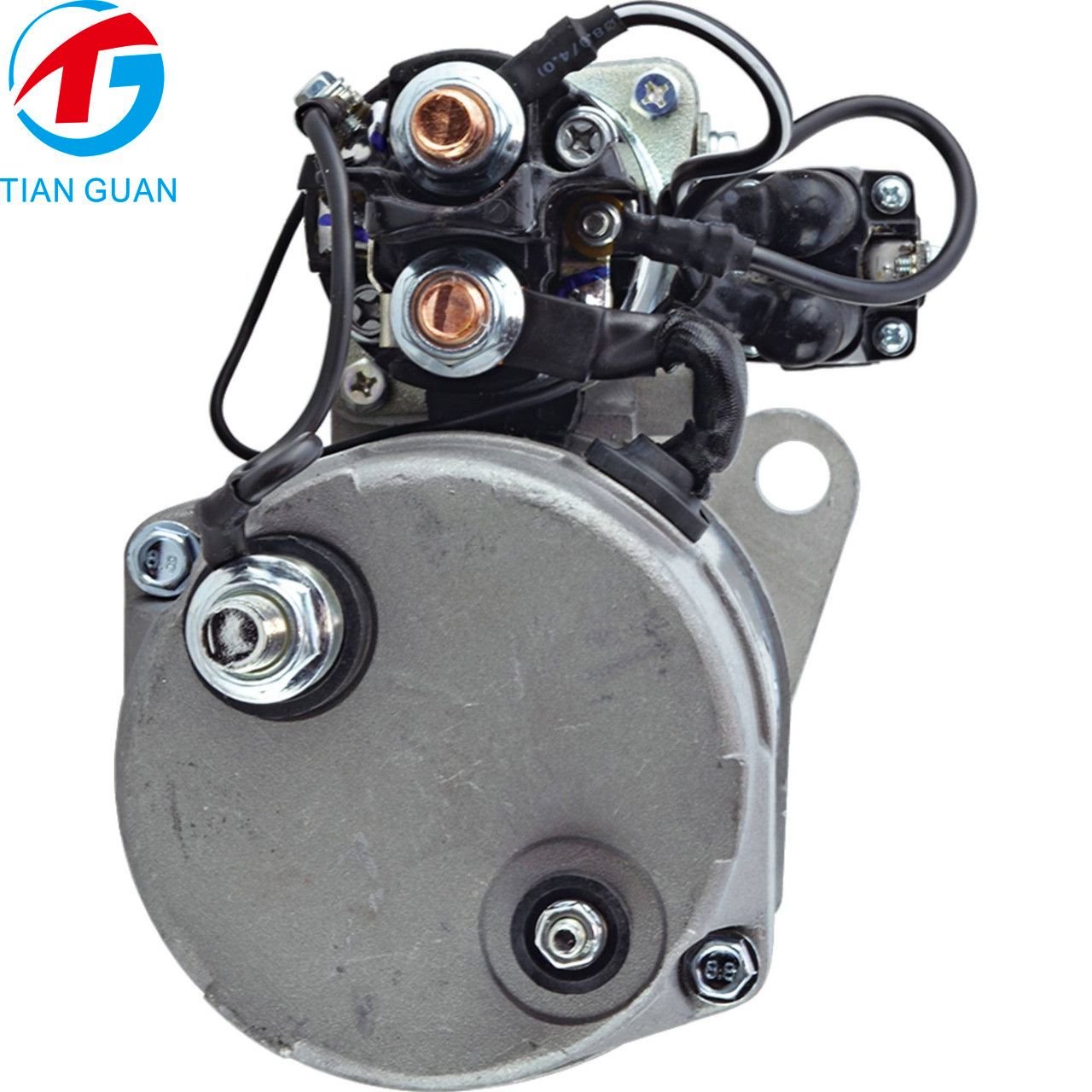

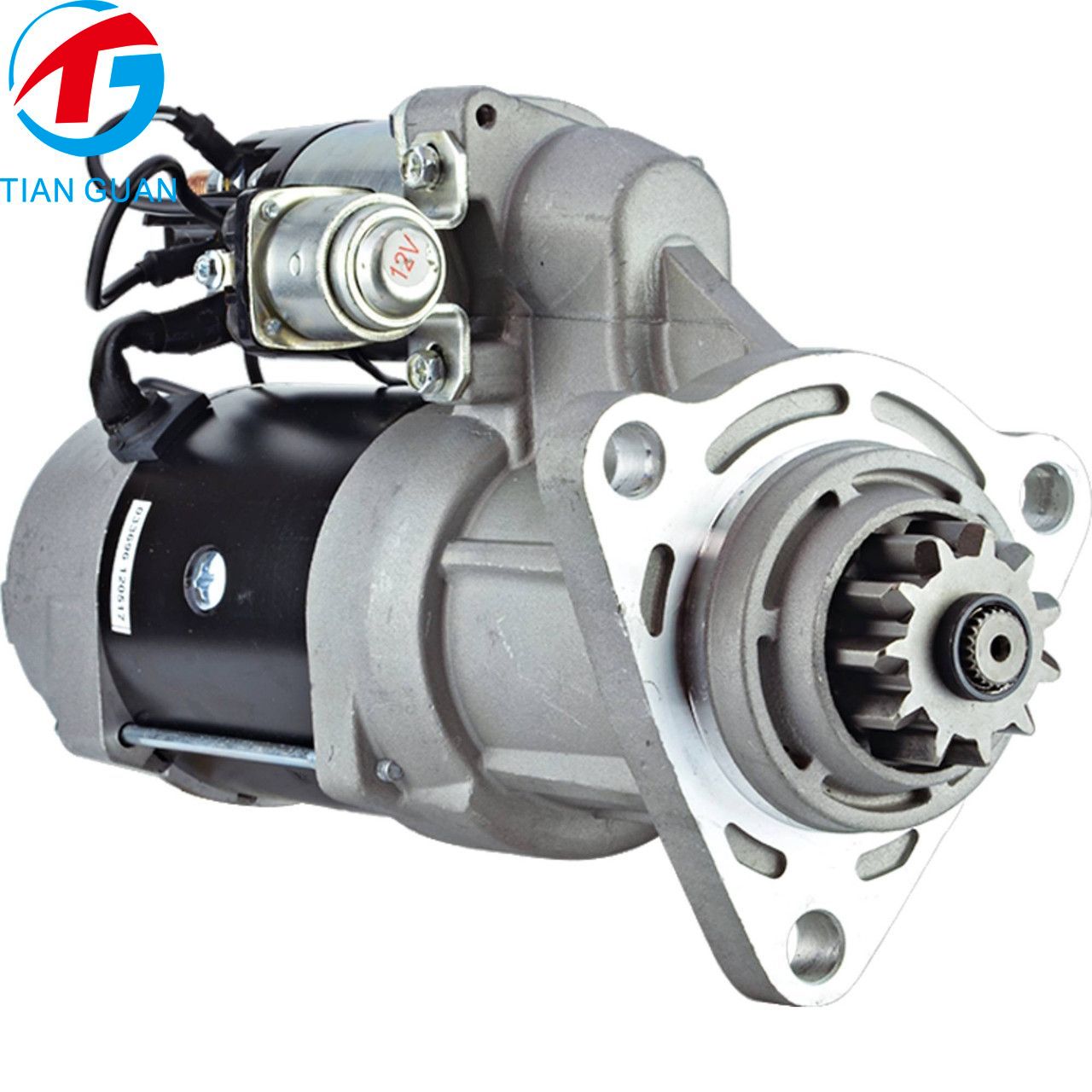

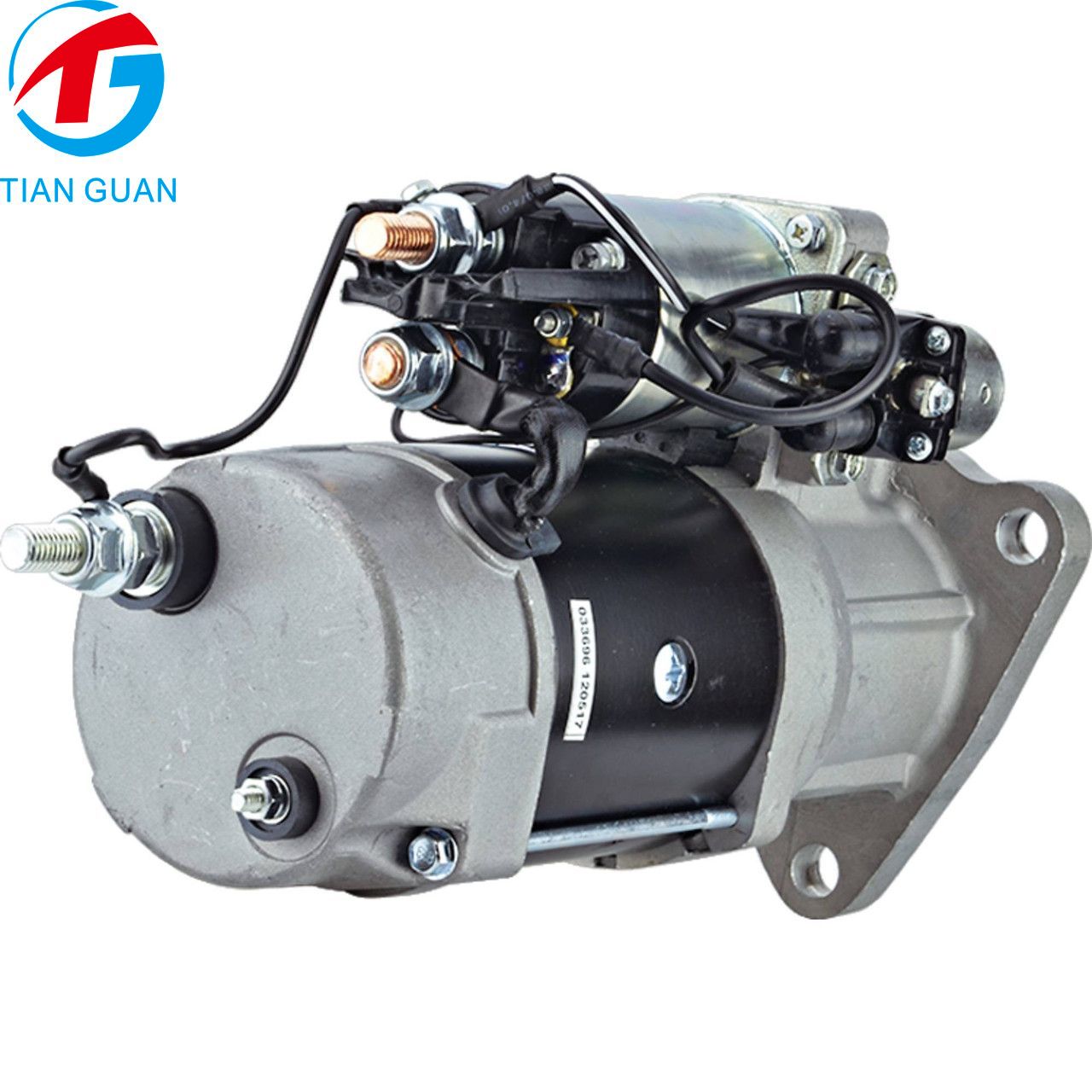

This premium aftermarket 12V 6.4KW Starter Motor is designed as a direct replacement for Mack medium and heavy-duty trucks with Mack E7 engines. Built on the Delco 39MT family with Planetary Gear Reduction (PLGR) design, 11-tooth pinion gear, and clockwise rotation, it delivers fast, reliable engine starting and dependable performance in demanding commercial vehicle applications.

This starter replaces OE part numbers SDR0320, 410-12693, D8200288, D8200308 (Arrowhead), 113550 (Cargo), 10461334, 19011500, 19011505, 19011531, 8200037 (Delco), 8200288 (Delco New Service), 8300020 (Delco Reman), 8200308 (Delco Rotatable Def), 410-12233, 410-12322, 410-12467, 410-12640, 410-12693, 410-12704, 410-12712, 410-12752, 410-12236 (J & N), 6801, 6802, 6812 (Lester), and STR-4290, STR-4292 (NSA).

• 12V starter motor

• 6.4KW power output

• 11-tooth pinion gear

• Delco 39MT family

• Planetary Gear Reduction (PLGR)

• Clockwise rotation

• Gear OD: 55.4mm

• Solenoid: 52 degrees

• Mounting ear holes: 16.0mm / 17.0mm

• w/SSL Sol, w/OCP, w/IMS Switch

• Rotatable housing

• Wet clutch seal

• Direct replacement for Mack E7 engines

• Reliable starting performance

• Durable construction

• Aftermarket replacement part

• Approx. 14.8 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Starter
Voltage: 12V
Rotation: CW
Teeth: 11T
KW: 6.4
Dimension: Repl. 39MT - No Rotatable Hsg; Gear OD: 55.4mm; Solenoid: 52 Degrees; Mtg. Ear Holes: 16.0mm; Notes: w/SSL Sol, w/OCP, w/IMS Switch; Rotatable Hsg: Same Drive Spec; Mtg. Ear Holes: 17.0mm; w/Wet Clutch Seal; w/SSL Sol; w/OCP; w/IMS
Starter Type: PLGR
Fits: Mack E7 Engines
Weight: 14.8KG

Fitment

Mack – Medium & Heavy-Duty Truck CH Series – 2000-2007 – Mack Engines
Mack – Medium & Heavy-Duty Truck CL Series – 2000-2007 – Mack Engines
Mack – Medium & Heavy-Duty Truck CT / CTP Series – 2006-2007 – Mack Engines
Mack – Medium & Heavy-Duty Truck CV Series – 2001-2007 – Mack Engines
Mack – Medium & Heavy-Duty Truck CX Series (Vision) – 2000-2005 – Mack Engines
Mack – Medium & Heavy-Duty Truck DM / DMM Series – 2000-2007 – Mack Engines
Mack – Medium & Heavy-Duty Truck Granite Series – 2002-2007 – Mack Engines
Mack – Medium & Heavy-Duty Truck MR Series – 2000-2007 – Mack Engines
Mack – Medium & Heavy-Duty Truck RB Series – 2000-2007 – Mack Engines
Mack – Medium & Heavy-Duty Truck RD Series – 2000-2007 – Mack Engines

Compatible with equipment using 8200037, 8300020, 410-12693, 113550, 10461334, 19011500, 19011505, 19011531, SDR0320, 8200288, 8200308, 410-12233, 410-12467, 410-12752, 6801, 6802, 6812, STR-4290, or STR-4292 starter motor part numbers.
