STG91653 Starter RE503093 RE503120 RE504009 RE507236 RE509025 for Case CS 660 Cummins ISB Doosan G100 G150-IIIA G200-IIIA G60 G80 John Deere Combines – 12V 4.0KW 10T CW
Part Numbers:
JOHN DEERE 30493, RE503093, RE503120, RE504009, RE507236, RE509025, RE509856, RE523501, RE523502, RE59010, RE68783, SE502632
LETRIKA 11.130.796, 11.130.940, 11.131.145, 11.131.370, 11.131.382, AZF4553, AZF4595, AZF4598, AZJ3325, AZJ3342, IS 0796, IS 1056
LUCAS LRS01535, LRS02385
MAGNETON 443-115-142-740, 9142740, 9-142-740
MAHLE 11.130.605, 11.130.703, 11.130.796, 11.130.799, 11.130.940, 11.131.145, 11.131.370, 11.131.472, 11.131.799, AZF4553, AZF4595, AZJ3190, AZJ3241, AZJ3325, AZJ3328, AZJ3342, IS0796, IS1056, MS486, MS621
NIKKO 02-23-1005, 02-23-1008, 0-23000-1858, 0-23000-1878, 0-61000-0030, 0-61000-0070
OEMS 84994459, OCO71071
TUG T6-7207-103
WESTERBEKE 38384
DOOSAN 46550710
HYSTER 1313394, 3114986
AC DELCO 323-437, 323-438
ARROWHEAD 410-29043, IMI25002-002, IS1056, MS486, NK0-23000-1858, NK0-23000-1878, SBO0251, SMA0005
ATLANTIC QUALITY PARTS 1100-0106, 1400-0152, 2100-0100
BOSCH 0001359029, 0-001-359-029, 0001359058, 0-001-359-058, 0001359114, 0-001-359-114, 0001362302, 0-001-362-302
CASEIH 3132700R91, 3132700R92, 3132700R93
DELCO 10461446, 10461447, 10465044, 10465046, 10465295, 1113274, 1113275, 1113278
FIAT 84994459
NEW HOLLAND 9800887
J & N 410-12122, 410-12126R, 410-12144, 410-12755, 410-24327, 410-29043, 410-42001, 410-12122R
LESTER 18469, 18945, 19659, 6572, 6584
Compatible Models: Case CS 660 | Cummins ISB Series | Doosan G100, G150-IIIA, G200-IIIA, G60, G80 | IH D-358, D-358T6 | John Deere Combines 1165, 1175, 1175Hydro, 1450, 1450CWS, 1470, 1550, 1550CWS
Weight: 9.5 KG
Product Overview
STG91653 is a heavy-duty aftermarket starter motor designed for Case CS 660, Cummins ISB, Doosan Portable Power, IH, and John Deere combine applications. It directly replaces OEM part numbers RE503093, RE503120, RE504009, RE507236, RE509025, RE509856, RE523501, RE523502, RE59010, RE68783, and SE502632, delivering reliable cranking performance for agricultural and industrial diesel engines.
Key Specifications
Parameter Specification
Item Description Starter
Unit Type Letrika
Voltage 12V
Power Output 4.0KW

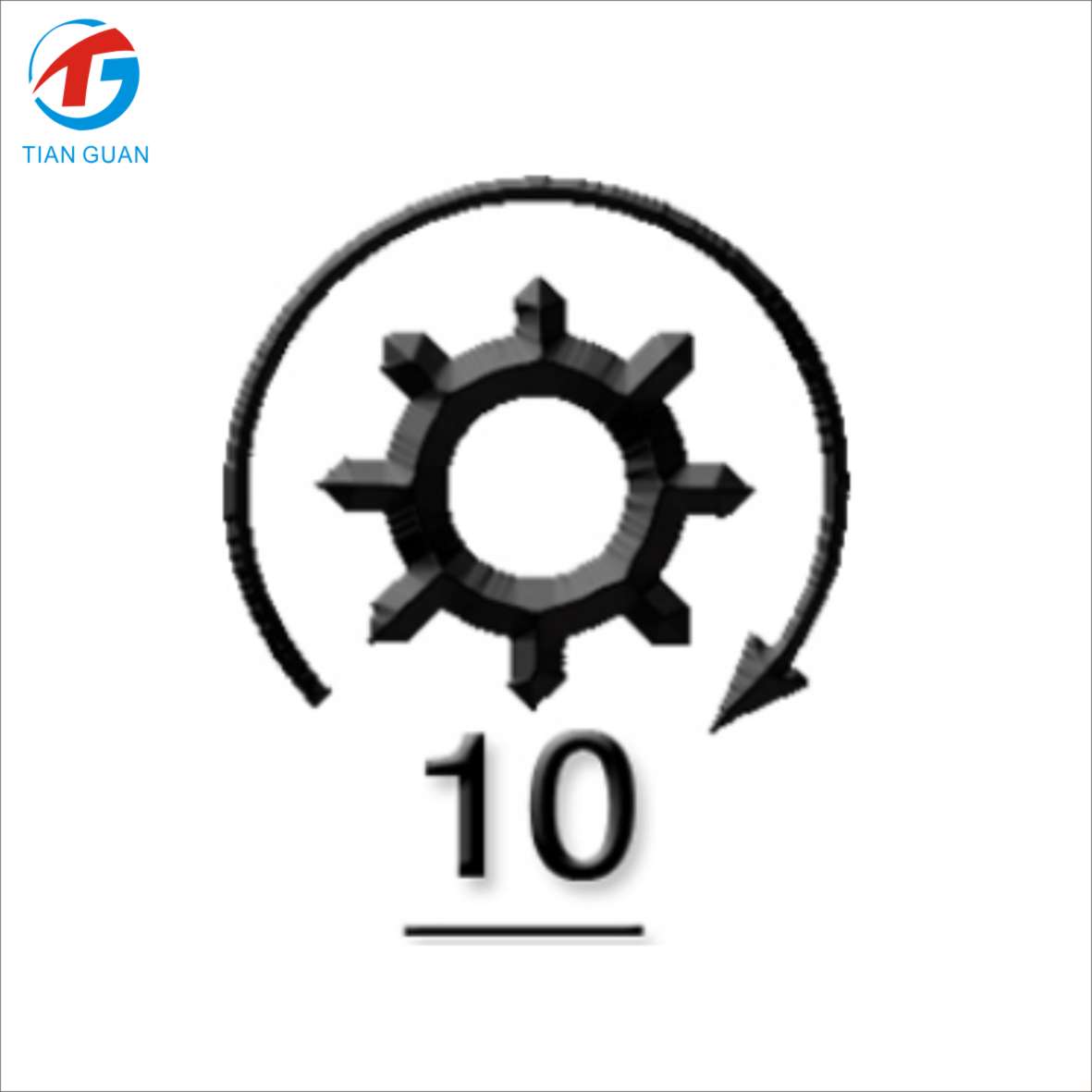

Rotation CW
Teeth Count 10T
Weight 9.5 KG
Condition Aftermarket Part
Compatibility
Compatible Models:
Case CS 660: Cummins 8.3 TAA, 209kW, 6-cyl, 2004.05–
Cummins ISB Series: 1998.01–
Doosan Portable Power G100: 4045HF279, 94kW, 4.5L
Doosan Portable Power G150-IIIA: 6068HFG82, 139kW, IIIA, 6.8L
Doosan Portable Power G200-IIIA: 6068HFG82, 184kW, IIIA, 6.8L
Doosan Portable Power G60: 4045TF270, 55kW, 4.5L
Doosan Portable Power G80: 4045HF275, 75kW, 4.5L
IH (International Harvester): D-358, D-358T6
John Deere Combines: 1165 (6068T, 414/06006, AM Latina, 6.8L), 1175/1175Hydro (6068, 060154, AM Latina, 6.8L), 1450/1450CWS (6068, AM Latina, 6.8L), 1470 (6068TCQ18, 6.8L), 1550/1550CWS (6068, AM Latina, 6.8L)
