STG91659 Starter Motor 836673290 836866817 569018D1 836873088 836873457 for Challenger MT745D Tractor and Challenger Combines | 12V 4.2kW CW 11T Let rika Replacement

3 Reviews

Add Your Review

US$152.00

ITEMNO： STG91659

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG91659 Starter Motor 836673290 836866817 569018D1 836873088 836873457 for Challenger MT745D Tractor and Challenger Combines | 12V 4.2kW CW 11T Let rika Replacement

Part Numbers

AGCO: 836673290 / 836866817 / 569018D1 / 836873088 / 836873457 / V836866817 / V836873457

Valtra: 89732200 / VPF7263 / 83646500

Case: 47111575 / 84284540

CNH: 62000090722 / 87751000

Product Description

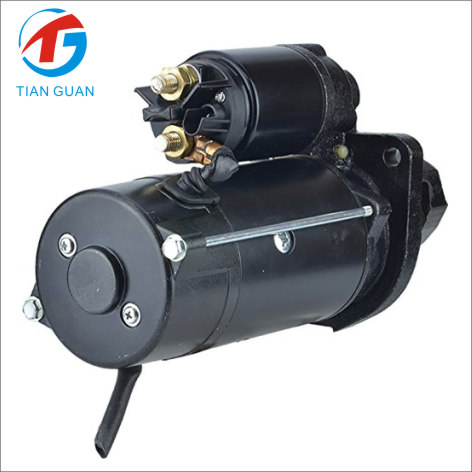

The STG91659 Starter Motor is a 12V, 4.2kW replacement starter designed for selected Challenger tractors and agricultural combine applications. Built to a Letrika-type specification, this starter features clockwise rotation and an 11-tooth pinion for reliable engine cranking.

This aftermarket replacement is cross-referenced to a range of AGCO, Valtra, Case, CNH, Hesston, New Holland, Mahle, Prestolite, Bosch, Lucas, and Sparex part numbers.

Before ordering, compare the original starter's part number, mounting configuration, electrical connections, and pinion specifications to ensure proper fitment.

Product Specifications

Property	Value
SKU	STG91659
Product Type	Starter Motor
Unit Type	Letrika
Voltage	12V
Power Rating	4.2kW

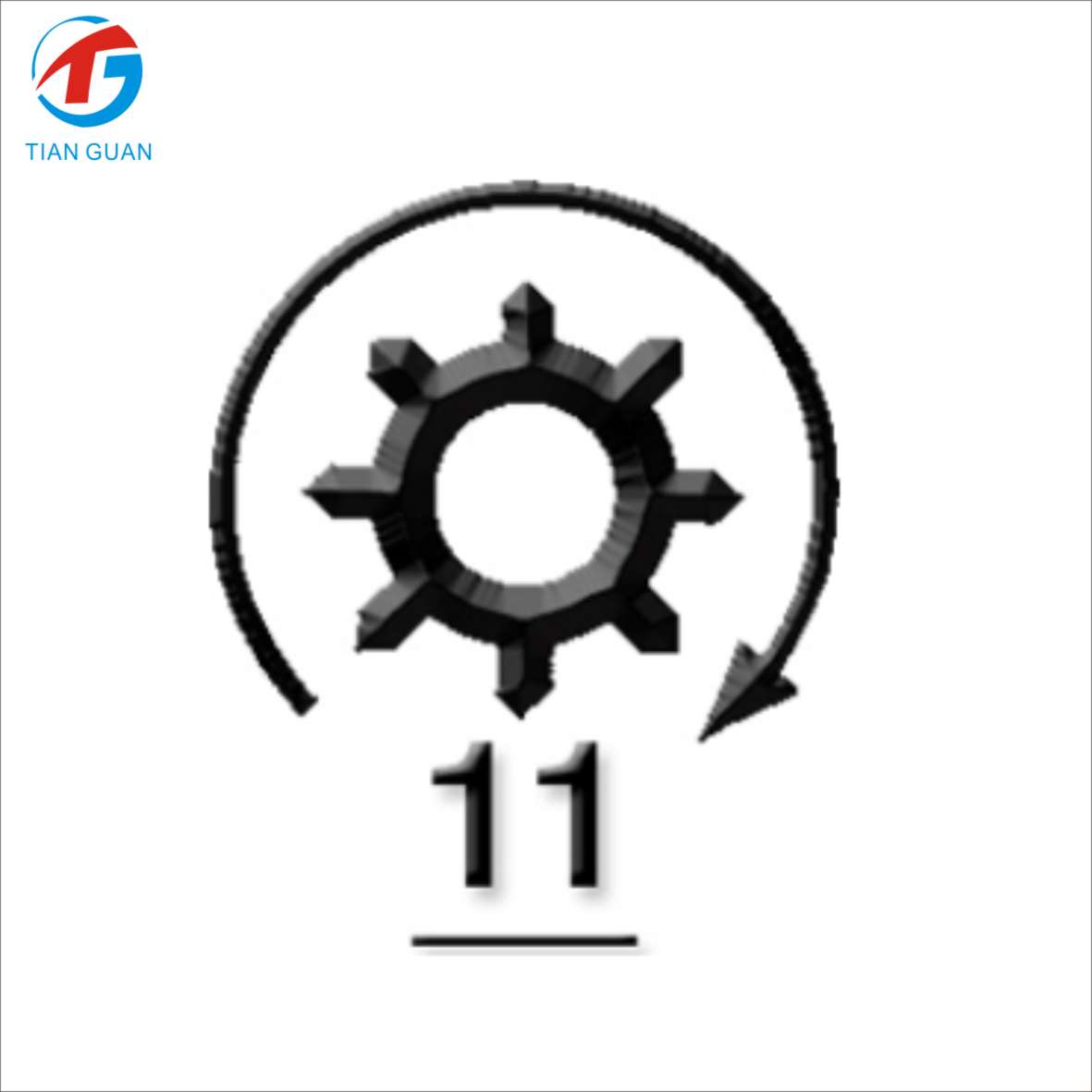

Rotation	Clockwise (CW)
Pinion Teeth	11T
Condition	New Aftermarket Part
Weight	8.7 kg

OEM / Cross Reference Numbers

Brand / Category	Part Numbers
AGCO	836673290 / 836866817 / 569018D1 / 836873088 / 836873457 / V836866817 / V836873457
Valtra	89732200 / VPF7263 / 83646500
Case	47111575 / 84284540
CNH	62000090722 / 87751000
Hesston	836873290
New Holland	162000090722 / 87693781 / 87751000
Mahle	IS0836 / 11132359 / AZF4370 / 11132356 / AZF4369 / MS175 / 11132174 / AZF4320 / 11131968 / AZF4261 / 11131727 / AZF4190 / MS591 / 11131542 / AZF4141 / 11130836 / AZF4513
Prestolite	35259360
Bosch	0001260025 / 0001260026
Lucas	LRS02361
Sparex	36208

Compatible Applications

Make	Equipment Model	Engine / Application Details
Challenger	MT745D Tractor	Tractor application; engine details not provided
Challenger Combines	540E	AGCO P. ATI engine, 280kW, Tier 4, 9.8L
Challenger Combines	560E	AGCO P. ATI engine, 343kW, Tier 4, 9.8L
Challenger Combines	652C	AGCO P. engine, 265kW, CTA, Tier 4, 8.4L

PRODUCT HIGHLIGHTS

Product Highlights

High Power Output	Letrika-Type Design	Broad Cross-Reference Coverage
4.2kW output for demanding agricultural starting applications	12V system with clockwise rotation and an 11-tooth pinion	Cross-referenced with AGCO, Valtra, Case, CNH, New Holland, Mahle, Bosch, and other brands
