Starter Motor 3542185M91 3542185M92 3546391M91 234987A1 12V 4.0KW 10T CW for Landini 10000S 12500 13000 14500 65 6560 Tractors

Part Numbers

LANDINI: 3542185M91, 3542185M92, 3546391M91
CASE: 234987A1
BOSCH: 0001367040, 9000143416
DUCELLIER: 6233
HELLA: 8EA737250001, CS1033
LUCAS: 26410, 27572B, LRS00232, NSB531, NSB540, S5027
MAGNETI MARELLI: 54293280, 63216817, 63226323, 63226345, 63226405, 63226406, 63226410, 63227510, 63227515, 63227523, 63227539, 63227541, 63227565, 63227568, 63227590, 63227598, 63227602, MSN199, MT68S
MAHLE: IS1159, 11131574, AZF4147, MS294
MASSEY-FERGUSON: 1447731, 1691806R1, 1860093M2, 1868285R3, 1868287T, 2873006, 3519400M92, 3597372M2, 3930506R1, 3930509R1
PARIS-RHONE: D11E137, D11E154
PERKINS: 26410R
RENAULT: 6005003154, 6005021272, 6005700081, 7700011850, 7701031686
VALEO: 433316
LESTER: 18482

Specification

Fit for Engine

• Perkins A4.236

• Perkins A6.354.4

• Perkins AT6.354.4

Applications

Landini Tractors

• Landini 65 — A4.236

• Landini 6560 F/L/V — A4.236

• Landini 10000S — A6.354.4

• Landini 12500 — A6.354.4

• Landini 13000 — A6.354.4

• Landini 14500 — AT6.354.4

Product Description

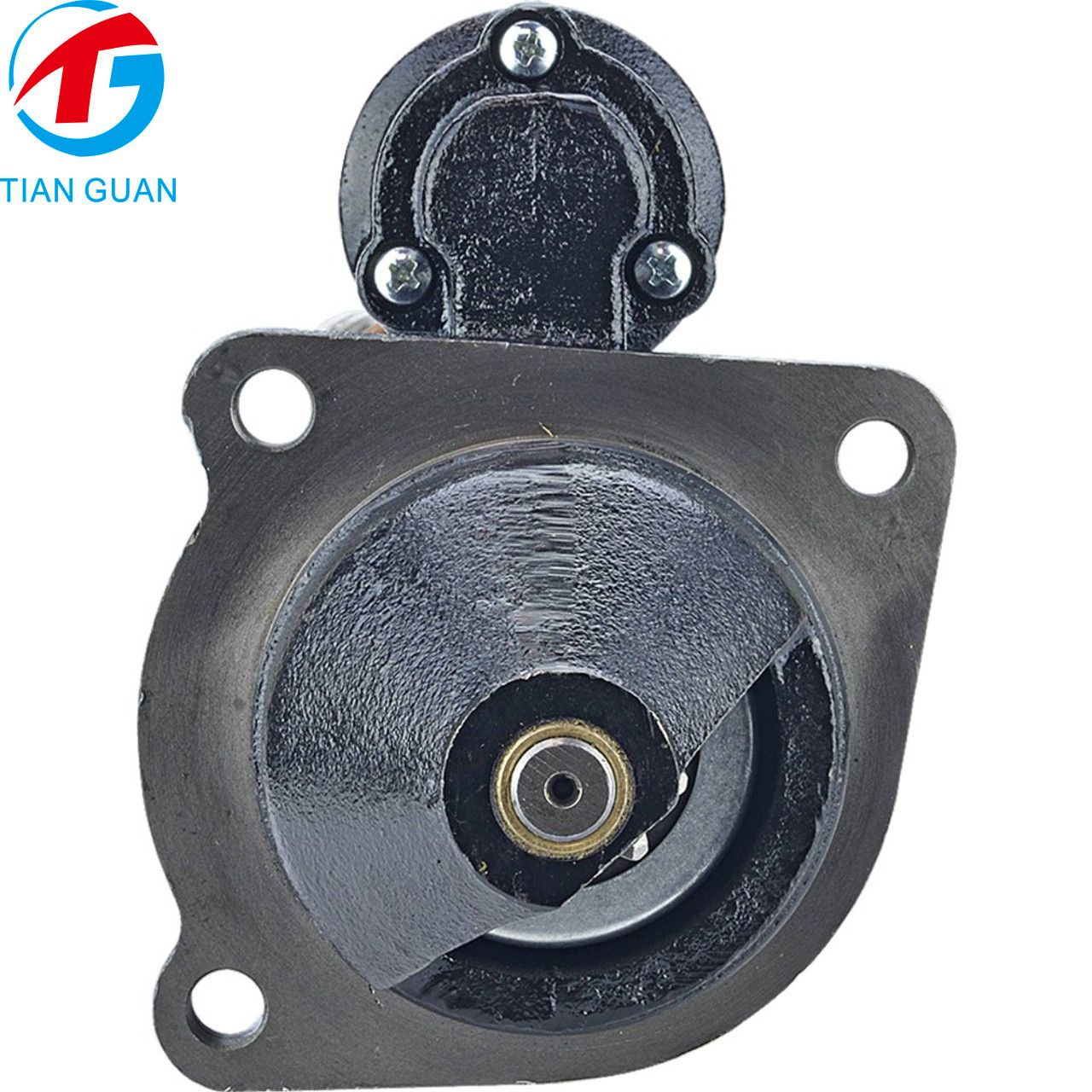

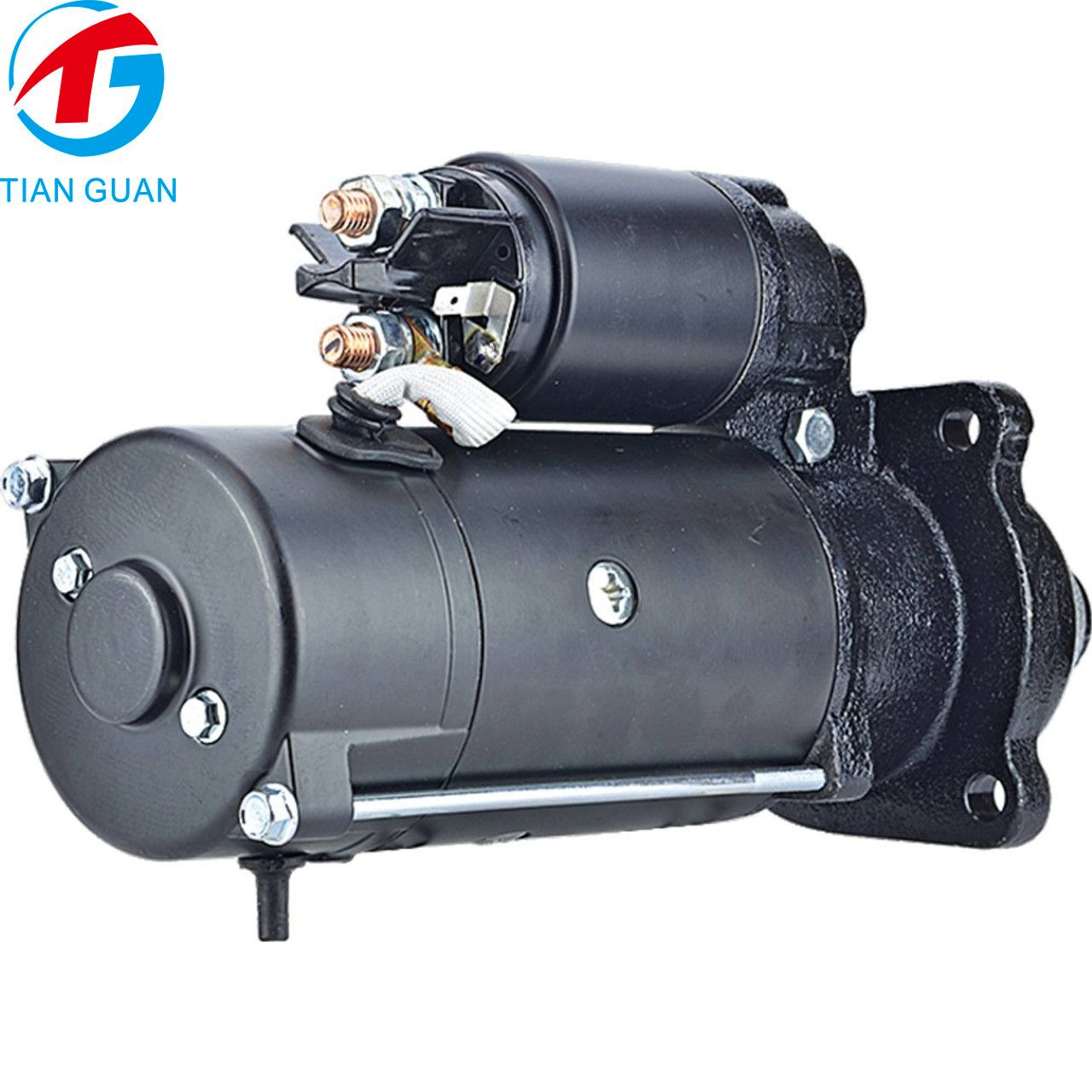

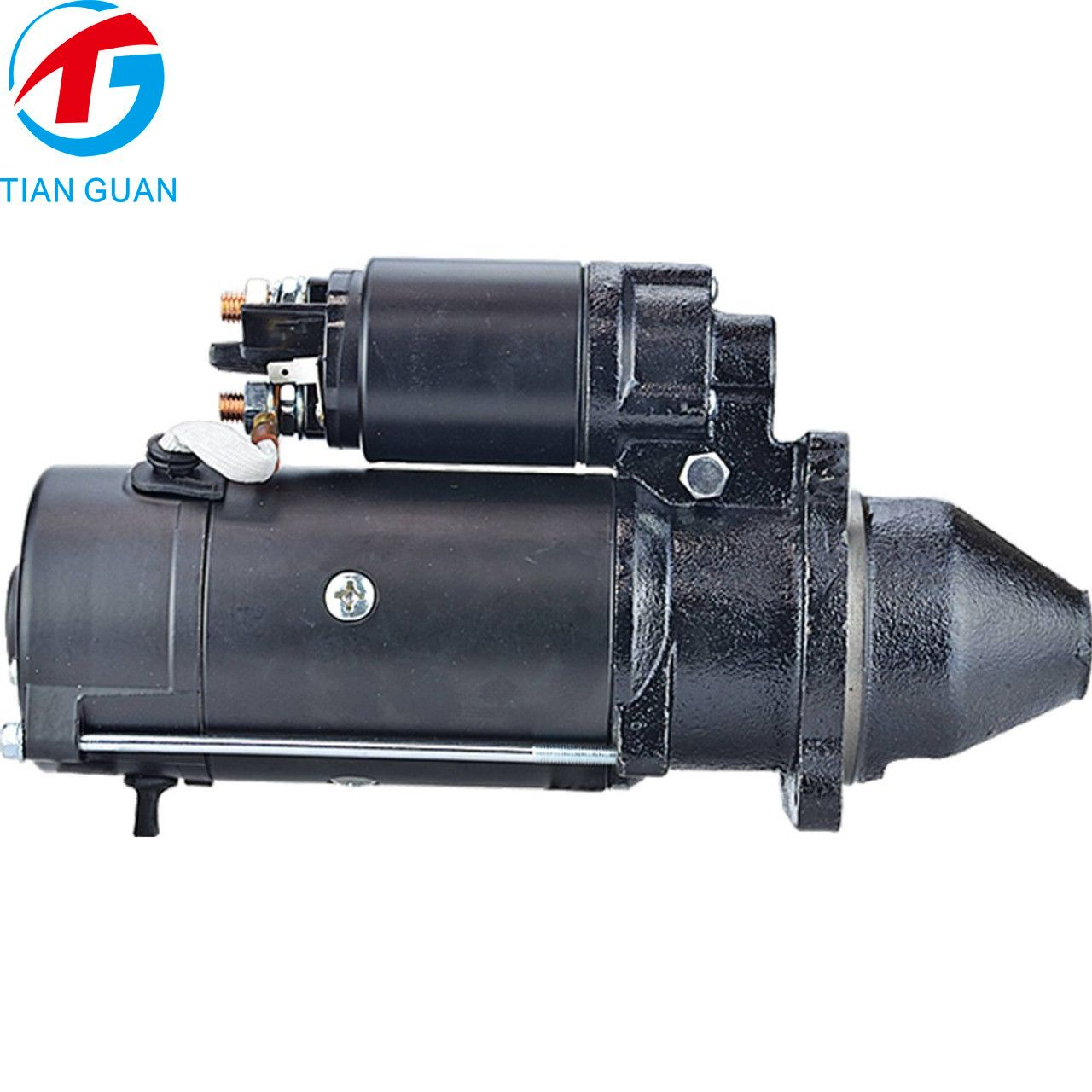

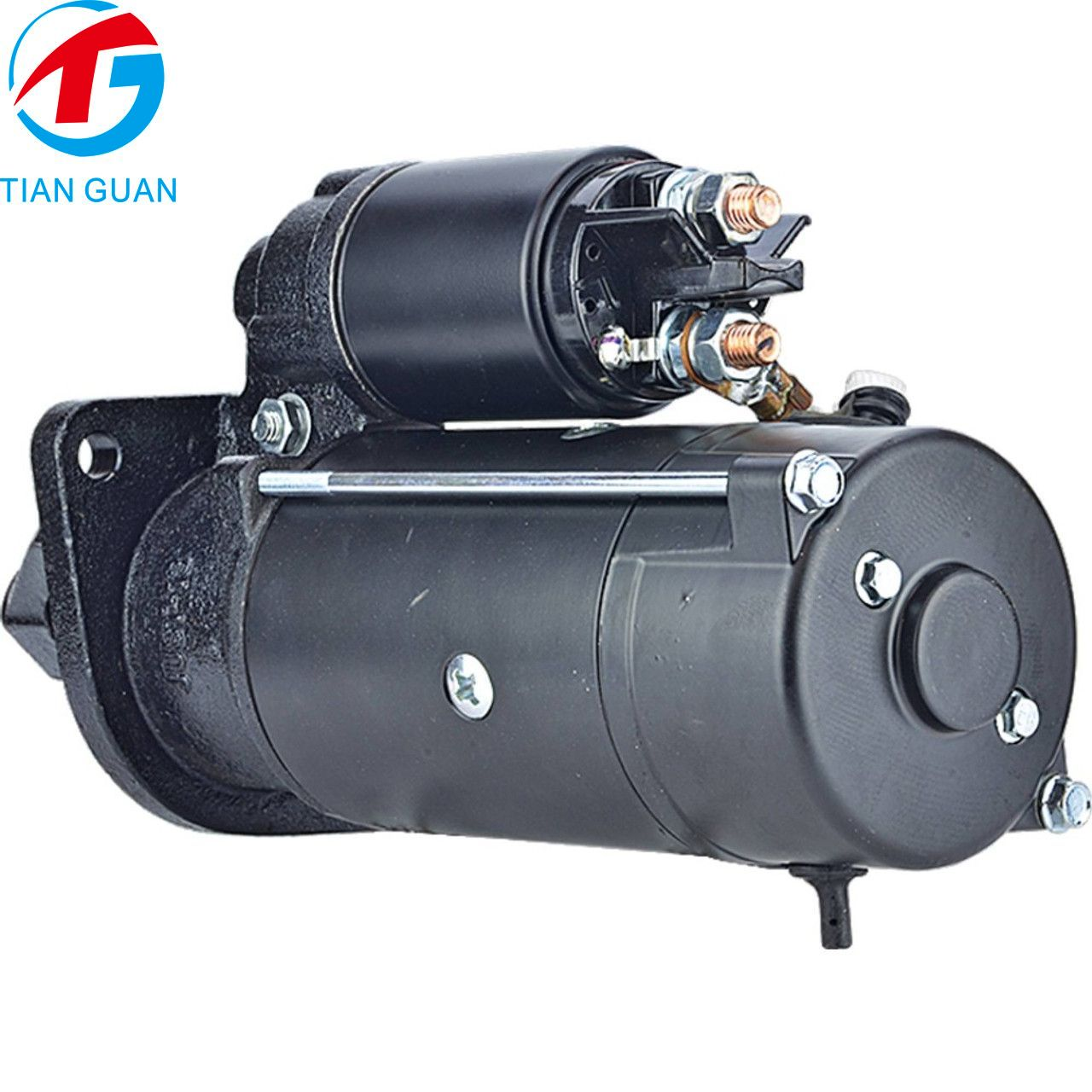

This 12V 4.0KW Starter Motor is an aftermarket replacement unit designed for Landini agricultural tractors equipped with Perkins diesel engines.

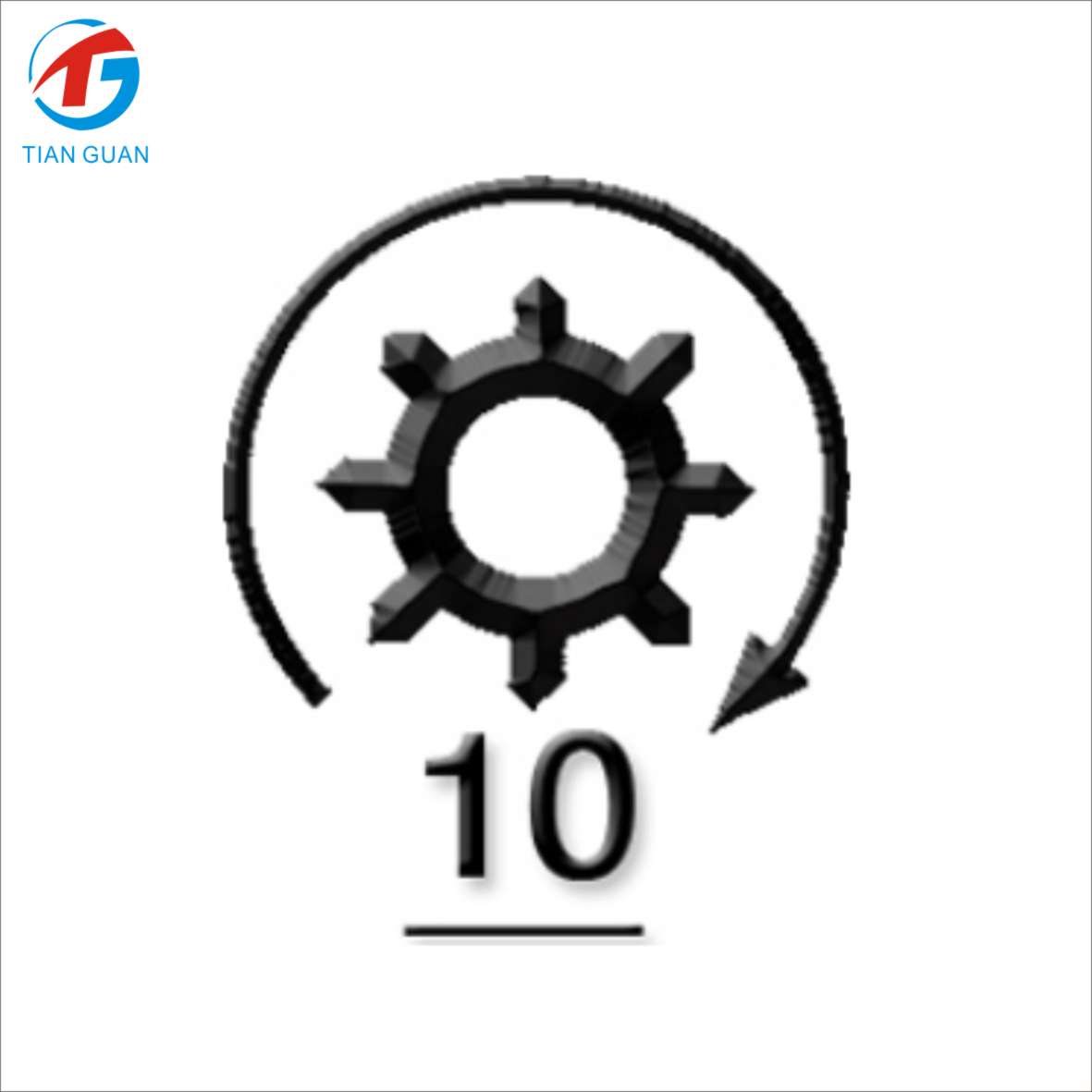

The starter features a 10-tooth pinion, clockwise (CW) rotation and LetriKa starter configuration, providing reliable engine cranking performance for demanding agricultural applications.

It is compatible with multiple original and aftermarket starter references from Landini, Case, Bosch, Ducellier, Hella, Lucas, Magneti Marelli, Mahle, Massey Ferguson, Paris-Rhone, Perkins, Renault and Valeo.

This starter is suitable for Landini tractor models including the 10000S, 12500, 13000, 14500, 65 and 6560 F/L/V, covering Perkins A4.236, A6.354.4 and AT6.354.4 engine applications.

With a 10.6 KG heavy-duty construction, it is suitable for tractor repair, agricultural equipment maintenance and aftermarket replacement applications.
