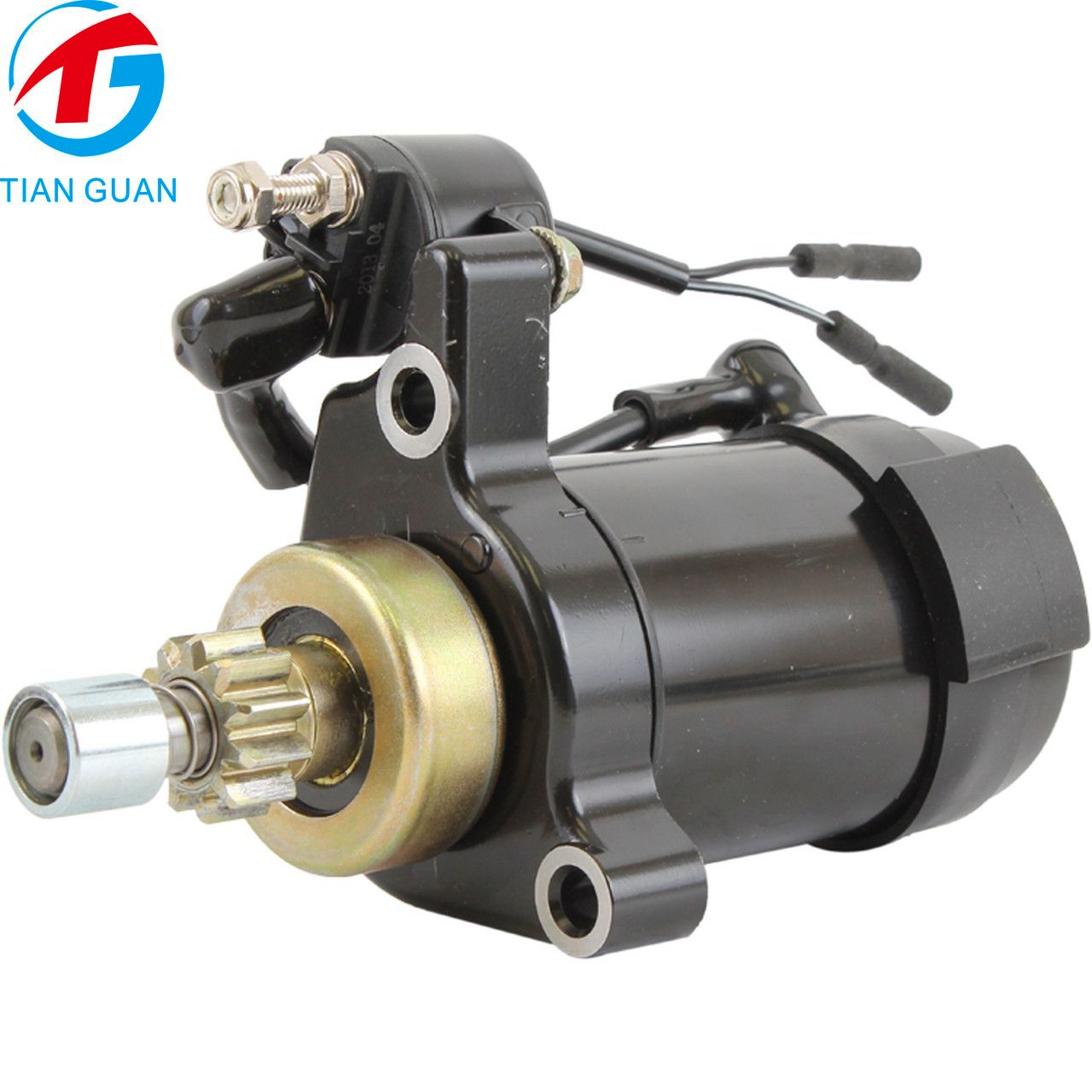

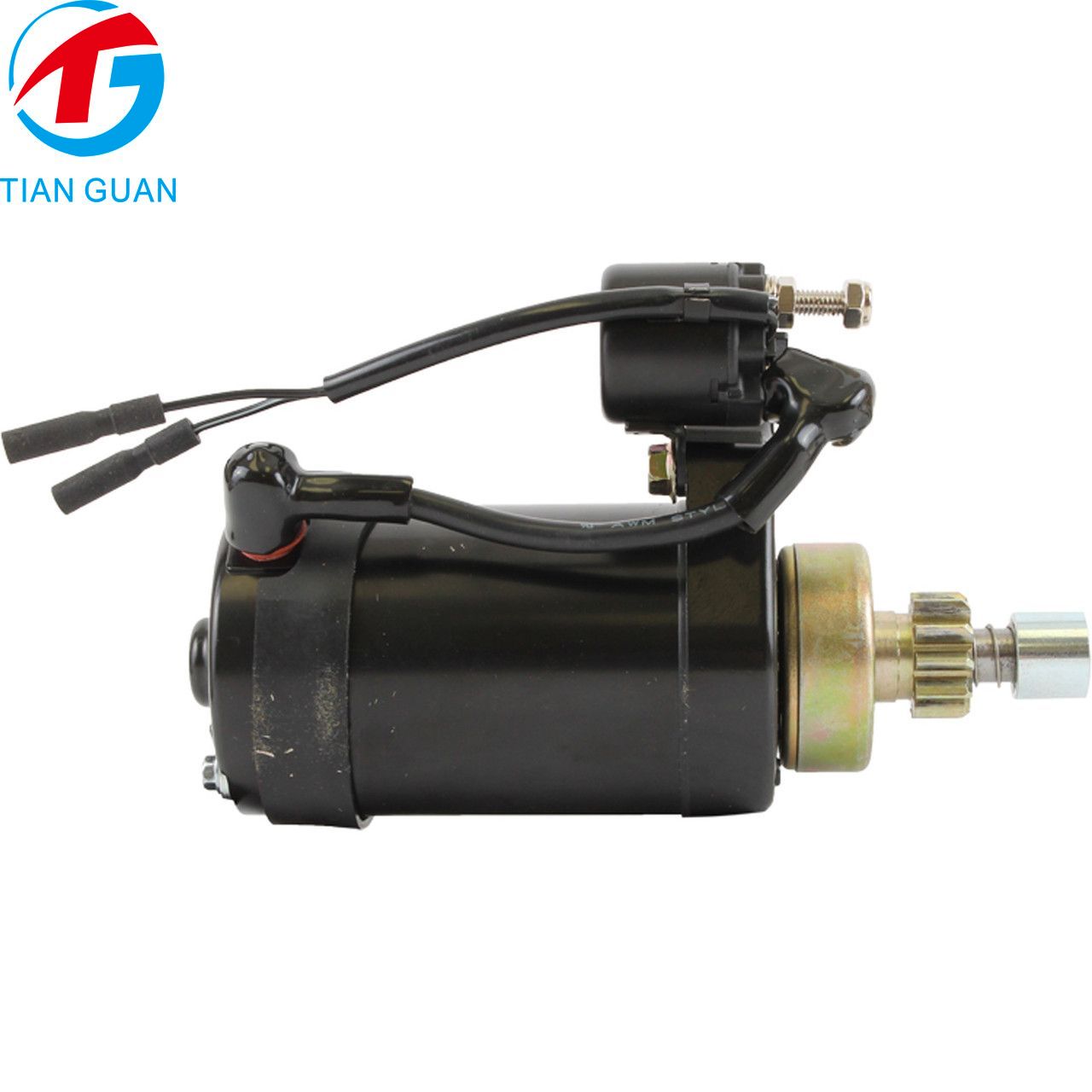

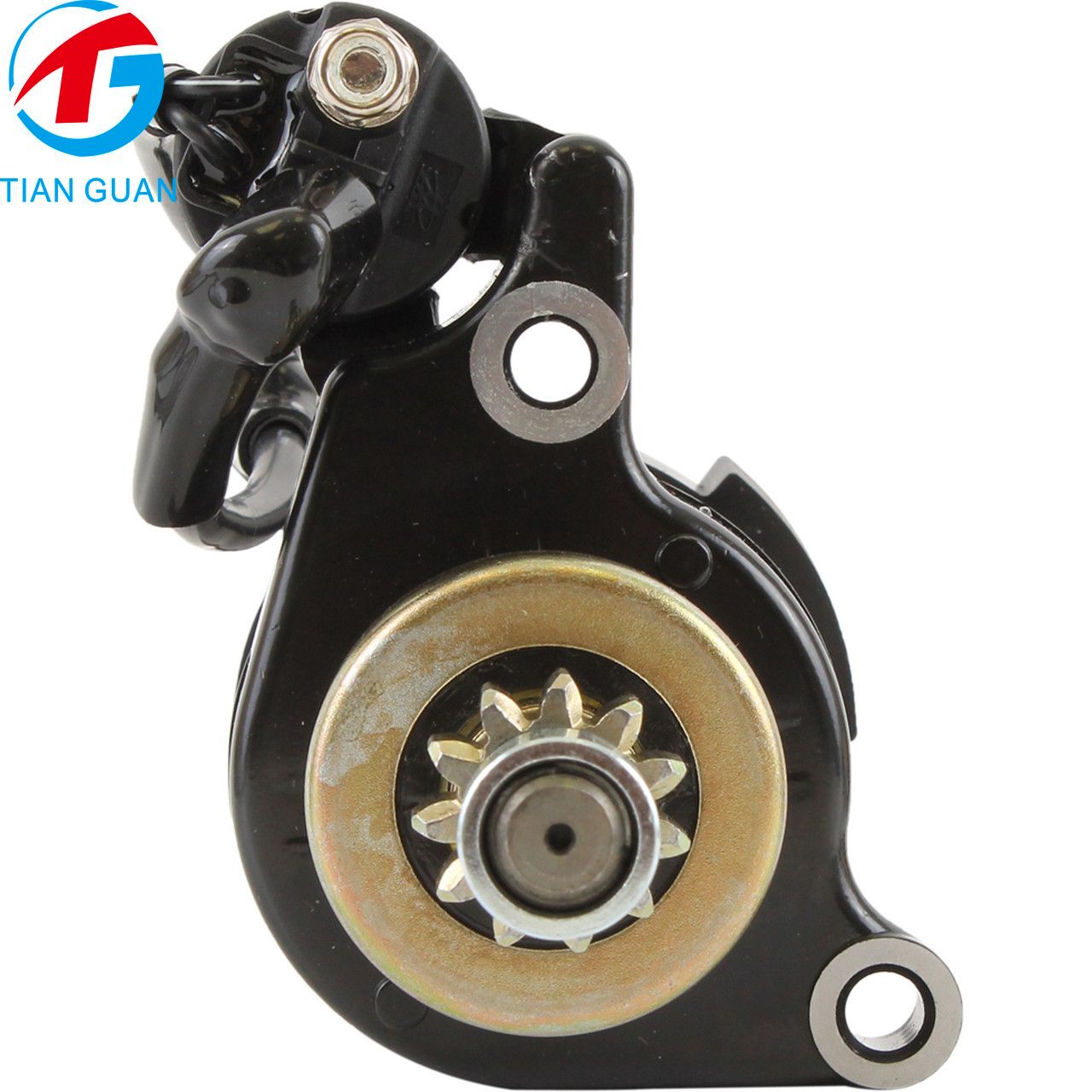

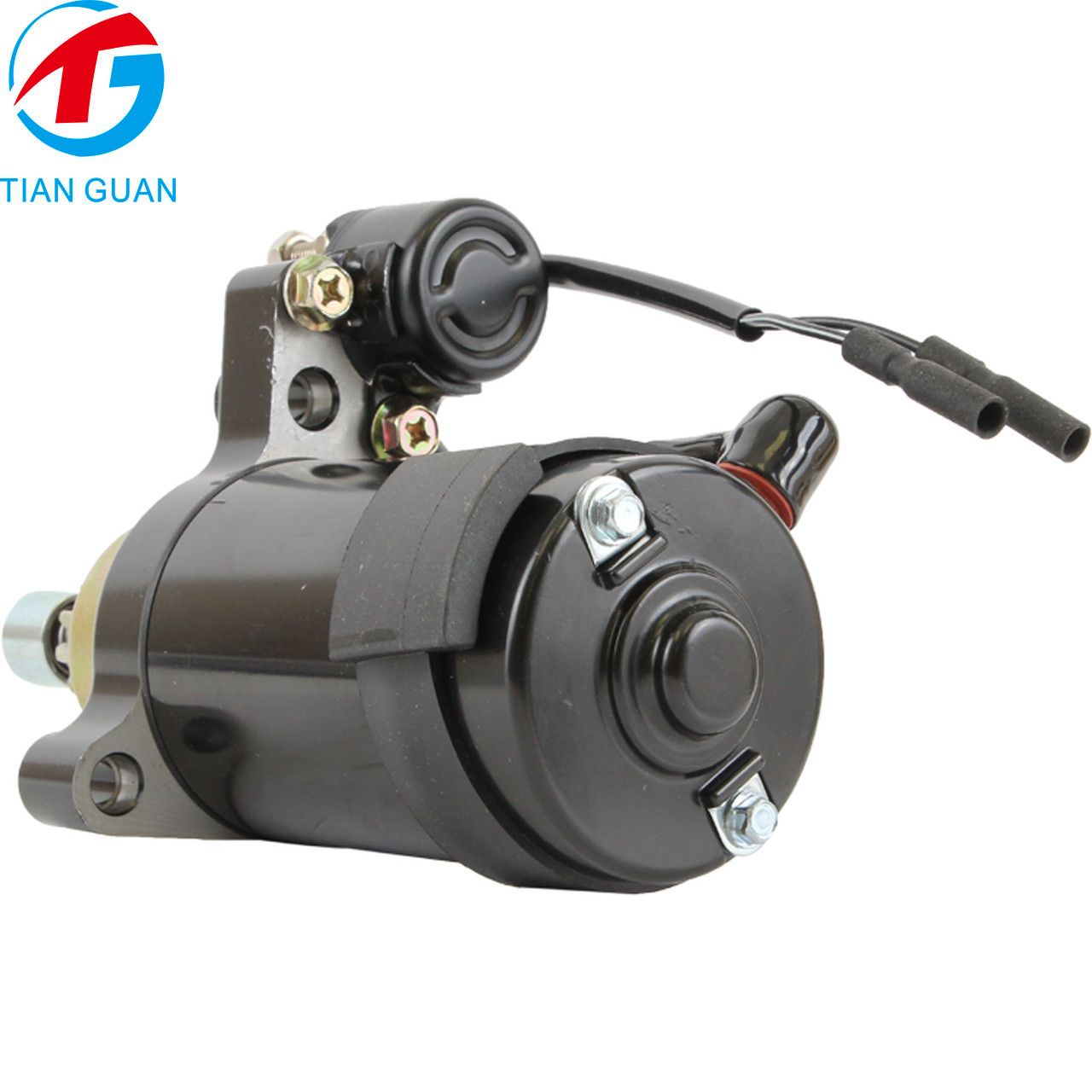

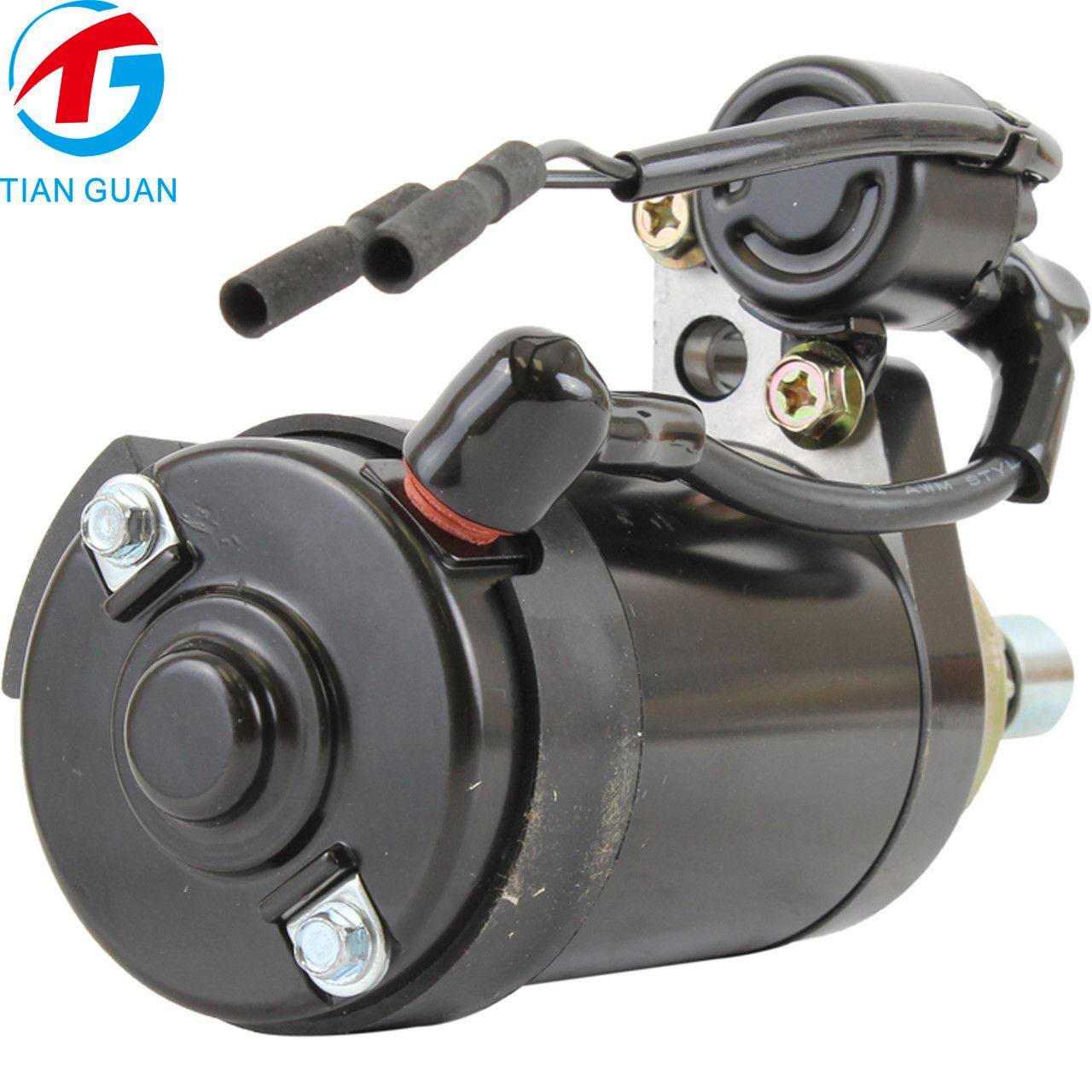

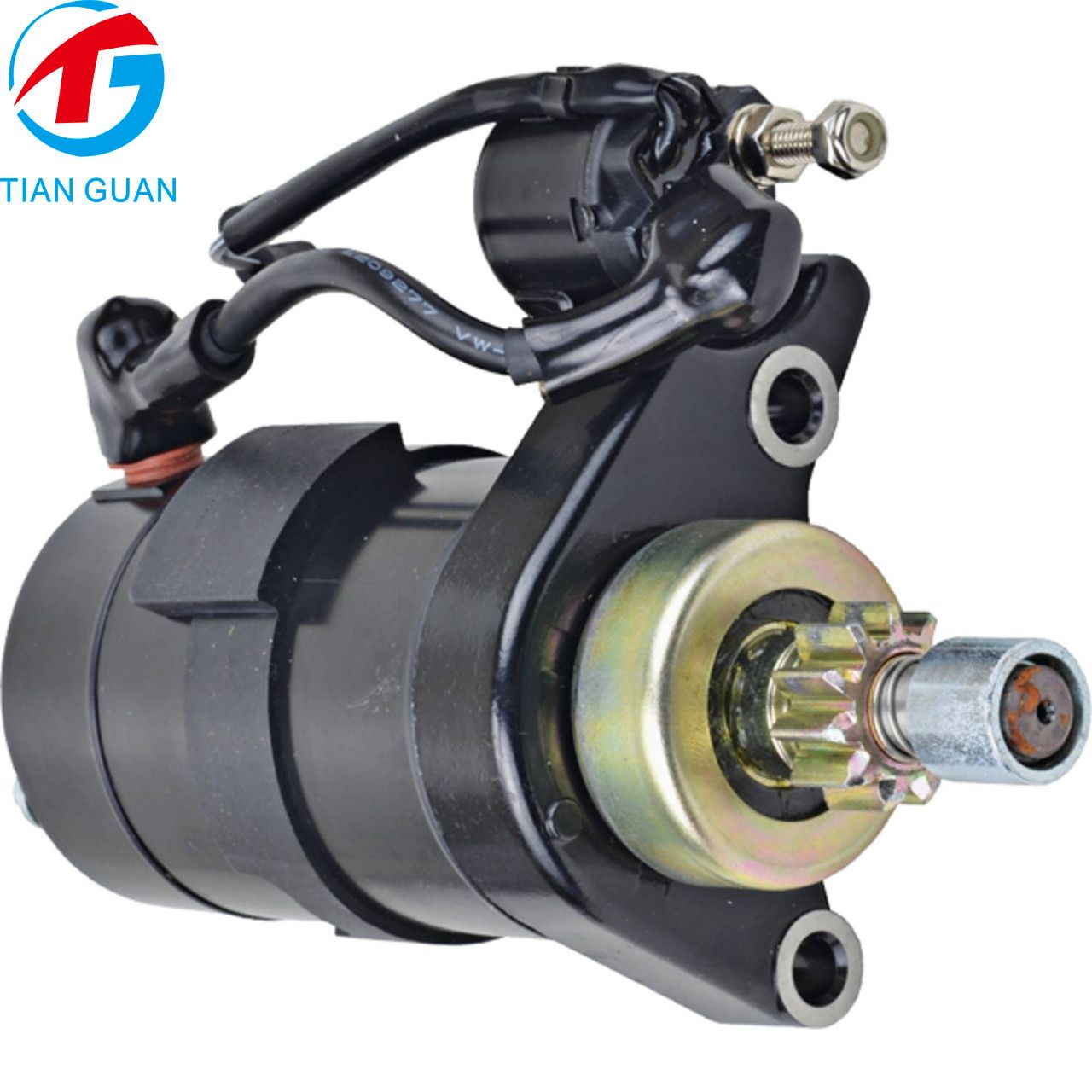

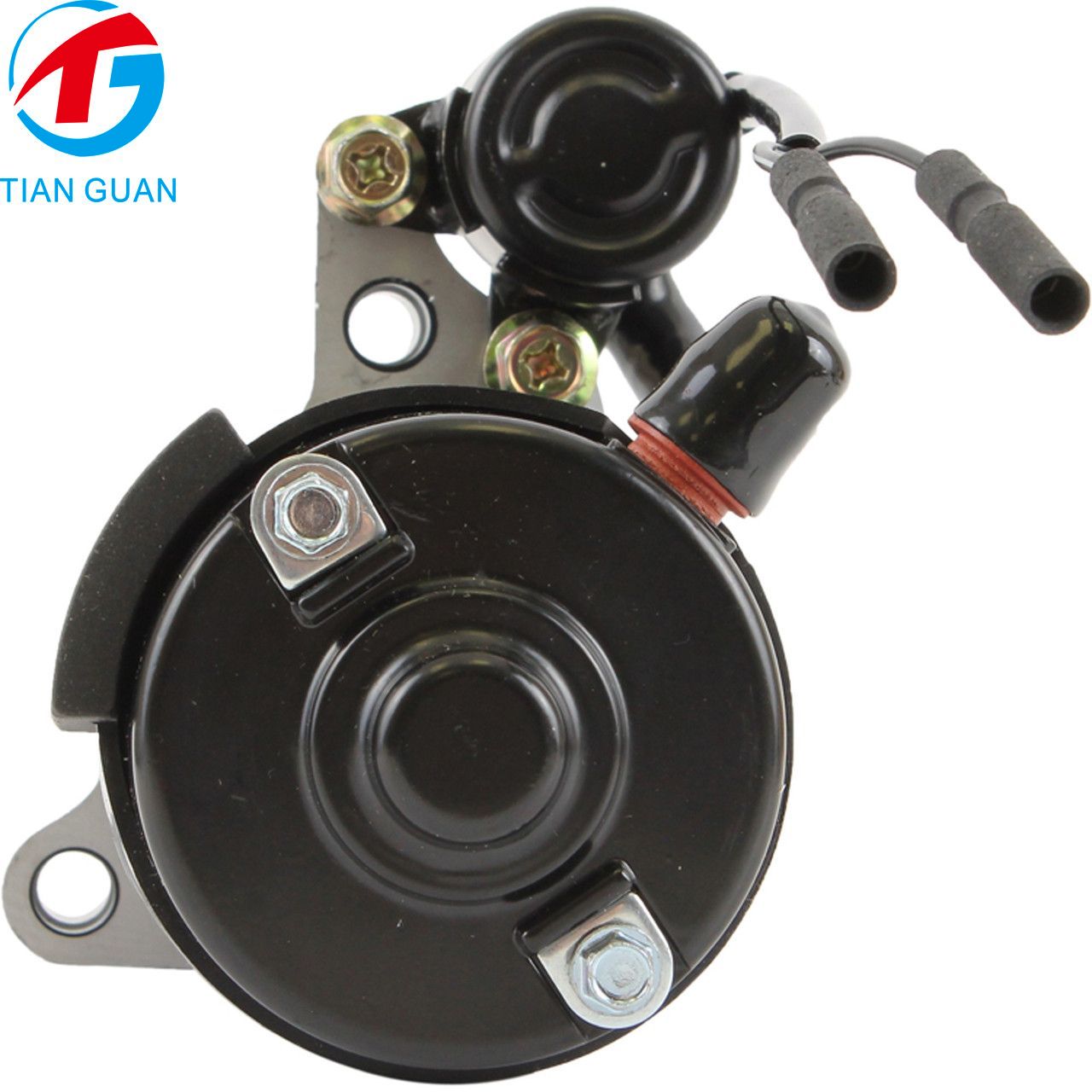

Starter 8M6007338 31200-ZY1-801 for Honda Outboard BF15 BF20 15HP 20HP 2003-2014

Cross Reference Part Numbers

ARROWHEAD: SMU0524
HONDA: 31200-ZY1-801, 31200-ZY1-802, 31210-ZY1-802
J & N: 410-54174
LESTER: 19563
QUICKSILVER / MERCURY: 8M6007338

Product Specifications

Condition: Aftermarket Replacement
Unit Type: Starter Motor
Voltage: 12V
Rotation: CCW (Counterclockwise)
Teeth: 11
Starter Type: PMDD
Dimensions:

Gear OD: 1.087 in / 27.6 mm
Mount Ear Holes: 8.4 mm, Unthreaded

Application: Honda Marine Outboard Engines – 15HP & 20HP

Fits the Following Honda Outboard Models (2003–2020)

BF15 (15HP)

2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010,
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018,
2019, 2020

BF20 (20HP)

2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010,
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018,
2019, 2020

BFP20 (20HP Power Thrust)

2003, 2004, 2005, 2006, 2007

MAKE	TYPE	MODEL	YEAR	ENGINE
HONDA	Engines - Marine Outboard	BF15	2003	15HP
HONDA	Engines - Marine Outboard	BF15	2004	15HP
HONDA	Engines - Marine Outboard	BF15	2005	15HP
HONDA	Engines - Marine Outboard	BF15	2006	15HP
HONDA	Engines - Marine Outboard	BF15	2007	15HP
HONDA	Engines - Marine Outboard	BF15	2008	15HP
HONDA	Engines - Marine Outboard	BF15	2009	15HP
HONDA	Engines - Marine Outboard	BF15	2010	15HP
HONDA	Engines - Marine Outboard	BF15	2011	15HP
HONDA	Engines - Marine Outboard	BF15	2012	15HP
HONDA	Engines - Marine Outboard	BF15	2013	15HP
HONDA	Engines - Marine Outboard	BF15	2014	15HP
HONDA	Engines - Marine Outboard	BF15	2015	15HP
HONDA	Engines - Marine Outboard	BF15	2016	15HP
HONDA	Engines - Marine Outboard	BF15	2017	15HP
HONDA	Engines - Marine Outboard	BF15	2018	15HP
HONDA	Engines - Marine Outboard	BF15	2019	15HP
HONDA	Engines - Marine Outboard	BF15	2020	15HP
HONDA	Engines - Marine Outboard	BF20	2003	20HP
HONDA	Engines - Marine Outboard	BF20	2004	20HP
HONDA	Engines - Marine Outboard	BF20	2005	20HP
HONDA	Engines - Marine Outboard	BF20	2006	20HP
HONDA	Engines - Marine Outboard	BF20	2007	20HP
HONDA	Engines - Marine Outboard	BF20	2008	20HP
HONDA	Engines - Marine Outboard	BF20	2009	20HP
HONDA	Engines - Marine Outboard	BF20	2010	20HP
HONDA	Engines - Marine Outboard	BF20	2011	20HP
HONDA	Engines - Marine Outboard	BF20	2012	20HP
HONDA	Engines - Marine Outboard	BF20	2013	20HP
HONDA	Engines - Marine Outboard	BF20	2014	20HP
HONDA	Engines - Marine Outboard	BF20	2015	20HP
HONDA	Engines - Marine Outboard	BF20	2016	20HP
HONDA	Engines - Marine Outboard	BF20	2017	20HP
HONDA	Engines - Marine Outboard	BF20	2018	20HP
HONDA	Engines - Marine Outboard	BF20	2019	20HP
HONDA	Engines - Marine Outboard	BF20	2020	20HP
HONDA	Engines - Marine Outboard	BFP20	2003	20HP
HONDA	Engines - Marine Outboard	BFP20	2004	20HP
HONDA	Engines - Marine Outboard	BFP20	2005	20HP
HONDA	Engines - Marine Outboard	BFP20	2006	20HP
HONDA	Engines - Marine Outboard	BFP20	2007	20HP
