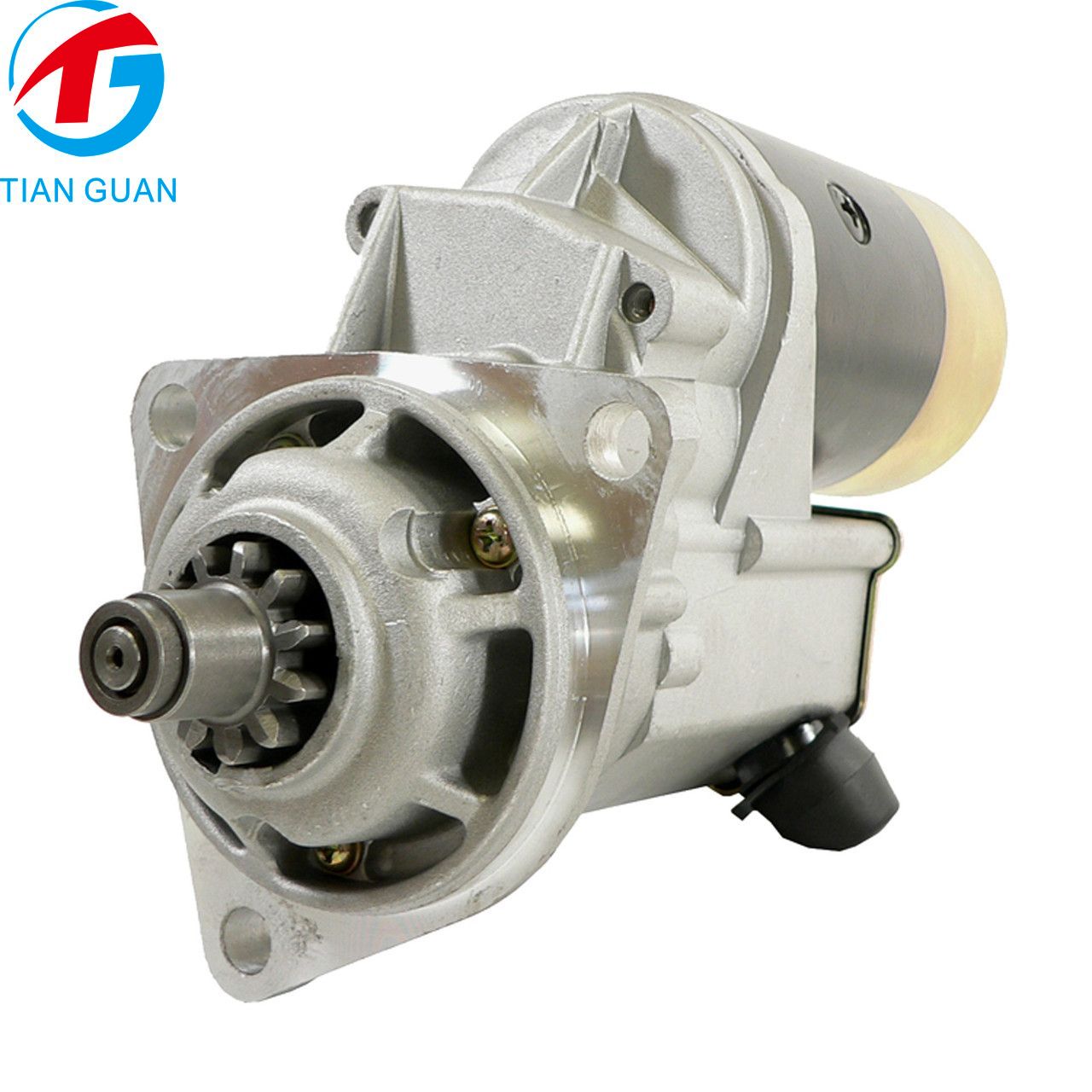

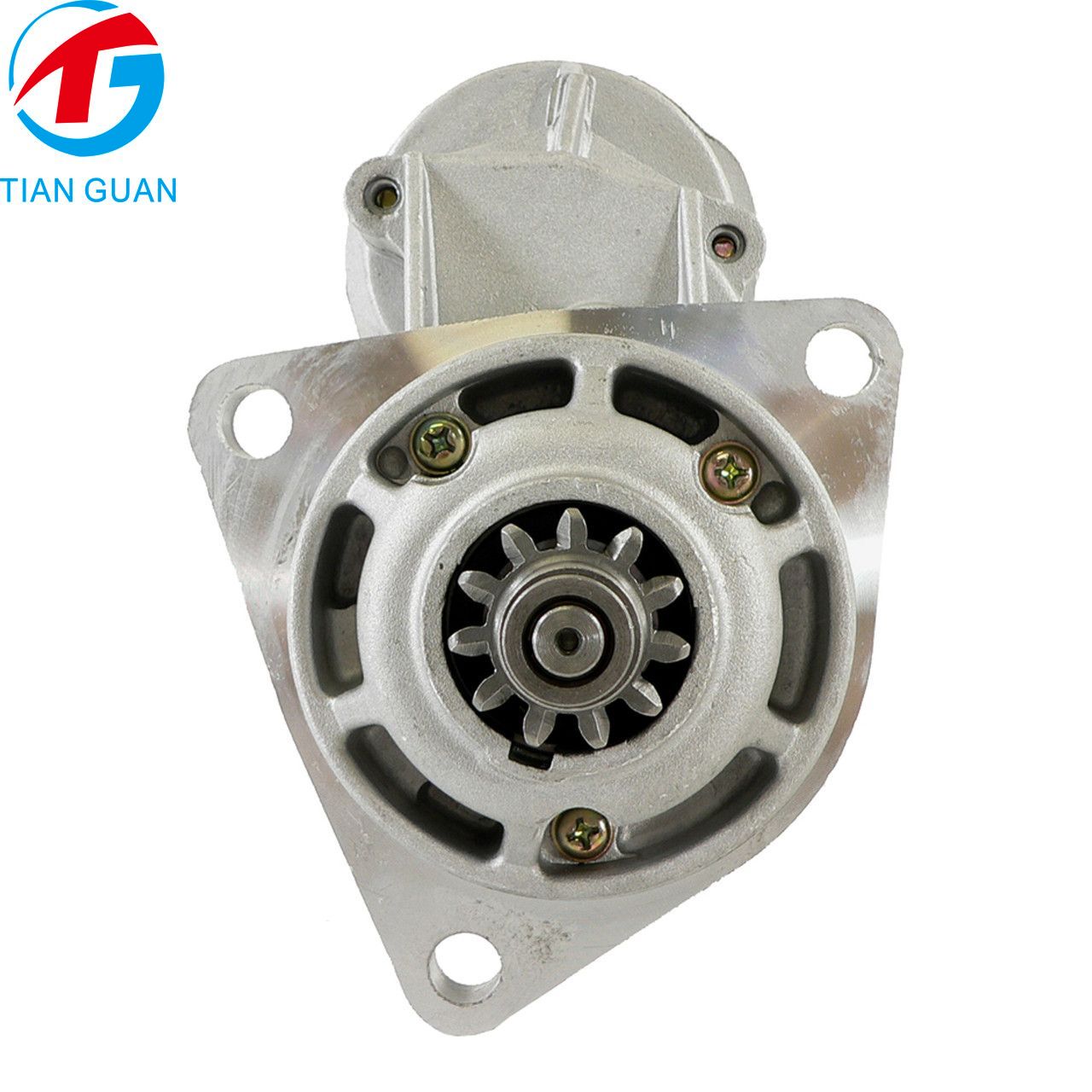

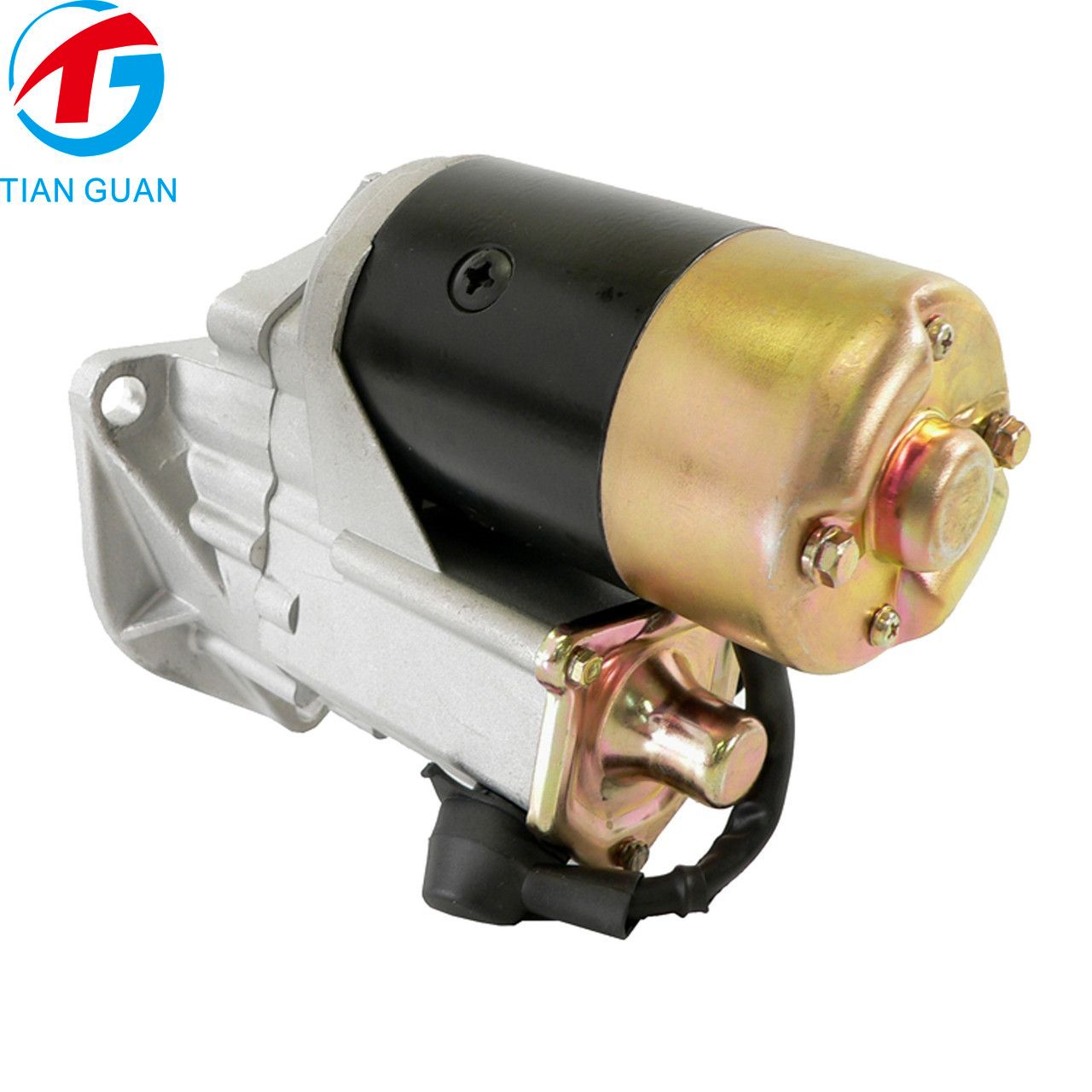

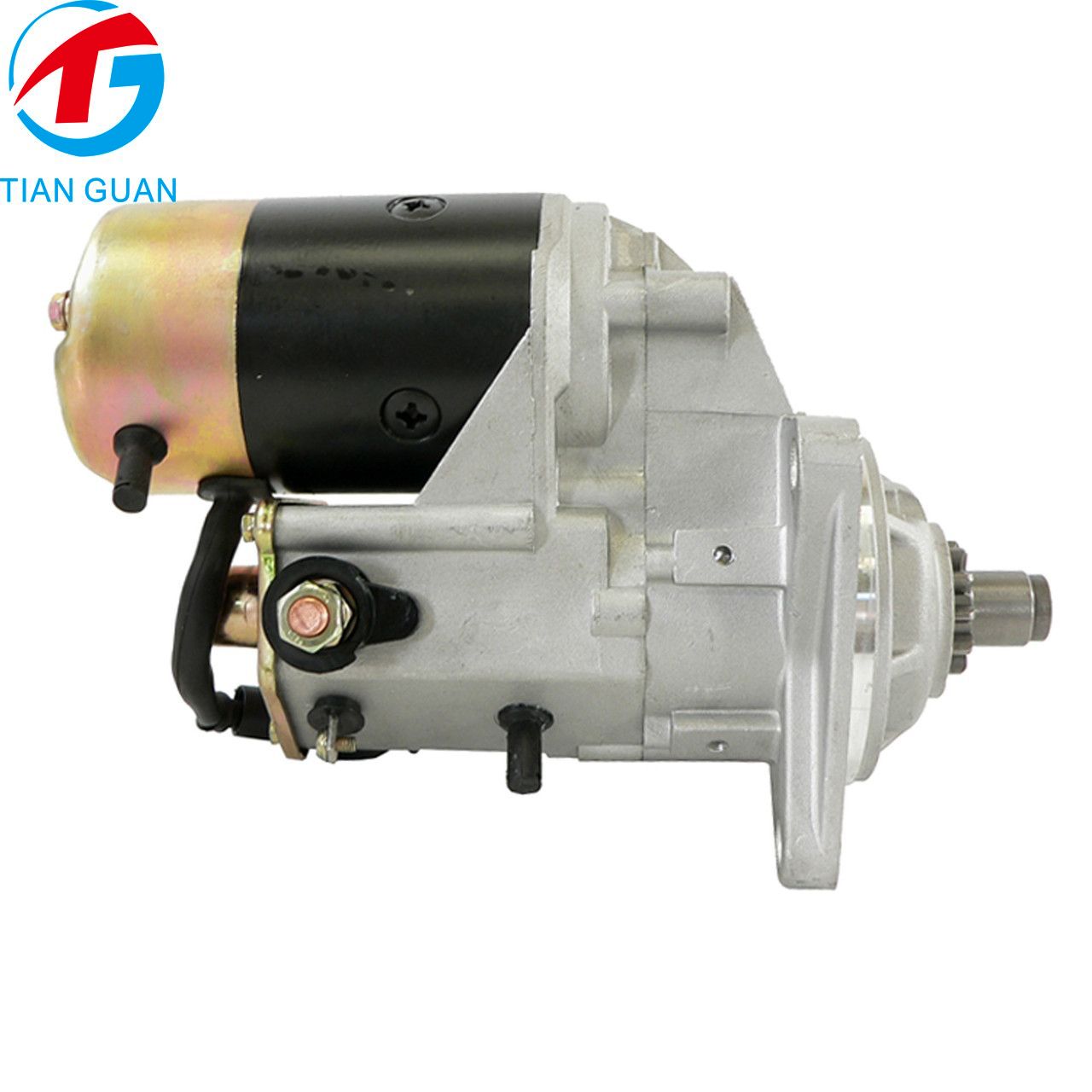

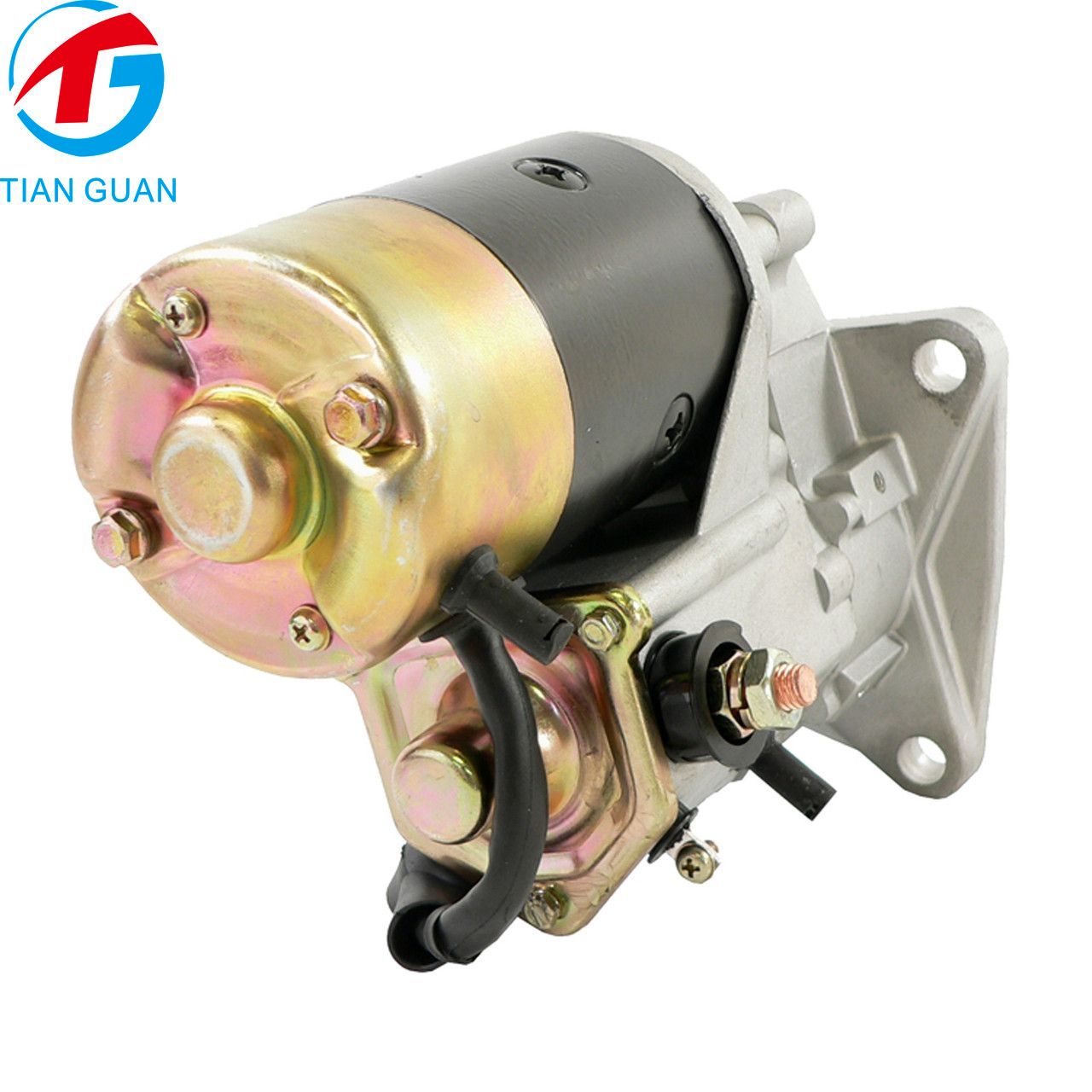

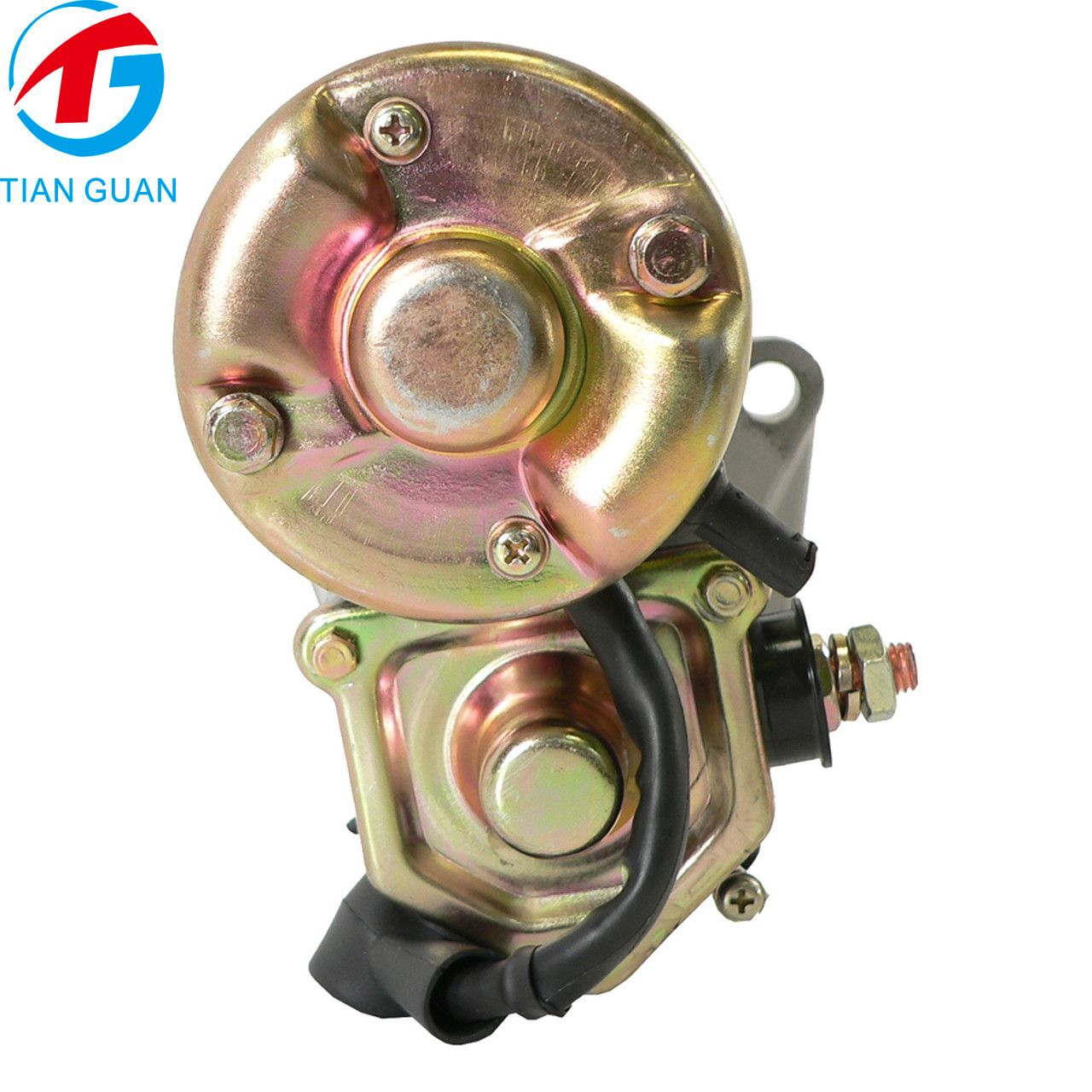

STG50740 Starter Motor 5811001081 5811001690 410-52015 for Isuzu Industrial 4BB1 4BD1 Engines | 12V 2.5KW 11T CW OSGR Replacement

Part Numbers

Arrowhead: SND0029 / 410-52015 / ND028000-6561 / ND128000-7753
Denso: 028000-5490 / 028000-5491 / 028000-5492 / 028000-6560 / 028000-6561 / 128000-7750 / 128000-7751 / 128000-7752 / 128000-7753

Product Description

STG50740 Starter Motor is a new aftermarket replacement designed for Isuzu industrial engines, including the 4BB1 and 4BD1 diesel engines specified for industrial equipment applications.

Featuring a 12V, 2.5KW, 11-tooth, clockwise-rotation OSGR (Offset Gear Reduction) design, this starter provides reliable high-torque cranking performance for demanding industrial engine applications. Current replacement catalogs consistently list the 12V, 2.5KW, 11T, CW and OSGR configuration.

The starter replaces Isuzu 5811001081, 5811001690, 5811001691 and 5811001692, and cross-references multiple Denso, Arrowhead, Lester, Caterpillar and Daewoo numbers. It is also cataloged for Isuzu 6BD1 industrial engine applications in addition to 4BB1 and 4BD1.

Product Specifications

The approximately 9.1 kg weight is based on a listed 20 lb product weight for the 410-52015 starter.

OEM / Cross Reference Table

These cross-reference numbers are listed across current 410-52015 catalogs from DB Electrical, Total Power Parts and other suppliers.

Compatible Applications
