STG50743 Starter Motor 5284101 3102766 3675298RX for Cummins ISC 8.3L Engines | 12V 7.2kW 12T CW PLGR Replacement

3 Reviews

Add Your Review

US$163.00

ITEMNO： STG50743

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG50743 Starter Motor 5284101 3102766 3675298RX for Cummins ISC 8.3L Engines | 12V 7.2kW 12T CW PLGR Replacement

Part Numbers

Cummins: 5367766 / 5284101 / 3102766 / 3675298RX

Delco Remy: 10461760 / 19011513 / 8200028 / 8200045 / 8200085 / 8200446 / 8300012 / 8200698

Arrowhead: SDR0324 / 410-12641 / D8200433

J&N Electrical Products: 410-12356 / 410-12641 / 410-12708

Product Description

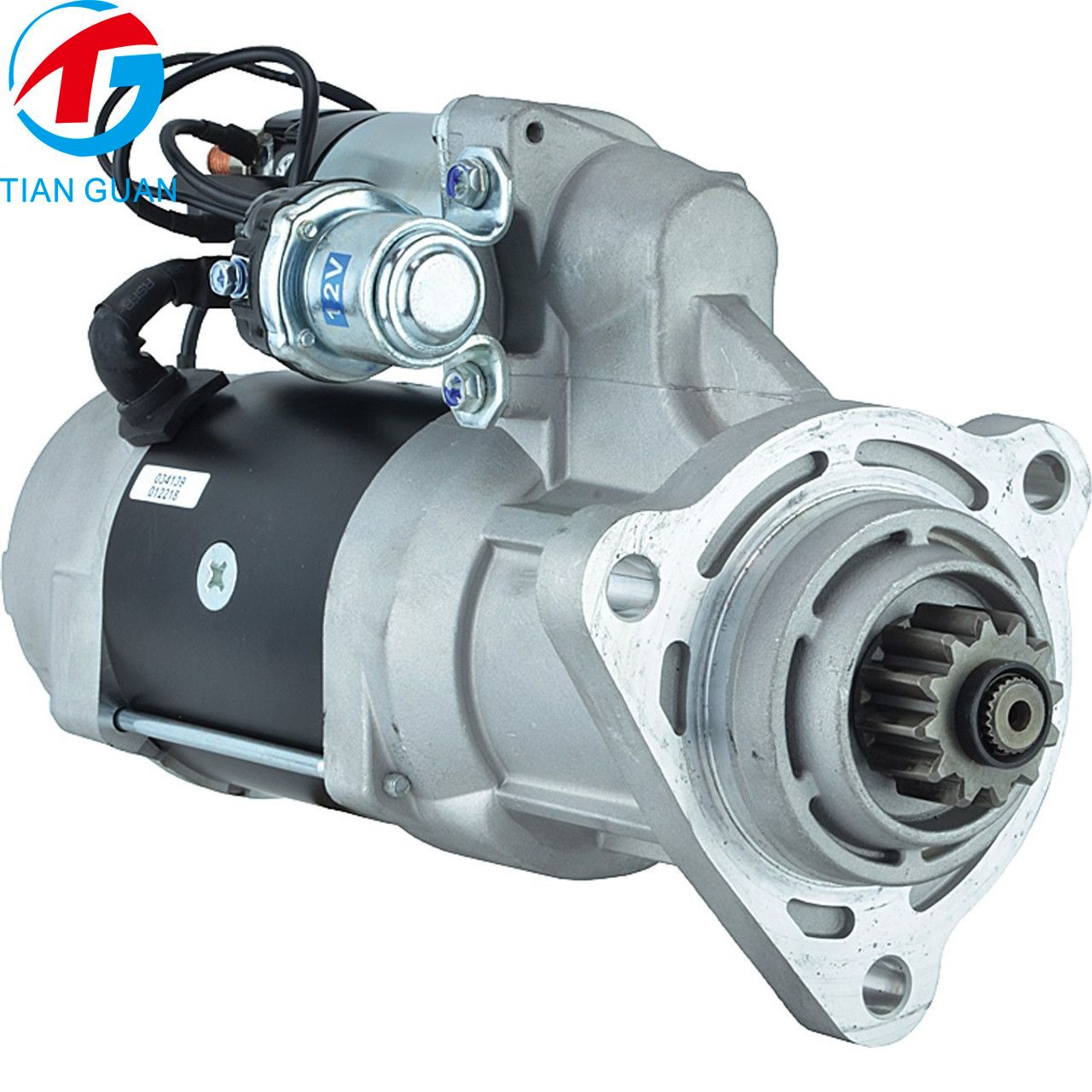

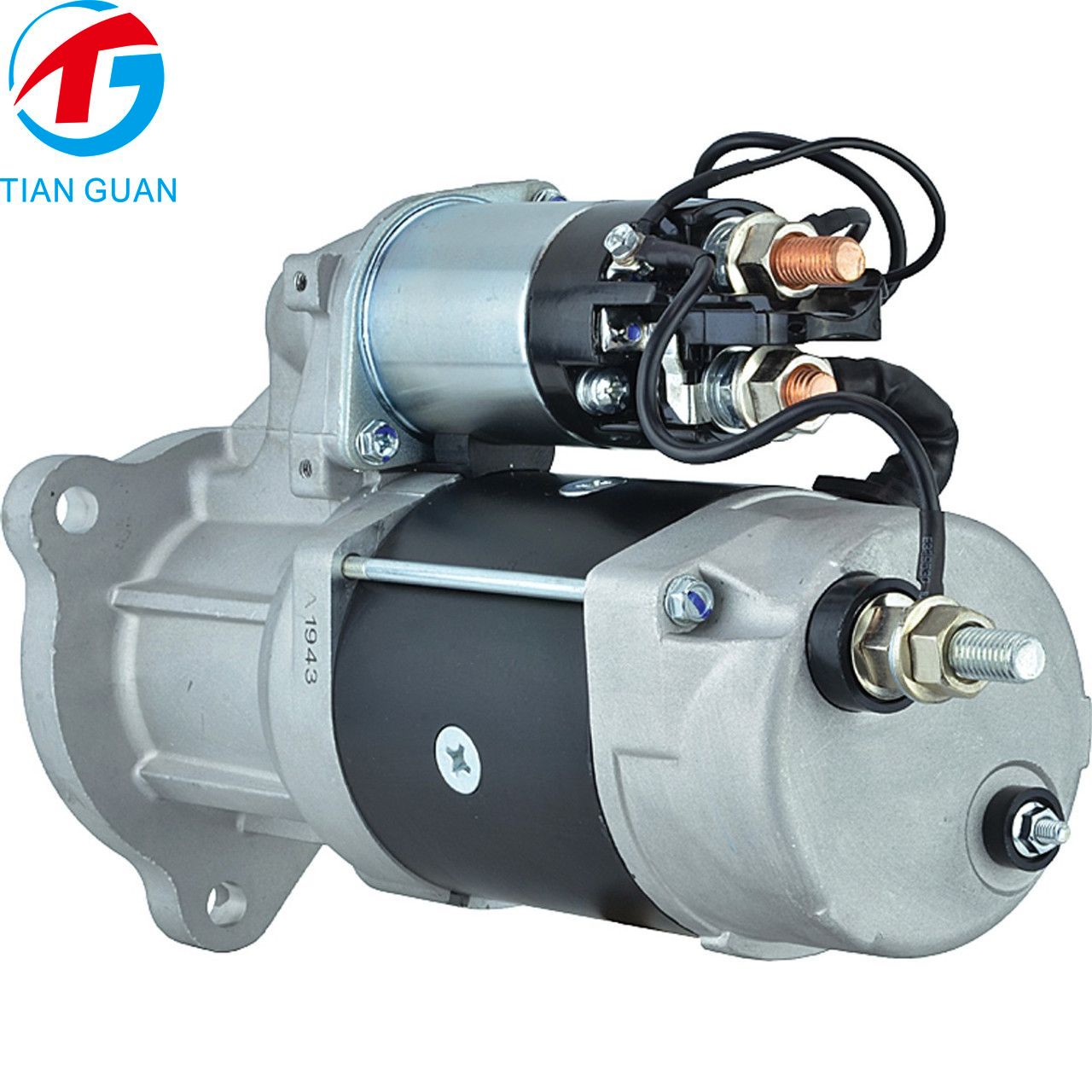

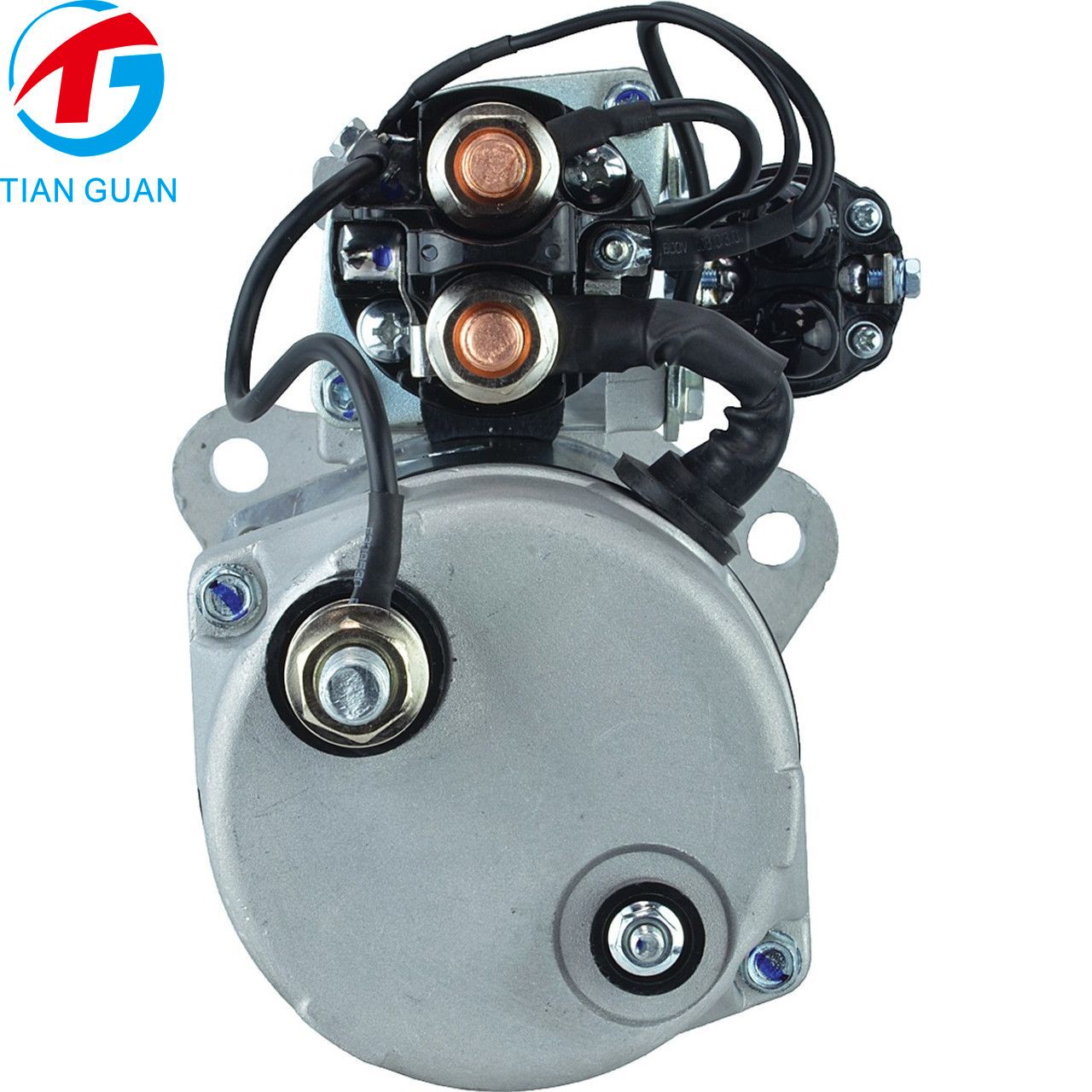

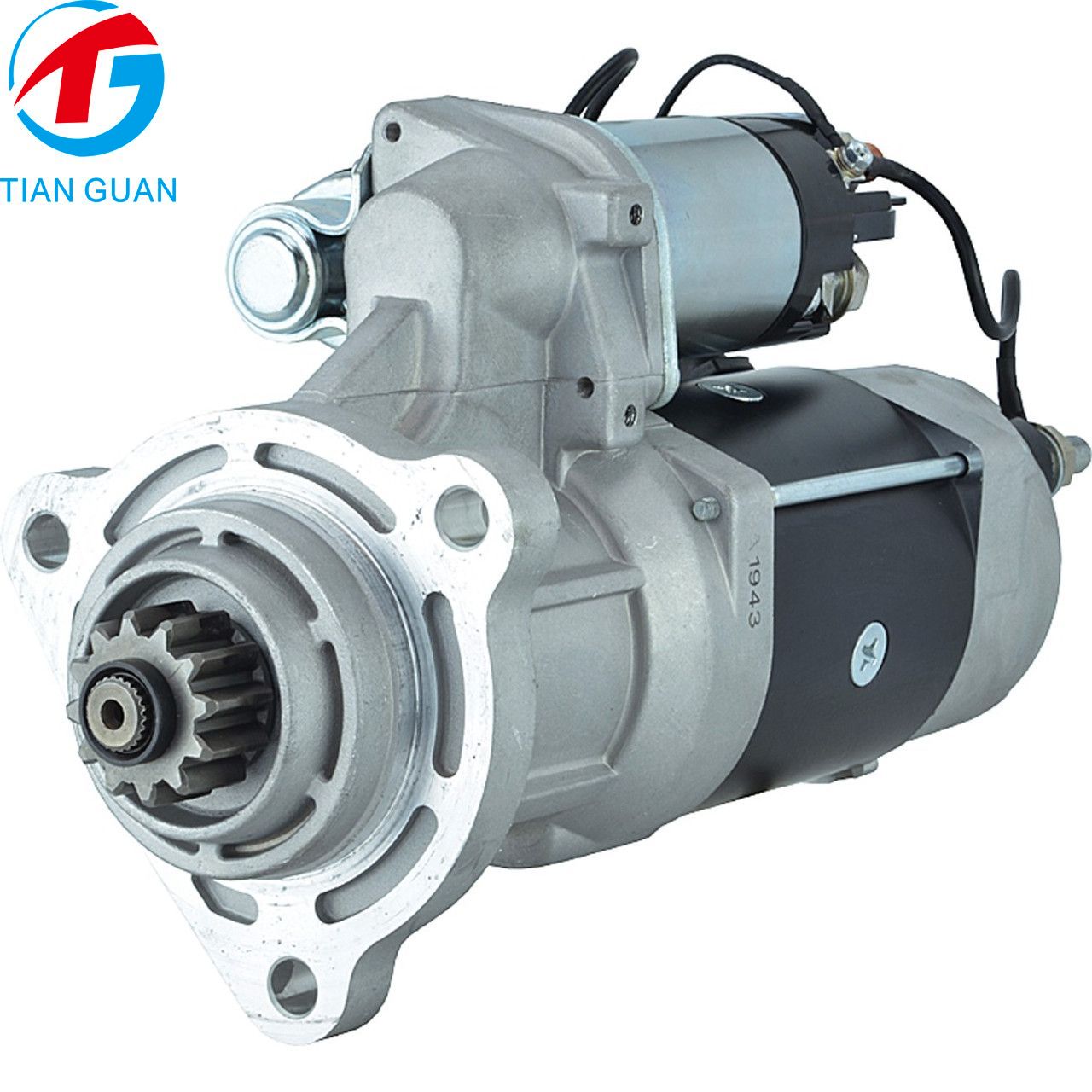

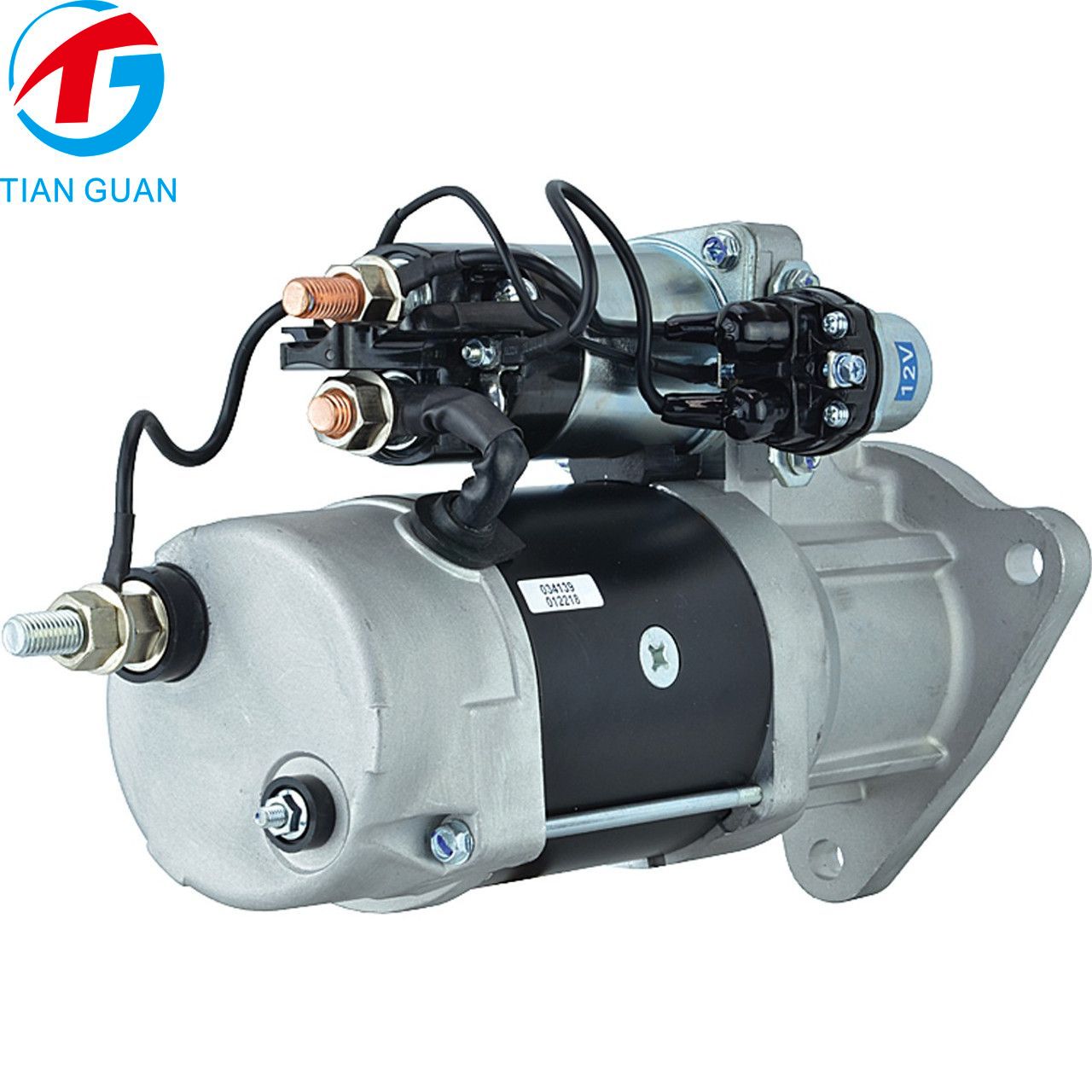

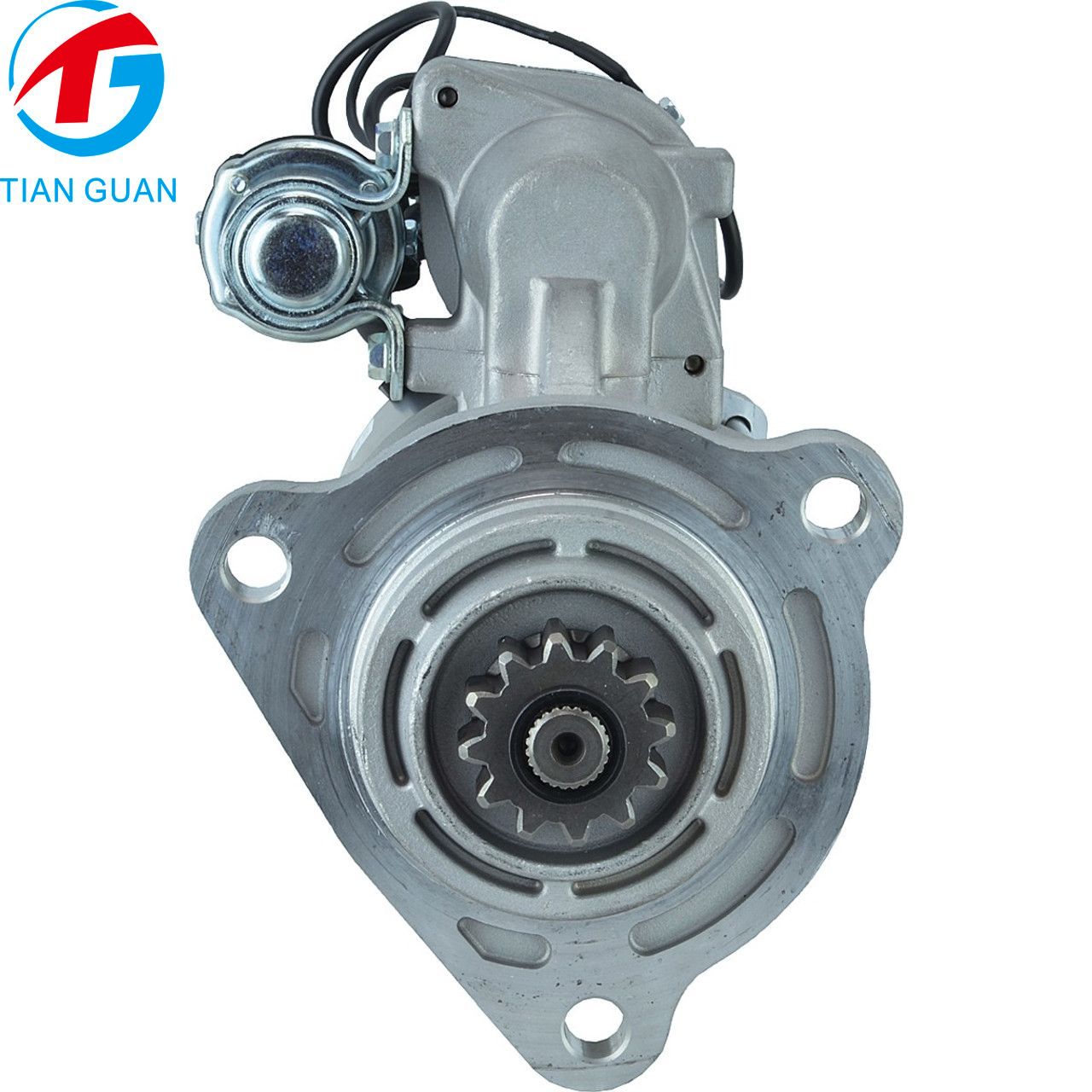

The STG50743 Starter Motor is an aftermarket replacement for compatible Cummins ISC 8.3L diesel engines using a Delco Remy 39MT starter configuration.

Featuring a 12V electrical system, 7.2kW rated output, a 12-tooth pinion, clockwise rotation, and planetary gear reduction (PLGR) construction, this starter is designed to deliver high cranking torque for heavy-duty commercial vehicles and compatible equipment.

The unit cross-references Cummins, Delco Remy, Arrowhead, J&N, Lester, NSA, Unipoint, and WAI part numbers. Certain configurations may include a rotatable housing, an integrated solenoid, and additional starting-system protection features.

Before ordering, verify the original starter part number, voltage, mounting dimensions, solenoid position, and electrical connections.

Product Specifications

Specification	Details
Product SKU	STG50743
Product Type	Starter Motor
Starter Series	Delco Remy 39MT
Condition	New Aftermarket Part
Voltage	12V
Power Output	7.2kW
Rotation Direction	Clockwise (CW)
Number of Pinion Teeth	12T
Starter Type	Planetary Gear Reduction (PLGR)
Pinion Gear Outside Diameter	Approx. 46mm
Mounting Configuration	3-hole mounting; verify exact dimensions
Engine Application	Cummins ISC 8.3L
Estimated Net Weight	11.3kg

OEM / Cross Reference Numbers

Brand / Category	Reference Part Numbers
Cummins	5367766, 5284101, 3102766, 3675298RX
Delco Remy	10461760, 19011513, 8200028, 8200045, 8200085, 8200446, 8300012, 8200698
Arrowhead	SDR0324, 410-12641, D8200433
J&N Electrical Products	410-12356, 410-12641, 410-12708
Lester	6820, 6830
NSA	STR-4294
Unipoint	STR-4294, STR-4295
WAI	6908N

Compatible Applications

Make	Vehicle / Equipment Type	Model / Application	Engine
Cummins	Diesel Engine	ISC series	8.3L
Freightliner	Medium- and Heavy-Duty Truck	FC80	Cummins ISC 8.3L
Freightliner	Medium- and Heavy-Duty Truck	FL50 / FL60 / FL70 / FL80	Cummins ISC 8.3L
Freightliner	Medium- and Heavy-Duty Truck	M2 Business Class	Compatible 8.3L applications
Peterbilt	Medium- and Heavy-Duty Truck	320 / 330 / 335 / 340	Compatible 8.3L applications
Peterbilt	Medium- and Heavy-Duty Truck	379	Compatible 8.3L applications
Sterling	Medium- and Heavy-Duty Truck	Acterra 5500	Cummins ISC 8.3L
Sterling	Medium- and Heavy-Duty Truck	L-Line 7500 / 8000 / 8500 / 9500	Compatible 8.3L applications

PRODUCT HIGHLIGHTS

Product Highlights

High-Torque Starting Performance	Heavy-Duty 39MT Design	Broad Cross-Reference Coverage
12V, 7.2kW output and a 12-tooth pinion for compatible diesel engines	Planetary gear reduction design with clockwise rotation	Cross-references Cummins, Delco Remy, Arrowhead, J&N, Lester, NSA, Unipoint, and WAI numbers
