STG50845 Starter 410-24276 IMI45002-018 MS487 MS703 IS9068 0001402072 0001402079 0001414011 0001416028 for Volvo Penta TAMD61A 1986-1995 6-Cyl Diesel

Part Numbers

API MARINE: 15098-24
ARCO MARINE: 97307
ARROWHEAD: 410-24276, IMI45002-018, MS487, MS703, IS9068
BOSCH: 0001402072, 0001402079, 0001414011, 0001416028
CARGO: 111218
J & N: 410-24276
LESTER: 18388
LETRIKA (ISKRA) AFTERMARKET: IS 9068
LETRIKA (ISKRA) DESCRIPTION: AZK5431, AZK5562
LETRIKA (ISKRA) OEM: 11.139.077, 11.139.523
MAHLE: MS487, MS703
VOLVO: 241011, 842774, 843510
VOLVO PENTA: 847307-6

Product Description

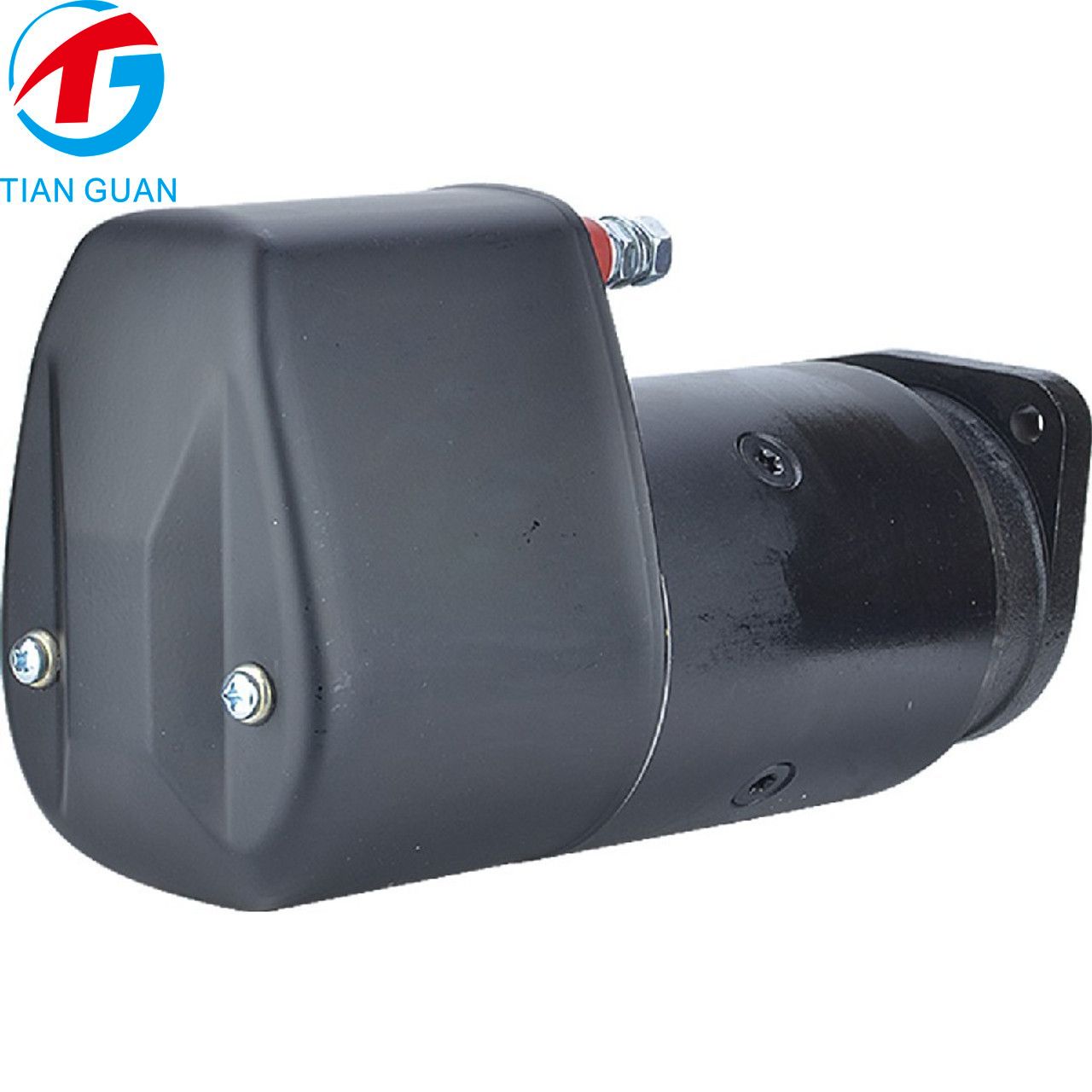

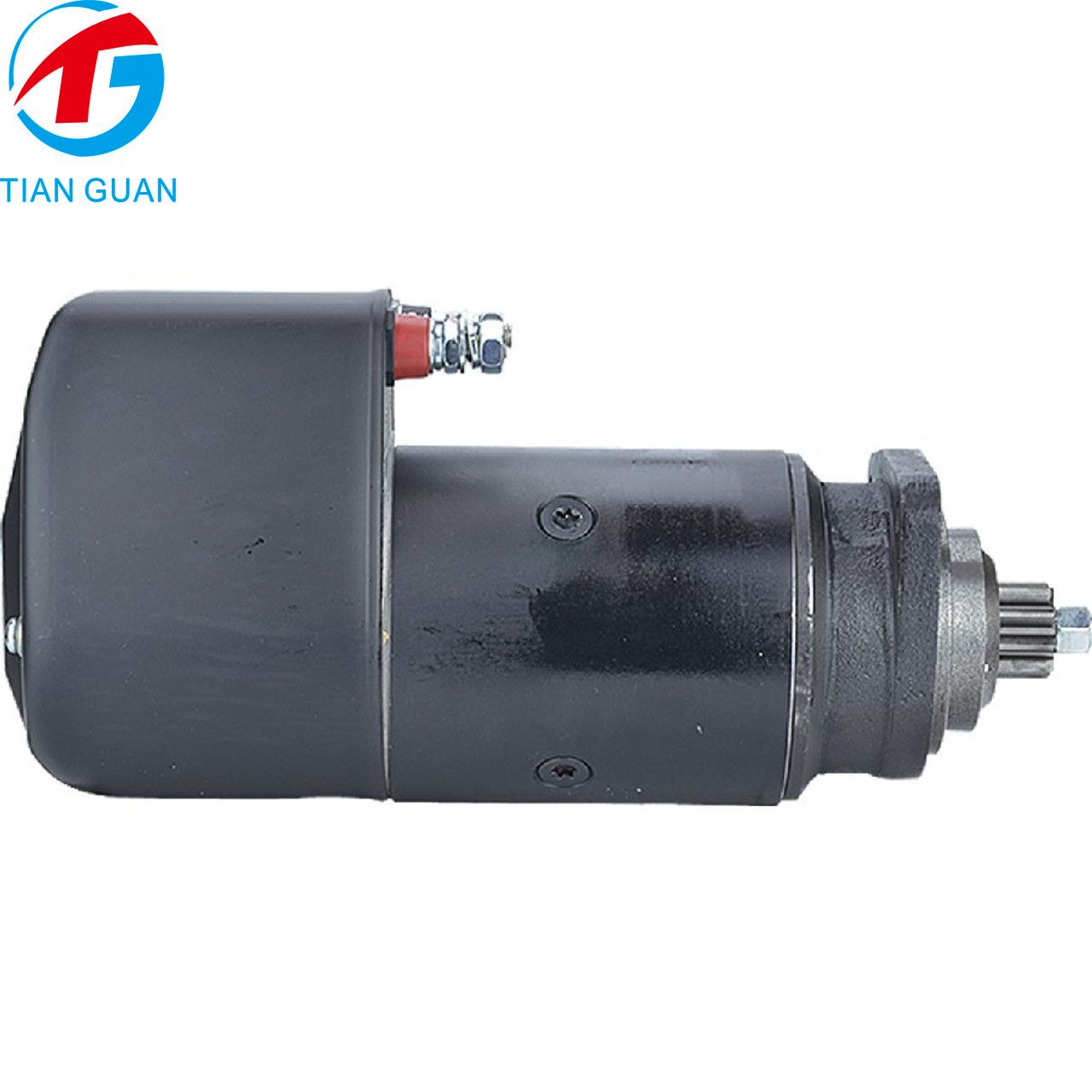

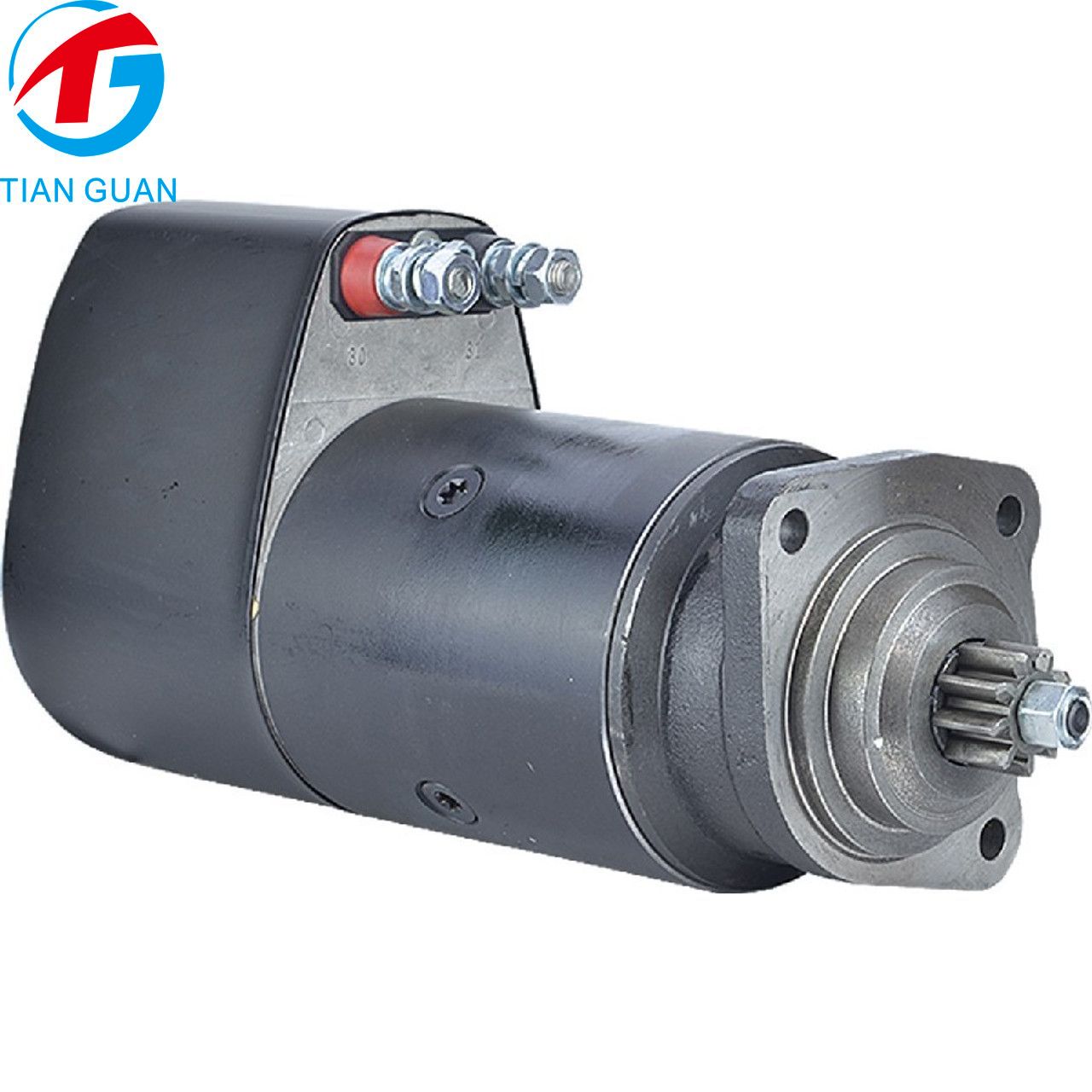

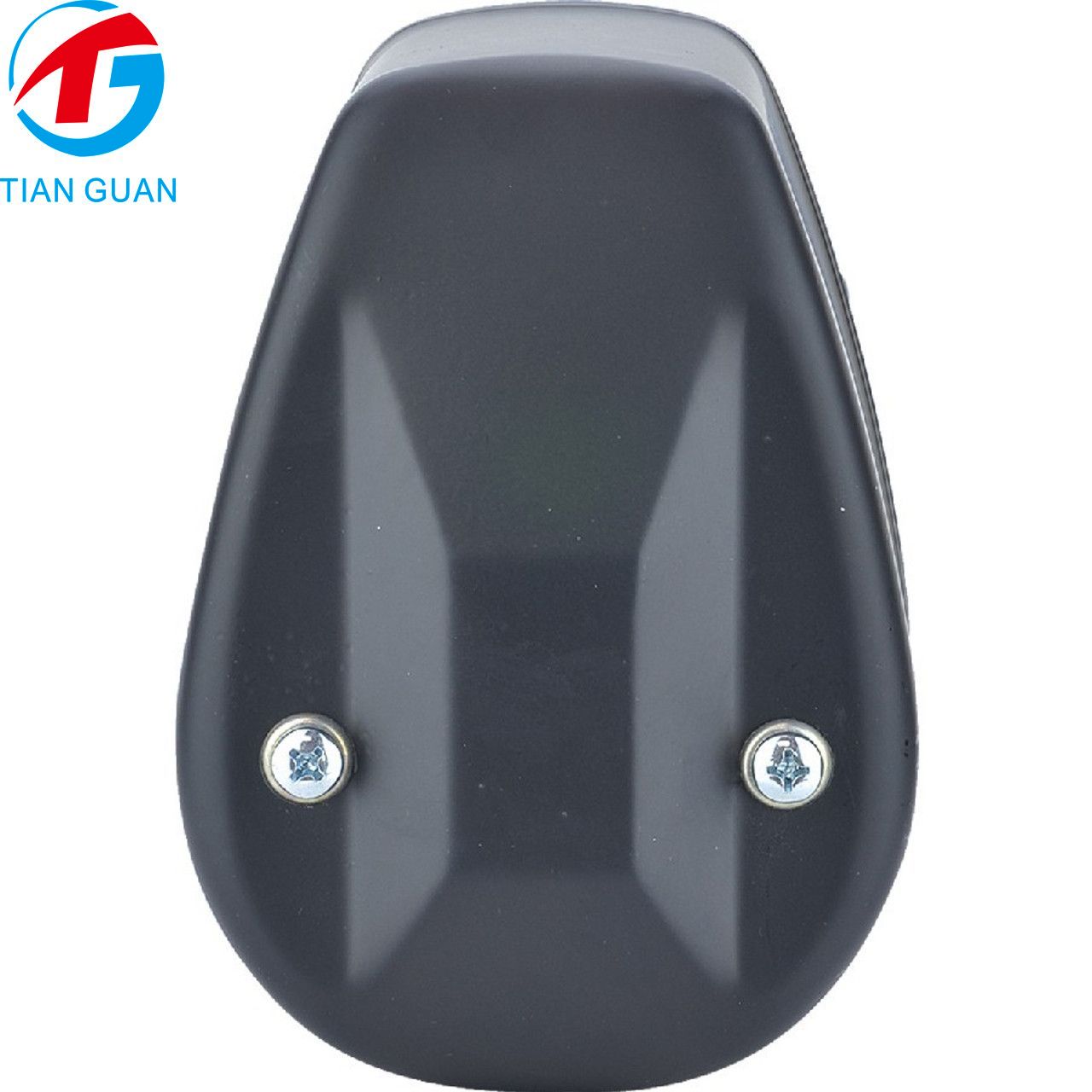

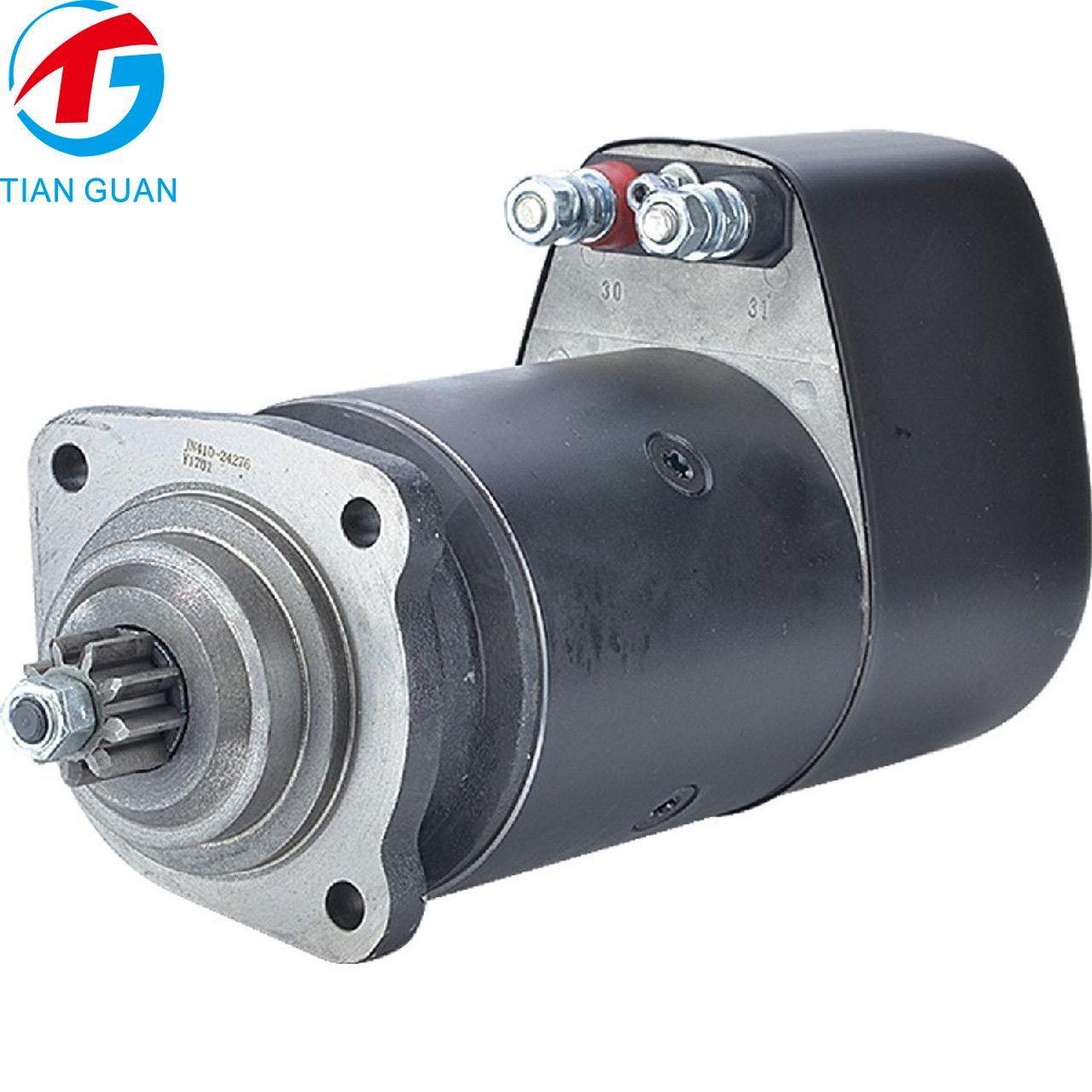

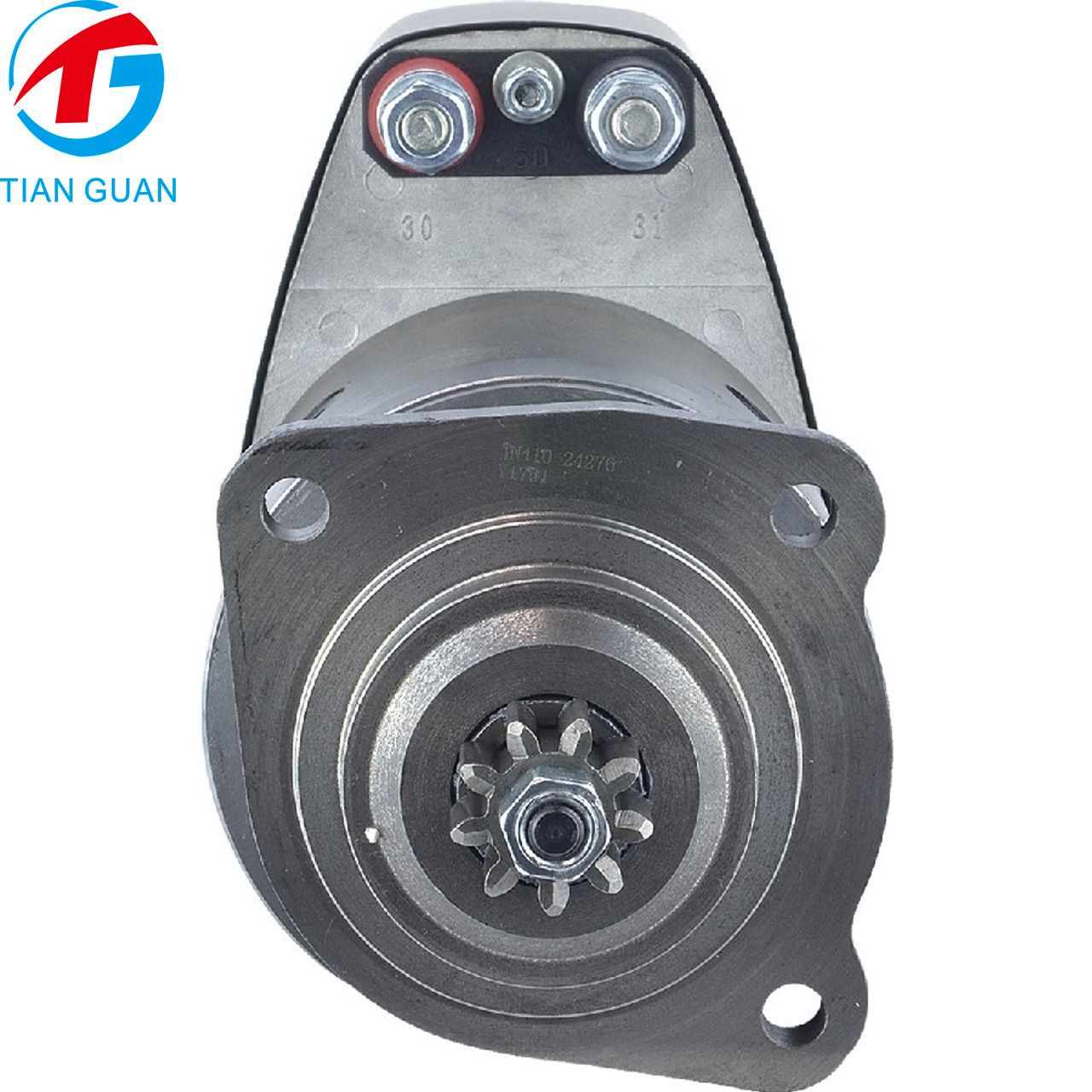

This premium aftermarket 24V Starter Motor is designed as a direct replacement for Volvo Penta marine engine applications. Built with Direct Drive (DD) design, 9-tooth pinion gear, and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding marine environments.

This starter replaces OE part numbers 15098-24 (API Marine), 97307 (ARCO Marine), 410-24276, IMI45002-018, MS487, MS703, IS9068 (Arrowhead), 0001402072, 0001402079, 0001414011, 0001416028 (Bosch), 111218 (Cargo), 410-24276 (J & N), 18388 (Lester), IS 9068 (Letrika / Iskra Aftermarket), AZK5431, AZK5562 (Letrika / Iskra Description), 11.139.077, 11.139.523 (Letrika / Iskra OEM), MS487, MS703 (Mahle), 241011, 842774, 843510 (Volvo), and 847307-6 (Volvo Penta).

• 24V starter motor

• 9-tooth pinion gear

• Direct Drive (DD) design

• Clockwise (CW) rotation

• Gear OD: 1.37in / 34.8mm

• Length: 12.756in / 324mm

• Mounting ear holes: 10.9mm unthreaded

• Registry OD: 3.504in / 89mm

• M10 B+ & Ground Studs

• Direct replacement for Volvo Penta TAMD61A

• Fits 6-cyl diesel 1986-1995

• Aftermarket replacement part

• Approx. 19.6 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Starter
Voltage: 24V
Rotation: CW
Teeth: 9T
Dimension: Replacement DD Unit; Gear OD: 1.37in / 34.8mm; Length: 12.756in / 324mm; Mtg. Ear Holes: 10.9mm Unthreaded; Registry OD: 3.504in / 89mm; Note: M10 B+ & Ground Studs
Starter Type: DD
Fits: Volvo Penta
Weight: 19.6KG

Fitment

Volvo Penta – Inboard & Sterndrive AQD70B BL C CL D – 1971-1982 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive MD42A – 1970-1979 – 4cyl Diesel
Volvo Penta – Inboard & Sterndrive MD50A – 1966-1971 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive MD70A – 1965-1970 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive MD70B C – 1970-1985 – 6cyl 410ci 6.7L Diesel
Volvo Penta – Inboard & Sterndrive TAMD60A B C – 1976-1987 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive TAMD61A – 1986-1995 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive TAMD62A – 1992-1994 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive TAMD63L P – 1994-2005 – 6cyl 333ci 5.5L Diesel
Volvo Penta – Inboard & Sterndrive TAMD70B C D E – 1970-1987 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive TAMD71A B – 1986-2000 – 6cyl 410ci 6.7L Diesel
Volvo Penta – Inboard & Sterndrive TAMD72A P WJ – 1991-1997 – 6cyl 410ci 6.7L Diesel
Volvo Penta – Inboard & Sterndrive TAMD73P WJ – 1997-1999 – 6cyl 411ci 6.7L Diesel
Volvo Penta – Inboard & Sterndrive TAMD74A C L P – 1998-2005 – 6cyl 444ci 7.3L Diesel
Volvo Penta – Inboard & Sterndrive TAMD75P – 1998-2005 – 6cyl 444ci 7.3L Diesel
Volvo Penta – Inboard & Sterndrive THAMD70B C – 1972-1979 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive TMD50A – 1966-1971 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive TMD70A – 1966-1971 – 6cyl Diesel
Volvo Penta – Inboard & Sterndrive TMD70B C – 1972-1985 – 6cyl 410ci 6.7L Diesel

Compatible with equipment using 410-24276, IMI45002-018, MS487, MS703, IS9068, 0001402072, 0001402079, 0001414011, 0001416028, 15098-24, 97307, 111218, 18388, IS 9068, AZK5431, AZK5562, 11.139.077, 11.139.523, 241011, 842774, 843510, or 847307-6 starter motor part numbers.
