STG50851 Starter Motor SDR0028 597219C91 10R-0875 673796C92 0R2189 0R5218 8C3596 for Cummins B Series 5.9L Industrial Engines 1980-1985

3 Reviews

Add Your Review

US$236.00

ITEMNO： STG50851

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG50851 Starter Motor SDR0028 597219C91 10R-0875 673796C92 0R2189 0R5218 8C3596 for Cummins B Series 5.9L Industrial Engines

Part Numbers

AC Delco: 323-830, 323-855, 323-954
AGCO: CM3910645
API Marine: 15072-42
Arrowhead: SDR0028, MS76, IS1182
BBB HD: 6225
Cargo: 110436
Case: 20-2386T91, A186224
Caterpillar: 0R2189, 0R5218, 8C3596
Cummins: 157579, 185617, 3604323RX, 3907622, 3910645, 554560
Delco: 10461021, 10461032, 10461050, 10461328, 10461398, 10461414, 10478803, 10478804, 10478931, 10478936, 10478992, 10478994, 10479052, 10479117, 1990353, 1990356, 1990362, 1990370, 1990379, 1990385, 1990387, 1990394, 1990399, 1990403, 1990404, 1990405, 1990425, 1990429, 1990441, 1990443, 1990467, 1990469, 1990471, 1990480, 1990492, 1990496, 1993783, 1993795, 1993806, 1993820, 1993935, 1993937, 1993938, 1993939, 1993943, 1993961, 1993983
Deutz: 12850029
Ford: E6HZ-11002-B
Genie: 85014
International Harvester: 430138C91, 597219C91, 597220C91, 673796C92
J & N: 410-12058, 410-12058R, 410-12223
John Deere: RE38633, RE41756, RE61457, RE69590, SE501453, TY6730
Lester: 6224, 6225, 6252, 6253, 6254, 6371, 6776
Lester (Old): 6525
Letrika (Iskra) Aftermarket: IS 1182
Mahle: MS76
Massey Ferguson: 2625423W91, 291183M91, 294183M91
Motorcraft: SA-757
NSA: STR-4202
Quicksilver: 8M6007272
Remy Light Duty: 61422, 63103
Unipoint: STR-4202
Western Star: 820013435
White: 20-7101197

Product Description

Voltage: 12V
Rotation: CW
Teeth: 12T
Starter Type: Delco 42MT DD
Gear OD: 46.5 mm / 1.831 in
Solenoid Position: 82°
Mounting Ear Holes: 0.660 in, Unthreaded
Mounting: Left Hand Mount
Mounting Hole Size: 5/8 in
Condition: Aftermarket Part
Weight: 25.6 kg

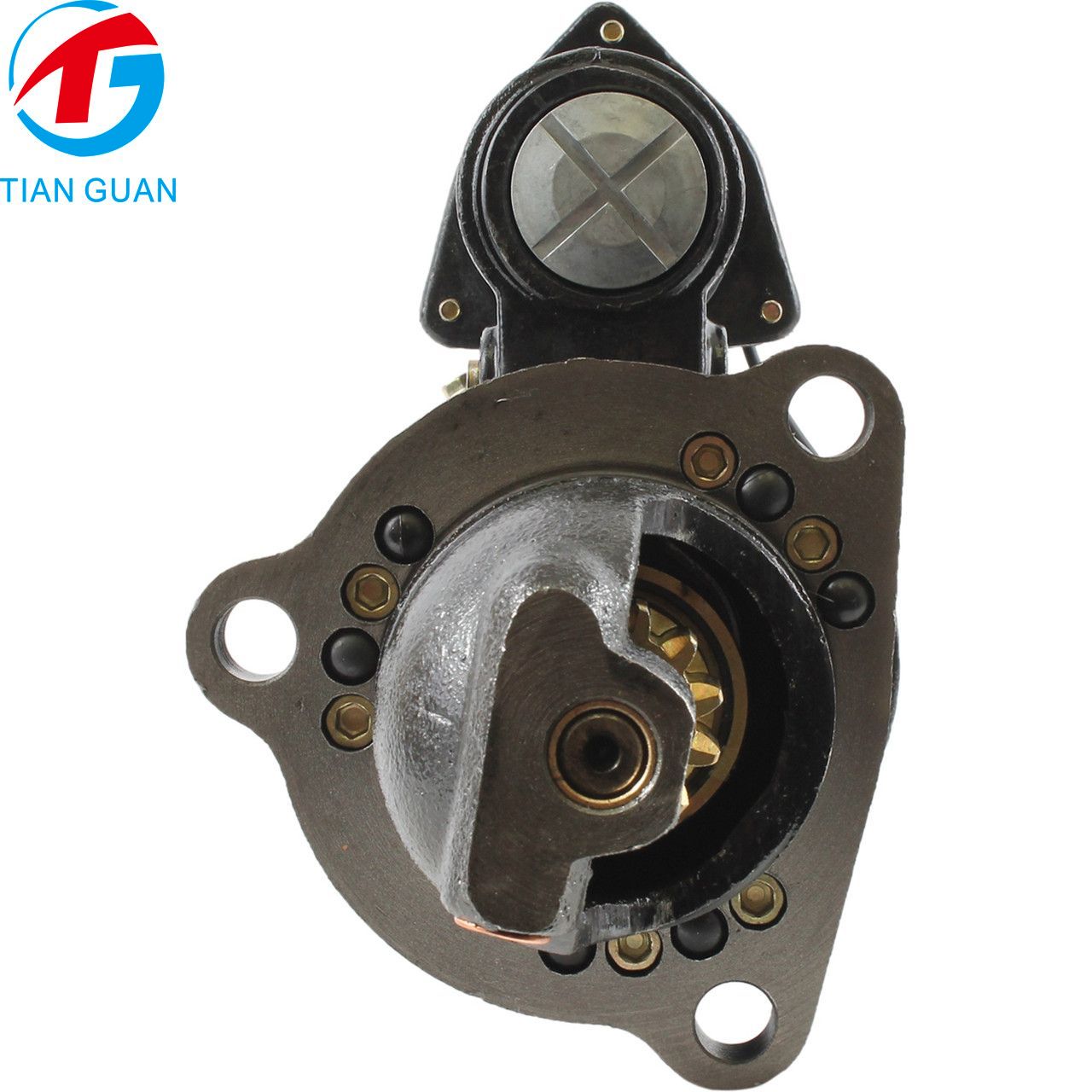

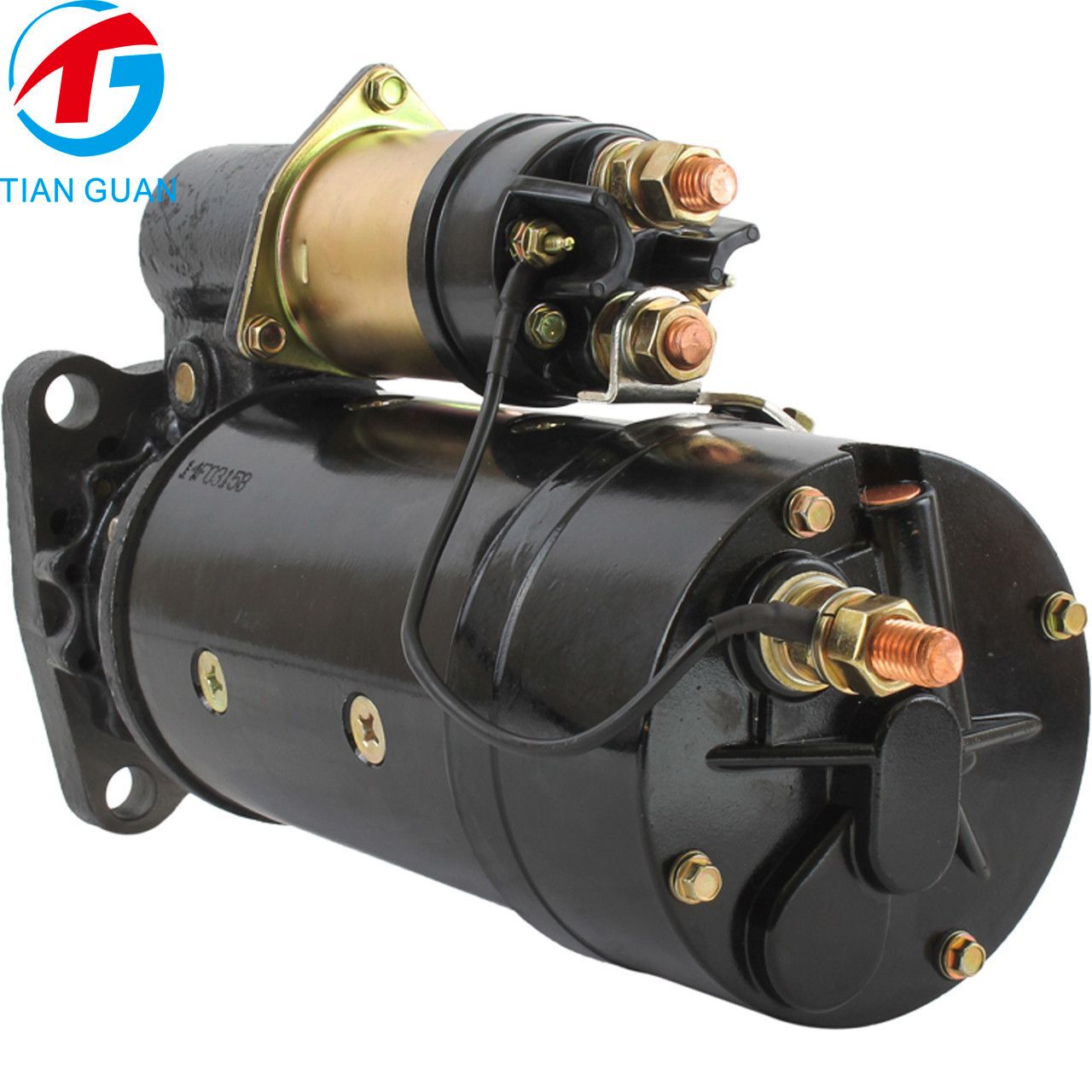

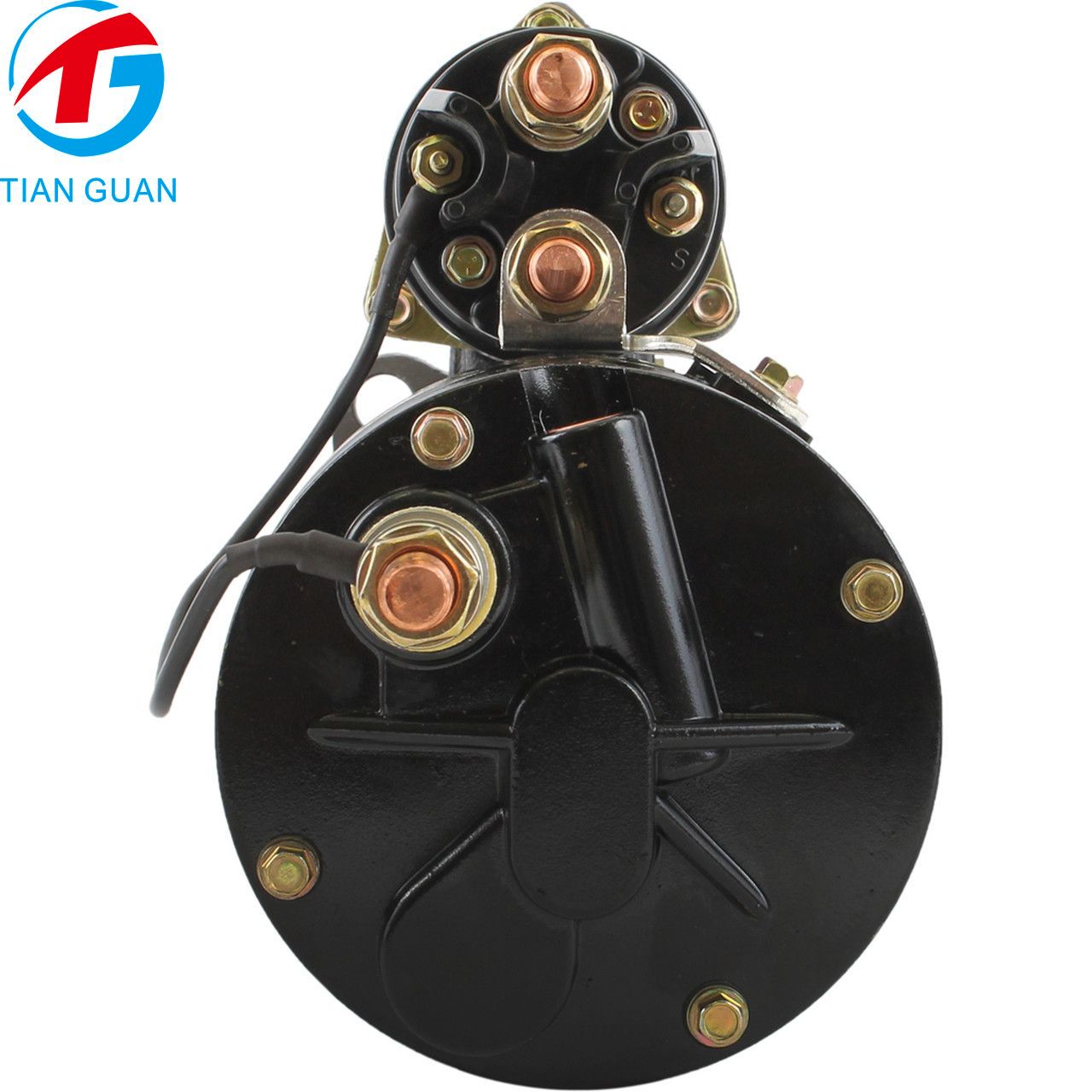

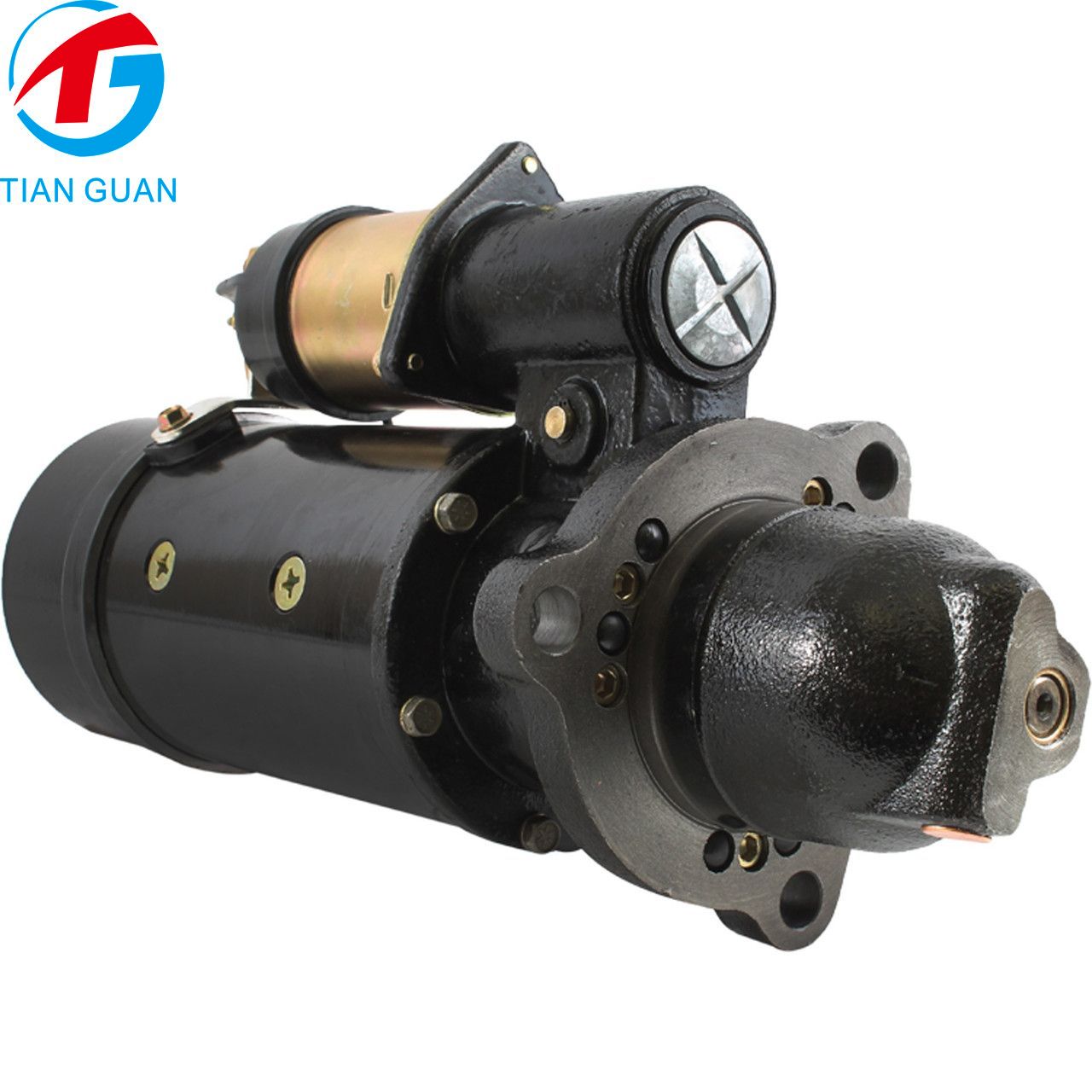

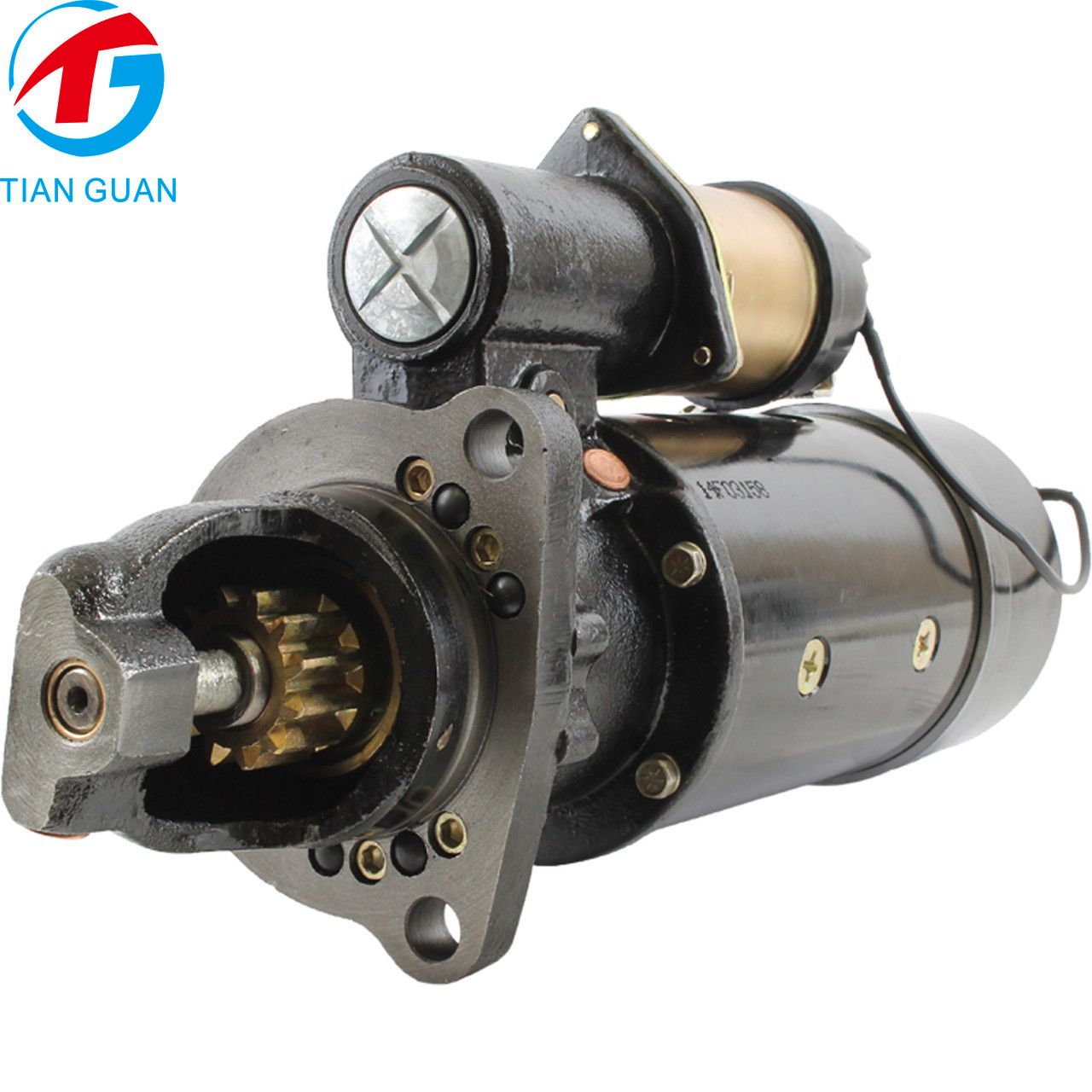

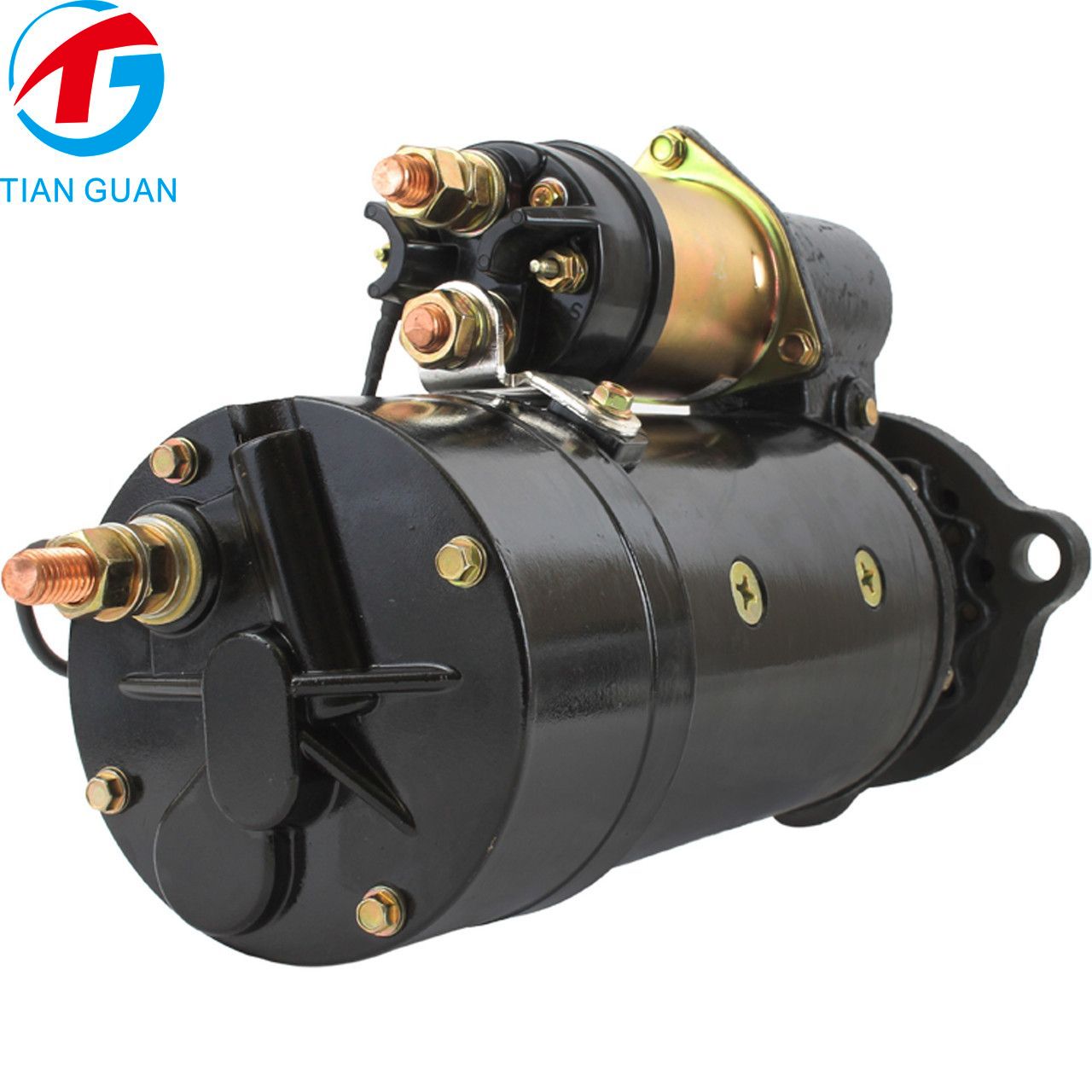

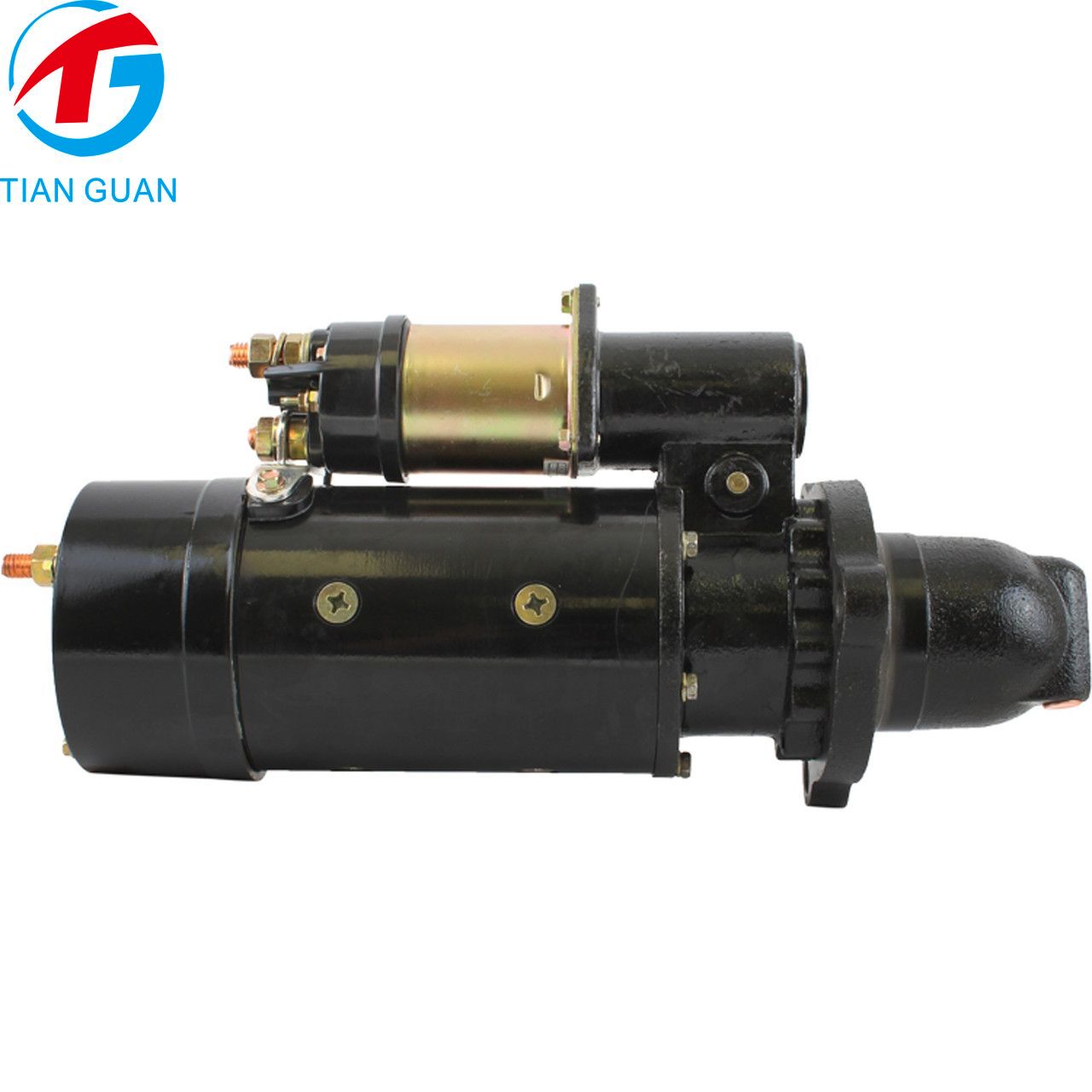

This 12V 42MT direct-drive starter motor is designed as a heavy-duty replacement unit for a wide range of diesel engines and equipment. It features a 12-tooth pinion, clockwise rotation and left-hand mounting configuration, and is suitable for applications using Delco 42MT starter systems.

Specifications

Item	Specification
Condition	Aftermarket Part
Unit Type	Starter
Voltage	12V
Rotation	CW
Teeth	12T
Starter Type	Delco 42MT DD
Gear OD	46.5 mm / 1.831 in
Solenoid Position	82°
Mounting Ear Holes	0.660 in Unthreaded
Mounting	Left Hand Mount
Mounting Hole Size	5/8 in
Weight	25.6 kg

Fitment

Cummins: B Series Industrial Engines, 5.9L, 1980–1985

Caterpillar Marine: 3208, 1985–1995, 8-cylinder 636 cu in 10.4L; 3304, 1985–1995, 4-cylinder 425 cu in 7.0L

Other Applications: Used on AGCO Allis, Case, Caterpillar, Ford, Kenworth, Mack, Massey Ferguson, New Holland, Perkins, Steiger, White and other equipment.

Key Features

Feature	Description
42MT Design	Heavy-duty Delco 42MT starter configuration
12V System	Designed for specified diesel engine applications
12-Tooth Pinion	Matches the listed replacement configuration
CW Rotation	Clockwise rotation for listed applications
Direct Drive	DD starter design
Left Hand Mount	5/8 in mounting configuration
Wide Cross Reference	Covers Cummins, Caterpillar, John Deere, Case, Ford, Massey Ferguson and other reference numbers
Heavy-Duty Construction	Suitable for industrial, agricultural, marine and heavy-equipment applications
Weight	25.6 kg
