STG50985 Starter Motor 410-52042 28100-75090 228000-2570 for Toyota 4Runner T-100 Tacoma | 12V 1.4KW 9T CW OSGR Replacement

3 Reviews

Add Your Review

US$116.00

ITEMNO： STG50985

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

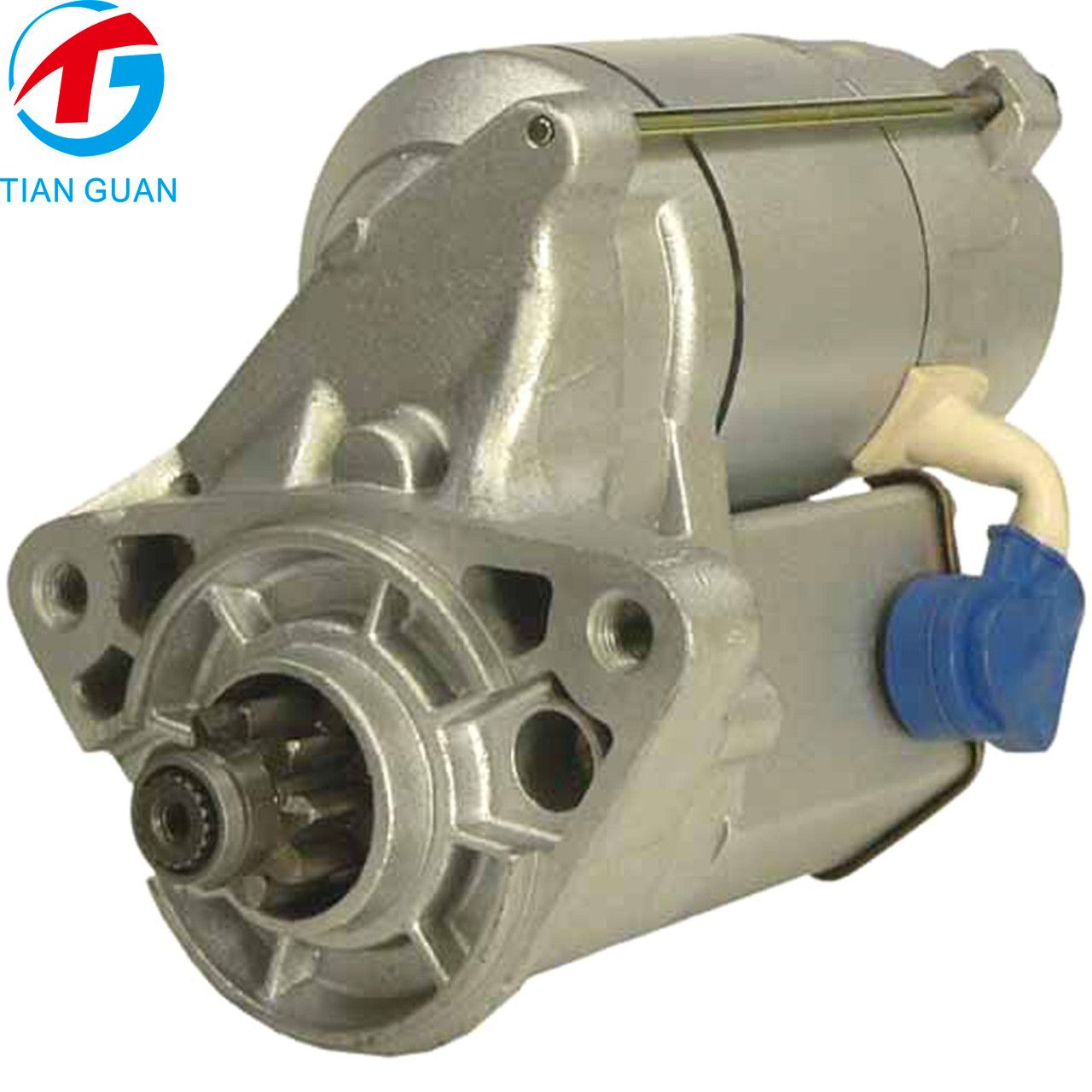

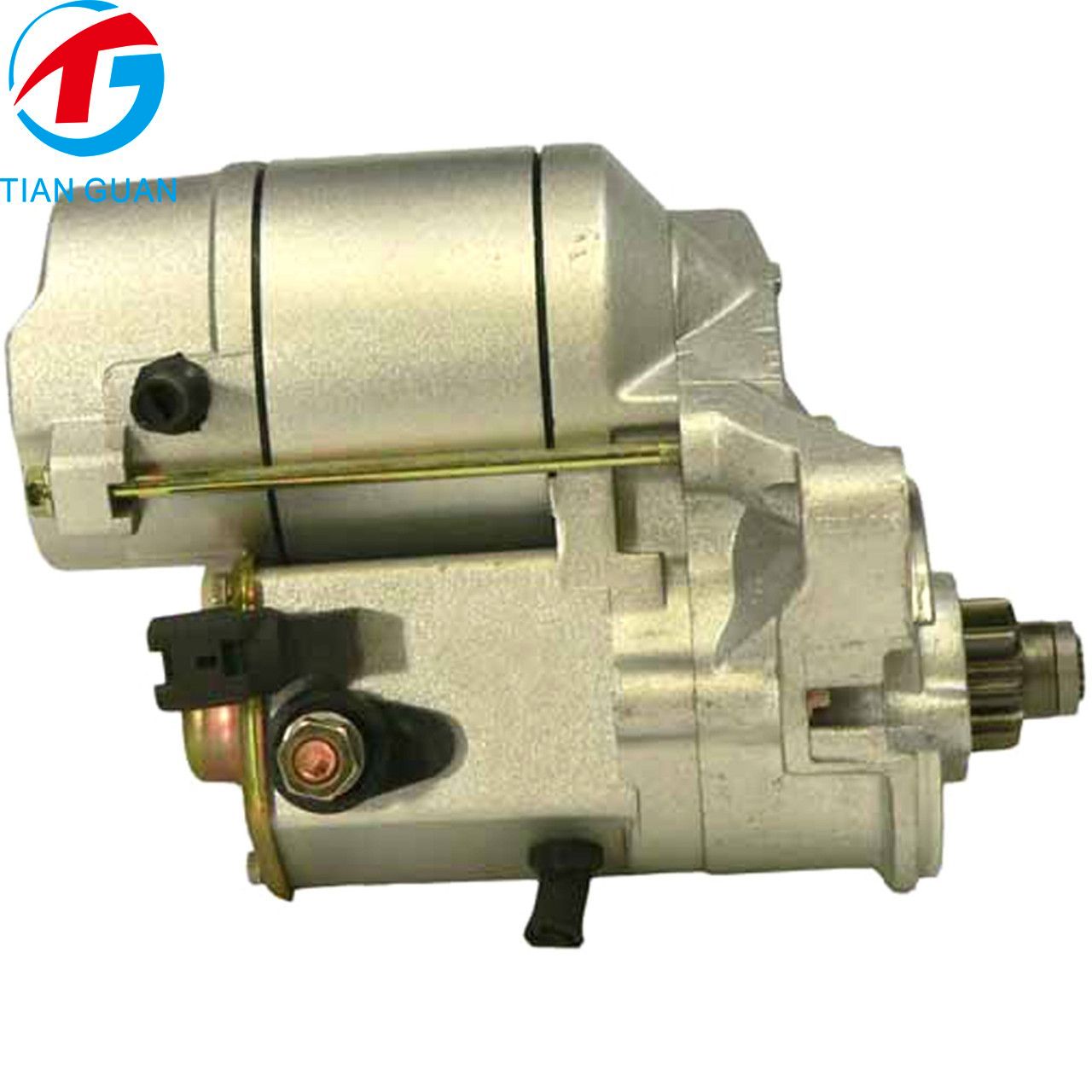

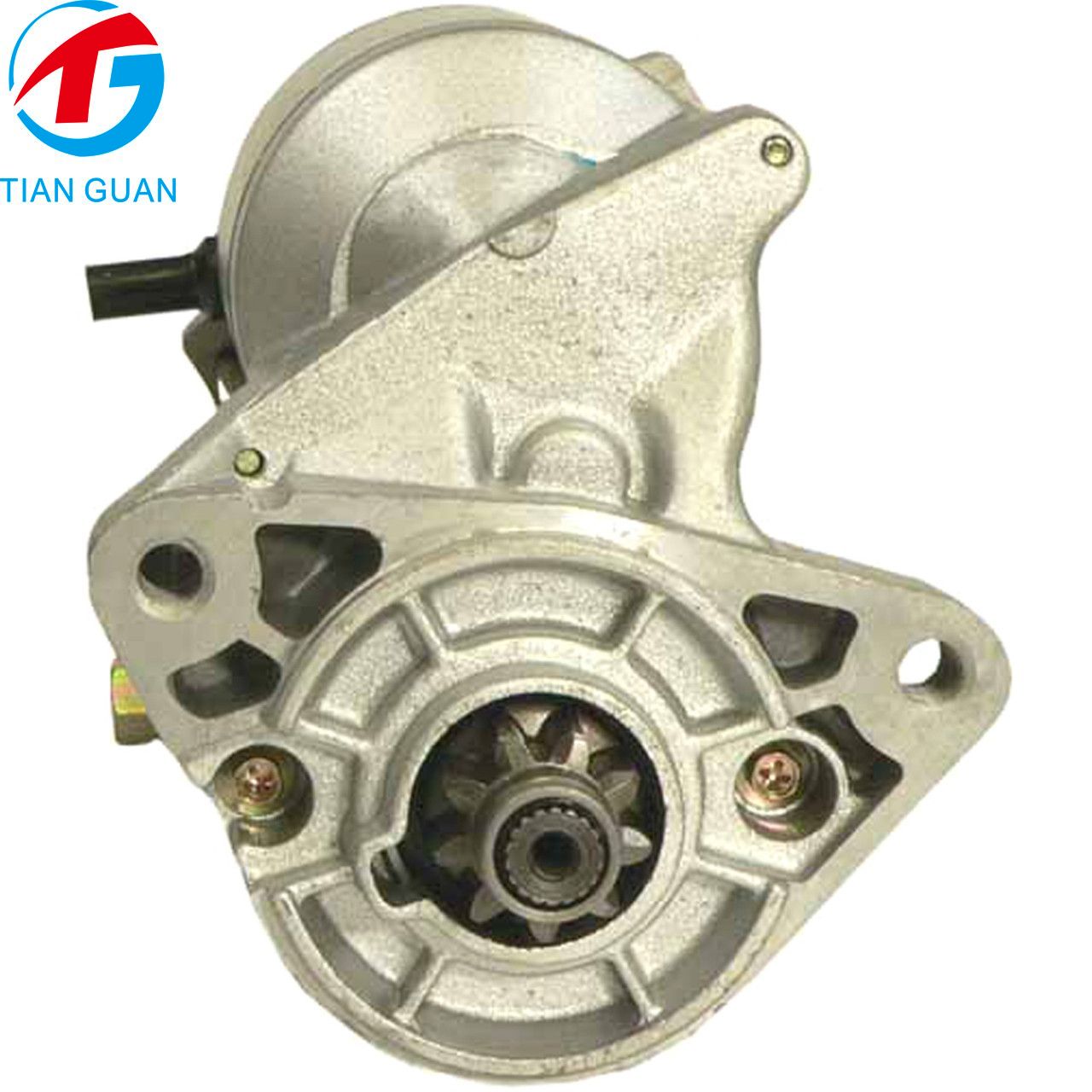

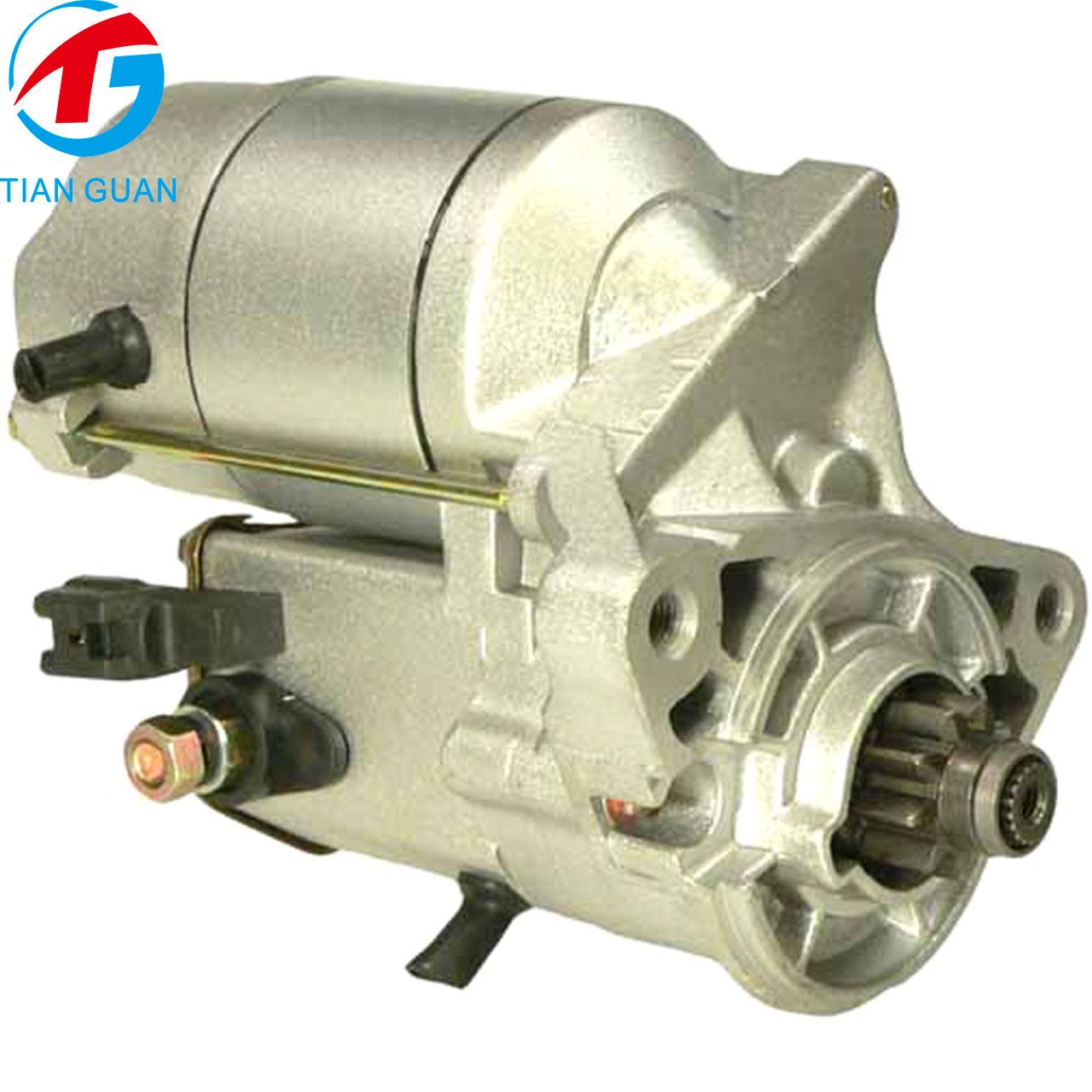

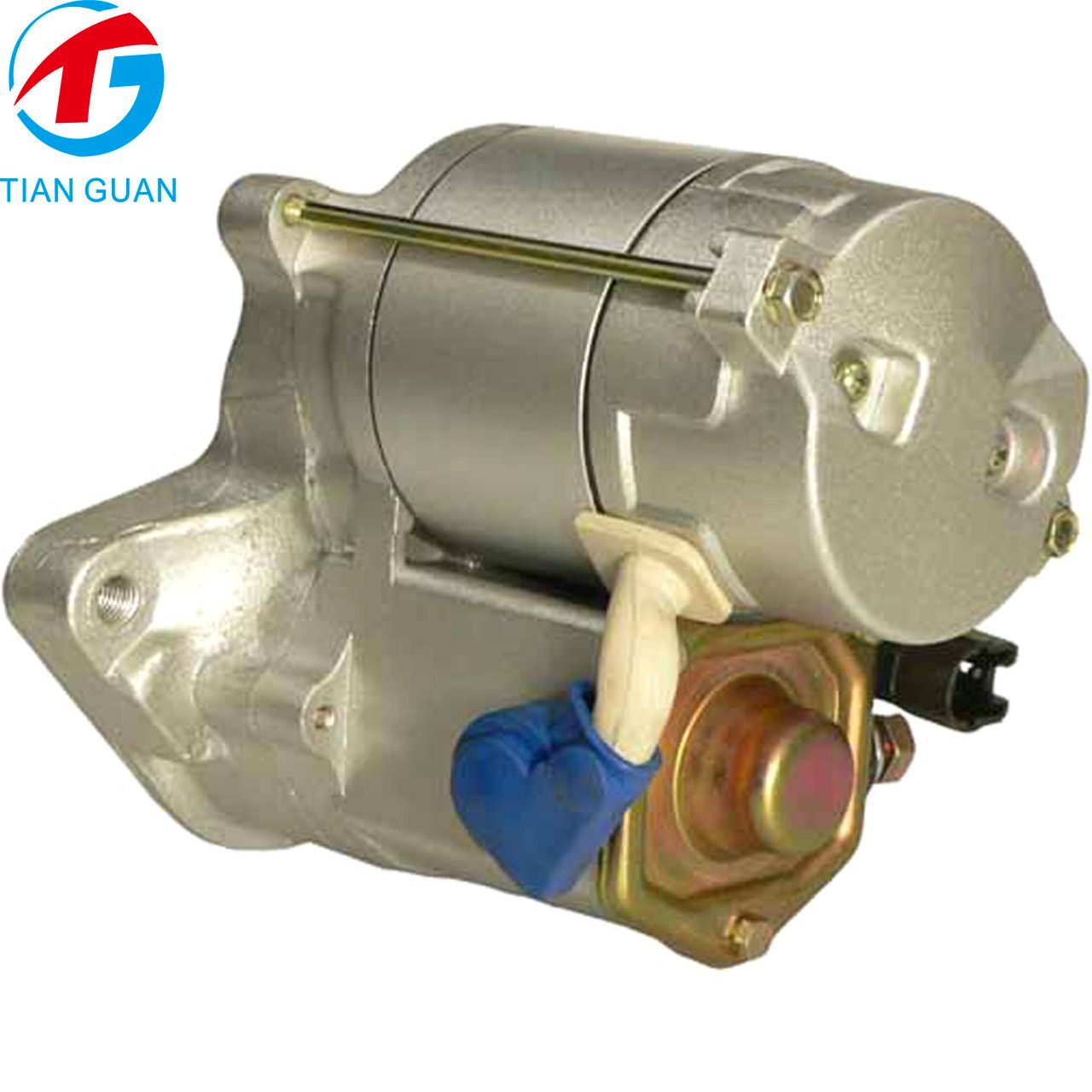

    STG50985 Starter Motor 410-52042 28100-75090 228000-2570 for Toyota 4Runner T-100 Tacoma | 12V 1.4KW 9T CW OSGR Replacement

    Part Numbers

    Toyota: 28100-00100-84 / 28100-0C010 / 28100-75090 / 28100-75091

    Denso: 228000-2570 / 228000-2571 / 228000-2572 / 228000-3740 / 228000-3742 / 228000-3743


    Product Description

    STG50985 Starter Motor is a new aftermarket replacement designed for Toyota 4Runner, T-100, and Tacoma pickup applications equipped with compatible 2.4L and 2.7L 4-cylinder engines.

    Featuring a 12V, 1.4KW, 9-tooth, clockwise-rotation OSGR (Offset Gear Reduction) design, this starter provides reliable engine cranking performance for Toyota automotive and light-truck applications.

    The starter replaces Toyota 28100-75090 / 28100-75091, Denso 228000-2570 / 228000-2571 / 228000-2572 / 228000-3740 / 228000-3742 / 228000-3743, and Arrowhead 410-52042. Published catalogs identify the main applications as 4Runner 2.7L, T-100 2.7L, and Tacoma 2.4L / 2.7L models.

    Product Specifications

    PropertyValue
    Product ModelSTG50985
    Part Number410-52042
    Unit TypeStarter
    Voltage12V
    Power Output1.4KW
    Number of Teeth9T
    Starter TypeOSGR
    RotationCW
    Engine Type2.4L / 2.7L 4-Cylinder Gasoline Engine
    Compatible Engines2RZ-FE / 3RZ-FE
    Vehicle BrandToyota
    ApplicationAutomotive & Light Truck Starter
    ConditionNew Aftermarket
    WeightTo Be Confirmed

    The 12V, 1.4KW, 9T, CW and OSGR configuration is consistently listed for 410-52042.

    OEM / Cross Reference Table

    Brand / CategoryPart Number
    TOYOTA28100-00100-84 / 28100-0C010 / 28100-75090 / 28100-75091
    DENSO228000-2570 / 228000-2571 / 228000-2572 / 228000-3740 / 228000-3742 / 228000-3743
    DENSO FIRST TIME FIT280-0151 / 280-0177
    DENSO REMAN9622809-374
    ARROWHEADSND0104 / 410-52042
    AC DELCO336-1638
    CARGO111784
    J & N410-52042
    LESTER17668 / 17700
    LUCASLRS01378
    NSASTR-8065
    REMY LIGHT DUTY17213
    WAI2-1832-ND
    WILSON91-29-5273 / 91-29-5273N
    WOOD AUTOSTR5202

    Compatible Applications



    MAKETYPE MODEL YEAR ENGINE
    ToyotaAuto and Light Truck4RUNNER19962.7L
    ToyotaAuto and Light Truck4RUNNER19972.7L
    ToyotaAuto and Light Truck4RUNNER19982.7L
    ToyotaAuto and Light Truck4RUNNER19992.7L
    ToyotaAuto and Light Truck4RUNNER20002.7L
    ToyotaAuto and Light TruckT-100 PICKUP19942.7L
    ToyotaAuto and Light TruckT-100 PICKUP19952.7L
    ToyotaAuto and Light TruckT-100 PICKUP19962.7L
    ToyotaAuto and Light TruckT-100 PICKUP19972.7L
    ToyotaAuto and Light TruckT-100 PICKUP19982.7L
    ToyotaAuto and Light TruckTACOMA PICKUP19952.4L
    ToyotaAuto and Light TruckTACOMA PICKUP19952.7L
    ToyotaAuto and Light TruckTACOMA PICKUP19962.4L
    ToyotaAuto and Light TruckTACOMA PICKUP19962.7L
    ToyotaAuto and Light TruckTACOMA PICKUP19972.4L
    ToyotaAuto and Light TruckTACOMA PICKUP19972.7L
    ToyotaAuto and Light TruckTACOMA PICKUP19982.4L
    ToyotaAuto and Light TruckTACOMA PICKUP19982.7L
    ToyotaAuto and Light TruckTACOMA PICKUP19992.4L
    ToyotaAuto and Light TruckTACOMA PICKUP19992.7L
    ToyotaAuto and Light TruckTACOMA PICKUP20002.4L
    ToyotaAuto and Light TruckTACOMA PICKUP20002.7L
    ToyotaAuto and Light TruckTACOMA PICKUP20012.4L
    ToyotaAuto and Light TruckTACOMA PICKUP20012.7L
    ToyotaAuto and Light TruckTACOMA PICKUP20022.4L
    ToyotaAuto and Light TruckTACOMA PICKUP20022.7L
    ToyotaAuto and Light TruckTACOMA PICKUP20032.4L
    ToyotaAuto and Light TruckTACOMA PICKUP20032.7L
    ToyotaAuto and Light TruckTACOMA PICKUP20042.4L
    ToyotaAuto and Light TruckTACOMA PICKUP20042.7L
    ToyotaAuto and Light TruckTACOMA PICKUP20052.7L
    ToyotaAuto and Light TruckTACOMA PICKUP20062.7L
    ToyotaAuto and Light TruckTACOMA PICKUP20072.7L

  • PRODUCT HIGHLIGHTS

    Product Highlights

    12V 1.4KW 9T OSGR StarterToyota 4Runner T-100 Tacoma ReplacementDenso-Type Gear Reduction Design
    CW Rotation Design2.4L / 2.7L L4 ApplicationsReplaces 410-52042 / 28100-75090
    Reliable Engine Cranking2RZ-FE / 3RZ-FE CompatibleNew Aftermarket Starter Motor
