STG50988 Starter Motor 10461759 19011512 8200027 8200044 5256415 for Cummins Engines Delco 39MT | 24V 8.3kW 12T CW PLGR Replacement

Part Numbers

Arrowhead: SDR0328 / 410-12694 / D8200435

Cummins: 3102763 / 5284106 / 5256415 / 5367765

Delco: 10461759 / 19011512 / 8200027 / 8200044 / 8200086 / 8300011

Product Description

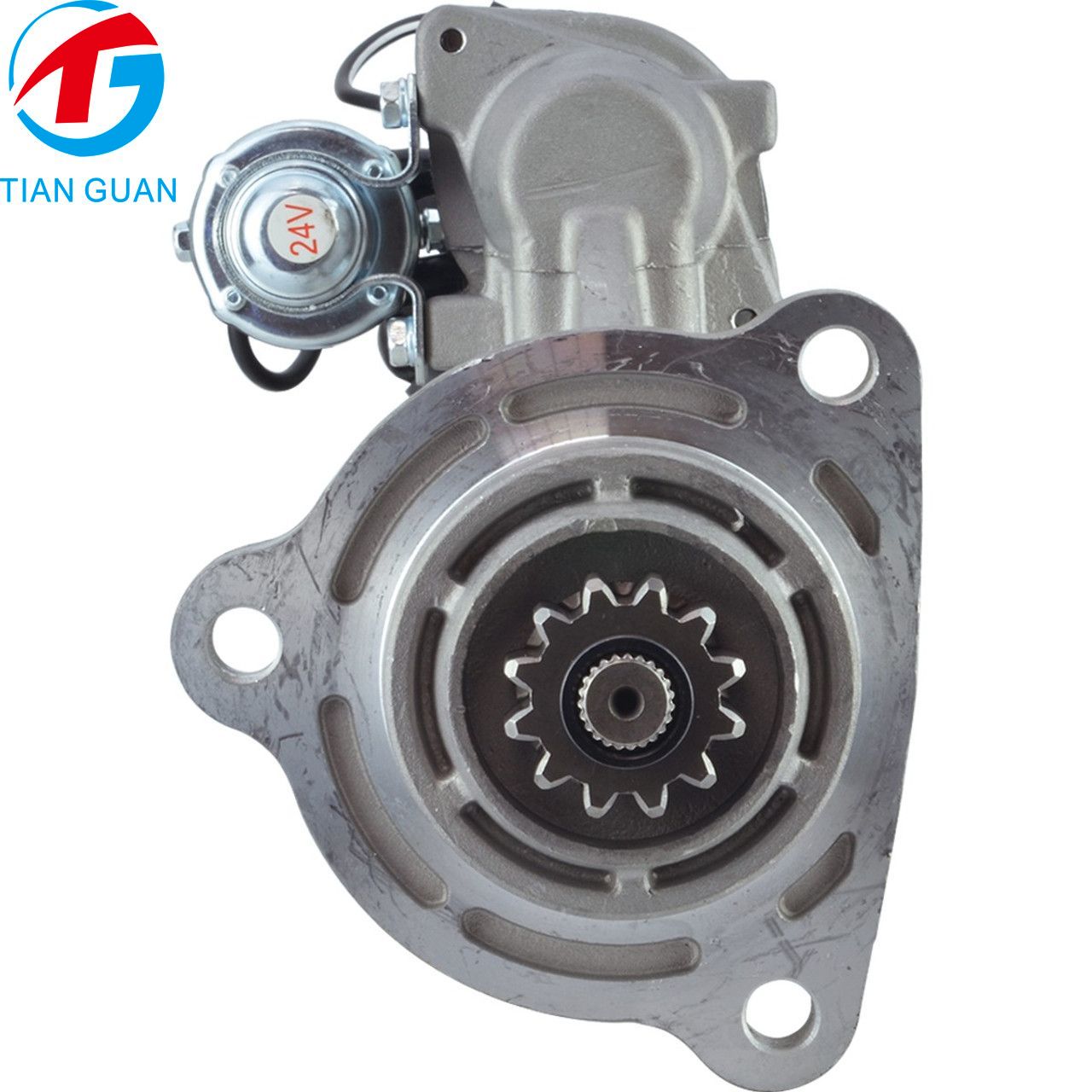

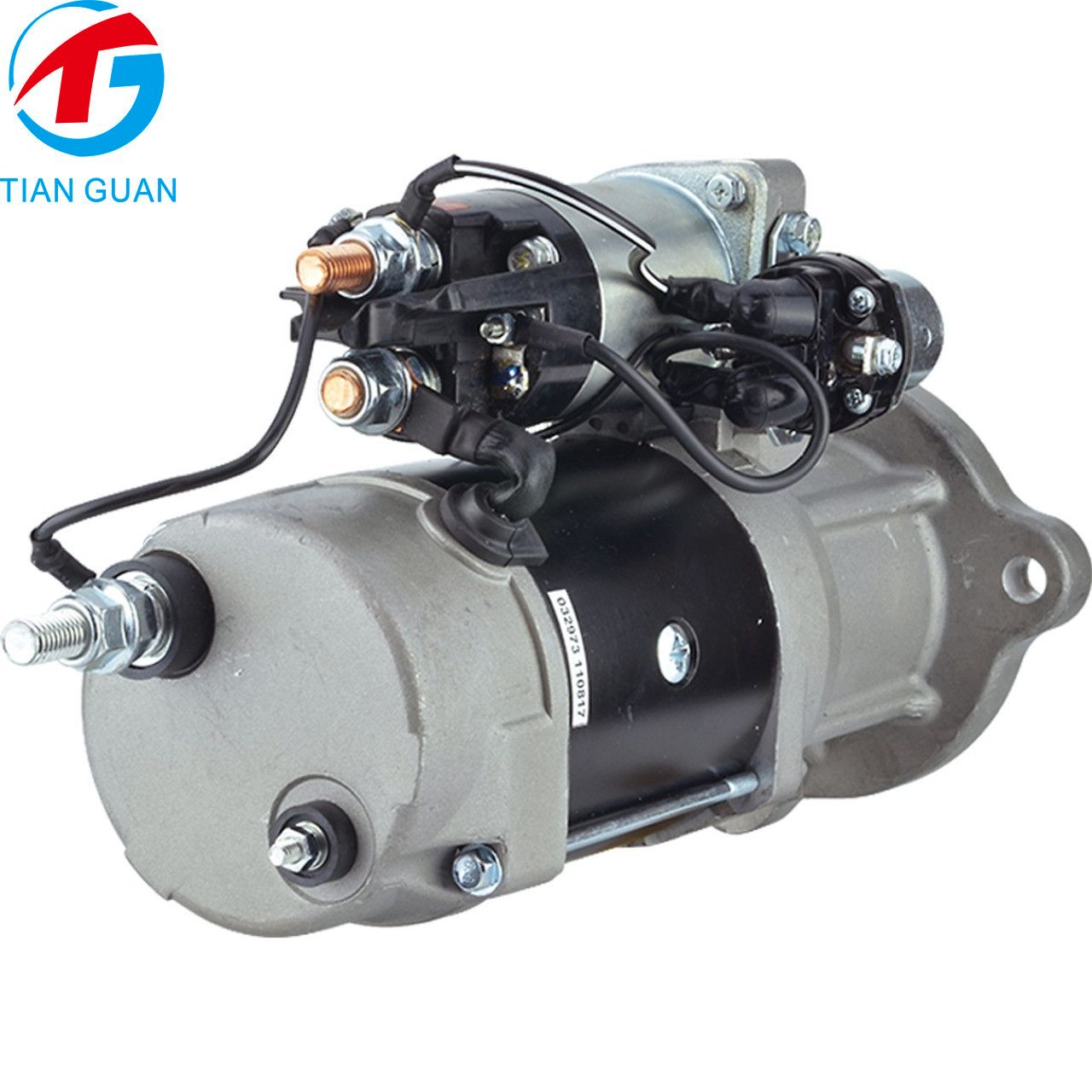

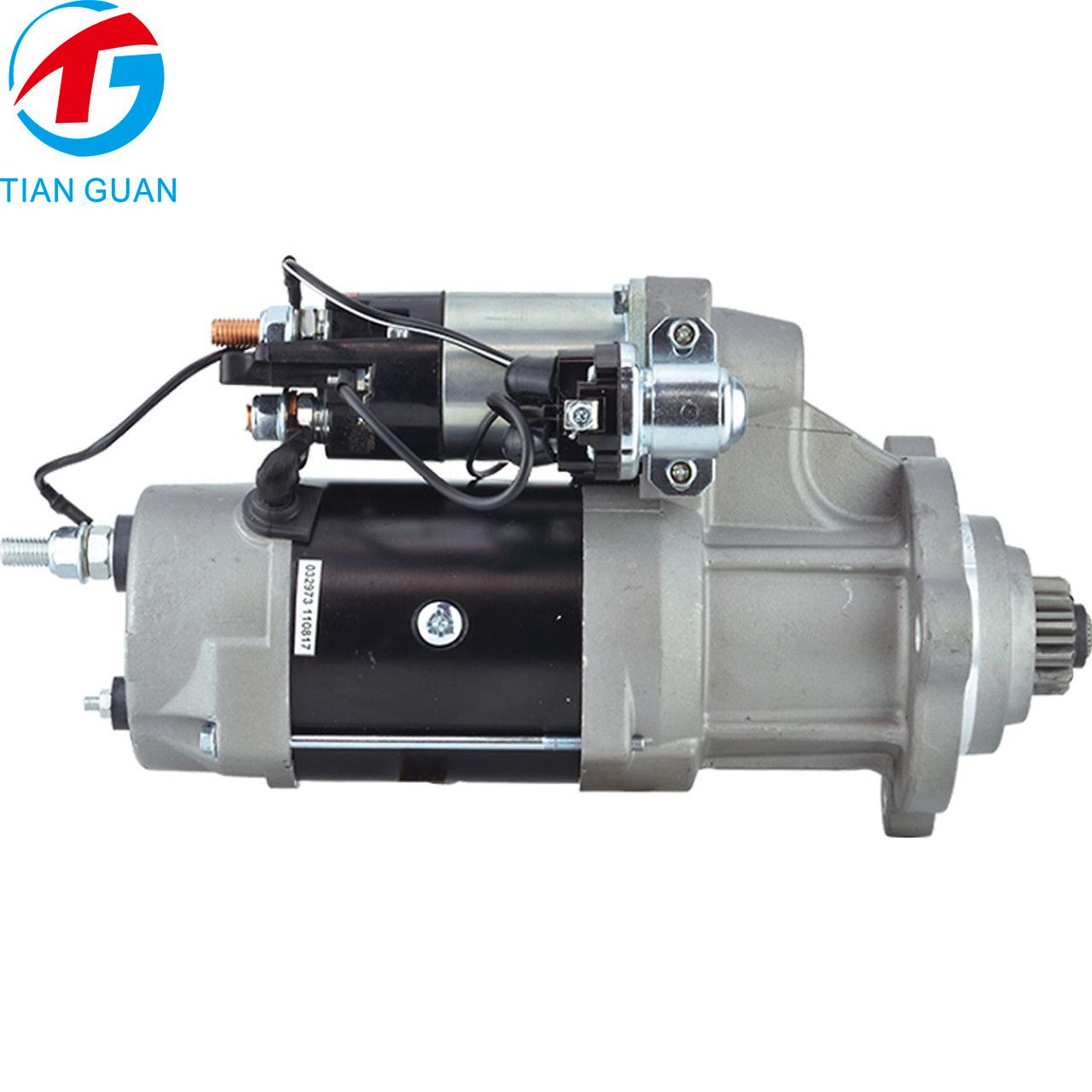

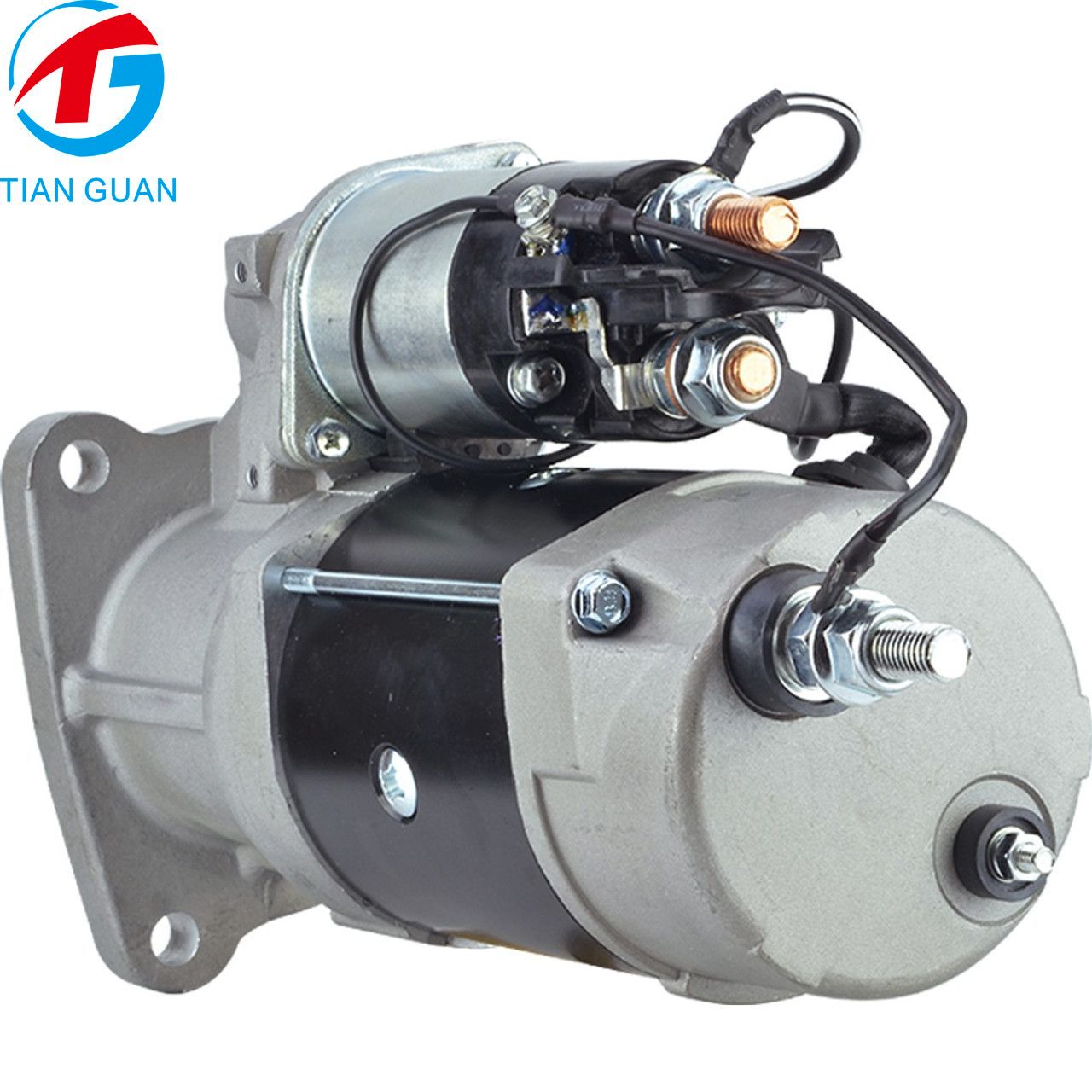

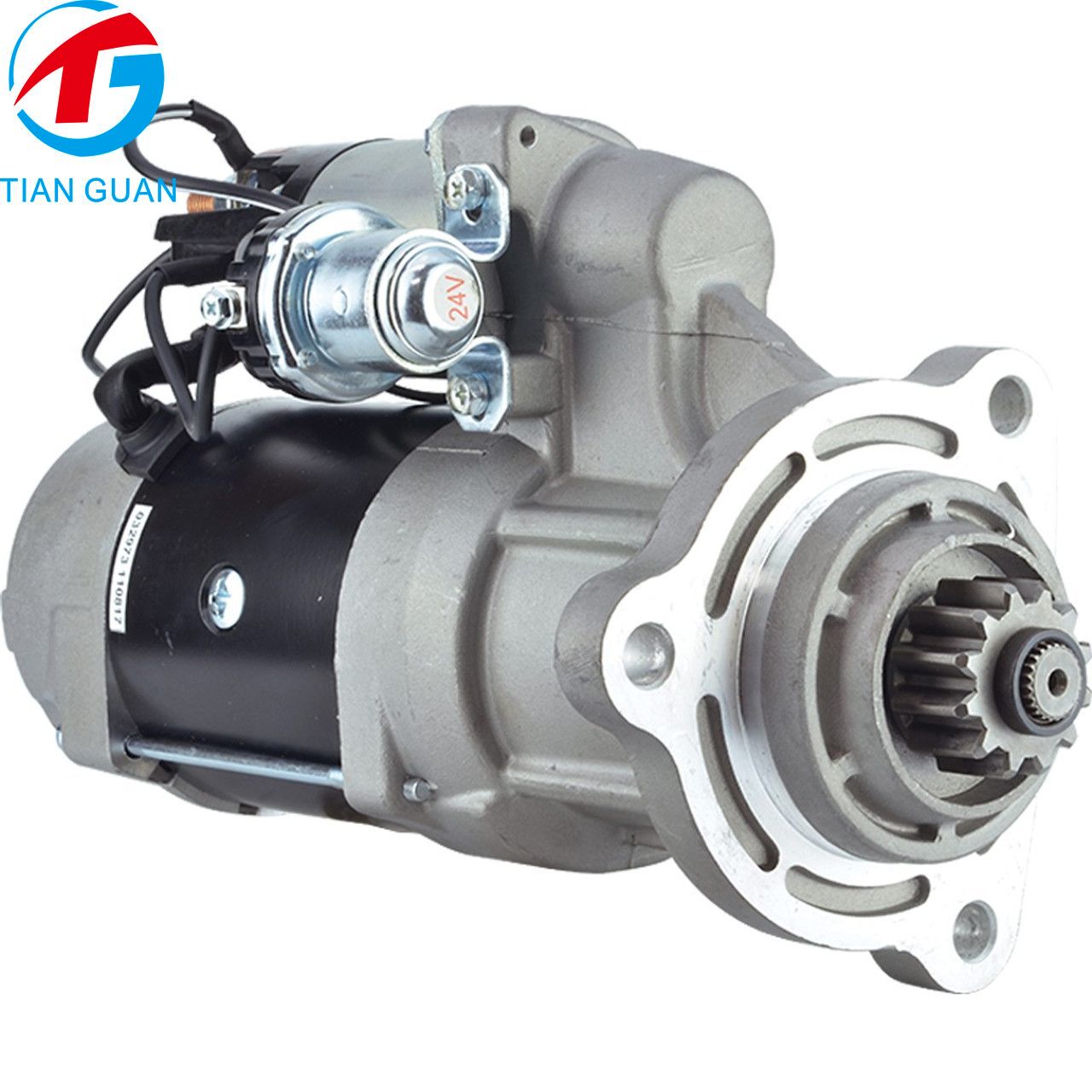

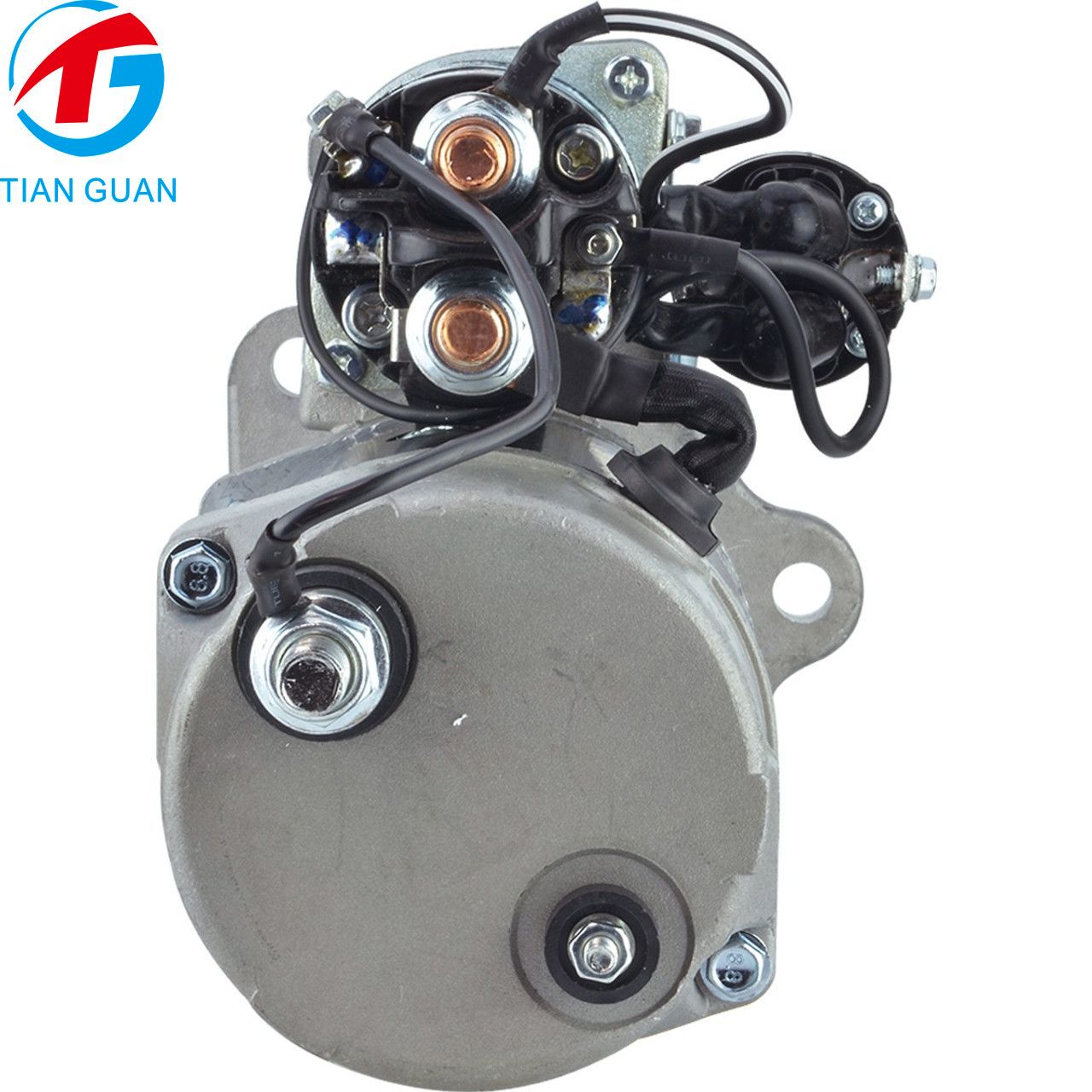

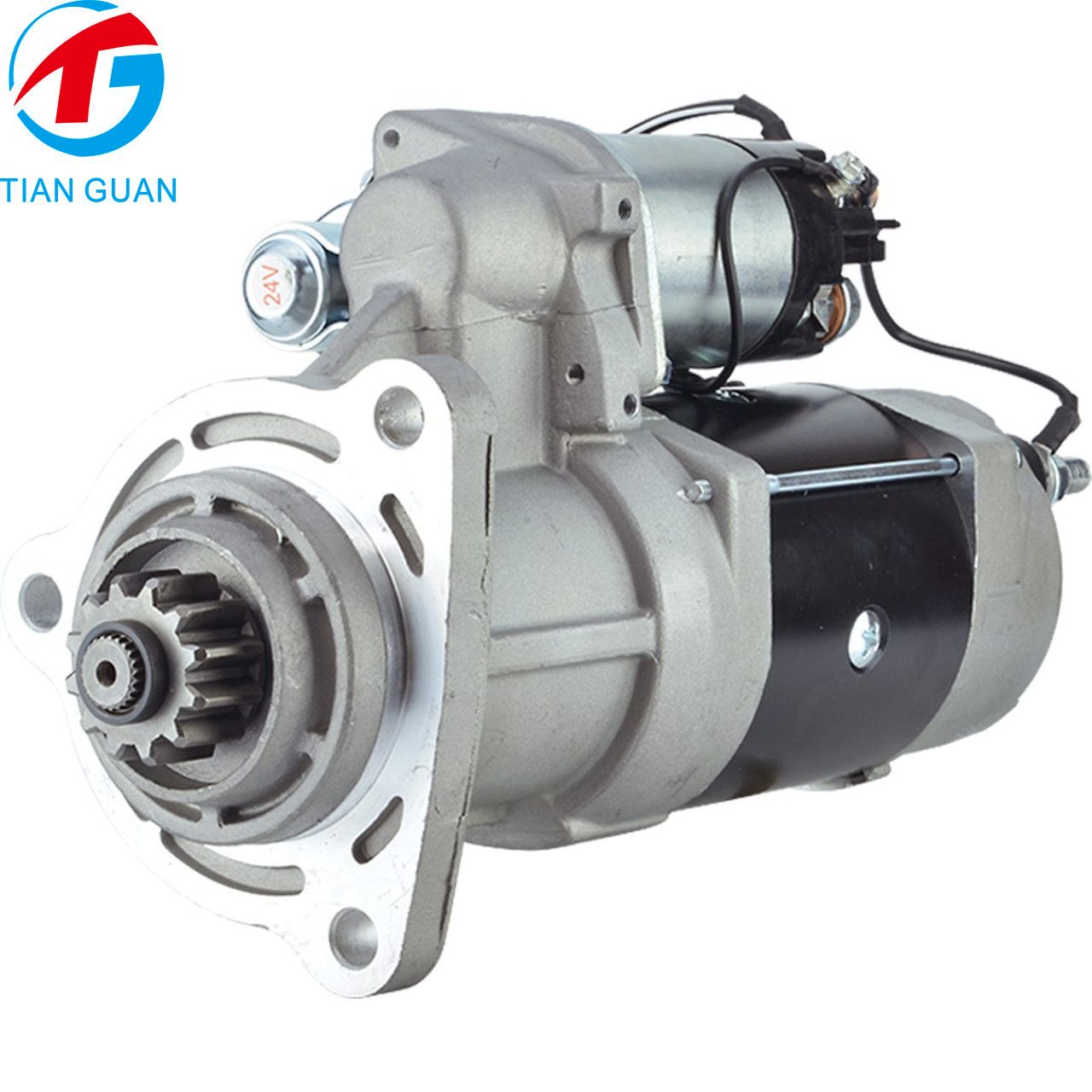

The STG50988 Starter Motor is a new aftermarket replacement starter designed for Cummins engines using Delco 39MT starter systems.

Featuring a 24V electrical system, 8.3kW output, 12-tooth pinion, clockwise rotation, and PLGR (Planetary Gear Reduction) design, this starter provides high torque and reliable starting performance for heavy-duty commercial, industrial, marine, and equipment applications.

The starter replaces multiple OEM and aftermarket references including Delco 10461759, 19011512, 8200027, 8200044, 8200086, 8300011, as well as Cummins 3102763, 5284106, 5256415, and 5367765.

Product Specifications

Specification	Details
Product Type	Starter Motor
Condition	Aftermarket Part
Starter Series	Delco 39MT
Voltage	24V
Rated Power	8.3kW
Rotation Direction	Clockwise (CW)
Number of Teeth	12T
Starter Type	PLGR (Planetary Gear Reduction)
Gear Outside Diameter	44mm / 1.732in
Mounting Ear Hole Diameter	16.7mm Unthreaded
Solenoid Type	Semi-Solid Link Solenoid with IMS Switch
Housing Design	Rotatable Housing
DE Housing Option	Non-Rotatable Housing with 13.6mm Mounting Holes
Application	Cummins Engines / Delco 39MT Starter Systems
Estimated Net Weight	14.8kg

OEM / Cross Reference Numbers

Brand	Part Number
Arrowhead	SDR0328 / 410-12694 / D8200435
Cummins	3102763 / 5284106 / 5256415 / 5367765
Delco	10461759 / 19011512 / 8200027 / 8200044 / 8200086 / 8300011
J & N	410-12294 / 410-12694
Lester	6826 / 6836
NSA	STR-4391 / STR-4393
Unipoint	STR-4391

Compatible Applications

Brand	Equipment / Model	Year	Engine
Clark	CGP55 Lift Truck	1998–2001	GM 4.3L V6 Gas
Clark	CGP60 Lift Truck	1997–2001	GM 4.3L V6 Gas
Clark	CGP70 Lift Truck	1997–2001	GM 4.3L V6 Gas
Daewoo	G35S / G40S / G45S Lift Truck	All	GM 4.3L V6
Crusader	8.1 Inboard & Sterndrive	2001–2008	496ci 8.1L V8
MerCruiser	High Performance Models	1990–2001	GM 7.4L / 8.1L / 8.2L / 8.9L V8
MerCruiser	Ski Engine Models	1987–1998	GM 5.7L / 7.4L V8
MerCruiser	Stern Drive Models	1987–2000	GM 4.3L / 5.0L / 5.7L / 7.4L / 8.2L V8
OMC	Stern Drive Engines	1995–1998	GM 4.3L / 5.0L / 5.7L / 7.4L / 8.2L Engines
Pleasurecraft	Inboard & Sterndrive	2001–2007	GM 5.0L / 5.7L / 8.1L Engines
Volvo Penta	Inboard & Sterndrive	1989–2007	GM 3.0L / 4.3L / 5.0L / 5.7L / 7.4L / 8.1L / 8.2L Engines

PRODUCT HIGHLIGHTS

Product Highlights

High Torque 8.3kW Performance	Delco 39MT Replacement	Flexible Housing Design
24V PLGR starter design delivers strong cranking power for heavy-duty applications.	Replaces Delco, Cummins, Arrowhead, J&N, Lester and other cross-reference numbers.	Rotatable housing design supports different installation configurations.
