STG51003 Starter Motor 31100-30B00-H17 31100-32C00-H17 31100-43400 31100-43401 for Suzuki GS300L | 12V 9T CCW PMDD Replacement

3 Reviews

Add Your Review

US$76.00

ITEMNO： STG51003

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

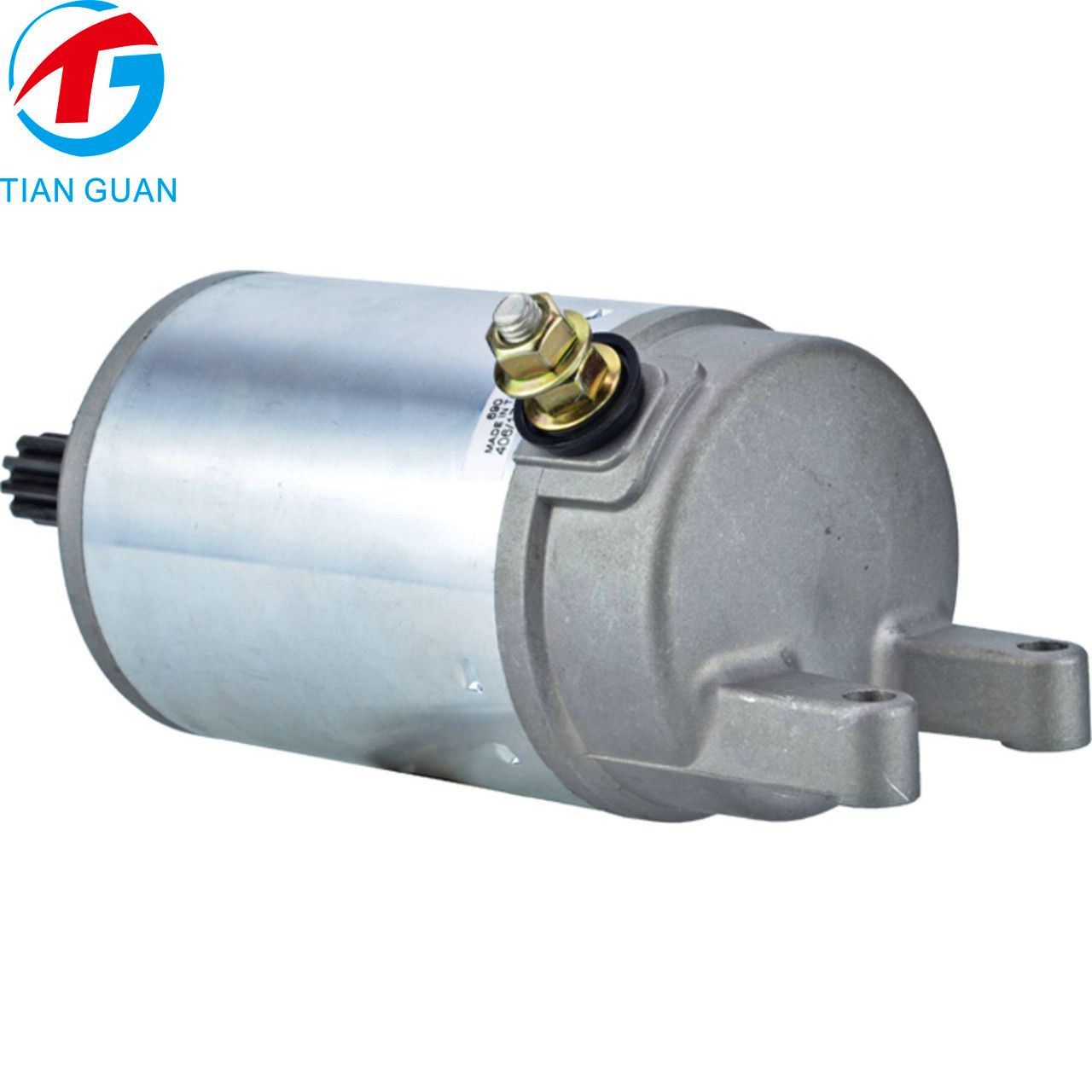

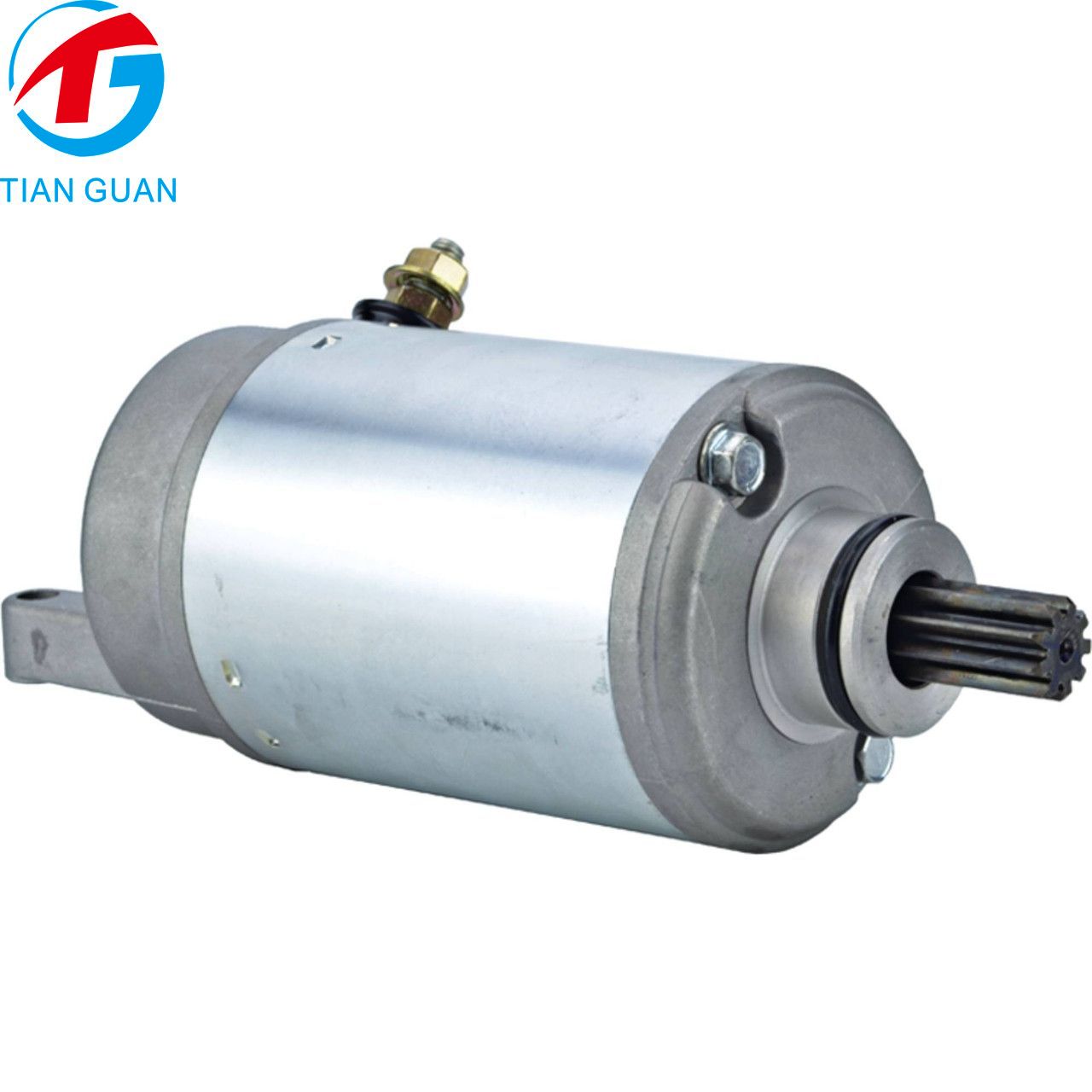

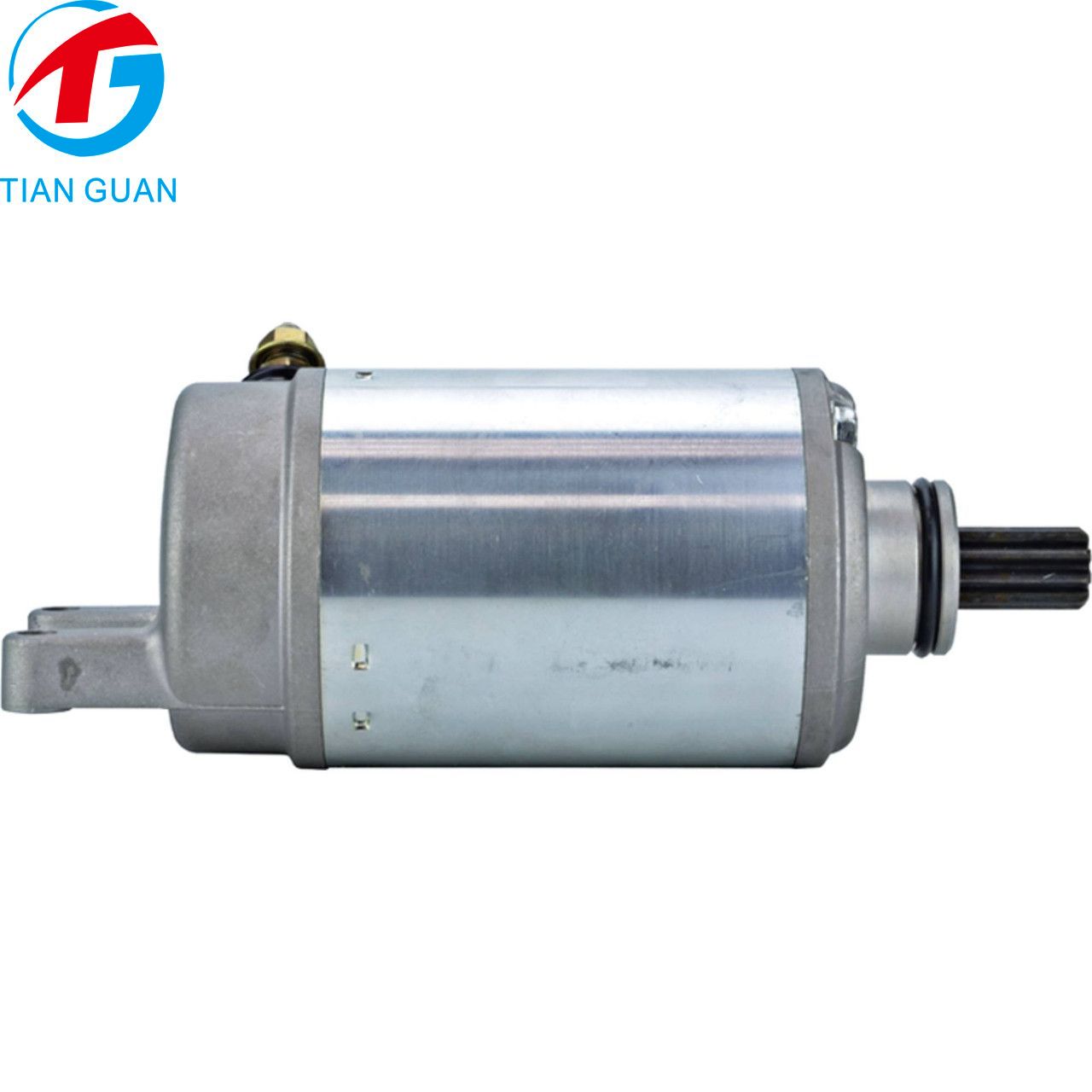

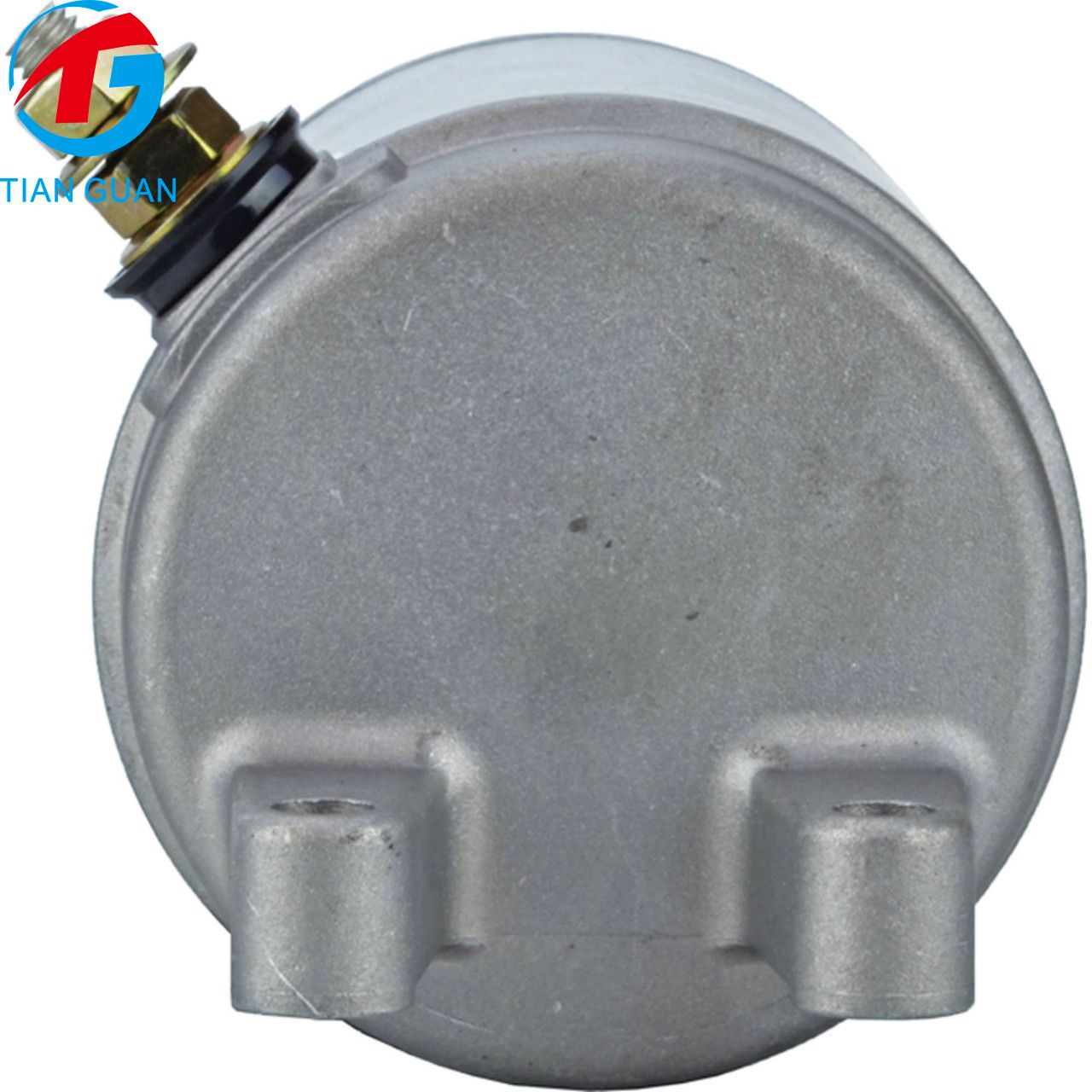

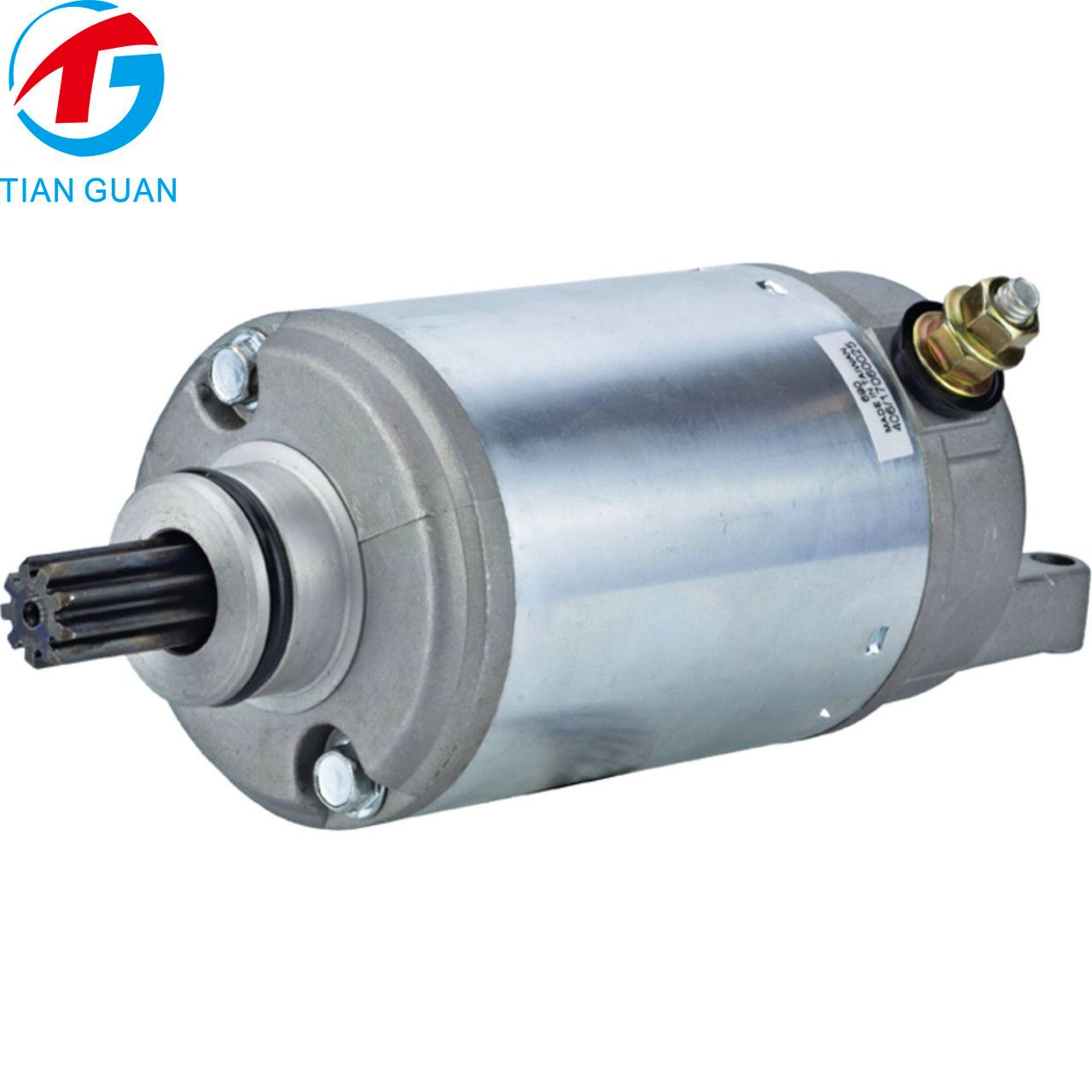

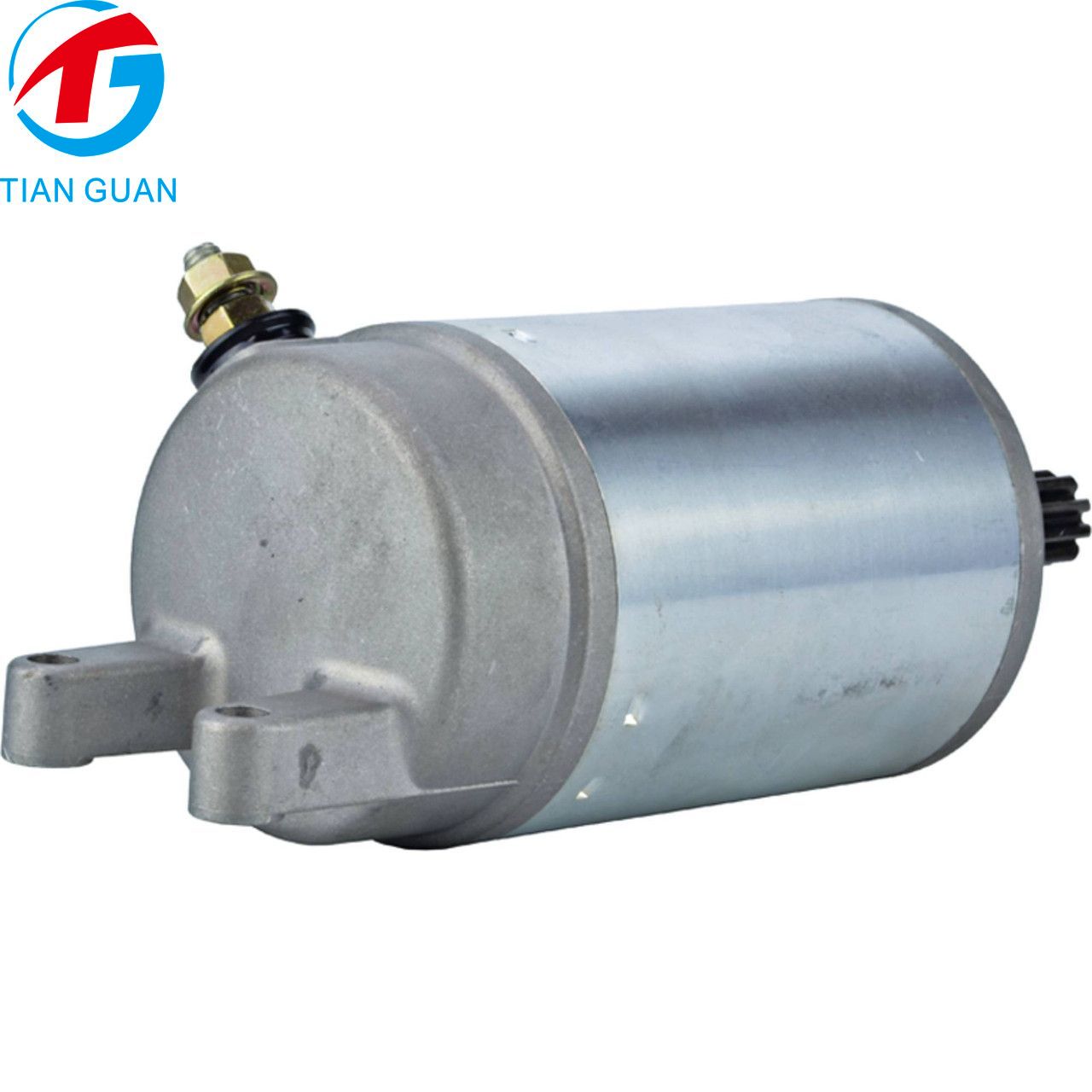

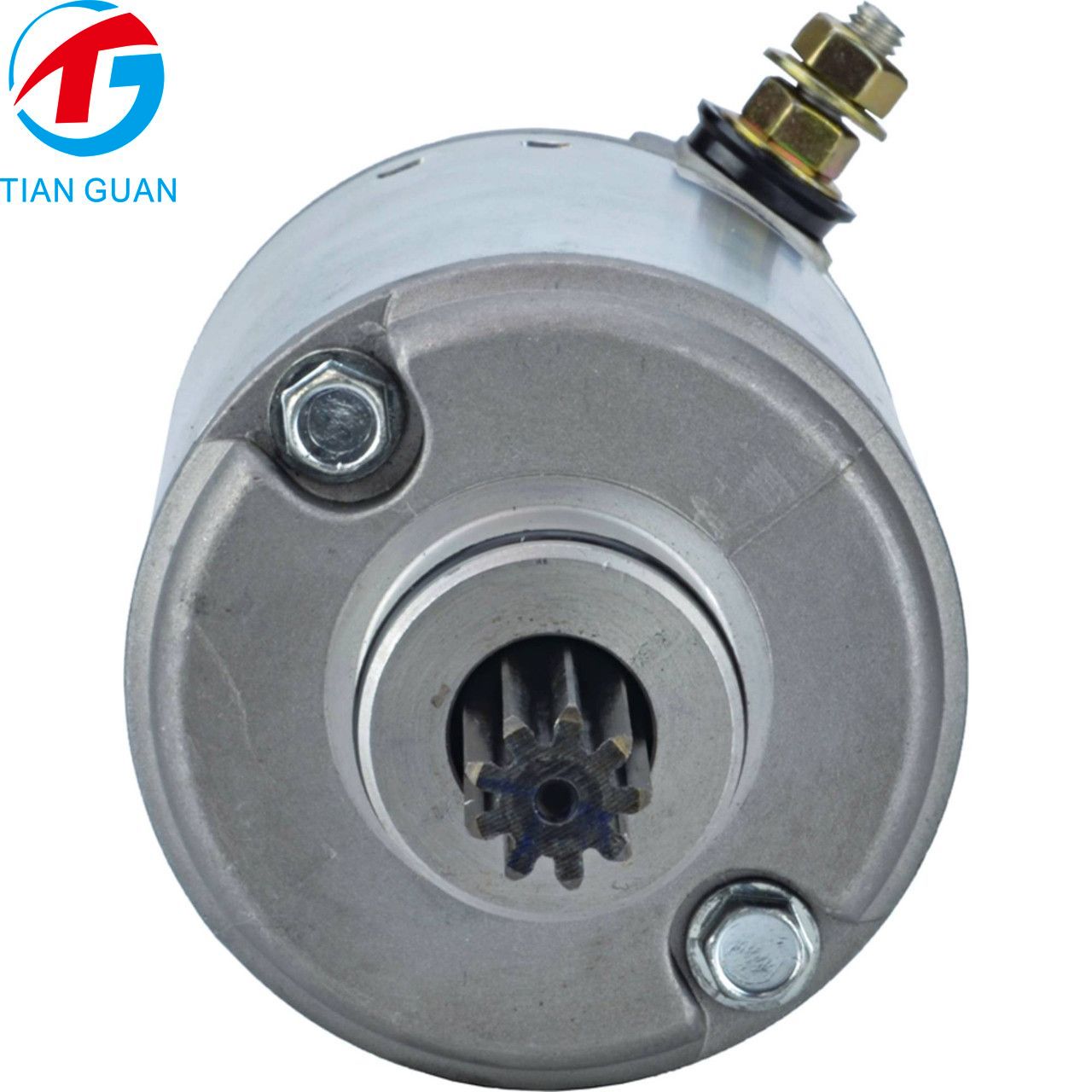

    STG51003 Starter Motor 31100-30B00-H17 31100-32C00-H17 31100-43400 31100-43401 for Suzuki GS300L | 12V 9T CCW PMDD Replacement

    Part Numbers

    Suzuki: 31100-30B00-H17 / 31100-32C00-H17 / 31100-43400 / 31100-43401 / 31100-44110 / 31100-44111

    Denso: 028000-6500 / 028000-6502 / 028000-9550 / 028000-9551 / 128000-1650 / 128000-3580


    Product Description

    STG51003 Starter Motor is a new aftermarket replacement designed for Suzuki GS300L 299cc motorcycles manufactured from 1982 to 1985.

    Featuring a 12V, 9-tooth, counterclockwise-rotation (CCW), PMDD (Permanent Magnet Direct Drive) design, this starter provides reliable and efficient engine cranking performance for compatible Suzuki motorcycle applications.

    The starter cross-references Suzuki OEM numbers 31100-30B00-H17, 31100-32C00-H17, 31100-43400, 31100-43401, 31100-44110 and 31100-44111, along with Denso, Arrowhead, J & N and Lester references. Catalog data confirms the same 9T, CCW and PMDD configuration.

    Product Specifications

    PropertyValue
    Product ModelSTG51003
    Part Number31100-30B00-H17 / 31100-32C00-H17 / 31100-43400 / 31100-43401
    Product TypeStarter Motor
    Unit TypeStarter
    Voltage12V
    Power OutputTo Be Confirmed
    Number of Teeth9T
    Starter TypePMDD
    RotationCCW
    Gear Outside Diameter14.5 mm
    Shaft Diameter14.5 mm
    Shaft Length23 mm
    Overall Length182 mm
    Mounting Holes2
    Mounting Hole Diameter6.8 mm
    Mounting Hole Center Distance36 mm
    Registry Diameter30 mm
    ConditionNew Aftermarket Part
    ApplicationMotorcycle Starter
    Compatible VehicleSuzuki GS300L
    Compatible Engine299cc Twin-Cylinder Engine
    Weight1.6 kg Estimated

    The published specifications confirm 12V, 9T, CCW, PMDD, 14.5 mm gear diameter, 182 mm overall length and 36 mm mounting-hole center distance. Replacement units for this starter family are listed at approximately 1.61–1.63 kg, supporting the 1.6 kg estimated weight used here.

    OEM / Cross Reference Table

    Brand / CategoryPart Number
    Suzuki31100-30B00-H17 / 31100-32C00-H17 / 31100-43400 / 31100-43401 / 31100-44110 / 31100-44111
    Denso028000-6500 / 028000-6502 / 028000-9550 / 028000-9551 / 128000-1650 / 128000-3580
    ArrowheadSMU0142 / SMU0140
    J & N410-52539
    Lester18777 / 18778
    PIC190-6169 / 190-6169A
    Barsanco610-222 / 610-223
    EMSSS-6
    Stockers StartersSS-6
    Minnpar57-3180

    Compatible Applications



    MAKETYPE MODEL YEAR ENGINE
    SuzukiMotorcycleGS300L1982300cc
    SuzukiMotorcycleGS300L1983300cc
    SuzukiMotorcycleGS300L1984300cc
    SuzukiMotorcycleGS300L1985300cc
    SuzukiMotorcycleGS450E1980448cc
    SuzukiMotorcycleGS450E1981448cc
    SuzukiMotorcycleGS450E1982448cc
    SuzukiMotorcycleGS450E1983448cc
    SuzukiMotorcycleGS450G1982448cc
    SuzukiMotorcycleGS450G1983448cc
    SuzukiMotorcycleGS450GA1983448cc
    SuzukiMotorcycleGS450GA1984448cc
    SuzukiMotorcycleGS450GA1985448cc
    SuzukiMotorcycleGS450L1980448cc
    SuzukiMotorcycleGS450L1981448cc
    SuzukiMotorcycleGS450L1982448cc
    SuzukiMotorcycleGS450L1983448cc
    SuzukiMotorcycleGS450L1985448cc
    SuzukiMotorcycleGS450L1986448cc
    SuzukiMotorcycleGS450L1987448cc
    SuzukiMotorcycleGS450L1988448cc
    SuzukiMotorcycleGS450ST1980448cc
    SuzukiMotorcycleGS450ST1981448cc
    SuzukiMotorcycleGS450ST1982448cc
    SuzukiMotorcycleGS450SX1980448cc
    SuzukiMotorcycleGS450SX1981448cc
    SuzukiMotorcycleGS450SX1982448cc
    SuzukiMotorcycleGS450T1981448cc
    SuzukiMotorcycleGS450T1982448cc
    SuzukiMotorcycleGS450TX1981450cc
    SuzukiMotorcycleGS450TX1982448cc
    SuzukiMotorcycleGS450TX1983448cc
    SuzukiMotorcycleGS550E1983549cc
    SuzukiMotorcycleGS550EF1983549cc
    SuzukiMotorcycleGS550EF1984549cc
    SuzukiMotorcycleGS550EF1985549cc
    SuzukiMotorcycleGS550EF1986549cc
    SuzukiMotorcycleGS550ES1983549cc
    SuzukiMotorcycleGS550ES1984549cc
    SuzukiMotorcycleGS550ES1985549cc
    SuzukiMotorcycleGS550ES1986549cc
    SuzukiMotorcycleGS550L1983549cc
    SuzukiMotorcycleGS550L1984549cc
    SuzukiMotorcycleGS550L1985549cc
    SuzukiMotorcycleGS550L1986549cc
    SuzukiMotorcycleGS650G1981674cc
    SuzukiMotorcycleGS650G1982674cc
    SuzukiMotorcycleGS650G1983674cc
    SuzukiMotorcycleGS650GL1981674cc
    SuzukiMotorcycleGS650GL1982674cc
    SuzukiMotorcycleGS650GL1983674cc
    SuzukiMotorcycleGS650GT1981674cc
    SuzukiMotorcycleGS650GT1982674cc
    SuzukiMotorcycleGS650GT1983674cc
    SuzukiMotorcycleGS650M1983674cc
    SuzukiMotorcycleXN85 Turbo1983670cc

  • PRODUCT HIGHLIGHTS

    Product Highlights

    12V 9T Starter MotorSuzuki GS300L 299cc ApplicationCCW PMDD Design
    Permanent Magnet Direct Drive1982–1985 GS300L Compatibility31100-30B00-H17 Replacement
    14.5 mm Gear DiameterArrowhead SMU0142 ReferenceLester 18778 Cross Reference
