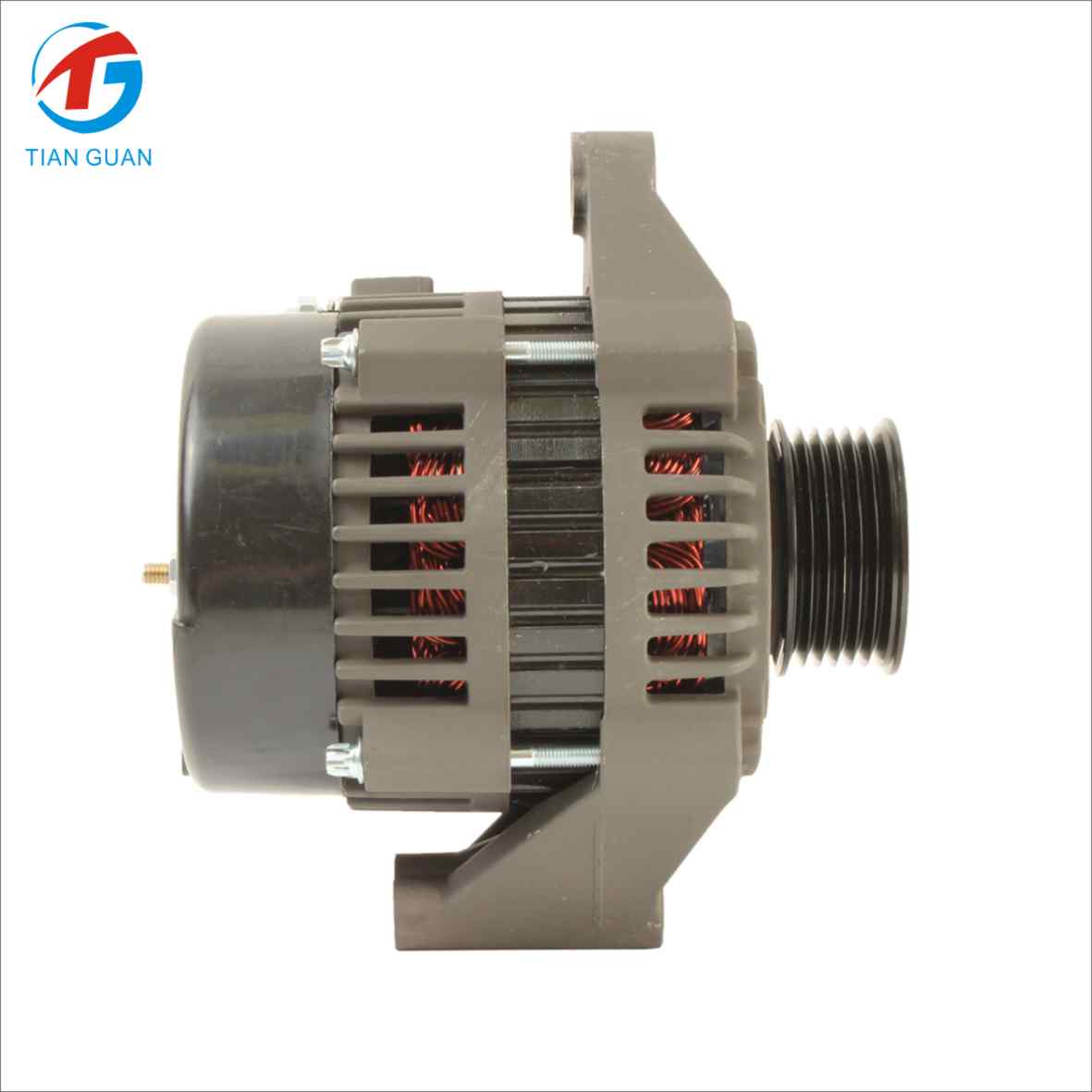

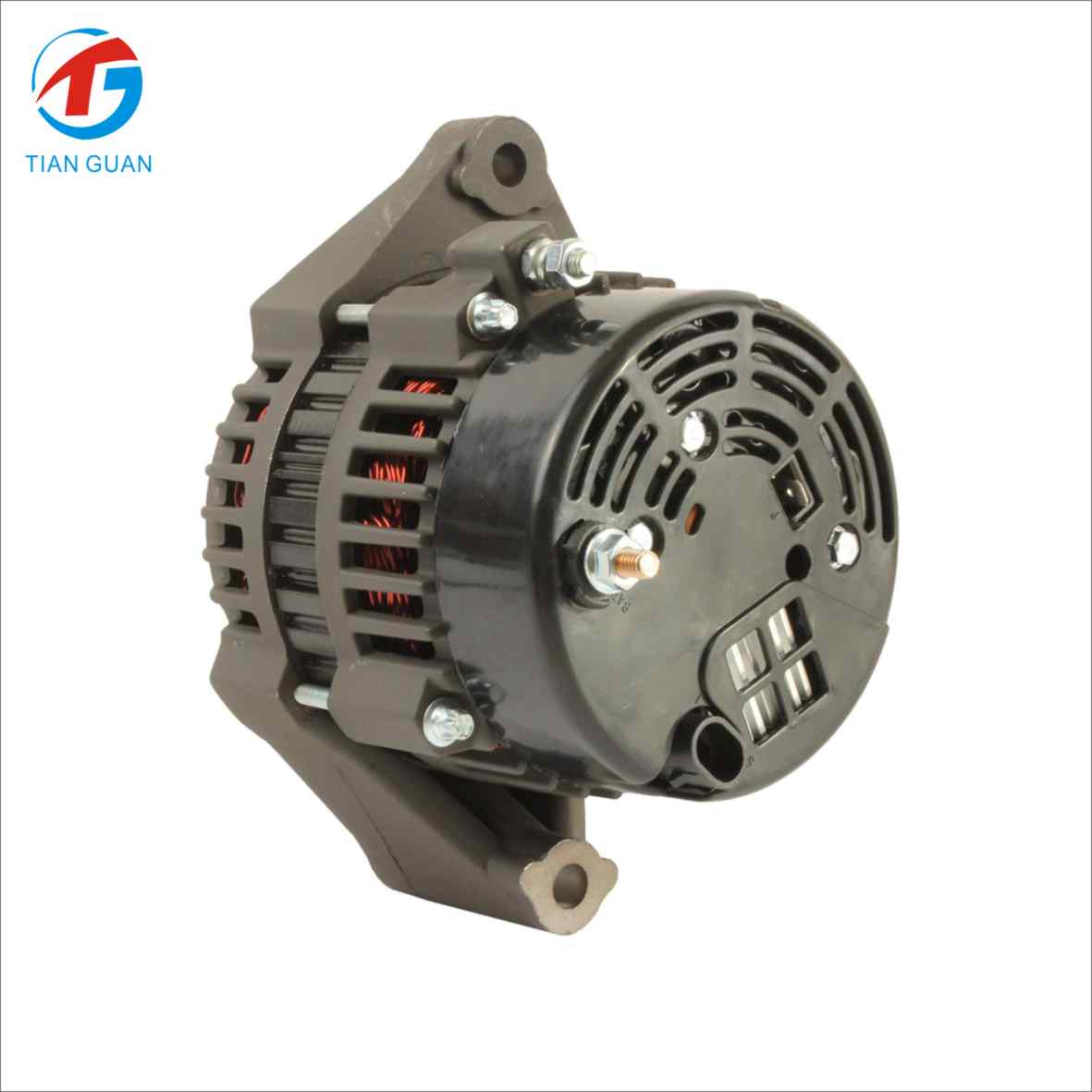

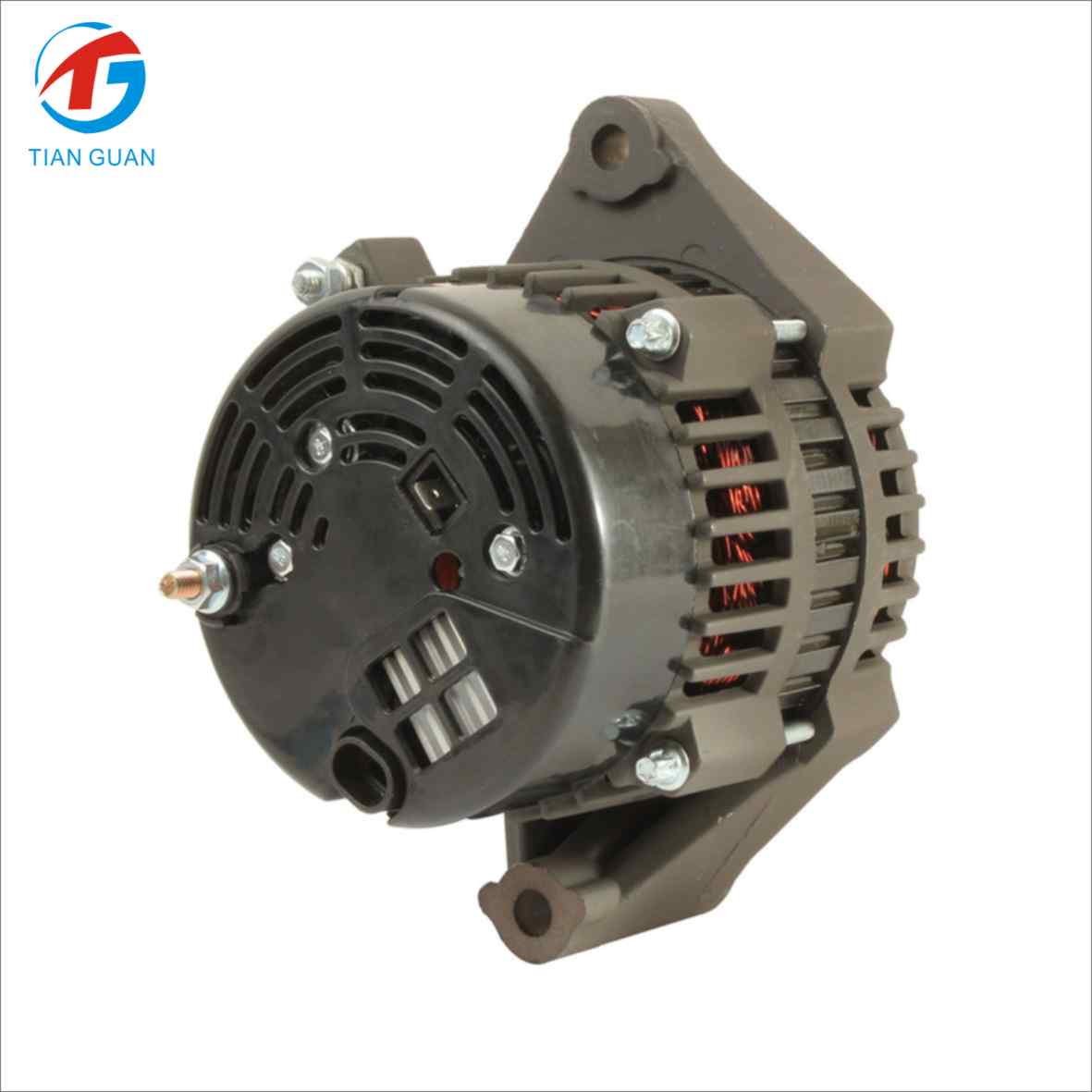

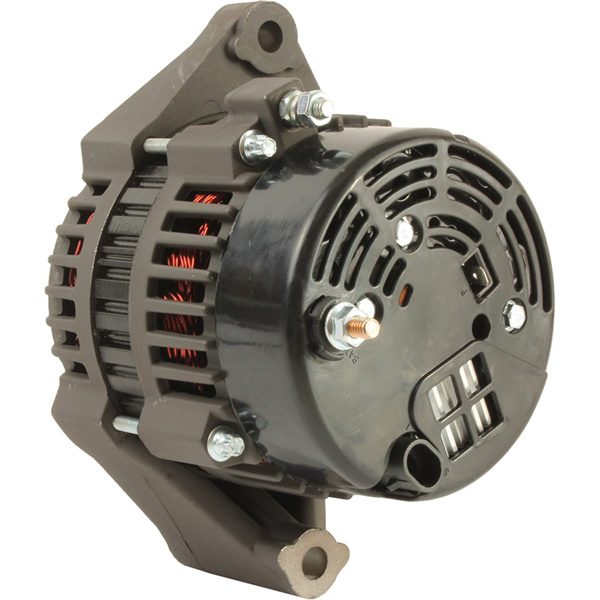

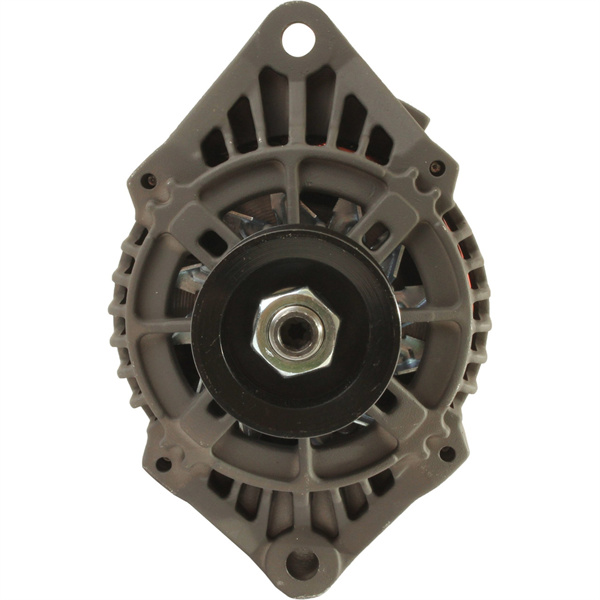

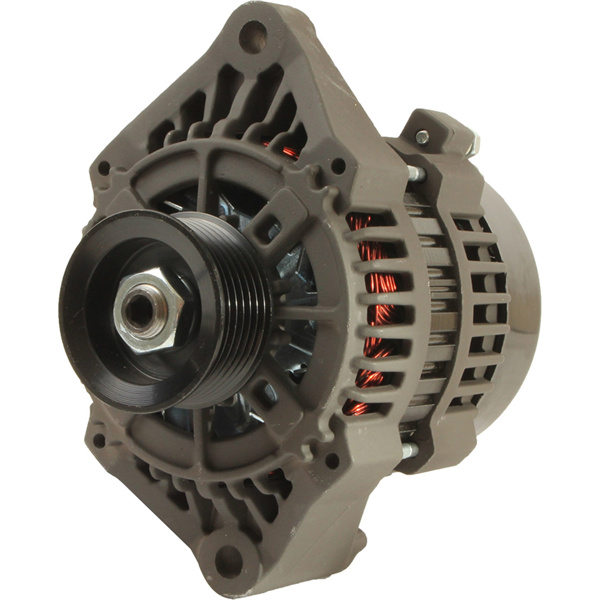

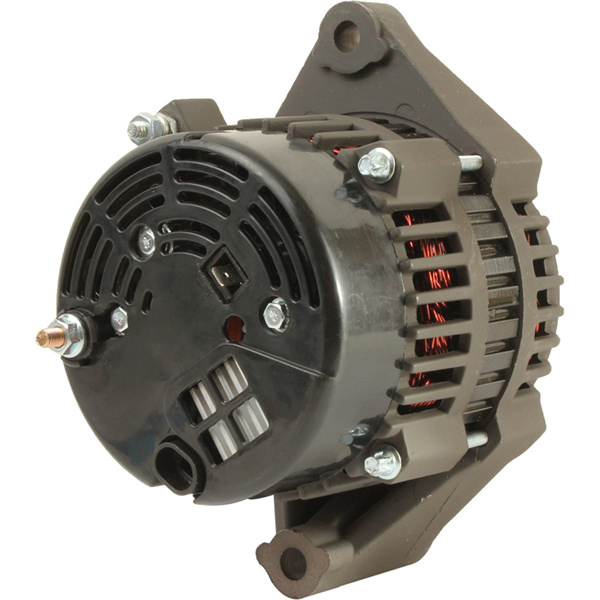

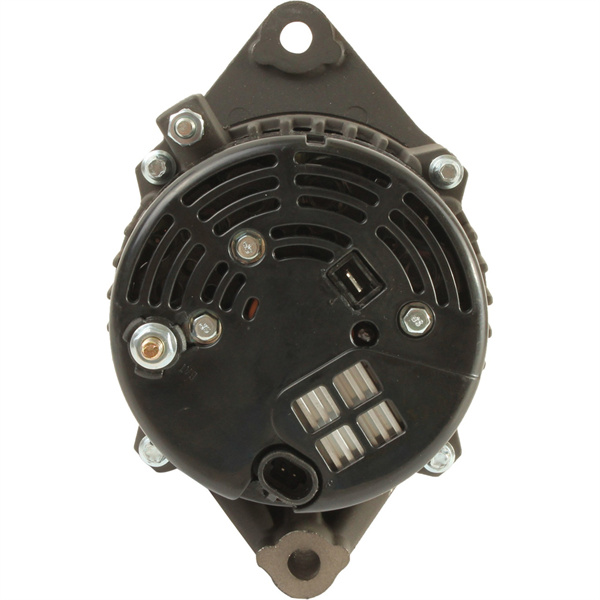

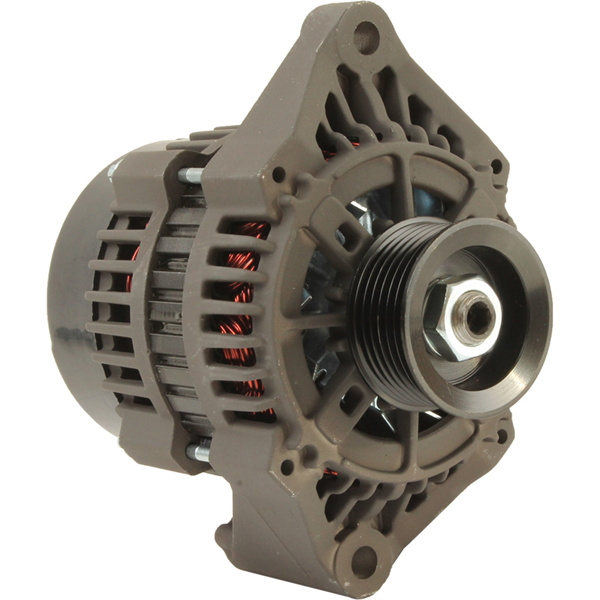

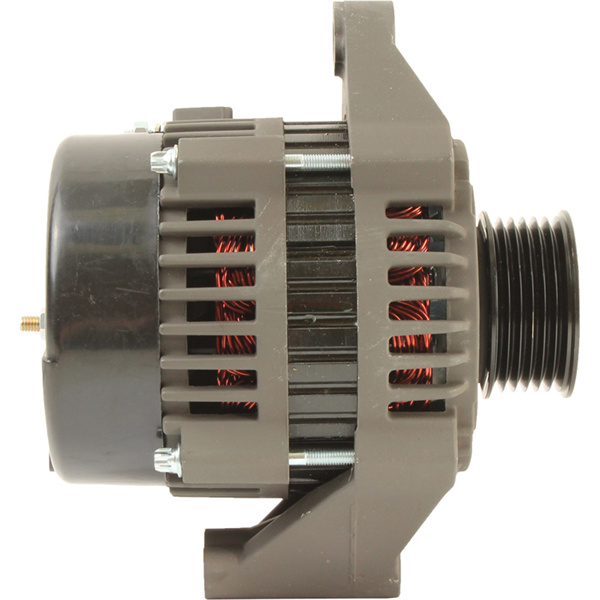

ATG20616 7SI Alternator 19020618 892940T for Mercury Marine Outboard Engines
The ATG20616 is a high-performance 7SI series alternator, designed as a direct replacement for OEM part numbers 19020618, 892940T, 892940T01, and 892940T02. Manufactured to meet or exceed original equipment specifications, this alternator delivers 12 volts and 70 amps, making it ideal for demanding Mercury Marine Verado 4-Stroke Outboard Engines ranging from 135 HP to 300 HP (2005–2009).
Specifications:
Voltage: 12V
Amperage: 70A
Unit Type: Delco
Fan Type: Internal
Regulator Type: Internal
Pulley Type: Internal
Pulley Grooves: External
Mount Type: Spool
Mounting Hole 1: 10.0mm Unthreaded
Mounting Hole 2: 10.0mm Unthreaded
Mounting Ear Thickness 1: 20mm (0.787 in)
Mounting Ear Thickness 2: 60mm (2.362 in)
B+ Terminal: M6-1.0
Polarity: Negative
Weight: 4.5 kg (9.9 lbs)
Compatible with Mercury Marine Models:
135 HP to 300 HP Verado 4-Stroke models
Includes: 135CXL, 150L, 175XL, 200CXL, 225L, 250CXL, 275XL, 300CXXL, and many more from 2005 to 2009
Cross Reference OEM & Aftermarket Numbers:
Delco: 19020618
Mercury Marine: 892940T, 892940T01, 892940T02
Arrowhead: ADR0294, 400-12307
Lester: 8464
J & N: 400-12307
API Marine, ARCO, EMP, Sierra, Mallory, Wilson, and others
This alternator is a trusted solution for boat owners and marine service professionals looking for a reliable replacement unit that offers optimal performance in harsh marine environments.
ATG20616 7SI Alternator 19020618 892940T Fits Mercury Marine 200CXL 200L 200XL Outboard
MERCURY MARINE Engines - Marine Outboard 135CXL Verado 2006 135HP
MERCURY MARINE Engines - Marine Outboard 135CXL Verado 2007 135HP
MERCURY MARINE Engines - Marine Outboard 135CXL Verado 2008 135HP
MERCURY MARINE Engines - Marine Outboard 135CXL Verado 2009 135HP
MERCURY MARINE Engines - Marine Outboard 135L Verado 2006 135HP
MERCURY MARINE Engines - Marine Outboard 135L Verado 2007 135HP
MERCURY MARINE Engines - Marine Outboard 135L Verado 2008 135HP
