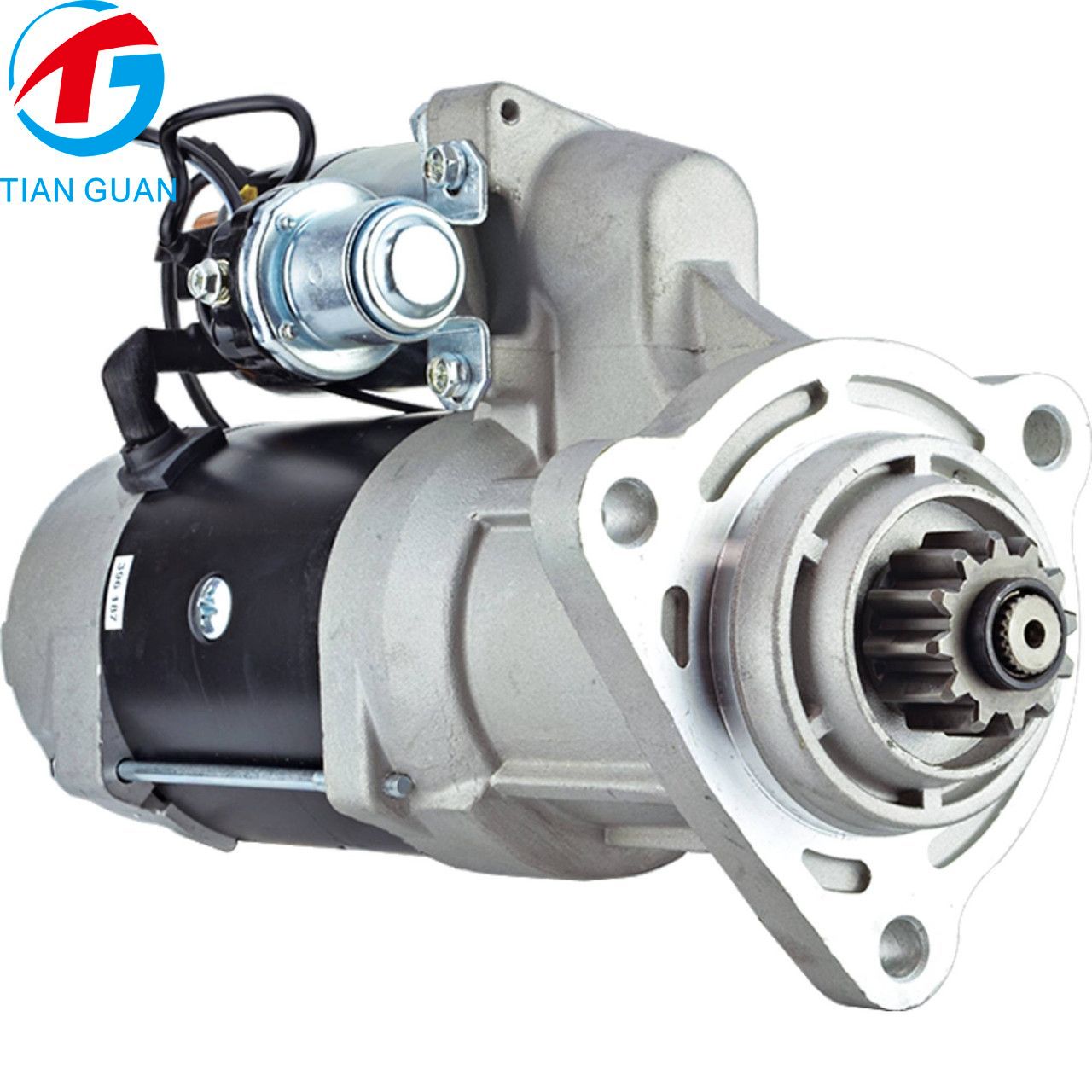

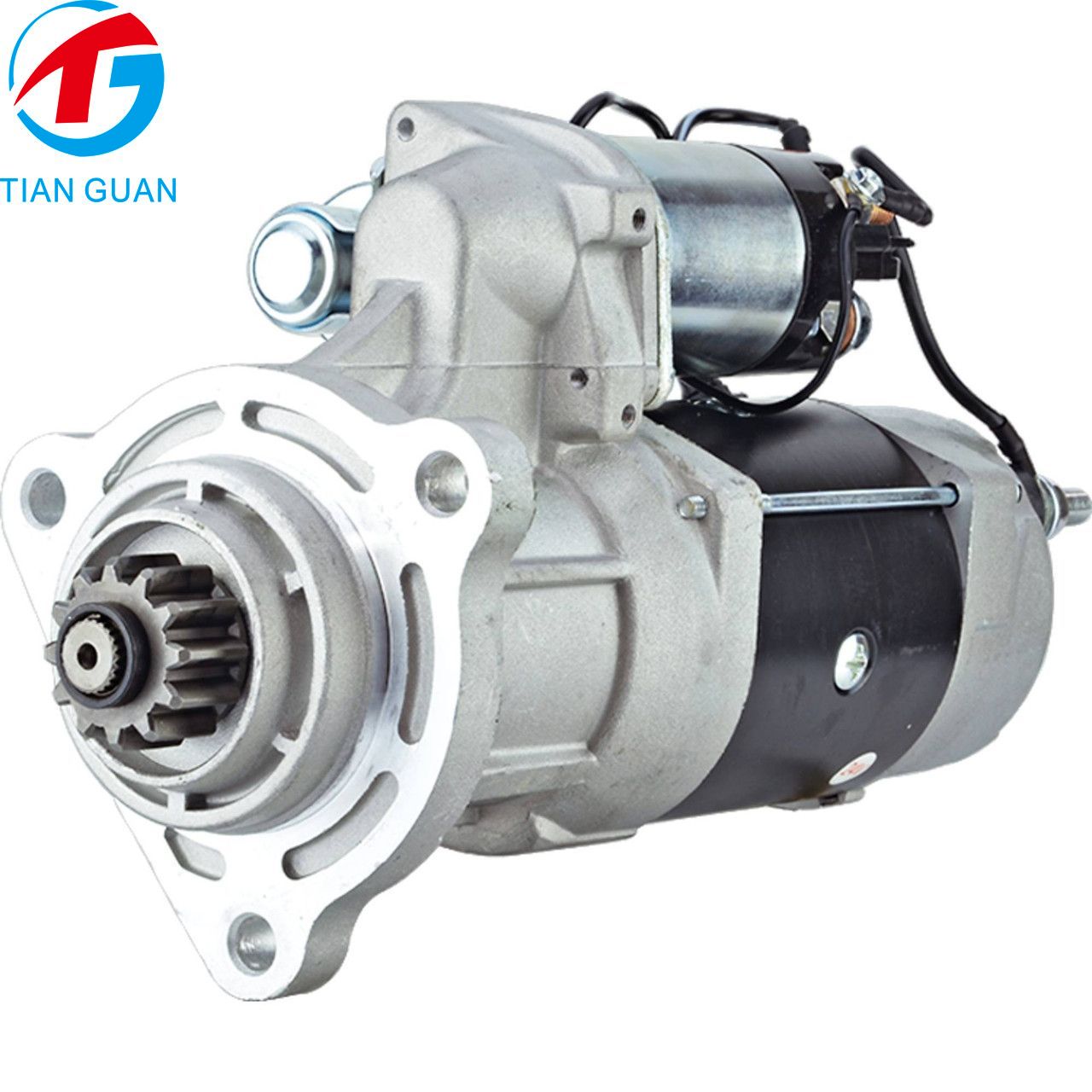

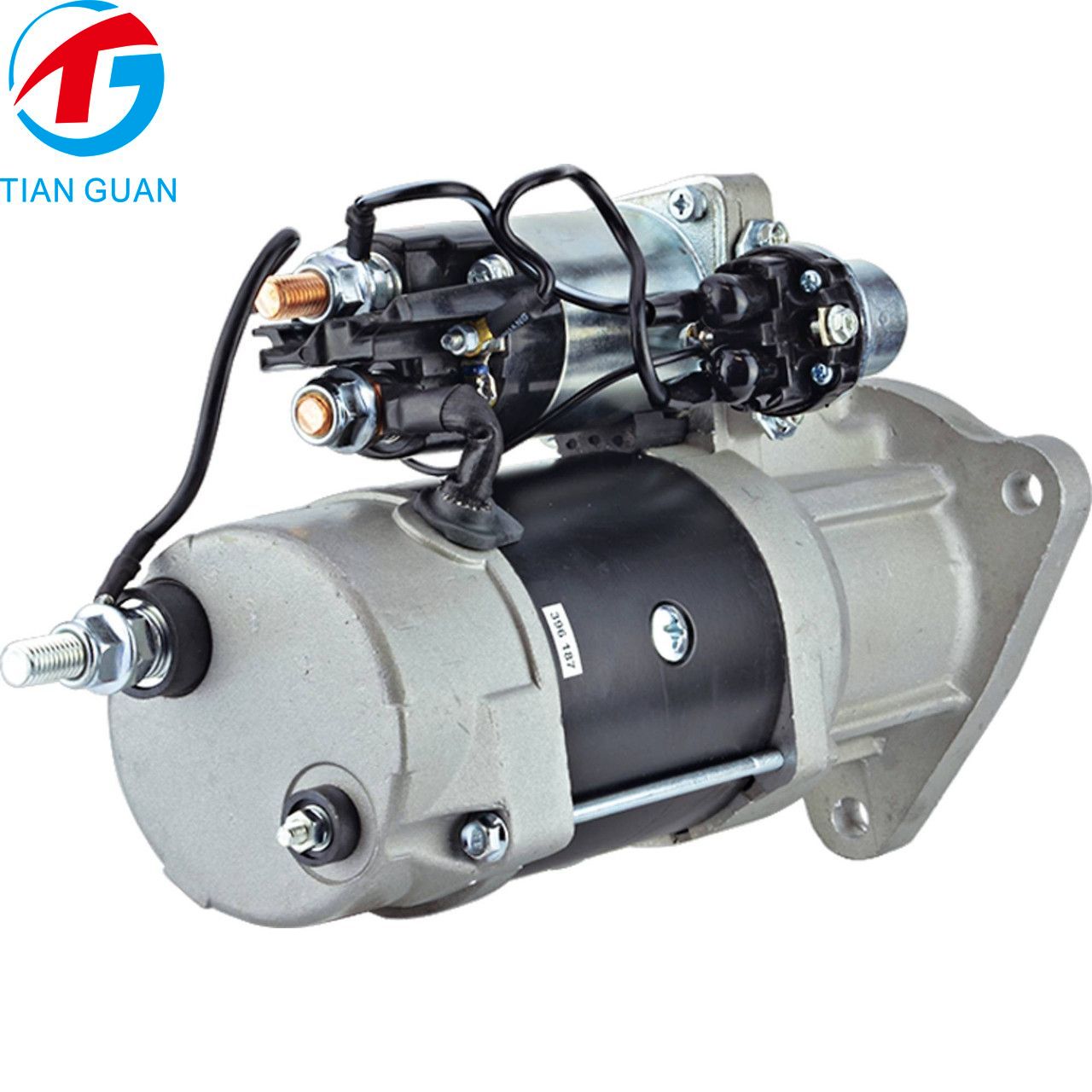

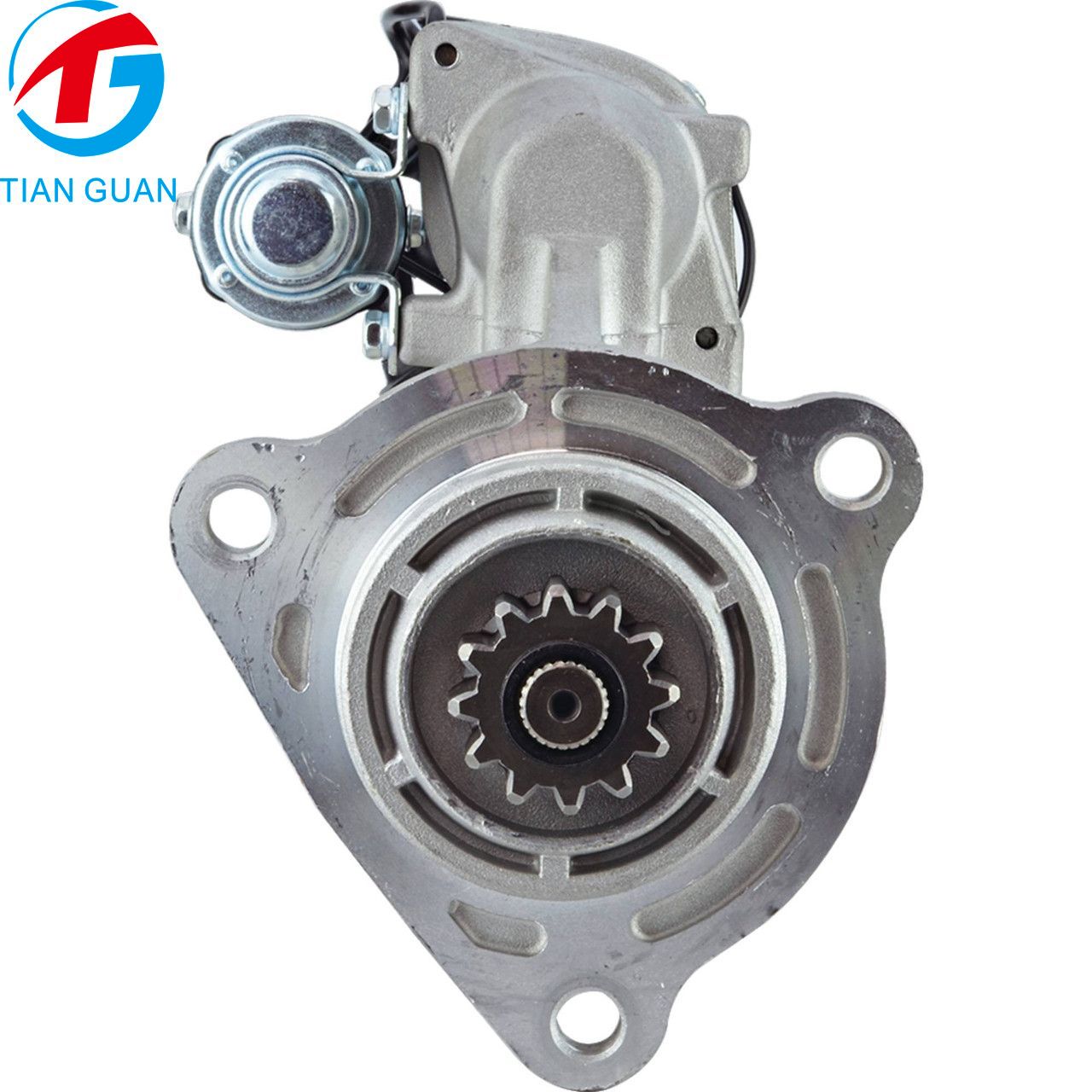

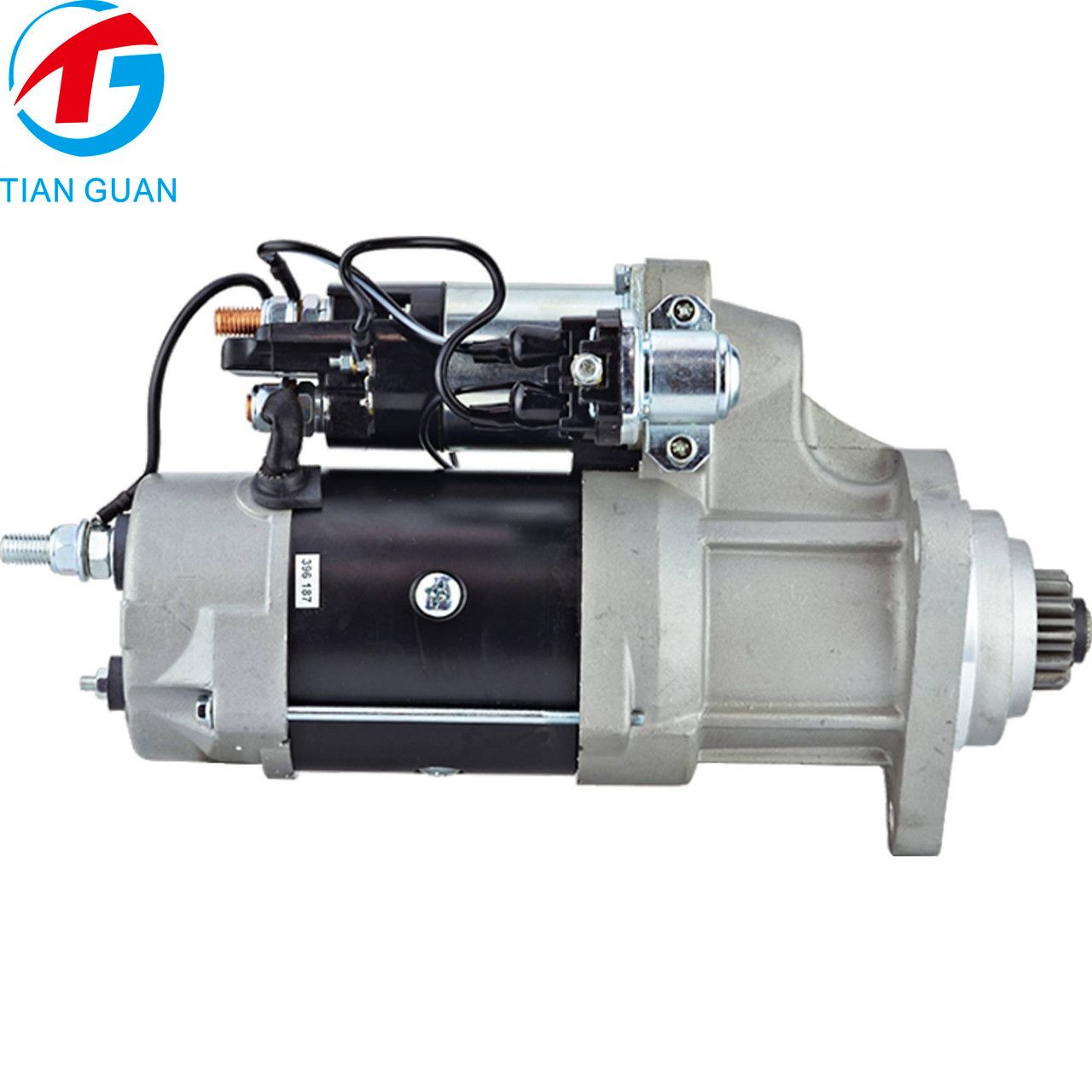

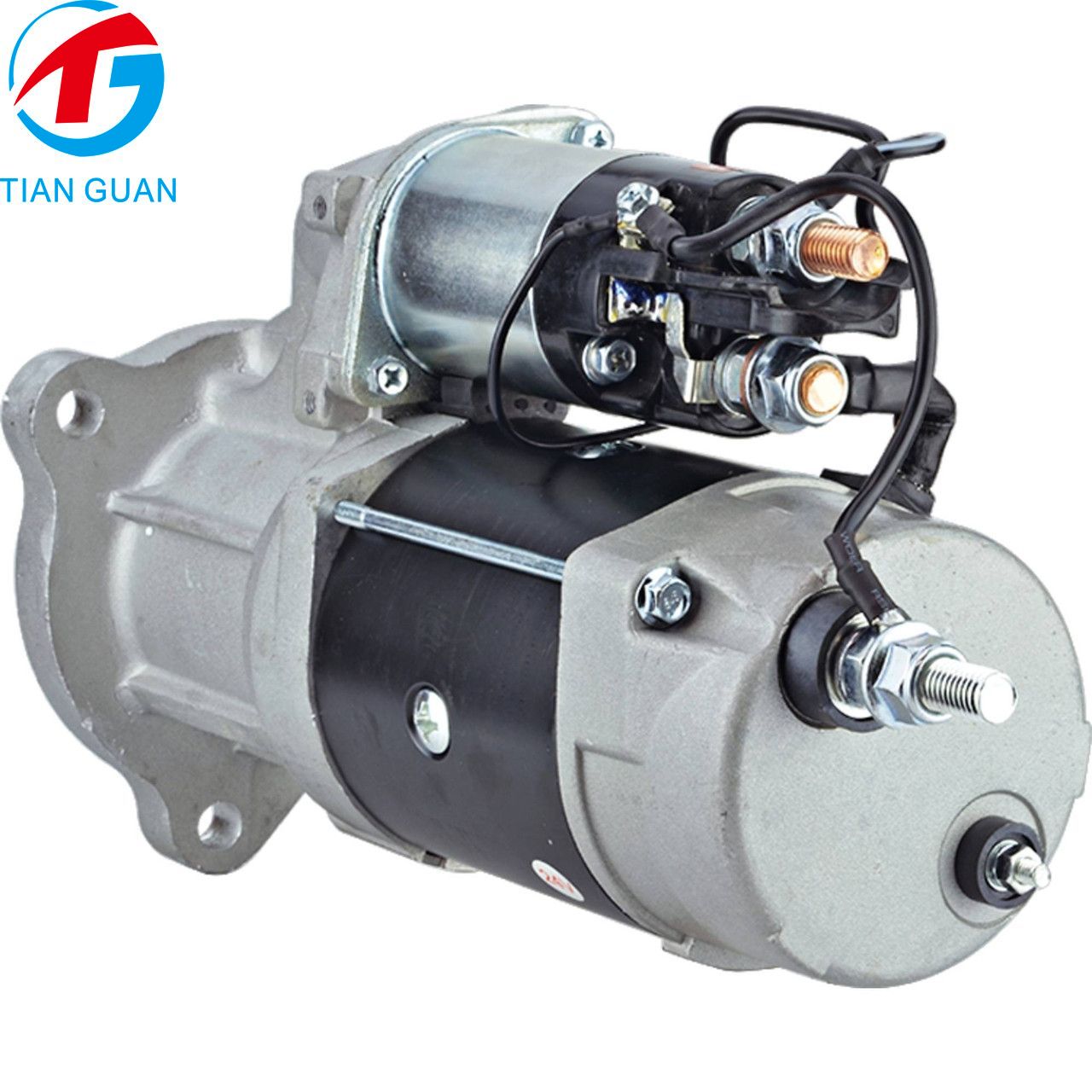

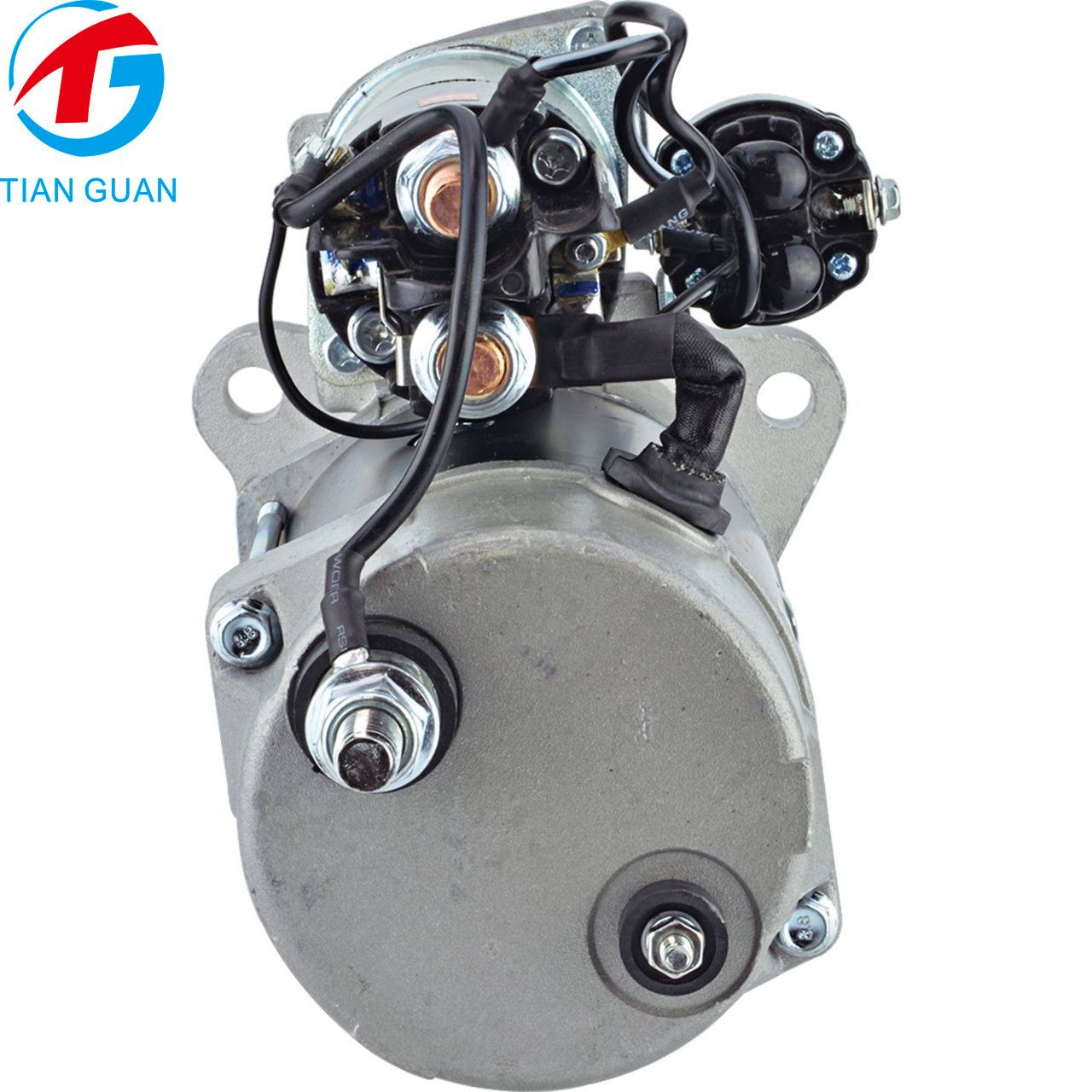

STG51028 Starter 410-12687 SDR0285 D19011524 D8200435 D8300014 10461758 19011511 19011524 8200029 8200043 8300014 for Cummins ISC 8.3L Engine – Delco 39MT

Part Numbers

ARROWHEAD: SDR0285, 410-12687, D19011524, D8200435, D8300014
CUMMINS: 3102767
DELCO: 10461758, 19011511, 19011524, 8200029, 8200043, 8300014
J & N: 410-12242, 410-12687
LESTER: 6803, 6813
NSA: STR-4393

Product Description

This premium aftermarket 24V 9.0KW Starter Motor is designed as a direct replacement for Cummins ISC 8.3L engine applications. Built on the Delco 39MT family with Planetary Gear Reduction (PLGR) design, 12-tooth pinion gear, and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding commercial and industrial applications.

This starter replaces OE part numbers SDR0285, 410-12687, D19011524, D8200435, D8300014 (Arrowhead), 3102767 (Cummins), 10461758, 19011511, 19011524, 8200029, 8200043, 8300014 (Delco), 410-12242, 410-12687 (J & N), 6803, 6813 (Lester), and STR-4393 (NSA).

• 24V starter motor

• 9.0KW power output

• 12-tooth pinion gear

• Delco 39MT family

• Planetary Gear Reduction (PLGR)

• Clockwise (CW) rotation

• Gear OD: 1.732in / 44mm

• Solenoid position: 308 degrees

• Mounting ear holes: 13.0mm unthreaded

• w/ Semi-Solid Link Solenoid

• w/ IMS

• Soft Start

• Direct replacement for Cummins ISC 8.3L engines

• Aftermarket replacement part

• Approx. 14.5 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Starter
Voltage: 24V
Rotation: CW
Teeth: 12T
KW: 9.0
Dimension: Replacement 39MT Unit; Gear OD: 1.732in / 44mm; Solenoid Position: 308 Degrees; Mtg. Ear Holes: 13.0mm Unthreaded; Note: w/ Semi-Solid Link Solenoid; Note: w/ IMS; Note: Soft Start
Starter Type: PLGR
Fits: Cummins ISC 8.3L Engines
Weight: 14.5KG

Fitment

Cummins – ISC 8.3L Engines
