STG51048 Starter Motor 1113995 1113997 1113999 1114715 1114727 1114728 1114730 1114737 SDR0017 for Cummins 855 LV Series Industrial Engines 1983-1990
Part Numbers
ARROWHEAD: 410-12056, 410-12056R, 410-12388, SDR0017, MS77
CARGO: 111000
CASE: 307822R92, 313979R92, 317941R92, 439677R91, 627589C91, 690400C91, 755496C91, 989969R91
CATERPILLAR: 0R5209, 3T2646, 3T2649, 3T2650, 3T3152, 3T3153, 4N8118, 4N957, 5L2537, 5L2637, 5L537, 5L637, 6N3122, 7L8797, 7T0794, 7T0800, 7T0801, 7T0806, 8C3644, 8C3649, 8H1813, 9G5584, 9G5585, 9G8854, 9L6691, 9N0435, 9N0453
CUMMINS: 135162, 3021036, 3603862RX, 706620
DELCO: 10451047, 10461047, 10461179, 1109702, 1109704, 1109705, 1109723, 1109745, 1109762, 1109765, 1113726, 1113738, 1113792, 1113809, 1113813, 1113820, 1113824, 1113825, 1113831, 1113842, 1113844, 1113845, 1113846, 1113847, 1113849, 1113850, 1113851, 1113855, 1113858, 1113860, 1113862, 1113866, 1113868, 1113872, 1113876, 1113883, 1113887, 1113892, 1113893, 1113894, 1113895, 1113898, 1113900, 1113902, 1113903, 1113905, 1113906, 1113914, 1113915, 1113916, 1113920, 1113926, 1113935, 1113944, 1113952, 1113955, 1113956, 1113957, 1113958, 1113965, 1113968, 1113970, 1113971, 1113972, 1113973, 1113975, 1113976, 1113977, 1113978, 1113980, 1113981, 1113983, 1113991, 1113994, 1113995, 1113997, 1113999, 1114715, 1114727, 1114728, 1114730, 1114737, 1114738, 1114755, 1114756, 1114762, 1114776, 1114781, 1114784, 1114842, 1114844, 1114846, 1114848, 1114849, 1114850, 1114851, 1114852, 1114853, 1114854, 1114855, 1114873, 1114874, 1114875, 1114878, 1114879, 1114880, 1114903, 1114915, 1114916, 1114923, 1114935, 1114947, 1114950, 1114951, 1114963, 1114964, 1114970, 1114979, 1114981, 1114987, 1990202, 1993700
DETROIT DIESEL: R0461179
FIAT ALLIS: 70620382, 70622235, 73061273, 73069398, 73116947, 73117237, 73130194, 73130195, 73130625
FORD: C4TF-11000-A, C4TZ-11002-A
INTL HARVESTER: 307822R92, 313979R92, 317941R92, 439677R91, 627589C91, 690400C91, 755496C91, 989969R91
J & N: 410-12049, 410-12056, 410-12056R, 410-12388, 410-12049R, 410-12051R
LESTER: 3745
LESTER (OLD): 3335, 3340, 3341, 3371, 3372, 3706, 3746, 3749, 3751, 3752, 4908, 4975, 6533
LETRIKA (ISKRA) AFTERMARKET: IS 1183
MACK: 8MJ176
MAHLE: MS77
NSA: STR-4302
NSA (OLD): STR-4322
QUICKSILVER: 8M6007276
REMY LIGHT DUTY: 61400
WHITE: V1114243
Product Description
Item Condition: Aftermarket Part
Unit Type: Starter
Voltage: 24V
Rotation: CW
Teeth: 11
Replacement Unit: 42MT
Gear OD: 2.201 in / 55.9 mm
Solenoid Position: 82° Premium / 38° Standard
Mounting Ear Holes: 16.8 mm Unthreaded
Starter Type: DD
Mounting: Left Hand Mount, 5/8" Mounting Holes
Application: Delco 40MT Starter
Weight: 26.8 KG

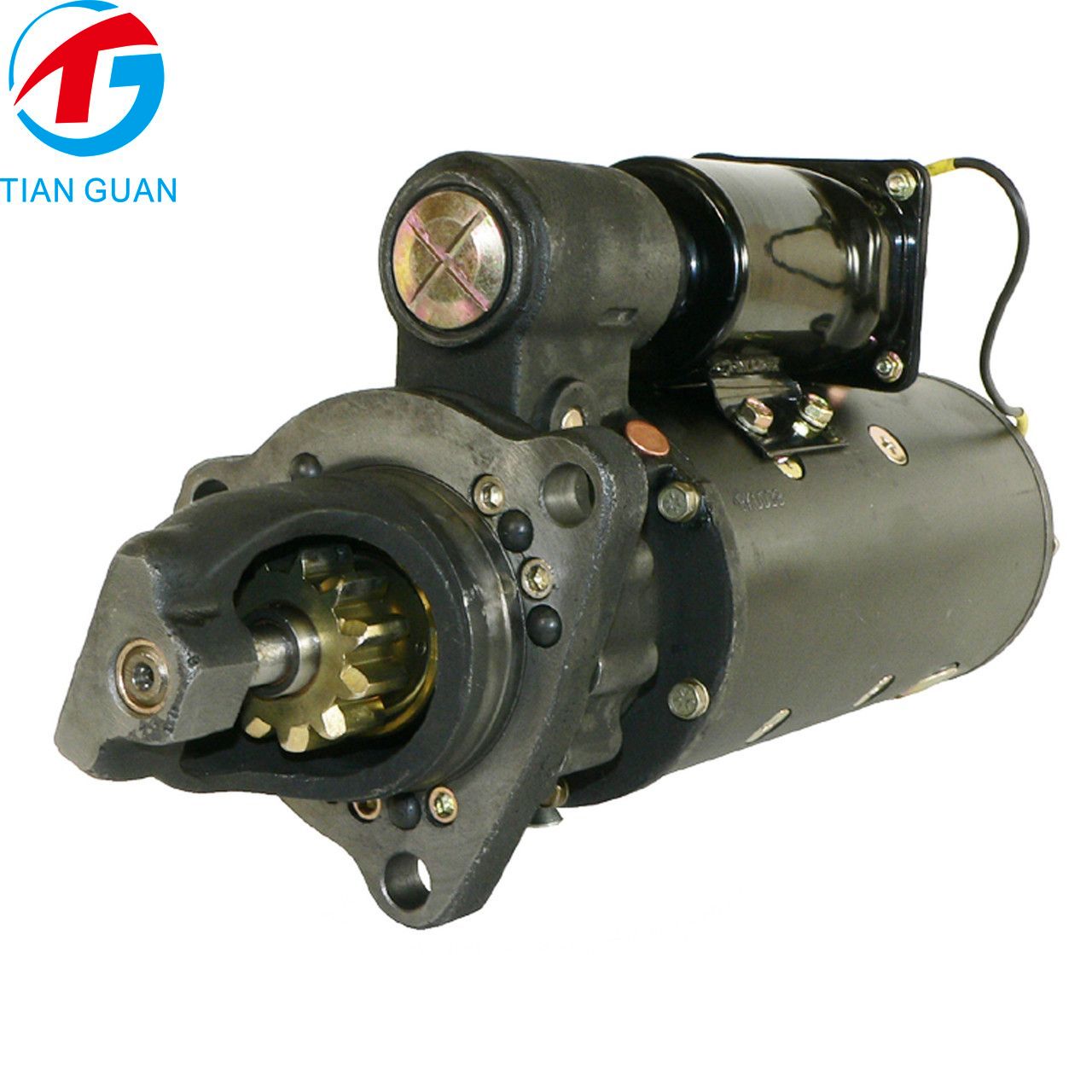

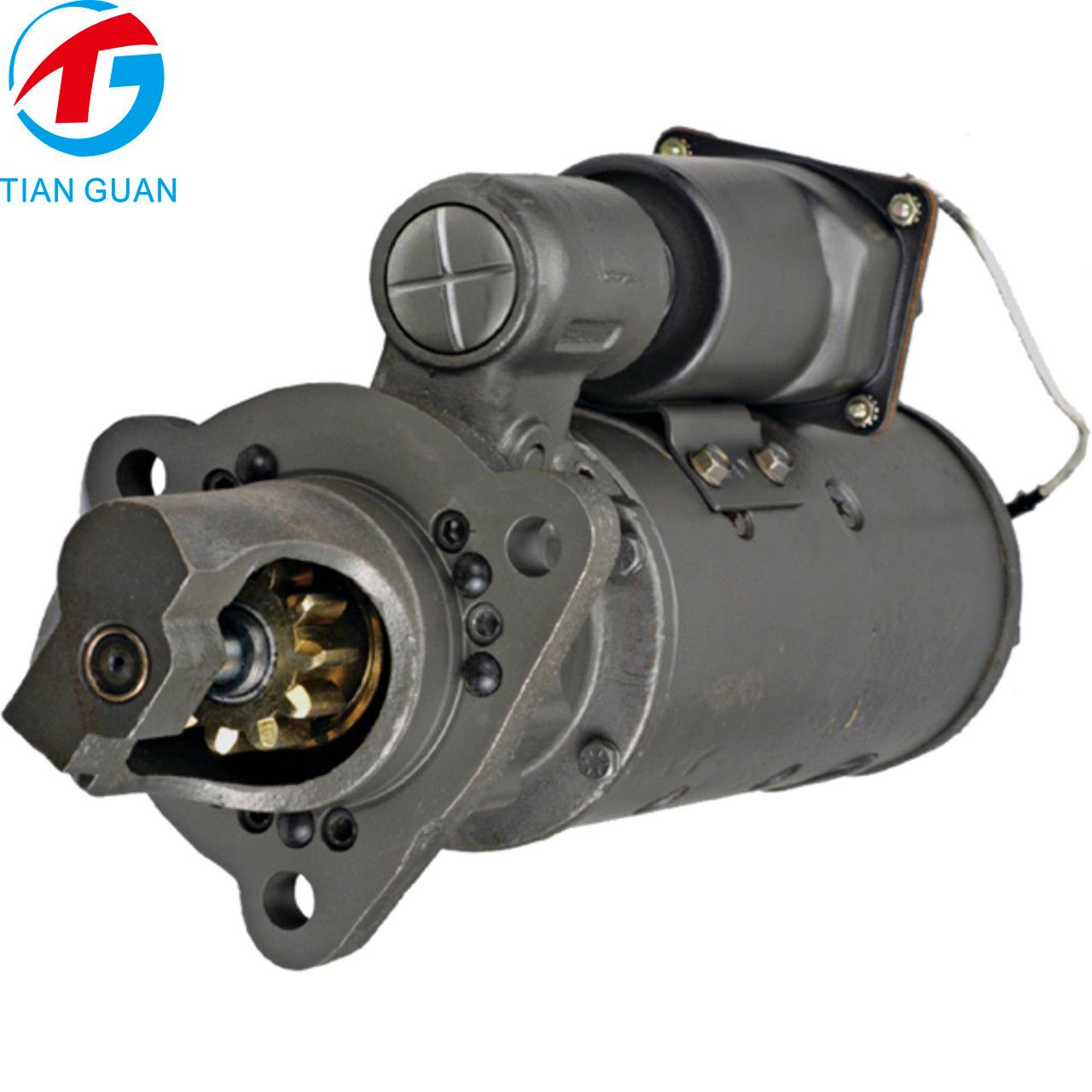

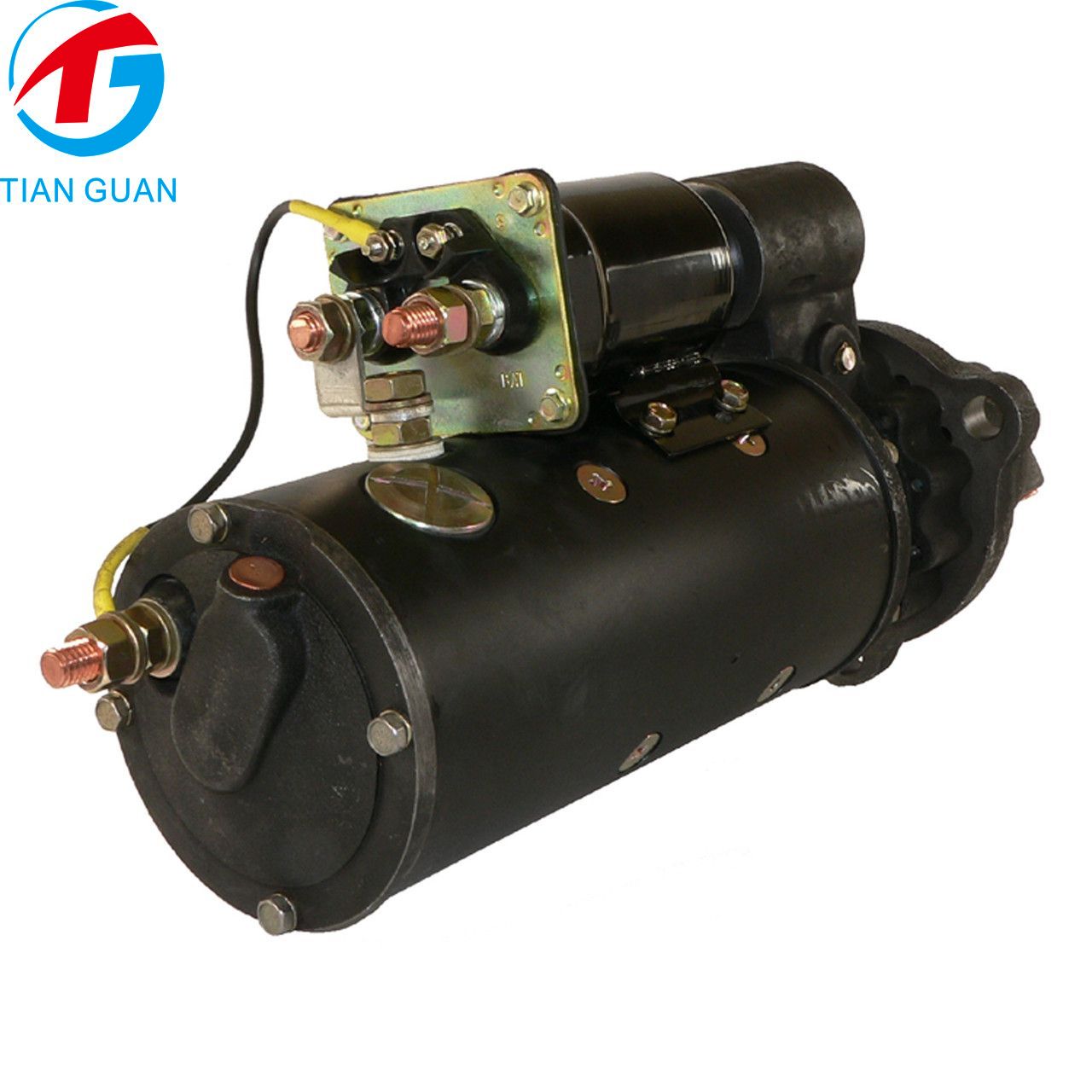

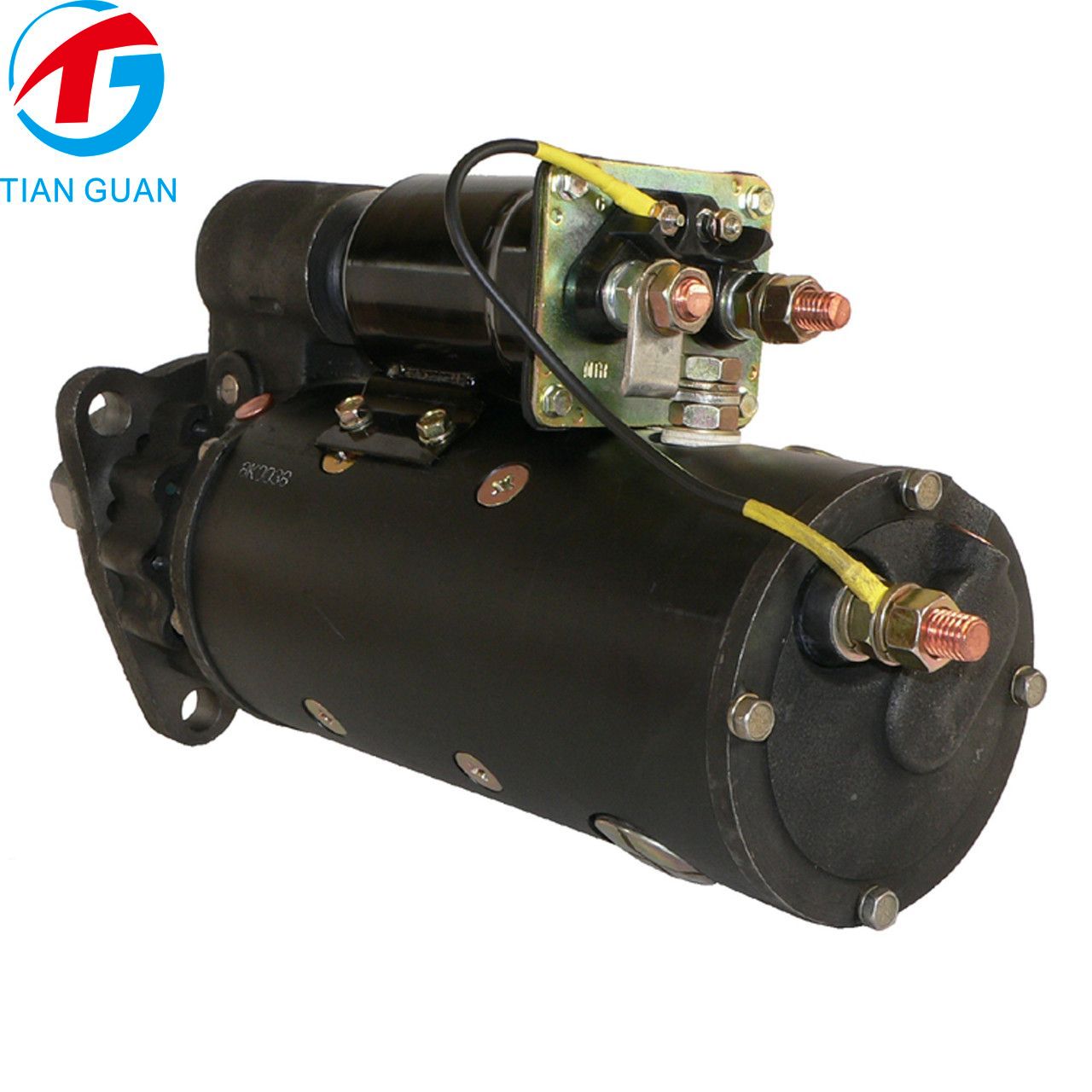

This 24V heavy-duty starter motor is designed as a replacement for Delco 40MT starter applications and is suitable for agricultural, industrial, marine and heavy-duty truck equipment. The 11-tooth pinion, clockwise rotation and heavy-duty 42MT replacement configuration provide reliable starting performance for demanding diesel applications.
The starter cross-references a wide range of Caterpillar, Cummins, Delco, Case, International Harvester, Fiat Allis, Ford, Mack, Lester, Arrowhead and other OEM and aftermarket part numbers.
Specifications
| Item | Specification |
|---|
| Product Type | Starter Motor |
| Condition | Aftermarket Part |
| Unit Type | Starter |
| Voltage | 24V |
| Rotation | CW |
| Teeth | 11 |
| Replacement Unit | 42MT |
| Gear OD | 2.201 in / 55.9 mm |
| Solenoid Position | 82° Premium / 38° Standard |
| Mounting Ear Holes | 16.8 mm Unthreaded |
| Starter Type | DD |
| Mounting | Left Hand Mount |
| Mounting Holes | 5/8" |
| Application | Delco 40MT Starter |
| Weight | 26.8 KG |
Fitment
Allis Chalmers HD-11 Crawler
1960–1970: HD-11, 11000 Diesel
1971–1972: HD-11DD, 11000 Diesel
1973: HD-11PD, 11000 Diesel
1971–1973: 11000 Diesel applications as specified
Key Features
| Feature | Description |
|---|
| Heavy-Duty Construction | Designed for demanding agricultural, industrial, marine and HD truck applications |
| 24V System | Compatible with specified 24V starting systems |
| 11-Tooth Pinion | Provides reliable flywheel engagement |
| CW Rotation | Clockwise rotation for specified applications |
| 42MT Replacement | Heavy-duty replacement configuration |
| Delco 40MT Compatible | Designed for Delco 40MT starter applications |
| Broad Cross-Reference | Covers extensive Caterpillar, Cummins, Delco, Case and other replacement numbers |
| Heavy-Duty Weight | 26.8 KG unit for demanding operating conditions |
