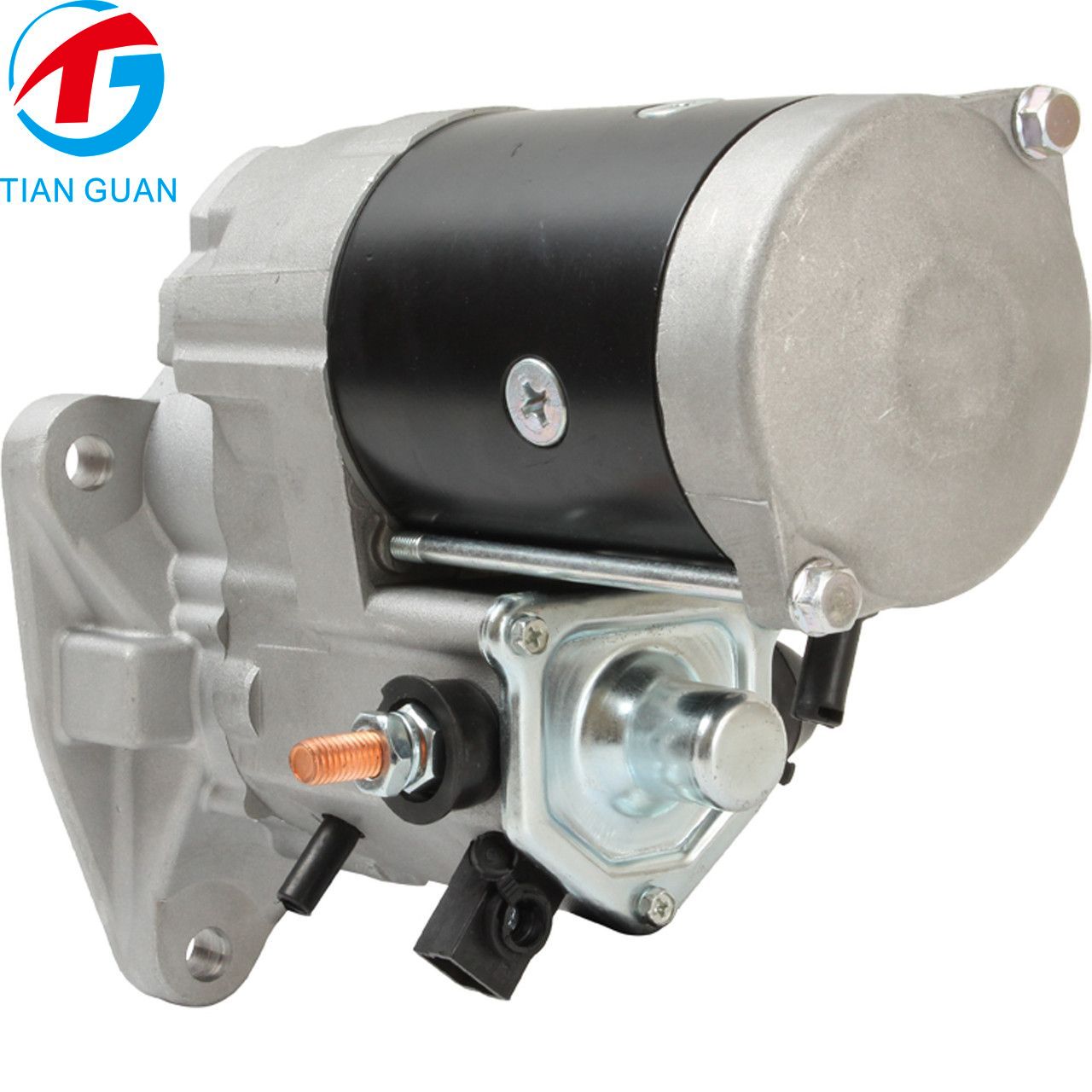

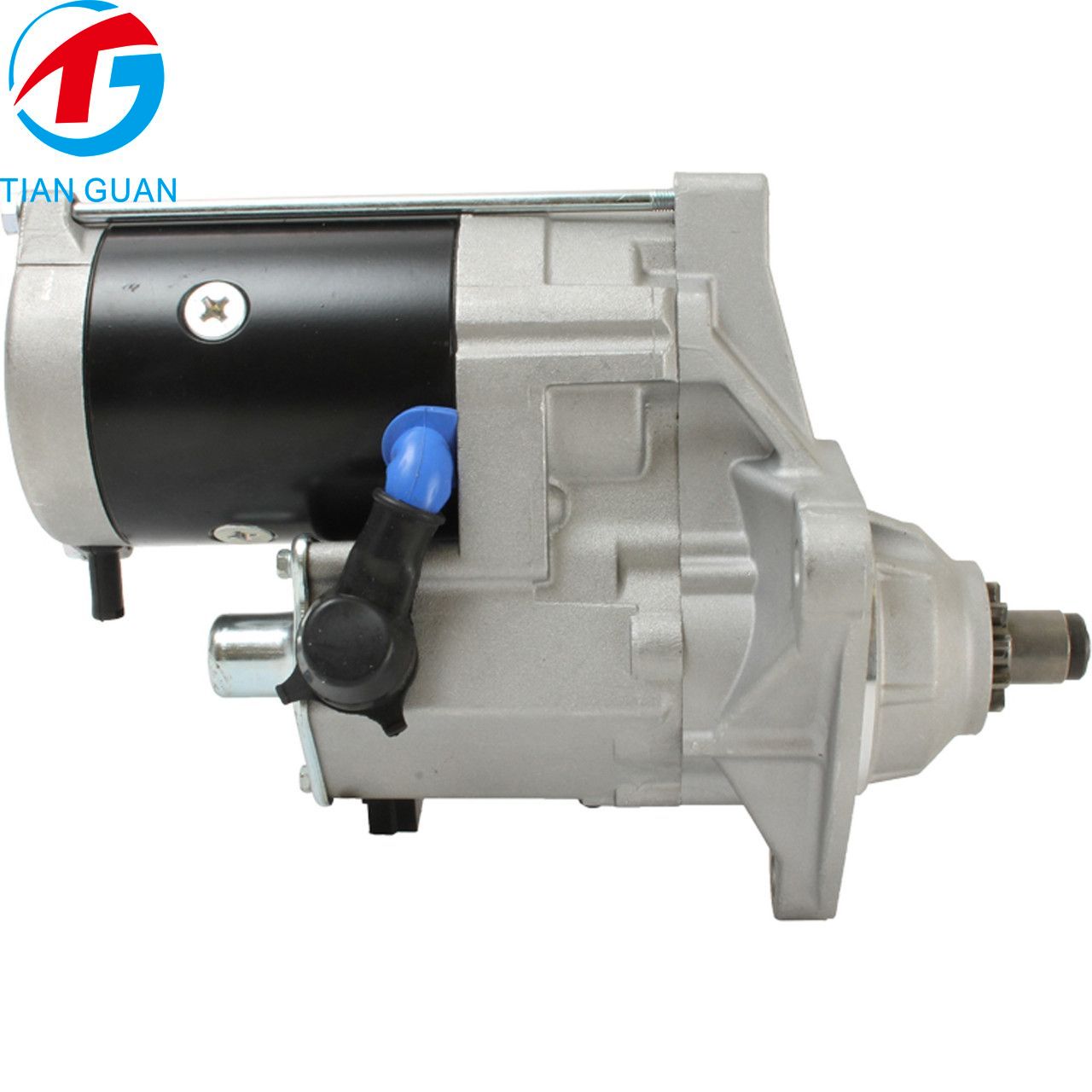

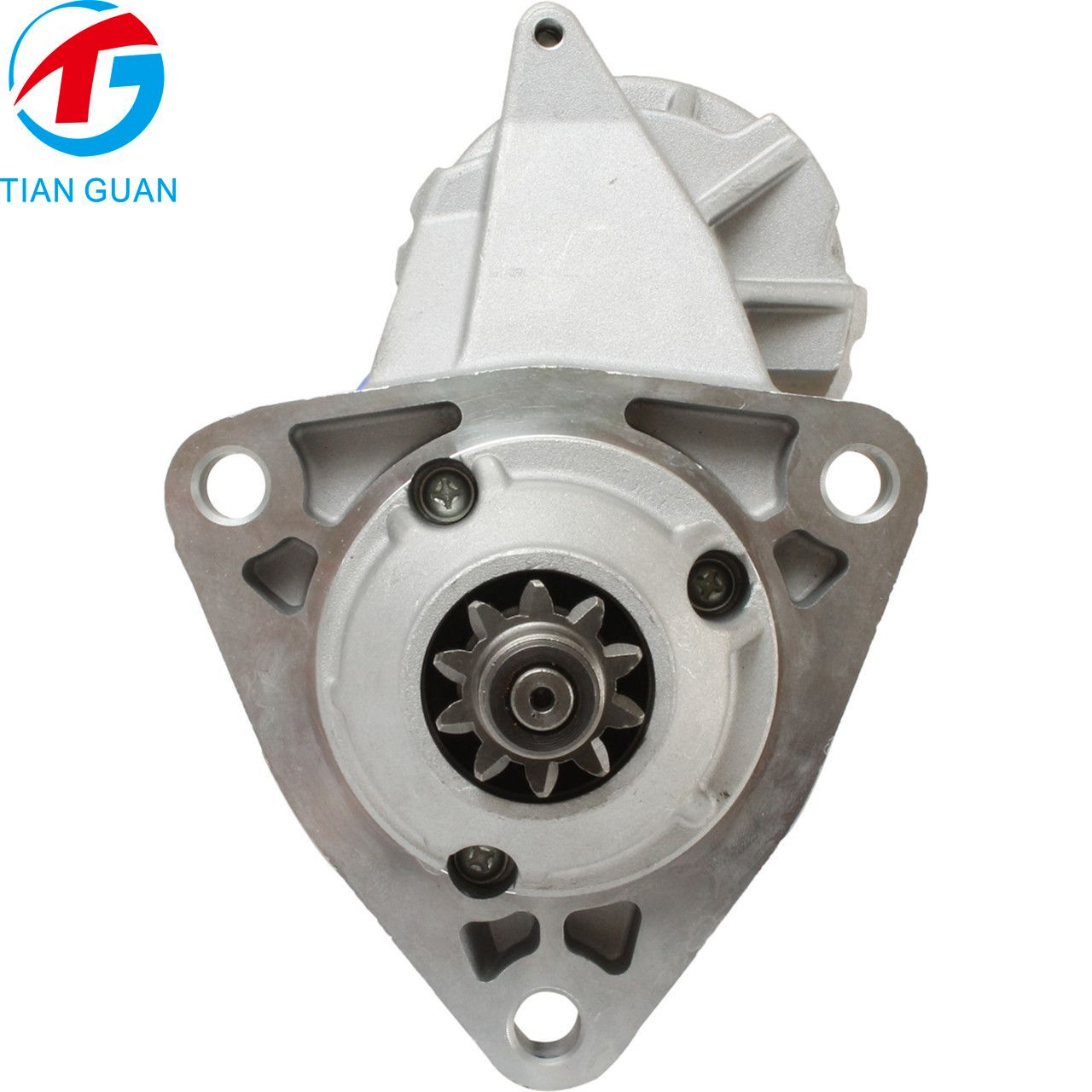

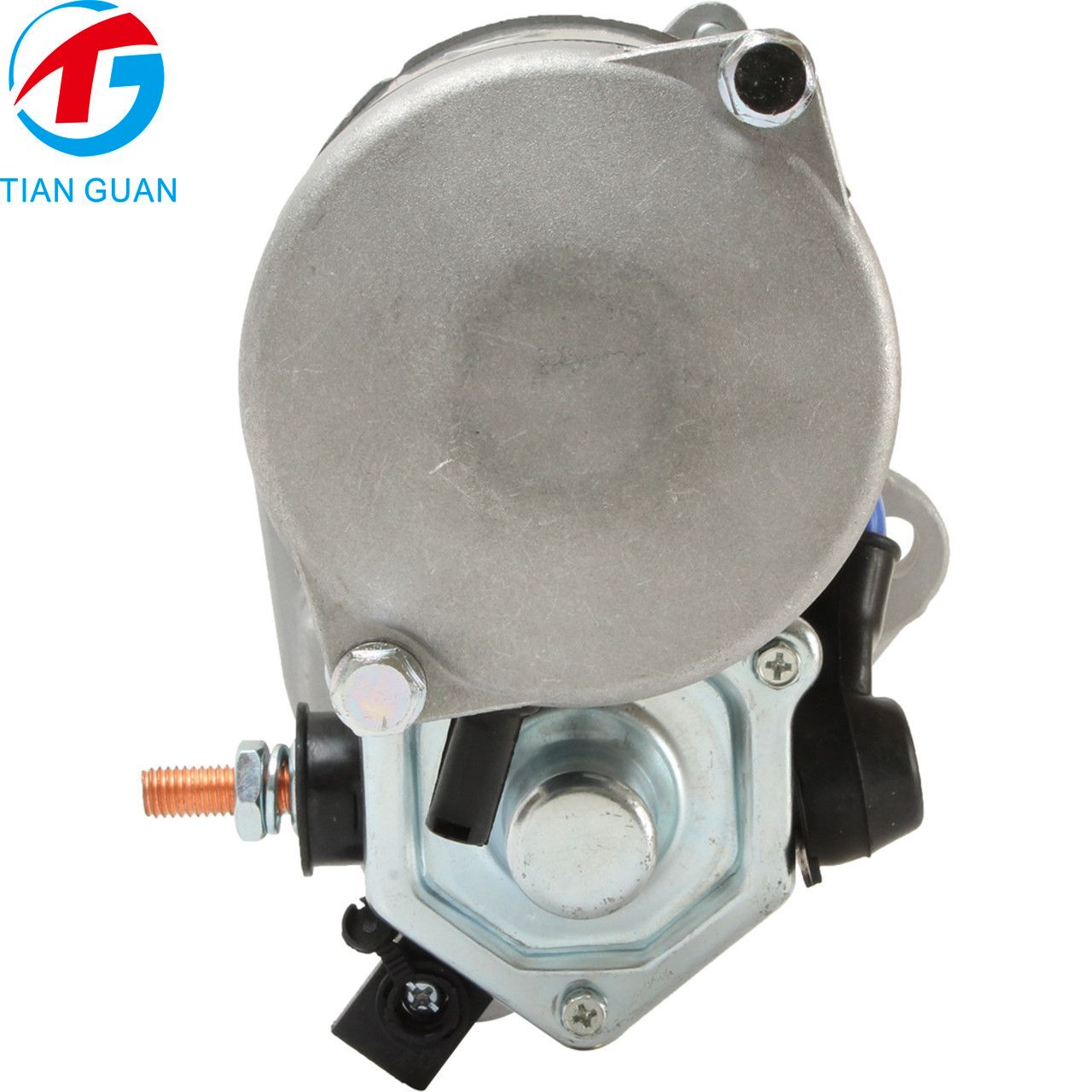

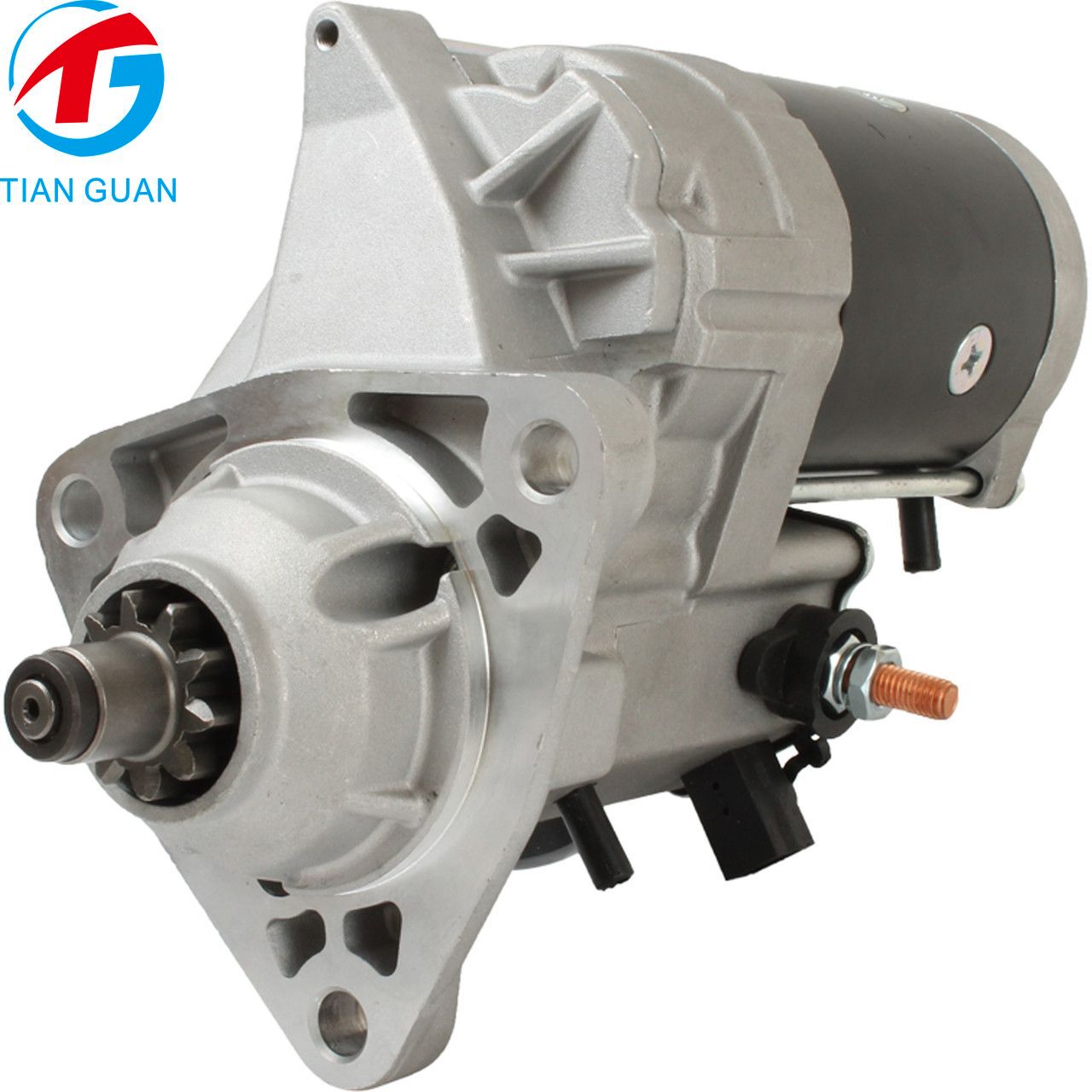

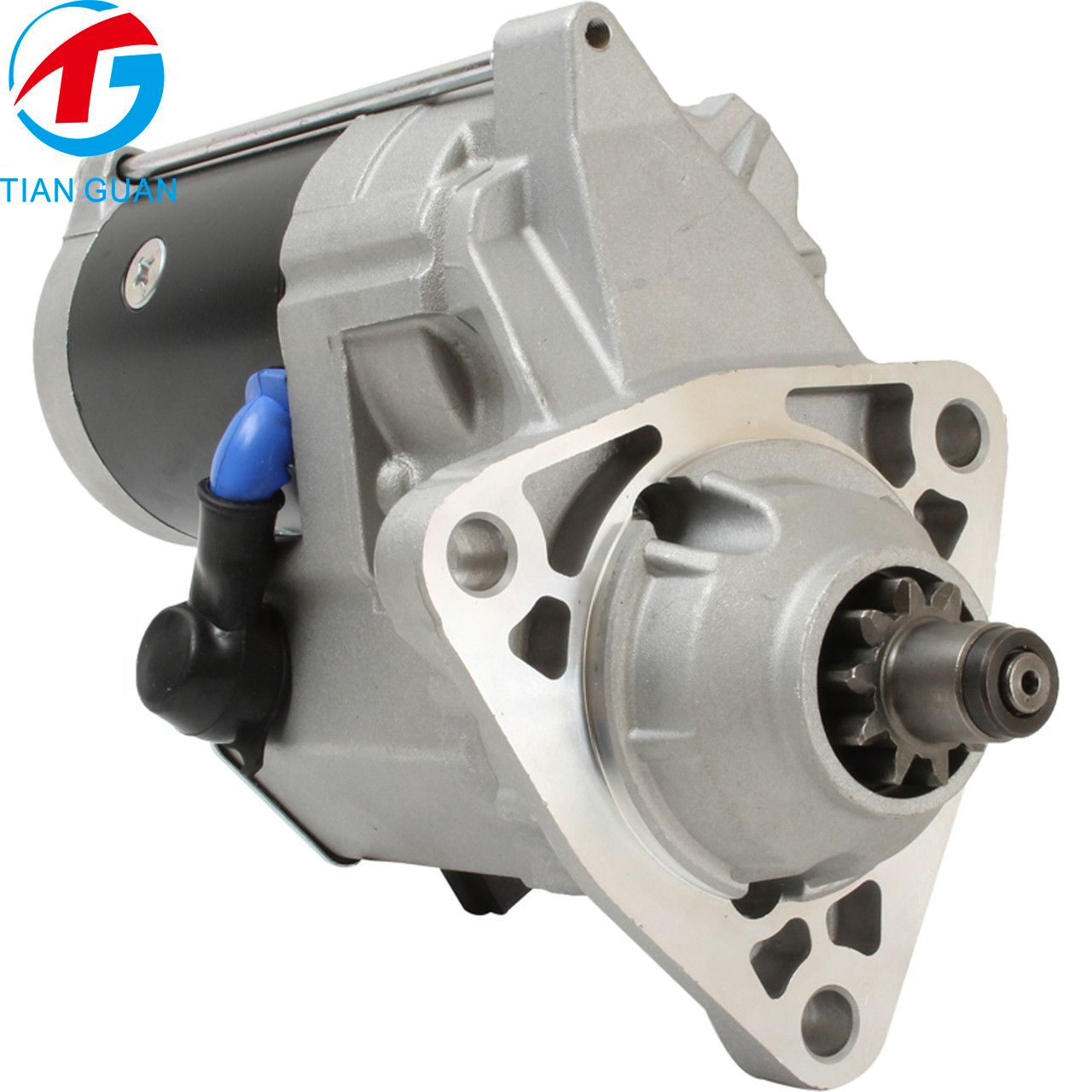

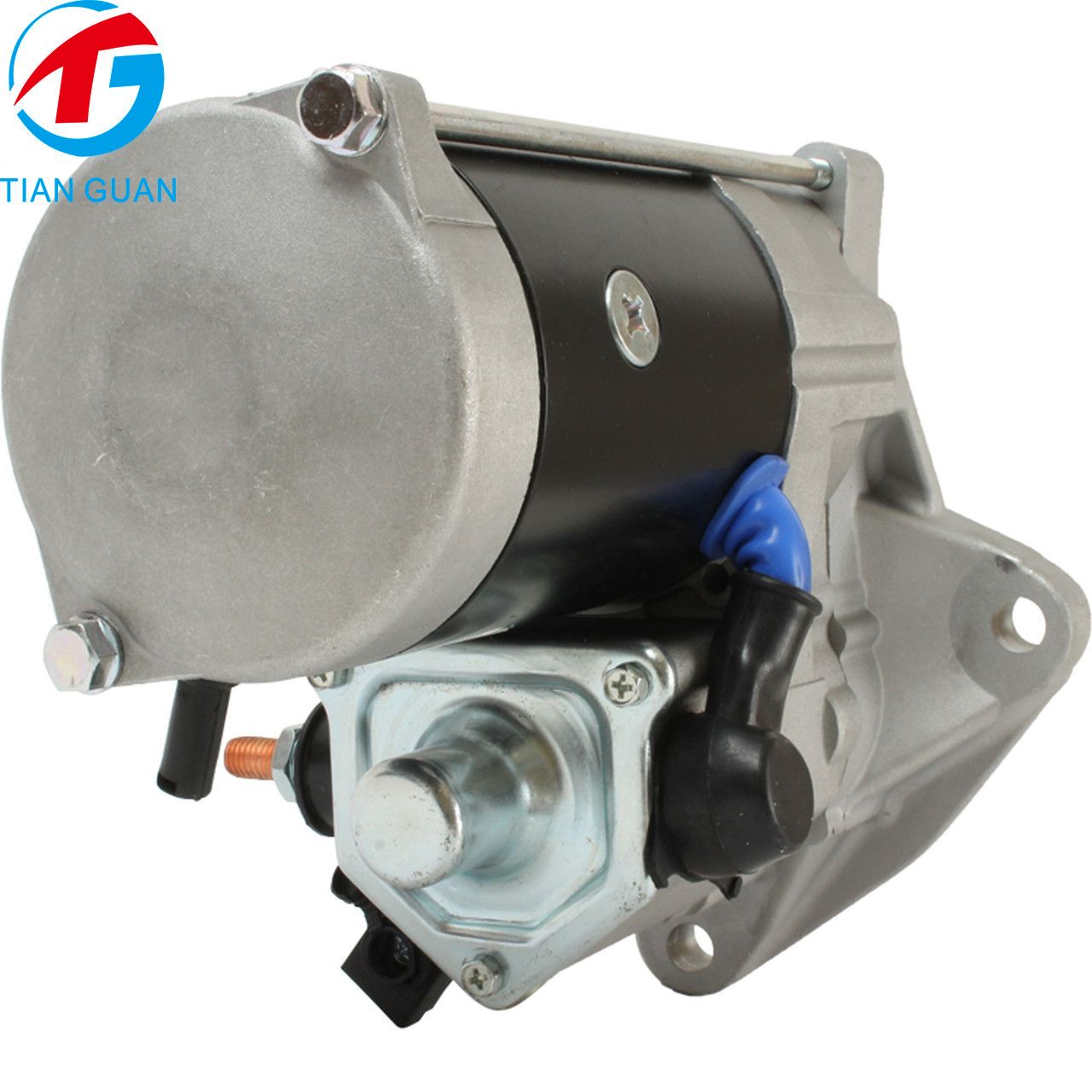

STG51240 Starter Motor 3283813 3675245RX 3957589 for Case IH New Holland Cummins Engines | 12V 4.0kW 10T CW OSGR Replacement

3 Reviews

Add Your Review

US$148.00

ITEMNO： STG51240

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG51240 Starter Motor 3283813 3675245RX 3957589 for Case IH New Holland Cummins Engines | 12V 4.0kW 10T CW OSGR Replacement

Part Numbers

Arrowhead: SND0741 / IS1077 / MS101 / ND228000-5622 / ND228000-6391 / ND228000-6511 / NDTG228000-6511

Cargo: 113429

Cummins: 3283813 / 3675245RX / 3957589

Denso: 228000-5620 / 228000-5621 / 228000-5622 / 228000-6390 / 228000-6391 / 228000-6510 / 228000-6511 / TG228000-6511

J&N: 410-52337

Lester: 18343

Letrika (Iskra) Aftermarket: IS 1077

Mahle: MS101

Reference Number: 90026236

WAI: 2-2666-ND

Product Description

The STG51240 Starter Motor is an aftermarket replacement starter designed for compatible Cummins-powered agricultural and industrial equipment. Featuring a 12V electrical system, 4.0kW output, a 10-tooth pinion, clockwise rotation, and an offset gear reduction (OSGR) design, this starter is listed for selected Case IH and New Holland equipment.

Applications include selected Case IH Axial-Flow combines, tractors, sprayers, and New Holland TG and TJ series tractors. It cross-references Cummins, Denso, Arrowhead, Lester, and other aftermarket part numbers.

Before ordering, verify the original starter part number, engine model, mounting configuration, and electrical connections to confirm compatibility.

Product Specifications

Property	Value
SKU / Model	STG51240
Product Type	Starter Motor
Item Condition	Aftermarket Part
System Voltage	12V
Output Power	4.0kW
Rotation	Clockwise (CW)
Number of Teeth	10T
Starter Type	Offset Gear Reduction (OSGR)
Compatible Equipment Brands	Case IH / New Holland
Compatible Engine Family	Selected Cummins and Case engines
Estimated Net Weight	8.7kg

OEM / Cross Reference Numbers

Brand / Category	Part Numbers
Arrowhead	SND0741 / IS1077 / MS101 / ND228000-5622 / ND228000-6391 / ND228000-6511 / NDTG228000-6511
Cargo	113429
Cummins	3283813 / 3675245RX / 3957589
Denso	228000-5620 / 228000-5621 / 228000-5622 / 228000-6390 / 228000-6391 / 228000-6510 / 228000-6511 / TG228000-6511
J&N	410-52337
Lester	18343
Letrika (Iskra) Aftermarket	IS 1077
Mahle	MS101
Reference Number	90026236
WAI	2-2666-ND

Compatible Applications

Case IH Combines and Harvesting Equipment

Model	Engine	Listed Years
2344	Cummins 5.9L	1998–2002
2366	Cummins 8.3L	1998–2004
2377	Not specified
2388	Cummins 8.3L	1998–2004
2555	Not specified
2577	Not specified
2588	Not specified
5088	Case 8.3L
6088	Case 8.3L
7088	Case 9.0L

Case IH Sprayers and Application Equipment

Model	Engine	Listed Years
420	6-505 Diesel
4420 Patriot	Cummins 8.3L
620	6-505 Diesel
625	6-550 Diesel
CPX420	Not specified	2005–2006
CPX610	Not specified	2005–2006
CPX620	Not specified	2005–2006
FLX3010	Case 8.3L	2004–2006
FLX3300B	Case engine	2000–2003
FLX3330B	Case engine	2000–2002
FLX3510	Case 9.0L	2004–2006
FLX4010	Case 8.3L	2004–2006
FLX4300	Case 8.3L	2003
FLX4510	Case 9.0L	2004–2006
SPX4260 Patriot	Not specified	1999–2001
SPX4260	Not specified	2001–2004
SPX4410	Not specified	2004–2006

Case IH Tractors

Model	Engine	Listed Years
9310	6-504 Diesel	1995–2000
9330	6-504 Diesel	1995–2000
MX180	6-505 Diesel
MX200	6-505 Diesel
MX220	6-505 Diesel
MX240	6-505 Diesel
MX255	6-505 Diesel	2002–2005
MX270	6-505 Diesel
MX285	6-505 Diesel	2002–2005
STX275	6-505 Diesel	2002–2005
STX325	6-540 Diesel	2002–2005

Case IH Titan Series

Model	Engine
Titan 3020	549 Diesel
Titan 3520	549 Diesel
Titan 4020	549 Diesel
Titan 4520	549 Diesel

New Holland Tractors

Model	Engine
TG210	New Holland 8.3L Diesel
TG230	New Holland 8.3L Diesel
TG255	New Holland 8.3L Diesel
TG285	New Holland 8.3L Diesel
TJ275	8.3L 6-cylinder, 275 HP Diesel
TJ325	8.9L 6-cylinder, 325 HP Diesel

PRODUCT HIGHLIGHTS

Product Highlights

High-Power Starting Performance	OSGR Gear Reduction Design	Agricultural Equipment Compatibility
12V, 4.0kW output for compatible diesel-powered equipment	10-tooth pinion with clockwise rotation and offset gear reduction	Listed for selected Case IH combines, sprayers, tractors, and New Holland TG/TJ tractors
