STG51243 Starter Motor 10479108 1993954 3908594 3675116RX for Cummins 6BT 5.9L | 24V 10T CW DD Replacement

3 Reviews

Add Your Review

US$236.00

ITEMNO： STG51243

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

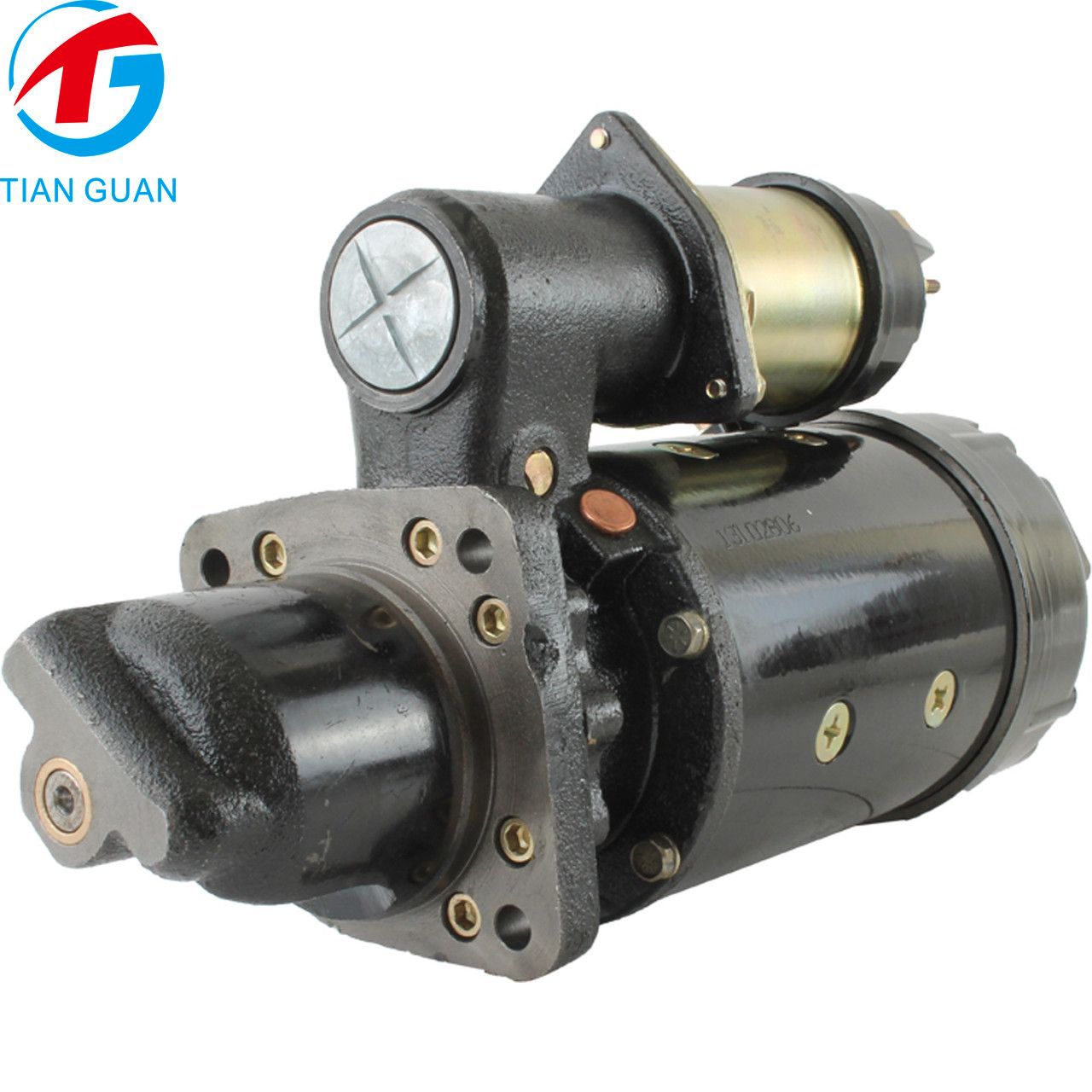

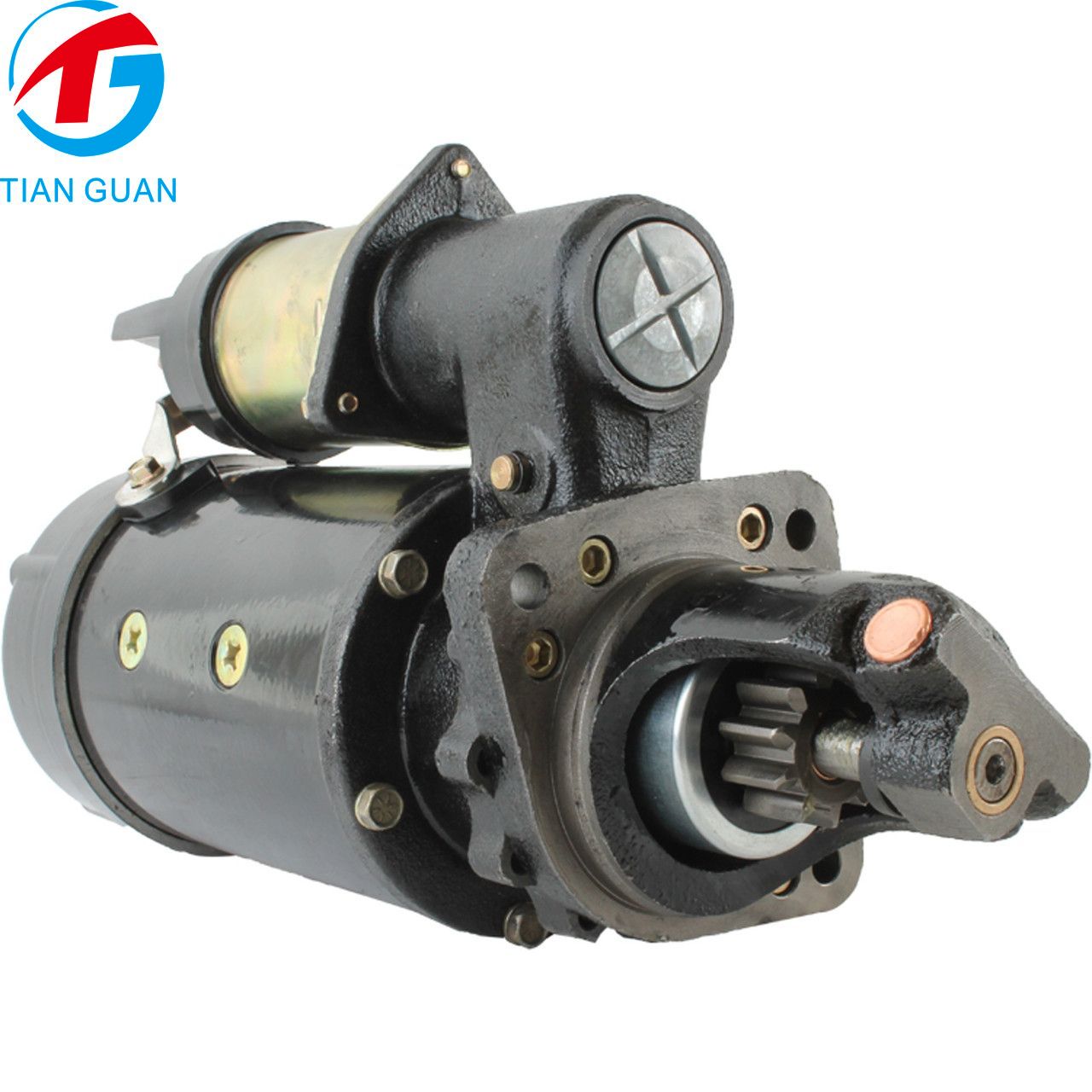

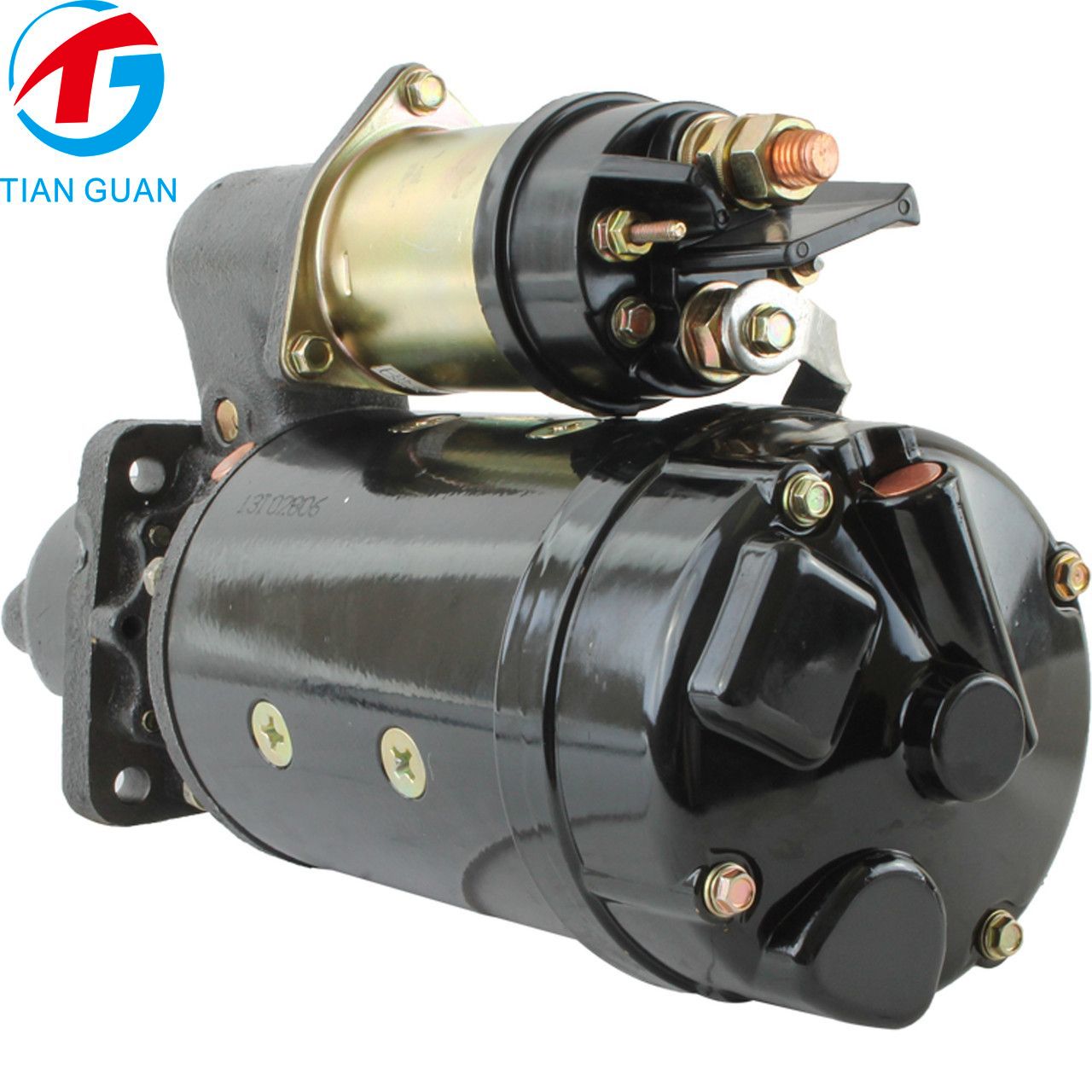

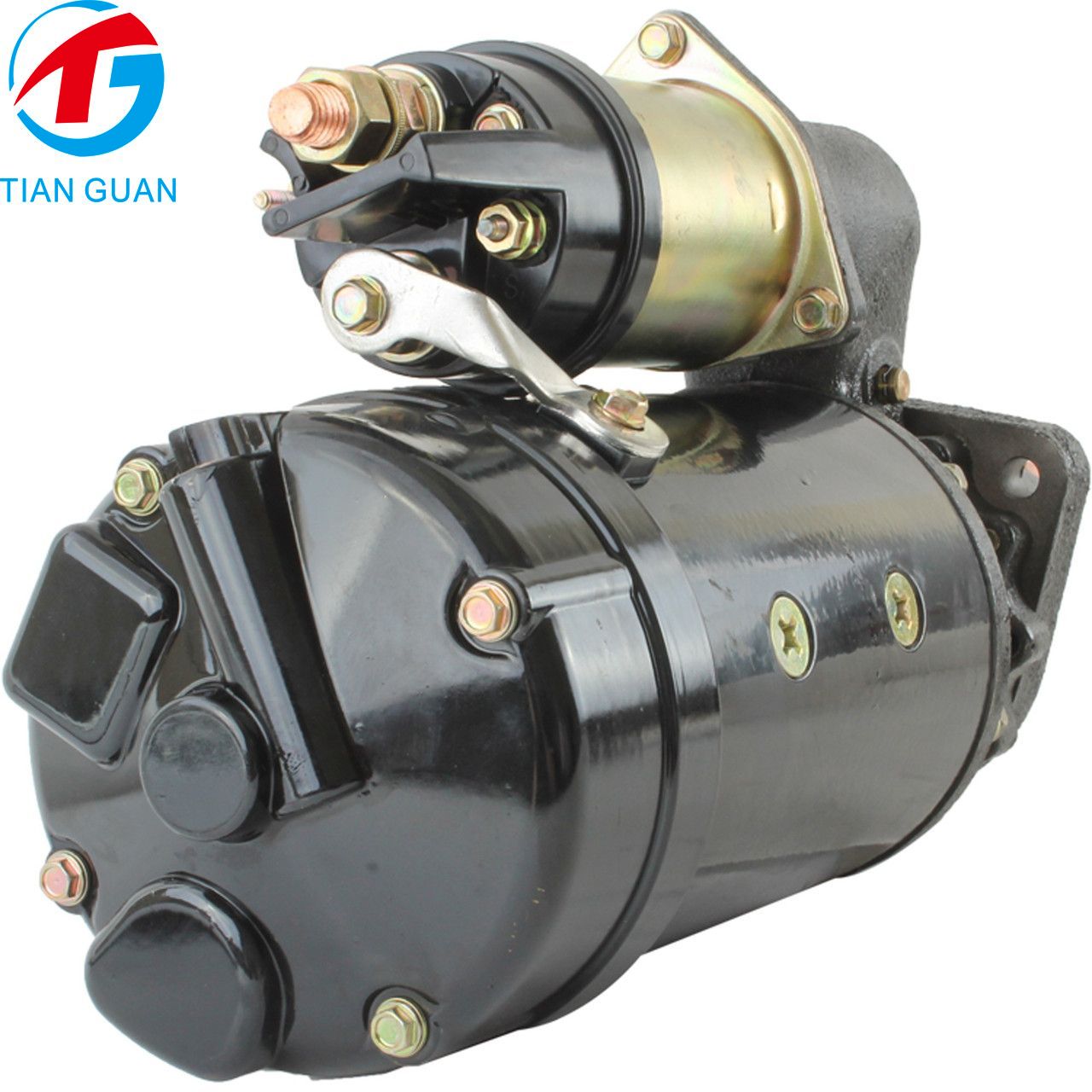

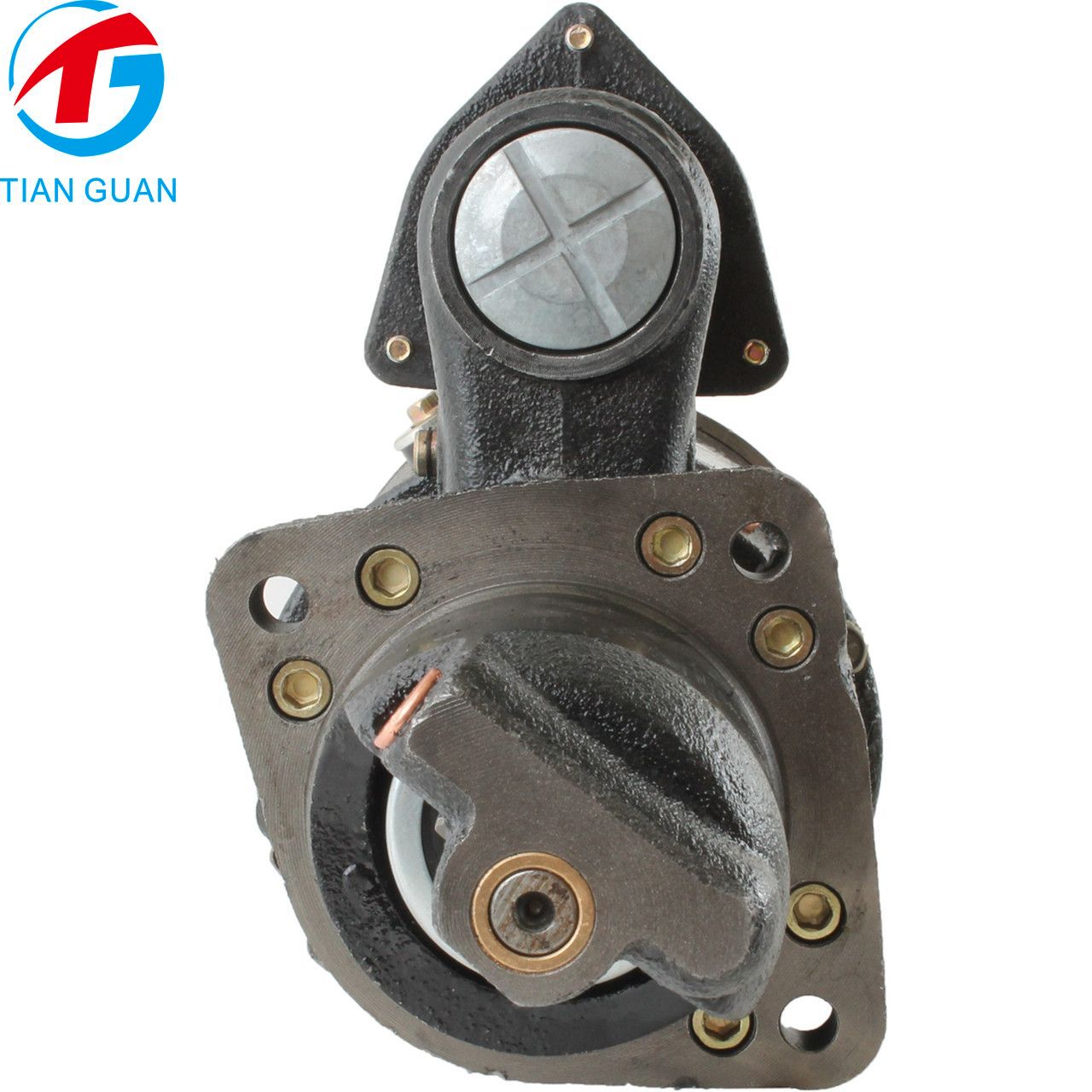

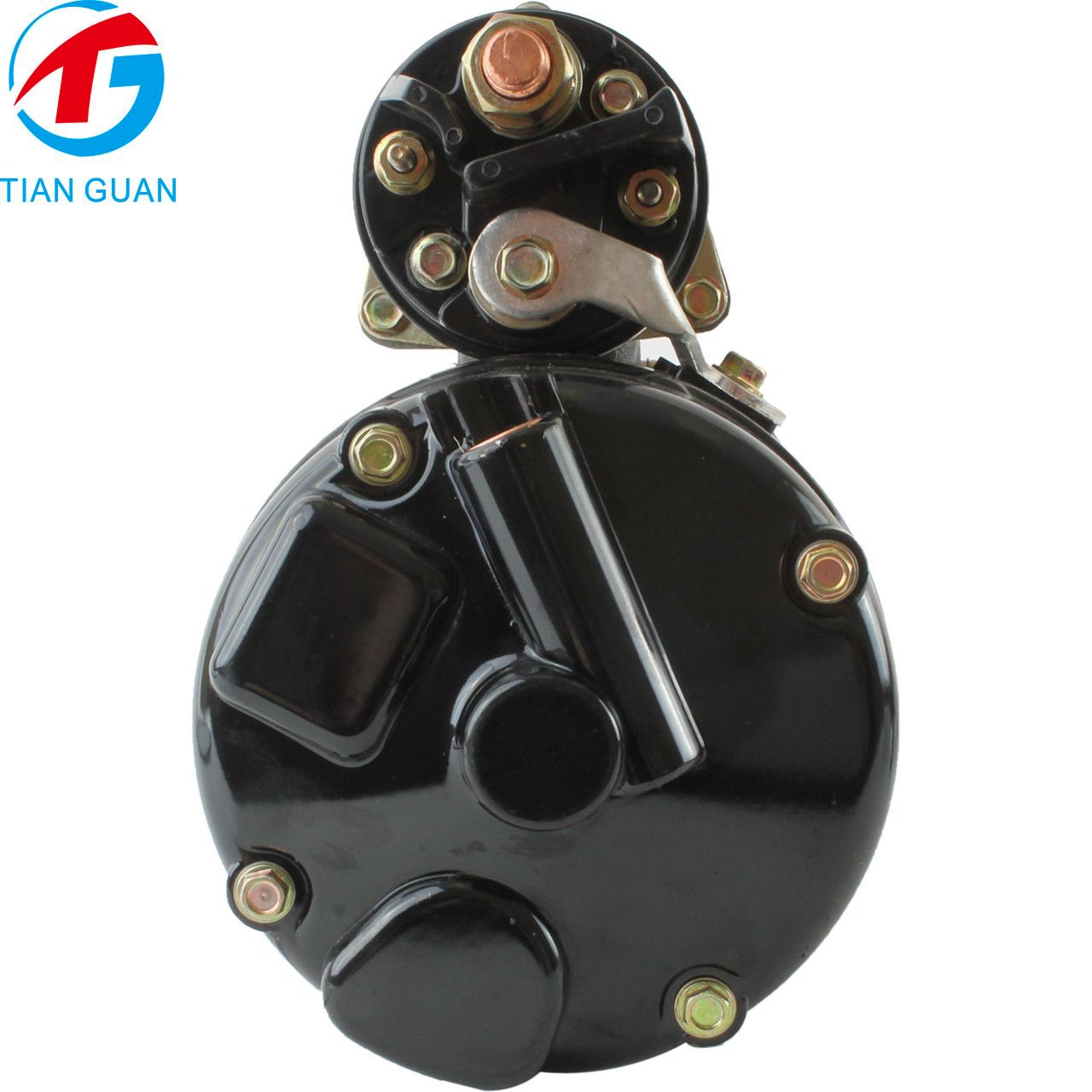

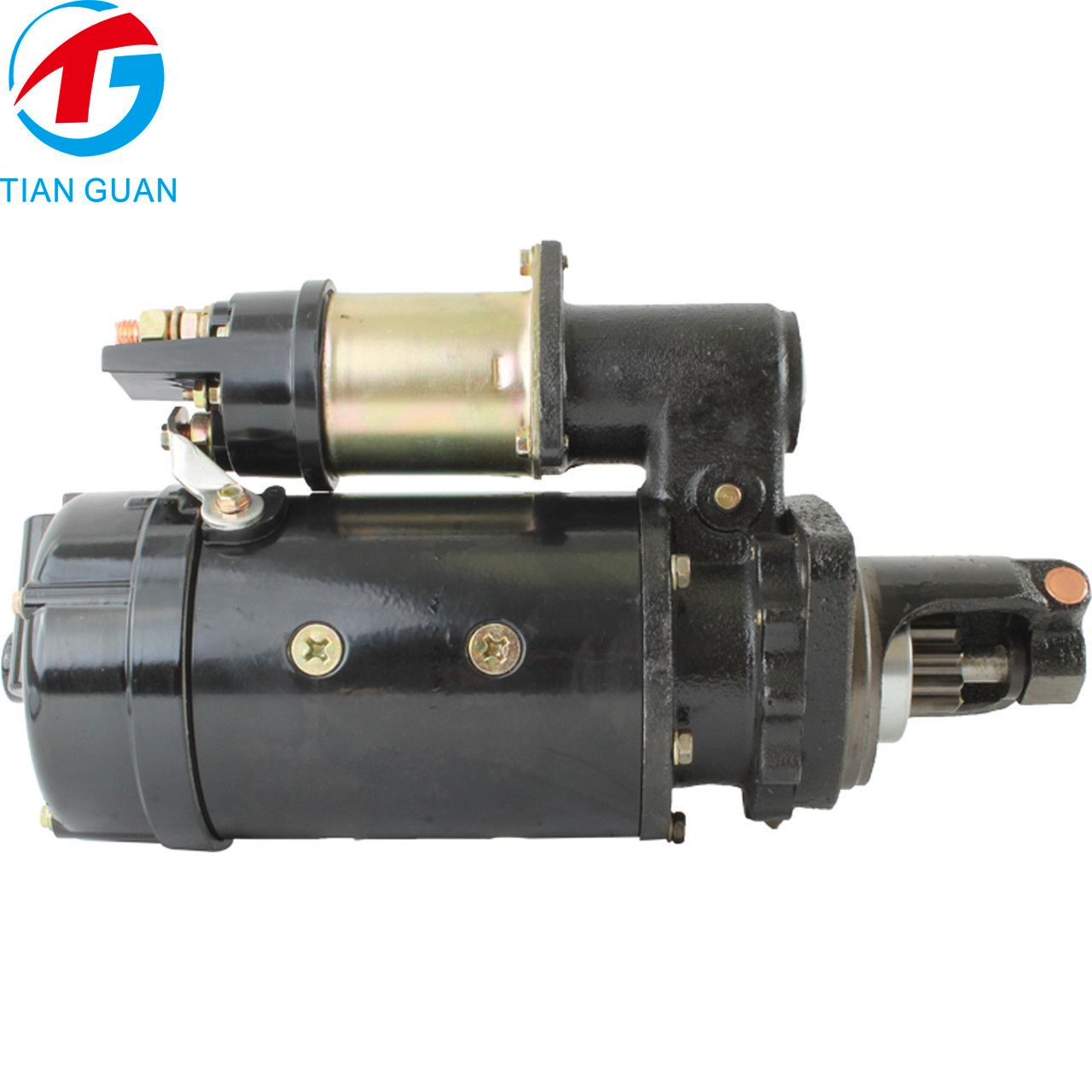

    STG51243 Starter Motor 10479108 1993954 3908594 3675116RX for Cummins 6BT 5.9L | 24V 10T CW DD Replacement

    Part Numbers

    Delco: 10461257 / 10479108 / 1990499 / 1993954

    Cummins: 3908594 / 3675116RX

    Product Description

    STG51243 Starter Motor is a new aftermarket replacement for Delco Remy 37MT 24V straight-drive starter applications, including Cummins industrial and construction equipment.

    Featuring a 24V, 10-tooth, clockwise-rotation DD (Direct Drive) design, this starter is engineered for reliable cranking performance on medium-duty diesel engines.

    The starter replaces Delco 10479108 and 1993954, Cummins 3908594 and 3675116RX, and Arrowhead SDR0131. Delco Remy officially identifies 10479108 and 1993954 as 37MT, 24V, 10-tooth, CW starters with SAE #1 mounting.

    Product Specifications

    PropertyValue
    Product ModelSTG51243
    Part Number10479108 / 1993954 / 3908594
    Unit TypeStarter
    Starter FamilyDelco Remy 37MT
    Voltage24V
    Power OutputTo Be Confirmed
    Number of Teeth10T
    Starter TypeDD
    RotationCW
    Pinion Pitch8/10
    Gear Outside Diameter39.4mm / 1.551in
    Mounting TypeSAE #1
    Mounting Holes3
    Mounting Hole Size10.7mm ID Unthreaded
    Solenoid Position322°
    Engine TypeCummins Diesel
    Compatible EnginesCummins 6BT 5.9L / 6T-590 / 6-590
    ApplicationHeavy-Duty Diesel Starter
    ConditionNew Aftermarket
    Weight22.7 kg Estimated


    OEM / Cross Reference Table

    Brand / CategoryPart Number
    DELCO10461257 / 10479108 / 1990499 / 1993954
    CUMMINS3908594 / 3675116RX
    ARROWHEADSDR0131 / IMI45009-001
    J & N410-12229 / 410-12229R
    LESTER6434 / 6459
    CARGO112169 / 112256
    CASEA169694
    BBB HD6458
    WAI2-2207-DR / 6269N-PT
    PIC141-353F

    Compatible Applications



    MAKETYPE MODEL YEAR ENGINE
    Case IHExcavator1085B19836T-590 Diesel
    Case IHExcavator1085B19846T-590 Diesel
    Case IHExcavator1085B19856T-590 Diesel
    Case IHExcavator1085B19866T-590 Diesel
    Case IHExcavator1085B19876T-590 Diesel
    Case IHExcavator1085B19886T-590 Diesel
    Case IHExcavator1085B19896T-590 Diesel
    Case IHExcavator1085B19906T-590 Diesel
    Case IHExcavator1086B19856T-590 Diesel
    Case IHExcavator1086B19866T-590 Diesel
    Case IHExcavator1086B19876T-590 Diesel
    Case IHExcavator1086B19886T-590 Diesel
    Case IHExcavator1086B19896T-590 Diesel
    Case IHExcavator1086B19906T-590 Diesel
    Case IHExcavator880D19846T-590 Diesel
    Case IHExcavator880D19856T-590 Diesel
    Case IHExcavator880D19866T-590 Diesel
    Case IHExcavator880D19876T-590 Diesel
    Case IHWheel LoaderW14B19856-590 Diesel
    Case IHWheel LoaderW14B19866-590 Diesel
    Case IHWheel LoaderW14B19876-590 Diesel
    Case IHWheel LoaderW14B19886-590 Diesel
    Case IHWheel LoaderW14B19896-590 Diesel
    Case IHWheel LoaderW14H1985CDC 6-590
    Case IHWheel LoaderW14H1986CDC 6-590
    Case IHWheel LoaderW14H1987CDC 6-590
    Case IHWheel LoaderW14H1988CDC 6-590
    Case IHWheel LoaderW14H1989CDC 6-590
    Case IHWheel LoaderW14H1990CDC 6-590
    DRESSERLoader510B1984Cummins 6BT - 5.9L
    DRESSERLoader510B1985Cummins 6BT - 5.9L
    DRESSERLoader510B1986Cummins 6BT - 5.9L
    DRESSERLoader510B1987Cummins 6BT - 5.9L
    DRESSERLoader510B1988Cummins 6BT - 5.9L
    DRESSERLoader510B1989Cummins 6BT - 5.9L
    DRESSERLoader510B1990Cummins 6BT - 5.9L
    DRESSERLoader510B1991Cummins 6BT - 5.9L
    DRESSERLoader510B1992Cummins 6BT - 5.9L
    DRESSERLoader515B1984Cummins 6BT - 5.9L
    DRESSERLoader515B1985Cummins 6BT - 5.9L
    DRESSERLoader515B1986Cummins 6BT - 5.9L
    DRESSERLoader515B1987Cummins 6BT - 5.9L
    DRESSERLoader515B1988Cummins 6BT - 5.9L
    DRESSERLoader515B1989Cummins 6BT - 5.9L
    DRESSERLoader515B1990Cummins 6BT - 5.9L
    DRESSERLoader515B1991Cummins 6BT - 5.9L
    DRESSERLoader515B1992Cummins 6BT - 5.9L
    DRESSERLoader515C1984Cummins 6BT - 5.9L
    DRESSERLoader515C1985Cummins 6BT - 5.9L
    DRESSERLoader515C1986Cummins 6BT - 5.9L
    DRESSERLoader515C1987Cummins 6BT - 5.9L
    DRESSERLoader515C1988Cummins 6BT - 5.9L
    DRESSERLoader515C1989Cummins 6BT - 5.9L
    DRESSERLoader515C1990Cummins 6BT - 5.9L
    DRESSERLoader515C1991Cummins 6BT - 5.9L
    DRESSERLoader515C1992Cummins 6BT - 5.9L
    DRESSERLoader5201984Cummins 6BT - 5.9L
    DRESSERLoader5201985Cummins 6BT - 5.9L
    DRESSERLoader5201986Cummins 6BT - 5.9L
    DRESSERLoader5201987Cummins 6BT - 5.9L
    DRESSERLoader5201988Cummins 6BT - 5.9L
    DRESSERLoader5201989Cummins 6BT - 5.9L
    DRESSERLoader5201990Cummins 6BT - 5.9L
    DRESSERLoader5201991Cummins 6BT - 5.9L
    DRESSERLoader5201992Cummins 6BT - 5.9L
    DRESSERLoader520B1984Cummins 6BT - 5.9L
    DRESSERLoader520B1985Cummins 6BT - 5.9L
    DRESSERLoader520B1986Cummins 6BT - 5.9L
    DRESSERLoader520B1987Cummins 6BT - 5.9L
    DRESSERLoader520B1988Cummins 6BT - 5.9L
    DRESSERLoader520B1989Cummins 6BT - 5.9L
    DRESSERLoader520B1990Cummins 6BT - 5.9L
    DRESSERLoader520B1991Cummins 6BT - 5.9L
    DRESSERLoader520B1992Cummins 6BT - 5.9L

  • PRODUCT HIGHLIGHTS

    Product Highlights

    24V 10T DD StarterCummins 6BT 5.9L ReplacementDelco Remy 37MT Design
    CW Rotation DesignHeavy-Duty Diesel ApplicationReplaces 10479108 / 1993954
    Direct Drive Configuration39.4mm Pinion GearNew Aftermarket Starter Motor
