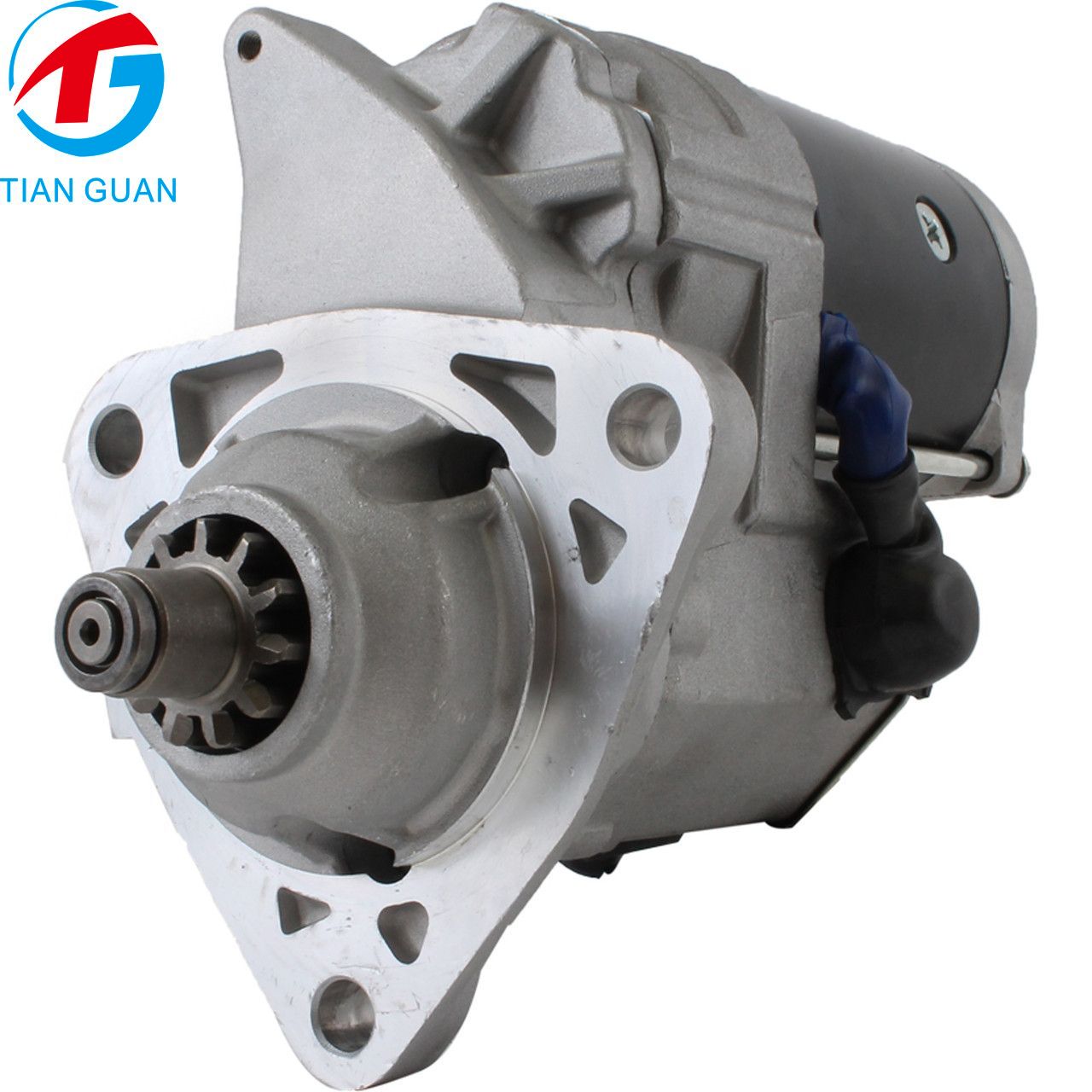

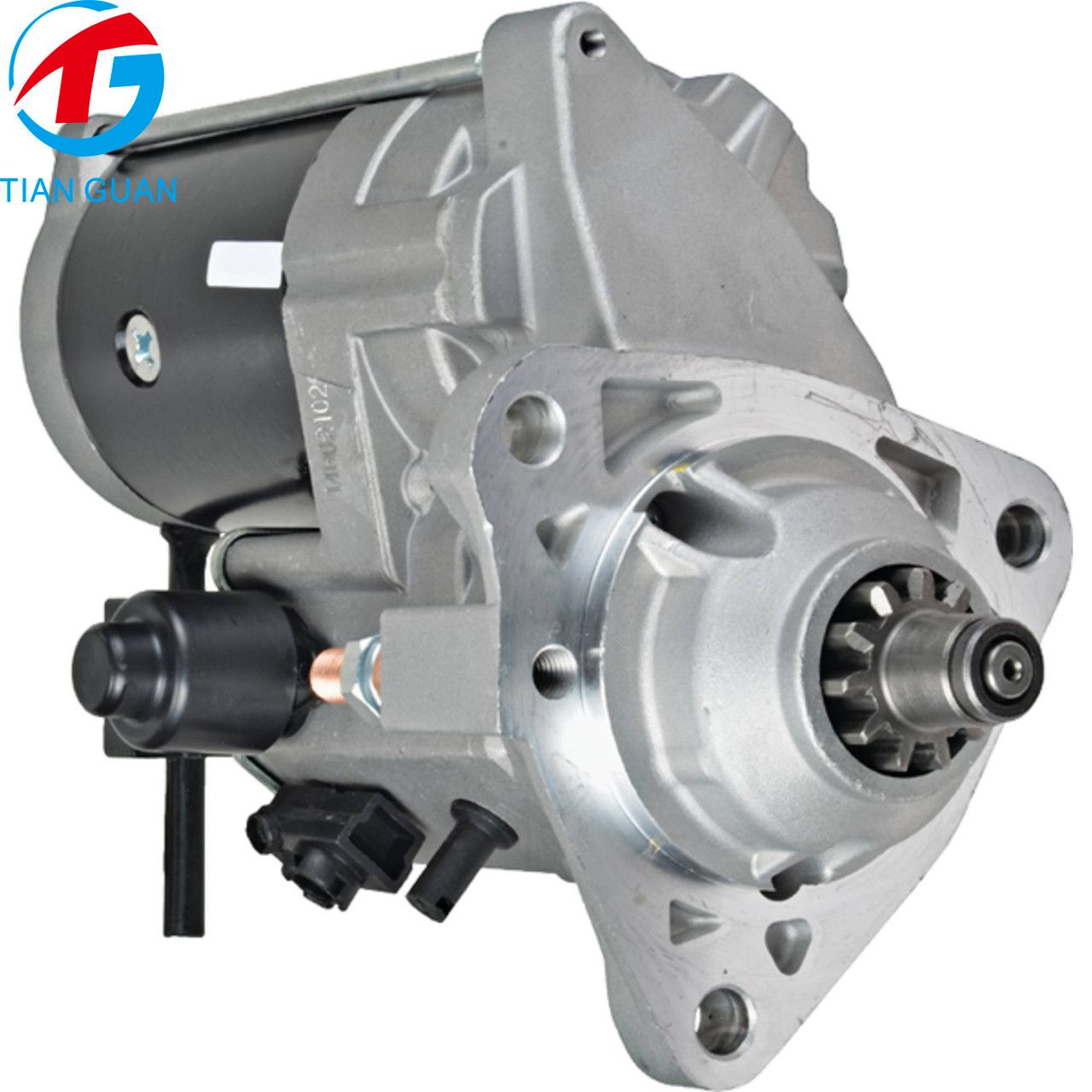

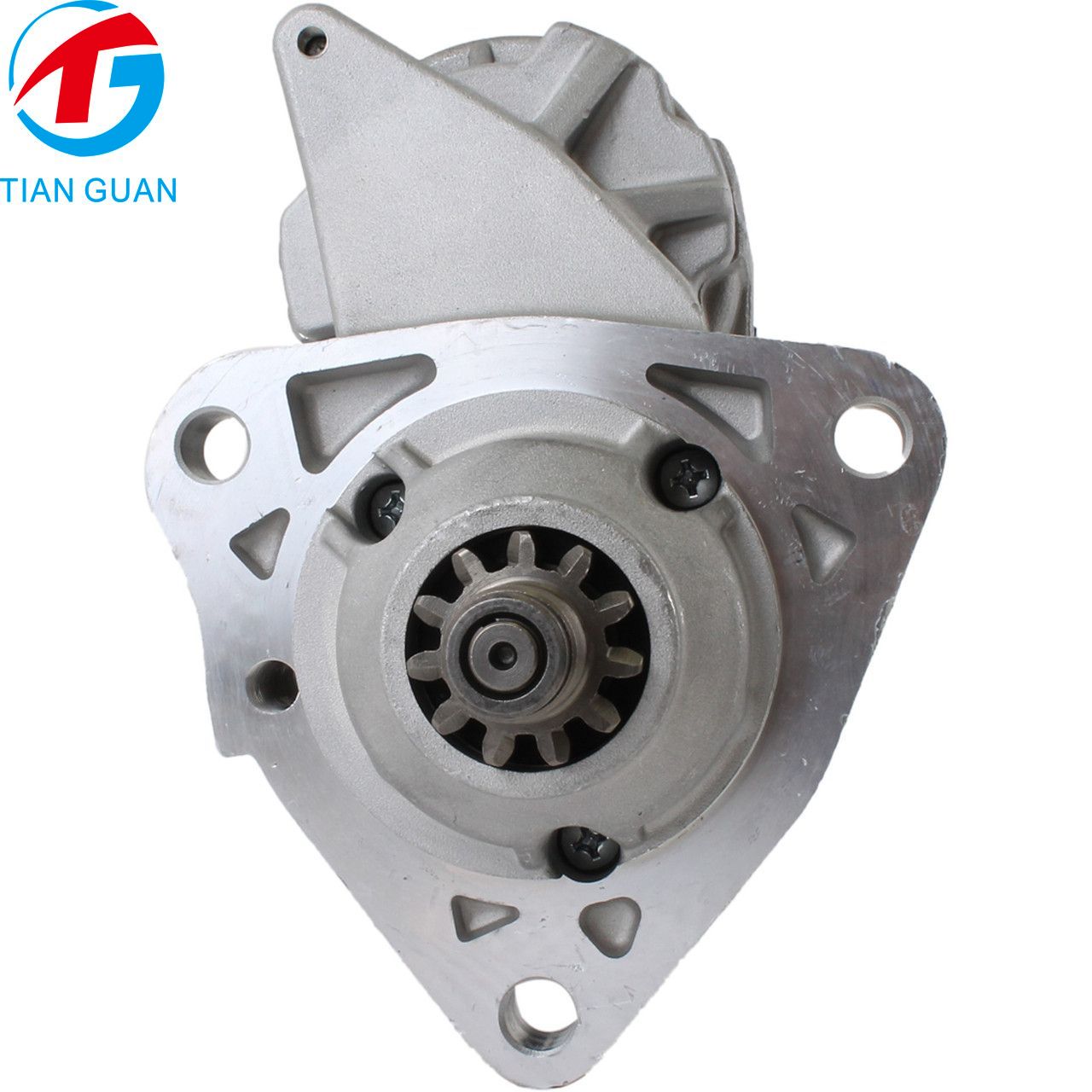

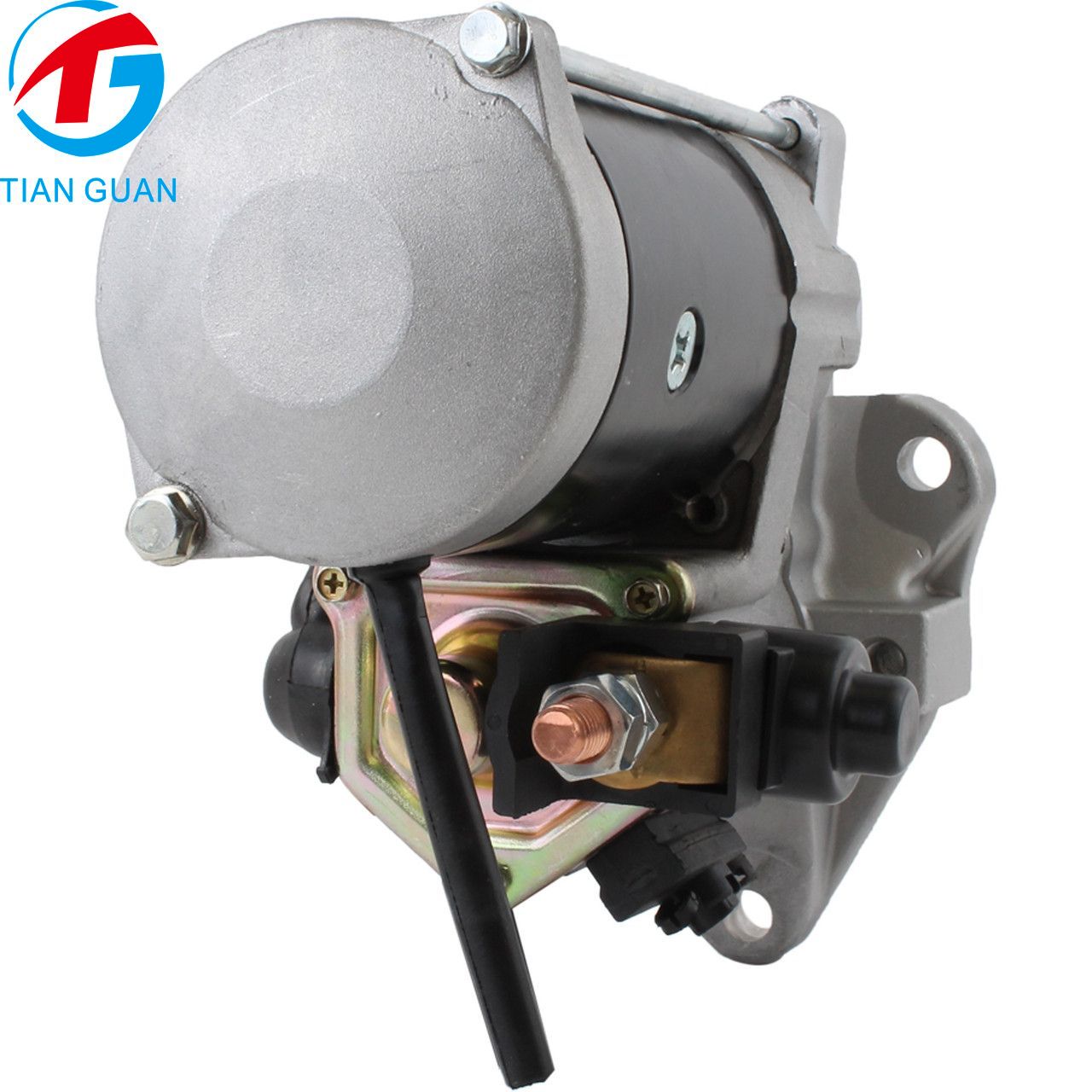

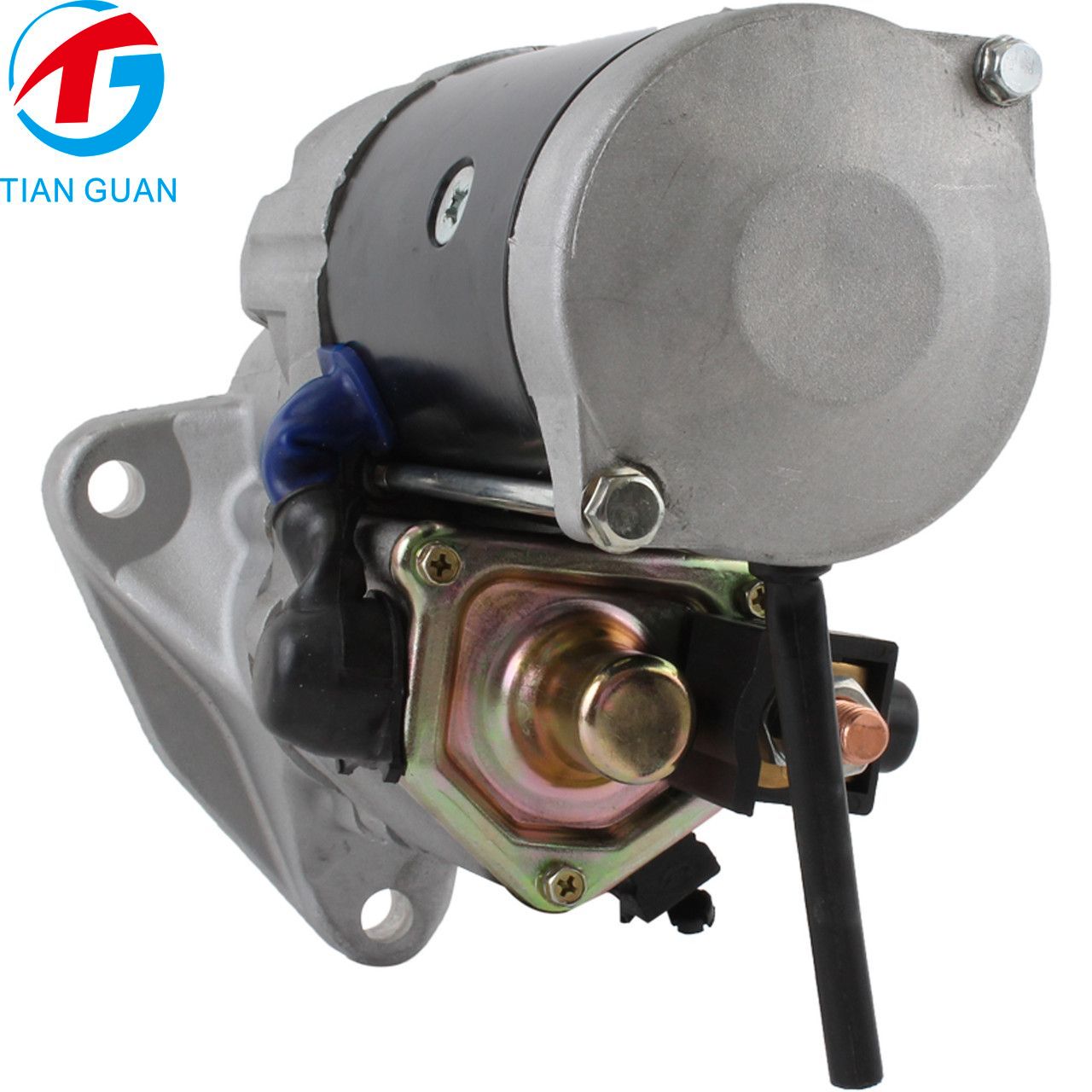

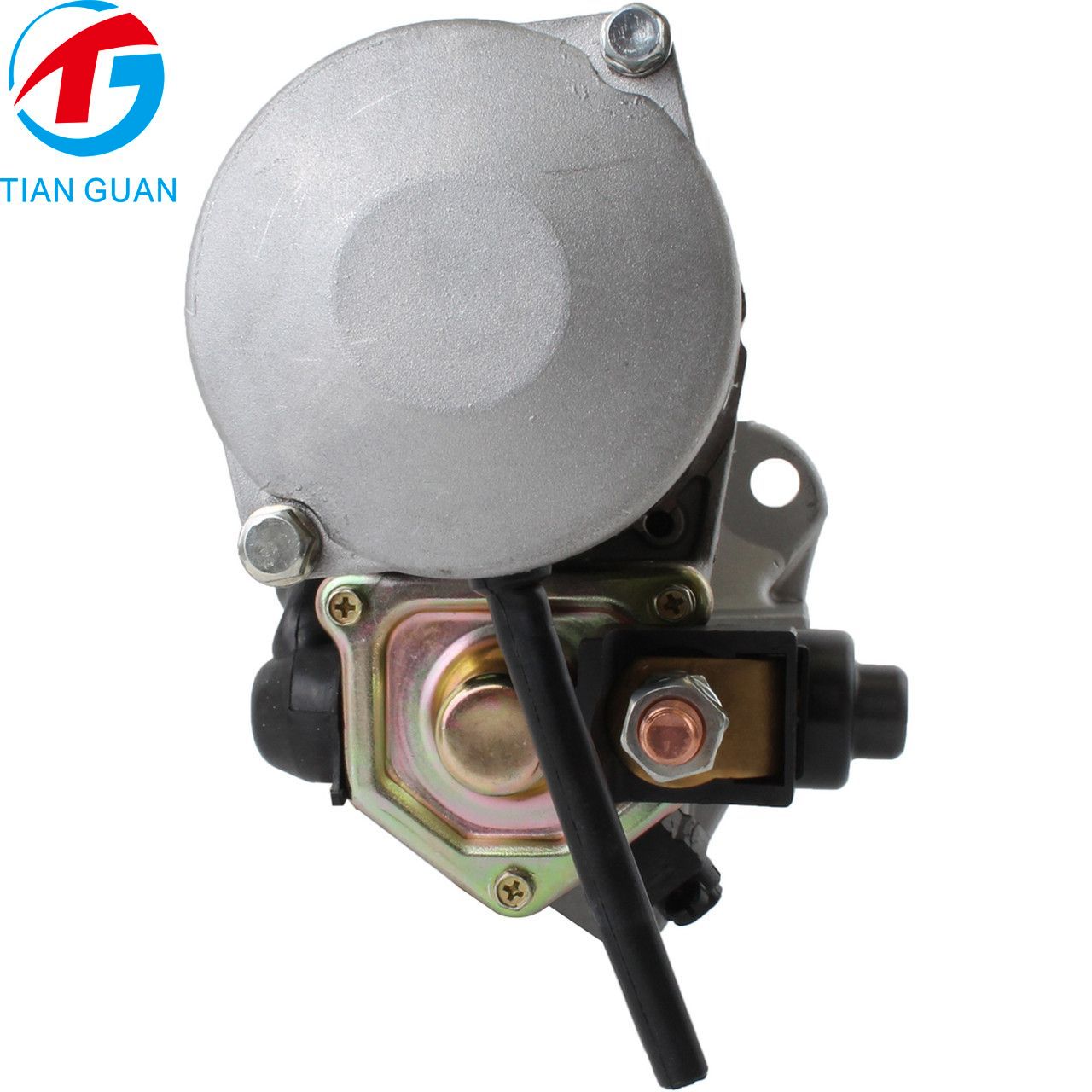

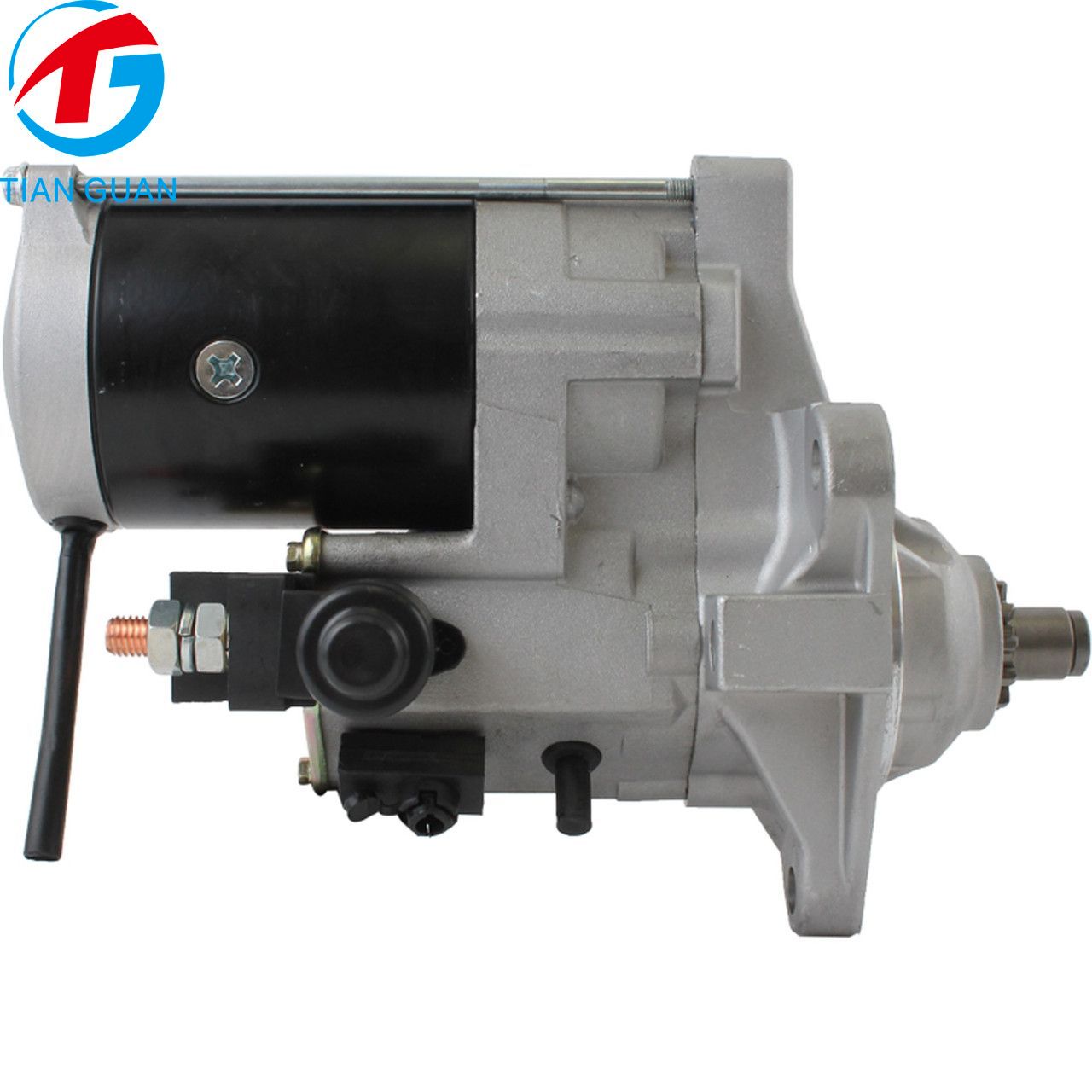

STG51251 Starter Motor RE525468 RE533091 RE536498 RE539584 for John Deere S680 S680 STS 9430 9530 9630

3 Reviews

Add Your Review

US$153.00

ITEMNO： STG51251

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    STG51251 Starter Motor RE525468 RE533091 RE536498 RE539584 for John Deere S680 S680 STS 9430 9530 9630

    Part Numbers

    BrandPart Number
    ARROWHEADSND0755, ND428000-5531
    DENSO428000-5530, 428000-5531, 428000-5532
    JOHN DEERERE525468, RE533091, RE536498, RE539584, SE501874, SE502678
    LESTER19853

    Product Specs

    ItemSpecification
    Item ConditionAftermarket Part
    Unit TypeStarter
    Part TypeUnit
    Voltage12V
    RotationCW
    Teeth11
    KW5.0 kW
    Starter TypeOSGR
    FitsJohn Deere 9000 Series Tractors
    Weight10.8 kg

    Fit for Engine

    • John Deere 6-824 Diesel

    • John Deere PowerTech 13.5L Diesel

    • 410 HP, 420 HP, 460 HP, 470 HP, 510 HP, 520 HP, 560 HP applications

    Applications

    MAKETYPEMODELYEARENGINE
    JOHN DEERECombineS680 HillmasterAll6-1250 Diesel
    JOHN DEERECombineS680 STSAll6-1250 Diesel
    JOHN DEEREScrapers9430All6-824 Diesel
    JOHN DEEREScrapers9530All6-824 Diesel
    JOHN DEEREScrapers9630All6-824 Diesel
    JOHN DEERETractor9330All6-824 Diesel
    JOHN DEERETractor9410RAllJD PT 13.5L 410HP Dsl
    JOHN DEERETractor9420RAllJD PT 13.5L 420HP Dsl
    JOHN DEERETractor9430All6-824 Diesel
    JOHN DEERETractor9430TAll6-824 Diesel
    JOHN DEERETractor9460RAllJD PT 13.5L 460HP Dsl
    JOHN DEERETractor9460R Scraper SpecialAllJD PT 13.5L 460HP Dsl
    JOHN DEERETractor9460RTAllJD PT 13.5L 460HP Dsl
    JOHN DEERETractor9460RT Scraper SpecialAllJD PT 13.5L 460HP Dsl
    JOHN DEERETractor9470RAllJD PT 13.5L 470HP Dsl
    JOHN DEERETractor9470RXAllJD PT 13.5L 470HP Dsl
    JOHN DEERETractor9510RAllJD PT 13.5L 510HP Dsl
    JOHN DEERETractor9510R Scraper SpecialAllJD PT 13.5L 510HP Dsl
    JOHN DEERETractor9510RTAllJD PT 13.5L 510HP Dsl
    JOHN DEERETractor9510RT Scraper SpecialAllJD PT 13.5L 510HP Dsl
    JOHN DEERETractor9520RAllJD PT 13.5L 520HP Dsl
    JOHN DEERETractor9520RXAllJD PT 13.5L 520HP Dsl
    JOHN DEERETractor9530All6-824 Diesel
    JOHN DEERETractor9530TAll6-824 Diesel
    JOHN DEERETractor9560RAllJD PT 13.5L 560HP Dsl
    JOHN DEERETractor9560R Scraper SpecialAllJD PT 13.5L 560HP Dsl
    JOHN DEERETractor9560RTAllJD PT 13.5L 560HP Dsl
    JOHN DEERETractor9560RT Scraper SpecialAllJD PT 13.5L 560HP Dsl
    JOHN DEERETractor9630All6-824 Diesel
    JOHN DEERETractor9630TAll6-824 Diesel

    Product Highlights

    FeatureDescription
    12V 5.0kW Output5.0kW starting power provides reliable cranking performance for compatible John Deere diesel engines.
    OSGR Design11-tooth clockwise OSGR starter motor designed as a replacement for the listed Denso, Arrowhead, John Deere and Lester numbers.
    Wide ApplicationFits selected John Deere 9000 Series tractors, scrapers and S680 combines with compatible engine configurations.
