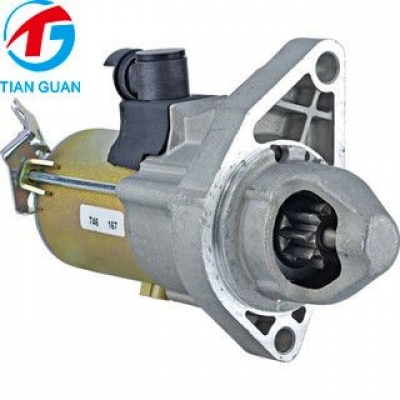

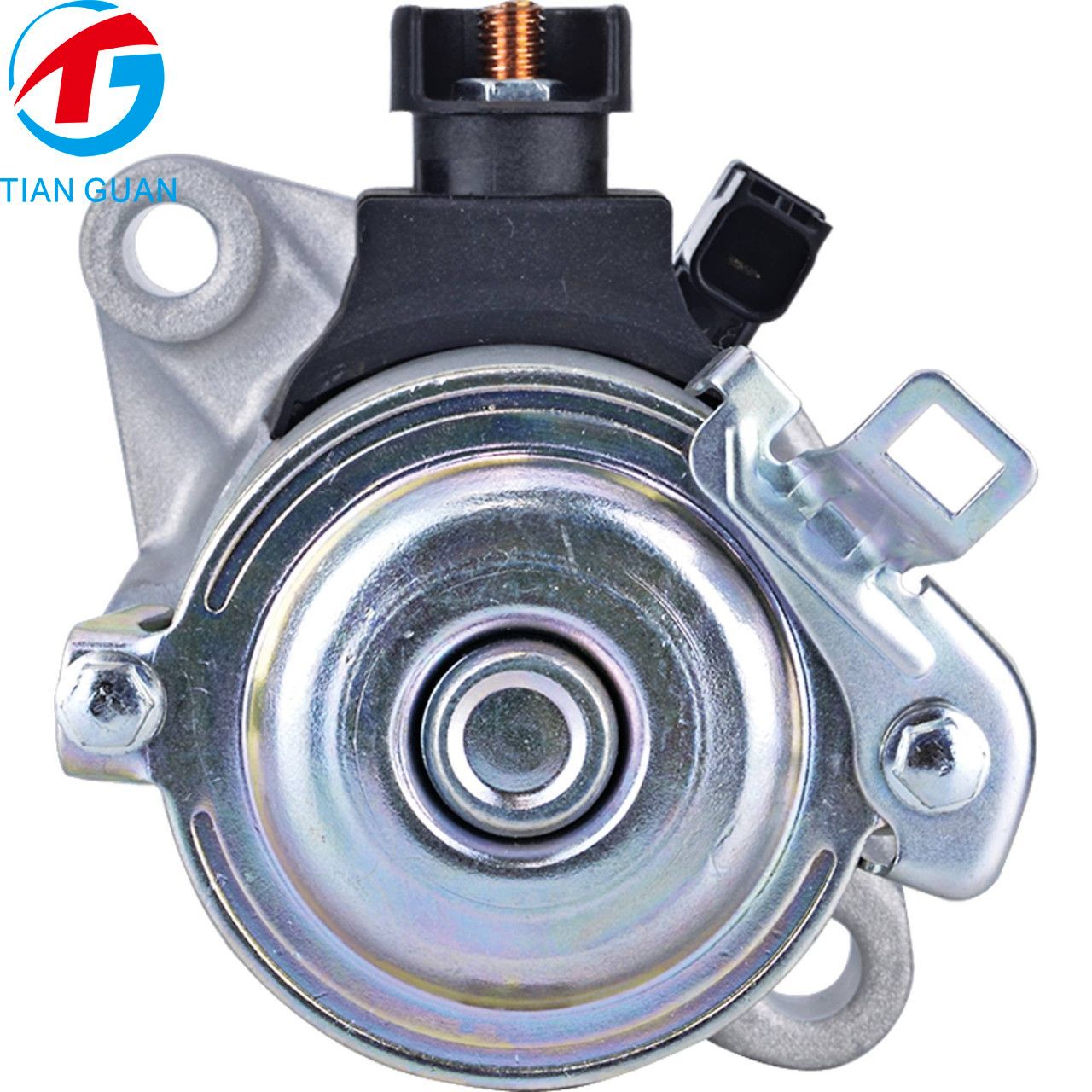

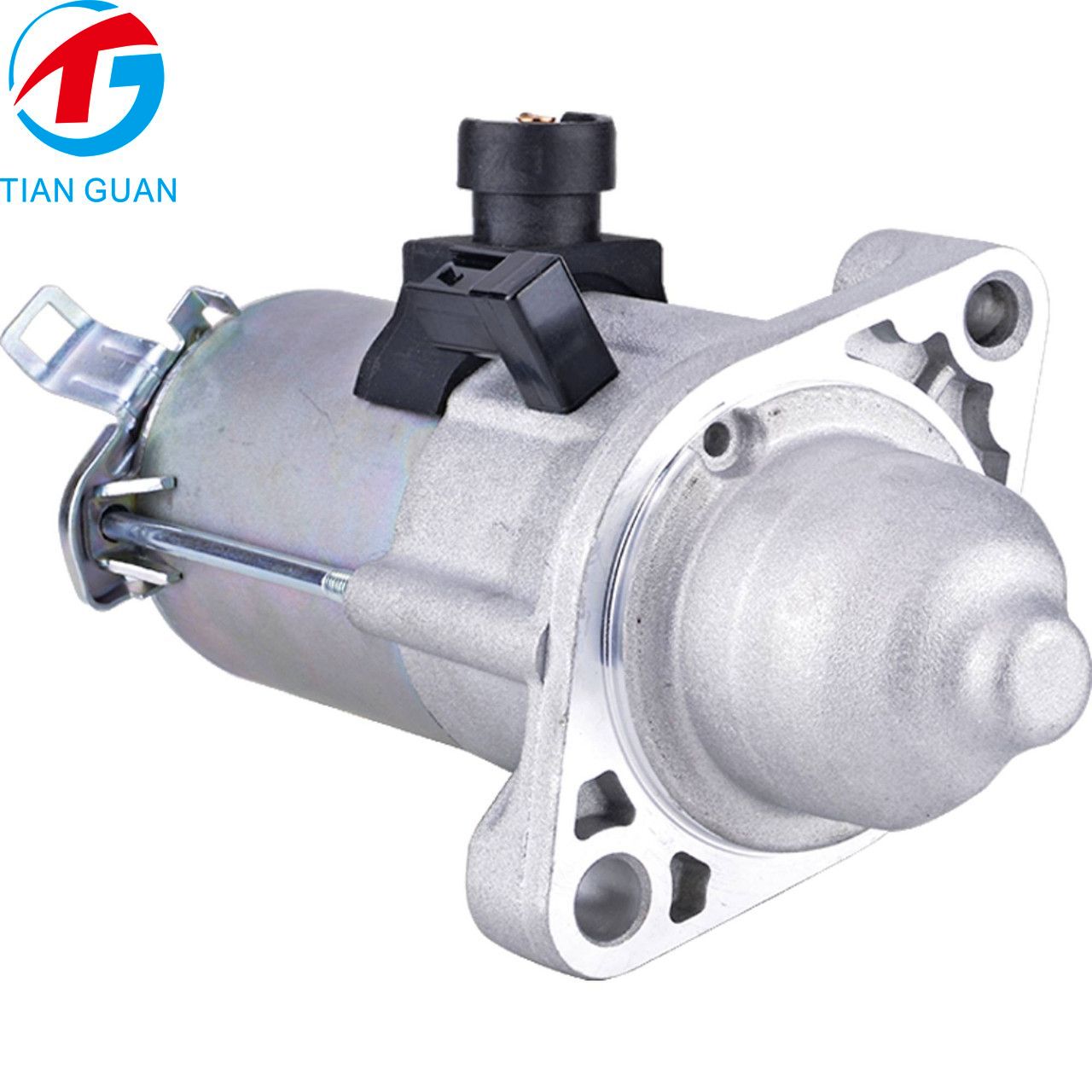

STG50686 Starter Motor 31200-RAA-A61 31200-RRA-A51 for Honda Accord Element CR-V Civic and Acura ILX | 12V 1.6kW CW 9T PMGR Replacement

3 Reviews

Add Your Review

US$76.00

ITEMNO： STG51252

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

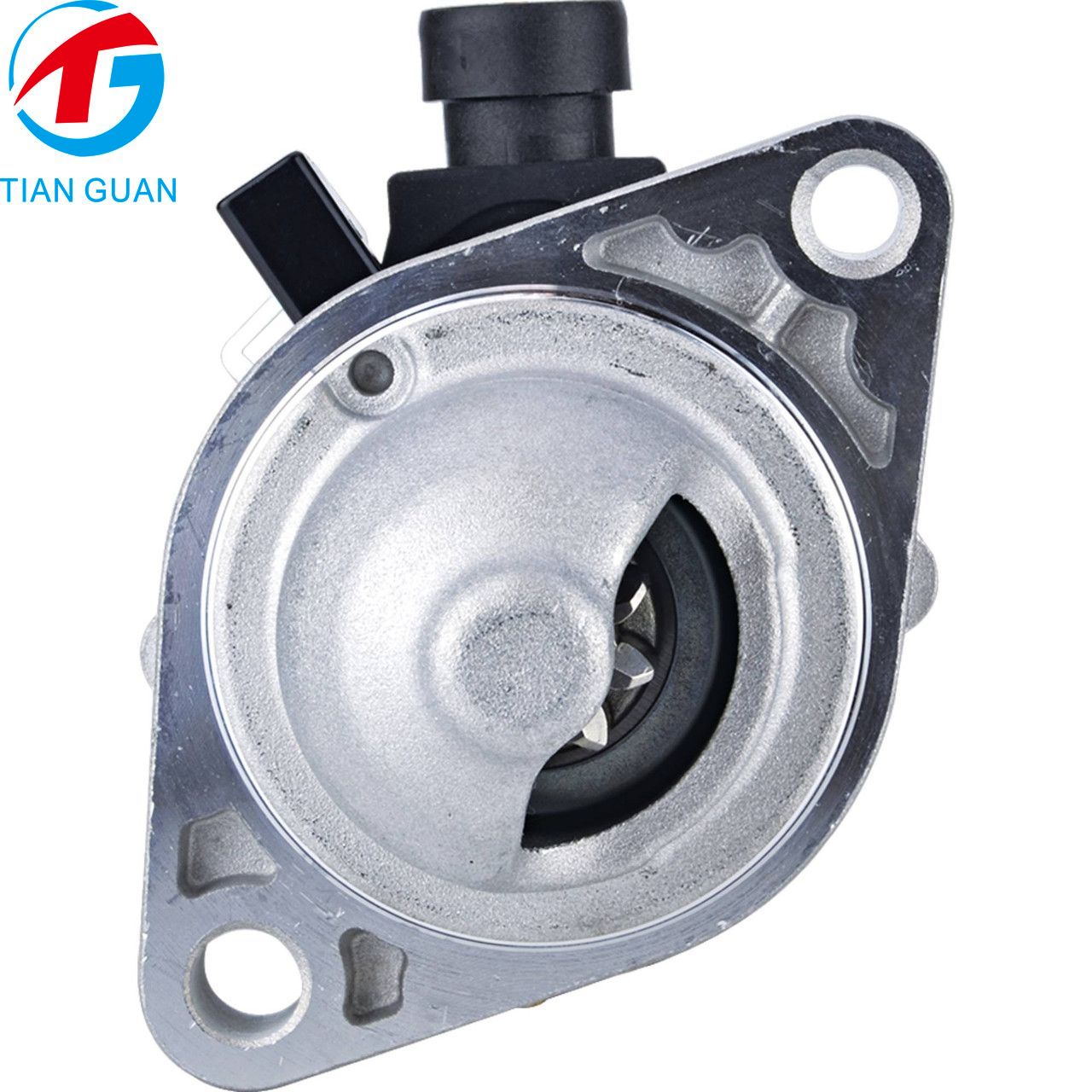

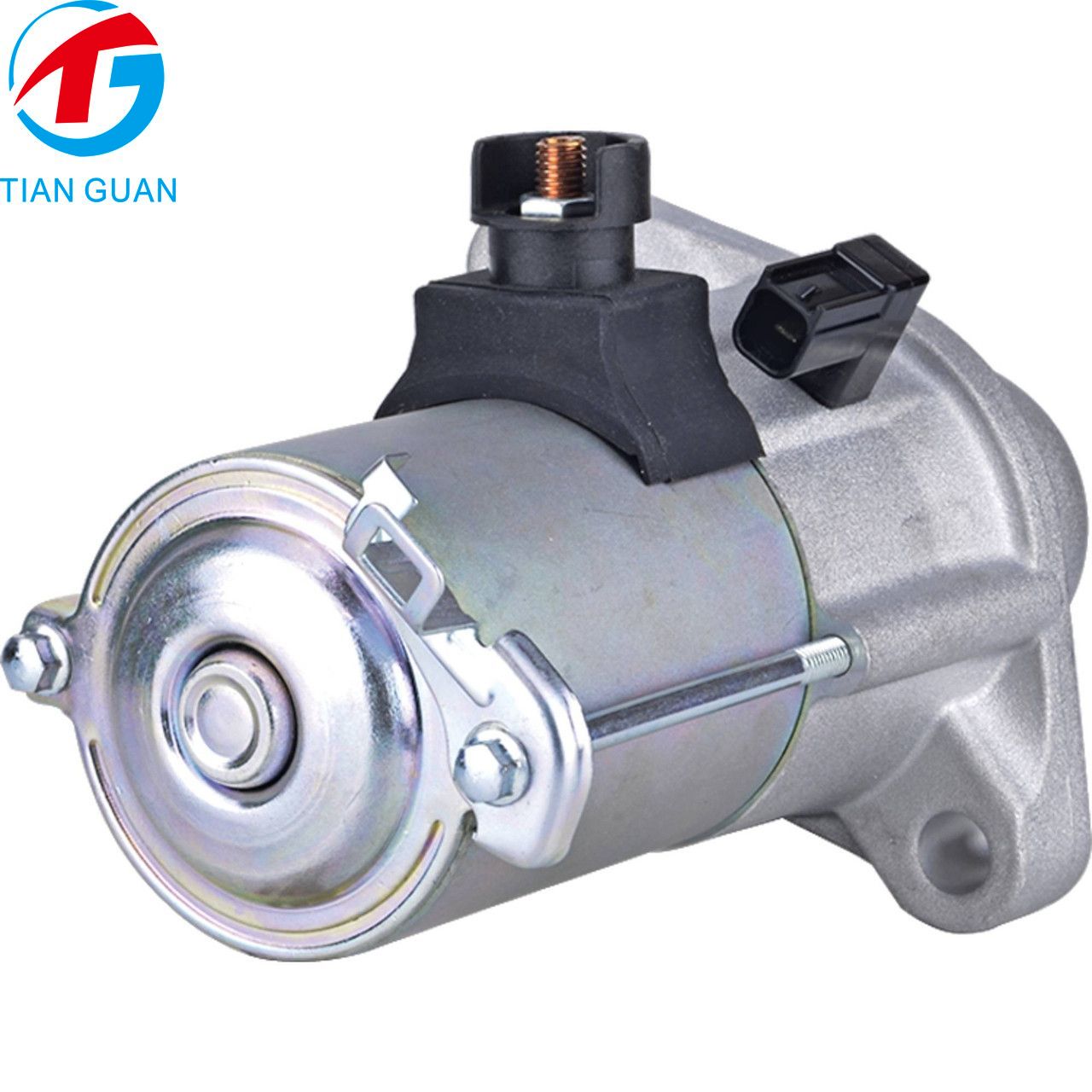

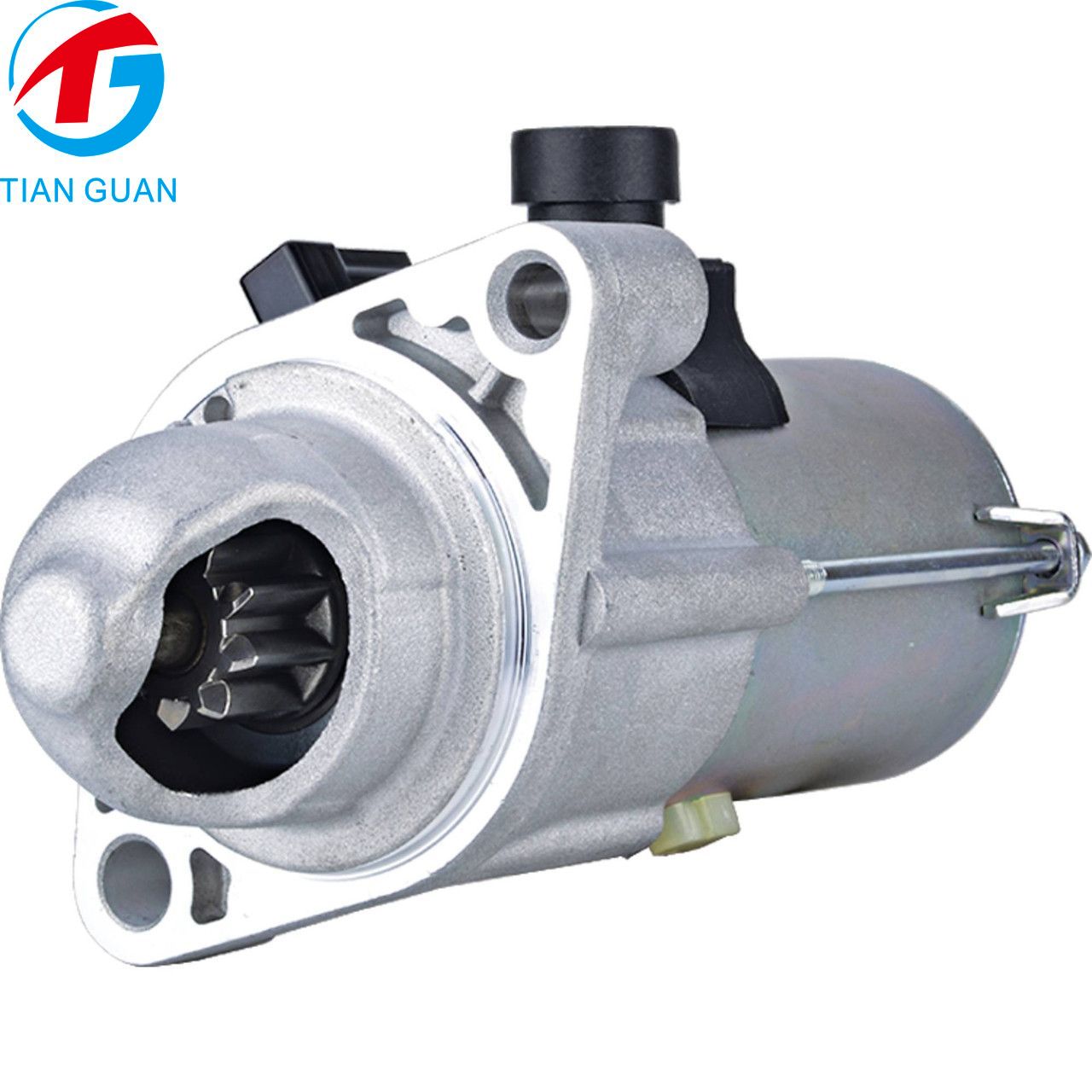

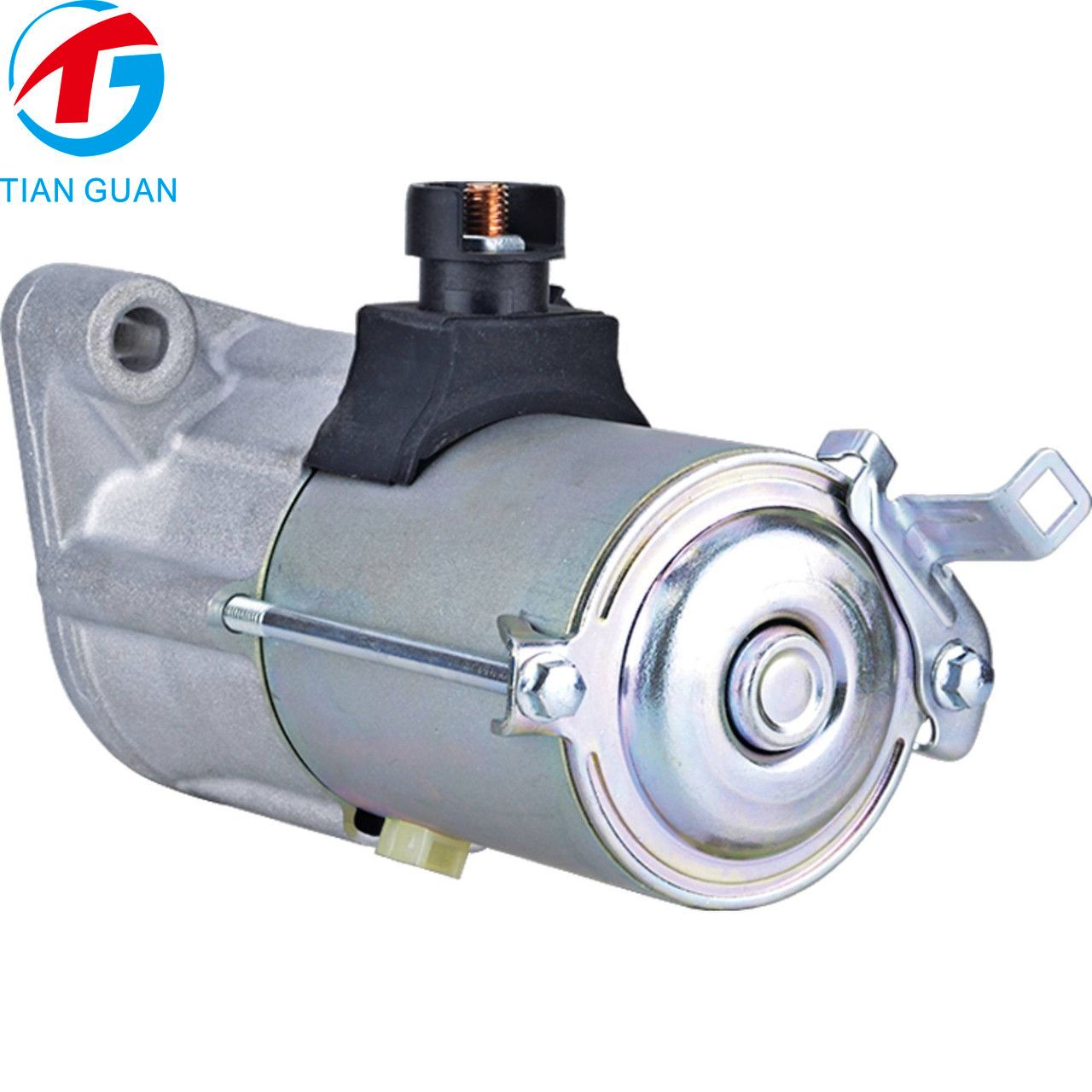

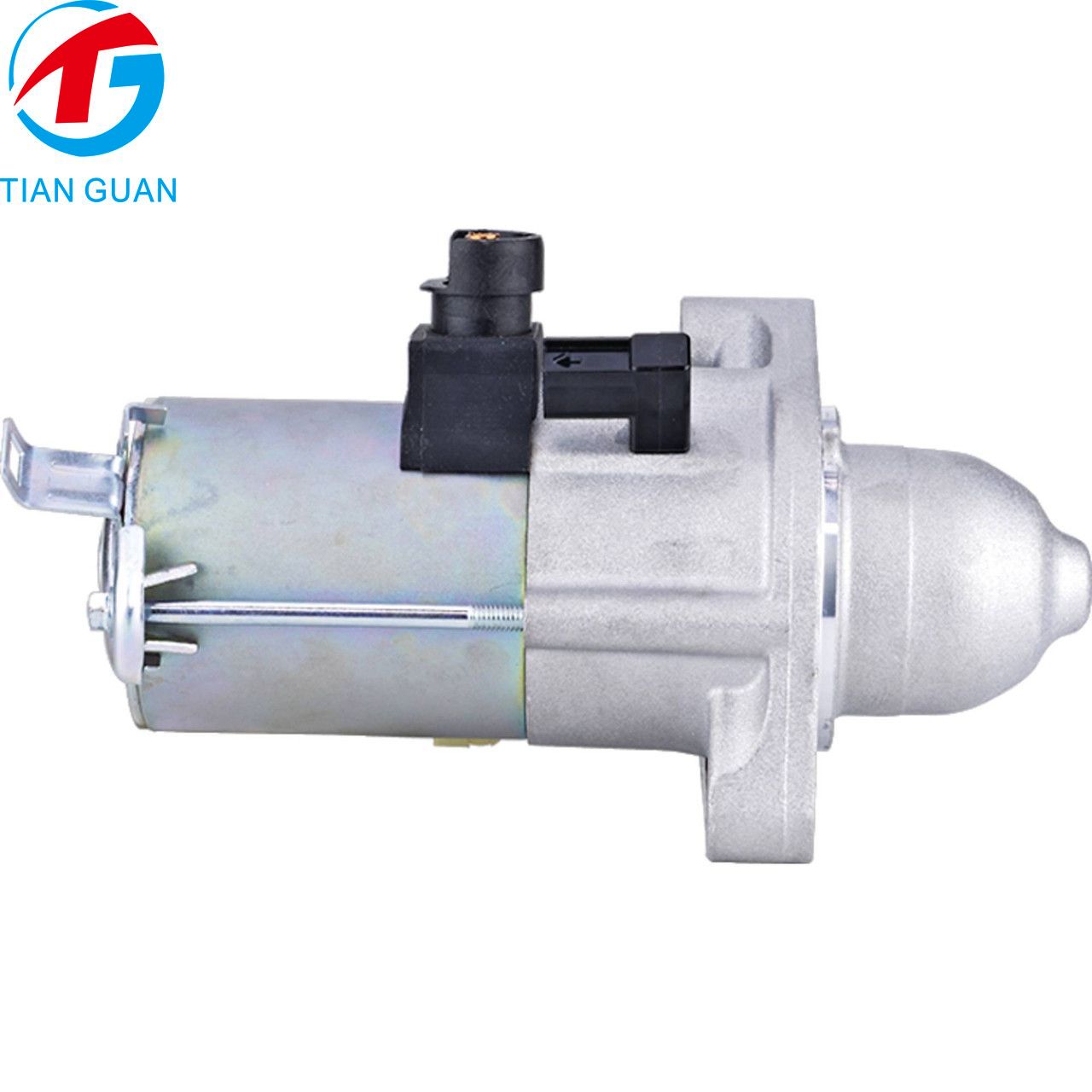

STG50686 Starter Motor 31200-RAA-A61 31200-RRA-A51 for Honda Accord Element CR-V Civic and Acura ILX | 12V 1.6kW CW 9T PMGR Replacement

Part Numbers

Acura: 31200-RX0-A01
Honda: 31200-R5A-A01 / 31200-RX0-A01 / 31200-RX0-A02
Family: SM740
Mitsuba: SM740-02 / SM740-17

Product Description

STG50686 Starter Motor is an aftermarket replacement starter designed for selected Honda and Acura vehicles equipped with compatible 2.4L engines.

This 12V, 1.6kW PMGR (Permanent Magnet Gear Reduction) starter features clockwise rotation and a 9-tooth pinion. It is designed with specific mounting dimensions and electrical connections to match compatible original starter assemblies.

Please verify the OEM part number, mounting dimensions and electrical terminal configuration before ordering.

Product Specifications

Property	Value
SKU	STG50686
Product Type	Starter Motor
Unit Type	Starter
Item Condition	Aftermarket Part
Starter Family	SM740
Voltage	12V
Power	1.6kW
Rotation	CW (Clockwise)
Number of Teeth	9
Starter Type	PMGR
Pinion Outside Diameter	29.6mm
Additional Pinion OD	75mm (as supplied; verify measurement reference)
Mounting Hole 1	11mm ID
Mounting Hole 2	13mm ID
Mounting Hole Center-to-Center	115.8mm
Flange-to-Rear Length (Including Bracket)	168.5mm
Flange-to-Rear Length (Without Bracket)	154.5mm
B+ Terminal Stud	8mm x 1.25
S-Terminal	Spade terminal inside plastic plug
Weight	3.5kg

OEM / Cross Reference Numbers

Brand / Category	Part Numbers
Acura	31200-RX0-A01
Family	SM740
Honda	31200-R5A-A01 / 31200-RX0-A01 / 31200-RX0-A02
Lester (Old)	19218
Lester	19270 / 19280
Mitsuba	SM740-02 / SM740-17
PIC	191-717 / 191-717A

Compatible Applications

Make	Model	Year	Engine
Acura	ILX	2013	2.4L
Acura	ILX	2014	2.4L
Acura	ILX	2015	2.4L
Honda	Civic	2012	2.4L
Honda	Civic	2013	2.4L
Honda	Civic	2014	2.4L
Honda	Civic	2015	2.4L
Honda	Crosstour	2012	2.4L
Honda	Crosstour	2013	2.4L
Honda	Crosstour	2014	2.4L
Honda	Crosstour	2015	2.4L
Honda	CR-V	2012	2.4L
Honda	CR-V	2013	2.4L
Honda	CR-V	2014	2.4L

PRODUCT HIGHLIGHTS

Product Highlights

PMGR Starter Design	Precise Mounting Details	Wide Vehicle Applications
12V, 1.6kW output with clockwise rotation and 9-tooth pinion	Two mounting holes, 115.8mm center-to-center and specified terminal connections	Compatible with selected Honda and Acura 2.4L applications
