STG51272 Starter Motor F00E100290 SR5046X 93288991 for GM 1.6L Medium and Heavy Duty Trucks 12V 0.9kW Replacement

Part Numbers

Product Description

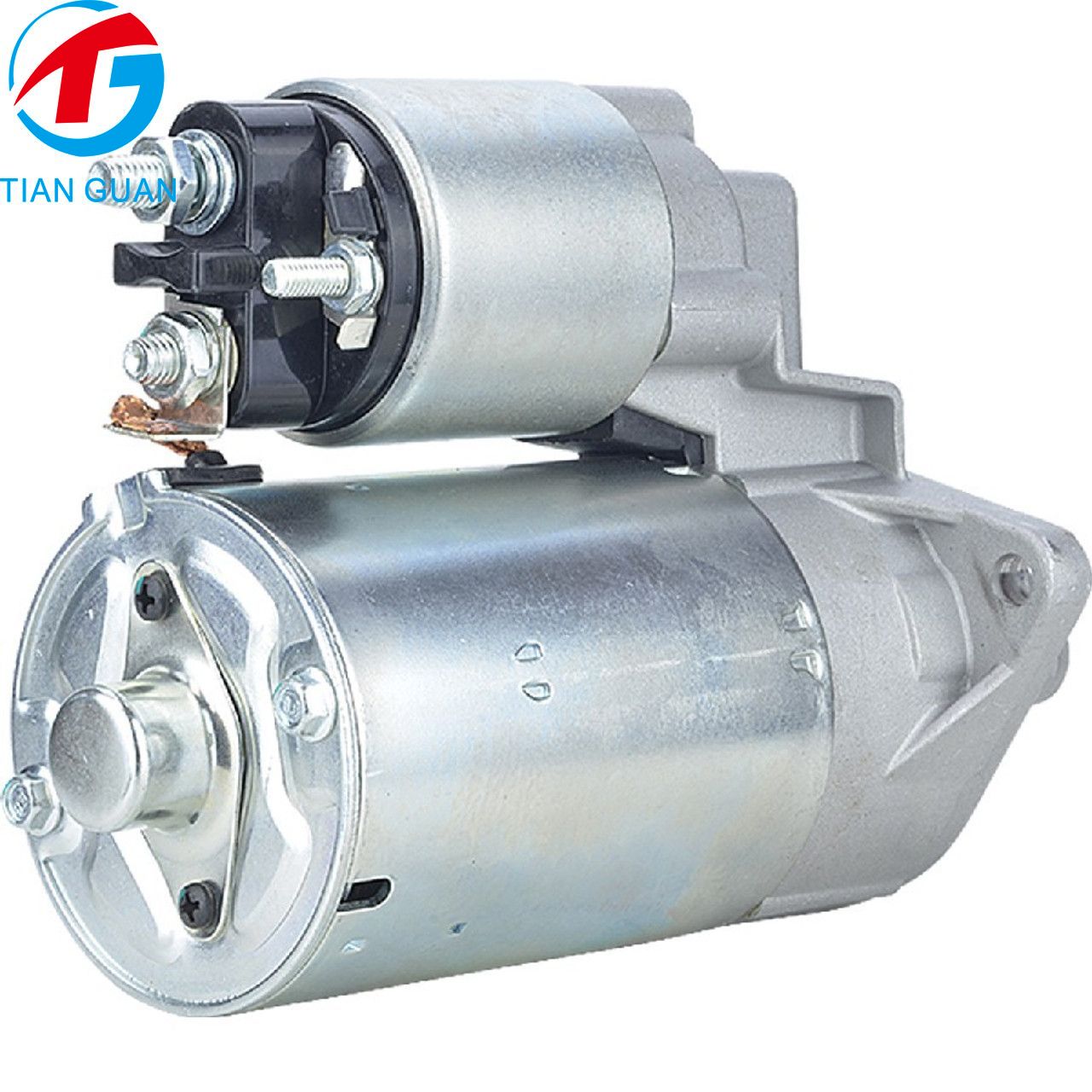

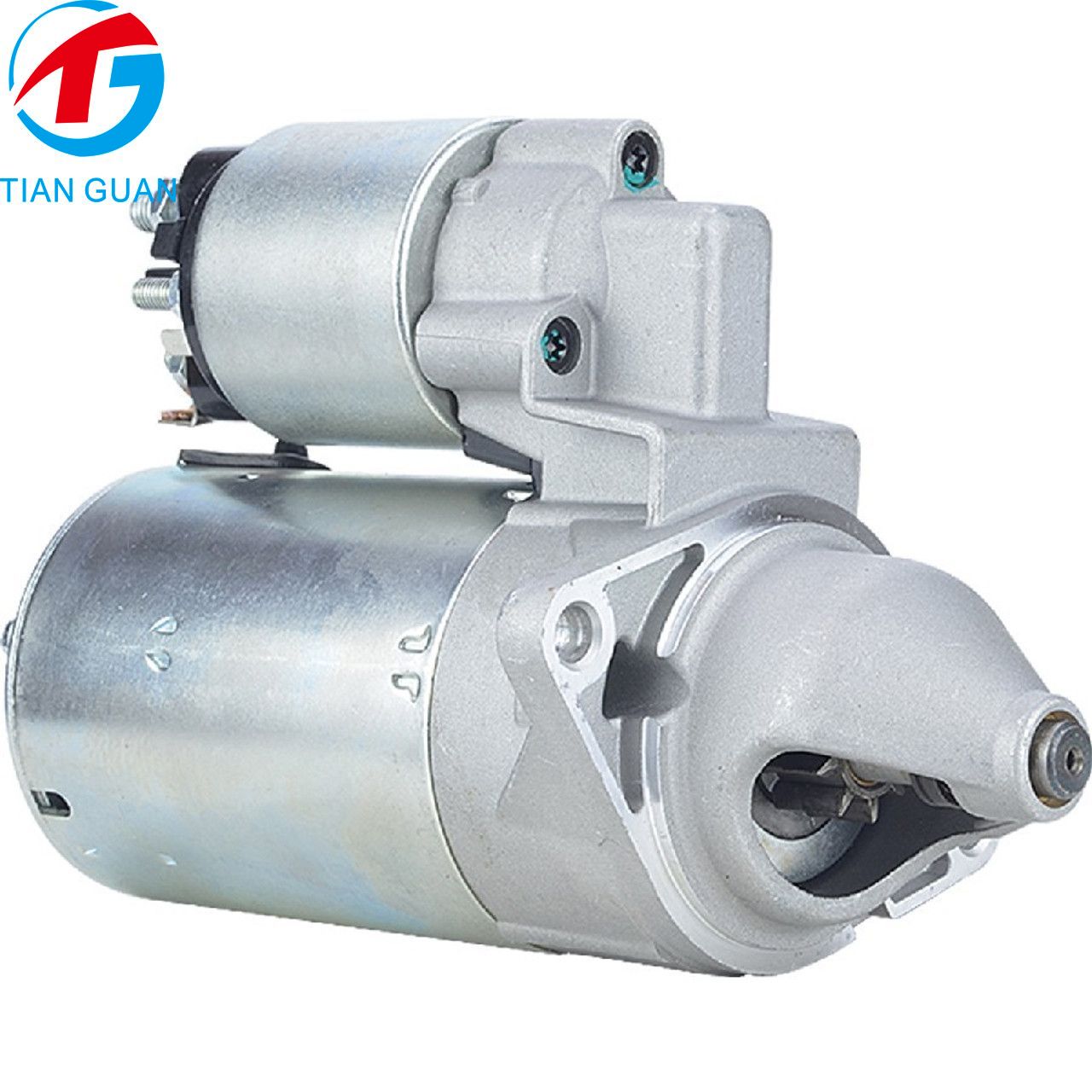

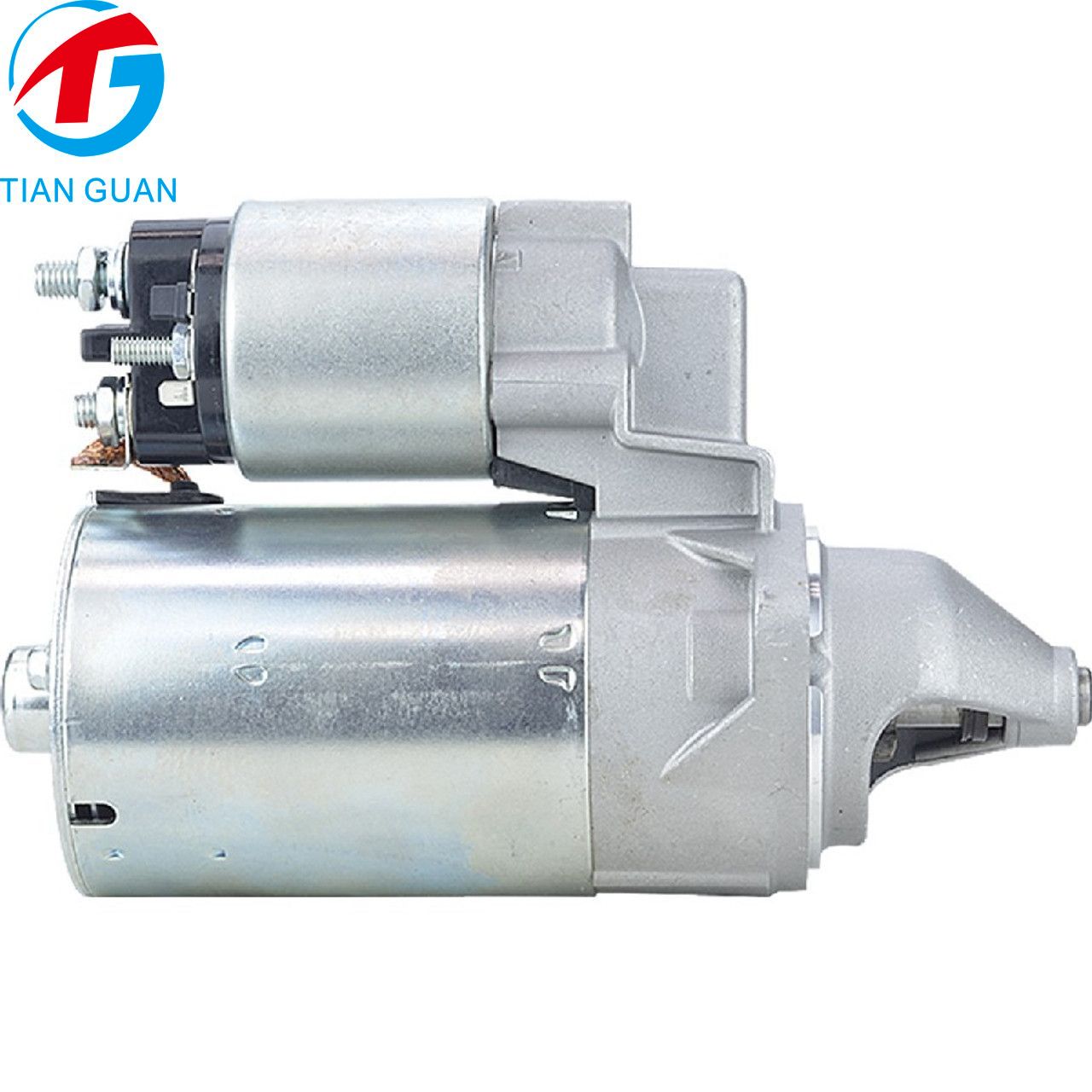

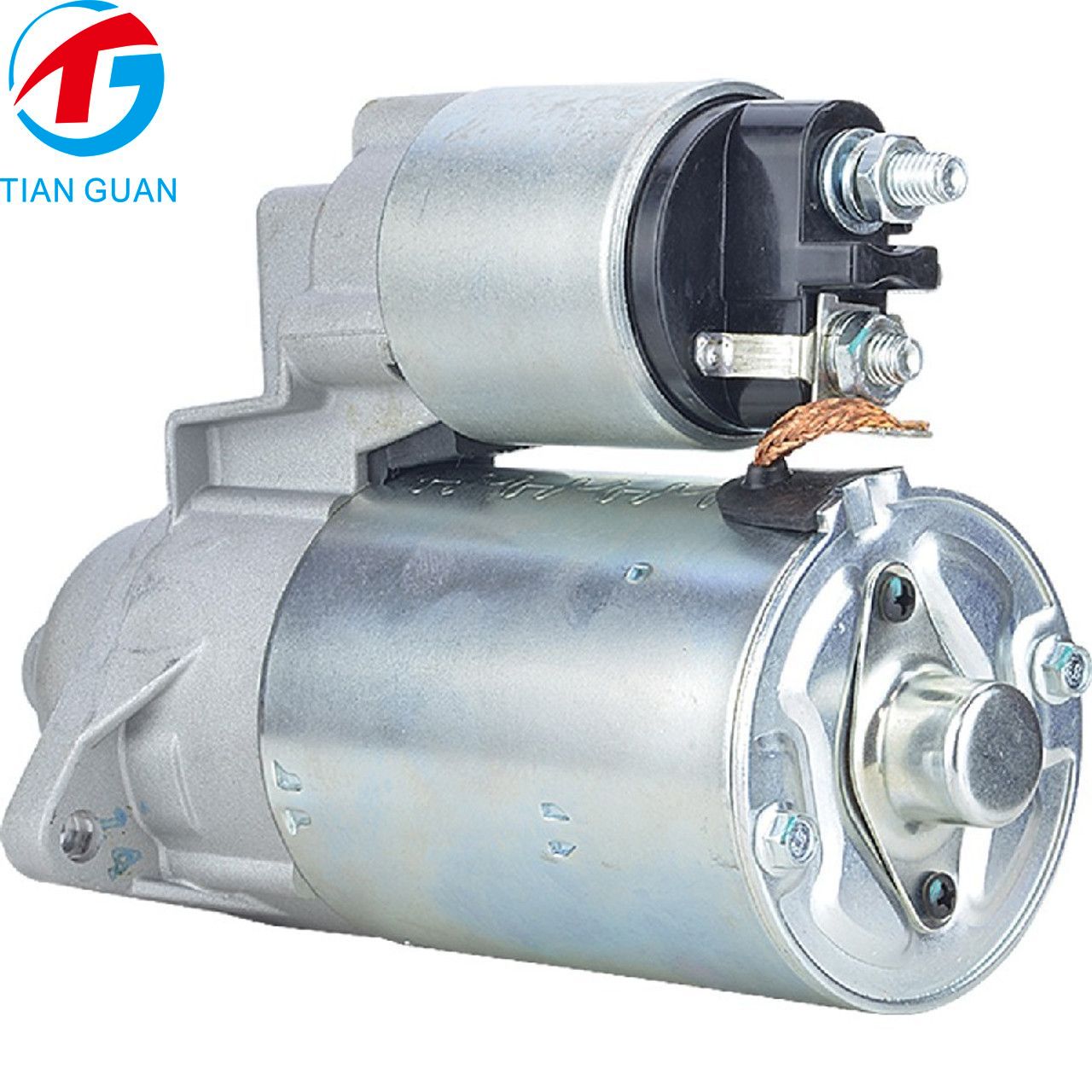

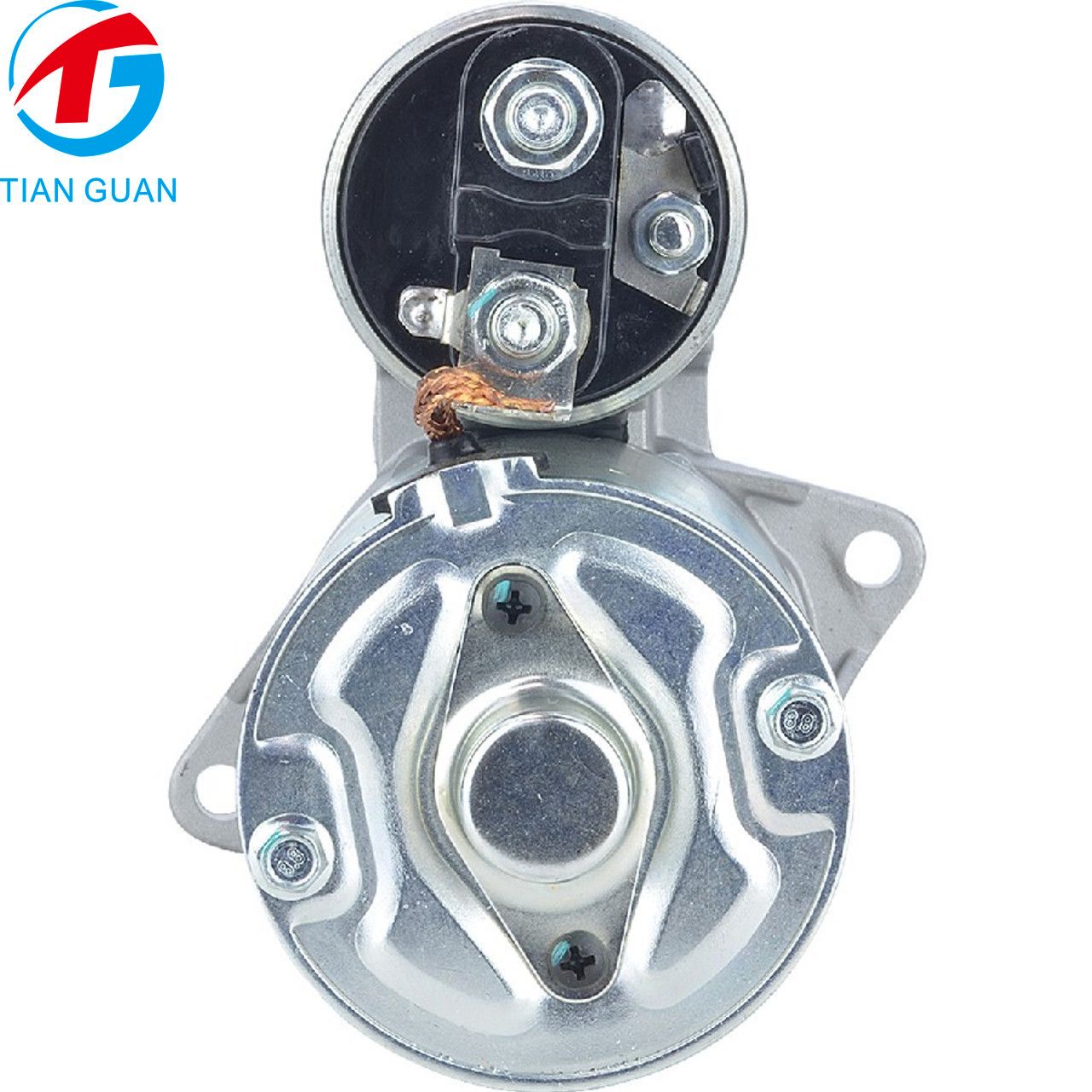

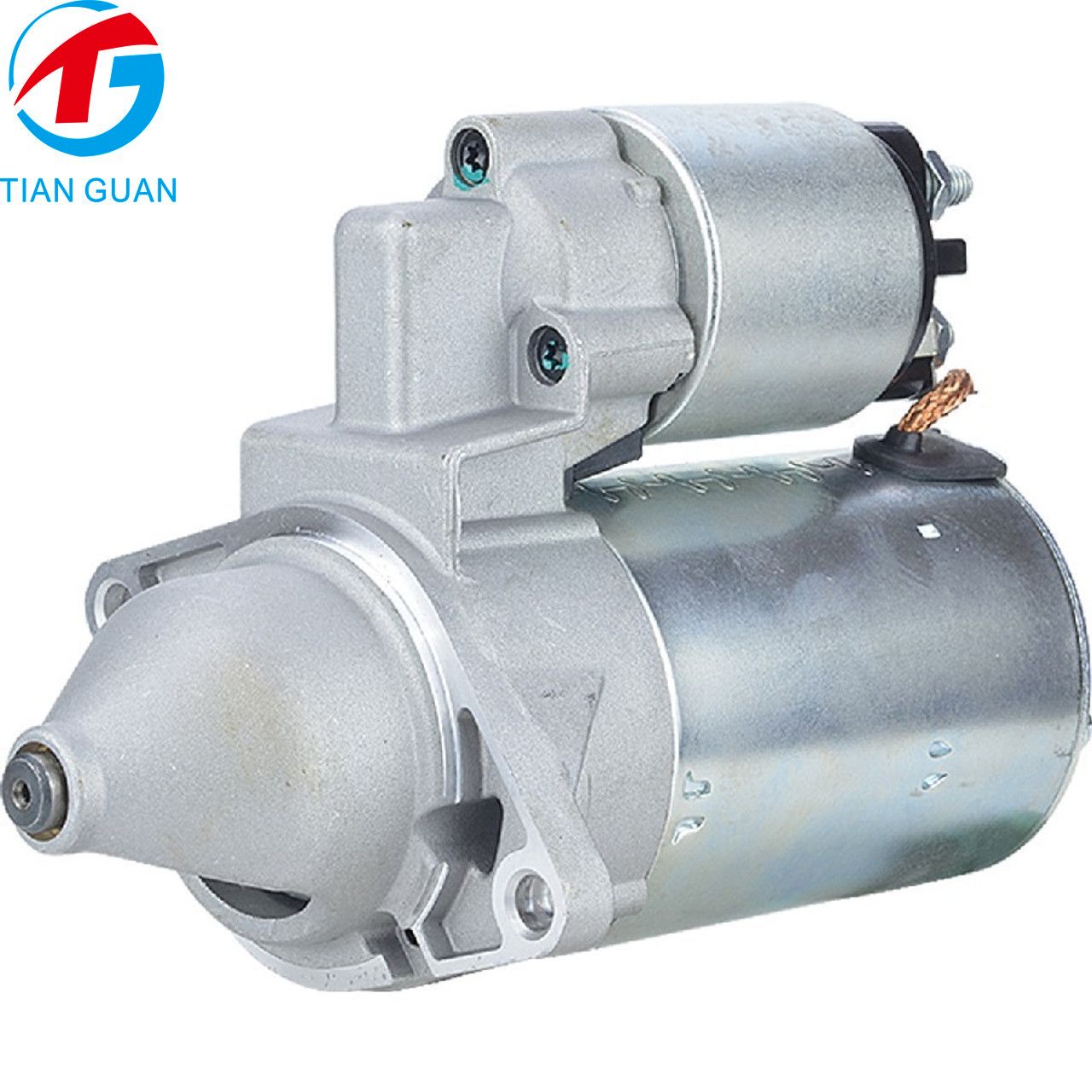

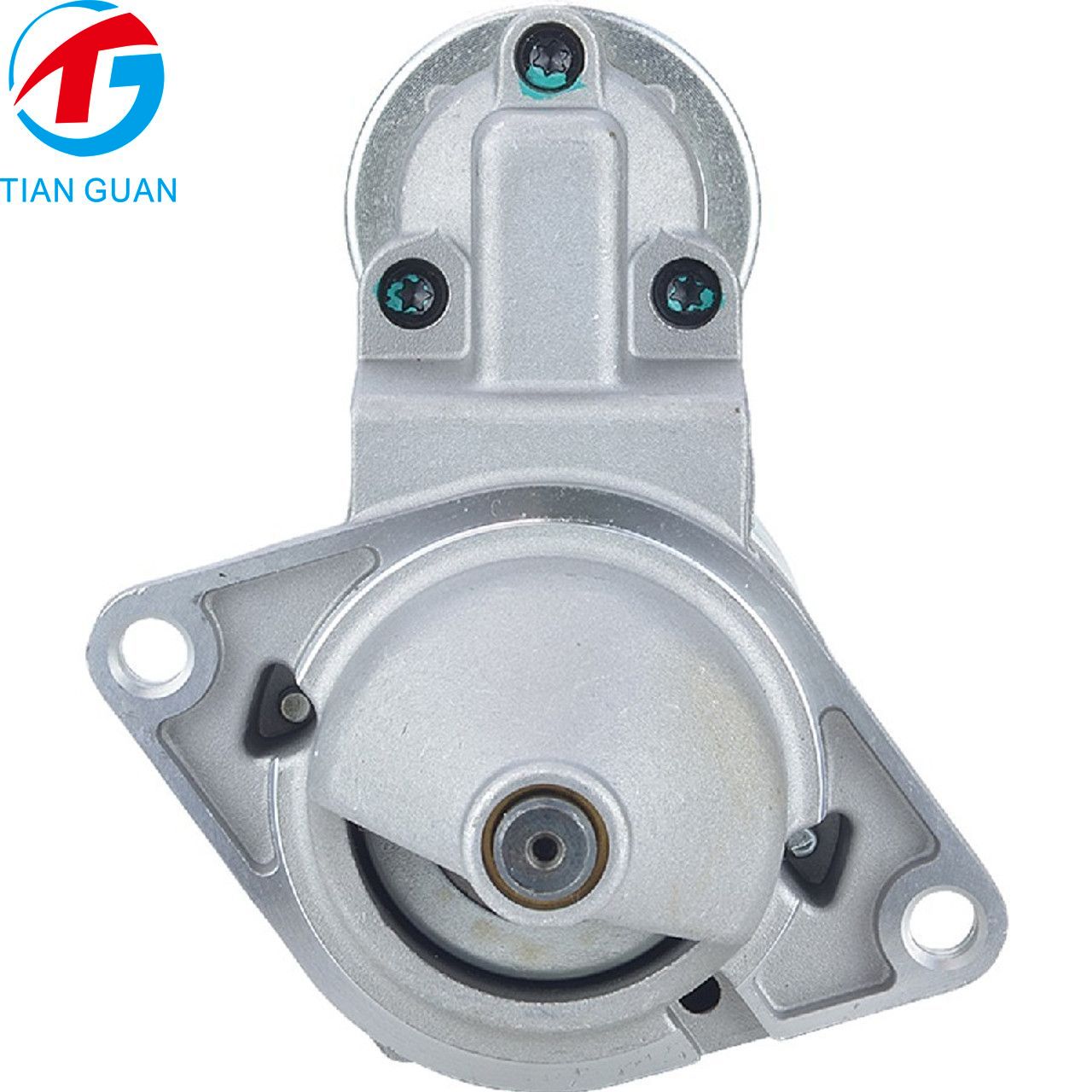

The STG51272 Starter Motor is an aftermarket replacement starter listed for selected General Motors applications with a 1.6L engine. Designed for a 12V electrical system, this starter delivers 0.9 kW of power and features a 9-tooth pinion gear, clockwise rotation, and a permanent magnet direct drive (PMDD) design.

The PMDD configuration provides a compact starter design intended for applications requiring the specified starting-system arrangement. Its 9-tooth pinion and clockwise rotation are important identification details when comparing this unit with the original starter. Before installation, check the mounting dimensions, gear engagement, electrical connections, and original part number to ensure a suitable match.

The STG51272 cross-references Bosch F000AL0304, F009AL0304, F00E100290, and SR5046X, as well as General Motors 93288991 and Lester 30325. The supplied application data identifies GM medium- and heavy-duty trucks under various models, but does not specify model years or confirm a complete vehicle list. Verify the engine, vehicle configuration, and original starter reference before ordering.

Key Features

• Product SKU: STG51272

• Product Type: Starter Motor

• Condition: Aftermarket Part

• Voltage: 12V

• Power Output: 0.9 kW

• Pinion Teeth: 9

• Rotation: Clockwise (CW)

• Starter Type: Permanent Magnet Direct Drive (PMDD)

• Listed Engine Application: GM 1.6L

• Primary Cross Reference: Bosch F00E100290

• Additional References: Bosch SR5046X, GM 93288991, Lester 30325

Product Specifications

Vehicle / Equipment Fitment
