STG51296 Starter Motor 0825-015 0825-025 SMU0509 410-58044 for Arctic Cat 1000 ATV Prowler 1000 XTZ | 12V 9T CW PMDD Replacement

3 Reviews

Add Your Review

US$76.00

ITEMNO： STG51296

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG51296 Starter Motor 0825-015 0825-025 SMU0509 410-58044 for Arctic Cat 1000 ATV Prowler 1000 XTZ | 12V 9T CW PMDD Replacement

Part Numbers

Arctic Cat / Arctco: 0825-015 / 0825-025

Arrowhead: SMU0509 / 410-58044

Lester: 19879

Tucker Rocky: 495878

Product Description

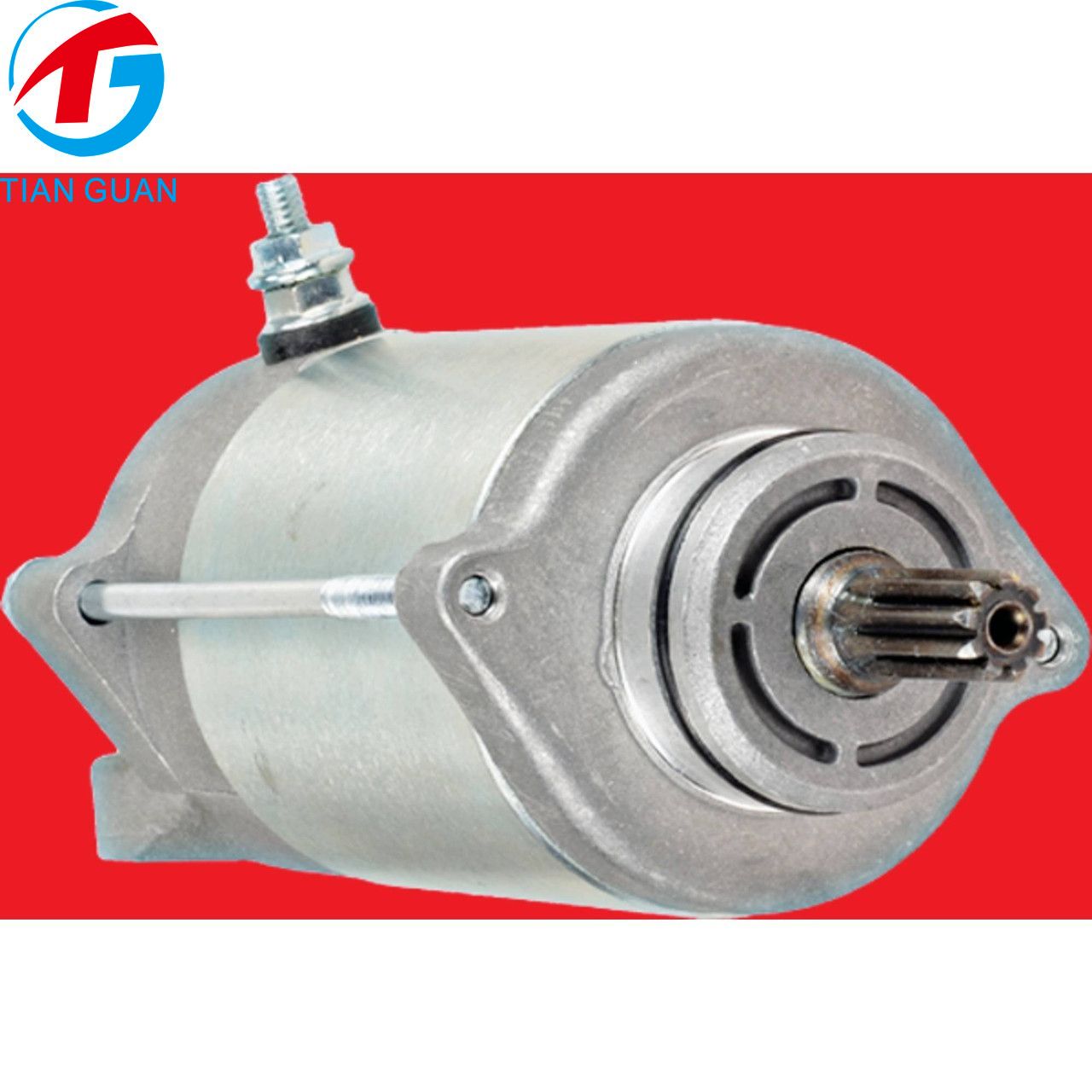

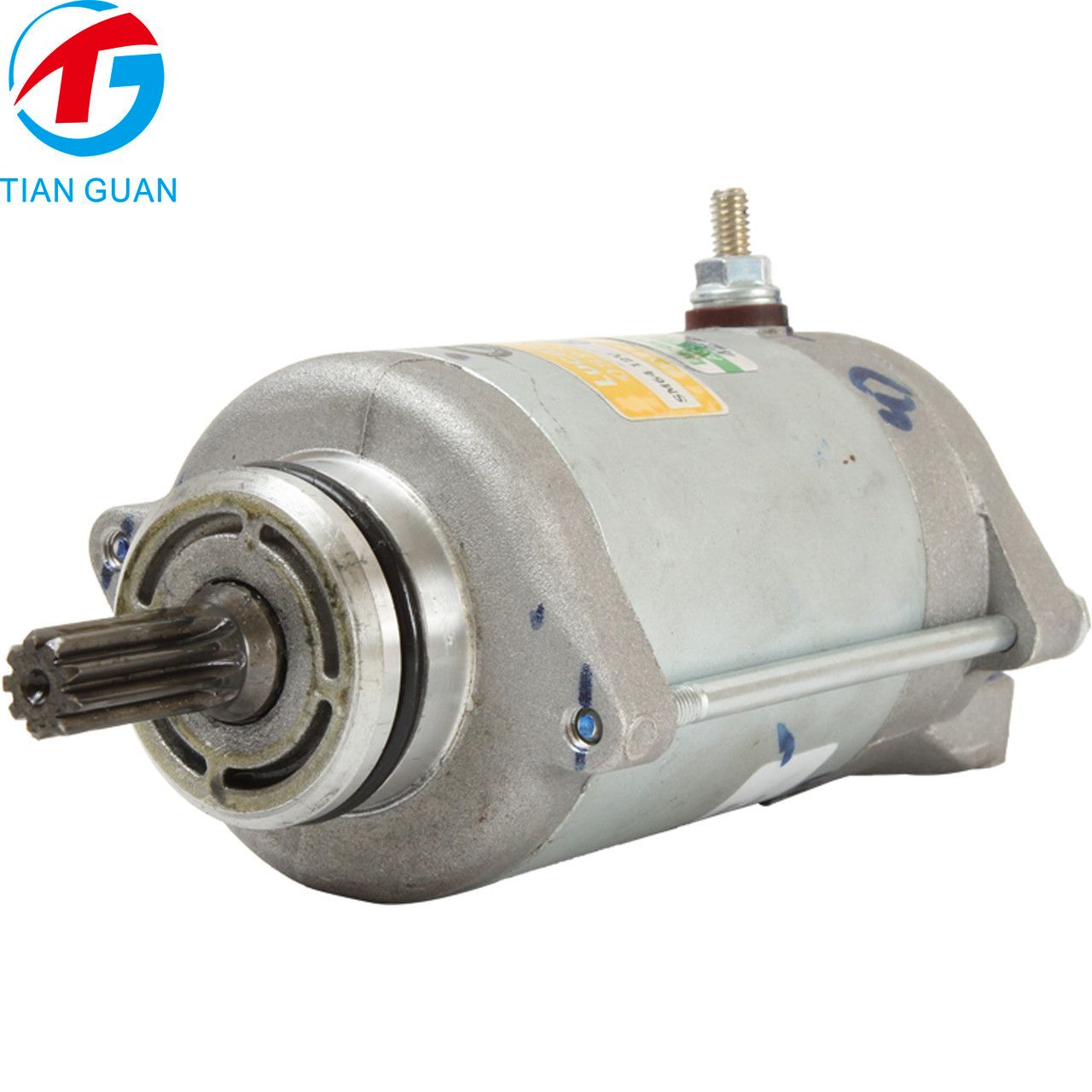

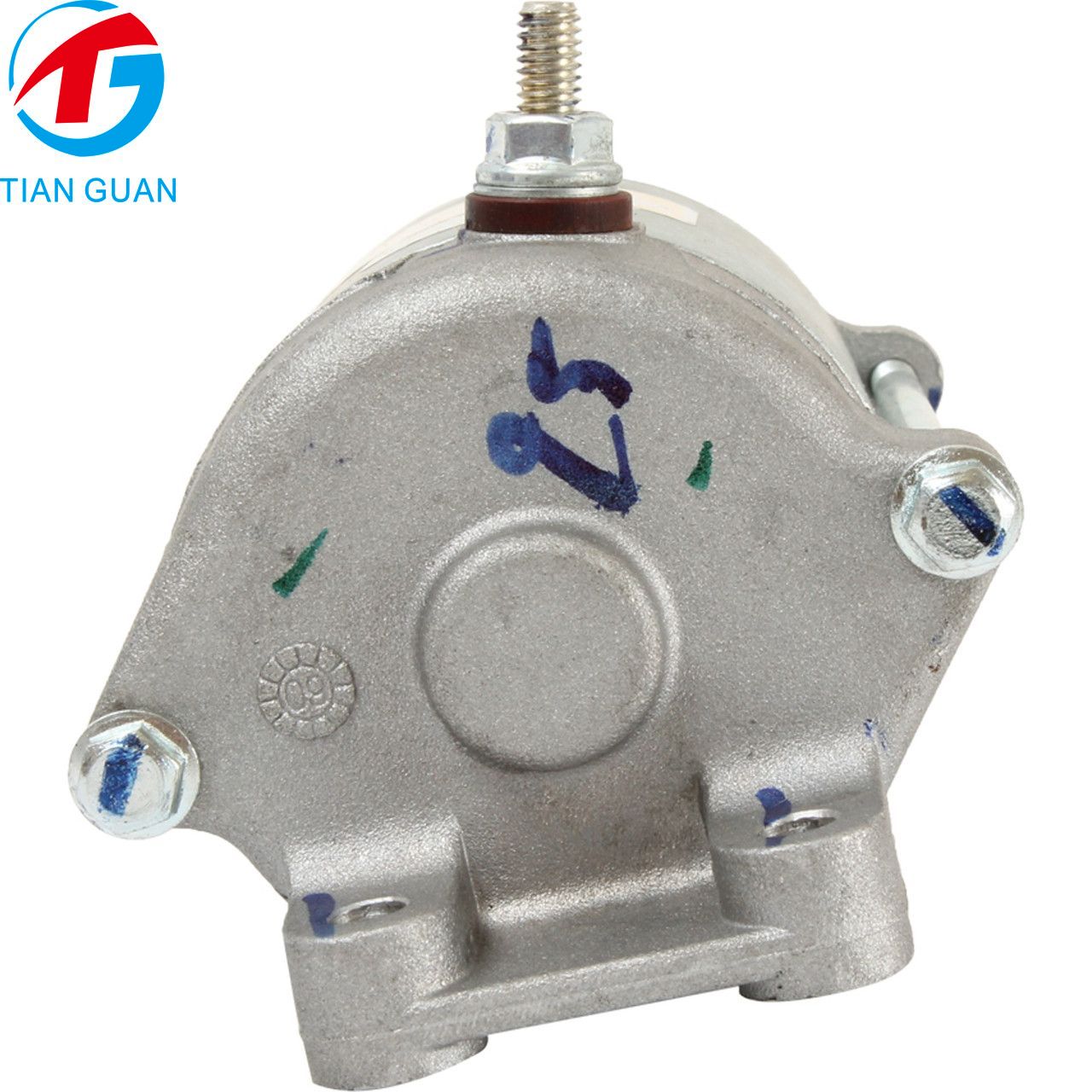

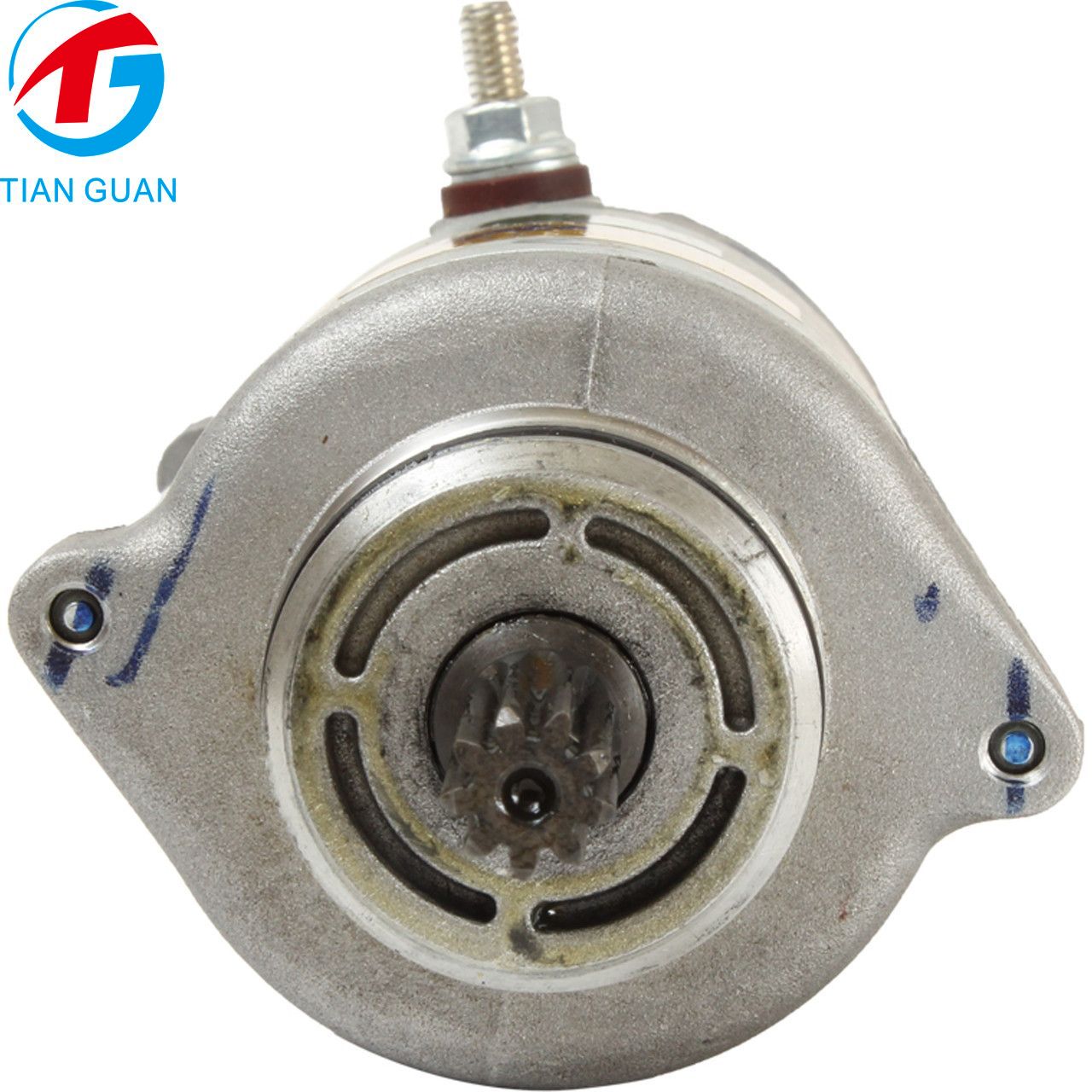

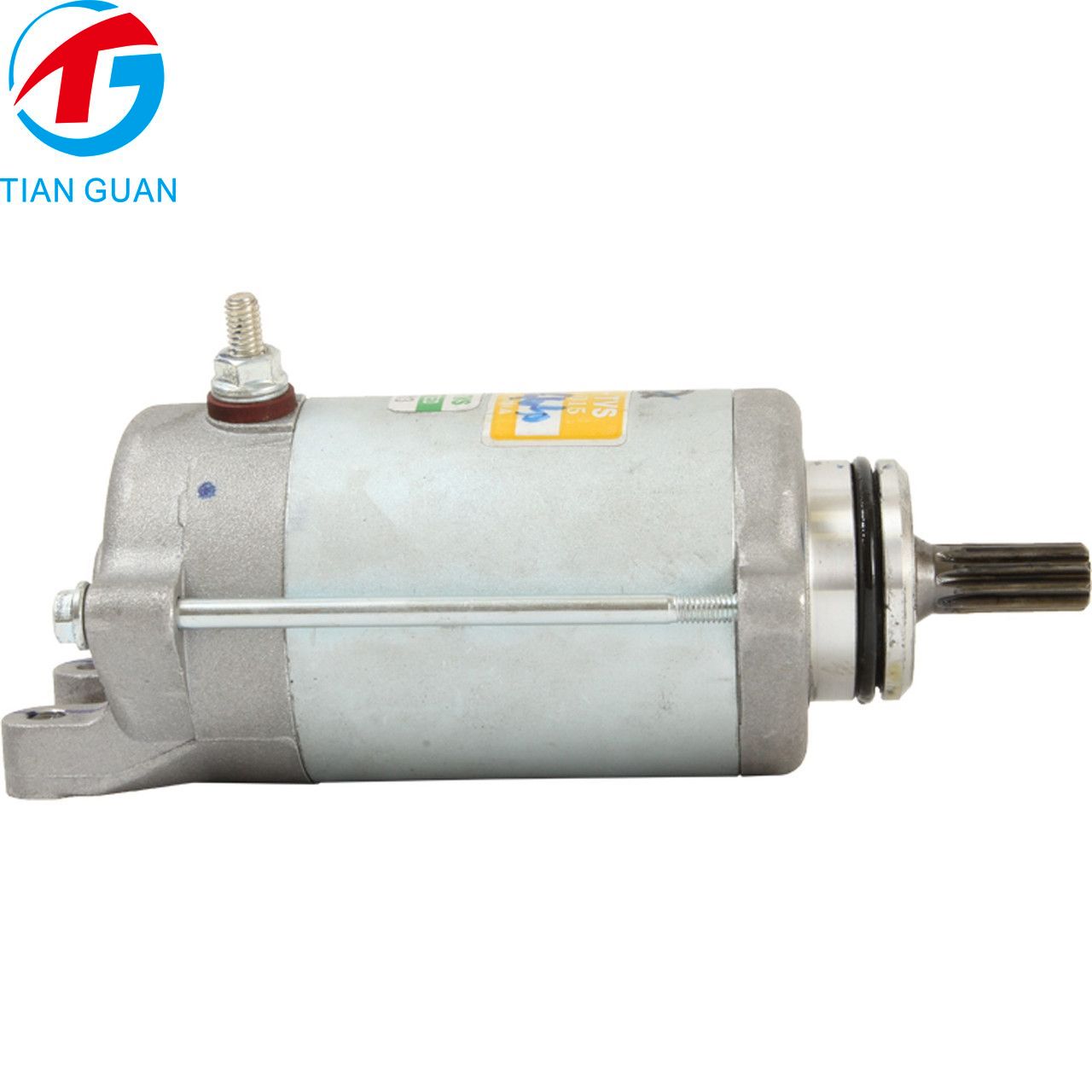

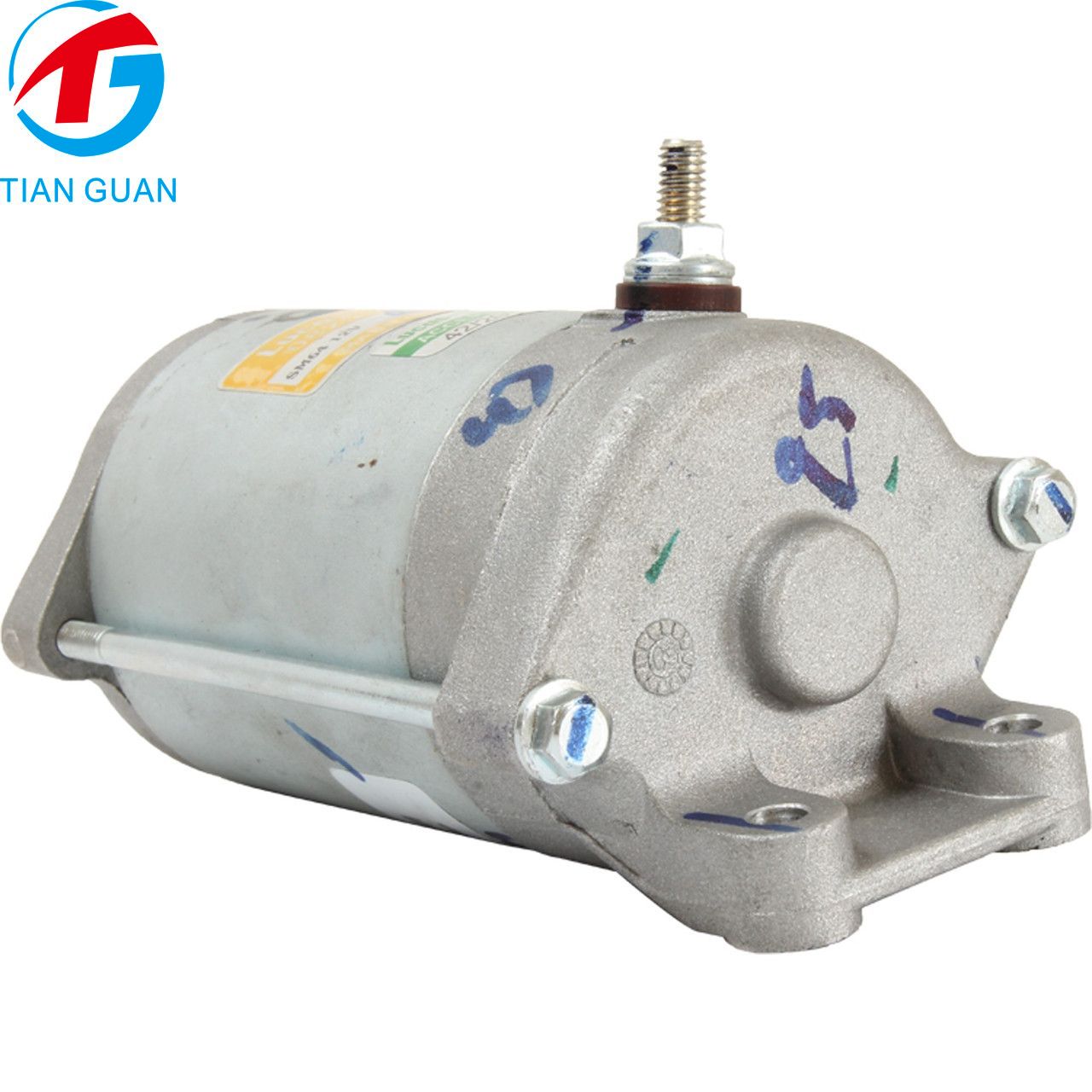

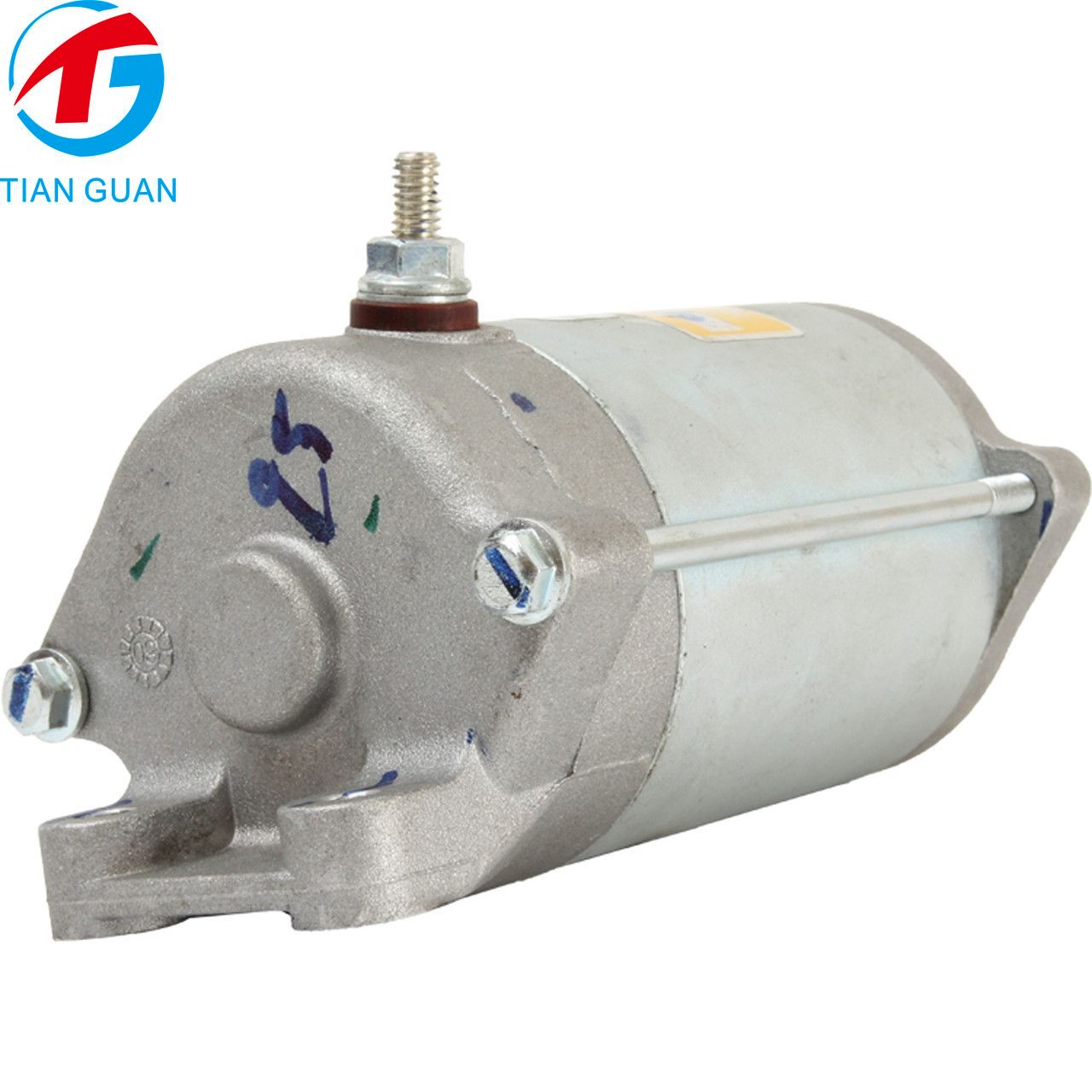

The STG51296 Starter Motor is an aftermarket replacement starter designed for selected Arctic Cat 1000cc-class ATVs and UTVs equipped with 951cc engines.

Featuring a 12V electrical system, a 9-tooth pinion gear, clockwise (CW) rotation, and a permanent magnet direct drive (PMDD) design, this starter is listed for selected Arctic Cat 1000 GT, LTD, Mud Pro, TRV, Thundercat H2, and Prowler 1000 XTZ models.

Important: This starter has a 12mm shaft outside diameter and does not interchange with applications requiring a 14mm shaft. Check the original starter shaft diameter and part number before ordering.

Product Specifications

Specification	Details
Product SKU	STG51296
Product Type	Starter Motor
Condition	New Aftermarket Part
Voltage	12V
Rotation Direction	Clockwise (CW)
Number of Pinion Teeth	9T
Starter Type	Permanent Magnet Direct Drive (PMDD)
Shaft Outside Diameter	12mm
Engine Displacement	951cc
Primary Application	Selected Arctic Cat ATVs and UTVs
Interchange Restriction	Not compatible with 14mm shaft OD applications
Estimated Net Weight	1.8kg

OEM / Cross Reference Numbers

Brand / Category	Reference Part Numbers
Arctic Cat / Arctco	0825-015, 0825-025
Arrowhead	SMU0509, 410-58044
Lester	19879
Tucker Rocky	495878

Compatible Applications

Make	Vehicle Type	Model	Year	Engine
Arctic Cat	ATV	1000 GT	2012	951cc
Arctic Cat	ATV	1000 LTD	2011	951cc
Arctic Cat	ATV	1000 Mud Pro	2010	951cc
Arctic Cat	ATV	1000 Mud Pro	2011	951cc
Arctic Cat	ATV	1000 Mud Pro	2012	951cc
Arctic Cat	ATV	1000 Mud Pro	2013	951cc
Arctic Cat	ATV	1000 TRV	2009	951cc
Arctic Cat	ATV	1000 TRV	2010	951cc
Arctic Cat	ATV	1000 TRV Cruiser	2009	951cc
Arctic Cat	ATV	1000 TRV Cruiser	2010	951cc
Arctic Cat	ATV	1000 TRV Cruiser	2011	951cc
Arctic Cat	ATV	1000 TRV GT	2012	951cc
Arctic Cat	ATV	1000 TRV LTD	2013	951cc
Arctic Cat	ATV	1000 XT	2013	951cc
Arctic Cat	ATV	Thundercat H2	2010	951cc
Arctic Cat	UTV	Prowler 1000 XTZ	2008	951cc
Arctic Cat	UTV	Prowler 1000 XTZ	2009	951cc
Arctic Cat	UTV	Prowler 1000 XTZ	2010	951cc
Arctic Cat	UTV	Prowler 1000 XTZ	2011	951cc
Arctic Cat	UTV	Prowler 1000 XTZ	2012	951cc
Arctic Cat	UTV	Prowler 1000 XTZ	2013	951cc

PRODUCT HIGHLIGHTS

Product Highlights

Reliable Starting Performance	Compact PMDD Construction	Critical Shaft Compatibility
12V system with a 9-tooth pinion and clockwise rotation	Permanent magnet direct drive design for compatible Arctic Cat vehicles	12mm shaft OD; not interchangeable with 14mm shaft applications
