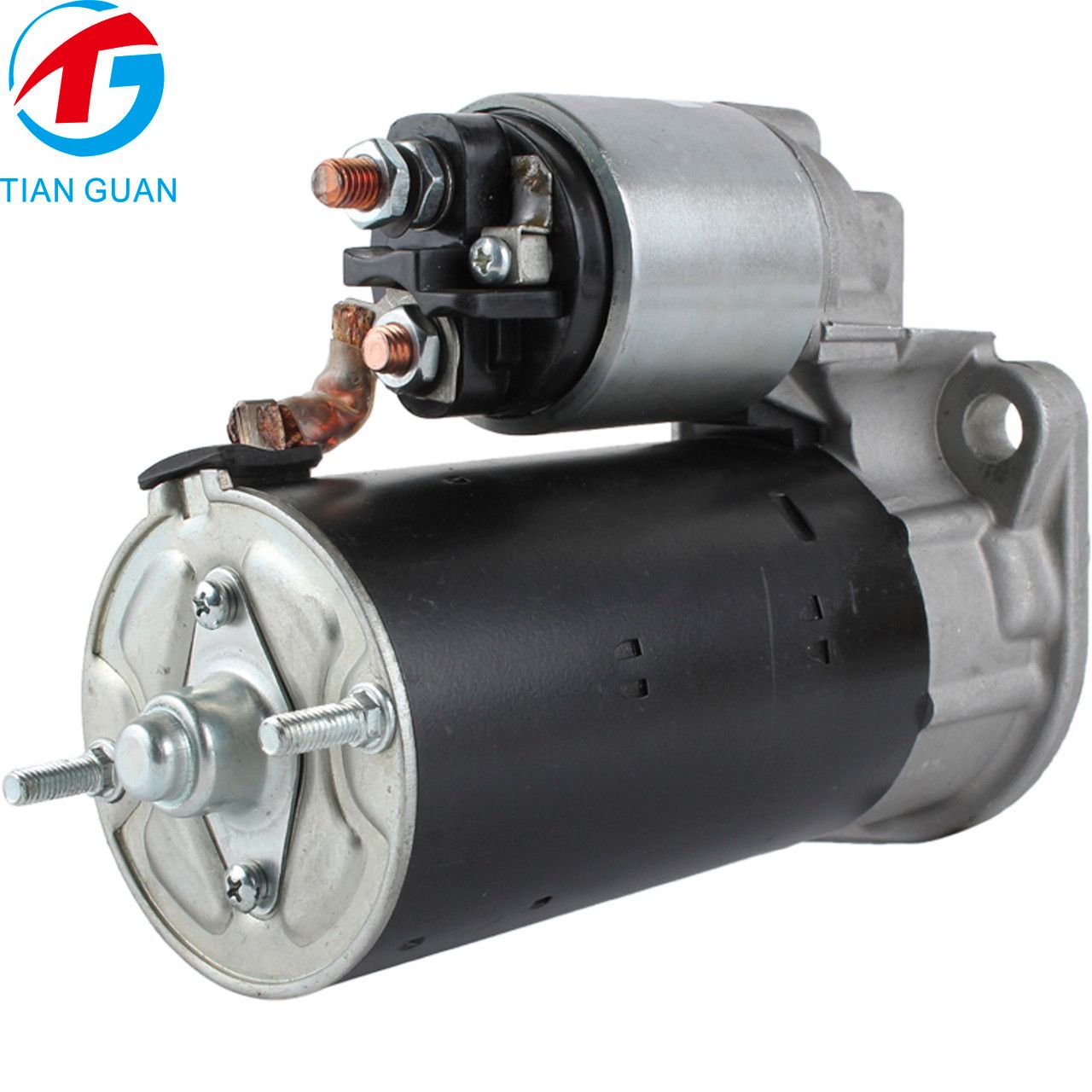

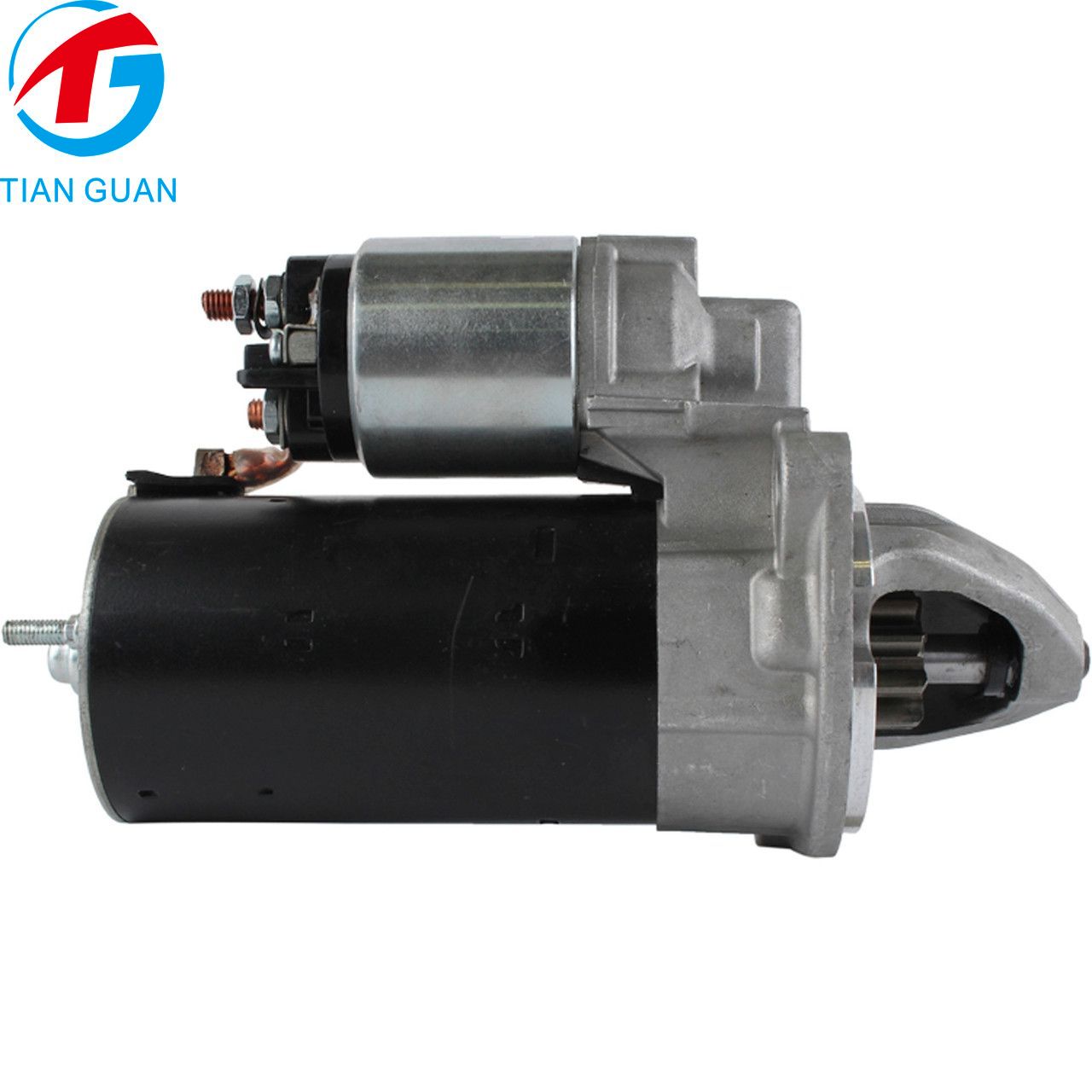

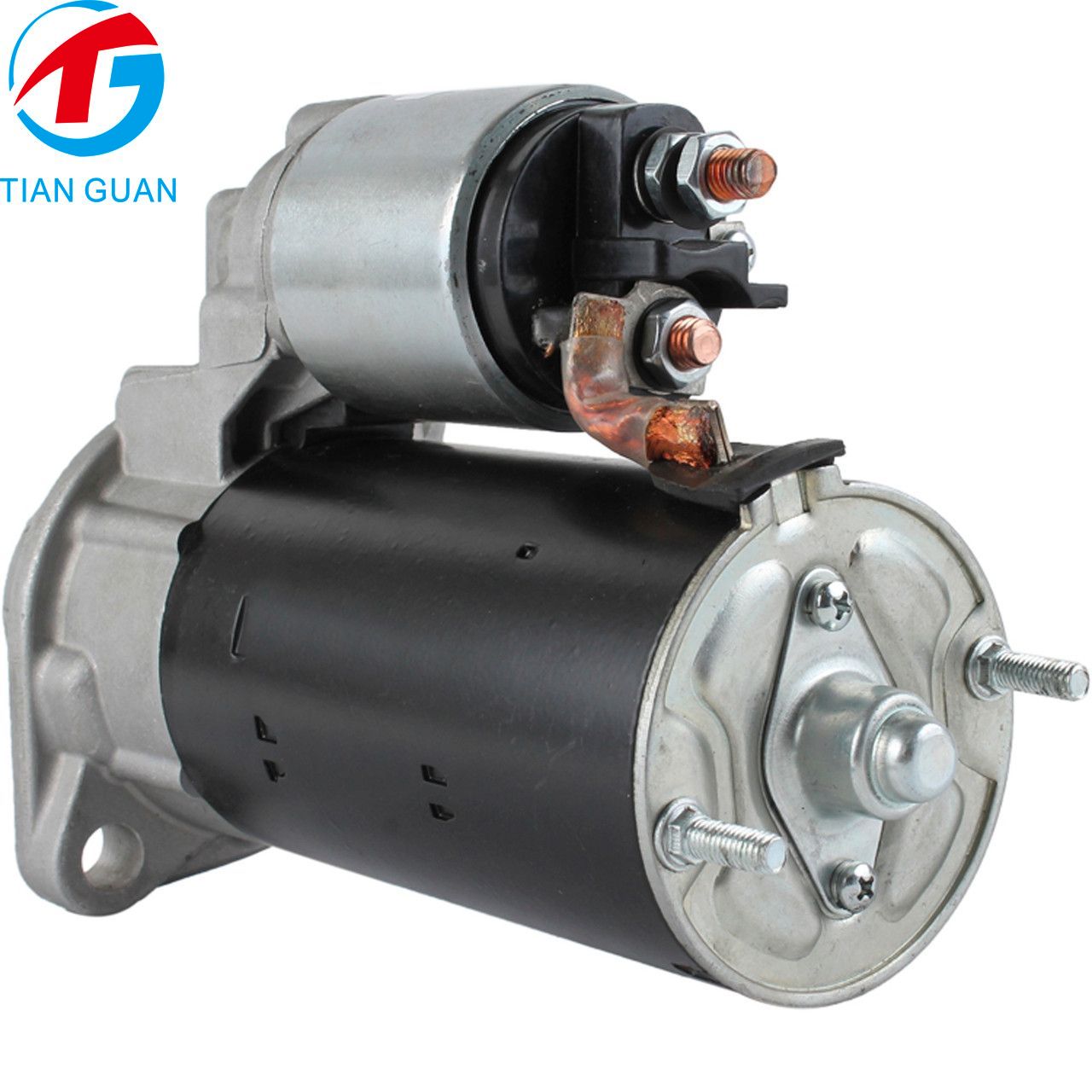

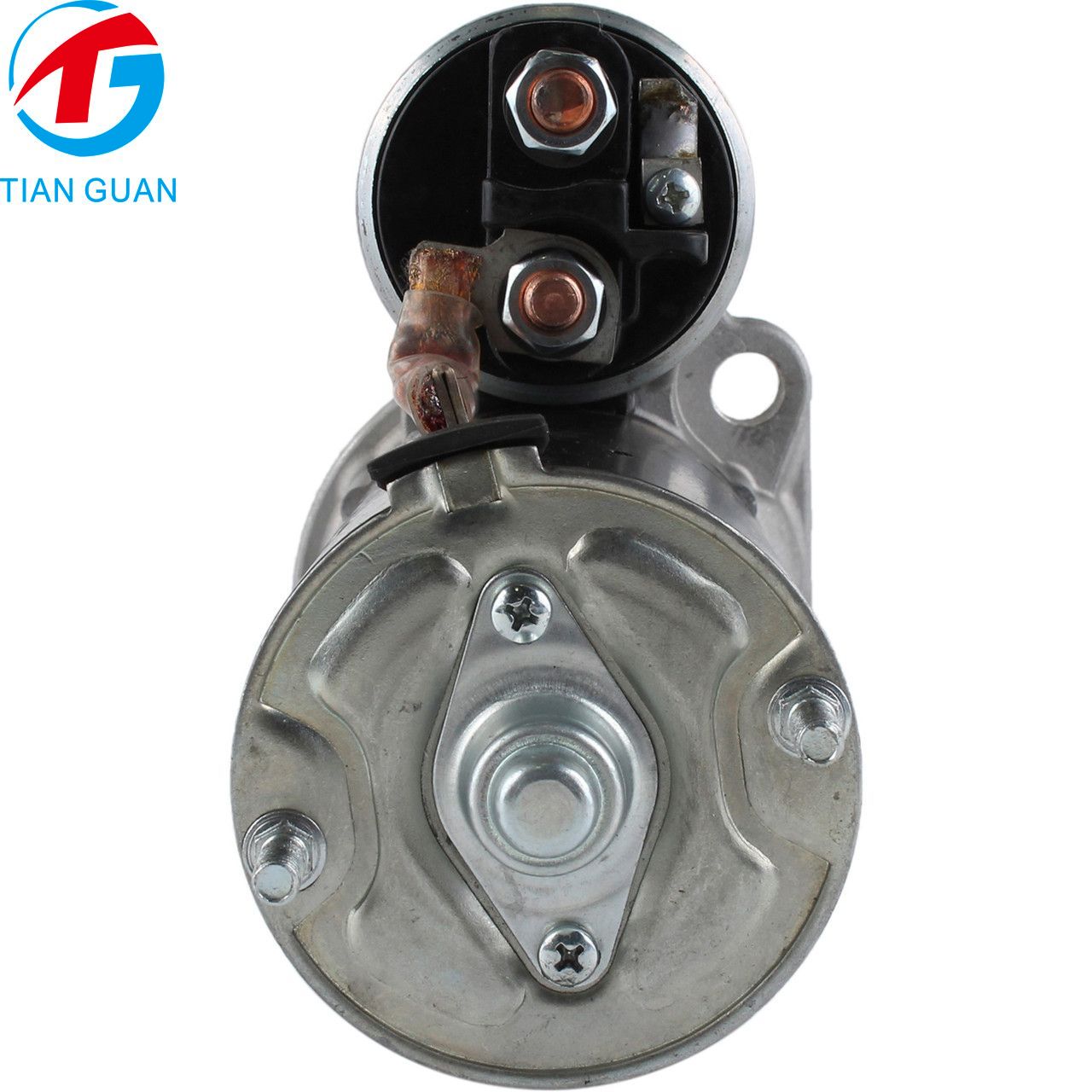

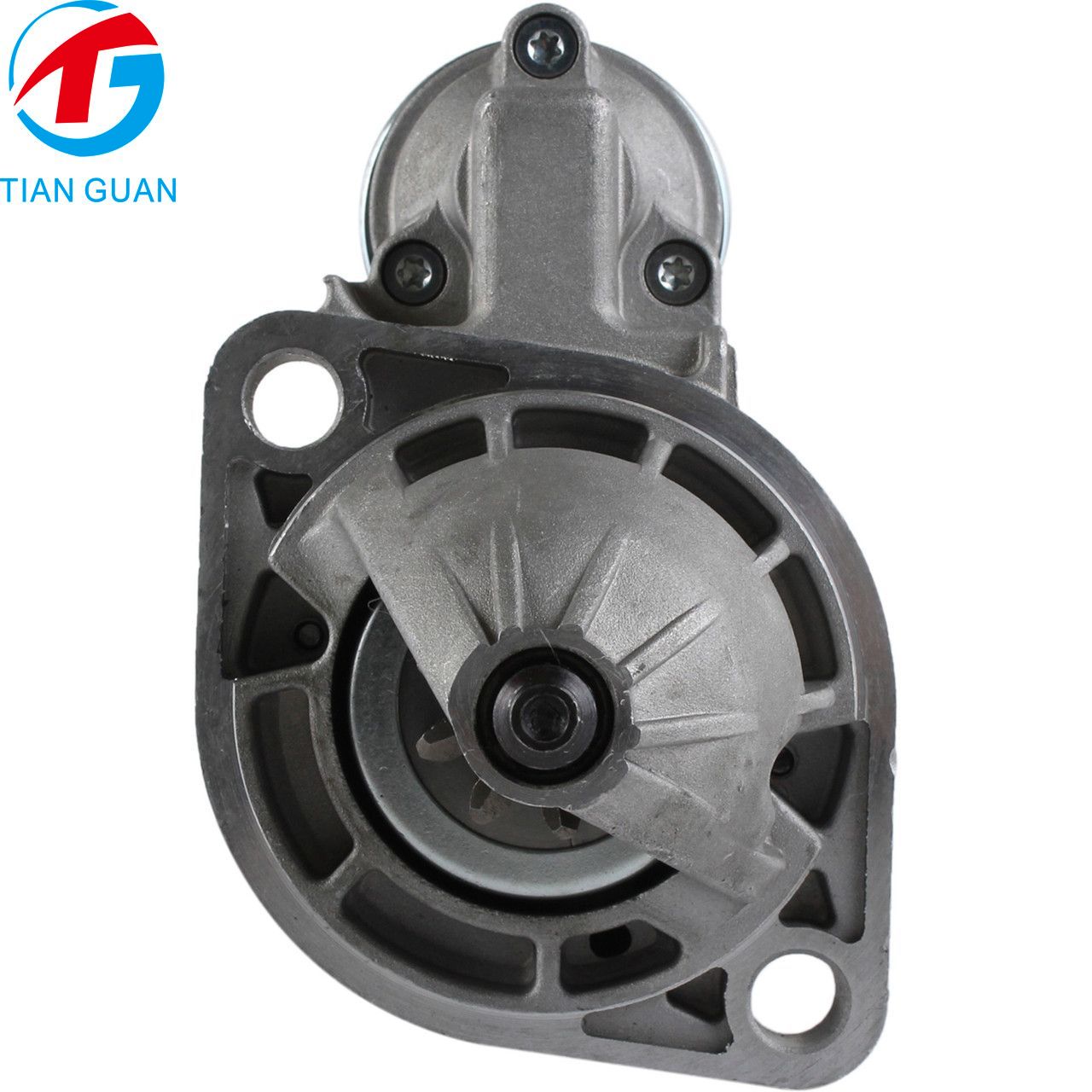

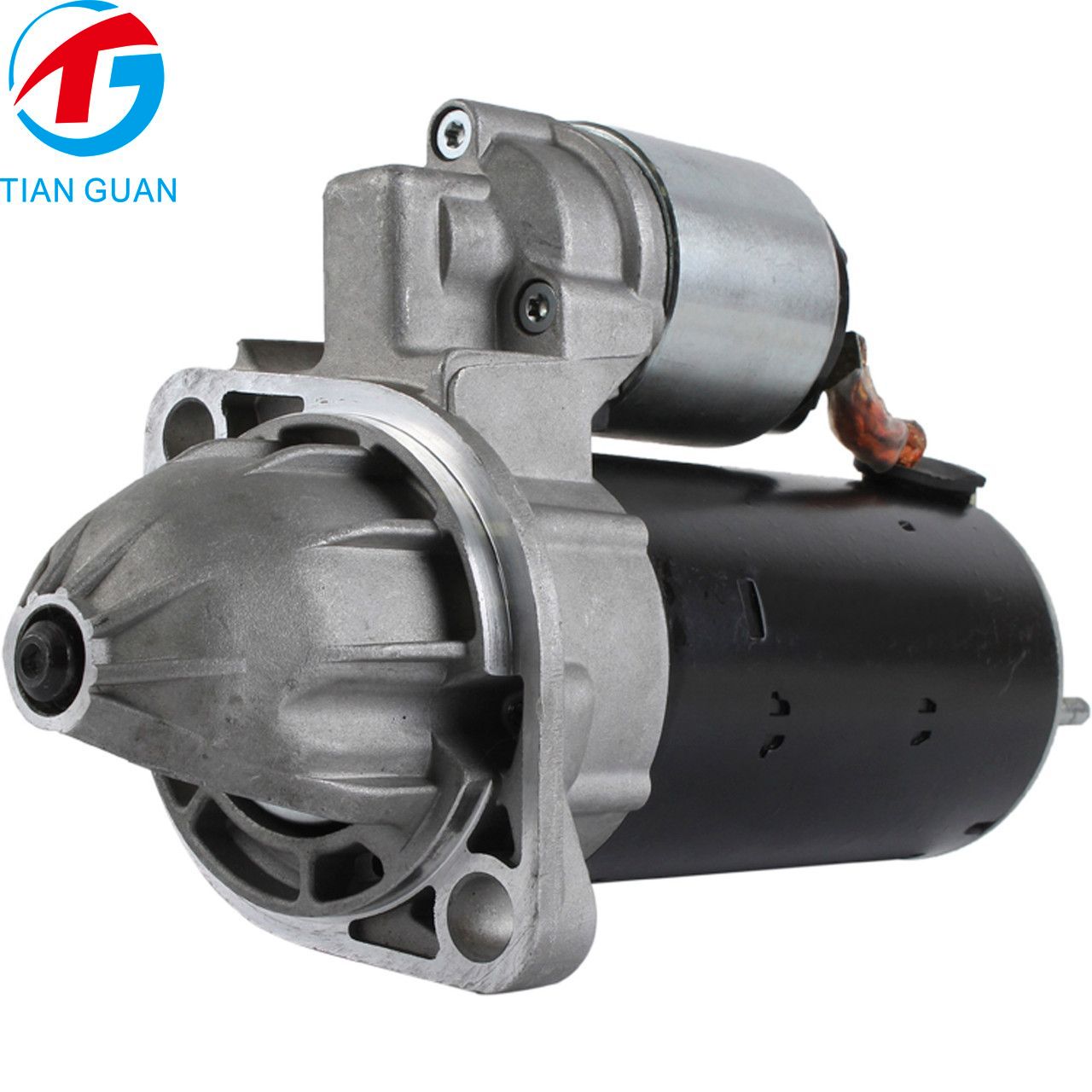

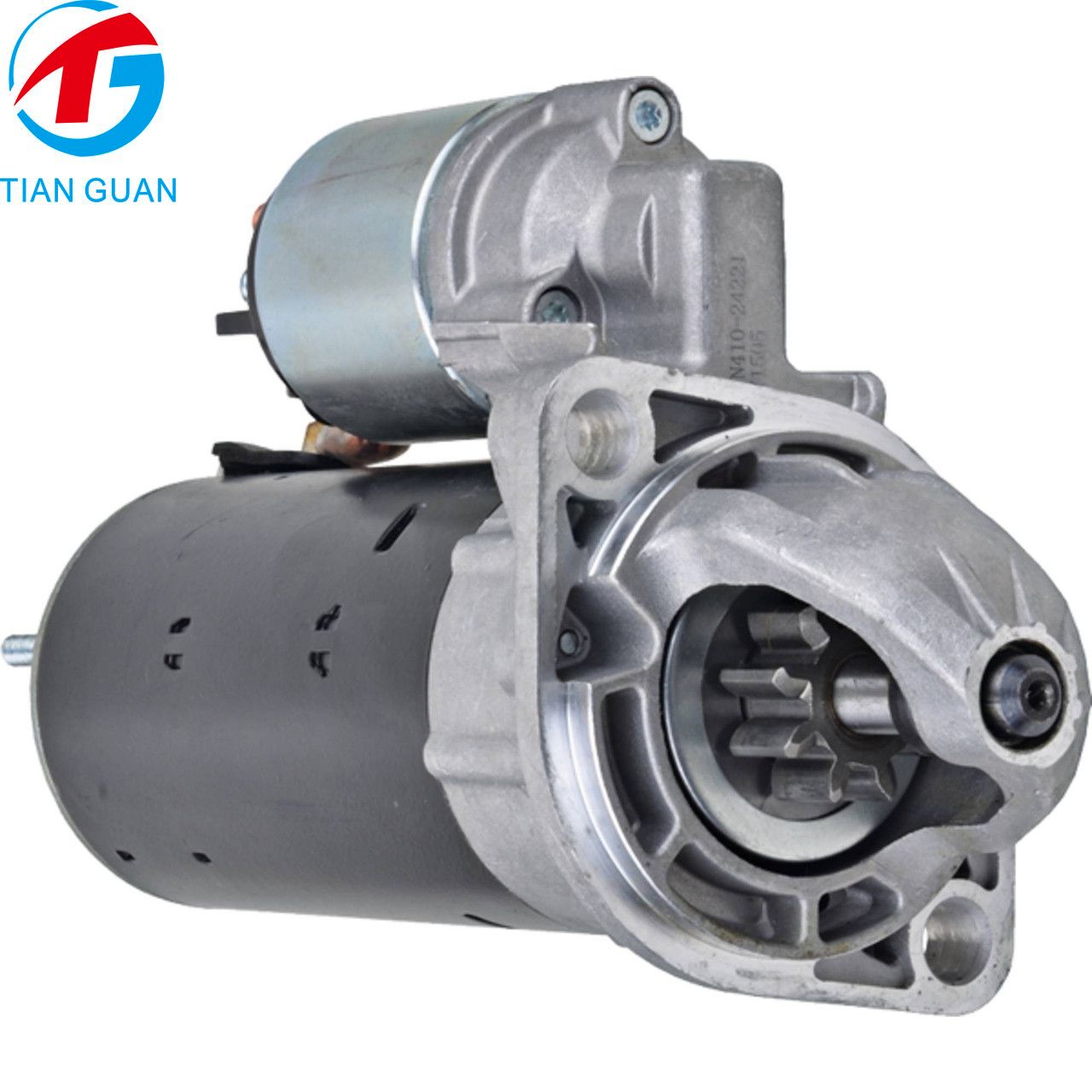

STG51449 Starter 0001109357 0001109358 0001109522 50128567 50137632 for VMI Motori 2.7L 3.0L Engines John Deere 76F 85F 100F

Part Numbers

BOSCH: 0001109357, 0001109358, 0001109522, 0001218176, 0001218776, 0001218819, 1986S00740, 9000331418
MAGNETI MARELLI: 063521093570, 63521093570, MSN2031
HC-CARGO: 114055, 116579, F032114055, F032116579
AES: 12130321, 12130420
WAI: 18952N, 31679N
DELCO REMY: 19084024, DRS0786
VM: 35532054F, 35532063F
PSH: 420501092
MEAT & DORIA: 5010981, 5010981G
YALE: 50128567, 50137632
WILSON: 91157163
JOHN DEERE: FGV35532054
LUCAS: LRS02556, LRS2556
RNL: RNL109357, RNL218176
WOOD AUTO: SEG0001109357, STR50063, WOOSTR50063

Product Description

This premium aftermarket 12V 2.3KW Starter Motor is designed as a direct replacement for VMI Motori 2.7L and 3.0L engines, as well as John Deere 76F, 85F, and 100F applications. With 9-tooth pinion gear and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding industrial and agricultural applications.

This starter replaces OE part numbers 0001109357, 0001109358, 0001109522, 0001218176, 0001218776, 0001218819, 1986S00740, 9000331418 (Bosch),  063521093570, 63521093570, MSN2031 (Magneti Marelli), 114055, 116579, F032114055, F032116579 (HC-Cargo), 12130321, 12130420 (AES), 18952N, 31679N (WAI), 19084024, DRS0786 (Delco Remy), 35532054F, 35532063F (VM), 420501092 (PSH), 5010981, 5010981G (Meat & Doria), 50128567, 50137632 (Yale), 91157163 (Wilson), FGV35532054 (John Deere), LRS02556, LRS2556 (Lucas), RNL109357, RNL218176 (RNL), and SEG0001109357, STR50063, WOOSTR50063 (Wood Auto).

• 12V starter motor

• 2.3KW power output

• 9-tooth pinion gear

• Clockwise (CW) rotation

• Spigot: 82mm

• Pinion home position: 21

• B+ terminal: M8

• No. mounting holes: 2

• Position: +140°

• PSH number: 420.501.092.011

• GTIN: 8720264162604

• Direct replacement for VMI Motori 2.7L / 3.0L

• Fits John Deere 76F / 85F / 100F

• Aftermarket replacement part

• Approx. 3.8 kg

Specifications

Description: Starter VM 2.3KW
PSH Number: 420.501.092.011
GTIN: 8720264162604
Voltage: 12V
Power (kW): 2.3
Spigot (mm): 82
Teeth: 9
Pinion Home Position: 21
B+: M8
No. Mounting Holes: 2
Position (°): +140
Rotation: CW
Condition: Aftermarket Part
Weight: 3.8KG

Fitment

VMI Motori – Engine 2.7L
VMI Motori – Engine 3.0L
John Deere – 76F
John Deere – 85F
John Deere – 100F

Compatible with equipment using 0001109357, 0001109358, 0001109522, 50128567, 50137632, 35532054F, or FGV35532054 starter motor part numbers.
