STG51482 Starter Motor 228000-8470 AT195414 RE502811 RE506079 for John Deere Feller Buncher 740 840 Skidder 360D

Part Numbers

ARROWHEAD: SND0581
ARROWHEAD (OEM): ND228000-8470
DENSO: 228000-8470
JOHN DEERE: AT195414, RE502811, RE506079
LESTER: 18978
WAI: 18978N

Product Description

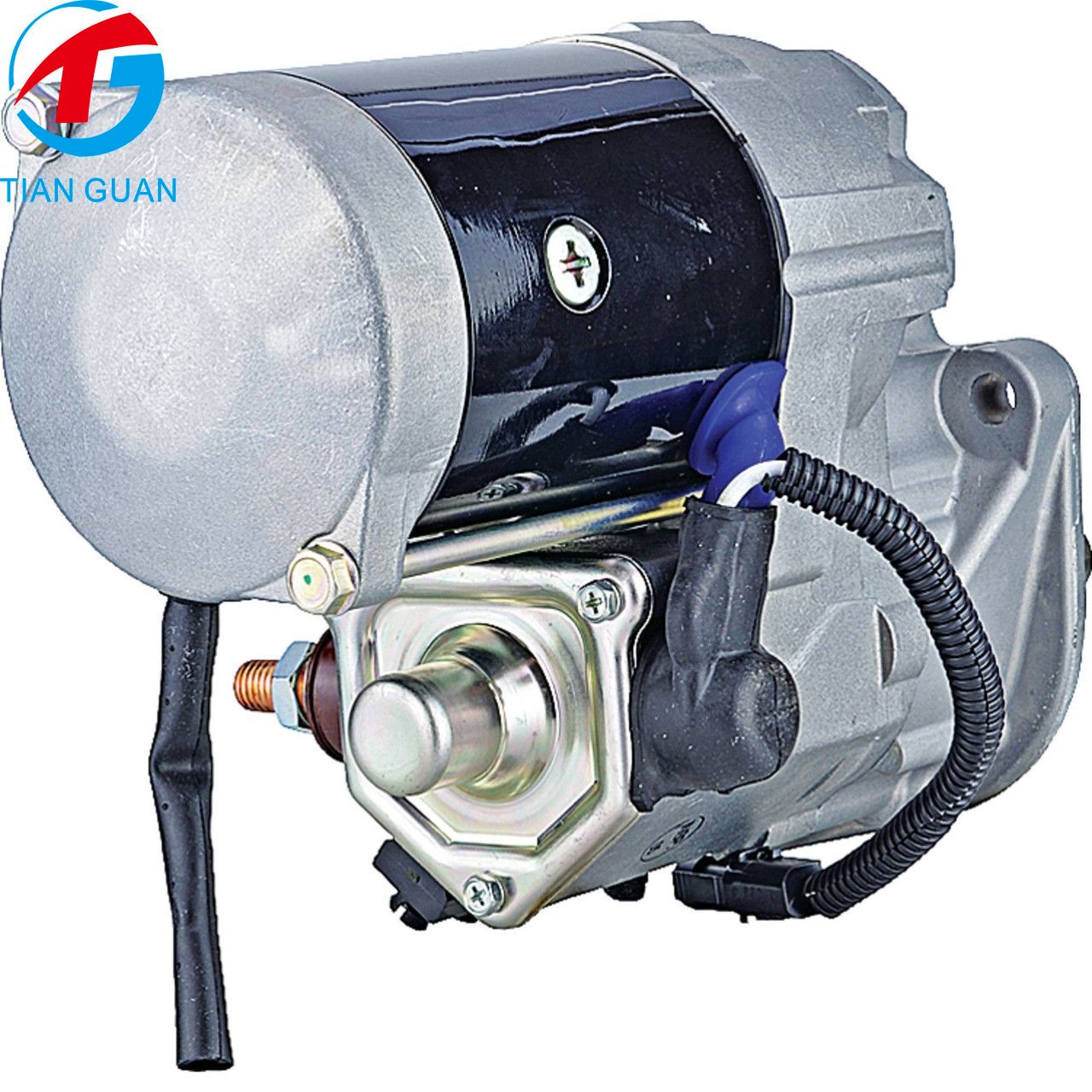

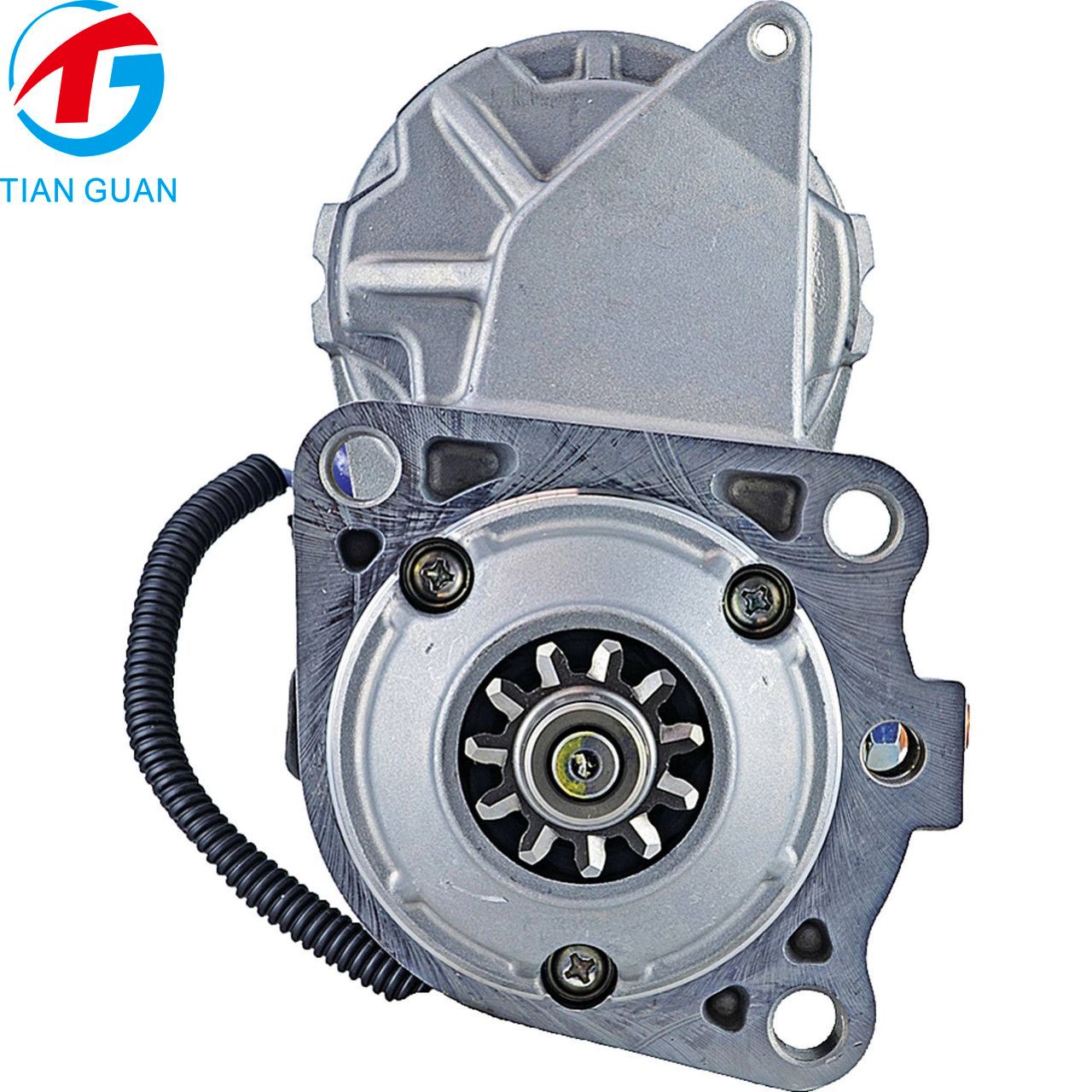

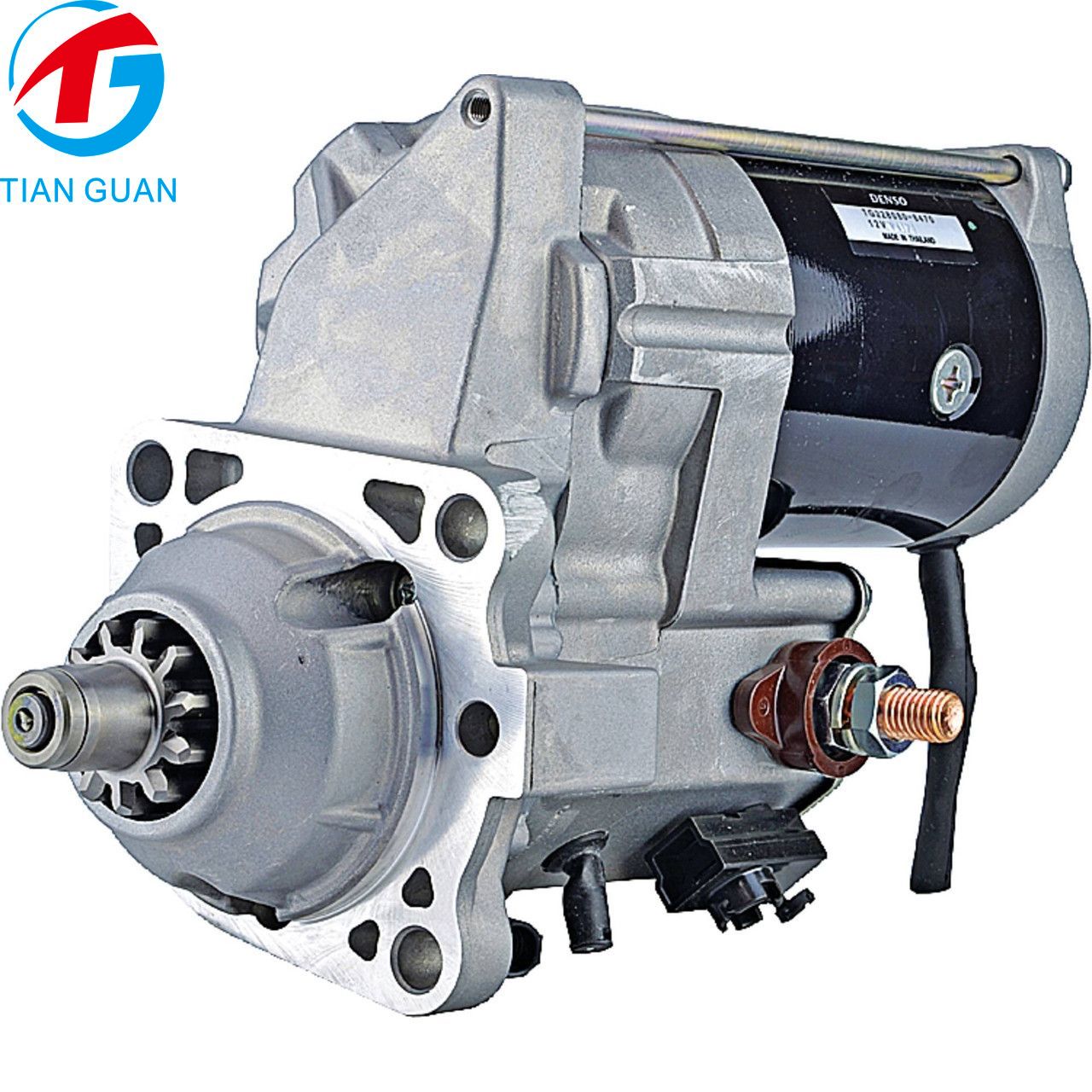

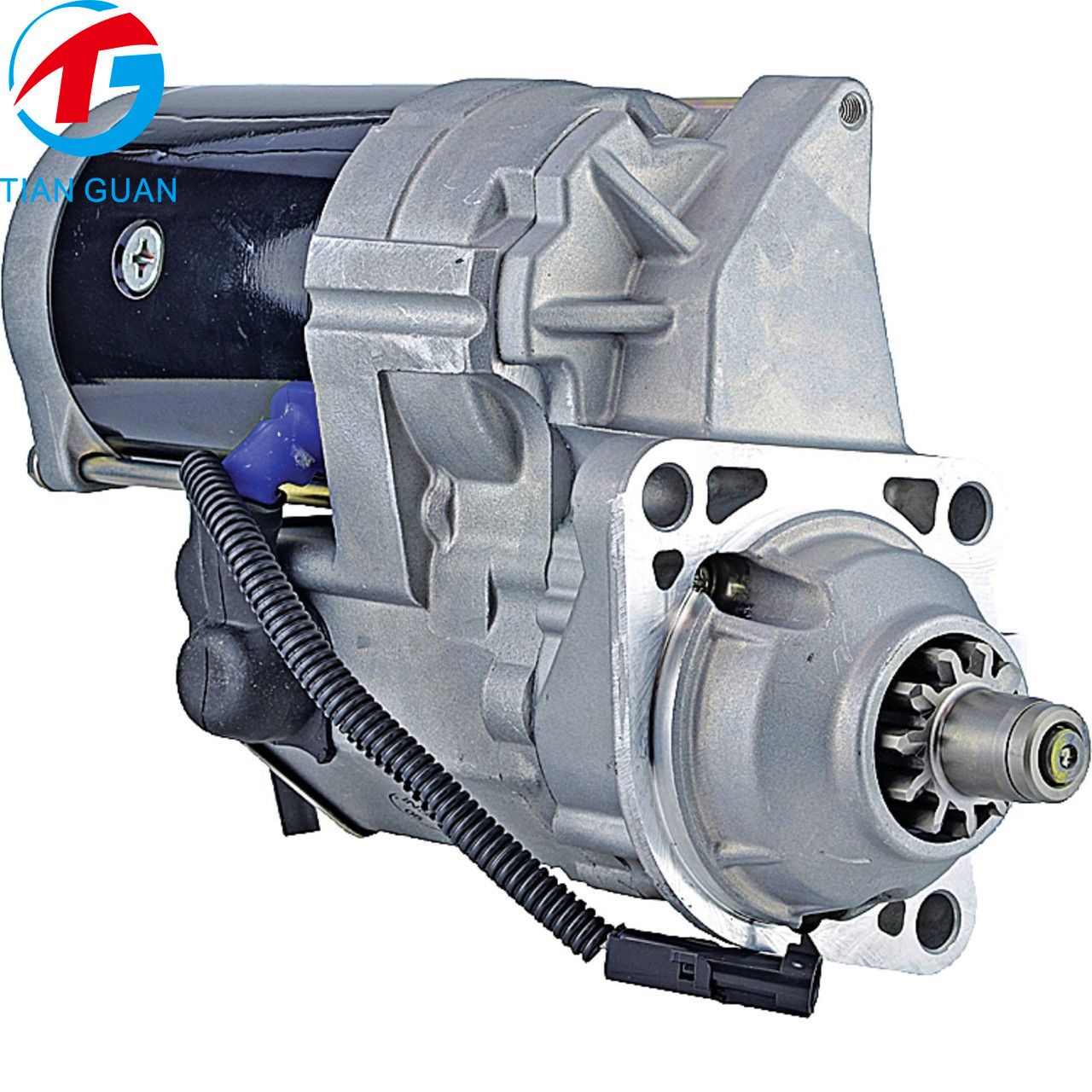

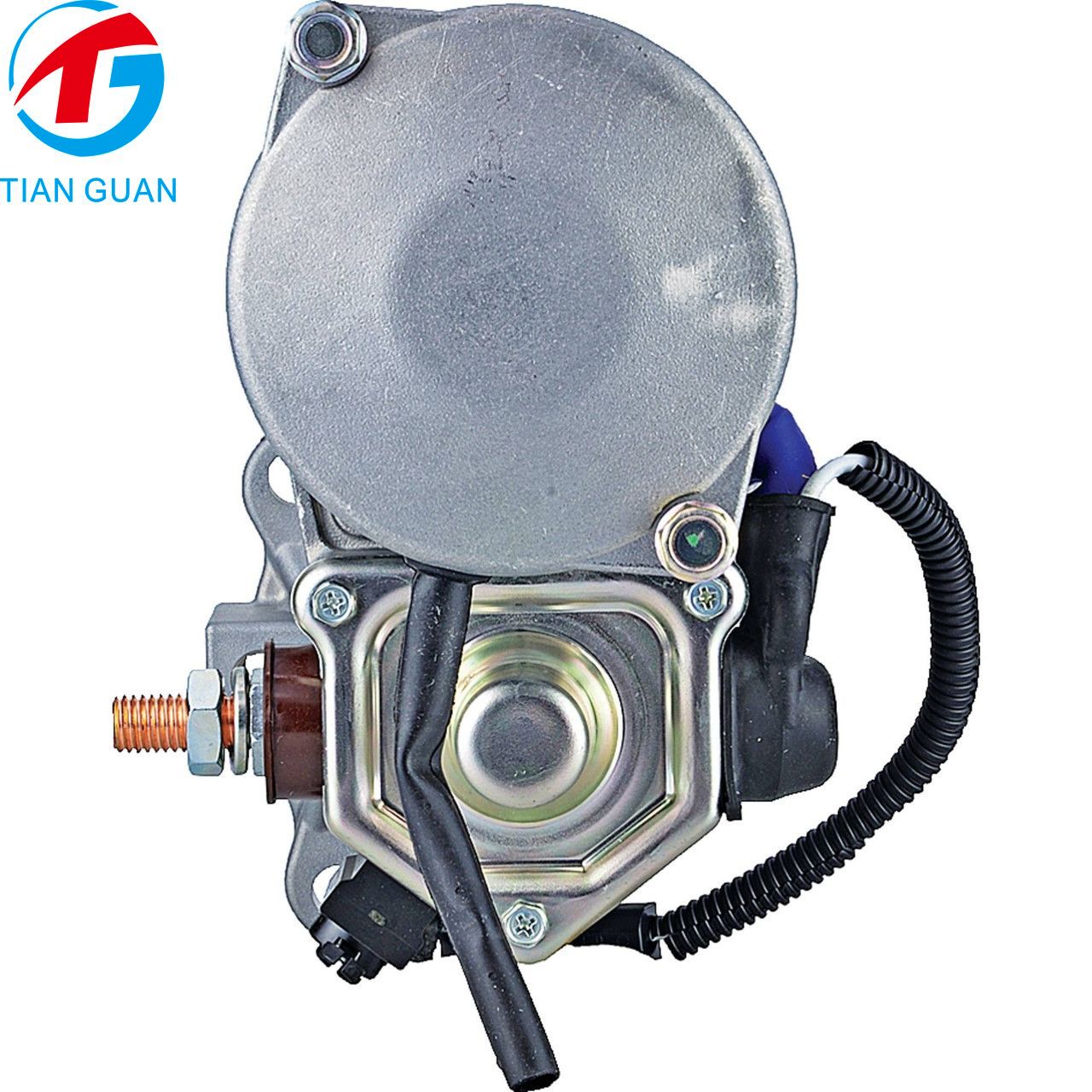

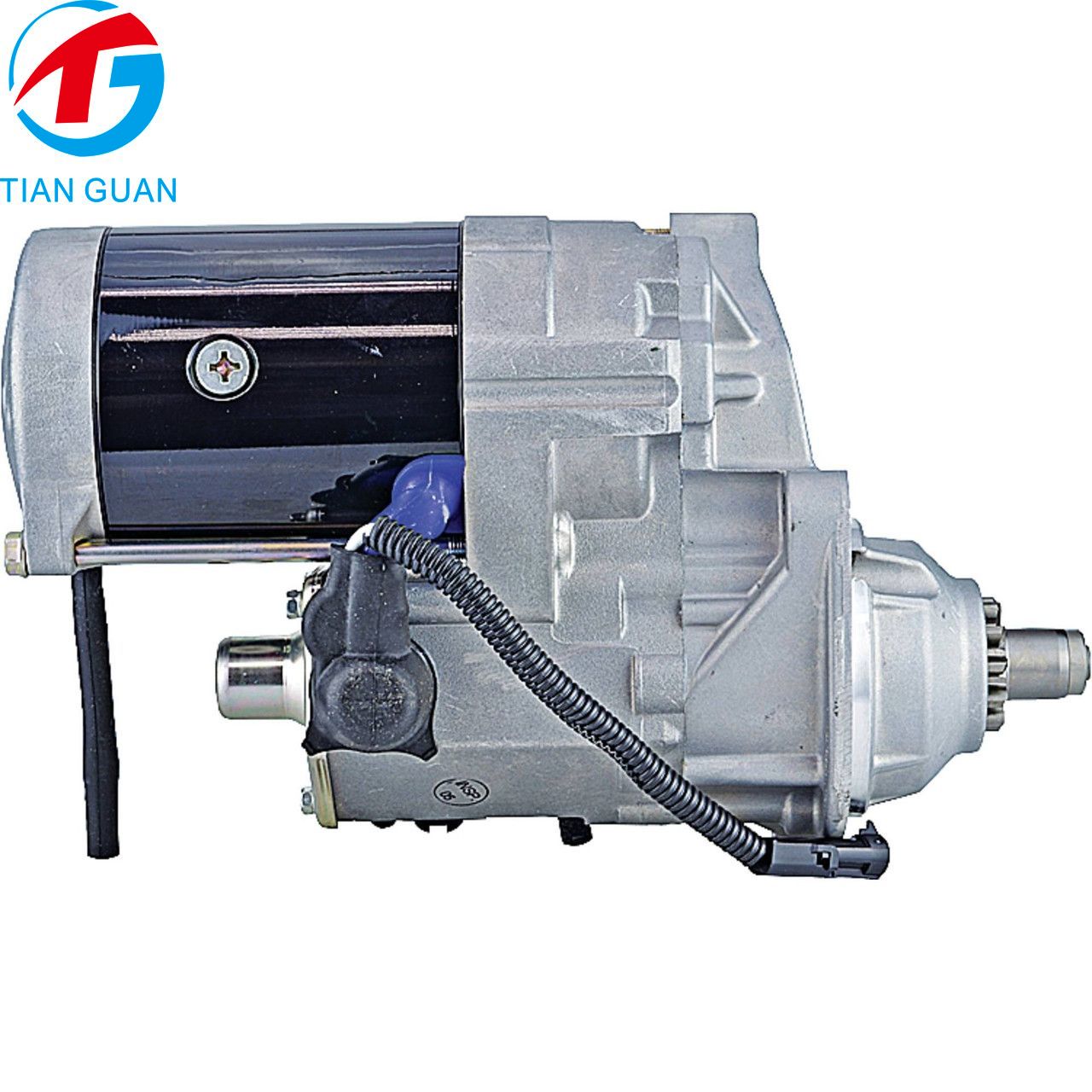

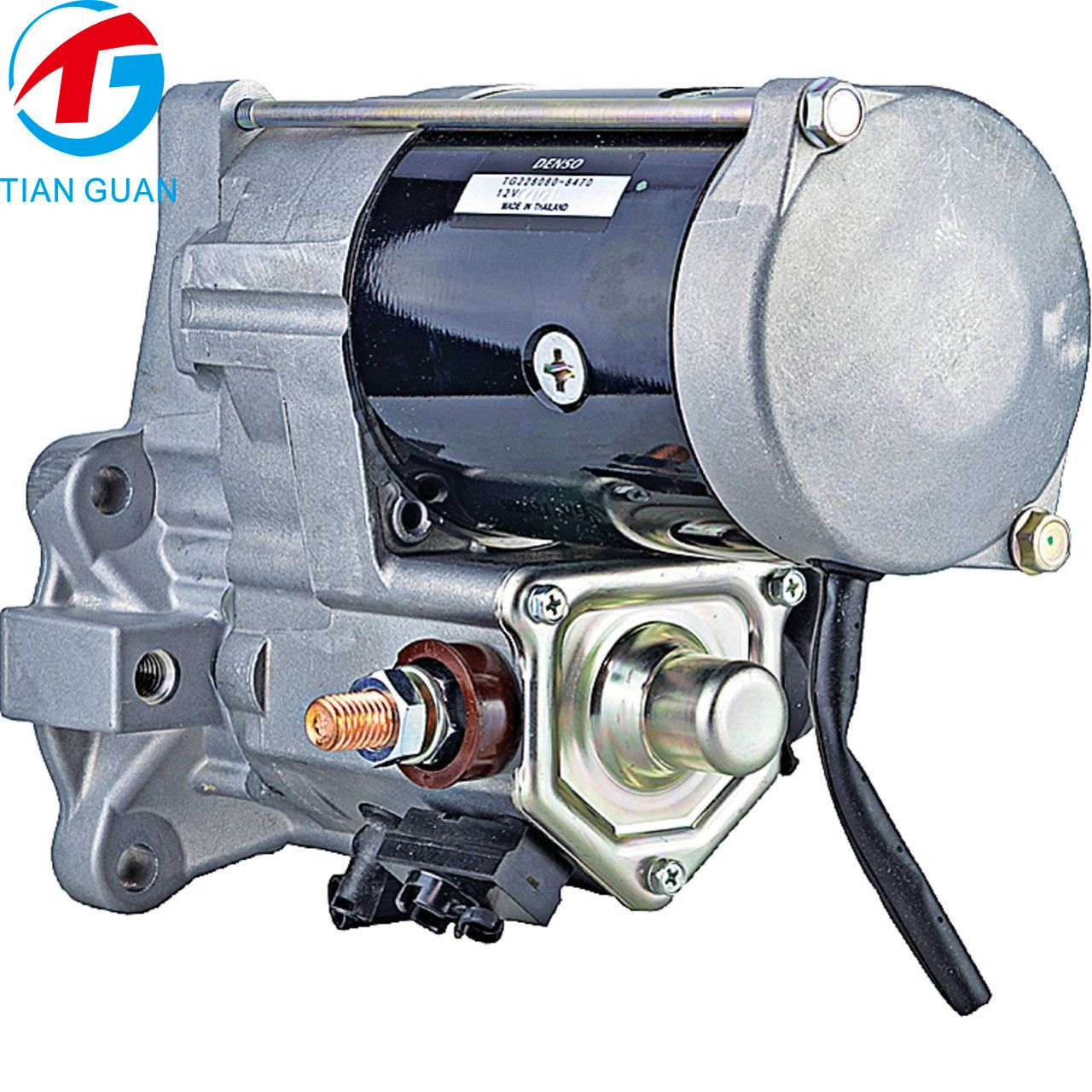

The STG51482 Starter Motor is a high-quality aftermarket replacement starter designed for John Deere forestry equipment, including Feller Bunchers and Skidders. This 12V 4.8kW OSGR starter features 11 teeth and clockwise rotation, providing reliable engine cranking performance for heavy-duty forestry applications.

• Part Number: STG51482

• Voltage: 12V

• Power: 4.8kW

• Rotation: CW (Clockwise)

• Teeth: 11T

• Starter Type: OSGR

• Unit Type: Starter

• Application: John Deere Forestry Equipment

• Condition: New Aftermarket Replacement

• Weight: 10.3 kg

Specifications

Fitment

John Deere Feller Bunchers: 643H All Years All Engines, 653G All Years 6068T Diesel, 740 All Years All Engines, 840 All Years All Engines, 843H All Years All Engines

John Deere Skidders: 360D All Years All Engines, 460D All Years All Engines, 540G-II All Years All Engines, 540G-III All Years All Engines, 548G-II All Years All Engines, 548G-III All Years All Engines, 560D All Years All Engines, 640G-II All Years All Engines, 640G-III All Years All Engines, 640H All Years JD 6.8L 172HP Diesel, 648G-II All Years All Engines, 648G-III All Years All Engines, 648H All Years JD 6.8L 172HP Diesel, 748H All Years JD 6.8L 189HP Diesel, 848H All Years JD 6.8L 200HP Diesel
