AZE4244 Starter 11.132.159 MS395 MS49 for Case IHC JCB Holland – 12V 10T CW PLGR
Part Numbers
ARROWHEAD: SIA0011, IS0631, IS1159, IS1378, MS395, MS49
BOSCH: 0-001-367-040
CARGO: 110565
LESTER: 17072
LETRIKA (ISKRA) AFTERMARKET: IS 0631, IS 1378
LETRIKA (ISKRA) AFTERMARKET (OLD): IS 0509
LETRIKA (ISKRA) DESCRIPTION: AZE4244
LETRIKA (ISKRA) OEM: 11.132.159
MAHLE: MS395, MS49
MCCORMICK: 388187A2, 388187A3
Product Description

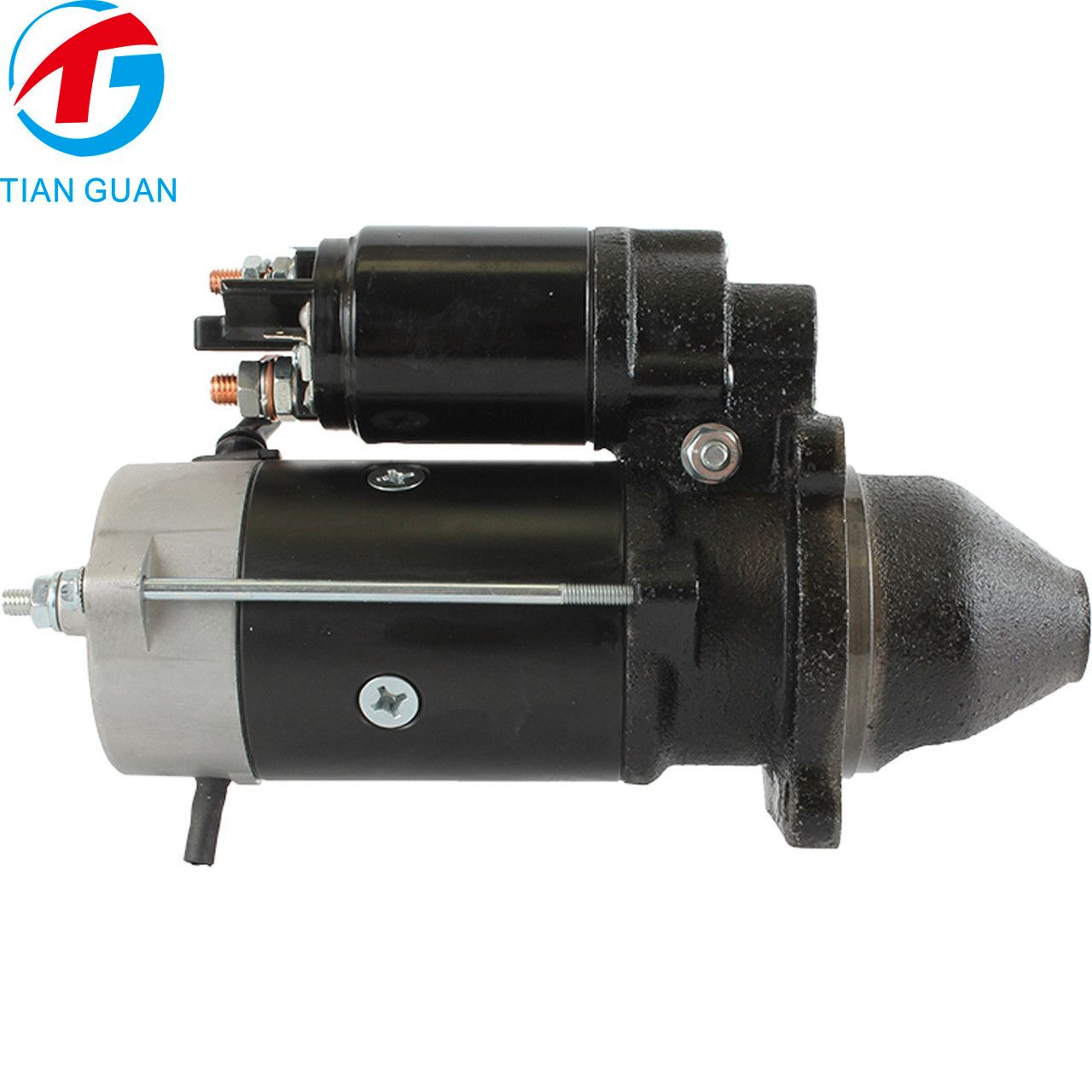

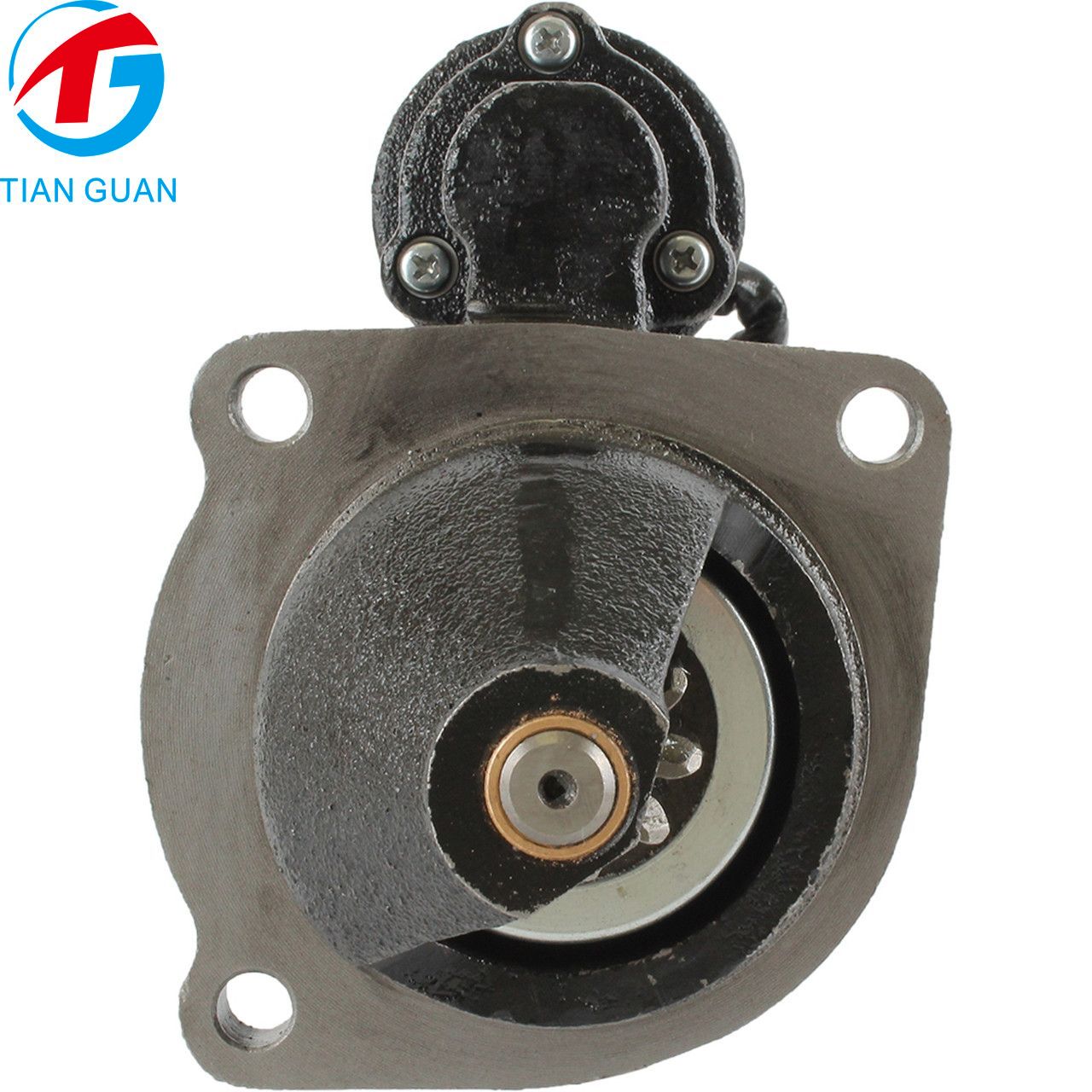

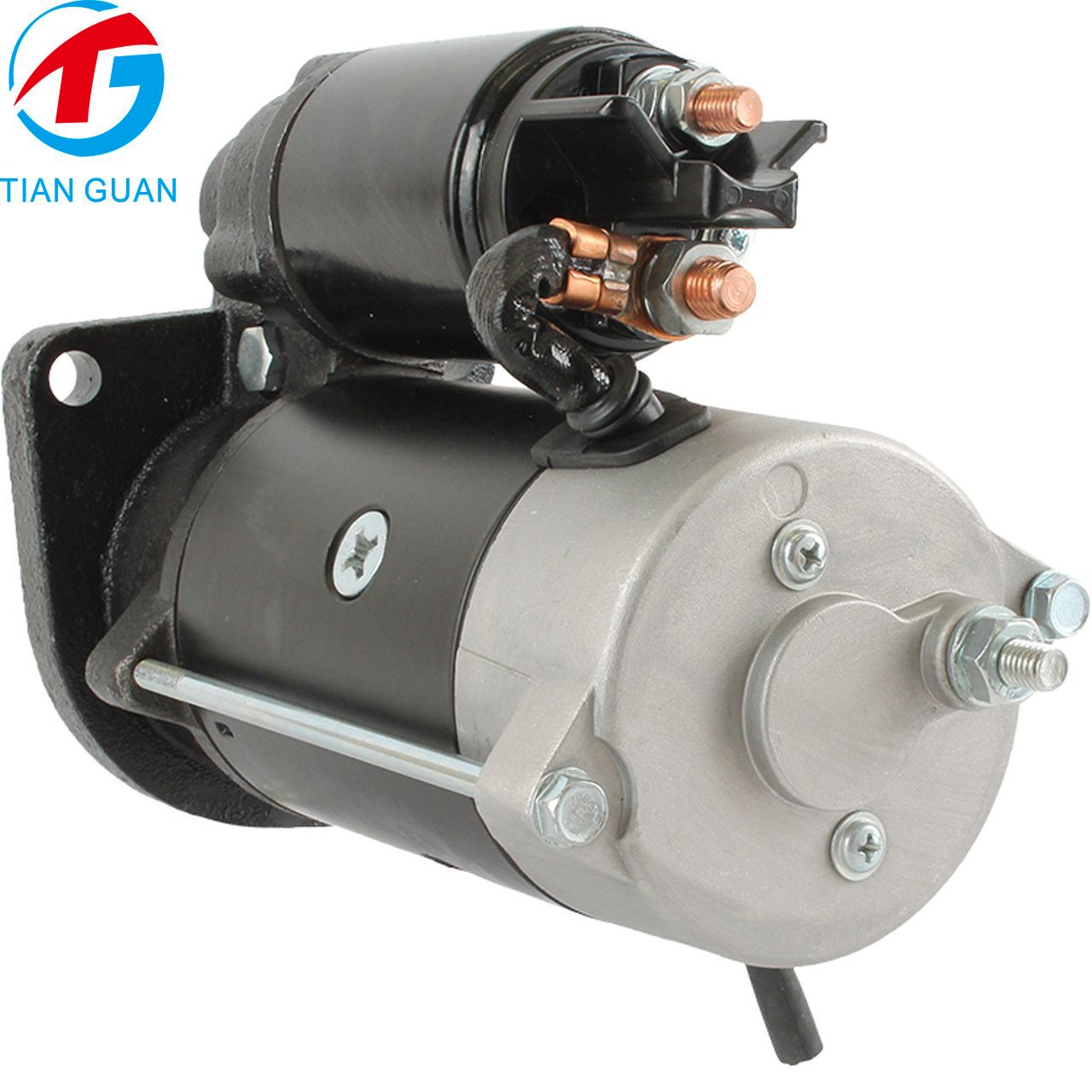

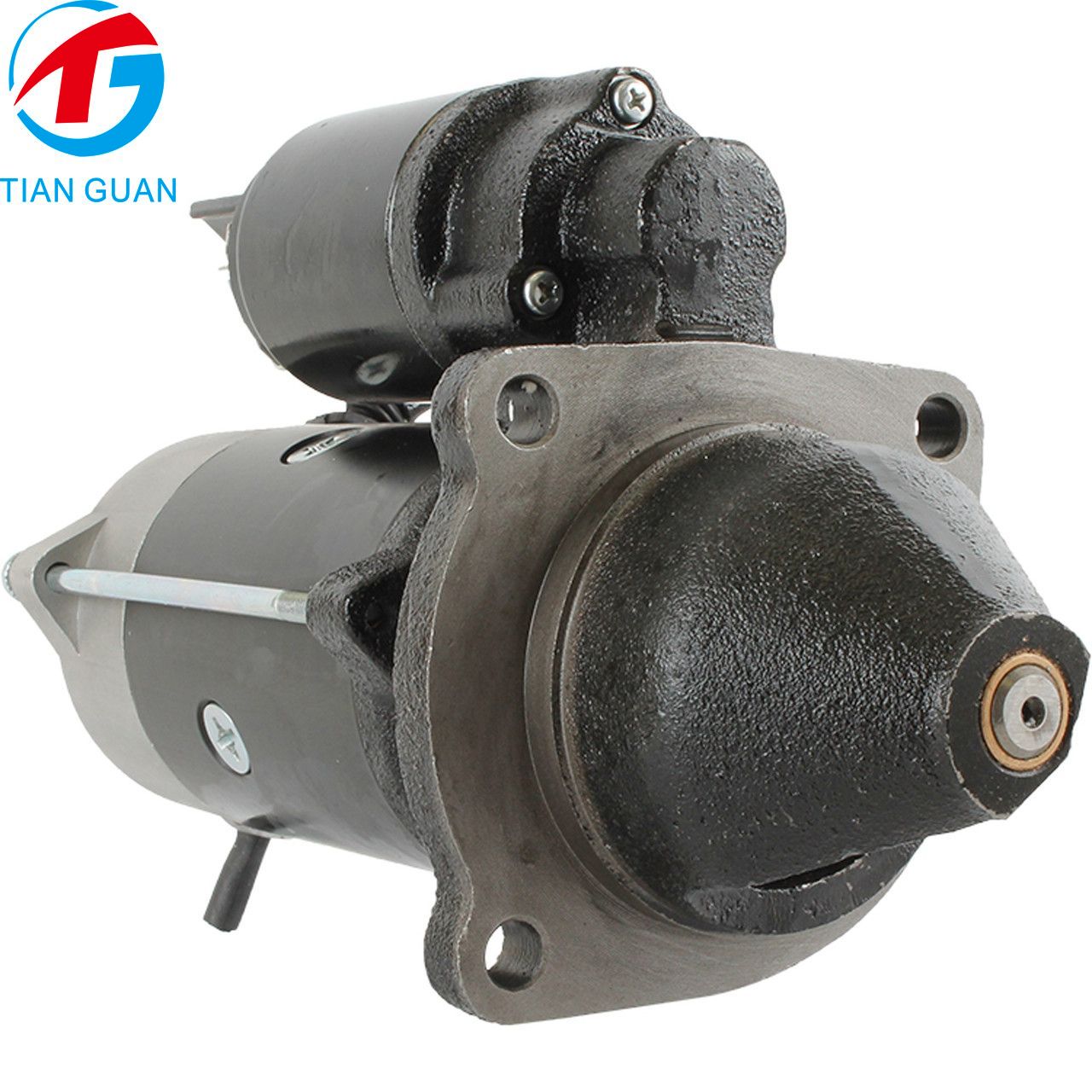

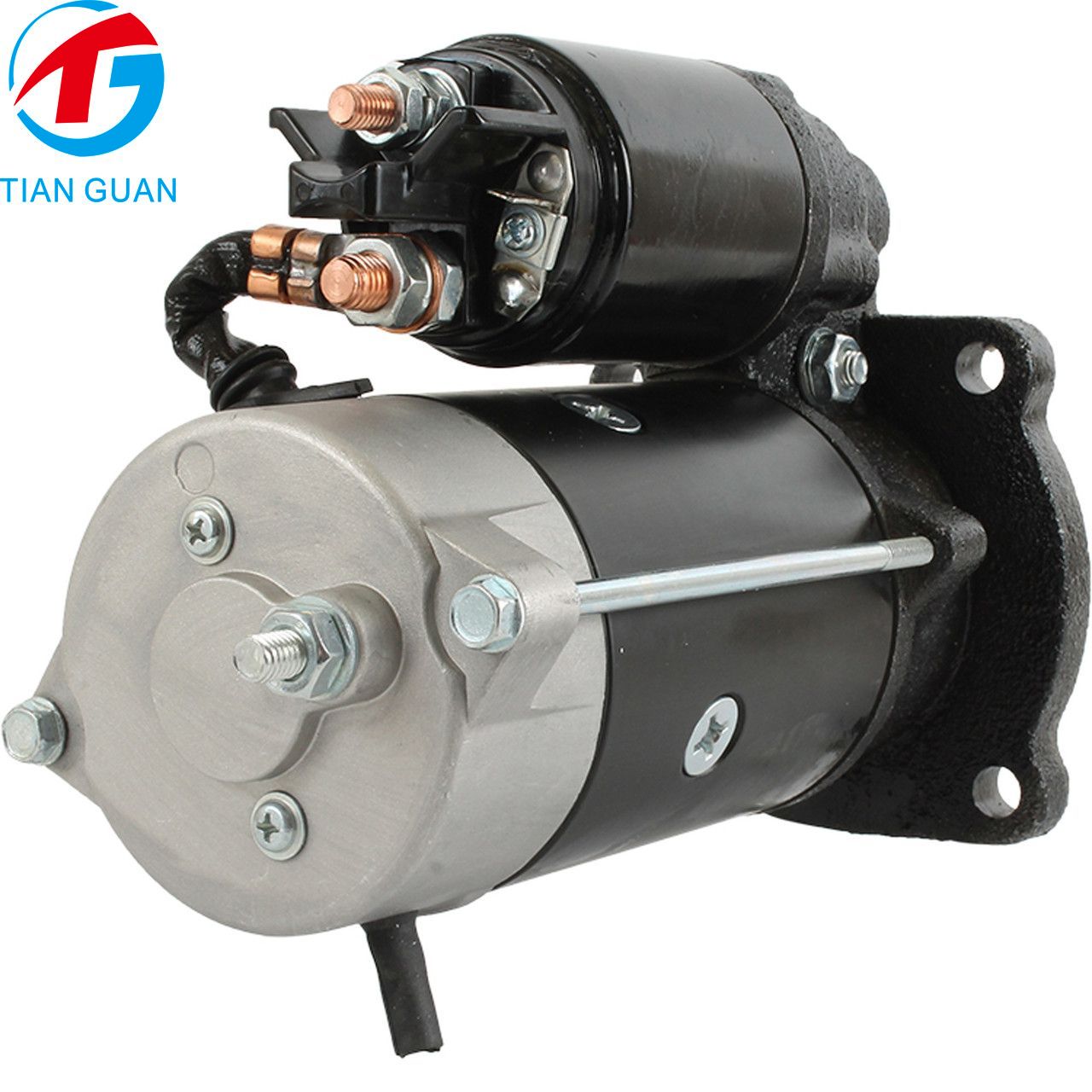

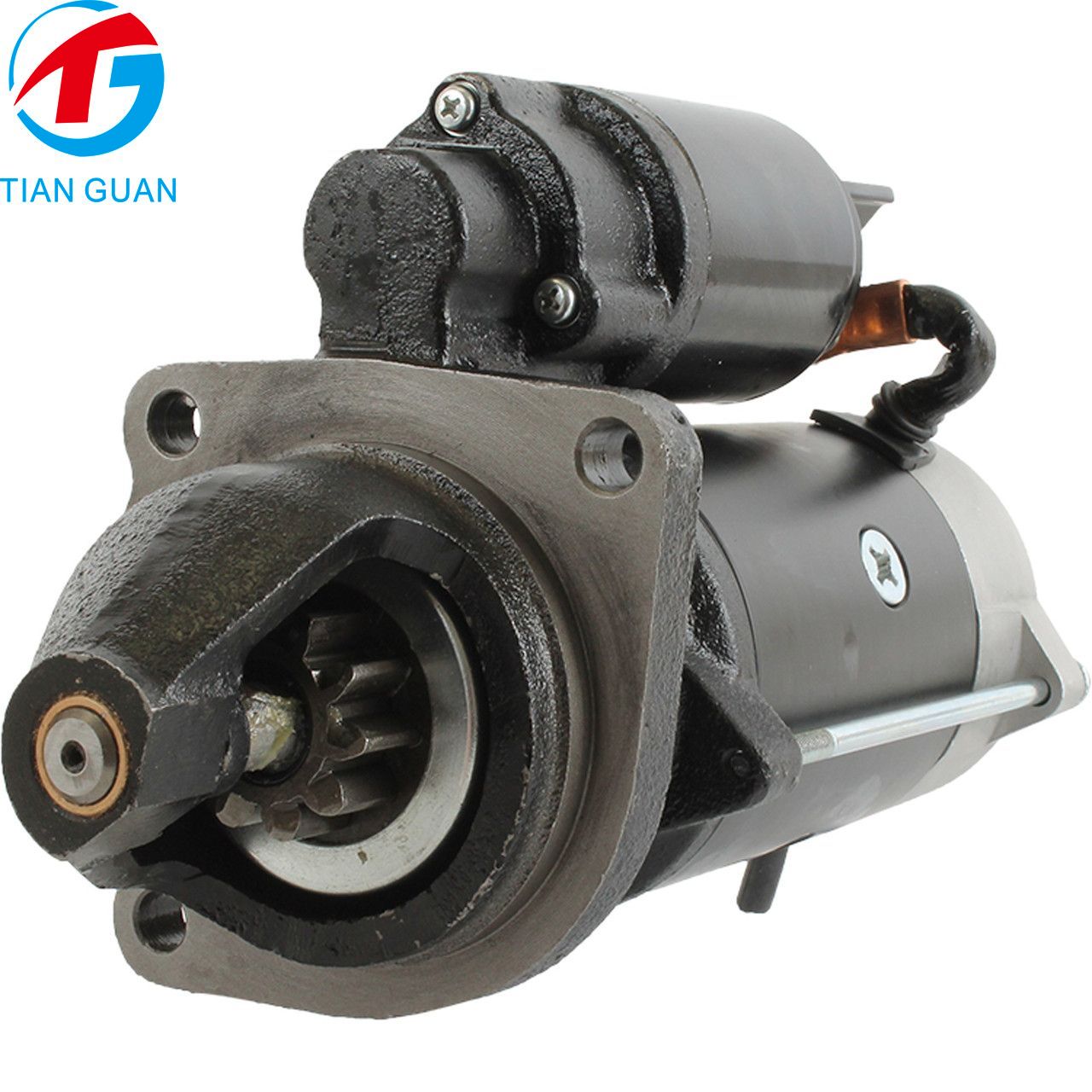

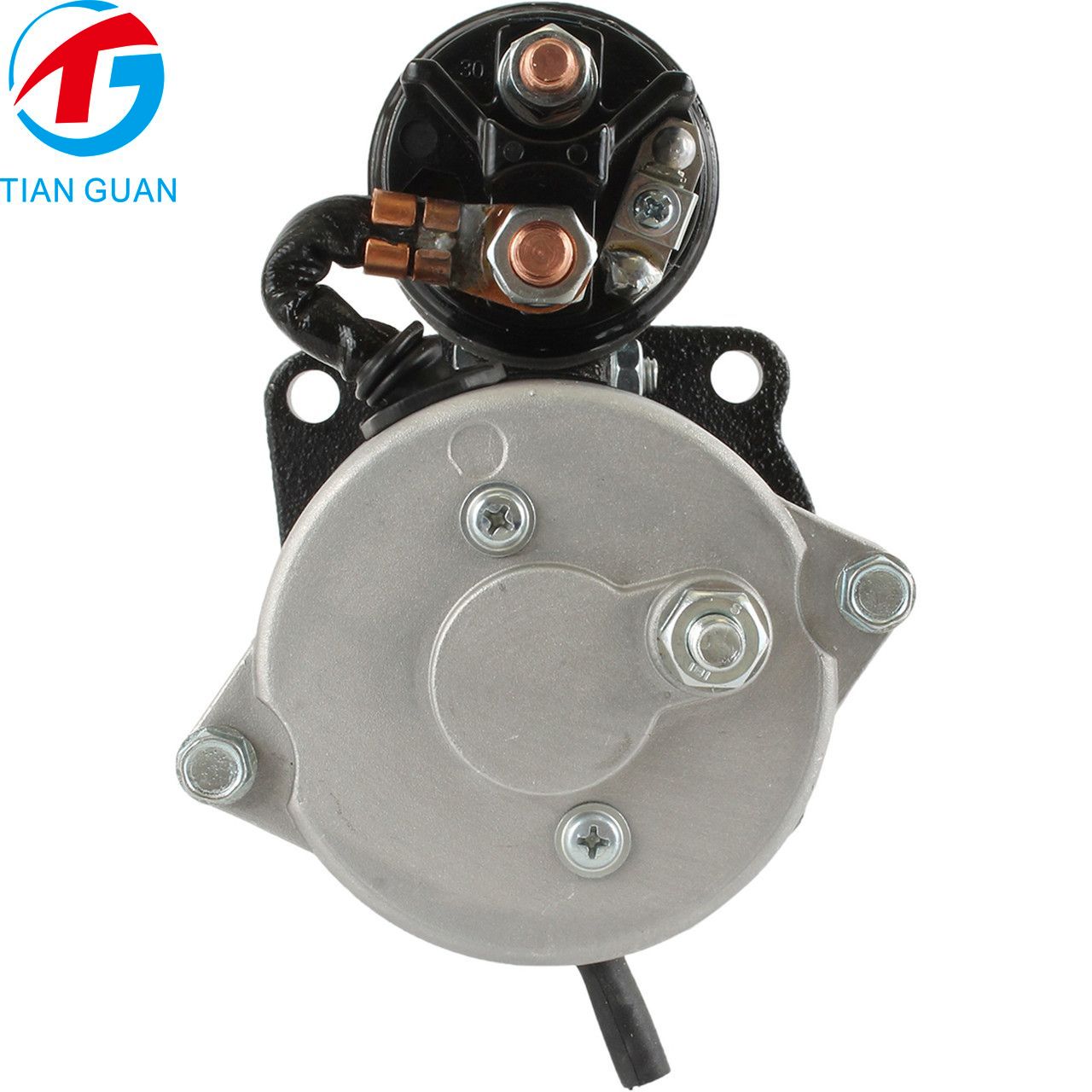

This premium aftermarket 12V 3.0KW Starter Motor is designed as a direct replacement for JCB, Massey Ferguson, Case, and IHC applications with Perkins diesel engines. Built with PLGR design, 10-tooth pinion gear, and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding agricultural and construction applications.
This starter replaces OE part numbers SIA0011, IS0631, IS1159, IS1378, MS395, MS49 (Arrowhead), 0-001-367-040 (Bosch), 110565 (Cargo), 17072 (Lester), IS 0631, IS 1378 (Letrika / Iskra Aftermarket), IS 0509 (Letrika / Iskra Old), AZE4244 (Letrika / Iskra Description), 11.132.159 (Letrika / Iskra OEM), MS395, MS49 (Mahle), and 388187A2, 388187A3 (McCormick).
12V starter motor
3.0KW power output
10-tooth pinion gear
PLGR design
Clockwise (CW) rotation
Gear OD: 1.547in / 39.3mm
Mounting ear holes: 11.0mm unthreaded
Mounting ear C-to-C: 90mm / 90mm / 127mm
Registry OD: 3.496in / 88.8mm
Direct replacement for Case / IHC / JCB / Massey Ferguson
Fits Perkins engines
Aftermarket replacement part
Approx. 7.6 kg
Specifications
Item Condition: Aftermarket Part
Unit Type: Starter
Voltage: 12V
Rotation: CW
Teeth: 10T
KW: 3.0
Dimension: Replacement PLGR Unit; Gear OD: 1.547in / 39.3mm; Mtg. Ear Holes: 11.0mm Unthreaded; Mtg. Ear C-to-C 1: 90mm; Mtg. Ear C-to-C 2: 90mm; Mtg. Ear C-to-C 3: 127mm; Registry OD: 3.496in / 88.8mm
Starter Type: DD
Fits: Case, IHC
Weight: 7.6KG
Fitment
JCB – 1400 / 1400B – 1985-1991 – Perkins 4-23
JCB – 1500 / 1500B – 1985-1991 – Perkins 4-23
JCB – 1600B – 1987-1993 – Perkins 4-23
JCB – 1700 / 1700B – 1985-1991 – Perkins 4-23
JCB – 3C1400 – 1980-1985 – Perkins 4-23
JCB – 3C1550 – 1980-1985 – Perkins 4-23
JCB – 3CX Sitemaster – 1985-1991 – Perkins 4-23
JCB – 3D1700 – 1980-1985 – Perkins 4-23
JCB – 407 – 1993-1996 – Perkins Engine
JCB – 408 – 1990-1994 – Perkins 4-25
JCB – 409 – 1993-1996 – Perkins Engine
JCB – 410 – 1972-1984 – Perkins 6-35
JCB – 420 – 1971-1983 – Perkins 6-35
JCB – 430 – 1971-1983 – Perkins 6-35
JCB – 4CN – 1980-1985 – Perkins 4-23
JCB – 520 Cherry Picker – 1978-1984 – Perkins 4-23
JCB – 520 – 1982-1989 – Perkins 4-23
JCB – 525B – 1982-1989 – Perkins 4-23
JCB – 530 – 1987-1991 – Perkins 4-23
JCB – 530B – 1987-1991 – Perkins 4-23
JCB – 540 – 1987-1994 – Perkins Engine
JCB – 540B – 1987-1997 – Perkins Engine
JCB – 805 – 1971-1979 – Perkins 4-23
JCB – 805B – 1971-1979 – Perkins 4-23
JCB – 805BT – 1982-1988 – Perkins 4-23
Massey Ferguson – MF-165 – 1971-1972 – Perkins AD4-203
Massey Ferguson – MF-168 – 1971-1972 – Perkins 4-236
Massey Ferguson – MF-175S – 1970-1972
Massey Ferguson – MF-178 – 1970-1972 – Perkins 4-24
Massey Ferguson – MF-185 – 1970-1972 – Perkins 4-24
Massey Ferguson – MF-188 – 1972-1974 – Perkins 4-24
Massey Ferguson – MF-240 – 1983-1999 – Perkins AD3-152
Massey Ferguson – MF-250 – 1983-1986 – Perkins AD3-152
Massey Ferguson – MF-261 – 1992-1998 – Perkins AD4-236
Massey Ferguson – MF-270 – 1983-1986 – Perkins AD4-236
Massey Ferguson – MF-271 – 1998-2000 – Perkins 1004.4
Massey Ferguson – MF-281 – 1998-2000 – Perkins 1004.4
Massey Ferguson – MF-283 – 1985-1999 – Perkins AD4-248
Massey Ferguson – MF-290 – 1983-1986 – Perkins AD4-248
Massey Ferguson – MF-298 – 1983-1986 – Perkins 4-318
Massey Ferguson – MF-3050 – 1987-1989 – Perkins 4-236
Massey Ferguson – MF-3060 – 1987-1993 – Perkins 4-248
Massey Ferguson – MF-3070 – 1987-1993 – Perkins 4-236
Massey Ferguson – MF-30D – 1982-1986 – Perkins Diesel
Massey Ferguson – MF-3610 – 1987-1990 – Perkins AT6-354
Massey Ferguson – MF-3630 – 1987-1990 – Perkins AT6-354
Massey Ferguson – MF-365 – 1990-1996 – Perkins AD4-236
Massey Ferguson – MF-375 – 1986-1998 – Perkins 4-236
Massey Ferguson – MF-383 – 1986-1998 – Perkins 4-248
Massey Ferguson – MF-390 – 1987-1998 – Perkins 4-248
Massey Ferguson – MF-396 – 1992-1998 – Perkins 1006.6
Massey Ferguson – MF-398 – 1987-1997 – Perkins 4-236
Massey Ferguson – MF-399 – 1987-1998 – Perkins 6-354
Massey Ferguson – MF-4225 / MF-4233 / MF-4235 / MF-4243 / MF-4245 / MF-4253 / MF-4255 – 1997-2000 – Perkins 1004.4
Massey Ferguson – MF-4260 / MF-4263 / MF-4270 – 1997-2000 – Perkins 1006.6
Massey Ferguson – MF-50 – 1973-1975 – Perkins AD4-203
Massey Ferguson – MF-506
Massey Ferguson – MF-50E – 1983-1994 – Perkins A4-248
Massey Ferguson – MF-520 / MF-525 – 1971-1979 – Perkins Diesel
Massey Ferguson – MF-6140 – 1995-1998 – Perkins 1004.4
Massey Ferguson – MF-6150 – 1995-1998 – Perkins 4-244
Massey Ferguson – MF-620 / MF-625 – 1971-1972 – Perkins Diesel
Massey Ferguson – MF-670 – 1983-1986 – Perkins 4-236
Massey Ferguson – MF-690 – 1983-1986 – Perkins 4-248
Massey Ferguson – MF-698 / MF-698T – 1983-1986 – Perkins 4-318
Massey Ferguson – MF-699 – 1984-1986 – Perkins 6-354
Massey Ferguson – MF-9500 – 1973-1980
Perkins – Various Models – 1004-4 / 1006-6 / 3.152 / 4.108 / 4.236 / 4.318 / 6.354 / V8.540
Compatible with equipment using AZE4244, 11.132.159, MS395, MS49, SIA0011, IS0631, IS1159, IS1378, 0-001-367-040, 110565, 17072, IS 0631, IS 1378, IS 0509, 388187A2, or 388187A3 starter motor part numbers.
