STG51517 Starter Motor 715208 5821 SBS0043 for Briggs & Stratton Vanguard 235432 235436 245430 245432 Engines 12V 0.7kW 15T CCW PMDD Replacement

3 Reviews

Add Your Review

US$96.00

ITEMNO： STG51517

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

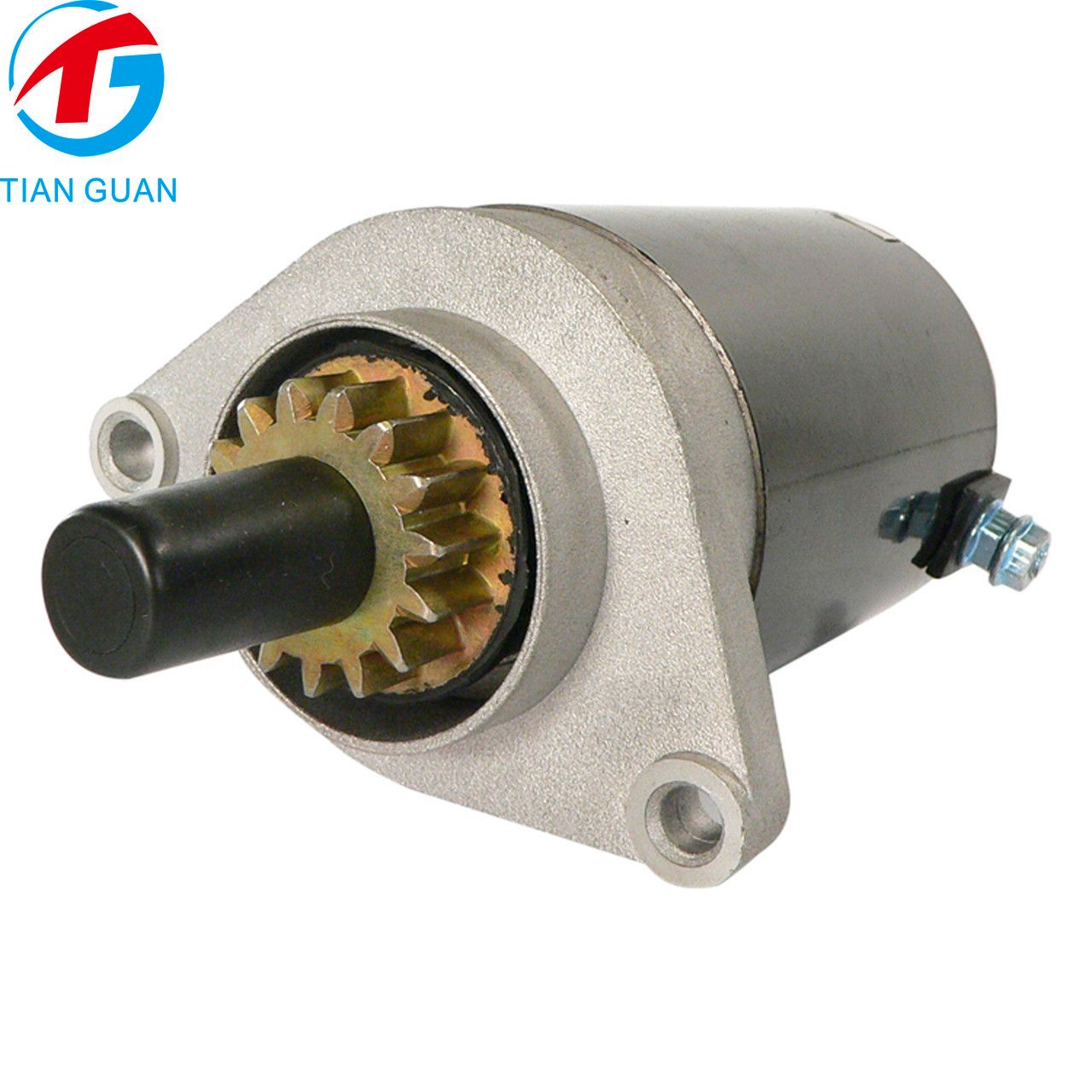

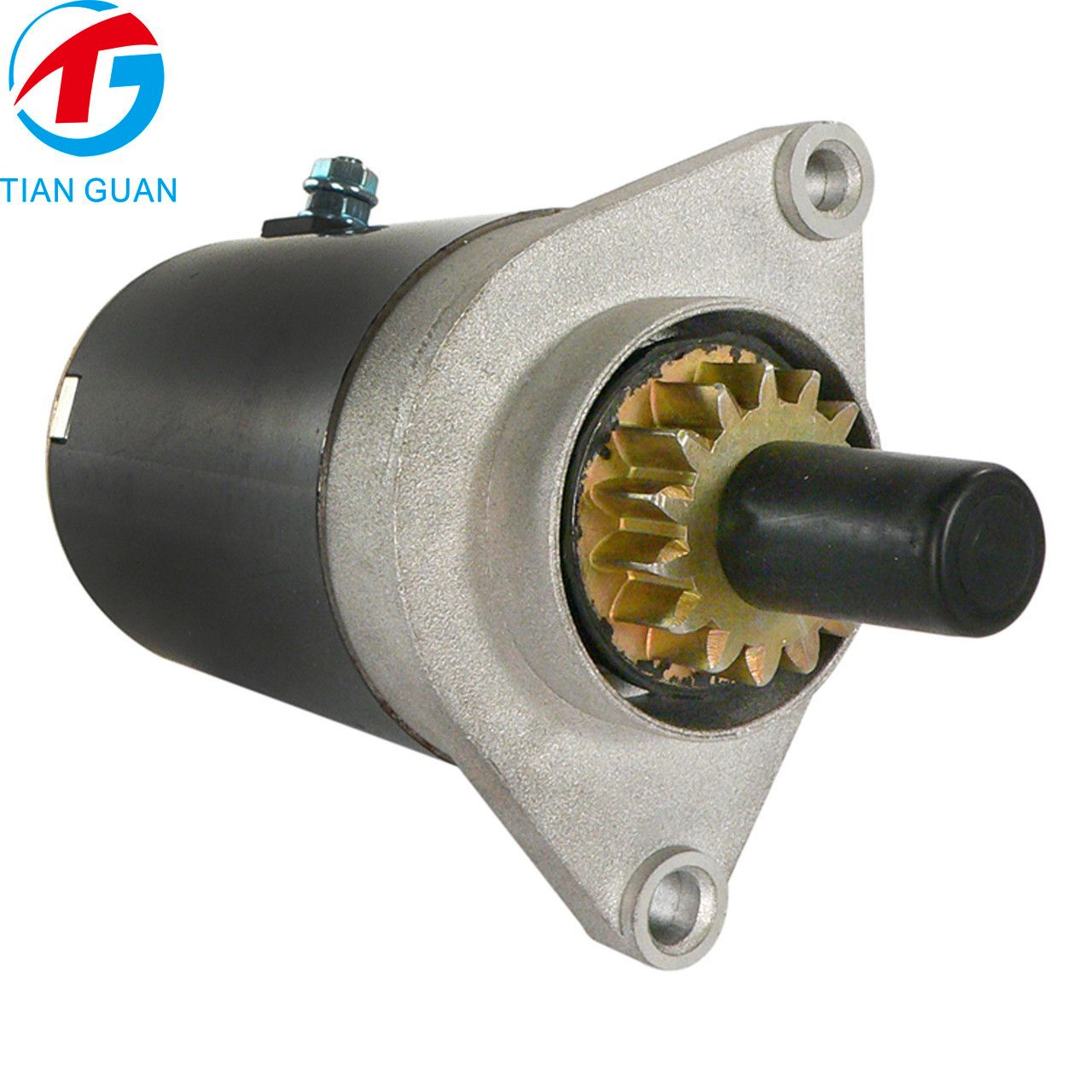

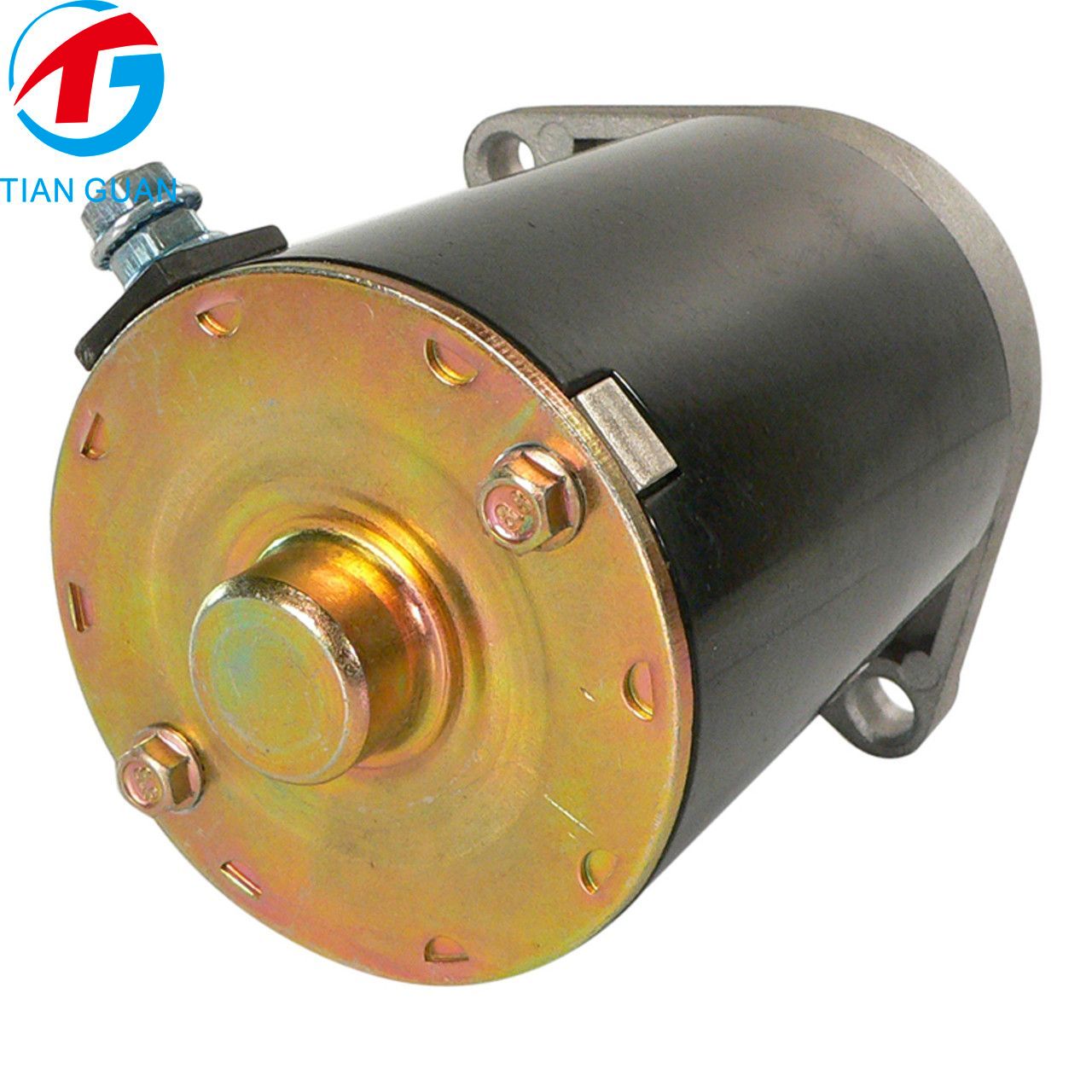

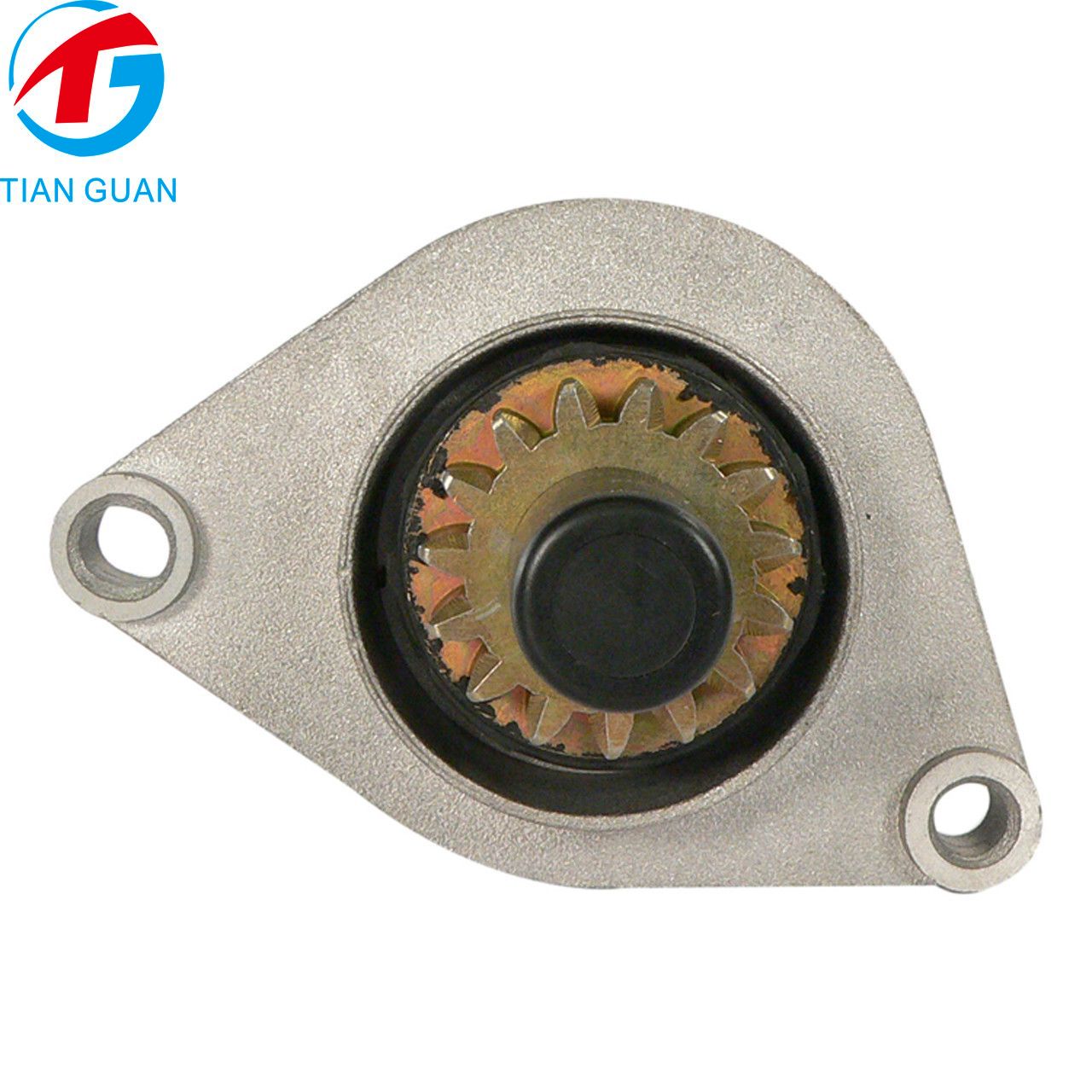

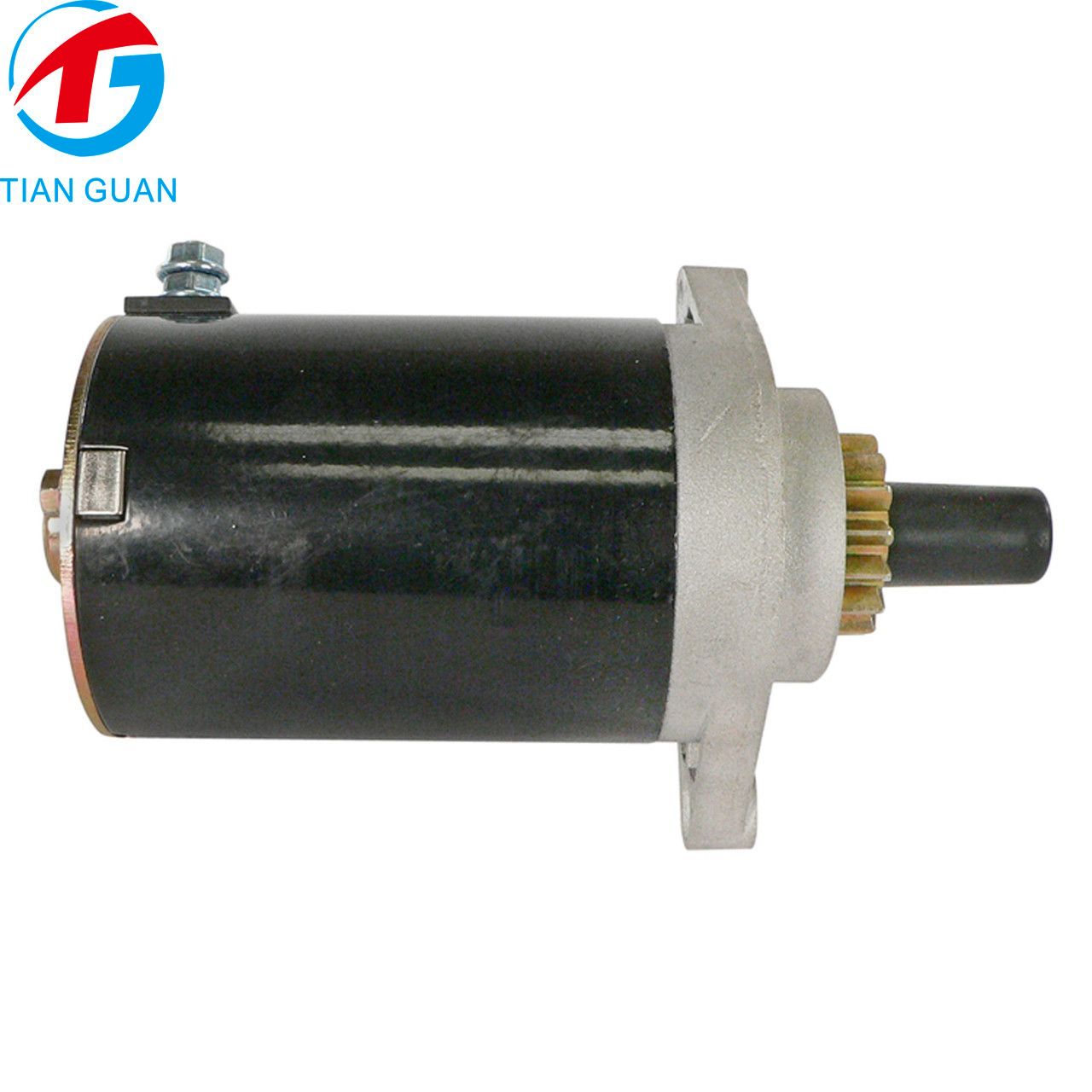

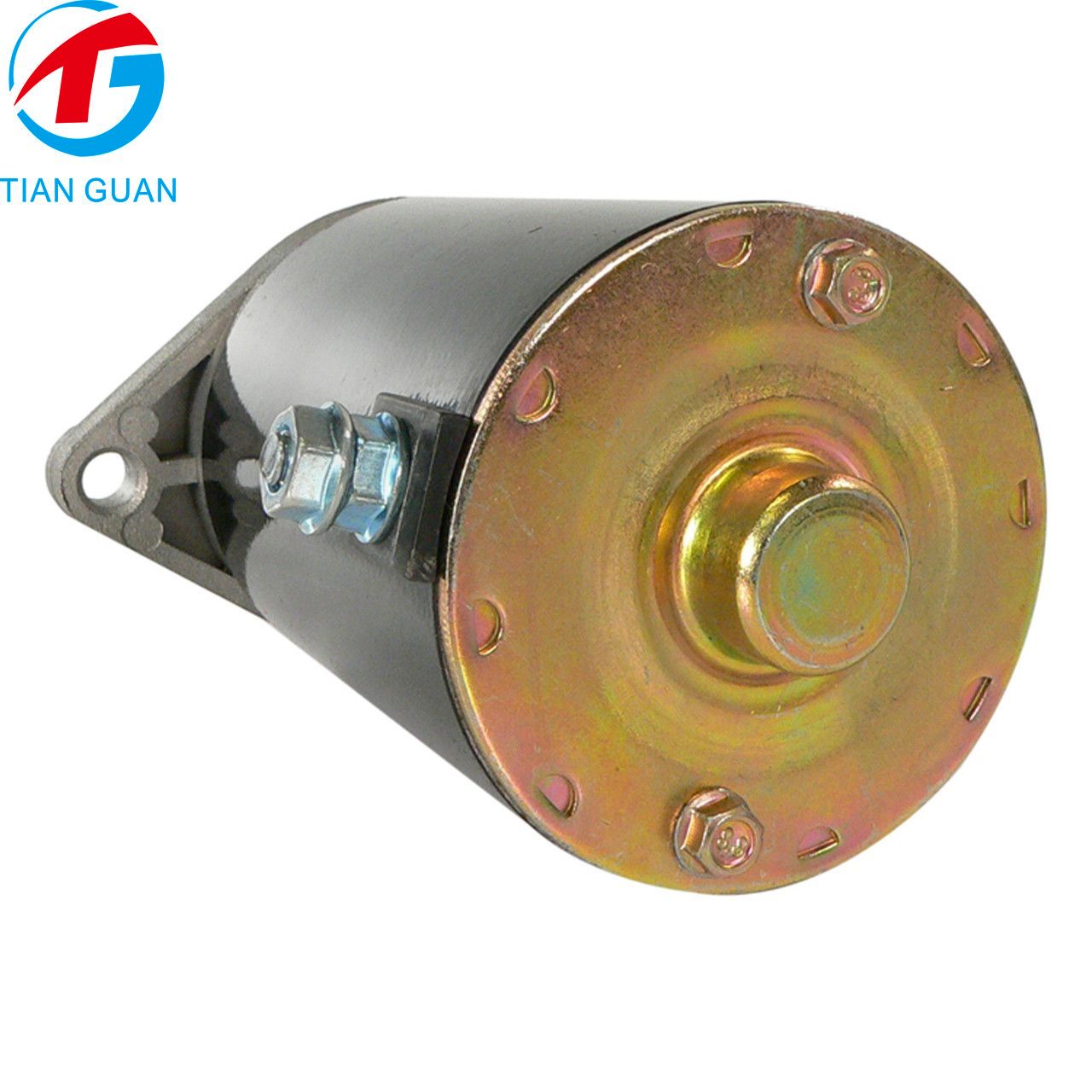

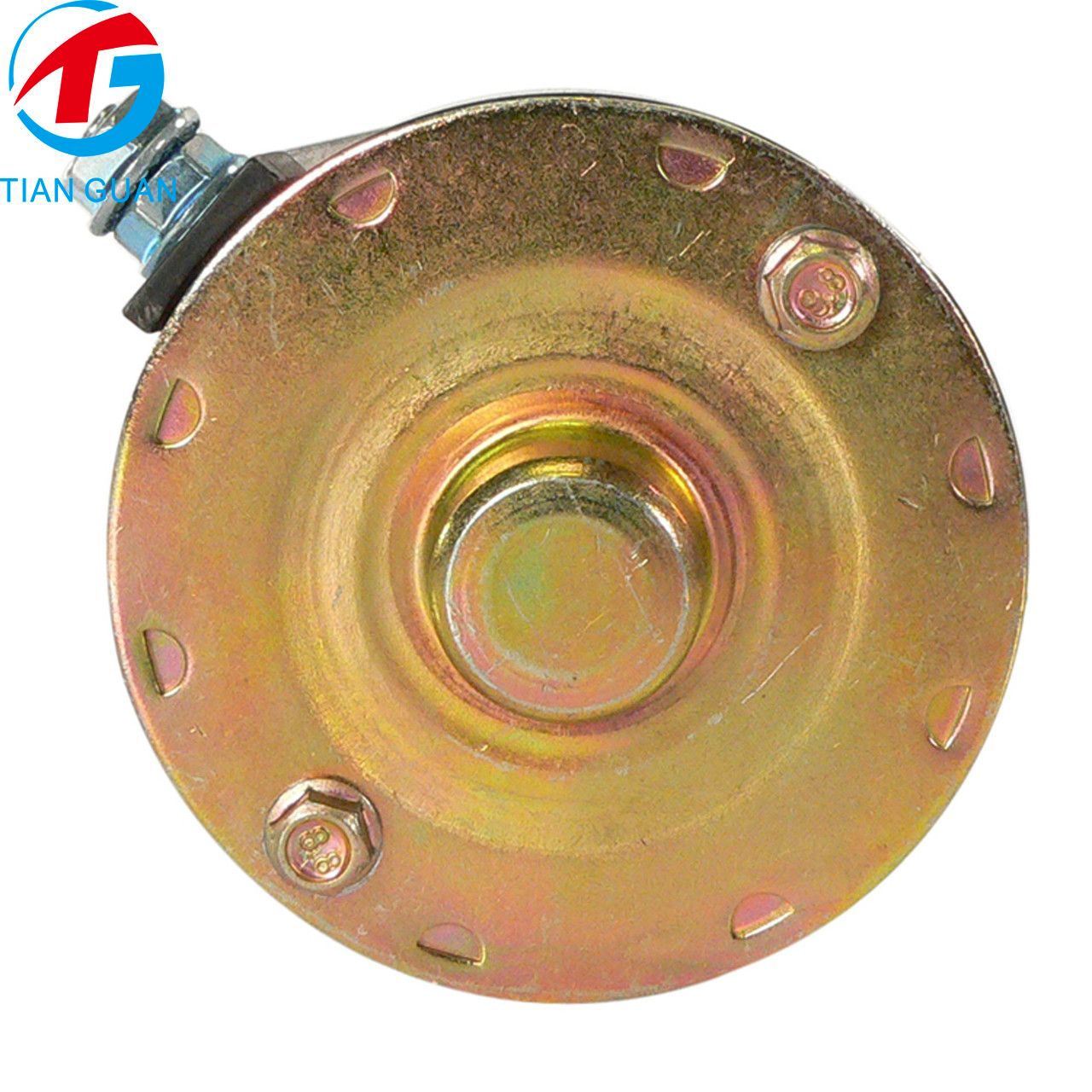

    STG51517 Starter Motor 715208 5821 SBS0043 for Briggs & Stratton Vanguard 235432 235436 245430 245432 Engines 12V 0.7kW 15T CCW PMDD Replacement

    Part Numbers

    • Briggs & Stratton: 715208

    • Lester: 5821

    • Arrowhead: SBS0043

    • J&N: 410-22036, 410-22054

    Product Description

    The STG51517 Starter Motor is an aftermarket replacement starter designed for selected Briggs & Stratton Vanguard single-cylinder gasoline engines. Cross-referenced to Briggs & Stratton part number 715208, Lester 5821, and Arrowhead SBS0043, this starter features a 12V electrical system, 0.7kW rated output, 15-tooth pinion, and counterclockwise rotation.

    Its permanent magnet direct-drive (PMDD) design is intended for compatible recreational and industrial engine applications. It is listed for selected Briggs & Stratton 235, 245, 246, and 247 engine series.

    Before ordering, compare the original starter number, mounting holes, pinion dimensions, and terminal configuration with the existing unit.

    Product Specifications

    SpecificationDetails
    Product TypeSmall Engine Starter Motor
    SKU / ModelSTG51517
    Main OEM Number715208
    Aftermarket References5821 / SBS0043
    Voltage12V
    Power0.7kW
    Pinion Teeth15T
    RotationCounterclockwise (CCW)
    Starter TypePMDD (Permanent Magnet Direct Drive)
    Gear Outside Diameter 38mm
    Mounting Holes2
    Mounting Hole Diameter 8.2mm
    Mounting Flange Diameter55mm
    Estimated Net Weight2.2kg
    ConditionAftermarket replacement

    OEM / Cross Reference Table

    BrandPart Number
    Briggs & Stratton715208
    Lester5821
    ArrowheadSBS0043
    J&N410-22036, 410-22054
    AS-PLUD13680S
    WAI5821N
    Cargo115469
    BoschF032115469
    Wilson91-35-1033
    PSH400.412.152.200
    Sando6038154.0
    WoodautoSTR88012
    STGSTG51517

    Compatible Applications

    Engine ModelEngine SeriesApplication Notes
    Briggs & Stratton 235432Vanguard single-cylinder OHVSelected engine variants
    Briggs & Stratton 235436Vanguard single-cylinder OHVSelected engine variants
    Briggs & Stratton 235437Vanguard single-cylinder OHVSelected engine variants
    Briggs & Stratton 245430Vanguard single-cylinder OHVSelected engine variants
    Briggs & Stratton 245432Vanguard single-cylinder OHVSelected engine variants
    Briggs & Stratton 245435 / 245436 / 245437Vanguard single-cylinder OHVSelected engine variants
    Briggs & Stratton 246435 / 247432 / 247437Vanguard single-cylinder OHVSelected engine variants

  • PRODUCT HIGHLIGHTS

    Product Highlights

    Compact PMDD Design12V Starting SystemBroad Small-Engine Applications
    15-tooth pinion with counterclockwise rotation0.7kW reference output for compatible enginesFor selected Briggs & Stratton Vanguard industrial and recreational engines
