STG51563 Starter 1374083 20441285 20445674 220007346 2912559140 3001017 3001017R 445674 for Hyster H25XL H25-35XL H25-60XL H30XL H35XL
Part Numbers
DENSO: 0280006440, 0280006441, 028000700, 0280007001, 0280007002, 0280007003, 0280007004, 028000779, 0280007790, 0280007791, 0280007792, 0280007793, 1280000020, 1280000021, 1280000022, 1280000023, 1280002880, 1280002881, 1280004660, 1280004661, 1280004662, 1280004663, 2280002140, 2280003850, 2280003851, 2280003852, 2280004290, 2280004292, 2280004293, 2280004295, 2280005380, 2280005381, 2280005382, 2280005383, 2280803852, DSN2063
POONG SUNG: 031013030
BOSCH EXCHANGE: 0986016071, 0986UR1246
BOSCH: F042000004, F042000027, F042004015, F042512593, F042S00000, F042S00027
HC-CARGO: 110002, 110573, 111683, 230476, F032110573, F032111683
PSH: 130502092
HYSTER: 1374083, 3001017, 3001017R, 323812
WAI: 16739N, 16739R, 18299N, 19906N, 19907N, 21193ND
DELCO REMY: 19080028, 94123387, DRS3144, DRS3245, 10465442
AES: 19130090, 20130191
CARRIER: 20441285, 20445674
YALE: 220007346
ISUZU: 2912559140, 58110001830, 5811000800, 5811001550, 5811001660, 5811001661, 5811001664, 5811001830, 5811001831, 5811002070, 5811002140, 5944532120, 8941238700, 8941992490, 8944104090, 8944127300, 8944127301, 8944179250, 89444104090, 8944429590, 8944489590, 8944489591, 8970848770, 89711220652, 8971128650, 8971128651, 8971128652, 8971353430, 8971353431, 8971353432, 9821001830, 9821001832, 9821006070
CUMMINS: 3675152RX
THERMO KING: 445674, 455657, 4556572, 45-1229, 45-5657, 45-5674, 44-5674
VALEO: 451993, 455603, 455925, 572220
ISEKI: 6281100001
WILSON: 91251078, 91251111, 91273353, 91295074, 91295074N, 91295630
ATK: AUS102, AUS111
WOOD AUTO: DENDSN2063, MAHMS913, STR23012, STR30018, STR5001, STR5007, STR70026, STR70222, STR70394, WOOSTR23012, WOOSTR30018, WOOSTR5001, WOOSTR5007, WOOSTR70026, WOOSTR70222, WOOSTR70394
JOHN DEERE: GV11567, TY6615
HC-PARTS: HJS552, JS552
LUCAS: LES0322, LES0329, LRS01163, LRS1163, S9606
MAHLE: MS913
MAGNETI MARELLI: MSR1166
RNL: RNL552JS, RNL552JST
HITACHI: S1248, S1258, S13111, S13120A, S13136, S13136N, S13283, S1371, S1375, S14204A, S14204D
DIXIE: S80140, S8146, S8152, S81521, S8796
BOSCH (USA): SR609X
ROLLING COMPONENTS: STM652
UNIPOINT: STR5001, STR5012
TWA: TRS134
LESTER: 16739
Product Description

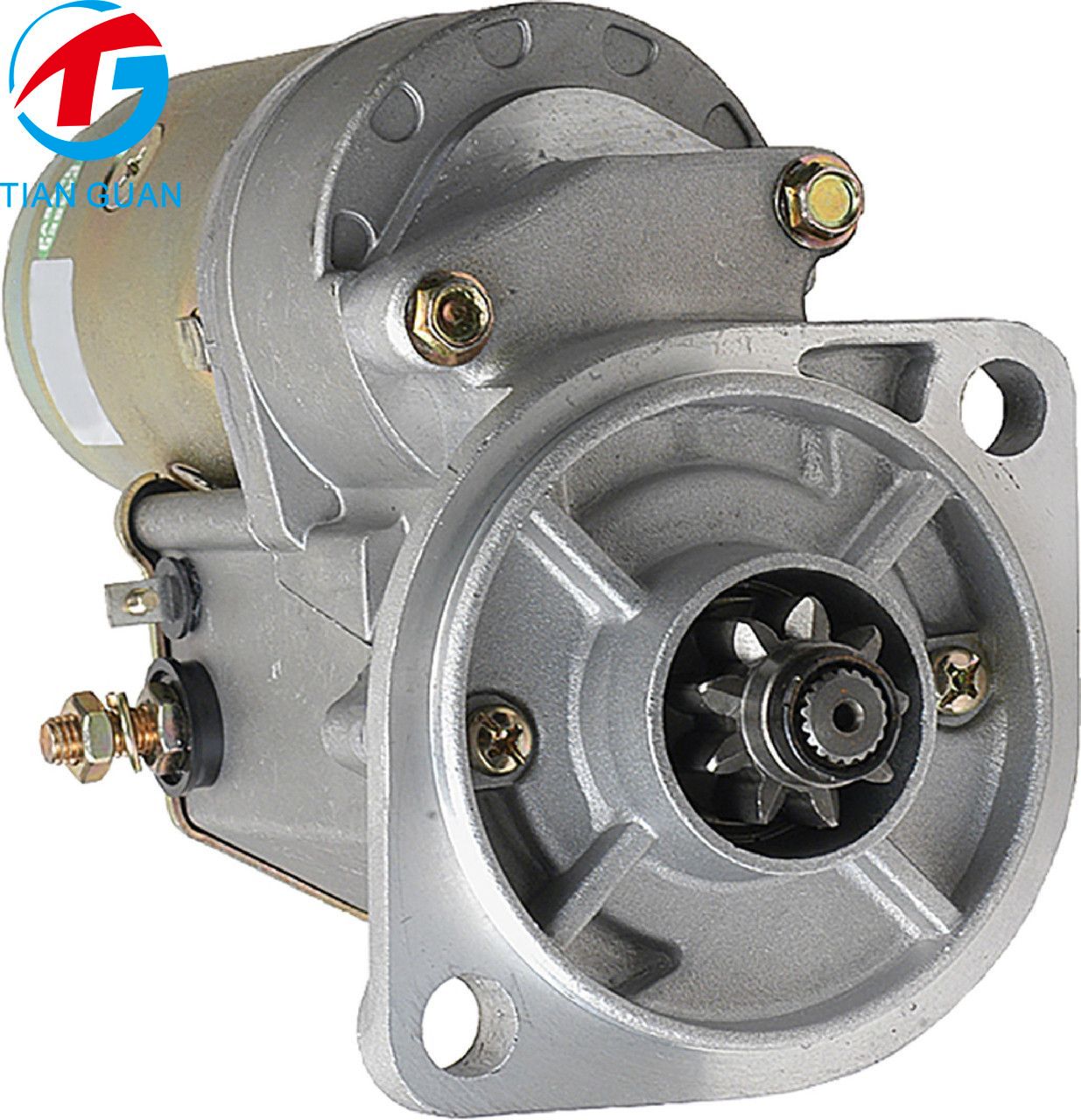

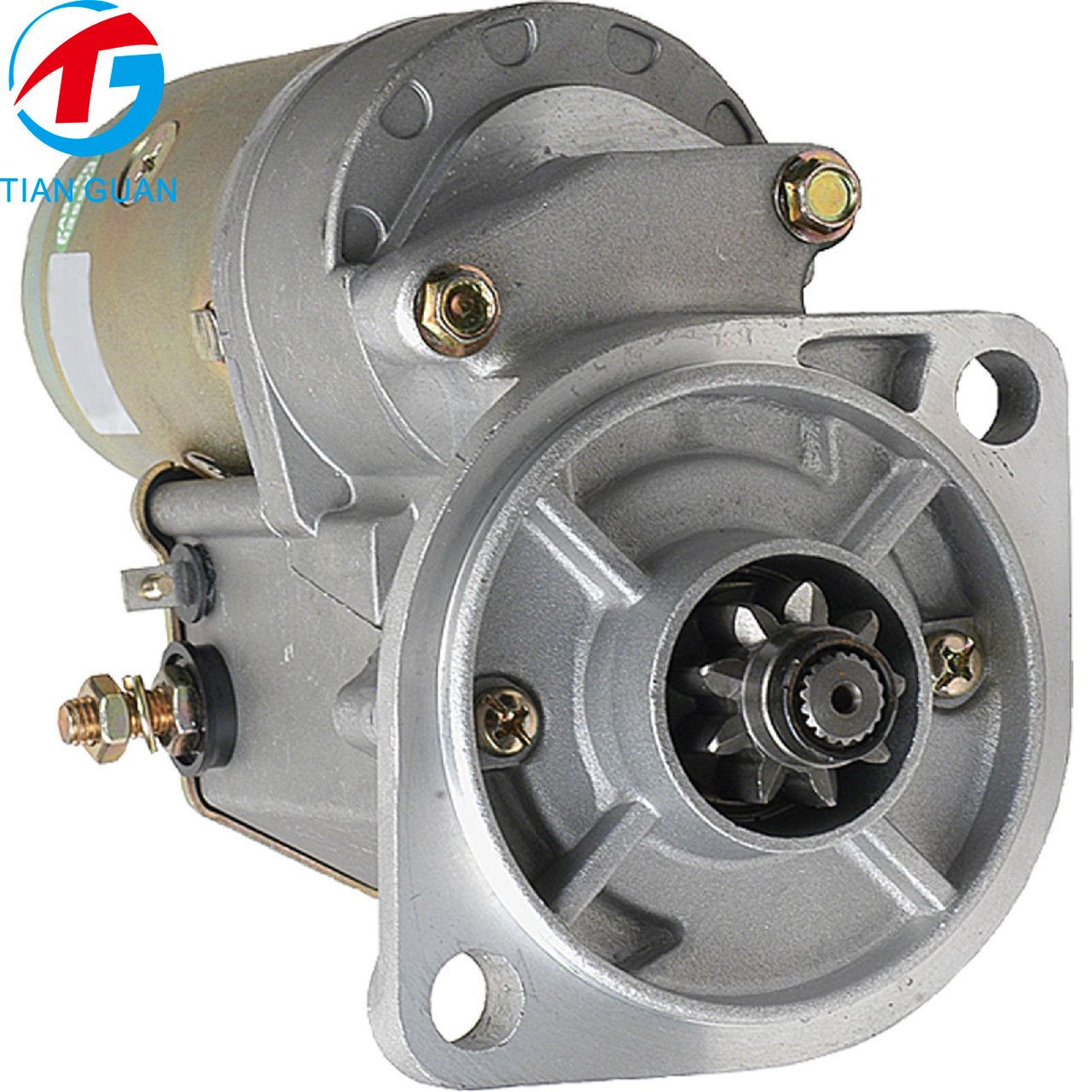

This premium aftermarket 12V 2.0KW Starter Motor is designed as a direct replacement for Isuzu C190, C201, C240, 2AB1, 3AB1, and 4FA1 engine applications, as well as a wide range of construction, agricultural, and material handling equipment. Built with OSGR design, 9-tooth pinion gear, and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding applications.
This starter replaces OE part numbers 1374083, 20441285, 20445674, 220007346, 2912559140, 3001017, 3001017R, 445674 and extensive cross-reference coverage listed above for Denso, Poong Sung, Bosch, HC-Cargo, PSH, Hyster, WAI, Delco Remy, AES, Carrier, Yale, Isuzu, Cummins, Thermo King, Valeo, Iseki, Wilson, ATK, Wood Auto, John Deere, HC-Parts, Lucas, Mahle, Magneti Marelli, RNL, Hitachi, Dixie, Bosch USA, Rolling Components, Unipoint, TWA, and Lester.
12V starter motor
2.0KW power output
9-tooth pinion gear
OSGR design
Clockwise (CW) rotation
Spigot: 95mm
Pinion home position: 19.5
B+ terminal: M8
No. mounting holes: 2
Position: +50°
PSH number: 130.502.092.050
GTIN: 8720264043583
Direct replacement for Isuzu C190 / C201 / C240 / 2AB1 / 3AB1 / 4FA1
Aftermarket replacement part
Approx. 5.3 kg
Specifications
Description: Starter Isuzu 2.0KW
PSH Number: 130.502.092.050
GTIN: 8720264043583
Voltage: 12V
Power (kW): 2.0
Spigot (mm): 95
Teeth: 9
Pinion Home Position: 19.5
B+: M8
No. Mounting Holes: 2
Position (°): +50
Rotation: CW
Condition: Aftermarket Part
Weight: 5.3KG
Fitment
Elgin Sweeper – Sweeper Eagle – 1989-93
Elgin Sweeper – Sweeper Rear Sweeper – 1989-93
Gehl – Grader MG747B – 1984-94
Hyster – Lift Truck S-30XL
Hyster – Lift Truck S-30XM
Hyster – Lift Truck S-40XL – 1985 – 2.4
Hyster – Lift Truck S-50XL – 1985 – 2.4
Hyster – Lift Truck S-60XL – 1985 – 2.4
Hyster – H25XL / H25-35XL / H25-60XL / H30XL / H35XL
Isuzu – Engine C-190 – 1977 / 1979 / 1981 / 1988
Isuzu – Engine C-201 – 1984
Isuzu – Engine C-223 – 1981 / 1983
Isuzu – Engine C-240 – 1977 / 1979 / 1988
Isuzu – Engine KDB – 1985
John Deere – Skid Steer Loader 125 – 1983-84
John Deere – Skid Steer Loader 24A – 1979-83
John Deere – Skid Steer Loader JD24A – 1977-79
Compatible with equipment using 1374083, 20441285, 20445674, 220007346, 2912559140, 3001017, 3001017R, 445674, 0280006440, 0280007000, 1280000020, 1280002880, 2280003850, 3675152RX, 5811000860, 8941233870, 16739N, or DSN2063 starter motor part numbers.
