STG51690 Starter 0001109012 0001307024 0001307035 0001311056 0001314016 8M6007387 for Lombardini 7LD600 7LD665 7LD740 Engines

Part Numbers

ARROWHEAD: SBO0370
BOSCH: 0-001-109-012, 0-001-307-024, 0-001-307-035, 0-001-311-056, 0-001-314-016
CARGO: 111208, 113268
CLAAS: 6034870
J & N: 410-24277, 410-24095R
LESTER: 32074, 32075, 32076, 32077
LOMBARDINI: 58401750
MARELLI: MSN2022
QUICKSILVER: 8M6007387

Product Description

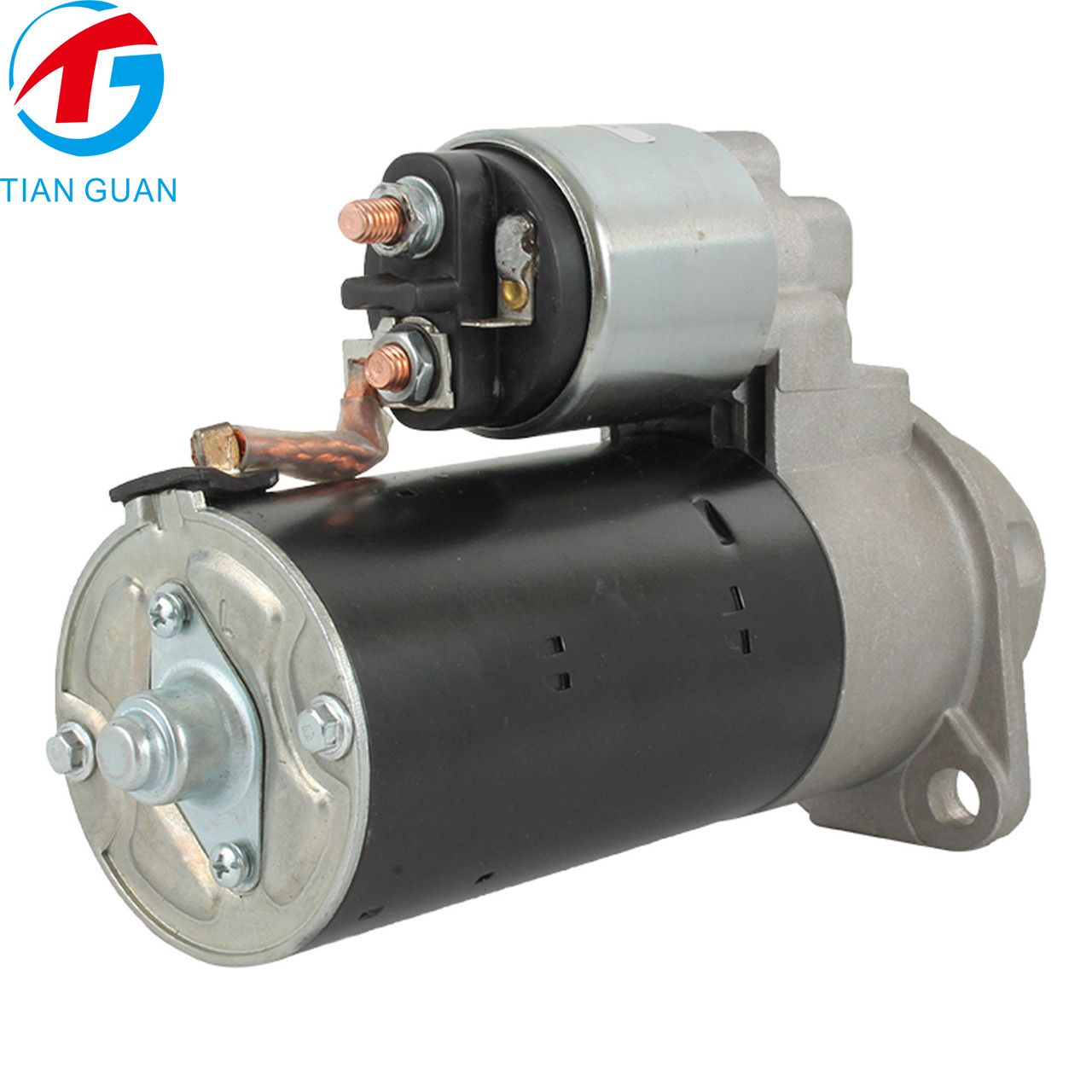

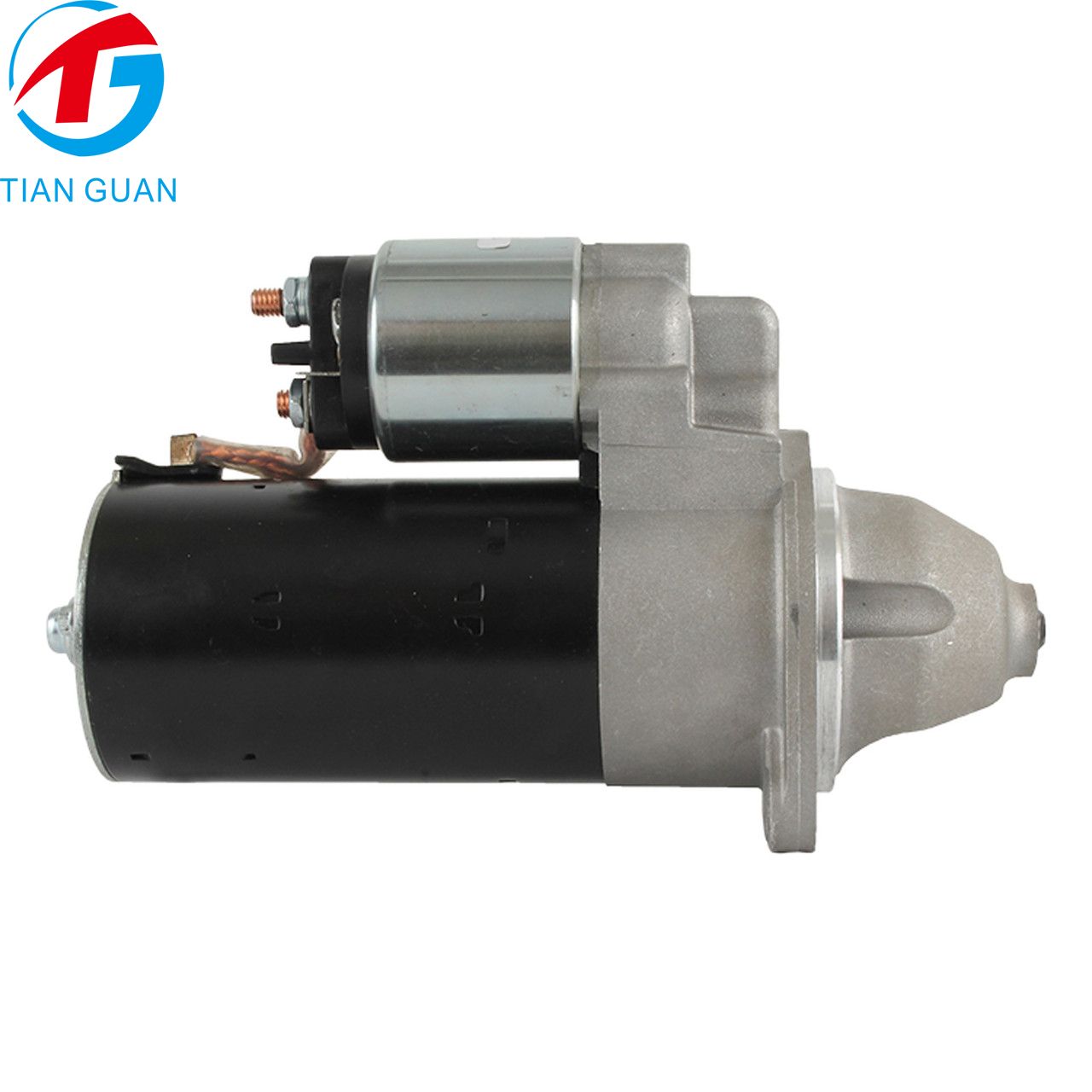

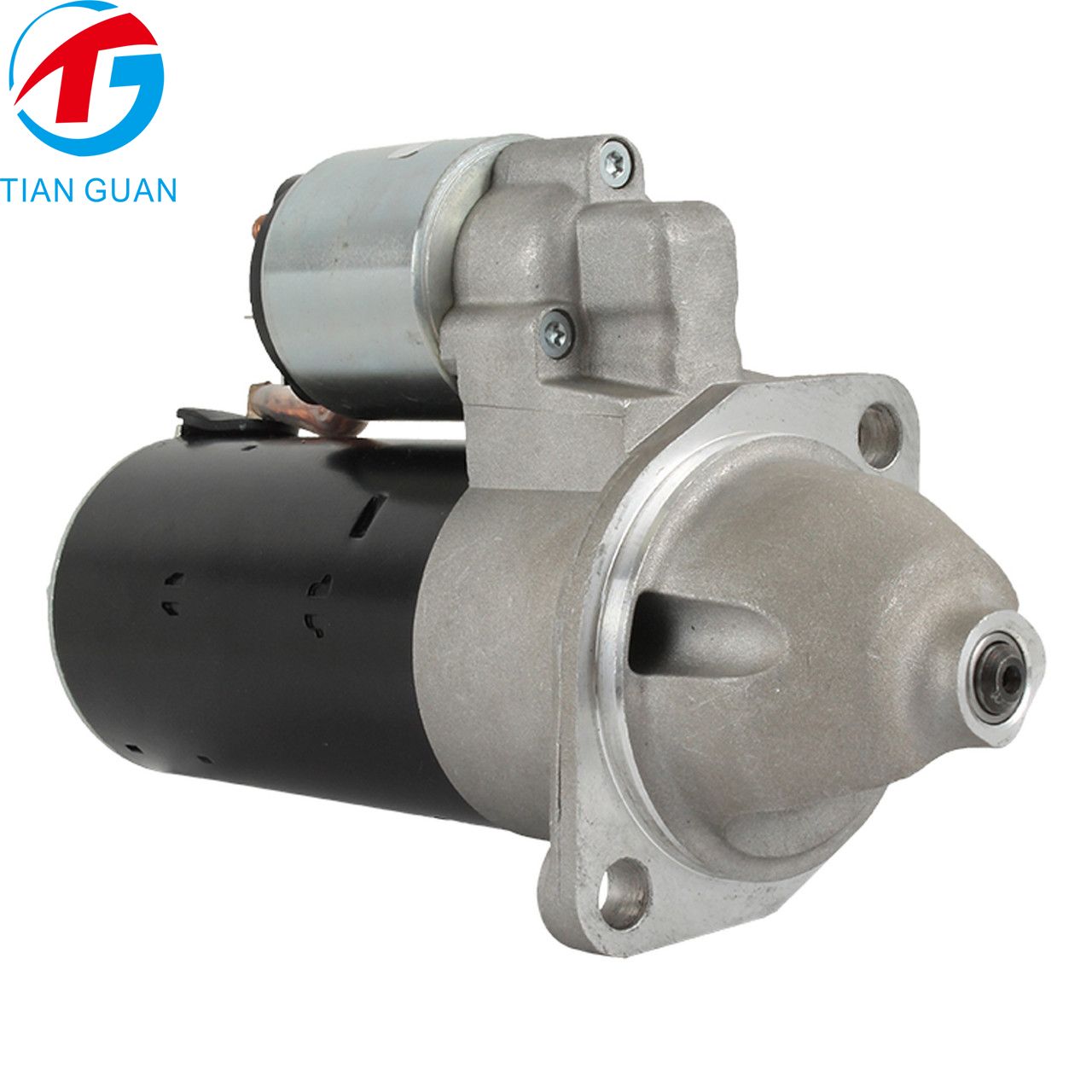

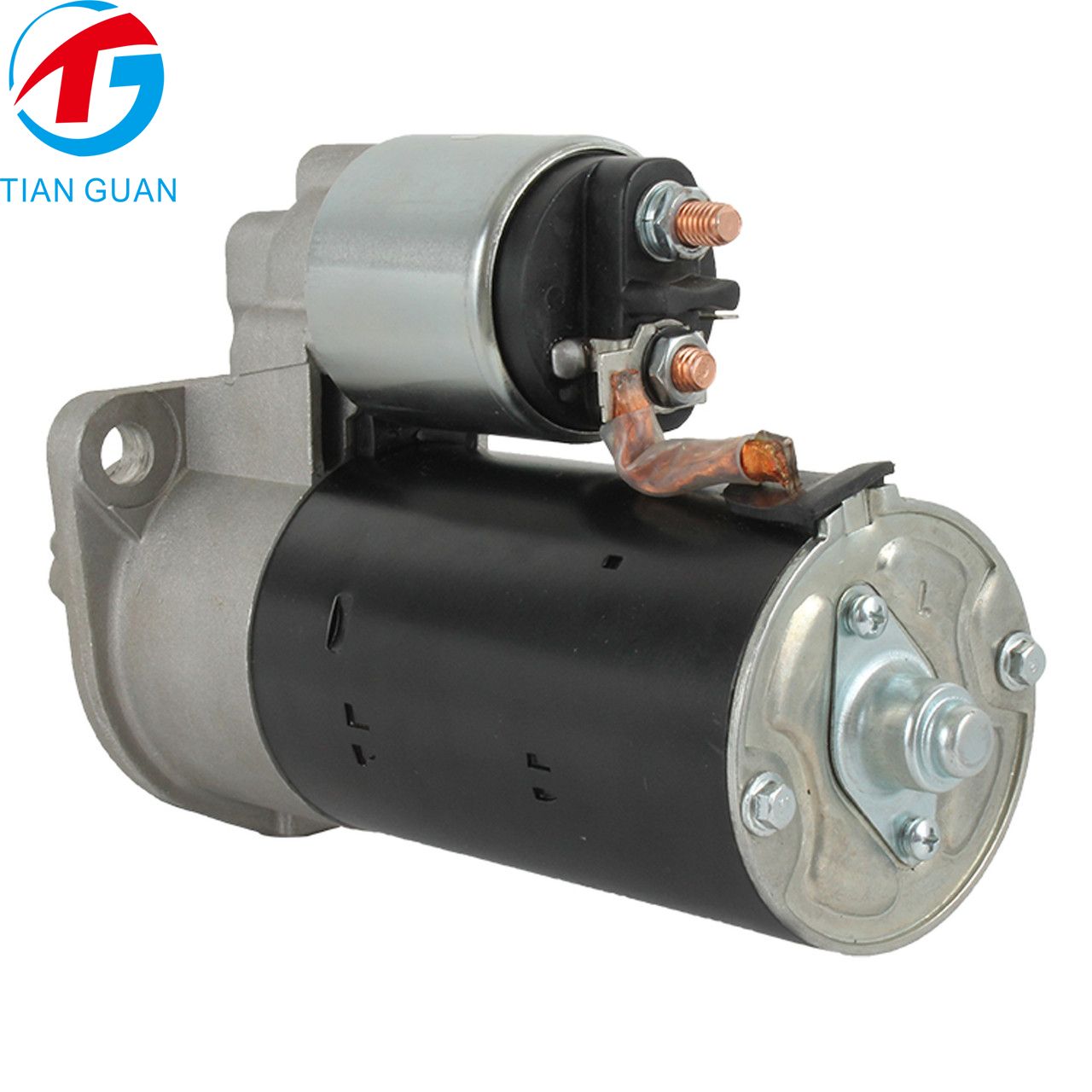

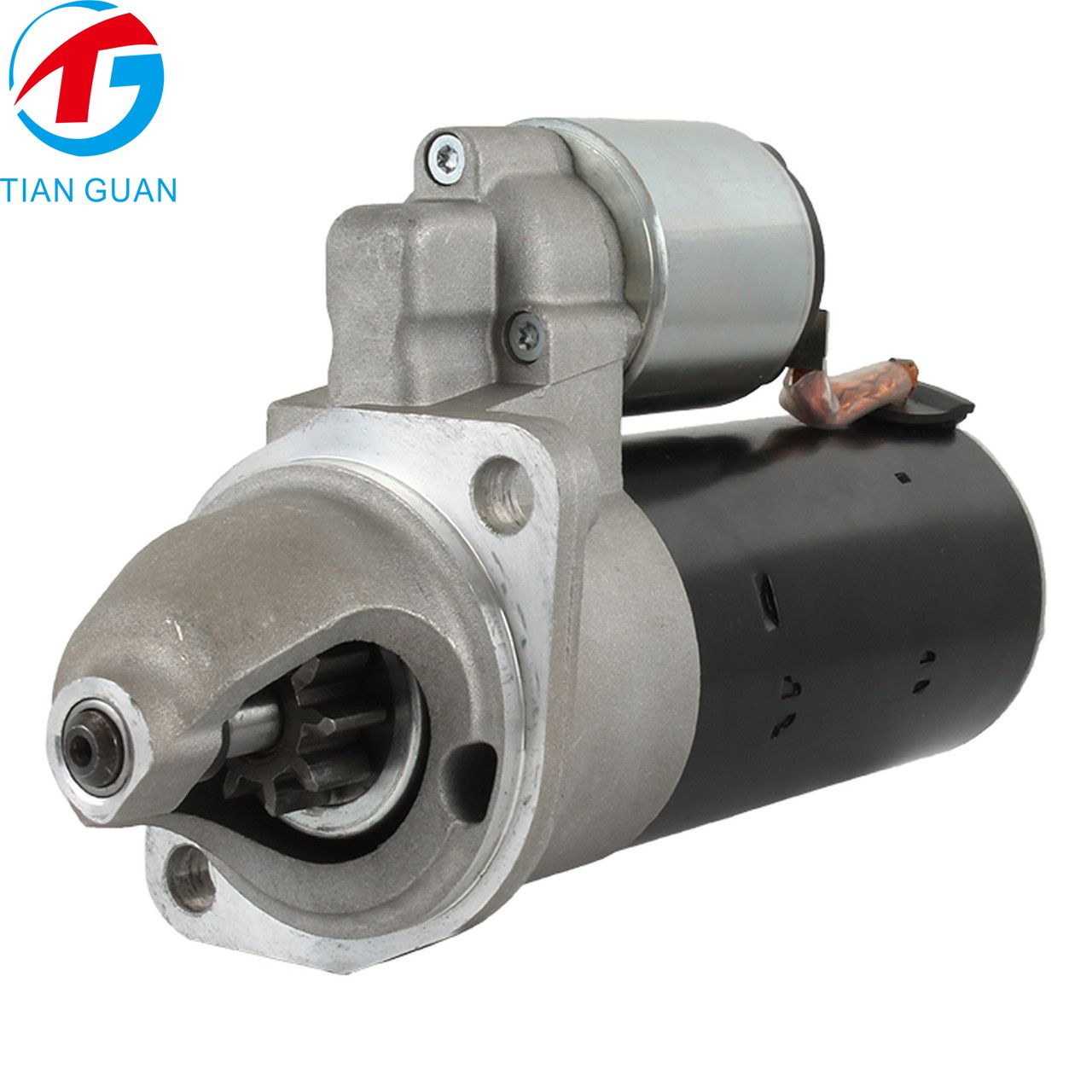

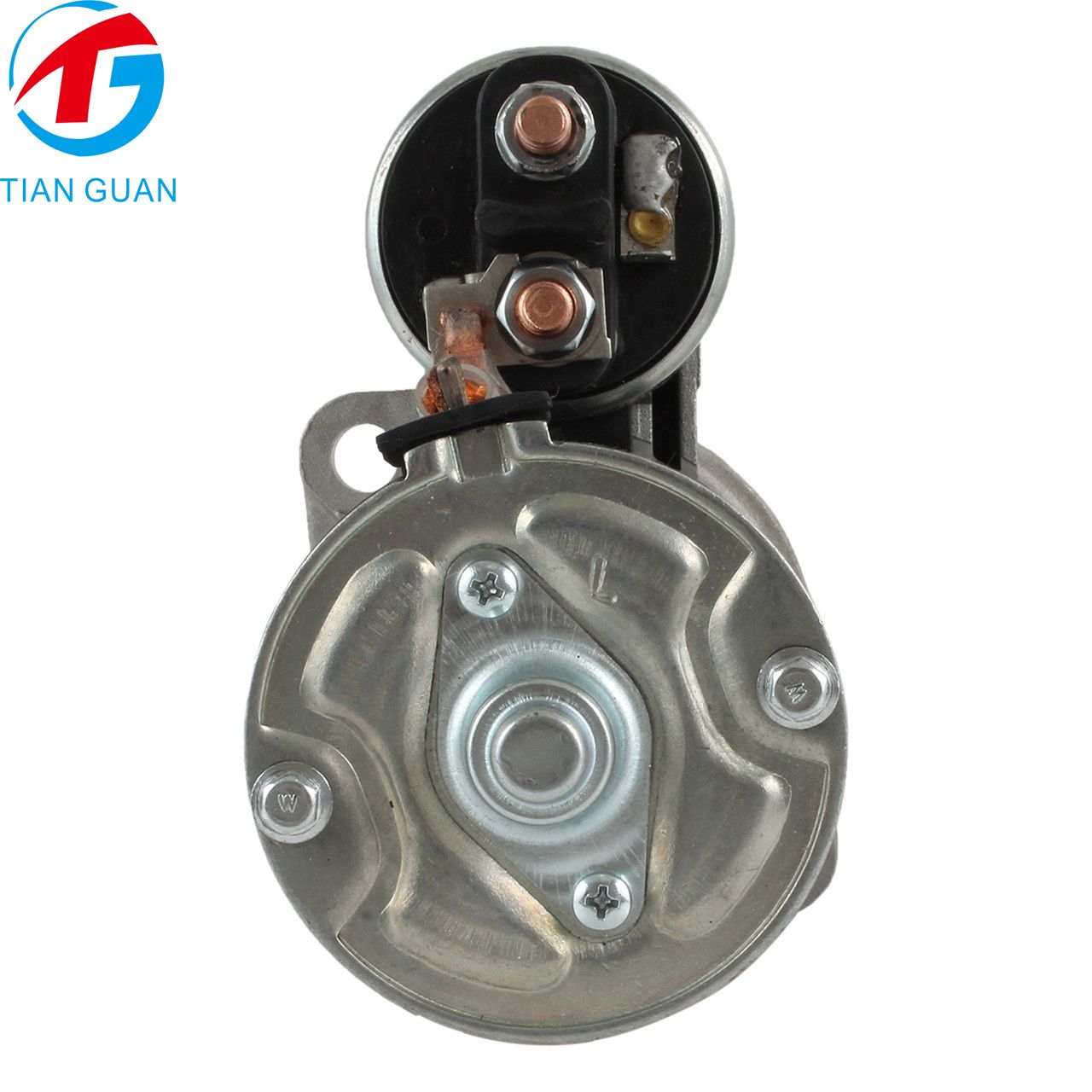

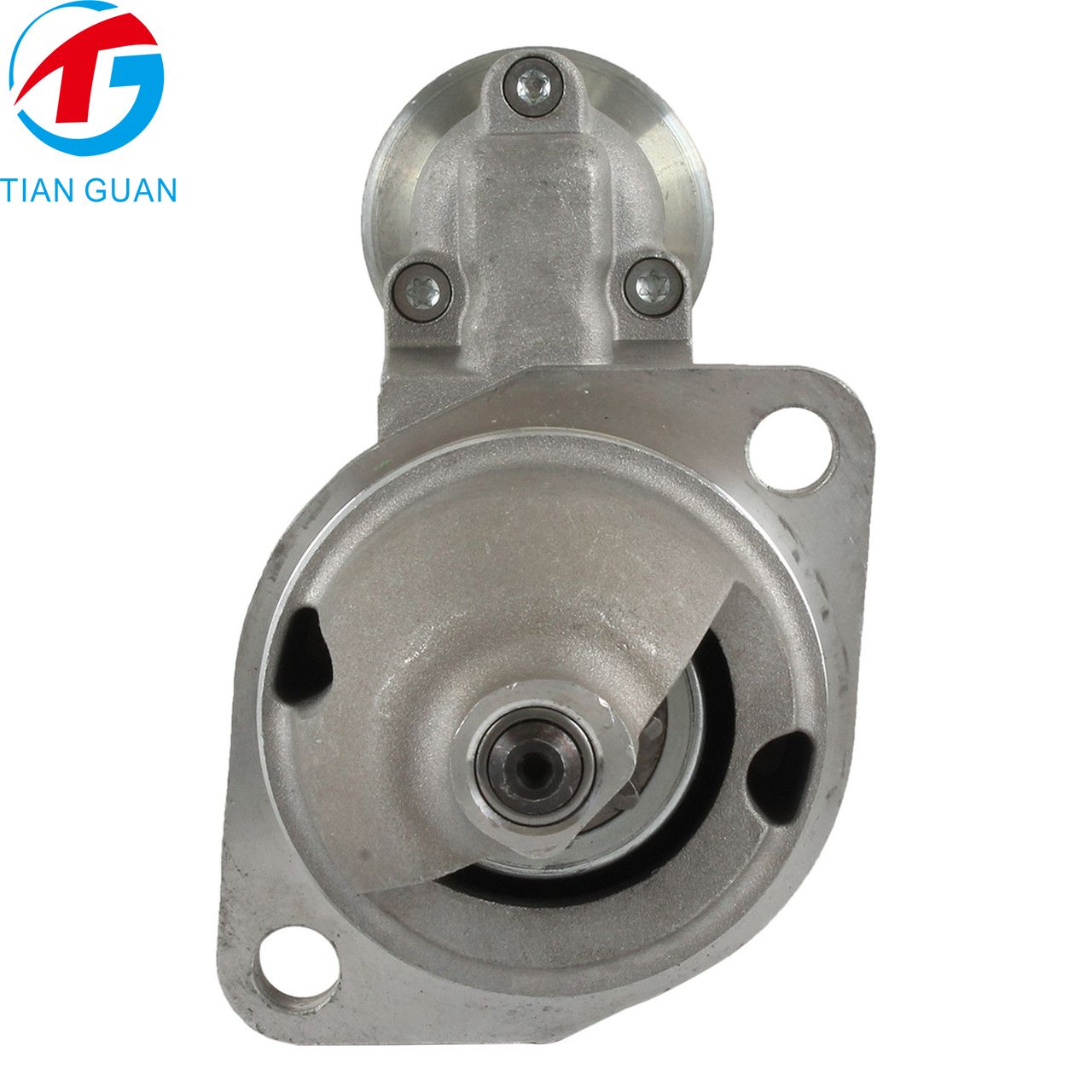

This premium aftermarket 12V 1.3KW Starter Motor is designed as a direct replacement for Lombardini, Sabb, and Claas applications. Built with Direct Drive (DD) design, 9-tooth pinion gear, and counter-clockwise (CCW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding marine, agricultural, and industrial applications.

This starter replaces OE part numbers SBO0370 (Arrowhead), 0-001-109-012, 0-001-307-024, 0-001-307-035, 0-001-311-056, 0-001-314-016 (Bosch), 111208, 113268 (Cargo), 6034870 (Claas), 410-24277, 410-24095R (J & N), 32074, 32075, 32076, 32077 (Lester), 58401750 (Lombardini), MSN2022 (Marelli), and 8M6007387 (Quicksilver).

• 12V starter motor

• 1.3KW power output

• 9-tooth pinion gear

• Direct Drive (DD) design

• Counter-clockwise (CCW) rotation

• Gear OD: 1.346in / 34.2mm

• Length: 10.02in / 254.5mm

• Mounting ear holes: 12.6mm unthreaded

• Mounting ear C-to-C: 105mm

• Registry OD: 3.248in / 82.5mm

• M8 B+ & Motor Terminals

• Spade S Terminal

• 195.5mm Flange to Rear

• Direct replacement for Sabb Marine / Lombardini / Claas

• Aftermarket replacement part

• Approx. 4 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Starter
Voltage: 12V
Rotation: CCW
Teeth: 9T
KW: 1.3
Dimension: Replacement PMGR Unit; Gear OD: 1.346in / 34.2mm; Length: 10.02in / 254.5mm; Mtg. Ear Holes: 12.6mm Unthreaded; Mtg. Ear C-to-C: 105mm; Registry OD: 3.248in / 82.5mm; Notes: M8 B+ & Motor Terminals, Spade S Terminal, 195.5mm Flange To Rear
Starter Type: DD
Fits: Sabb Motor (Marine) 1963-83; Used on: 1976-83 Sabb H / HG w/0.6L Engine: 1966-83 Sabb 2H / 2GH w/1.2L Engine: Also Used on Claas, Lombardini Engines in Agricultural and Industrial Applications
Weight: 4KG

Fitment

SABB – Engine Marine 2H – 1966-1983 – 1.2L Engine
SABB – Engine Marine 2HG – 1966-1983 – 1.2L Engine
SABB – Engine Marine H – 1976-1983 – 0.6L Engine
SABB – Engine Marine HG – 1976-1983 – 0.6L Engine
Lombardini – 7LD600 / 7LD665 / 7LD740 Engines
Claas – Agricultural and Industrial Applications
