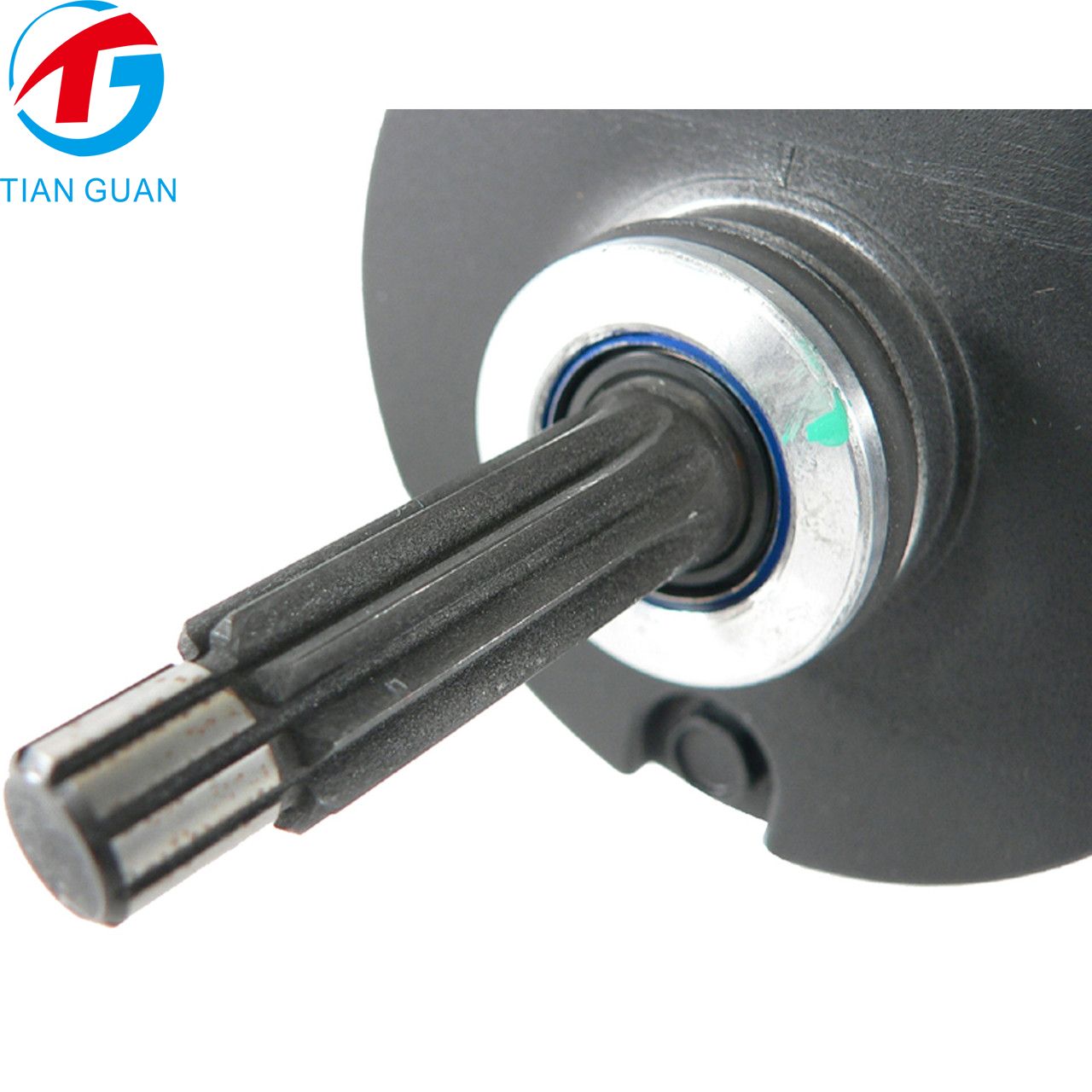

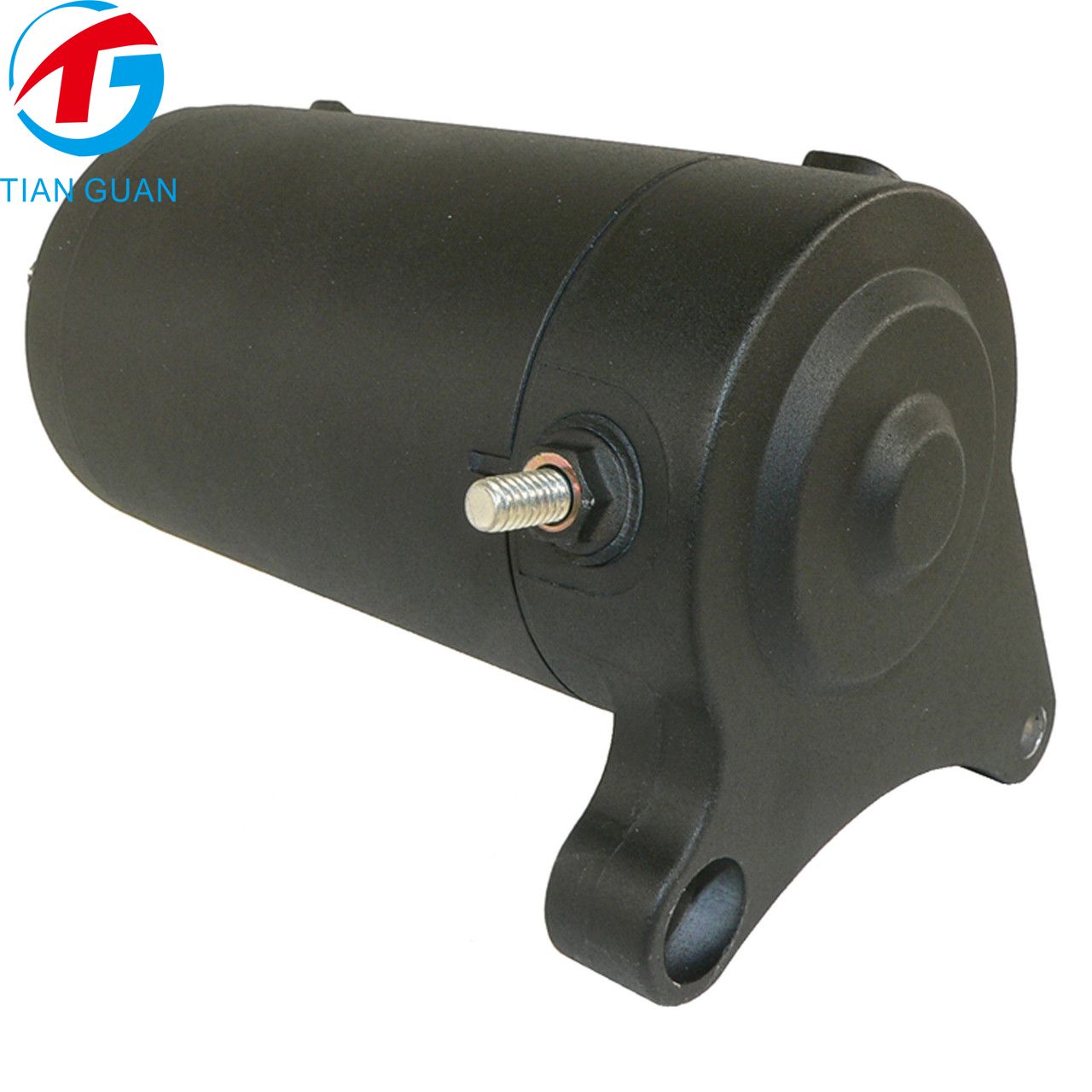

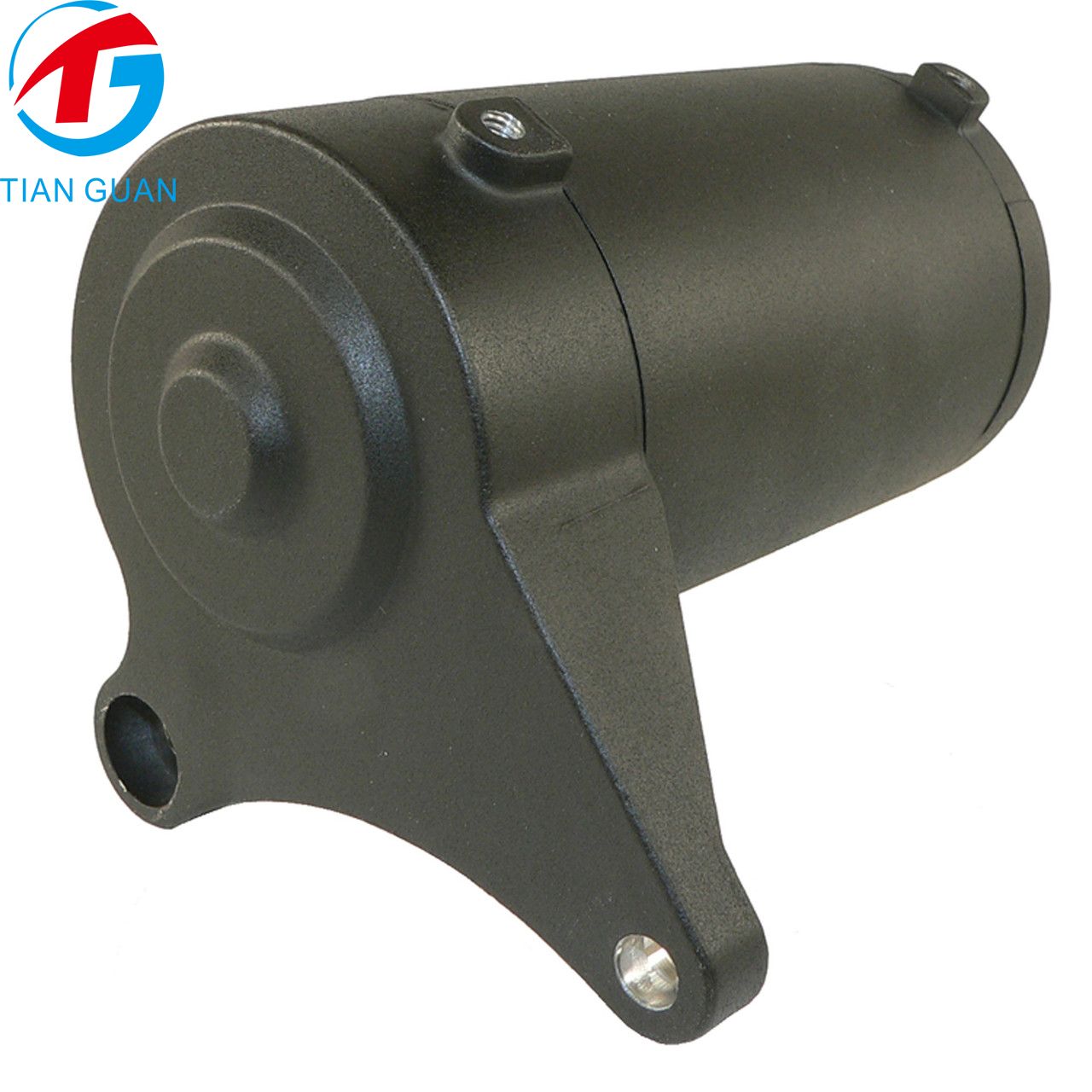

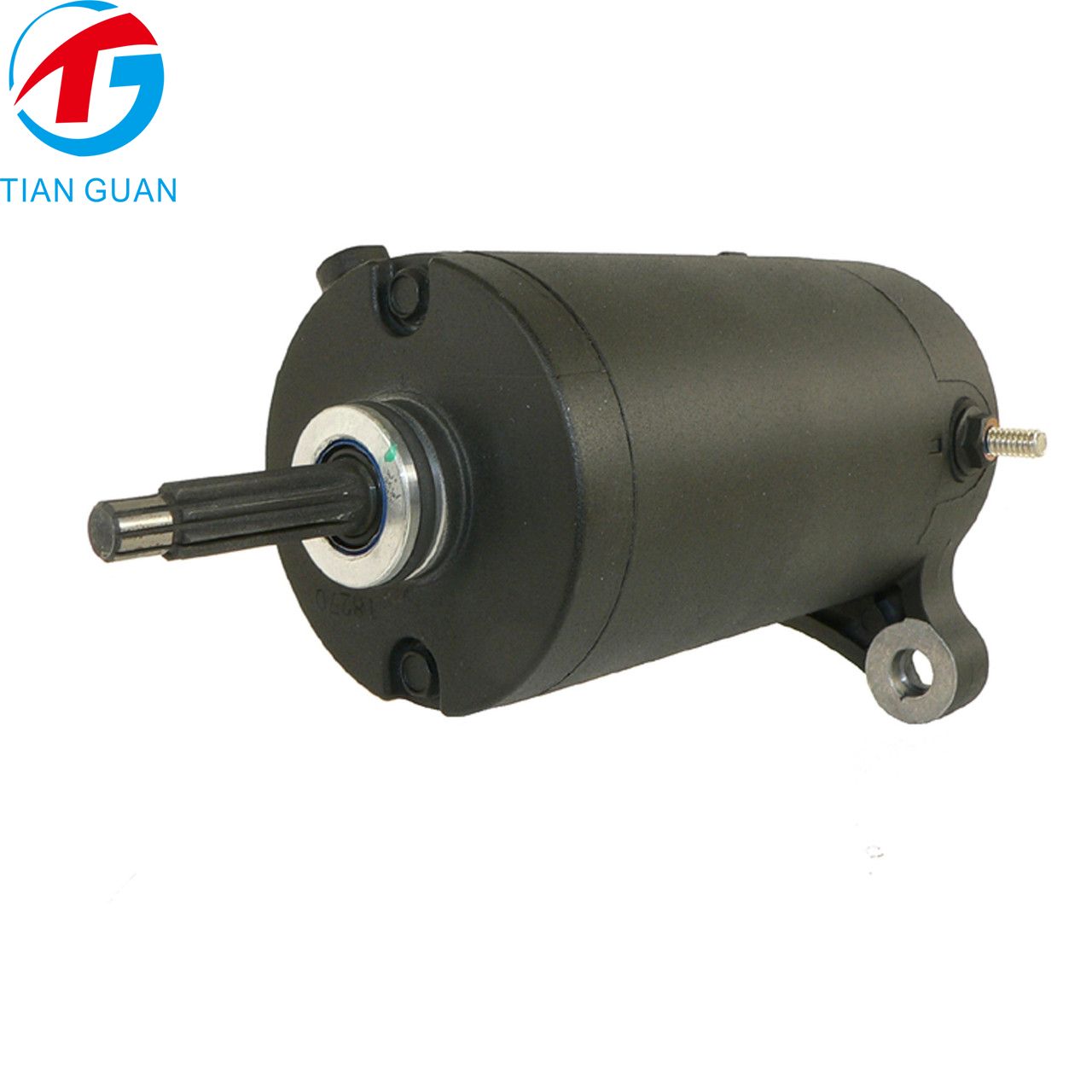

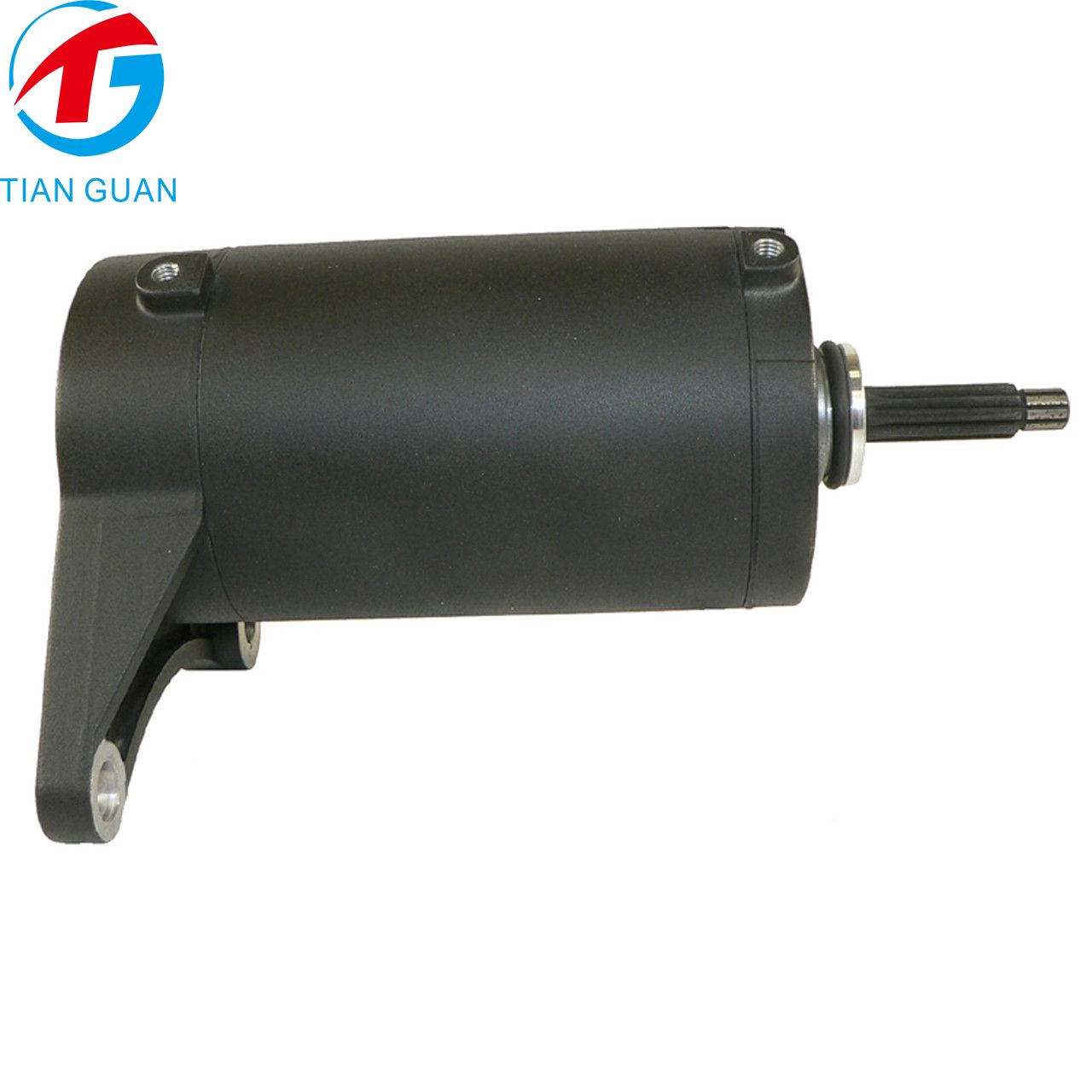

STG51754 Starter Motor 4060155 4011030 4012419 410-21090 for Victory Kingpin Vegas 2003-2005 | 12V 9T CW PMDD Replacement

3 Reviews

Add Your Review

US$98.00

ITEMNO： STG51754

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS



    STG51754 Starter Motor 4060155 4011030 4012419 410-21090 for Victory Kingpin Vegas 2003-2005 | 12V 9T CW PMDD Replacement

    Part Numbers

    Victory Motorcycle: 4060155 / 4011030 / 4012419

    Polaris: 4060155 / 4011030 / 4012419

    Arrowhead: SAB0164 / 410-21090

    J & N: 410-21089

    EMS: PS-120N

    Lester: 18861 / 18863

    MES Motorcycle & Marine: ME1400

    PIC: 191-571 / 191-573

    Tucker Rocky: 463800

    Wilson: 71-35-18862

    Product Description

    STG51754 Starter Motor is a new aftermarket replacement designed for selected Victory motorcycles, including the Kingpin and Vegas models.

    Featuring a 12V, 9-tooth, clockwise-rotation Permanent Magnet Direct Drive (PMDD) design, this starter provides reliable cranking performance for Victory's V-twin motorcycle engines.

    The starter replaces Victory / Polaris 4060155, 4011030 and 4012419 and cross-references Arrowhead 410-21090 and SAB0164. The 2004–2005 Kingpin and 2003–2005 Vegas applications are listed with 1507cc engines.

    Product Specifications

    PropertyValue
    Product ModelSTG51754
    Part Number4060155 / 4011030 / 4012419
    Unit TypeStarter
    Product TypeMotorcycle Starter Motor
    Voltage12V
    Number of Teeth9T
    RotationCW
    Starter TypePMDD (Permanent Magnet Direct Drive)
    Engine Displacement1507cc
    Engine TypeVictory V-Twin Motorcycle Engine
    Compatible BrandVictory
    ApplicationMotorcycle
    ConditionNew Aftermarket
    Weight3kg

    OEM / Cross Reference Table

    Brand / CategoryPart Number
    Victory Motorcycle4060155 / 4011030 / 4012419
    Polaris4060155 / 4011030 / 4012419
    ArrowheadSAB0164 / 410-21090
    J & N410-21089
    EMSPS-120N
    Lester18861 / 18863
    MES Motorcycle & MarineME1400
    PIC191-571 / 191-573
    Tucker Rocky463800
    Wilson71-35-18862

    Compatible Applications



    MAKETYPE MODEL YEAR ENGINE
    VICTORYMotorcycleArlen Ness Signature Jackpot20061634cc
    VICTORYMotorcycleArlen Ness Signature Jackpot20071634cc
    VICTORYMotorcycleArlen Ness Signature Jackpot20081634cc
    VICTORYMotorcycleArlen Ness Signature Kingpin20051507cc
    VICTORYMotorcycleArlen Ness Signature Vegas20051507cc
    VICTORYMotorcycleArlen Ness Signature Vision20091731cc
    VICTORYMotorcycleArlen Ness Signature Vision20101731cc
    VICTORYMotorcycleArlen Ness Signature Vision20111731cc
    VICTORYMotorcycleArlen Ness Signature Vision20121731cc
    VICTORYMotorcycleArlen Ness Signature Vision20131731cc
    VICTORYMotorcycleBoardwalk20131731cc
    VICTORYMotorcycleBoardwalk20141731cc
    VICTORYMotorcycleBoardwalk20151731cc
    VICTORYMotorcycleClassic Cruiser20031507cc
    VICTORYMotorcycleCory Ness Signature Jackpot20081634cc
    VICTORYMotorcycleCory Ness Signature Jackpot20091731cc
    VICTORYMotorcycleCory Ness Signature Jackpot20101731cc
    VICTORYMotorcycleCross Country20101731cc
    VICTORYMotorcycleCross Country20111731cc
    VICTORYMotorcycleCross Country20121731cc
    VICTORYMotorcycleCross Country20131731cc
    VICTORYMotorcycleCross Country20141731cc
    VICTORYMotorcycleCross Country20151731cc
    VICTORYMotorcycleCross Country20161731cc
    VICTORYMotorcycleCross Country20171731cc
    VICTORYMotorcycleCross Country 8-Ball20141731cc
    VICTORYMotorcycleCross Country 8-Ball20151731cc
    VICTORYMotorcycleCross Country 8-Ball20161731cc
    VICTORYMotorcycleCross Country Tour20141731cc
    VICTORYMotorcycleCross Country Tour20151731cc
    VICTORYMotorcycleCross Country Tour20161731cc
    VICTORYMotorcycleCross Country Tour20171731cc
    VICTORYMotorcycleCross Roads20101731cc
    VICTORYMotorcycleCross Roads20111731cc
    VICTORYMotorcycleCross Roads20121731cc
    VICTORYMotorcycleCross Roads20131731cc
    VICTORYMotorcycleCross Roads 8-Ball20141731cc
    VICTORYMotorcycleCross Roads Classic20141731cc
    VICTORYMotorcycleDeluxe Cruiser20011507cc
    VICTORYMotorcycleDeluxe Cruiser20021507cc
    VICTORYMotorcycleDeluxe Touring Cruiser20021507cc
    VICTORYMotorcycleGunner20141731cc
    VICTORYMotorcycleGunner20151731cc
    VICTORYMotorcycleGunner20161731cc
    VICTORYMotorcycleGunner20171731cc
    VICTORYMotorcycleHammer20051507cc
    VICTORYMotorcycleHammer20061634cc
    VICTORYMotorcycleHammer20071634cc
    VICTORYMotorcycleHammer20081634cc
    VICTORYMotorcycleHammer20091731cc
    VICTORYMotorcycleHammer20101731cc
    VICTORYMotorcycleHammer20111731cc
    VICTORYMotorcycleHammer 8-Ball20101731cc
    VICTORYMotorcycleHammer 8-Ball20111731cc
    VICTORYMotorcycleHammer 8-Ball20121731cc
    VICTORYMotorcycleHammer 8-Ball20131731cc
    VICTORYMotorcycleHammer 8-Ball20141731cc
    VICTORYMotorcycleHammer 8-Ball20151731cc
    VICTORYMotorcycleHammer 8-Ball20161731cc
    VICTORYMotorcycleHammer S20071731cc
    VICTORYMotorcycleHammer S20081731cc
    VICTORYMotorcycleHammer S20091731cc
    VICTORYMotorcycleHammer S20101731cc
    VICTORYMotorcycleHammer S20111731cc
    VICTORYMotorcycleHammer S20121731cc
    VICTORYMotorcycleHammer S20131731cc
    VICTORYMotorcycleHammer S20171731cc
    VICTORYMotorcycleHigh-Ball20121731cc
    VICTORYMotorcycleHigh-Ball20131731cc
    VICTORYMotorcycleHigh-Ball20141731cc
    VICTORYMotorcycleHigh-Ball20151731cc
    VICTORYMotorcycleHigh-Ball20161731cc
    VICTORYMotorcycleHigh-Ball20171731cc
    VICTORYMotorcycleJackpot20061634cc
    VICTORYMotorcycleJackpot20071634cc
    VICTORYMotorcycleJackpot20081634cc
    VICTORYMotorcycleJackpot20091731cc
    VICTORYMotorcycleJackpot20101731cc
    VICTORYMotorcycleJackpot20141731cc
    VICTORYMotorcycleJackpot20151731cc
    VICTORYMotorcycleJackpot20161731cc
    VICTORYMotorcycleJudge20131731cc
    VICTORYMotorcycleJudge20141731cc
    VICTORYMotorcycleJudge20151731cc
    VICTORYMotorcycleJudge20161731cc
    VICTORYMotorcycleJudge20171731cc
    VICTORYMotorcycleKingpin20041507cc
    VICTORYMotorcycleKingpin20051507cc
    VICTORYMotorcycleKingpin20061634cc
    VICTORYMotorcycleKingpin20071634cc
    VICTORYMotorcycleKingpin20081634cc
    VICTORYMotorcycleKingpin20091634cc
    VICTORYMotorcycleKingpin20101634cc
    VICTORYMotorcycleKingpin20111731cc
    VICTORYMotorcycleKingpin20121731cc
    VICTORYMotorcycleKingpin 8-Ball20081634cc
    VICTORYMotorcycleKingpin 8-Ball20091634cc
    VICTORYMotorcycleKingpin 8-Ball20101634cc
    VICTORYMotorcycleKingpin 8-Ball20111731cc
    VICTORYMotorcycleKingpin Low20091634cc
    VICTORYMotorcycleKingpin Tour20041634cc
    VICTORYMotorcycleKingpin Tour20051634cc
    VICTORYMotorcycleKingpin Tour20061634cc
    VICTORYMotorcycleKingpin Tour20071634cc
    VICTORYMotorcycleKingpin Tour20081634cc
    VICTORYMotorcycleKingpin Tour20091634cc
    VICTORYMotorcycleMagnum20151731cc
    VICTORYMotorcycleMagnum20161731cc
    VICTORYMotorcycleMagnum20171731cc
    VICTORYMotorcycleMagnum X-120151731cc
    VICTORYMotorcycleMagnum X-120161731cc
    VICTORYMotorcycleMagnum X-120171731cc
    VICTORYMotorcycleNess Cross Country20141731cc
    VICTORYMotorcycleNess Magnum20151731cc
    VICTORYMotorcycleTouring Cruiser20041507cc
    VICTORYMotorcycleTouring Cruiser20051507cc
    VICTORYMotorcycleTouring Cruiser20061507cc
    VICTORYMotorcycleV92C Special Edition20001507cc
    VICTORYMotorcycleV92C Sport Cruiser20001507cc
    VICTORYMotorcycleV92C Sport Cruiser20011507cc
    VICTORYMotorcycleV92C Sport Cruiser20021507cc
    VICTORYMotorcycleV92C Sport Cruiser20031507cc
    VICTORYMotorcycleV92C Standard Cruiser19991507cc
    VICTORYMotorcycleV92C Standard Cruiser20001507cc
    VICTORYMotorcycleV92C Standard Cruiser20011507cc
    VICTORYMotorcycleV92C Standard Cruiser20021507cc
    VICTORYMotorcycleV92C Touring Cruiser20021507cc
    VICTORYMotorcycleV92C Touring Cruiser20031507cc
    VICTORYMotorcycleVegas20031507cc
    VICTORYMotorcycleVegas20041507cc
    VICTORYMotorcycleVegas20051507cc
    VICTORYMotorcycleVegas20061634cc
    VICTORYMotorcycleVegas20071634cc
    VICTORYMotorcycleVegas20081634cc
    VICTORYMotorcycleVegas20091634cc
    VICTORYMotorcycleVegas20101634cc
    VICTORYMotorcycleVegas20111731cc
    VICTORYMotorcycleVegas20121731cc
    VICTORYMotorcycleVegas20131731cc
    VICTORYMotorcycleVegas20161731cc
    VICTORYMotorcycleVegas20171731cc
    VICTORYMotorcycleVegas 8-Ball20051507cc
    VICTORYMotorcycleVegas 8-Ball20061634cc
    VICTORYMotorcycleVegas 8-Ball20071634cc
    VICTORYMotorcycleVegas 8-Ball20081634cc
    VICTORYMotorcycleVegas 8-Ball20091634cc
    VICTORYMotorcycleVegas 8-Ball20101634cc
    VICTORYMotorcycleVegas 8-Ball20111731cc
    VICTORYMotorcycleVegas 8-Ball20121731cc
    VICTORYMotorcycleVegas 8-Ball20131731cc
    VICTORYMotorcycleVegas 8-Ball20141731cc
    VICTORYMotorcycleVegas 8-Ball20151731cc
    VICTORYMotorcycleVegas 8-Ball20161731cc
    VICTORYMotorcycleVegas 8-Ball20171731cc
    VICTORYMotorcycleVegas Jackpot20061634cc
    VICTORYMotorcycleVegas Jackpot20071634cc
    VICTORYMotorcycleVegas Jackpot20081634cc
    VICTORYMotorcycleVegas Jackpot20091634cc
    VICTORYMotorcycleVegas Jackpot20111731cc
    VICTORYMotorcycleVegas Jackpot20121731cc
    VICTORYMotorcycleVegas Jackpot20131731cc
    VICTORYMotorcycleVegas Low20081634cc
    VICTORYMotorcycleVegas Low20091634cc
    VICTORYMotorcycleVegas ZNSS20111731cc
    VICTORYMotorcycleVegas ZNSS20121731cc
    VICTORYMotorcycleVision 8-Ball20101731cc
    VICTORYMotorcycleVision 8-Ball20111731cc
    VICTORYMotorcycleVision Street20081731cc
    VICTORYMotorcycleVision Street20091731cc
    VICTORYMotorcycleVision Street Premium20081731cc
    VICTORYMotorcycleVision Street Premium20091731cc
    VICTORYMotorcycleVision Tour20081731cc
    VICTORYMotorcycleVision Tour20091731cc
    VICTORYMotorcycleVision Tour20101731cc
    VICTORYMotorcycleVision Tour20111731cc
    VICTORYMotorcycleVision Tour20121731cc
    VICTORYMotorcycleVision Tour20131731cc
    VICTORYMotorcycleVision Tour20141731cc
    VICTORYMotorcycleVision Tour20151731cc
    VICTORYMotorcycleVision Tour20161731cc
    VICTORYMotorcycleVision Tour 10th Anniversary20091731cc
    VICTORYMotorcycleVision Tour Comfort20081731cc
    VICTORYMotorcycleVision Tour Comfort20091731cc
    VICTORYMotorcycleVision Tour Comfort20101731cc
    VICTORYMotorcycleVision Tour Premium20081731cc
    VICTORYMotorcycleVision Tour Premium20091731cc
    VICTORYMotorcycleVision Tour Premium20101731cc

  • PRODUCT HIGHLIGHTS

    Product Highlights

    12V 9T PMDD Starter MotorVictory Motorcycle ApplicationOEM Replacement Compatibility
    CW Rotation DesignKingpin / Vegas 1507cc Models4060155 / 4011030 / 4012419
    Direct Drive Starter2003–2005 ApplicationsArrowhead 410-21090 / SAB0164
