STG51762 Starter Motor SND0234 410-52058 228000-8080 228000-8081 228000-8082 228000-8083 for John Deere Tractors, Loaders, Combines | 12V 4.0kW 11T CW OSGR Replacement
Part Numbers
Arrowhead: SND0234 / 410-52058 / NDTG228000-8083 / ND228000-8083
Cargo: 113736
Denso: 228000-8080 / 228000-8081 / 228000-8082 / 228000-8083 / TG228000-8083
J&N Electrical Products: 410-52058
Lester: 18566
Product Description

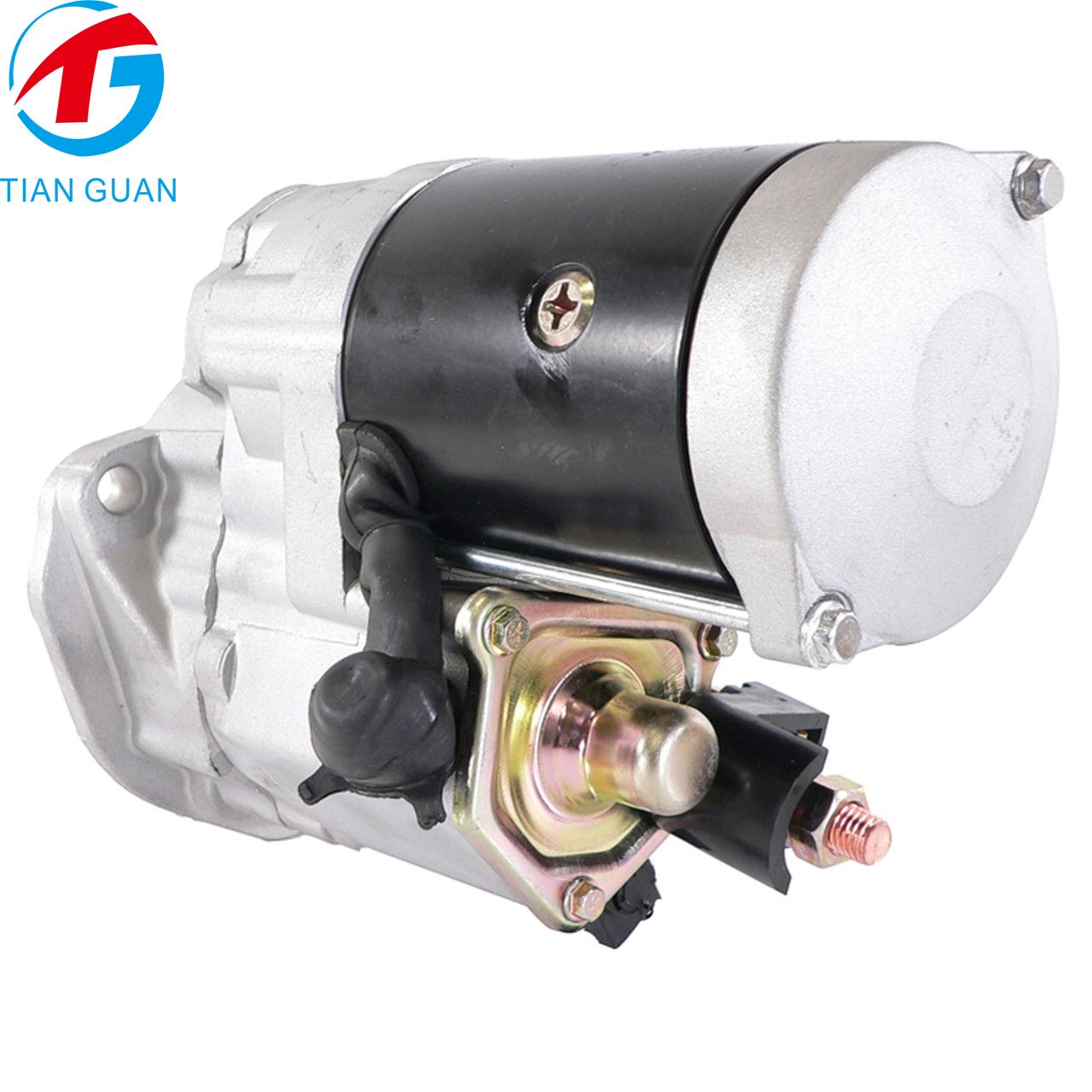

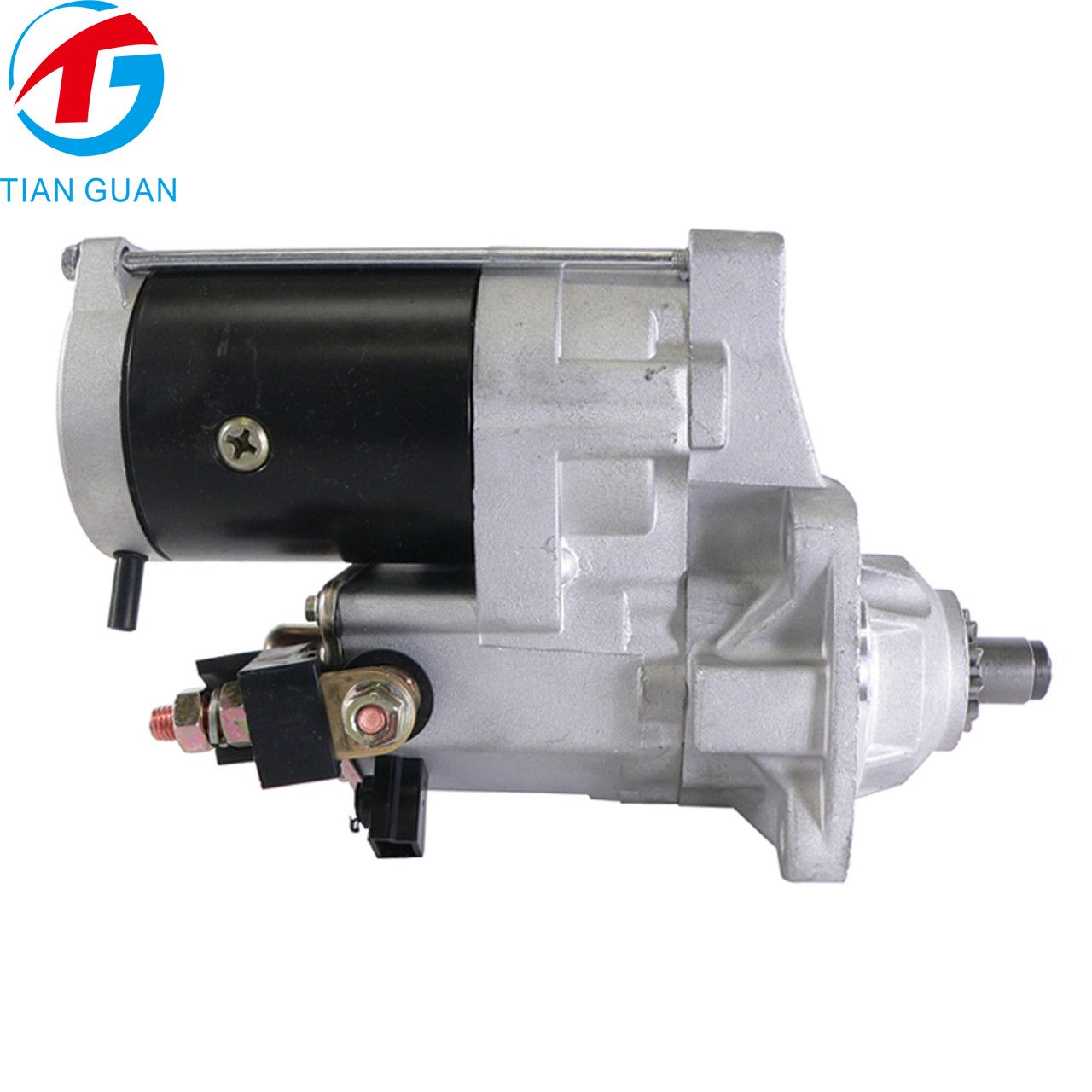

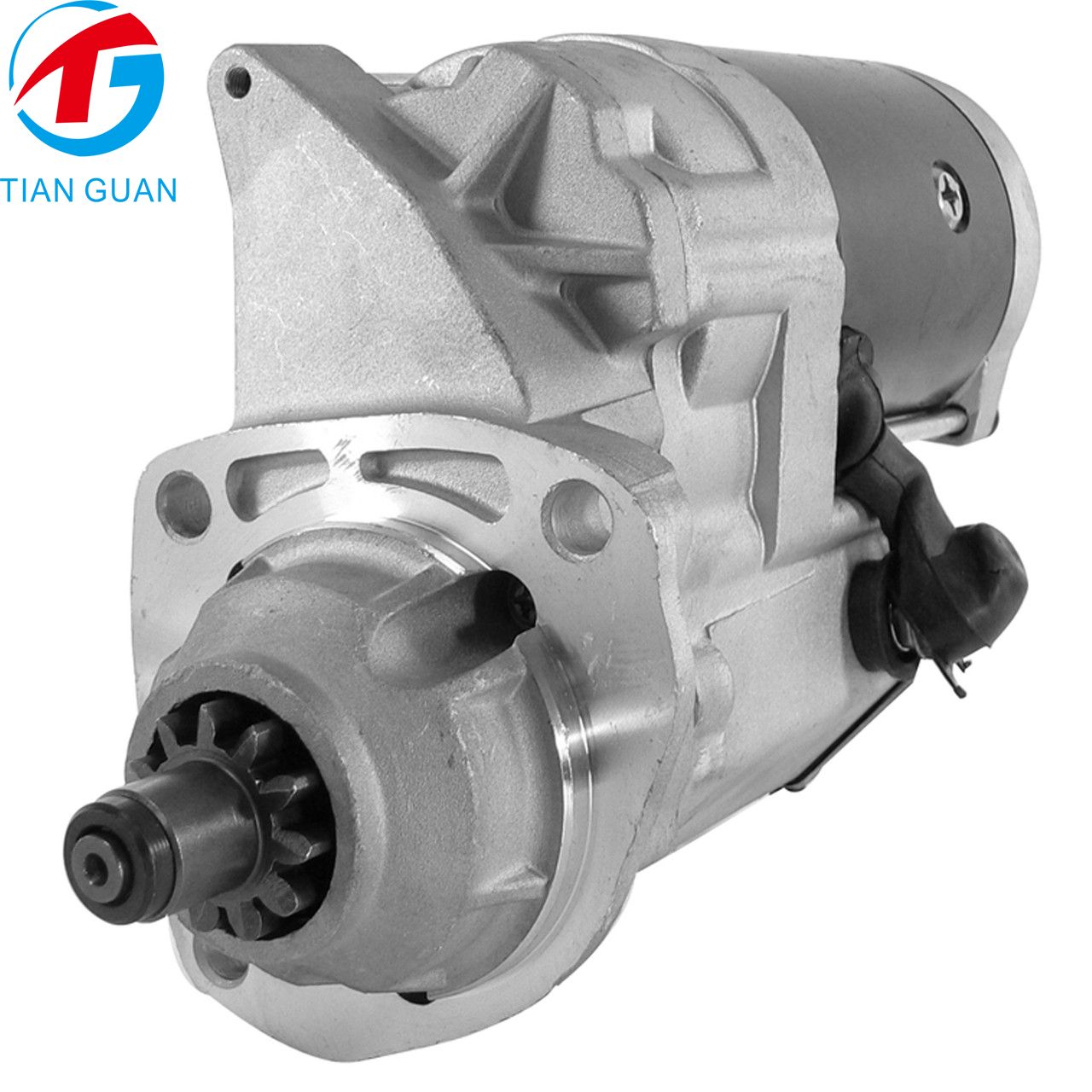

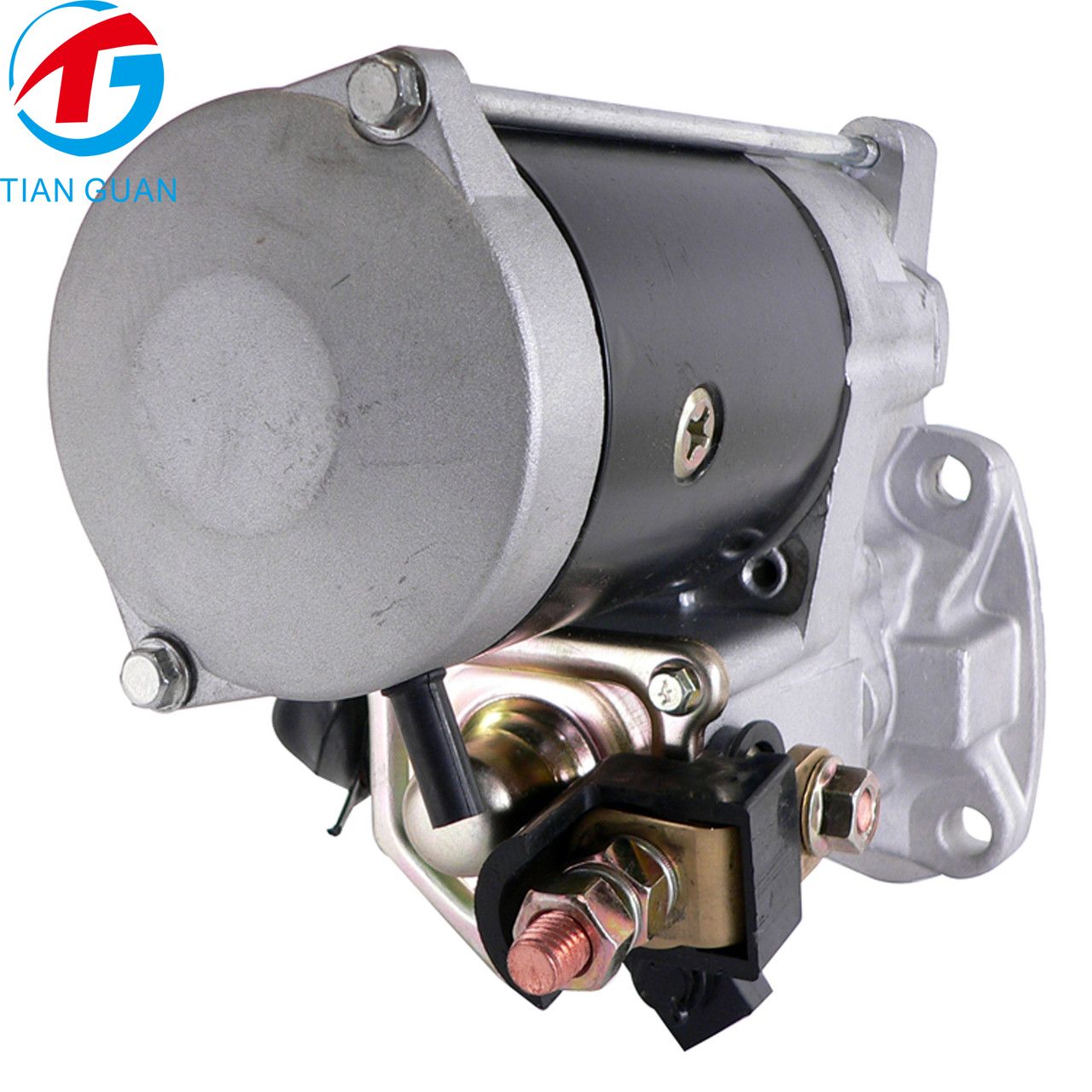

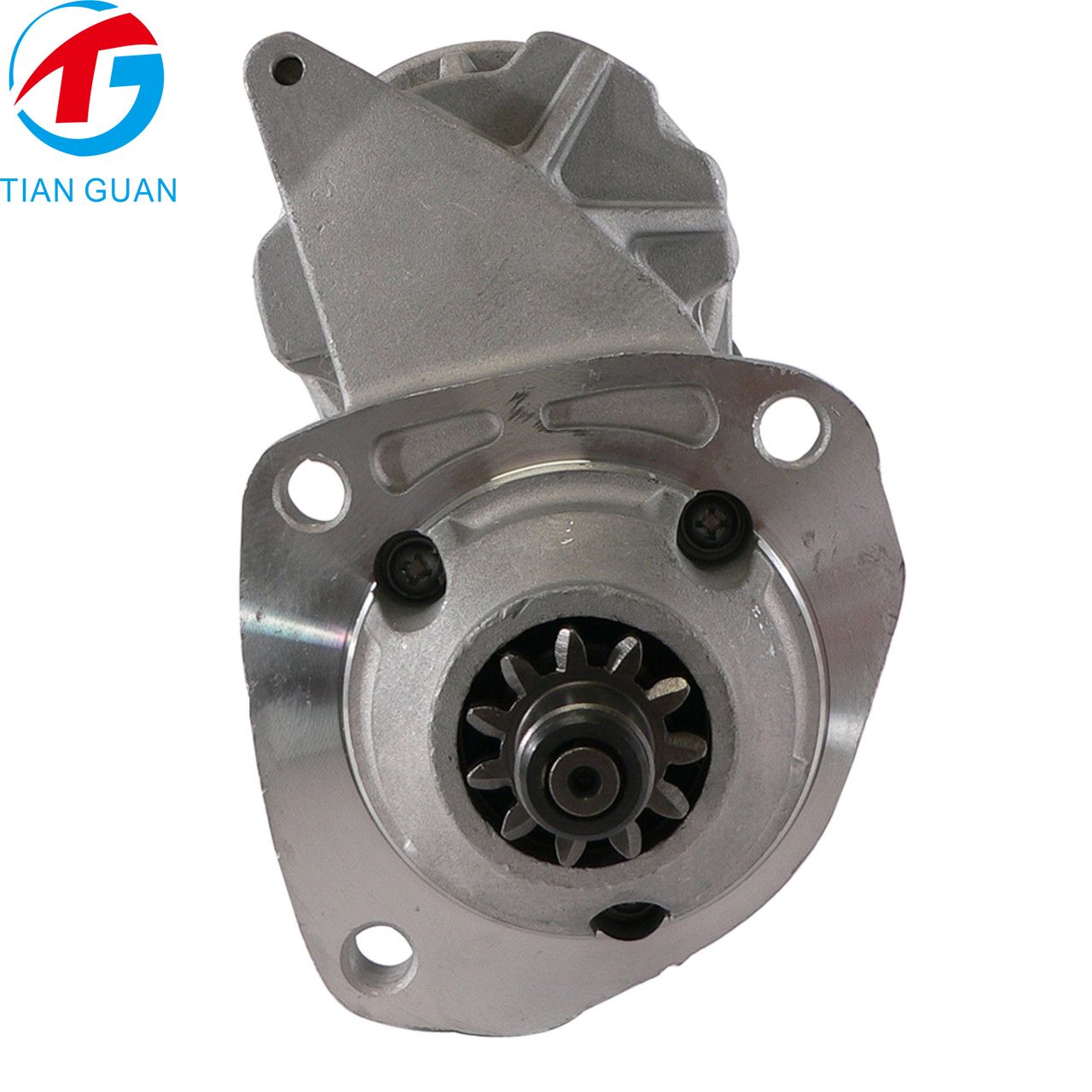

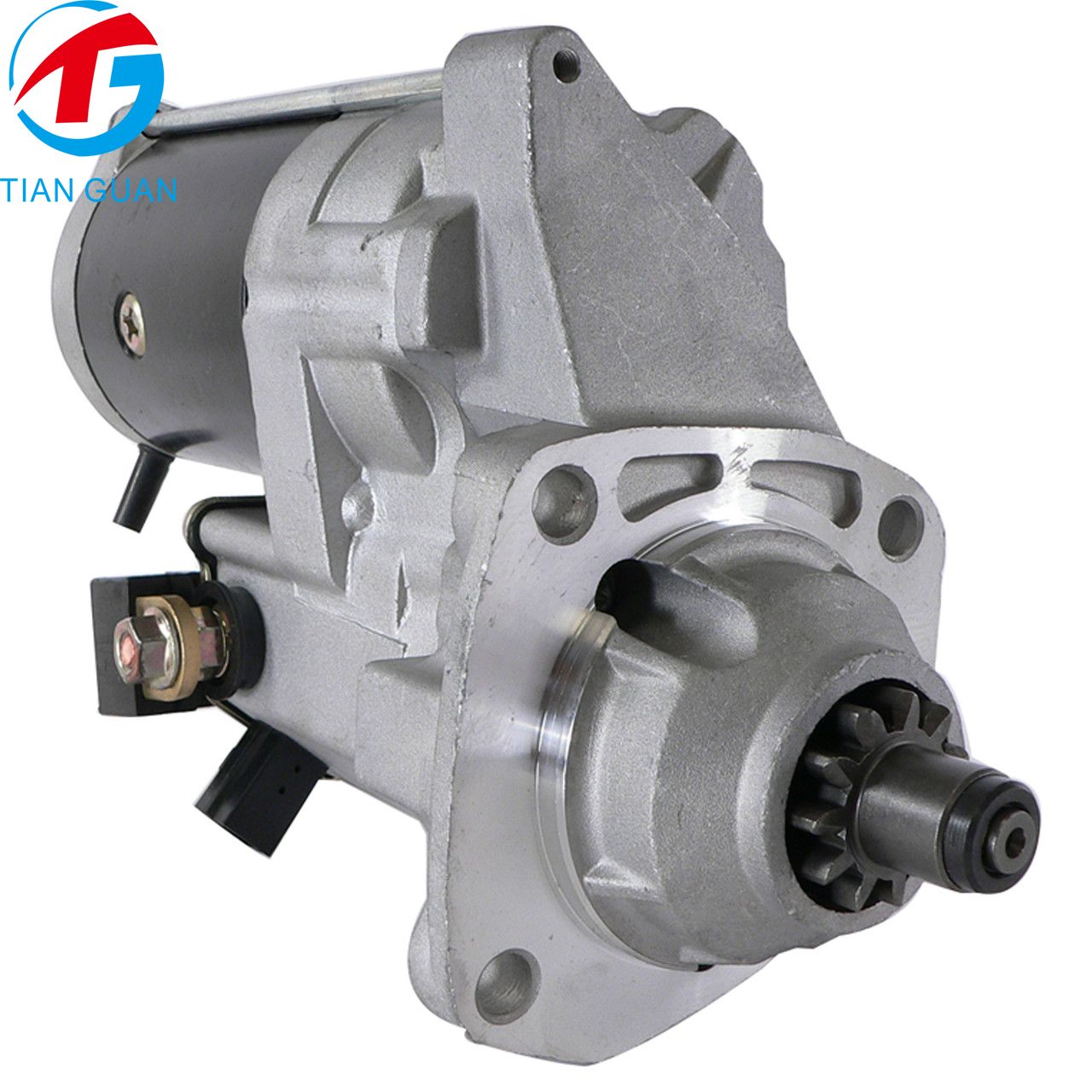

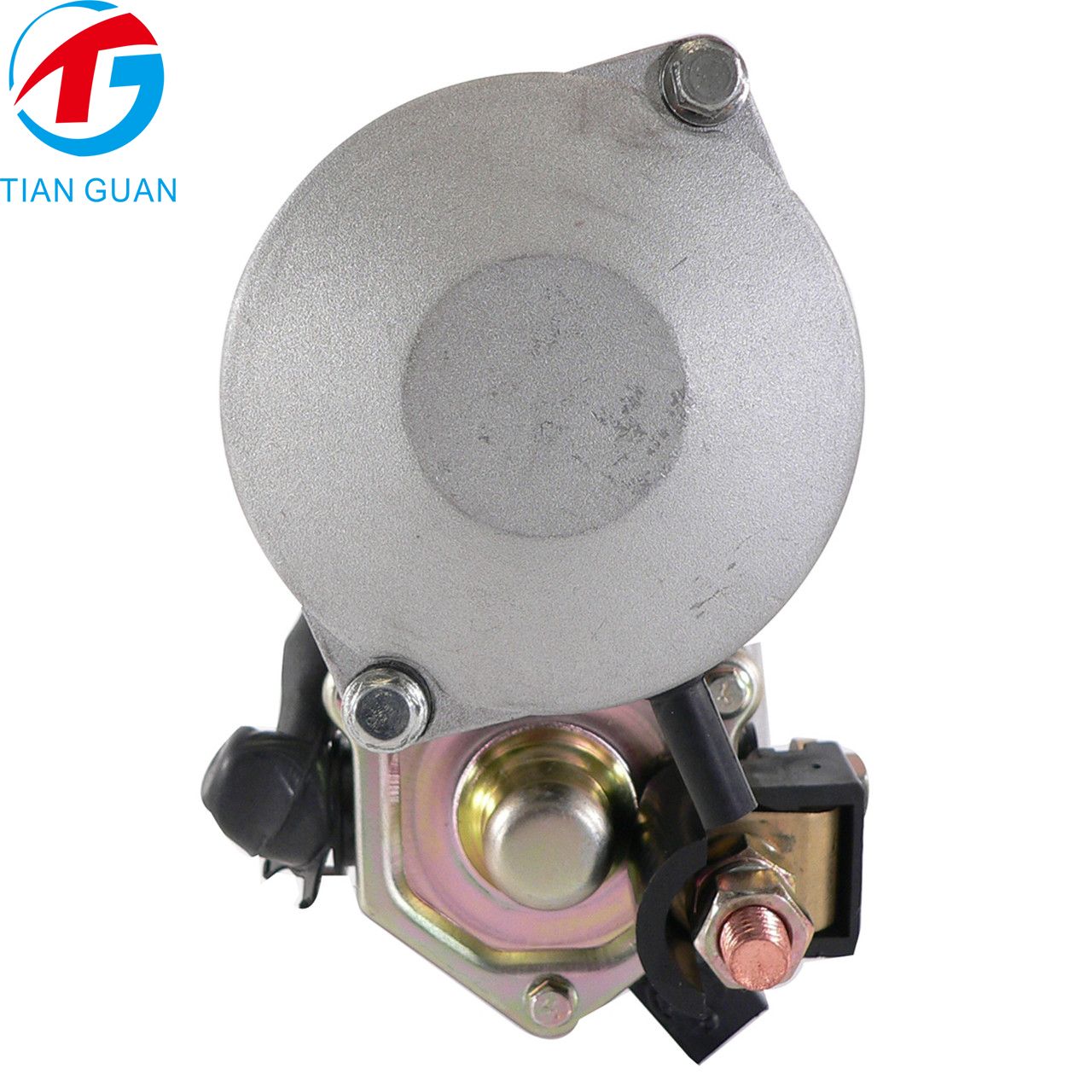

The STG51762 Starter Motor is a new aftermarket replacement starter designed for a wide range of compatible John Deere agricultural tractors, loaders, forestry equipment, and harvesting machinery.
Featuring a 12V electrical system, 4.0kW power output, an 11-tooth pinion gear, clockwise (CW) rotation, and an offset gear reduction (OSGR) design, this starter is intended for reliable cranking performance in demanding agricultural and industrial applications.
The starter features a 39.8mm gear outside diameter, 12mm unthreaded mounting holes, and a wet clutch seal configuration. It cross-references Arrowhead, Denso, Cargo, J&N Electrical Products, and Lester part numbers.
Before ordering, compare the original starter number, engine model, mounting arrangement, and wet clutch seal configuration to confirm compatibility.
Product Specifications
| Specification | Details |
|---|
| Product SKU | STG51762 |
| Product Type | Starter Motor |
| Unit Type | Starter |
| Condition | Aftermarket Part |
| Voltage | 12V |
| Power Output | 4.0kW |
| Rotation Direction | Clockwise (CW) |
| Number of Pinion Teeth | 11T |
| Starter Type | Offset Gear Reduction (OSGR) |
| Gear Outside Diameter | 39.8mm (1.567in) |
| Mounting Hole Diameter | 12.0mm |
| Mounting Hole Type | Unthreaded |
| Clutch Seal | Wet clutch seal |
| Estimated Net Weight | 7.0kg |
OEM / Cross Reference Numbers
| Brand | Reference Part Numbers |
|---|
| Arrowhead | SND0234, 410-52058, NDTG228000-8083, ND228000-8083 |
| Cargo | 113736 |
| Denso | 228000-8080, 228000-8081, 228000-8082, 228000-8083, TG228000-8083 |
| J&N Electrical Products | 410-52058 |
| Lester | 18566 |
Compatible Applications
| Make | Equipment Type | Model | Year | Engine |
|---|
| John Deere | Tractor | 1550 | Not specified | 8.1L |
| John Deere | Tractor / Loader | 210LE | 1997–2000 | 4045 diesel |
| John Deere | Tractor / Loader | 210LE | Not specified | JD 4045D/T, 73–80 HP |
| John Deere | Loader | 310G | Not specified | JD 4045D/T, 70–80 HP diesel |
| John Deere | Loader | 310SG | Not specified | JD 4045T, 86 HP diesel |
| John Deere | Loader | 315SG | Not specified | JD 4045T, 84 HP diesel |
| John Deere | Loader / Backhoe | 410G | Not specified | JD 4045T, 92 HP diesel |
| John Deere | Crawler Dozer | 450H | Not specified | JD 4045D, 70 HP diesel |
| John Deere | Crawler Dozer | 450J | Not specified | JD 4045H, 77 HP diesel |
| John Deere | Crawler Dozer | 550H | Not specified | Not specified |
| John Deere | Crawler Dozer | 550J | Not specified | JD PT 4.5L, 85 HP diesel |
| John Deere | Sprayer | 4700 | Not specified | Not specified |
| John Deere | Sprayer | 4710 | Not specified | Not specified |
| John Deere | Sprayer | 4720 | Not specified | Not specified |
| John Deere | Sprayer | 4730 | Not specified | 6-cylinder 414 diesel |
| John Deere | Sprayer | 4830 | Not specified | 6-cylinder 414 diesel |
| John Deere | Sprayer | 4920 | Not specified | Not specified |
| John Deere | Sprayer | 4995 | Not specified | Not specified |
| John Deere | Forestry Equipment | 530B Log Loader | Not specified | Not specified |
| John Deere | Forestry Equipment | 535 Log Loader | Not specified | Not specified |
| John Deere | Forestry Equipment | 560D | Not specified | Not specified |
| John Deere | Forestry Equipment | 660D | Not specified | Not specified |
| John Deere | Forestry Equipment | 848G | Not specified | Not specified |
| John Deere | Engine | 4045DFM50 (Code 3006) | Not specified | 4-cylinder, 276ci, 4.5L |
| John Deere | Engine | 4045DFM70 (Code 3006) | 2004–2007 | 4-cylinder, 276ci, 4.5L |
| John Deere | Engine | 4045TFM50 (Code 3006) | Not specified | 4-cylinder, 276ci, 4.5L |
| John Deere | Engine | 4045TFM75 (Code 3006) | 2004–2007 | 4-cylinder, 276ci, 4.5L |
| John Deere | Engine | 6068SFM50 (Code 3006) | 2004–2007 | 6-cylinder, 414ci, 6.8L |
| John Deere | Engine | 6068SFM75 (Code 3006) | 2004–2007 | 6-cylinder, 414ci, 6.8L |
| John Deere | Engine | 6068TFM50 (Code 3006) | Not specified | 6-cylinder, 414ci, 6.8L |
| John Deere | Engine | 6068TFM75 (Code 3006) | 2004–2007 | 6-cylinder, 414ci, 6.8L |
| John Deere | Engine | 6068TFM76 (Code 3006) | 2004–2007 | 6-cylinder, 414ci, 6.8L |
| John Deere | Engine | 6081AFM01 (Code 3004) | Not specified | 6-cylinder, 496ci, 8.1L |
| John Deere | Engine | 6081AFM75 (Code 3004) | 2004–2007 | 6-cylinder, 496ci, 8.1L |
| John Deere | Tractor | 7200 | Not specified | Not specified |
| John Deere | Tractor | 7210 | Not specified | 6-cylinder 414 diesel |
| John Deere | Tractor | 7300 | Not specified | Not specified |
| John Deere | Tractor | 7400 | Not specified | Not specified |
| John Deere | Tractor | 7405 | Not specified | Not specified |
| John Deere | Tractor | 7410 | Not specified | 6-cylinder 414 diesel |
| John Deere | Tractor | 7500 | Not specified | Not specified |
| John Deere | Tractor | 7505 | Not specified | Not specified |
| John Deere | Tractor | 7510 | Not specified | Not specified |
| John Deere | Tractor | 7515 | Not specified | Not specified |
| John Deere | Tractor | 7600 | Not specified | 6-cylinder 414 diesel |
| John Deere | Tractor | 7610 | Not specified | 6-cylinder 414 diesel |
| John Deere | Tractor | 7630 | Not specified | 6-cylinder 414 diesel |
| John Deere | Tractor | 7710 | Not specified | 6-cylinder 466 diesel |
| John Deere | Tractor | 7720 | Not specified | 6068 diesel |
| John Deere | Tractor | 7730 | Not specified | 6-cylinder 414 diesel |
| John Deere | Tractor | 7810 | Not specified | 6-cylinder 466 diesel |
| John Deere | Tractor | 7815 | Not specified | 6068 diesel |
| John Deere | Tractor | 7820 | Not specified | 6068 / 6081 diesel |
| John Deere | Tractor | 7830 | Not specified | 6-cylinder 414 diesel |
| John Deere | Tractor | 7920 | Not specified | 6081 diesel |
| John Deere | Tractor | 7930 | Not specified | 6-cylinder 414 diesel |
| John Deere | Tractor | 8100T | Not specified | 6-cylinder 466 diesel |
| John Deere | Tractor | 8110 / 8110T | Not specified | Not specified |
| John Deere | Tractor | 8120 / 8120T | Not specified | Not specified |
| John Deere | Tractor | 8200T | Not specified | 6-cylinder 466 diesel |
| John Deere | Tractor | 8210 / 8210T | Not specified | Not specified |
| John Deere | Tractor | 8220 / 8220T | Not specified | Not specified |
| John Deere | Tractor | 8300T | Not specified | 6-cylinder 466 diesel |
| John Deere | Tractor | 8310 / 8310T | Not specified | Not specified |
| John Deere | Tractor | 8320 | Not specified | Not specified |
| John Deere | Tractor | 8400T | Not specified | 6-cylinder 466 diesel |
| John Deere | Tractor | 8410 / 8410T | Not specified | Not specified |
| John Deere | Tractor | 8420 / 8420T | Not specified | Not specified |
| John Deere | Tractor | 8520 / 8520T | Not specified | Not specified |
| John Deere | Tractor | 9100 | Not specified | 6-cylinder 466 diesel |
| John Deere | Tractor | 9120 | Not specified | 6-cylinder 466 diesel |
| John Deere | Combine Harvester | 2256 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 2258 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 2264 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 2266 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 460D | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 6059 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 6076 | Not specified | Diesel |
| John Deere | Combine Harvester | 9970 | Not specified | 6076 / 6081 diesel |
| John Deere | Combine Harvester | 9976 | Not specified | 6081 diesel |
| John Deere | Combine Harvester | 9986 | Not specified | 6081 diesel |
| John Deere | Combine Harvester | 9996 | Not specified | 6081 diesel |
| John Deere | Combine Harvester | 643J | Not specified | 6.8L, 174 HP diesel |
| John Deere | Combine Harvester | 843J | Not specified | 6.8L, 225 HP diesel |
| John Deere | Combine Harvester | CTS II Combine | Not specified | All listed engine variants |
| John Deere | Combine Harvester | CTS II Euro Combine | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 6650 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 7400 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 7500 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9410 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9450 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9510 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9540 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9550 / 9550SH | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9560 / 9560SH | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9570 STS | Not specified | 414 diesel |
| John Deere | Combine Harvester | 9580 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9610 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9640 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9650 CTS / 9650 STS | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9660 CTS / 9660 STS / 9660 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9680 | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9750 STS | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9760 CTS | Not specified | All listed engine variants |
| John Deere | Combine Harvester | 9780 CTS | Not specified | All listed engine variants |
