STG51780 Starter Motor 515-176-754 515-176-858 428000-6330 for Lynx and Ski-Doo Snowmobiles | 12V 9T CW Replacement

Part Numbers

Product Description

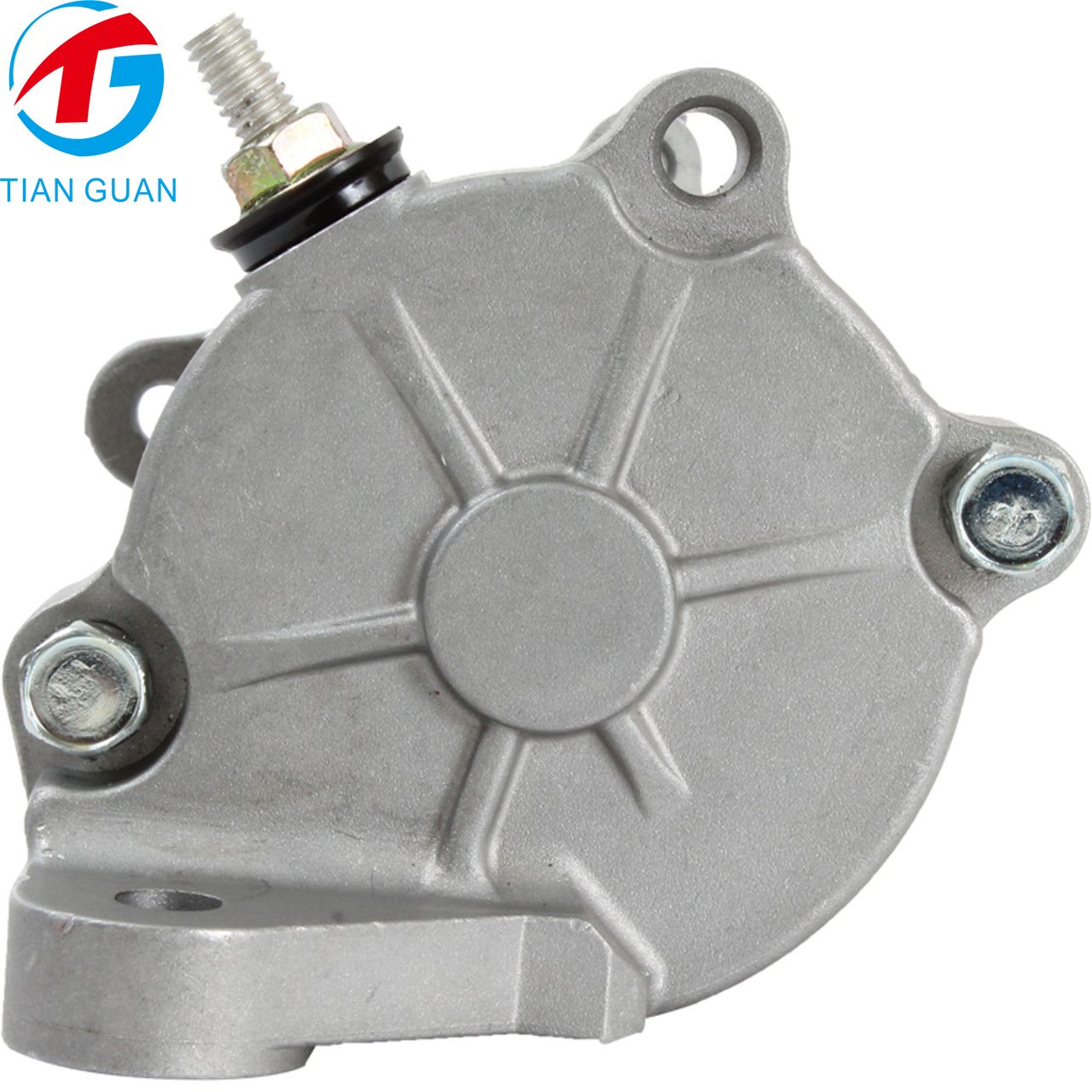

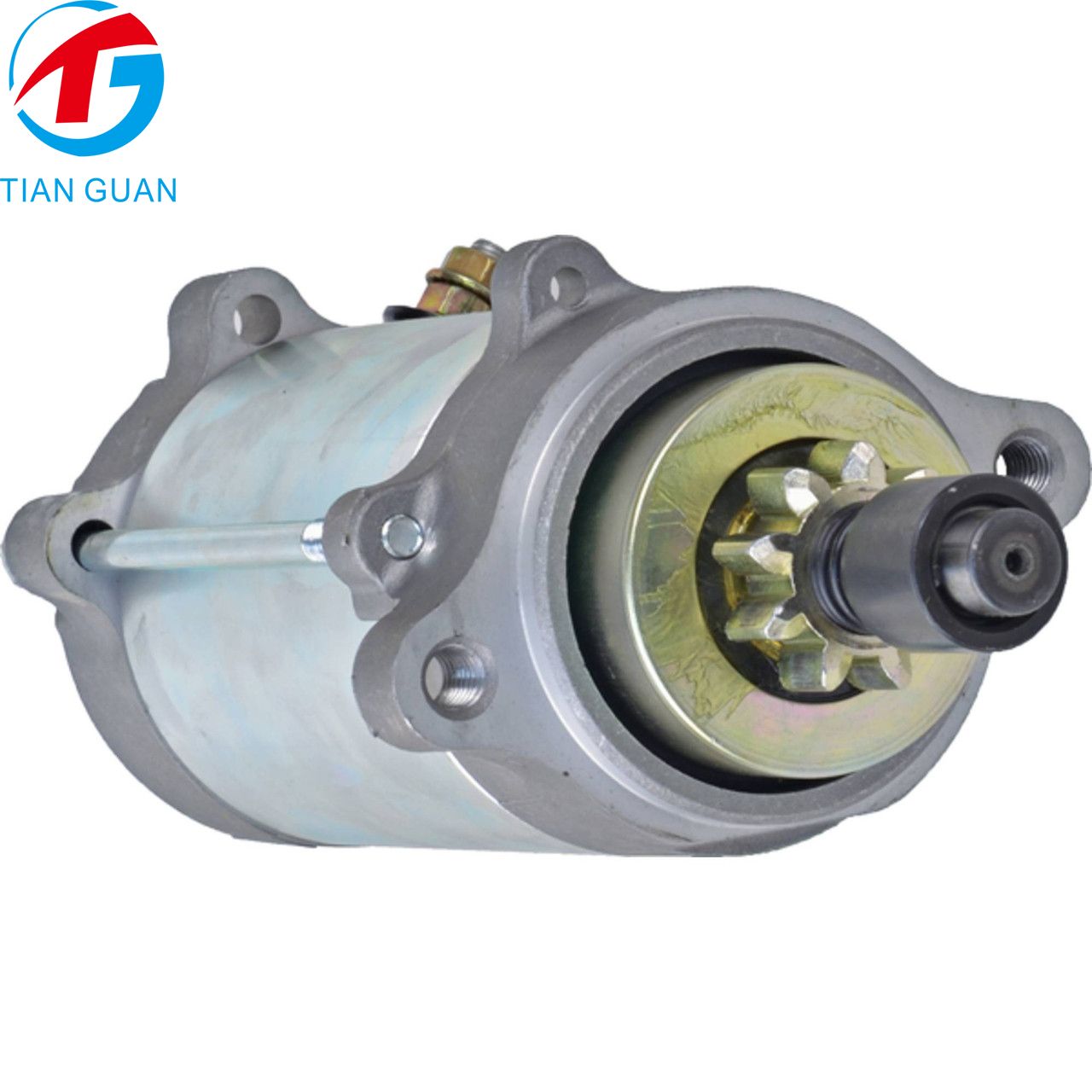

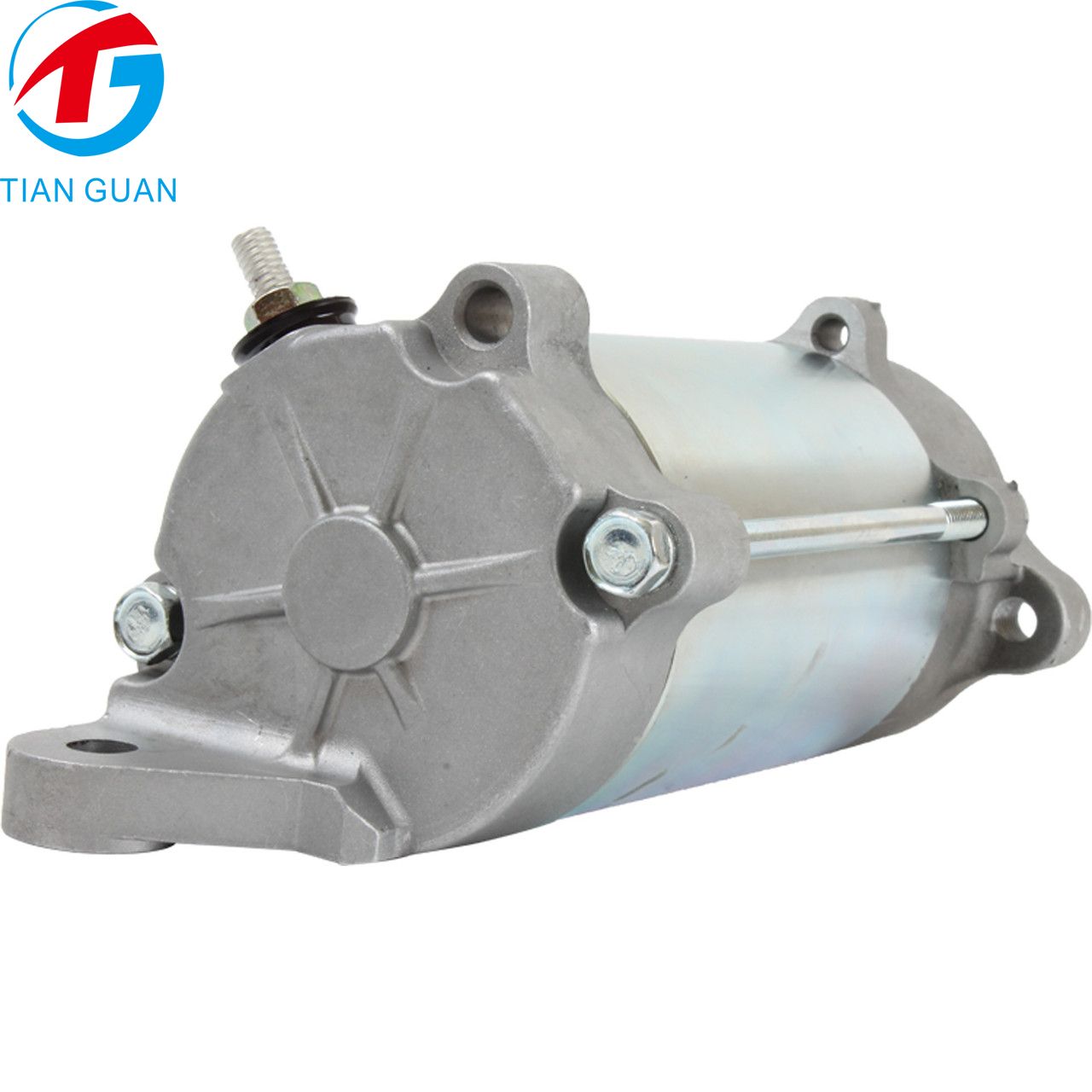

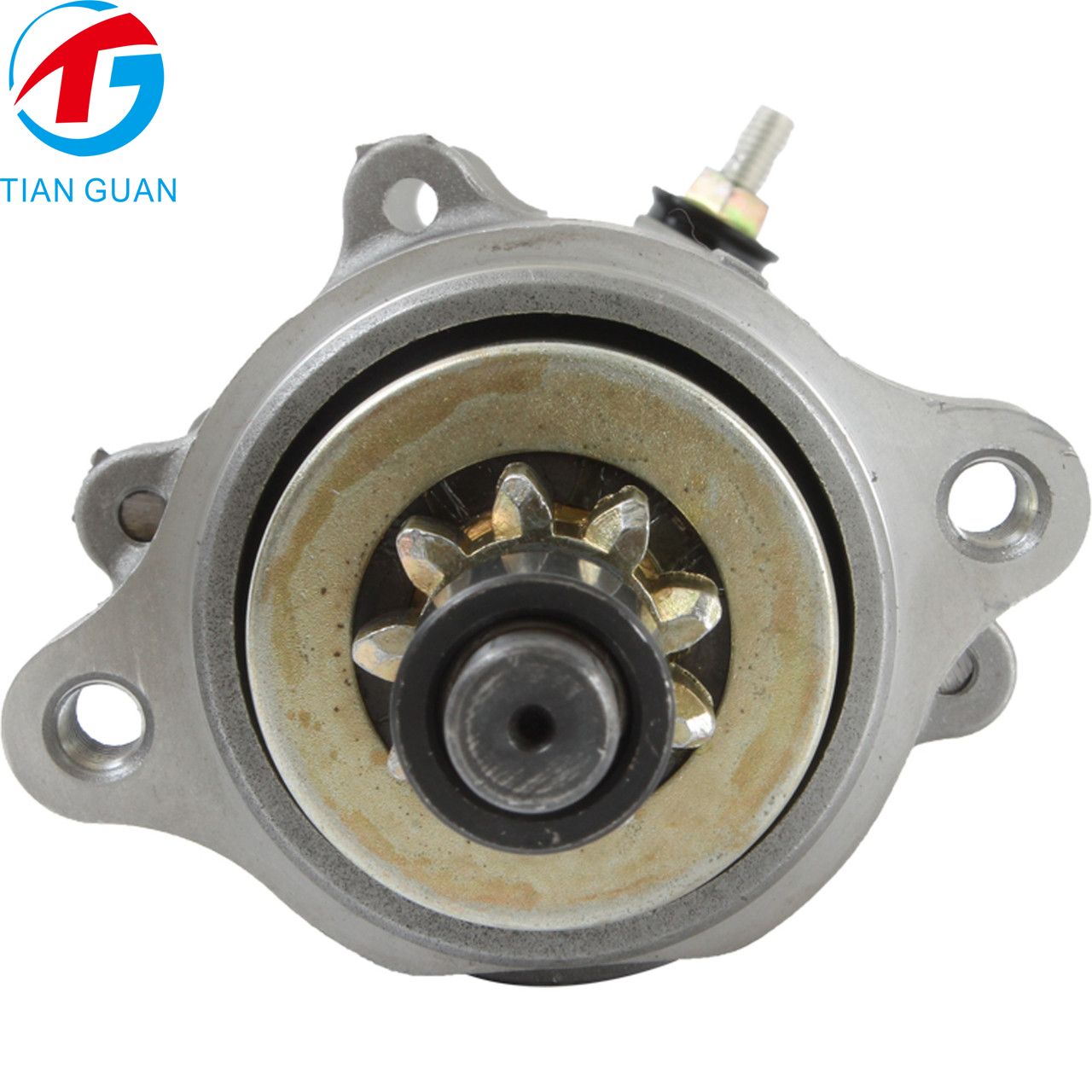

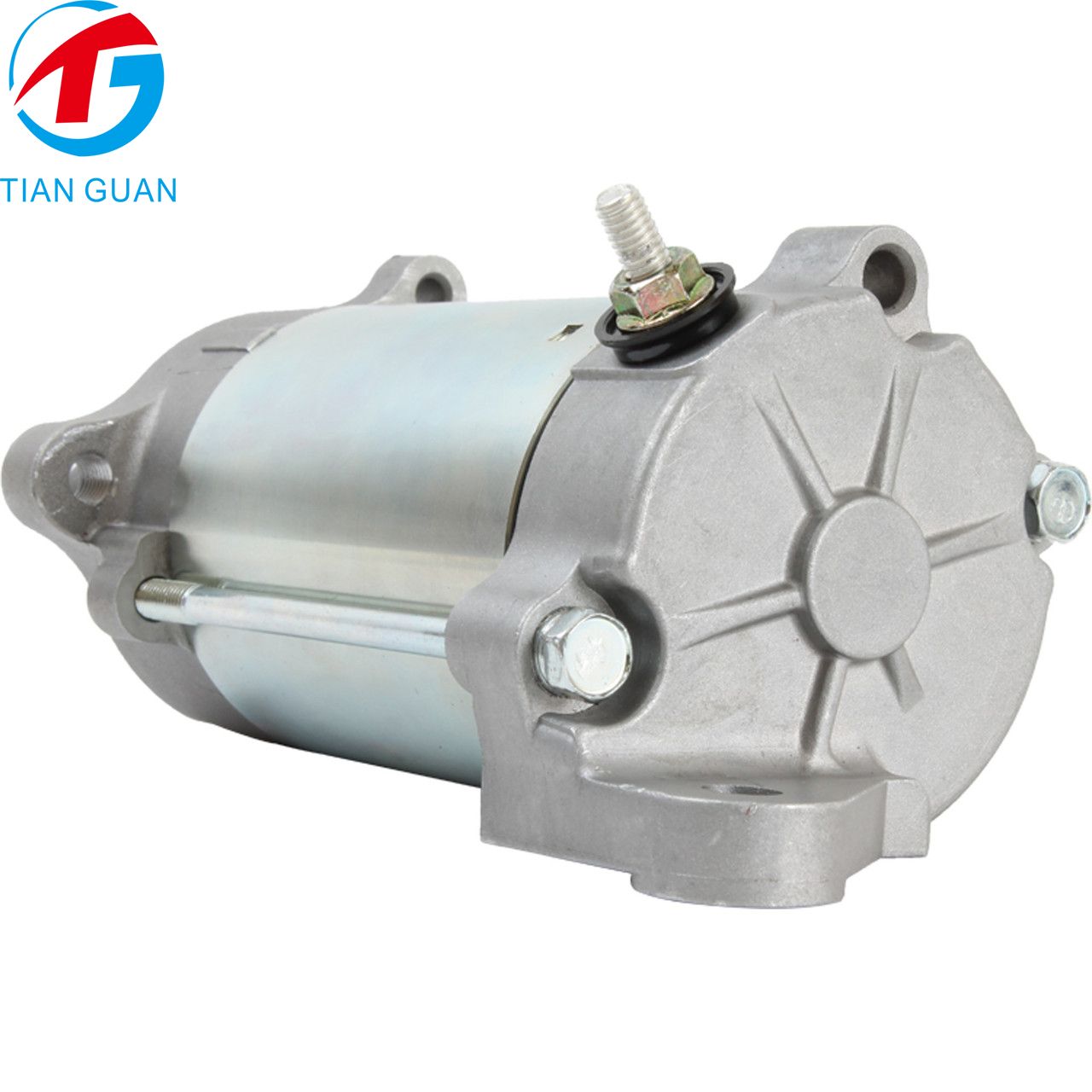

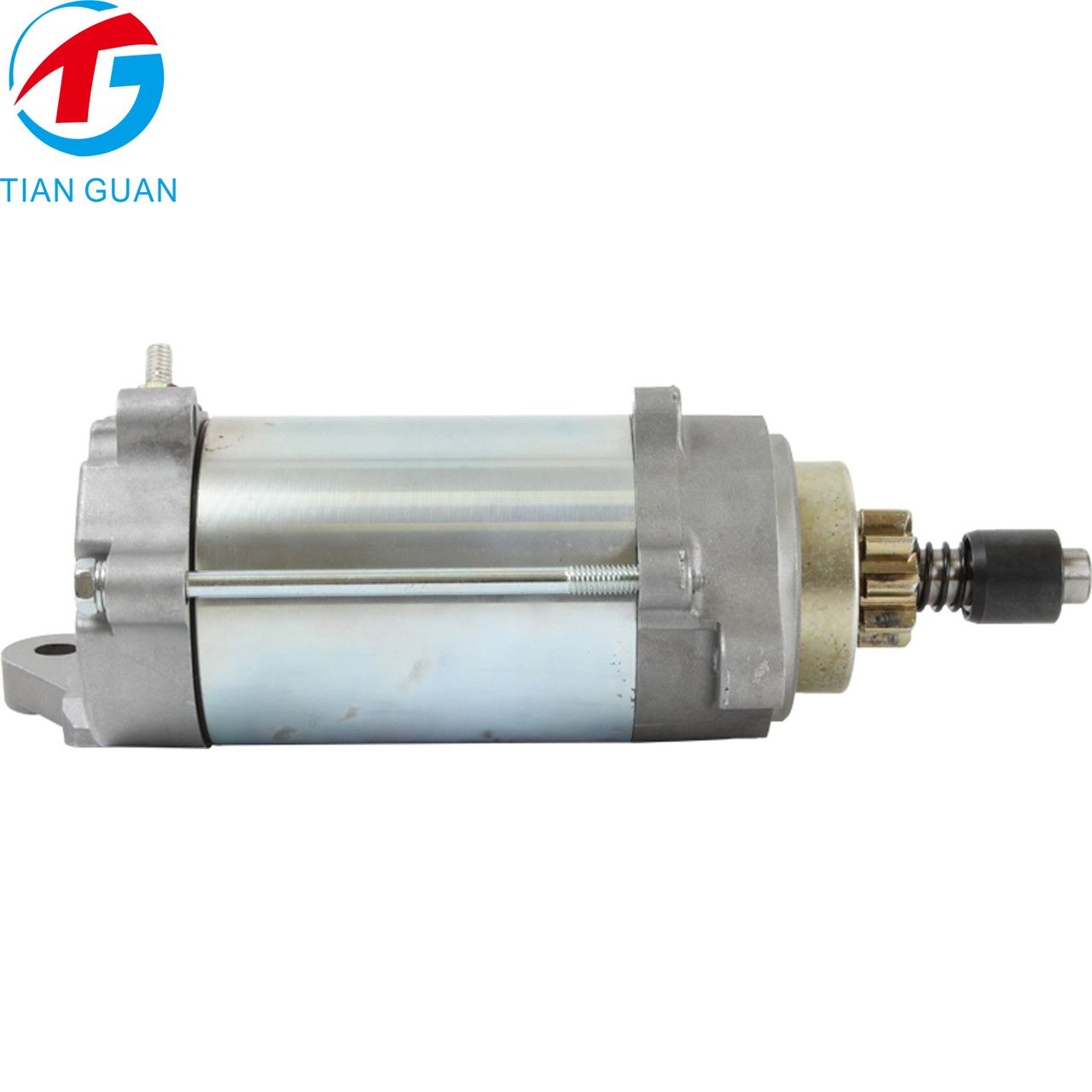

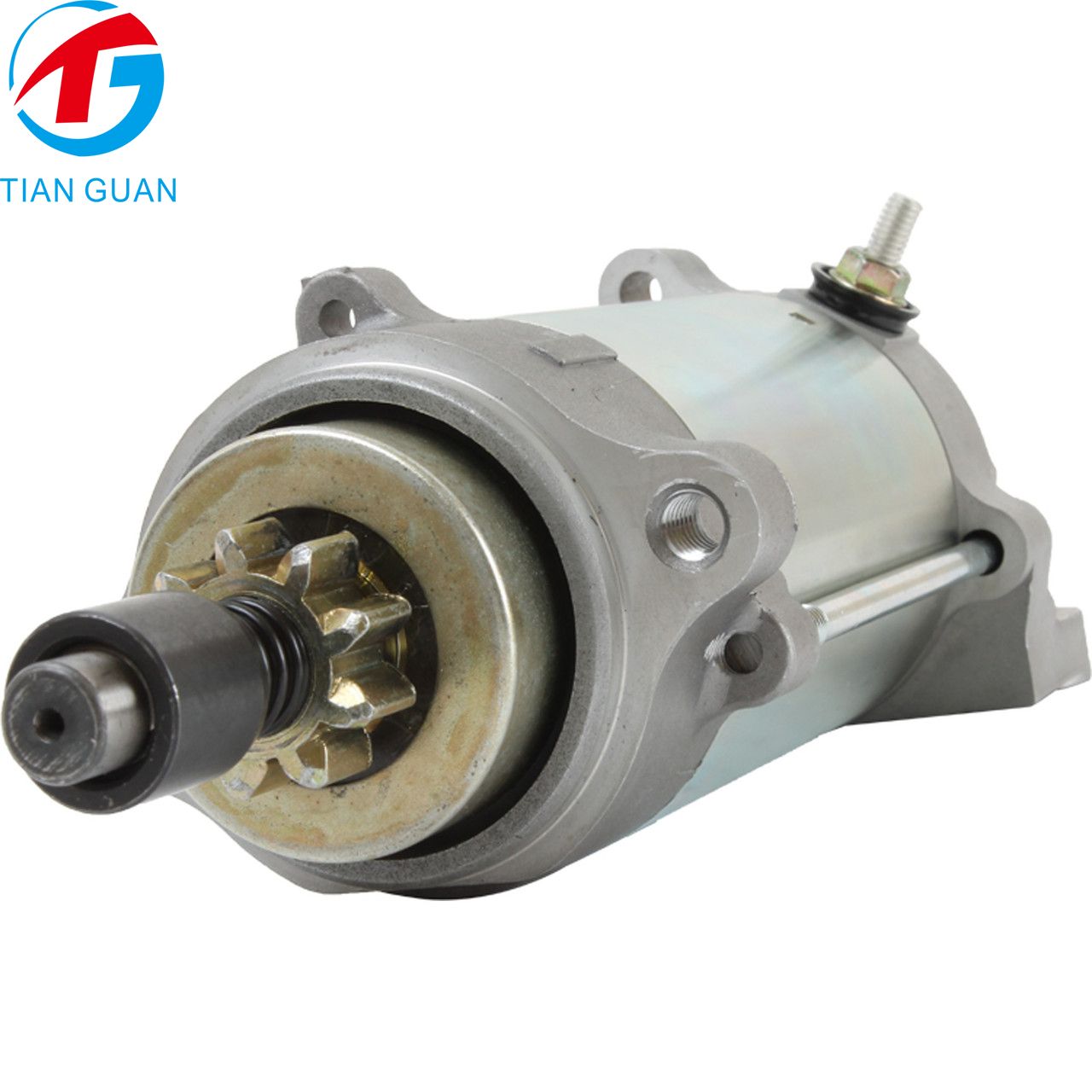

The STG51780 Starter Motor is a brand-new aftermarket replacement starter designed for selected Lynx and Ski-Doo snowmobile applications. Operating on a 12V electrical system, it features clockwise (CW) rotation and a 9-tooth pinion gear for compatible snowmobile starting systems.

This starter is cross-referenced to Bombardier part numbers 515-176-754, 515-176-858, and 515-177-389, as well as Denso 428000-6330 and 428000-7011. Additional references include Arrowhead 410-52411 and J & N 414-52020, helping buyers and technicians identify a potential replacement for the original starter assembly.

The supplied application data lists several Ski-Doo models, including the Expedition TUV-600, GSX LTD 600HO, MX Z 500SS, MX Z 600HO, MX Z 800R, and Everest series, along with selected Lynx models. Verify the original starter part number, snowmobile model, engine displacement, mounting configuration, and electrical connections before ordering.

Key Features

• 12V Electrical System: Designed for compatible Lynx and Ski-Doo snowmobile applications.

• 9-Tooth Pinion: Features clockwise rotation and a specified 9-tooth gear.

• Multiple Cross-References: Includes Bombardier, Denso, Arrowhead, and J & N part numbers.

Product Specifications

Compatible Applications
