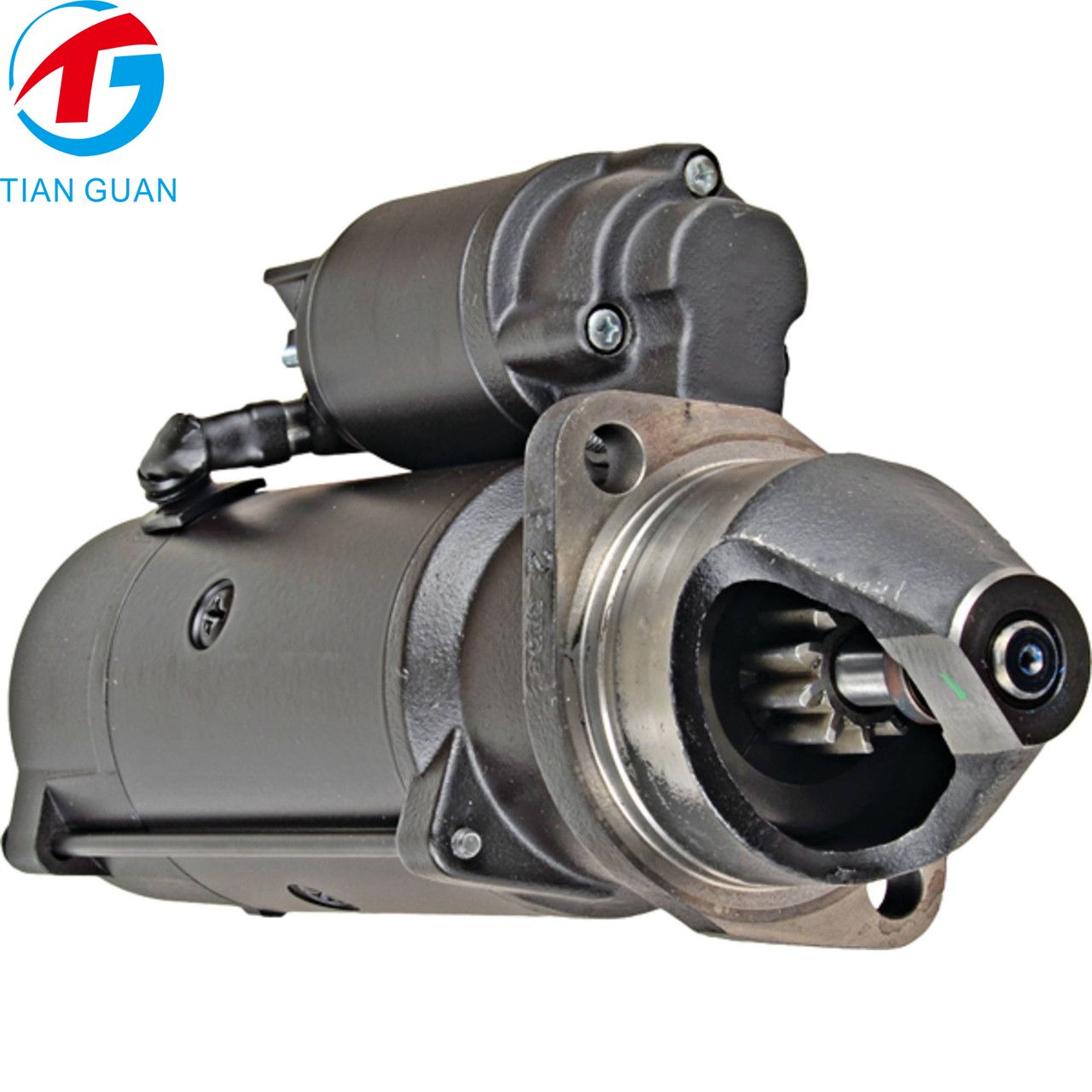

STG51985 Starter Motor AJ59342 AL110597 SE501851 for John Deere AJ59342 AL110597 EA-135 EA-152 EA-180 EA-202 12V 3.4KW 10T CW PLGR MAHLE/Letrika Type Heavy Duty Replacement Starter

Part Numbers
John Deere: AJ59342, AL110597, AL110598, AL39700, AL70850, AT23401, RE500819, RE50095, RE501002, RE501689, RE505670, RE505745, RE507670, RE509658, RE519975, RE529594, RE549296, SE501851, SE501854, TY25952, TY6720
Arrowhead: 410-24212, IMI25208-002, IS0793, MS264, MS89, SRA0002, SRA0003
Atlantic Quality Parts: 1400-0130
Bosch: 0001230005, 0-001-230-005, 0-001-367-037, 0001369001, 0001369005, SR901X, SR9988X
Delco: 10461443, 1107577, 1107599, 1113271, 820089, DRS2420
J&N: 410-24070, 410-24212, 410-29029
Leece Neville: 35258810, 35259580
Lester: 16563, 17095, 18359, 18422, 18475, 3579, 6570, 6860
Letrika / Iskra: 11.130.762, 11.130.793, 11.131.374, AZF4521, AZF4596, AZJ3274, IS0569, IS0793
Lucas: LRS00565, LRS01089, LRS01484
Mahle: 11.130.762, 11.130.793, 11.130.876, 11.131.374, 11.132.062, AZF4284, AZF4521, AZF4596, AZJ3274, AZJ3307, IS0793, MS264, MS89
Other OEM: 8EA726143-001, CS395

Product Description
Heavy-duty MAHLE/Letrika-style PLGR starter motor designed for John Deere and Clark equipment. Engineered for reliable 12V starting performance with high torque output, efficient planetary gear reduction, and long service life in industrial and agricultural applications.

Specifications
Voltage: 12V
Power: 3.4KW
Horsepower: 4.559 HP
Rotation: CW
Teeth: 10T
Starter Type: PLGR (Planetary Gear Reduction)
Gear OD: 32mm (1.260")
Mount Hole ID: 13.4mm (unthreaded)
Unit Condition: Aftermarket (New)
Family: Letrika / MAHLE AZF45
Weight: 9.3KG

Fitment
John Deere: EA-135, EA-152, EA-180, EA-202 and multiple legacy industrial/agricultural engines
Bobcat: 975, 1075, 1080, 1080B
Clark: 975, 1075, 1080 (John Deere engine applications)
Clark UT40: various John Deere engine configurations (3-8, 3-16, 4-8, 4-21)
