STG52002 Starter Motor 25092D for Triumph Spitfire TR250 TR6 | 12V 0.8kW 9T CW Direct Drive Replacement

3 Reviews

Add Your Review

US$98.00

ITEMNO： STG52002

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG52002 Starter Motor 410-30048 for Triumph Spitfire TR250 TR6 | 12V 0.8kW 9T CW Direct Drive Replacement

Part Numbers

Arrowhead: L25092D / SLU0016
Bosch: 0985011611 / SR192X
J&N Electrical Products: 410-30048

Product Description

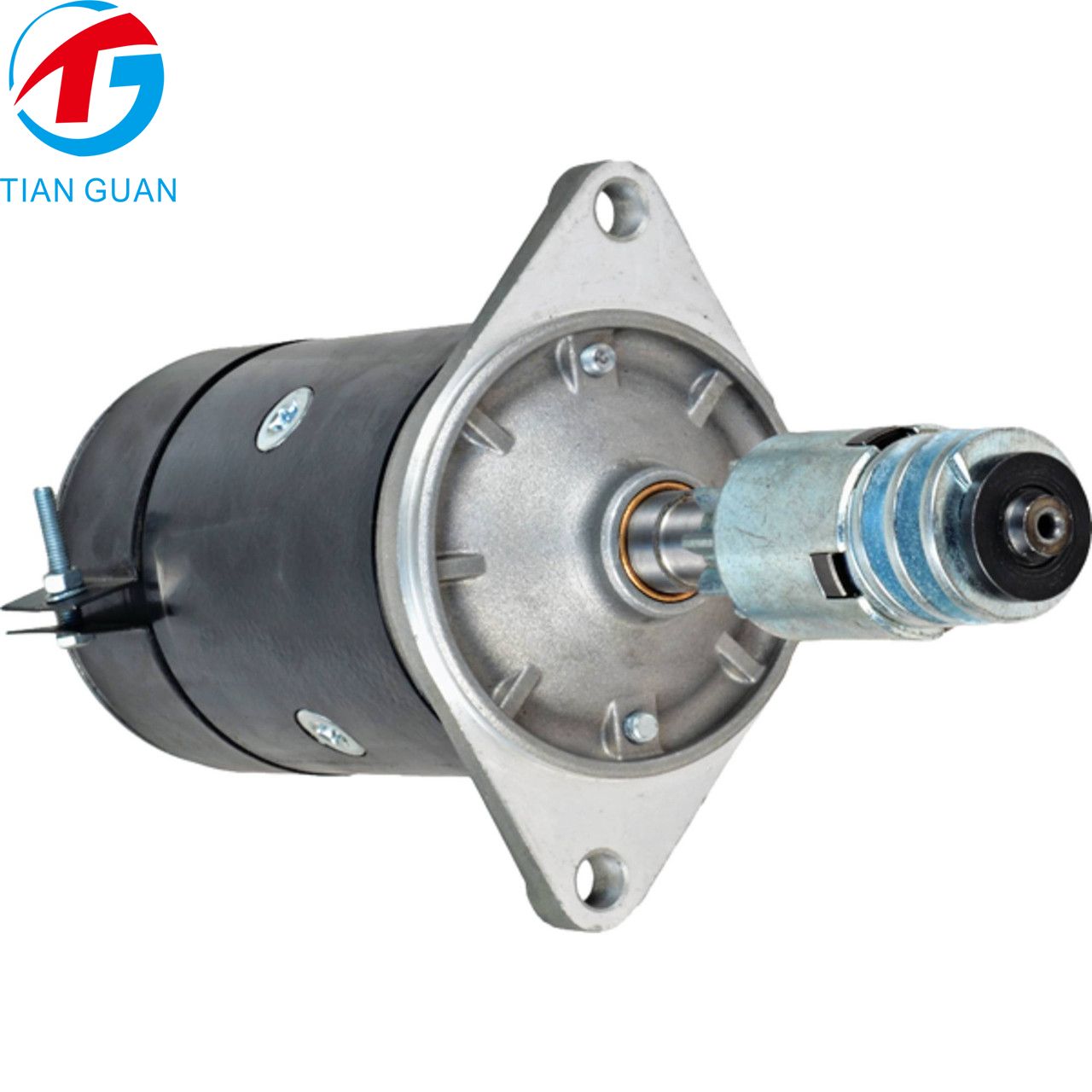

The STG52002 Starter Motor is a standard-quality aftermarket replacement starter designed for selected classic Triumph vehicles. Built around the Lucas M35 starter family, it features a 12V electrical system, 0.8 kW output, clockwise rotation, and a direct-drive (DD) design with a 9-tooth pinion gear. It is intended to provide dependable engine cranking when matched to the original vehicle specifications.

Please verify the original starter part number, mounting dimensions, and vehicle application before ordering, especially for classic vehicles that may have undergone previous repairs or component replacements.

Product Specifications

Property	Value
SKU	STG52002
Product Type	Starter Motor
Starter Family	Lucas M35
Item Condition	New Aftermarket Part
Quality Type	Standard
Voltage	12V
Power Output	0.8 kW
Horsepower	1.073 HP
Rotation Direction	Clockwise (CW)
Starter Type	Direct Drive (DD)
Number of Teeth	9
Pinion Gear Outside Diameter	28.9 mm (1.138 in)
Overall Length	299 mm (11.772 in)
Mounting Hole 1 Diameter	10.6 mm
Mounting Hole 1 Type	Unthreaded
Mounting Hole 2 Type	Unthreaded
Approximate Weight	3.0 kg

OEM / Cross Reference Numbers

Brand / Category	Part Numbers
Arrowhead	L25092D / SLU0016
Bosch	0985011611 / SR192X
J&N Electrical Products	410-30048
Lester	16100 / 16103 / 16113 / 16118 / 16121 / 16123 / 16146
Lucas Electric	25016 / 25016A / 25022 / 25022A / 25022A/L / 25022B / 25022C / 25022D / 25022E / 25022F / 25022G / 25022H / 25022I / 25022J / 25022K / 25022L / 25022M / 25022N / 25022O / 25022P / 25022Q / 25024 / 25025 / 25041 / 25061 / 25061A / 25061B / 25061D / 25061E / 25061F / 25061H / 25061J / 25062 / 25062H / 25063 / 25063A / 25063B / 25063C / 25063D / 25063E / 25063F / 25065 / 25065A / 25065B / 25065D / 25065E / 25065F / 2506E / 25071 / 25071A / 25071B / 25071C / 25071D / 25075 / 25075A / 25075B / 25075D / 25079 / 25079A / 25079B / 25079C / 25079D / 25079E / 25079F / 25079G / 25079H / 25079I / 25079J / 25079X / 25079Y / 25085 / 25085A / 25085B / 25088 / 25088A / 25088B / 25088C / 25088D / 25088E / 25088F / 25088G / 25088H / 25088I / 25088J / 25088X / 25088Y / 25122 / 25138 / S3512
Lucas TVS	25092D
Additional Cross-Reference	410-30022

Compatible Applications

MAKE	TYPE	MODEL	YEAR	ENGINE
Austin Healey		AMERICA	1.3	1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Austin Healey		America	1275cc, 1.3L/78CI L4	1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Austin Healey		HEALEY SPRITE	0.9	1958, 1959, 1960, 1961
Austin Healey		HEALEY SPRITE	1.0	1962
Austin Healey		HEALEY SPRITE	1.1	1963, 1964, 1965, 1966
Austin Healey		HEALEY SPRITE	1.3	1966, 1967, 1968, 1969, 1970
Austin Healey		MINI MINI COOPER	0.8	1962, 1963, 1964, 1965, 1966
Austin Healey		MINI MINI COOPER	1.0	1962, 1963, 1964, 1965, 1966
Austin Healey		MINI MINI COOPER	1.1	1964
Austin Healey		MINI MINI COOPER	1.3	1964, 1965, 1966, 1967
Austin Healey		Mini Cooper		1962, 1963, 1964, 1965, 1966
Austin Healey		Mini Cooper	1071cc, 1.1L/65CI L4	1964
Austin Healey		Mini Cooper	1275cc, 1.3L/78CI L4	1964, 1965, 1966, 1967
Austin Healey		Mini Cooper	970cc, 1.0L/59CI L4	1964
Austin Healey		Mini Cooper	997cc, 1.0L/61CI L4	1963, 1964
Austin Healey		Mini Cooper	998cc, 1.0L/61CI L4	1962, 1963, 1964, 1965, 1966
Austin Healey		Mini	848cc, 0.8L/52CI L4	1960, 1961, 1962
Austin Healey		Sprite	1000cc, 1.0L/58CI L4	1962
Austin Healey		Sprite	1098cc, 1.1L/67CI L4	1963, 1964, 1965, 1966
Austin Healey		Sprite	1100cc, 1.1L/67CI L4	1961, 1962, 1963, 1964, 1965, 1966
Austin Healey		Sprite	1275cc, 1.3L/78CI L4	1958, 1959, 1960, 1961, 1966, 1967, 1968, 1969, 1970, 1971
Austin Healey		Sprite	900cc, 0.9L/58CI L4	1958, 1959, 1960, 1961, 1962, 1963, 1964
Austin Healey		Sprite	948cc, 0.9L/58CI L4	1960, 1961, 1962
Lotus	ELAN	1.6	1968, 1969, 1970, 1971, 1972, 1973
Lotus	Elan	1558cc, 1.6L/95CI L4	1968, 1969, 1970, 1971, 1972, 1973
Lotus	ELITE	1.2	1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966
Lotus	Elite	1216cc, 1.2L/74CI L4	1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966
Lotus	SUPER SEVEN	1.1L(67) L	1961
Lotus	SUPER SEVEN	1.3L(82) L	1962, 1963, 1964, 1965, 1966, 1967, 1968
Lotus	SUPER SEVEN	1.5L(91) L	1962, 1963, 1964, 1965, 1966, 1967, 1968
Lotus	SUPER SEVEN	Al	1969, 1970, 1971, 1972
Lotus	Super Seven	1098cc, 1.1L/67CI L4	1961
Lotus	Super Seven	1340cc, 1.3L/82CI L4	1962, 1963, 1964, 1965, 1966, 1967, 1968
Lotus	Super Seven	1498cc, 1.5L/92CI L4	1962, 1963, 1964, 1965, 1966, 1967, 1968
Lotus	Super Seven	7500cc, 7.5L/460CI L6	1969, 1970, 1971, 1972
MG	1100 SEDAN	All Engine	1962, 1963, 1964, 1965, 1966, 1967
MG	1100	1098cc, 1.1L/67CI L4	1962, 1963, 1964, 1965, 1966, 1967
MG	MGA	1.5	1956, 1957, 1958, 1959
MG	MGA	1.6	1960, 1961, 1962
MG	MGA	1489cc, 1.5L/91CI L4	1956, 1957, 1958, 1959
MG	MGA	1588cc, 1.6L/97CI L4	1960, 1961, 1962
MG	MG-TD	1.3	1950, 1951, 1952, 1953, 1954
MG	MG-TF	1.3	1953, 1954
MG	MG-TF	1.5	1954, 1955
MG	MIDGET	1.1	1961, 1962, 1963, 1964, 1965, 1966
MG	MIDGET	1.3	1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
MG	MIDGET	1.5	1975, 1976, 1977, 1978, 1979
MG	Midget	1000cc, 1.0L/58CI L4	1962
MG	Midget	1098cc, 1.1L/67CI L4	1961, 1962, 1963, 1964, 1965, 1966
MG	Midget	1098cc, 1.1L/67CI L4 A-Series	1964, 1965, 1966
MG	Midget	1100cc, 1.1L/67CI L4	1963, 1964, 1965, 1966
MG	Midget	1275cc, 1.3L L4	1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
MG	Midget	1275cc, 1.3L L4 A-Series	1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
MG	Midget	1275cc, 1.3L/78CI L4	1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
MG	Midget	1493cc, 1.5L/91CI L4	1975, 1976, 1977, 1978, 1979
MG	Midget	948cc, 1.0L L4 A-Series	1961, 1962, 1963, 1964
MG	TD	1250cc, 1.3L/76CI L4	1950, 1951, 1952, 1953, 1954
MG	TF	1250cc, 1.3L/76CI L4
MG	TF	1250cc, 1.3L/76CI L4	1954
MG	TF	1466cc, 1.5L/90CI L4	1954, 1955
Plymouth	CRICKET	1.5	1971, 1972, 1973, 1974
Plymouth	Cricket	1498cc, 1.5L/91CI L4	1971, 1972, 1973, 1974
Sunbeam	ALPINE	Various Engine	1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970
Triumph	GT6	2.0	1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
Triumph	GT6	1998cc, 2.0L L6	1968, 1969, 1970, 1971, 1972, 1973
Triumph	GT6	1998cc, 2.0L/122CI L6	1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
Triumph	SPITFIRE	1.2	1963, 1964, 1965, 1966, 1967
Triumph	SPITFIRE	1.3	1968, 1969, 1970, 1971, 1972
Triumph	SPITFIRE	1.5	1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Triumph	Spitfire	1200cc, 1.2L/70CI L4	1963, 1964, 1965, 1966, 1967
Triumph	Spitfire	1296cc, 1.3L L4	1968, 1969, 1970, 1971, 1972
Triumph	Spitfire	1296cc, 1.3L/79CI L4	1968, 1969, 1970, 1971, 1972
Triumph	Spitfire	1493cc, 1.5L L4	1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Triumph	Spitfire	1493cc, 1.5L/91CI L4	1973, 1974
Triumph	TR250	2.5	1968
Triumph	TR250	2498cc, 2.5L L6	1968
Triumph	TR250	2498cc, 2.5L/152CI L6	1968
Triumph	TR250	2498cc, 2.5L/152CI L6	1968
Triumph	TR6	2.5	1969
Triumph	TR6	2498cc, 2.5L L6	1969
Triumph	TR6	2498cc, 2.5L L6	1969
Triumph	TR6	2498cc, 2.5L/152CI L6 CF	1969
Triumph	TR6	2498cc, 2.5L/152CI L6	1969
Triumph	TR6	2498cc, 2.5L/152CI L6	1969

PRODUCT HIGHLIGHTS

Product Highlights

Reliable Starting Performance	Direct-Drive Design	Classic Triumph Fitment
12V system with 0.8 kW output for compatible applications	Lucas M35 family design with a 9-tooth pinion and clockwise rotation	Listed for selected Triumph Spitfire, TR250, and TR6 model years
