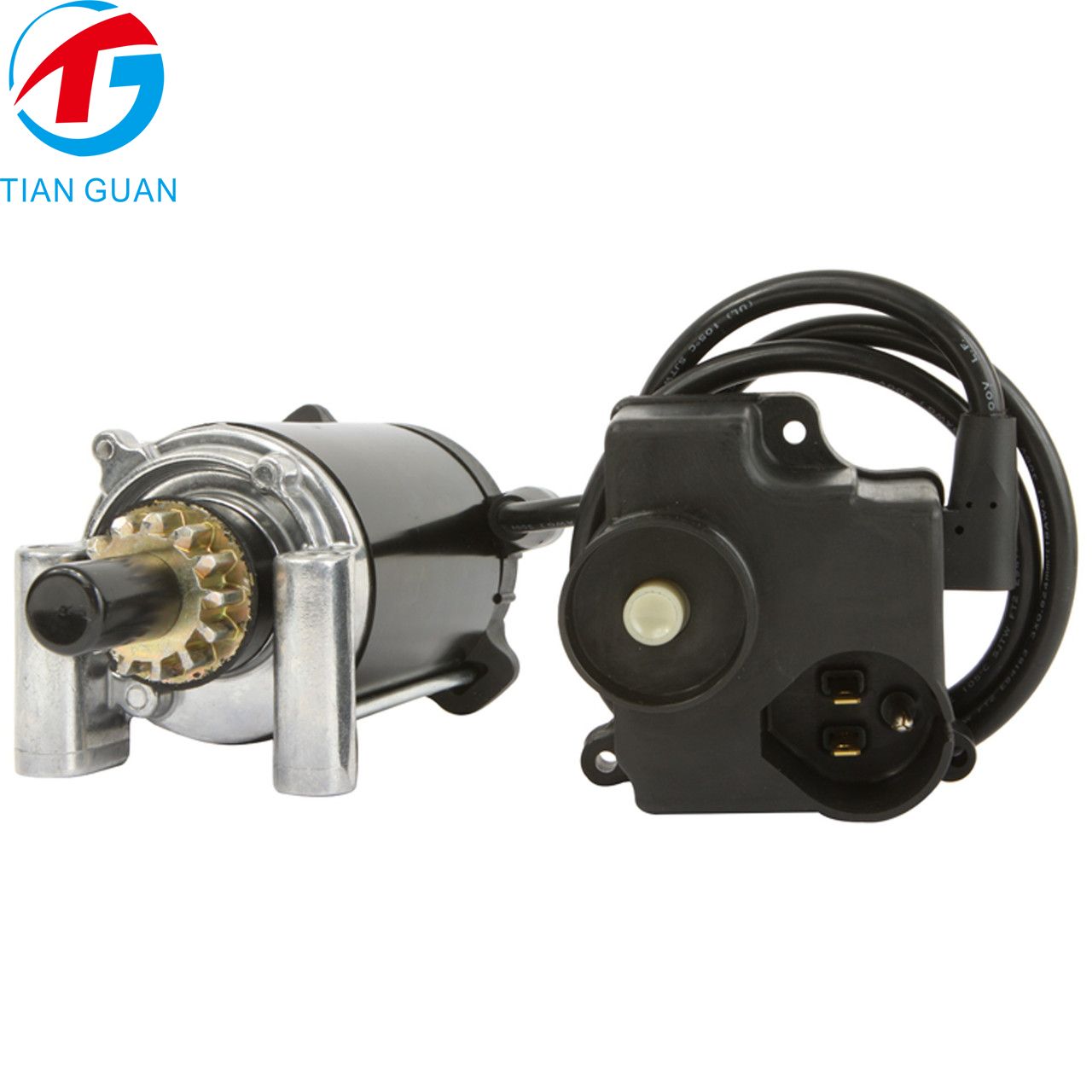

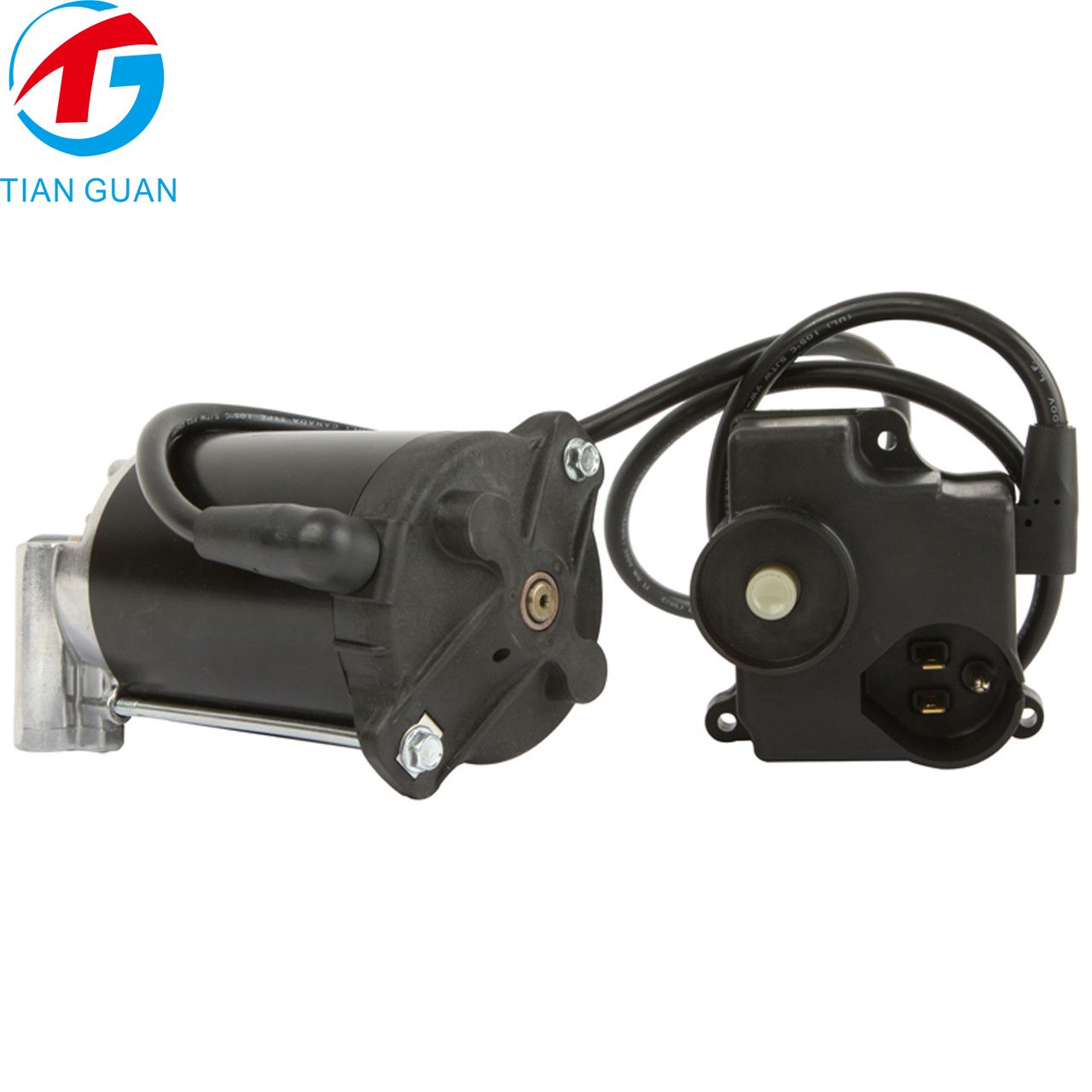

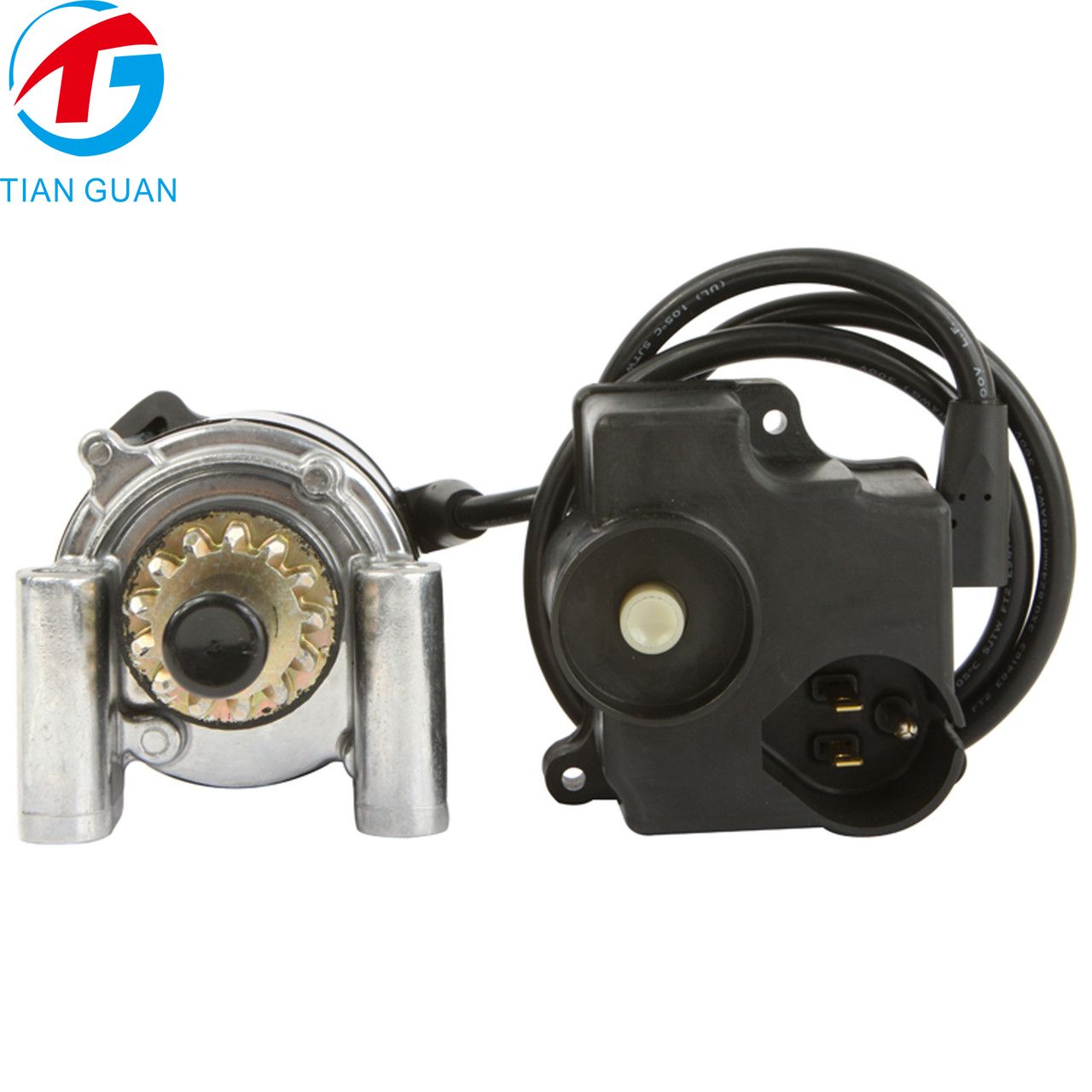

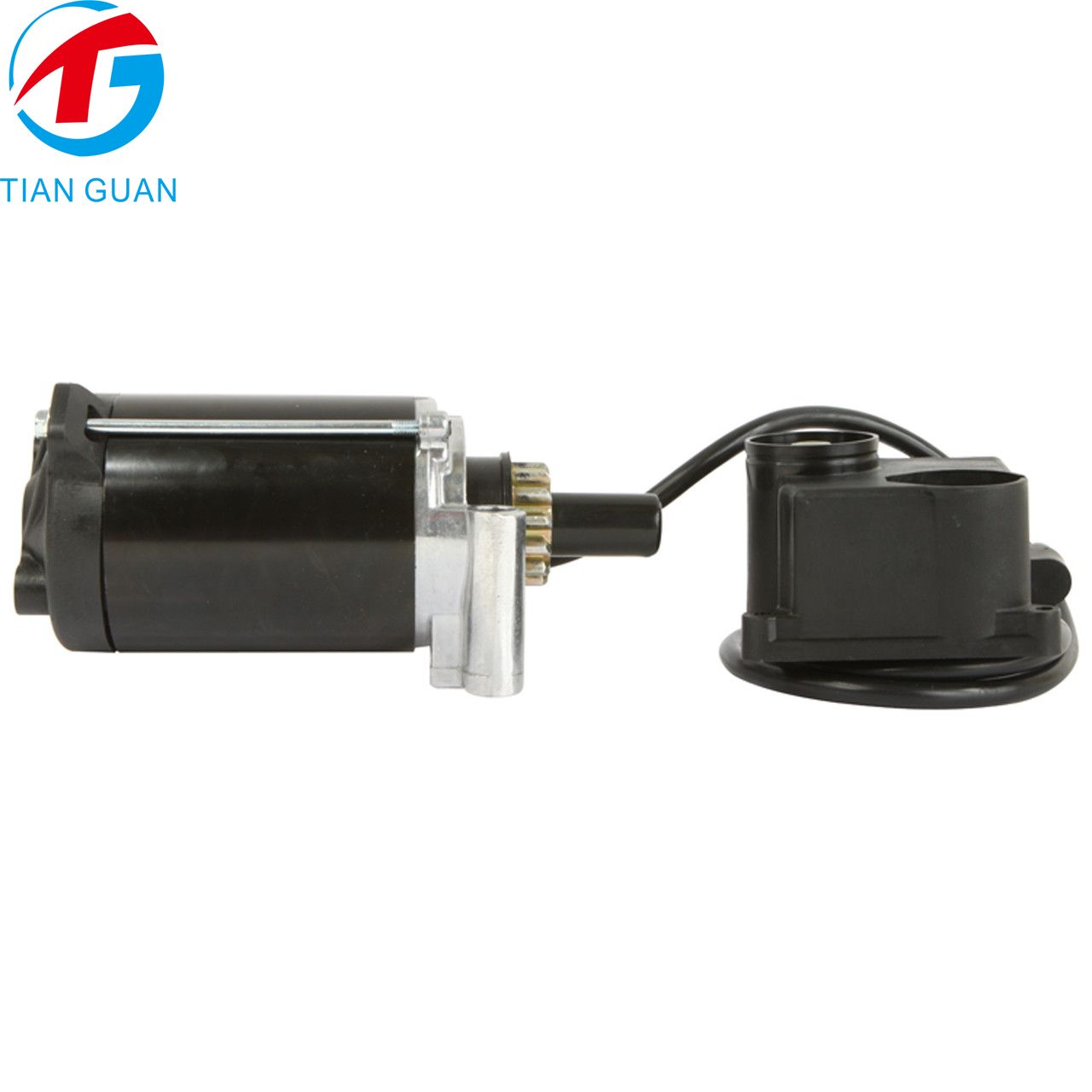

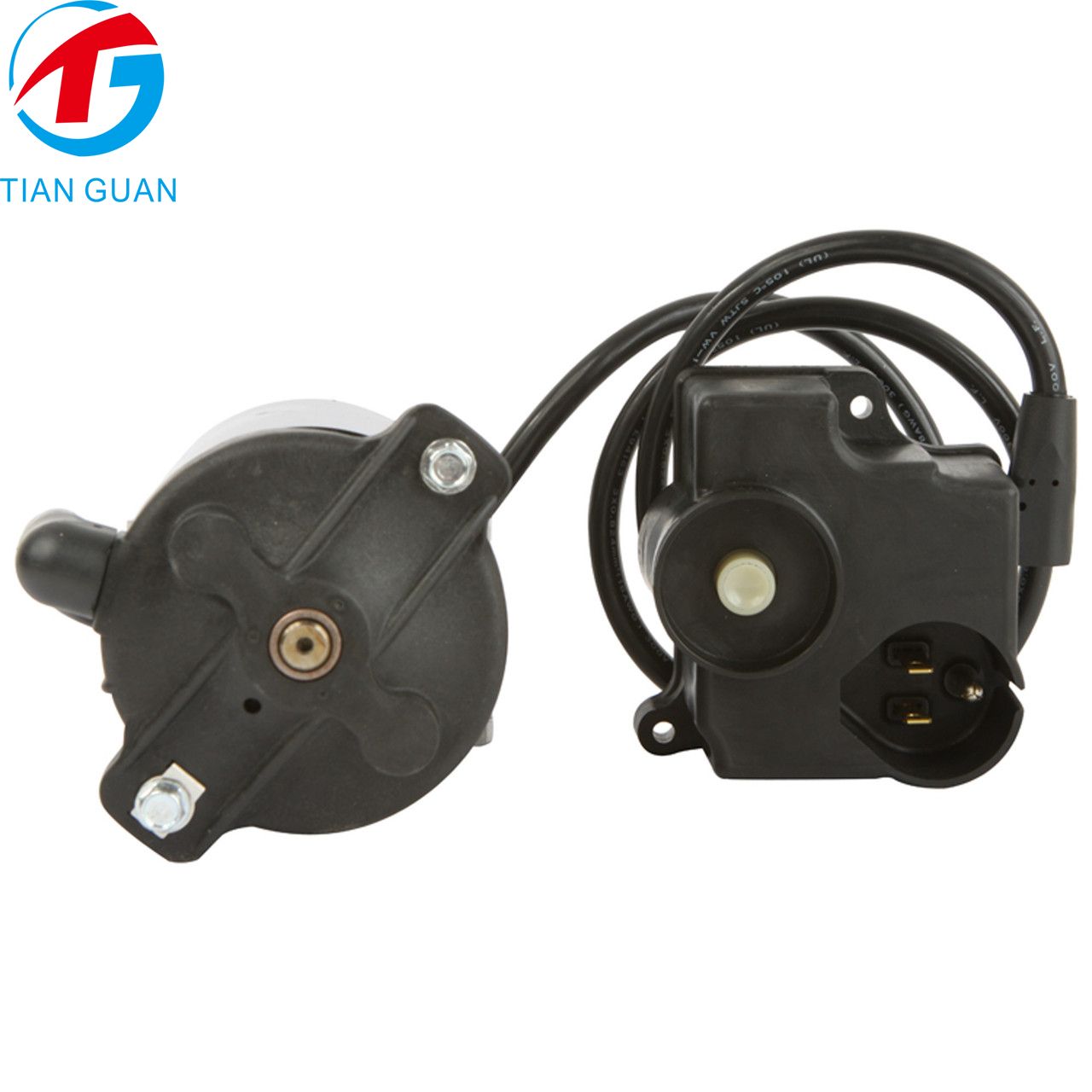

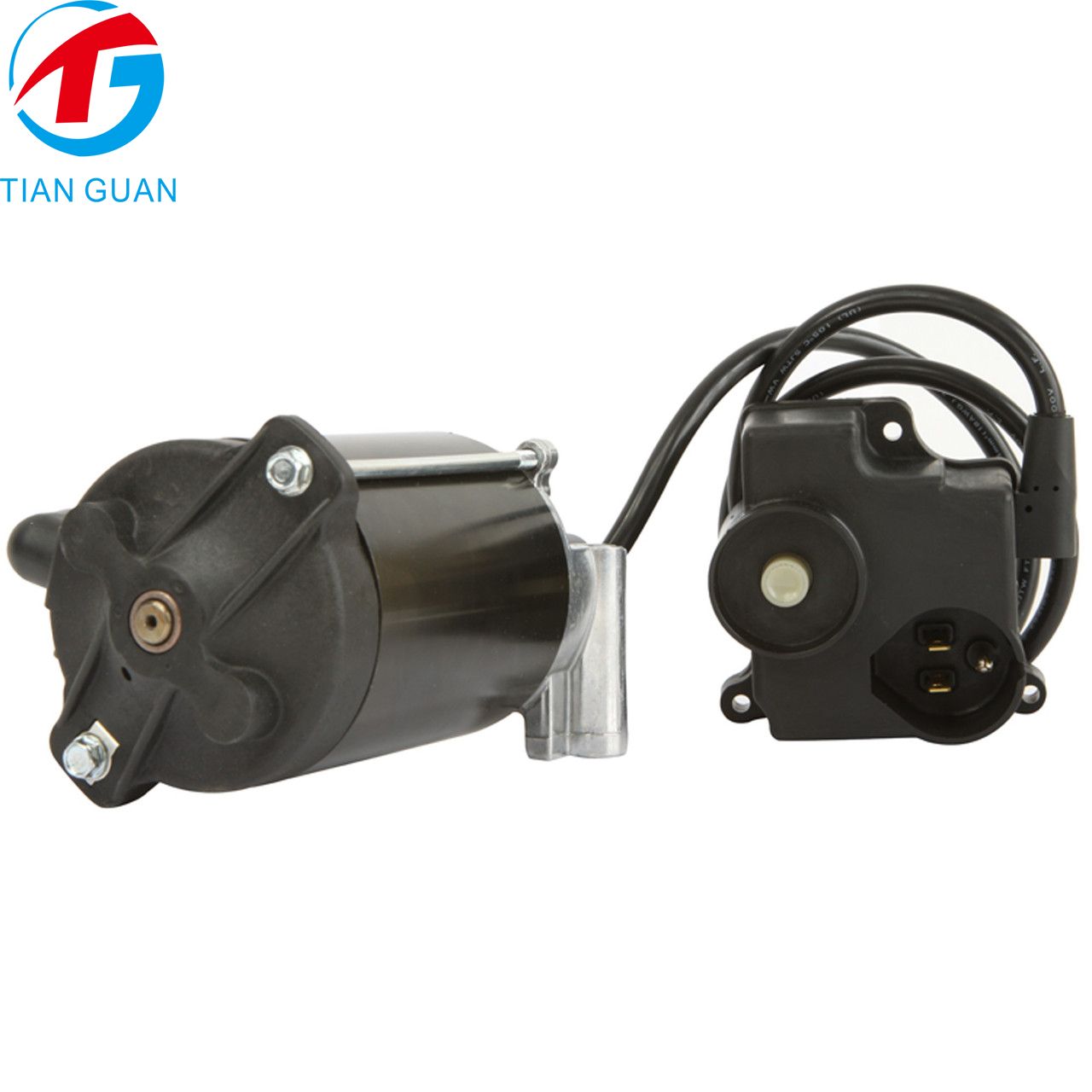

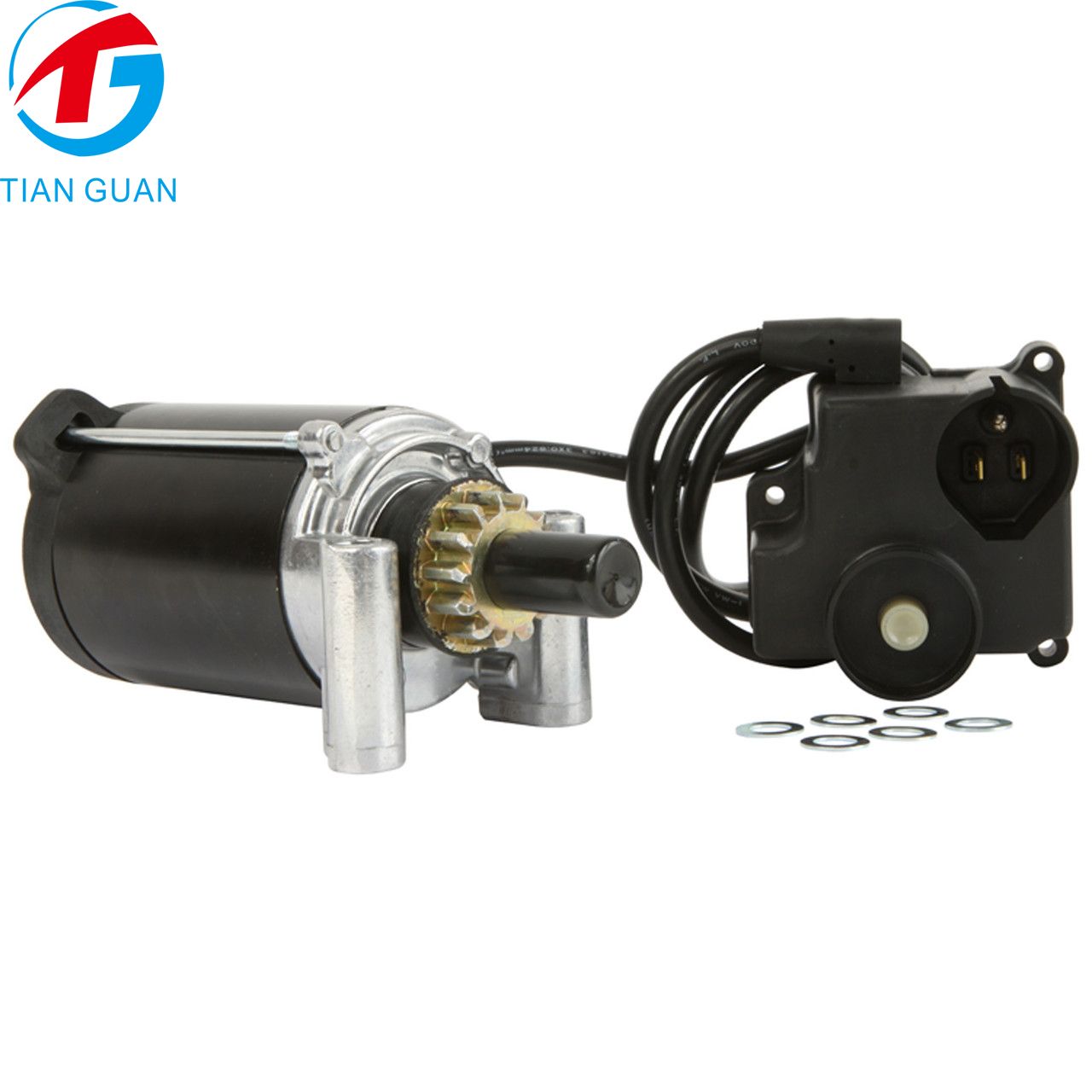

STG52010 Starter Motor 12-098-07 12-098-16 12-098-23 for Kohler CV11 CV12.5 CV14 Engines | 120V 2.0KW 13T CCW PMDD Replacement

3 Reviews

Add Your Review

US$136.00

ITEMNO： STG52010

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG52010 Starter Motor 12-098-07 12-098-16 12-098-23 for Kohler CV11 CV12.5 CV14 Engines | 120V 2.0KW 13T CCW PMDD Replacement

Part Numbers

Kohler: 12-098-07 / 12-098-16 / 12-098-23 / 12-098-07S / 12-098-16S / 12-098-23S

United Technologies: 9640620 / 9640620-M030SM / 9640640-M030SM

Product Description

STG52010 Starter Motor is a new aftermarket replacement designed for Kohler CV11, CV12.5, and CV14 engines used in snow blowers and other outdoor power equipment applications.

Featuring a 120V, 2.0KW, 13-tooth, counterclockwise-rotation PMDD (Permanent Magnet Direct Drive) design, this starter provides reliable electric engine cranking performance.

This starter replaces Kohler 12-098-07, 12-098-16, and 12-098-23, as well as compatible United Technologies, Arrowhead, J&N, Lester, and PIC reference numbers. Product catalogs identify the application for Kohler CV11, CV12.5, and CV14 engines.

Some catalogs describe the same application as 110V AC, while others specify 120V. Verify the voltage rating of the original starter and equipment before installation.

Product Specifications

Property	Value
Product Model	STG52010
Part Number	12-098-07 / 12-098-16 / 12-098-23
Unit Type	Starter
Voltage	120V AC
Power Output	2.0KW
Number of Teeth	13T
Starter Type	PMDD
Rotation	CCW
Gear Outside Diameter	37.9mm / 1.492in
Overall Length	192.3mm / 7.571in
Mounting Holes	2
Engine Manufacturer	Kohler
Compatible Engines	CV11 / CV12.5 / CV14
Application	Snow Blower & Outdoor Power Equipment
Condition	New Aftermarket
Weight	2.57 kg Estimated

OEM / Cross Reference Table

Brand / Category	Part Number
KOHLER	12-098-07 / 12-098-16 / 12-098-23 / 12-098-07S / 12-098-16S / 12-098-23S
UNITED TECHNOLOGIES	9640620 / 9640620-M030SM / 9640640-M030SM
ARROWHEAD	SAB0107
J & N	410-21099
LESTER	5810
PIC	106-528

Compatible Applications

Engine / Equipment Model	Compatibility
Kohler CV11 Engine	Kohler outdoor power equipment
Kohler CV12.5 Engine	Kohler outdoor power equipment
Kohler CV14 Engine	Kohler outdoor power equipment
Kohler Snow Blower Applications	Equipment using compatible CV11 / CV12.5 / CV14 engines
Kohler Air-Cooled Engines	Applications using the listed 12-098-07 / 12-098-16 / 12-098-23 starter

PRODUCT HIGHLIGHTS

Product Highlights

120V 2.0KW 13T PMDD Starter	Kohler CV11 CV12.5 CV14 Replacement	Snow Blower & Outdoor Equipment
CCW Rotation Design	Replaces 12-098-07 / 12-098-16 / 12-098-23	Permanent Magnet Direct Drive
Reliable Electric Engine Starting	37.9mm Pinion Gear	New Aftermarket Starter Motor
