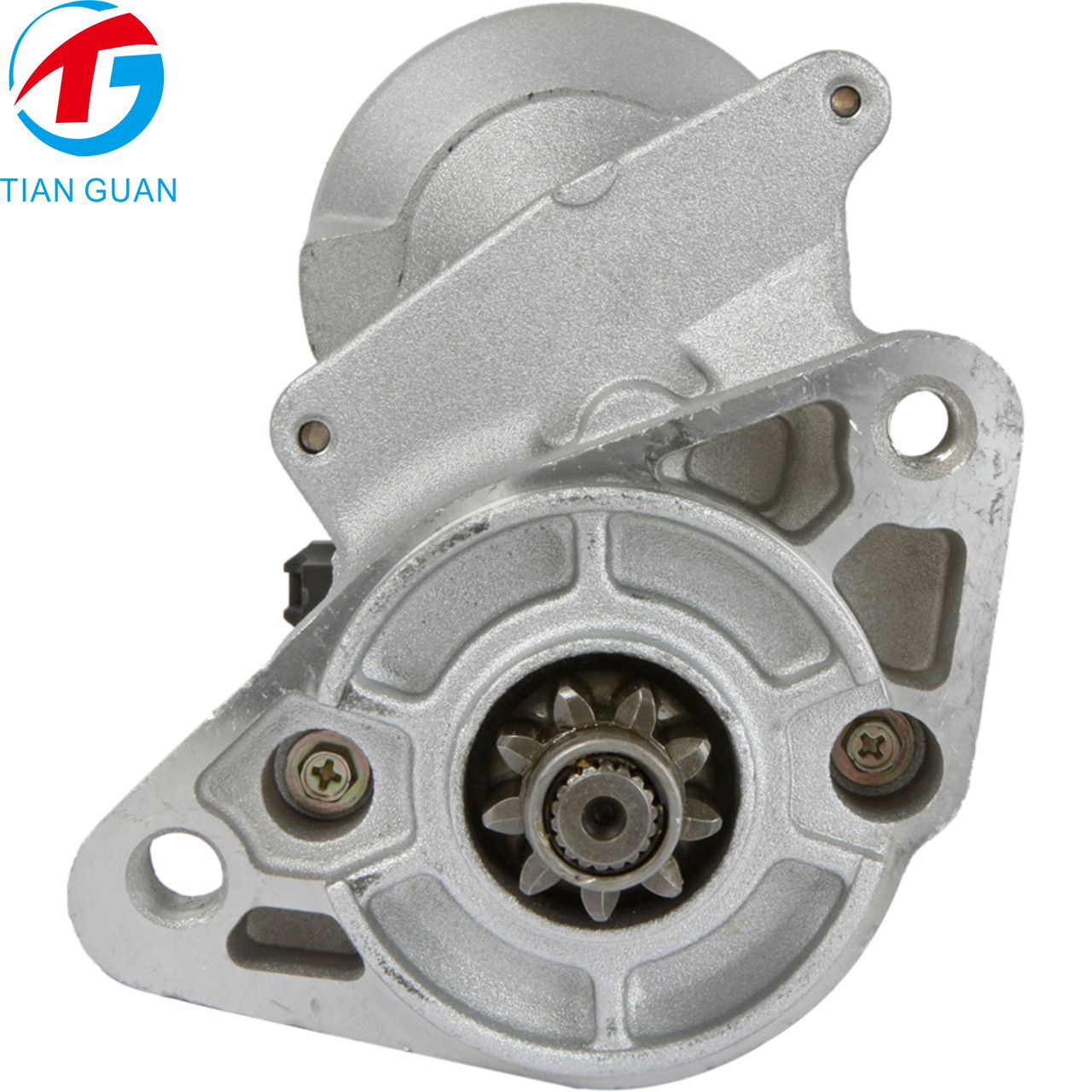

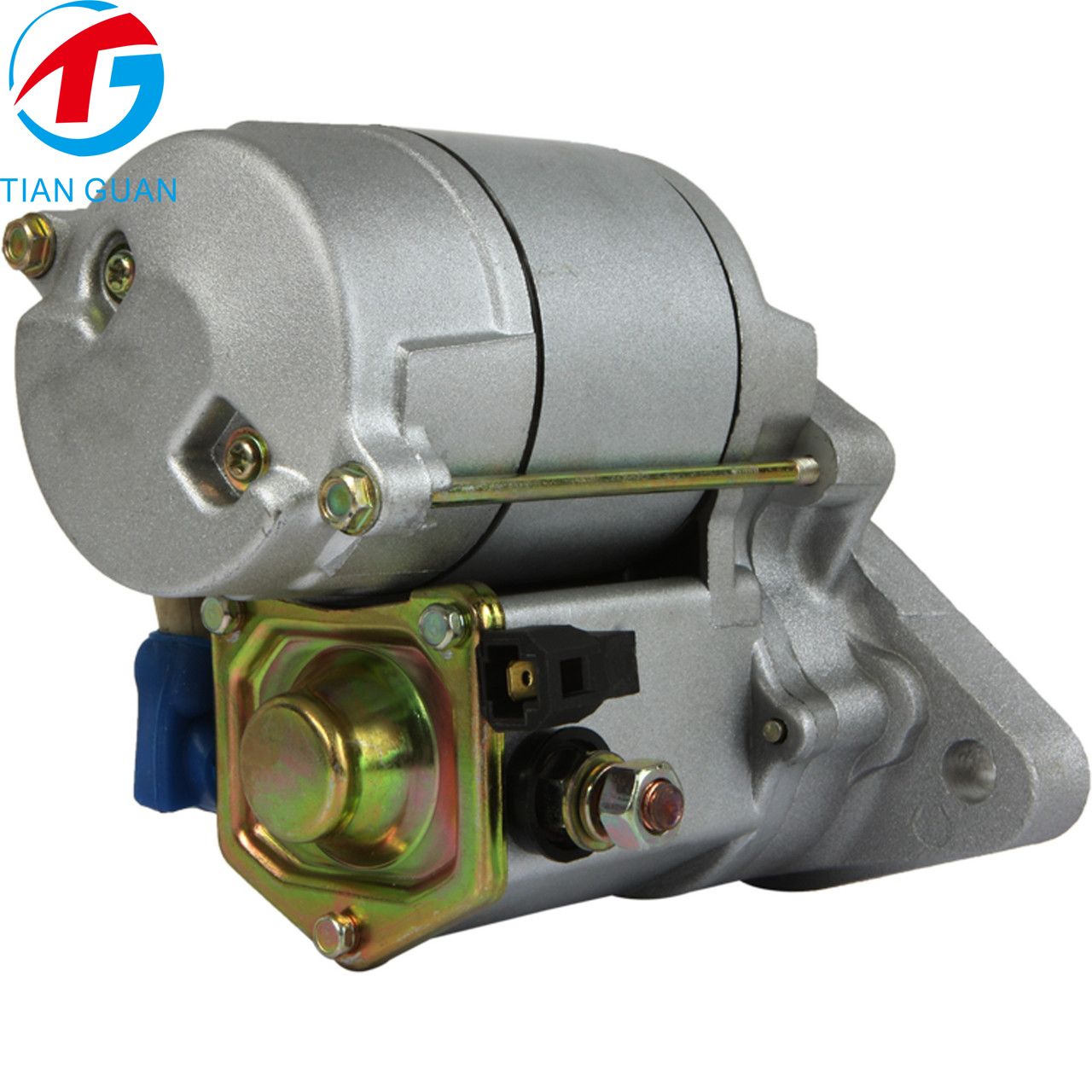

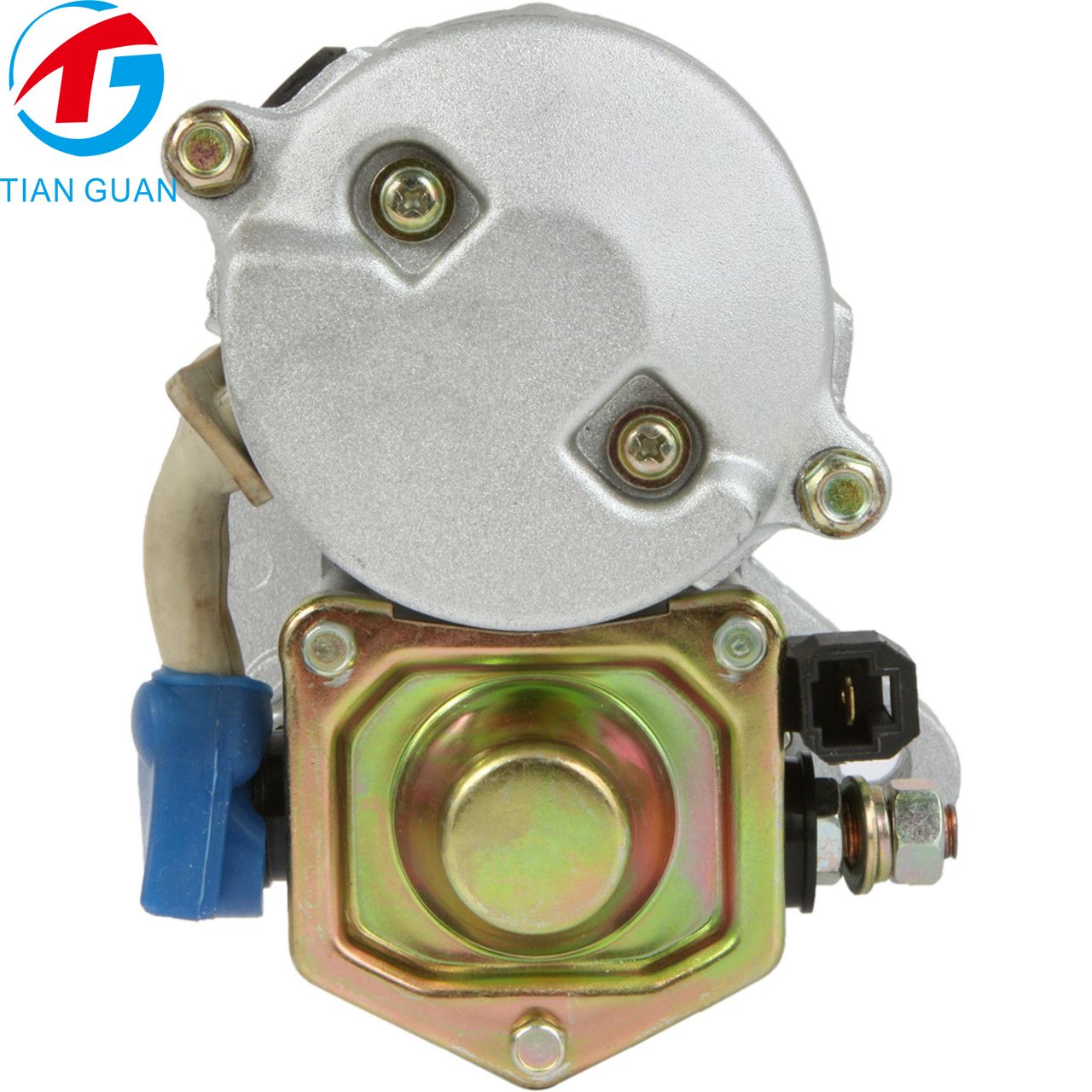

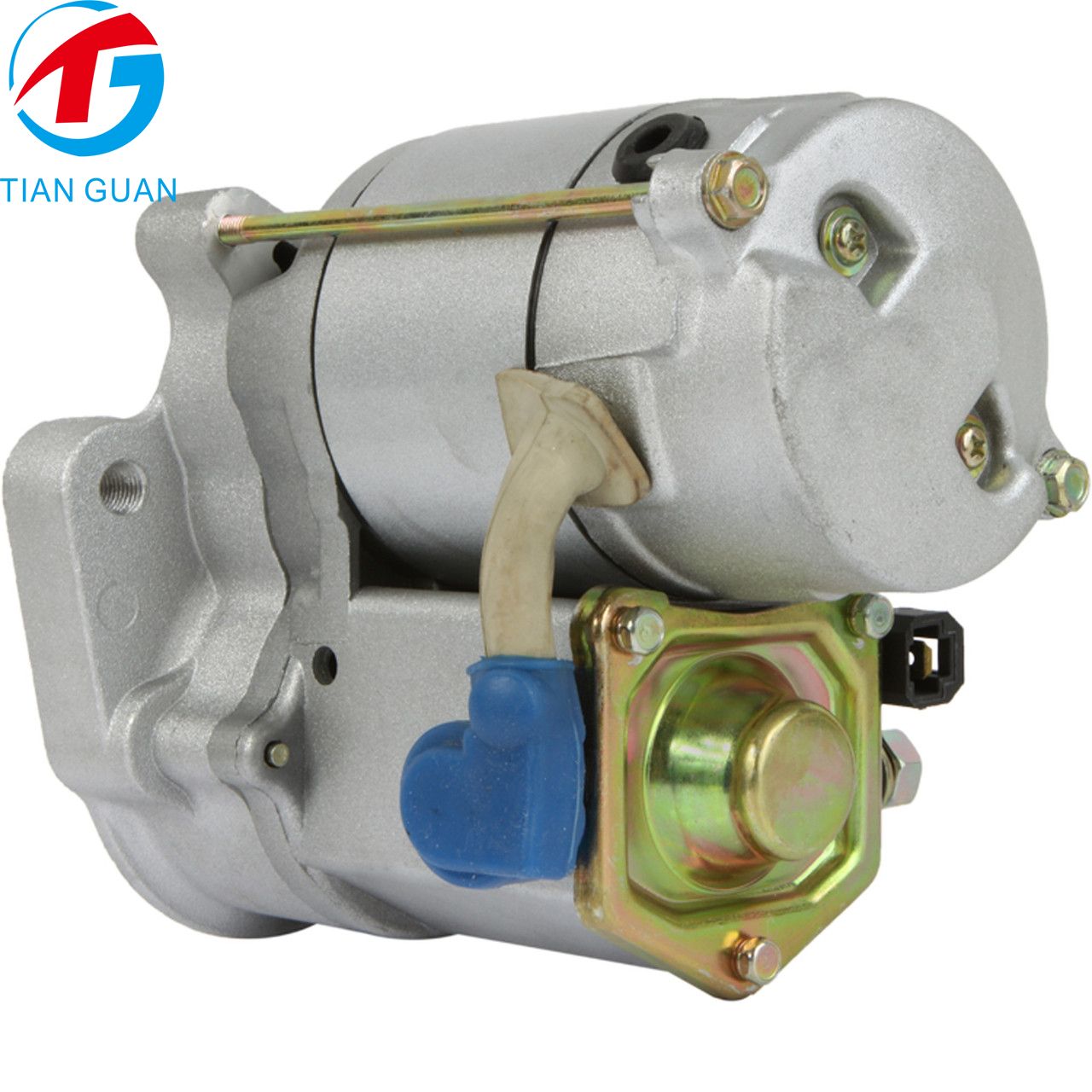

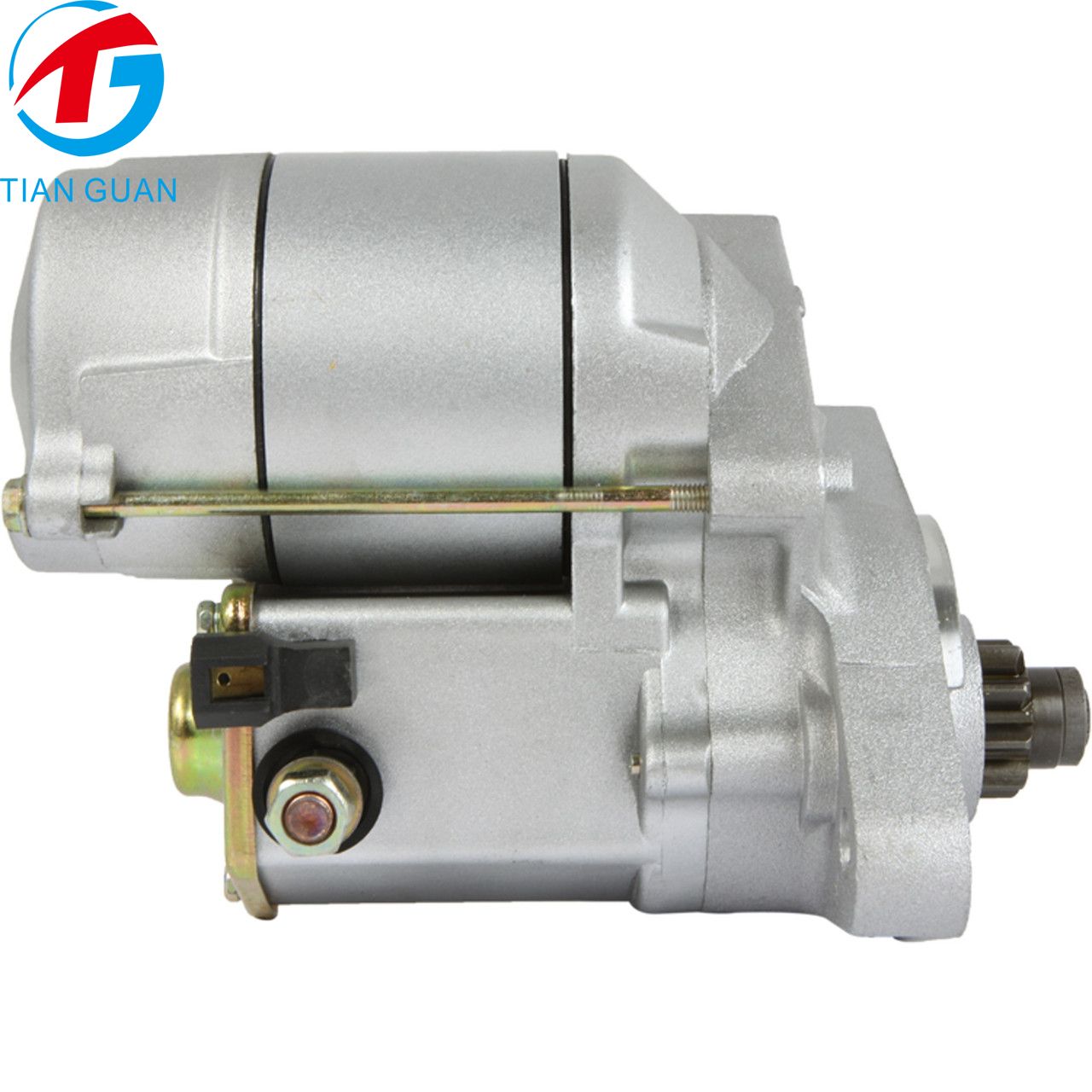

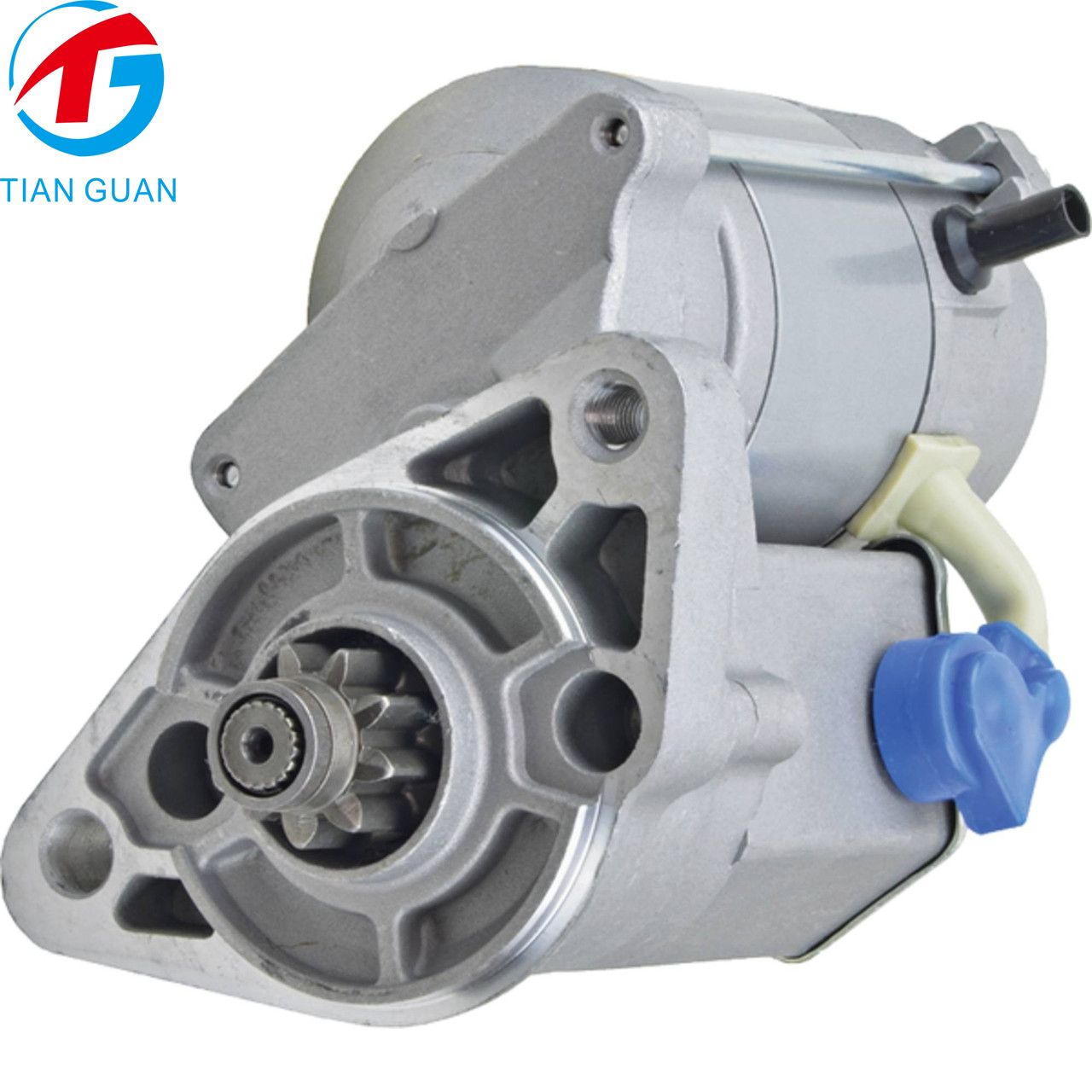

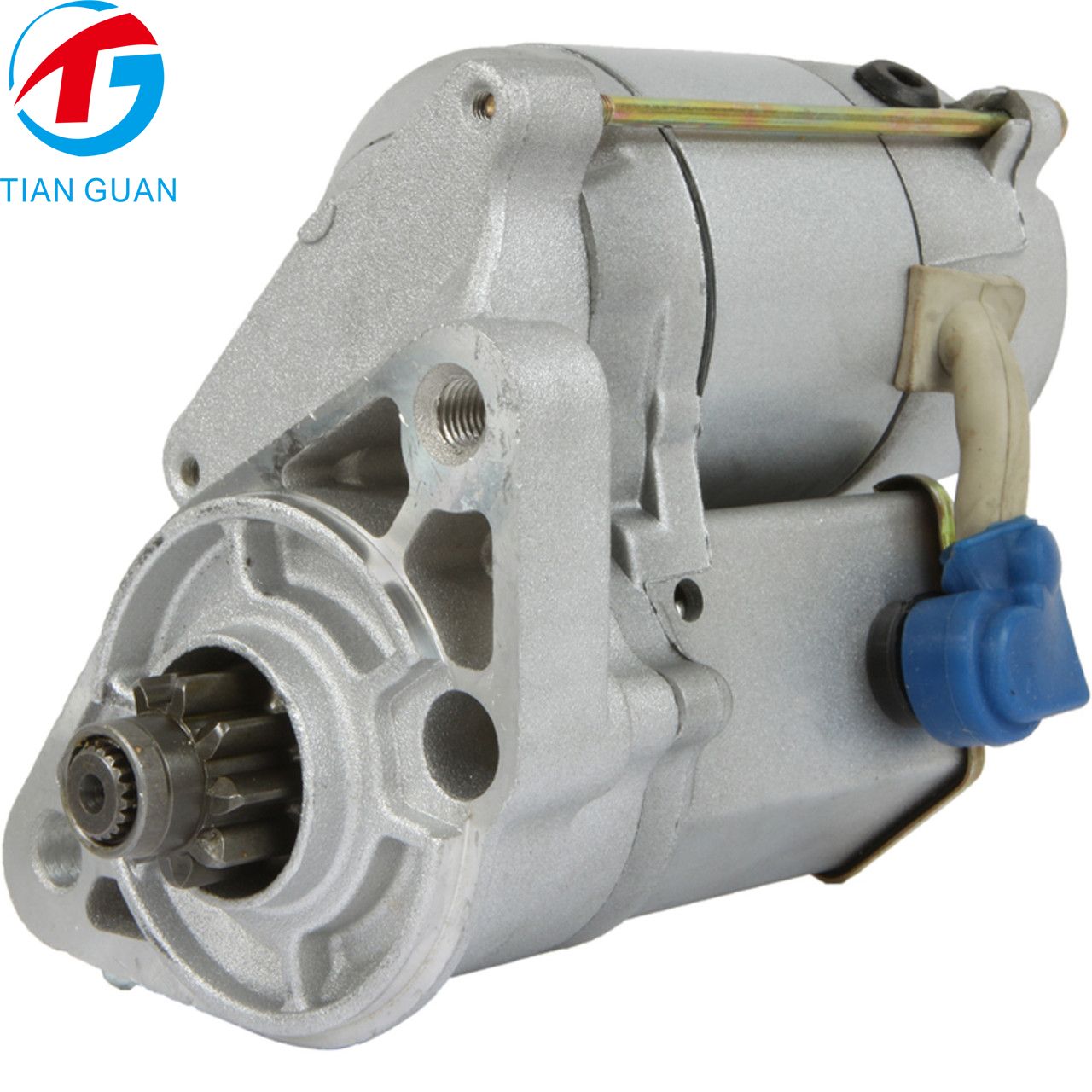

STG52012 Starter Motor 28100-B8010 428000-3170 21163-0030 21163-1299 for Kawasaki KAF950 Mule 2510 3010 4010 Diesel

Part Numbers

Product Specifications

Replacement Part Numbers

This aftermarket starter motor is designed as a replacement for or cross-reference to the following part numbers:

• Daihatsu: 28100-B8010

• Denso: 428000-3170

• Arrowhead: SND0460

• Briggs & Stratton: 825700

• Lester: 18630

• Atlantic: 3200-1299, 7600-0100

• J & N: 410-52173

• Lucas Electrical Europe: LRS02488

• Minnpar: 57-1746

• Tucker Rocky: 495267, 49-5267

Fit for Engine

• Daihatsu Diesel Engines

• Daihatsu DM950DT 953cc Diesel Engine

• Kawasaki KAF950 953cc Diesel Engine applications

Applications

Kawasaki KAF950 Mule

Product Features

1. 12V 1.2 kW OSGR Starter

The STG52012 starter motor is a 12V, 1.2 kW OSGR starter designed for reliable engine starting performance on compatible Kawasaki and Daihatsu diesel applications.

2. 9-Tooth Pinion Gear

The starter uses a 9-tooth drive gear designed for proper engagement with the corresponding engine flywheel when the application and mounting specifications match.

3. Clockwise Rotation

This starter motor is configured for CW (clockwise) rotation. Verify the original starter's rotation direction before installation.

4. Designed for Kawasaki KAF950 Mule

This starter is suitable for selected Kawasaki KAF950 Mule 2510, 3010 and 4010 Diesel UTV applications equipped with 953cc diesel engines.

5. Aftermarket Replacement

Manufactured as an aftermarket replacement unit, this starter provides a practical replacement solution for worn, damaged or failed original starter motors.

Product Highlights

Compatibility Notice

Please verify the OEM part number, voltage, tooth count, rotation direction, mounting configuration and starter dimensions before ordering.

Part numbers are provided for reference and compatibility identification only. Always compare the original starter with the product specifications before installation.
