STG52013 Starter 410-12496 10461285 10461479 10461717 10465026 10465043 10465211 10465365 for Ford E-150 Econoline E-250 Econoline Club Wagon Tractors

Part Numbers

ARROWHEAD: 410-12496
BOSCH: F042003088, SR9973X
CLARK EQUIPMENT: 6916544
CUMMINS: 3604648RX, 3604654, 3604654RX, 3916854, 3918376
DELCO: 10461285, 10461479, 10461717, 10465026, 10465043, 10465211, 10465365, 10479621, 10479624, 1113276, 1113292, 1113593, 19011502, 1998456, 1998490, 1998522, 323-419, 323-487
J & N: 410-12108
JANNCO: 410-12108R
JLG / GRADALL: 8033340
LESTER: 6573, 6583
MERCURY MARINE: 50-805991
NIKKO: 02-23-1001, 02-23-1026, 02-23-1037, 0-23000-1810, 0-23000-1818, 0-23000-2020, 0-23000-2430, 0-23000-2434, 5-23000-1818

Product Description

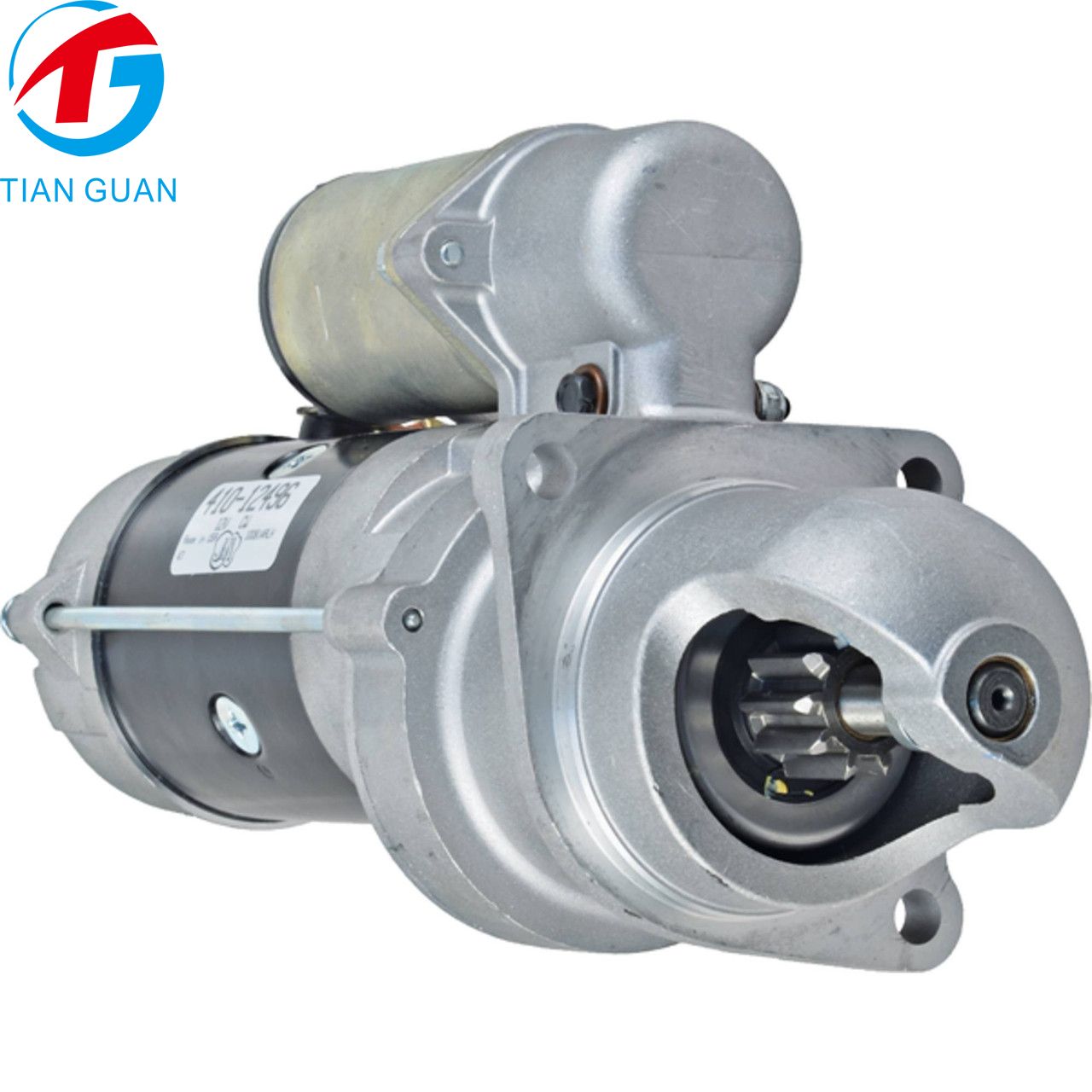

This premium aftermarket 12V 2.9KW Starter Motor is designed as a direct replacement for Ford, Cummins, Case, Agco, Allis Chalmers, Bobcat, Champion, Clark, Freightliner, Kenworth, and Mercury Marine applications. Built on the Delco 28MT family with Offset Gear Reduction (OSGR) design, 10-tooth pinion gear, and clockwise rotation, it delivers fast, reliable engine starting and dependable performance in demanding agricultural, construction, and commercial vehicle applications.

This starter replaces OE part numbers 410-12496 (Arrowhead), F042003088, SR9973X (Bosch), 6916544 (Clark Equipment), 3604648RX, 3604654, 3604654RX, 3916854, 3918376 (Cummins), 10461285, 10461479, 10461717, 10465026, 10465043, 10465211, 10465365, 10479621, 10479624, 1113276, 1113292, 1113593, 19011502, 1998456, 1998490, 1998522, 323-419, 323-487 (Delco), 410-12108 (J & N), 410-12108R (Jannco), 8033340 (JLG / Gradall), 6573, 6583 (Lester), 50-805991 (Mercury Marine), and 02-23-1001, 02-23-1026, 02-23-1037, 0-23000-1810, 0-23000-1818, 0-23000-2020, 0-23000-2430, 0-23000-2434, 5-23000-1818 (Nikko).

• 12V starter motor

• 2.9KW power output

• 10-tooth pinion gear

• Delco 28MT family

• Offset Gear Reduction (OSGR)

• Clockwise rotation

• Gear OD: 1.260" / 32mm

• Length: 243.600mm / 9.591"

• Mount hole ID: 11mm unthreaded (x2)

• Wet clutch seal

• 3-terminal solenoid

• Heavy duty quality

• Aftermarket replacement part

• Approx. 8.7 kg

Specifications

Item Condition: Aftermarket Part
Description: Starter
Family: Delco 28MT
Volt: 12V
Power: 2.900 KW
HP: 3.889
Quality Type: Heavy Duty
Rotation Direction: Clockwise
Electric Starter Type: Offset Gear Reduction (OSGR)
Number Of Teeth: 10
Gear OD: 1.260" / 32mm
Length: 243.600 mm / 9.591"
Mount Hole ID 1: 11mm
Mount Hole 1 Type: Unthreaded
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 11mm
Mount Hole 3 Type: Unthreaded
Wet Clutch Seal: True
Note: 3-Terminal Solenoid
Weight: 8.7KG

Fitment

Agco – RT130 / RT130 4WD / RT145 / RT145 4WD – 2002-2004 – Cummins 6-35
Allis Chalmers – 650 / 652 / 653 / 2200 / HD-4 / TL 650 – 1965-1974 – 2200 Diesel
Bobcat – 980 – 1986-1993 – Cummins 4BT3.9L Diesel
Champion – 710 / 710A / 716A – 1977-1998 – Cummins 5.9L
Clark – 980 – 1986-1988 – Cummins 3.9L
Cummins – 6BT / 6BT 5.9L / B Series / C Series / 6BTA5.9-M – 1980-1994
Ford – E-150 / E-250 / E-350 Econoline / Club Wagon / E-Series Vans – 1983-1984 – 6.9L V8 Diesel
Ford – F-150 to F-350 PICKUP – 1983-1984 – 6.9L V8 Diesel
Ford – F-250 / F-350 / F-Series – 1983-1984 – 6.9L V8 Diesel
Freightliner – FC 80 / FC80 / FL 50 / FL 60 / FL 70 / FL 80 / FL 90 / FL50 / FL60 / FL70 / FL80 – 1989-2003 – Cummins 5.9L ISB / Mercedes OM366
Ingersoll Rand – Cyclonaire – 1990 – Cummins 4-239
Kenworth – K300 / T300 – 1994-2007 – Cummins 5.9L ISB / Caterpillar 3126
Mercury Marine – Applications
JLG / Gradall – Applications
