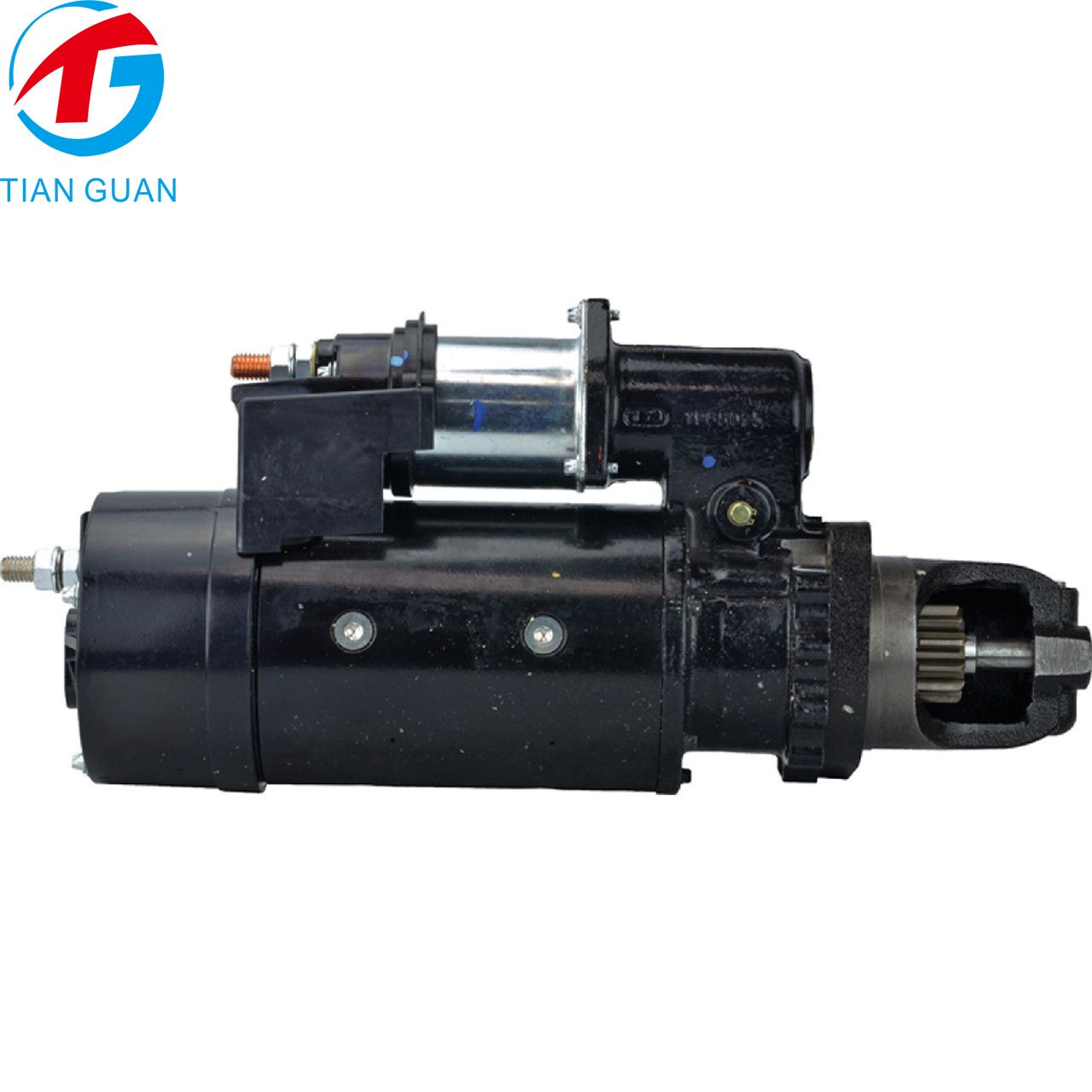

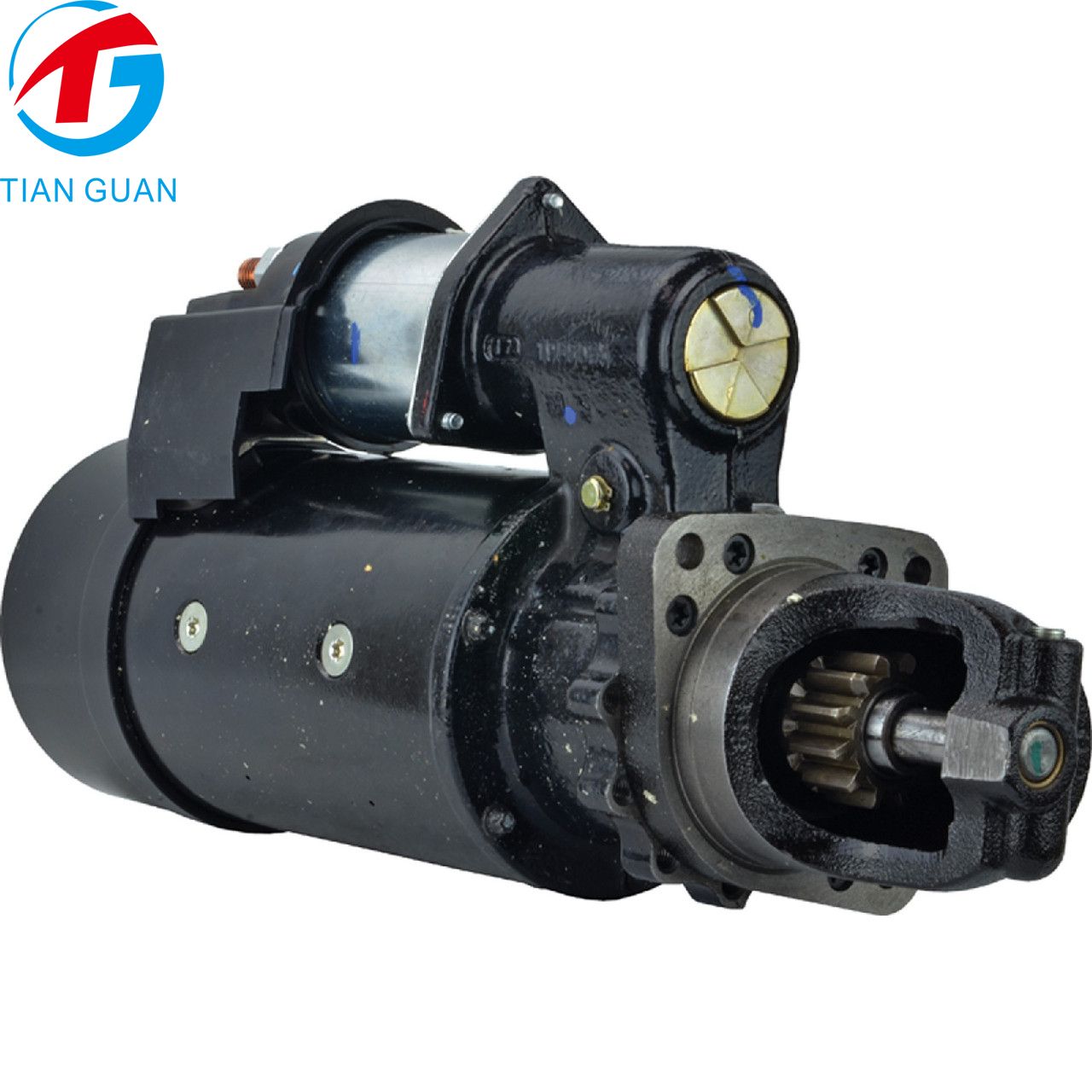

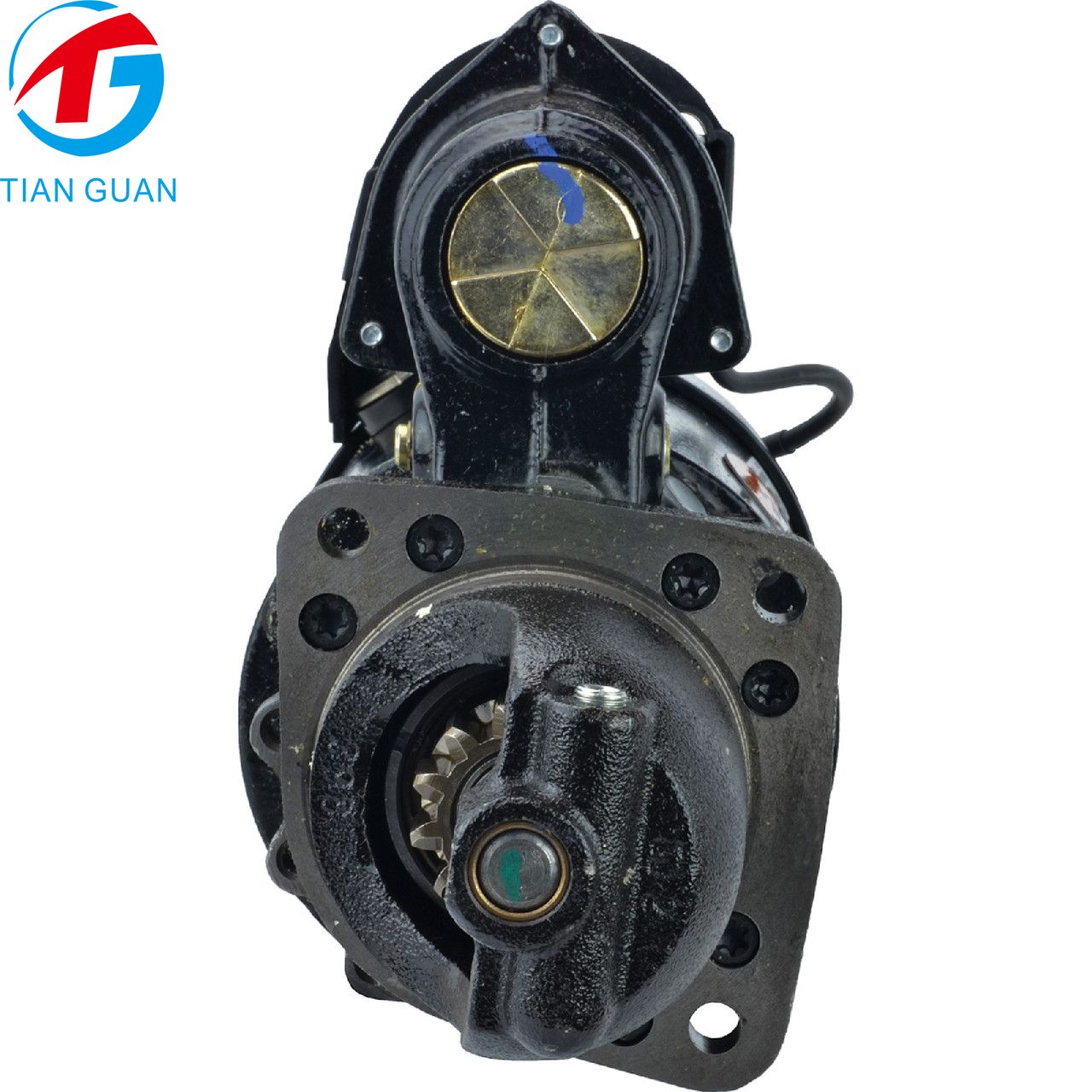

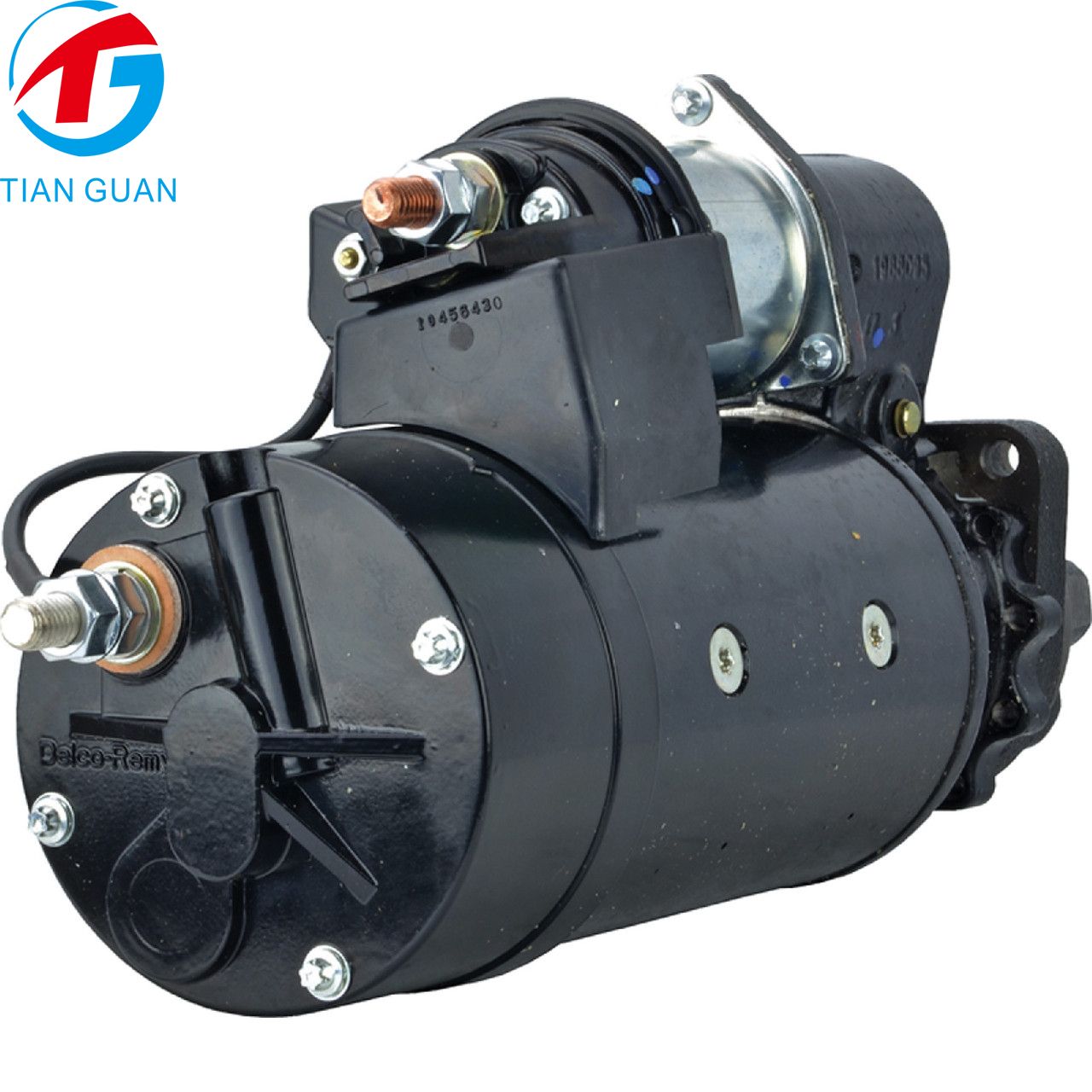

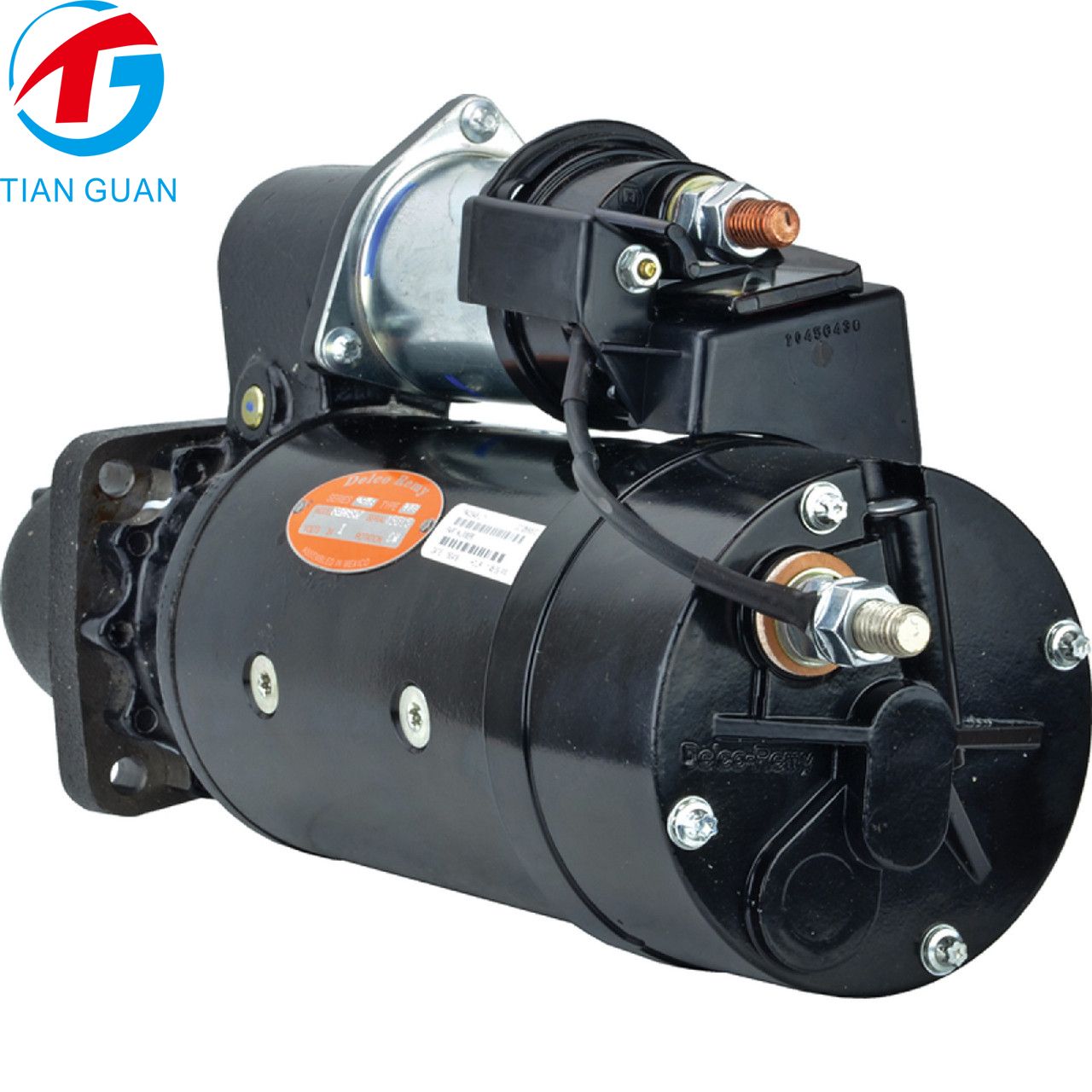

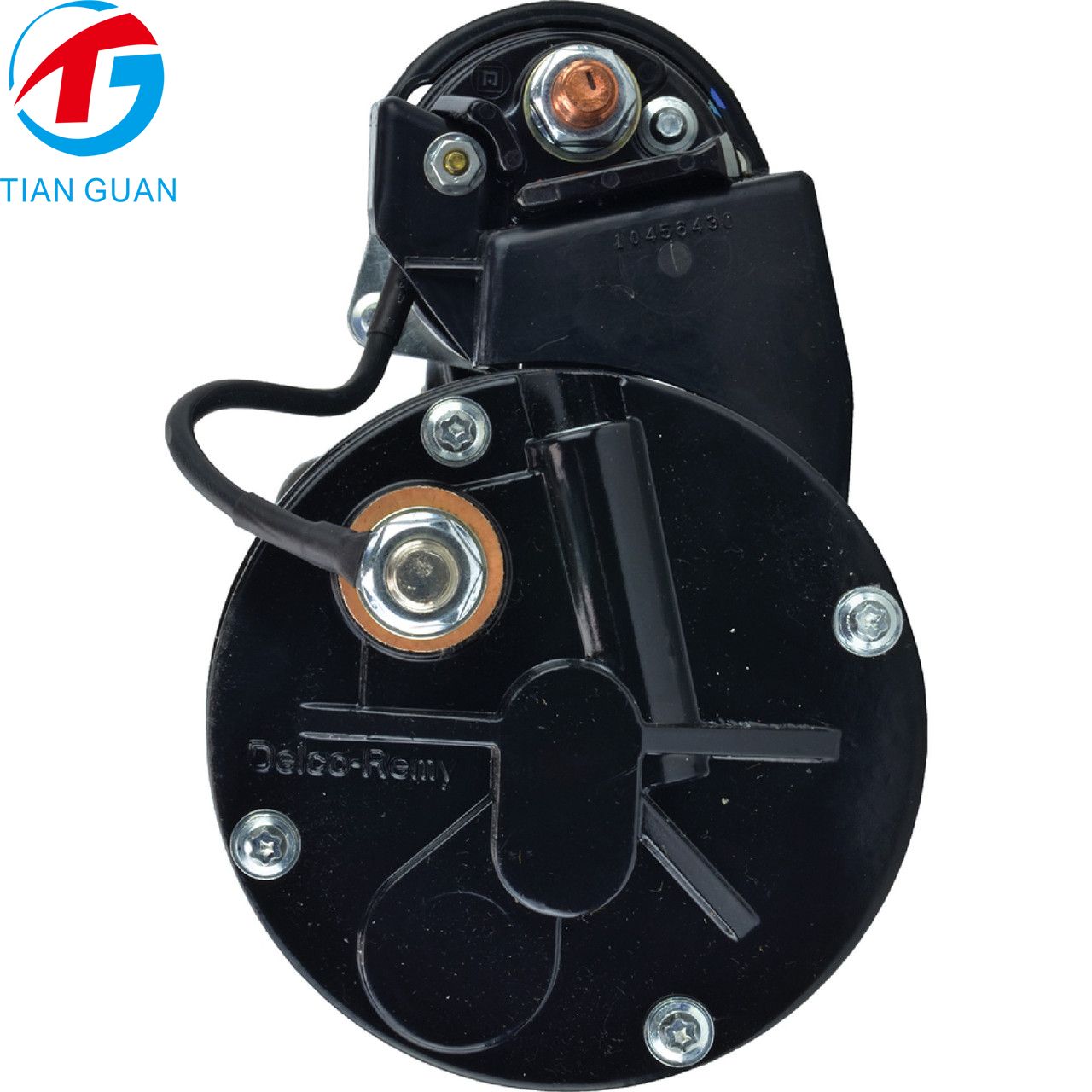

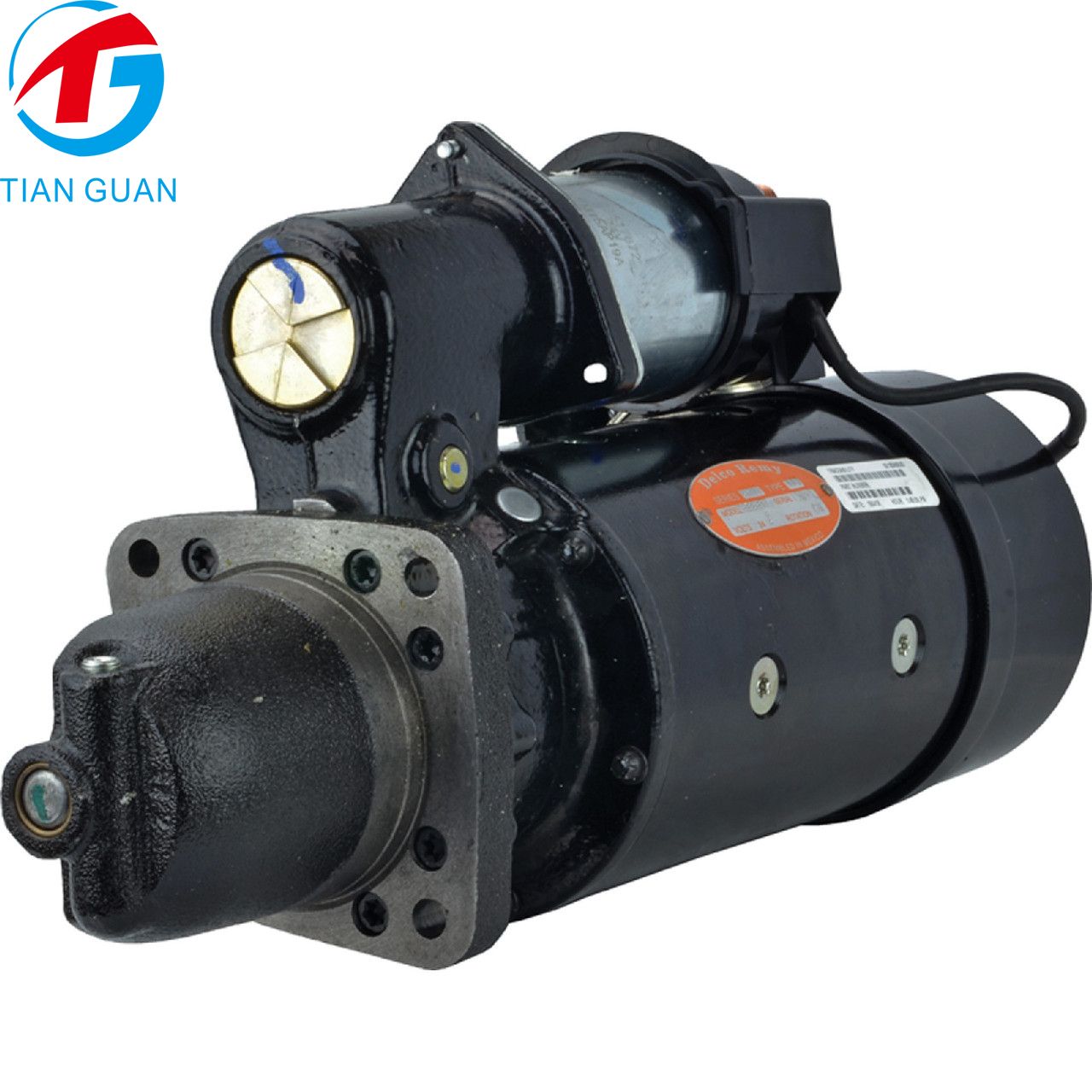

STG52019 Starter 10478948 1993980 207-1541 207-1551 8200957 for Caterpillar 3126B C7 Engines – 24V 12T CW

Part Numbers

CATERPILLAR: 207-1541, 207-1551
DELCO: 10478948, 1993980

Product Description

This premium aftermarket 24V Starter Motor is designed as a direct replacement for Caterpillar 3126B and C7 engine applications, as well as a wide range of Caterpillar excavators, pavers, and industrial equipment. With direct drive (DD) design, 12-tooth pinion gear, and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding construction and industrial applications.

This starter replaces OE part numbers 207-1541, 207-1551 (Caterpillar) and 10478948, 1993980 (Delco).

• 24V starter motor

• Direct drive (DD) design

• 12-tooth pinion gear

• Clockwise (CW) rotation

• Direct replacement for Caterpillar 3126B / C7

• Fits Caterpillar excavators, pavers, and industrial equipment

• Reliable starting performance

• Durable construction

• Aftermarket replacement part

• Approx. 25.8 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Starter
Voltage: 24V
Rotation: CW
Starter Type: DD
Teeth: 12T
Weight: 25.8KG

Fitment

Barber Greene – BG2455D – Caterpillar C
Barber Greene – BG260D – Caterpillar C
Caterpillar – 3116
Caterpillar – 3126
Caterpillar – 3126B
Caterpillar – 320B L / 320B LN / 320B N / 320B S / 320B – 1996-2005 – Cat. 311
Caterpillar – 320BL / 320BLN / 320BN / 320BS
Caterpillar – 322BL / 322BLN / 322C / 322CFMHW / 322CFMST / 322CL / 322CLN
Caterpillar – 324D FM LGP / 324D L / 324D – 2006 – Cat. C
Caterpillar – 324DFMGF / 324DFMLGP / 324DFMLL / 324DL / 324DLN / 324DLNOEM
Caterpillar – 325B L / 325B LN / 325B – 1995 – Cat. 311
Caterpillar – 325BL / 325BLN / 325C / 325CCR / 325CFMHW / 325CFMST / 325CL / 325CLN / 325CMH
Caterpillar – 325D Forest Swing Machine / 325D L / 325D LN / 325D Material Handler / 325D – 2006 – Cat. C
Caterpillar – 325DFMGF / 325DFMLL / 325DFMLLA / 325DL / 325DLN / 325DLOEM / 325DMH
Caterpillar – 326DL
Caterpillar – 328D LCR – 2006 – Cat. C / 328DLCR
Caterpillar – 329D L / 329D LN / 329D – 2008 – Cat. C / 329DL / 329DLN / 329DLOEM
Caterpillar – 330C
Caterpillar – 511
Caterpillar – 584 / 584HD
Caterpillar – 950H / 962H
Caterpillar – AP-1000D / AP1000D – Caterpillar C
Caterpillar – AP1055D / AP-1055D – Caterpillar C
Caterpillar – AP755 / AP-755 – Caterpillar C
Caterpillar – BG-2455D / BG-260D
Caterpillar – C7 / C7.2
Caterpillar – IT62H
Caterpillar – M325BMH / M325CMH / M325D L / M325DLMH / M325DMH – 2006 – Cat. C7 Engine
Caterpillar – PM-102 – Cat. C

Compatible with equipment using 207-1541, 207-1551, 10478948, or 1993980 starter motor part numbers.
