STG52035 Starter Motor 42498115 99486046 SND0765 for Case IH 335 335B 340 340B and New Holland CR9070 CR9080 | 24V 5.5kW 10T CW OSGR Replacement

Part Numbers

Product Description

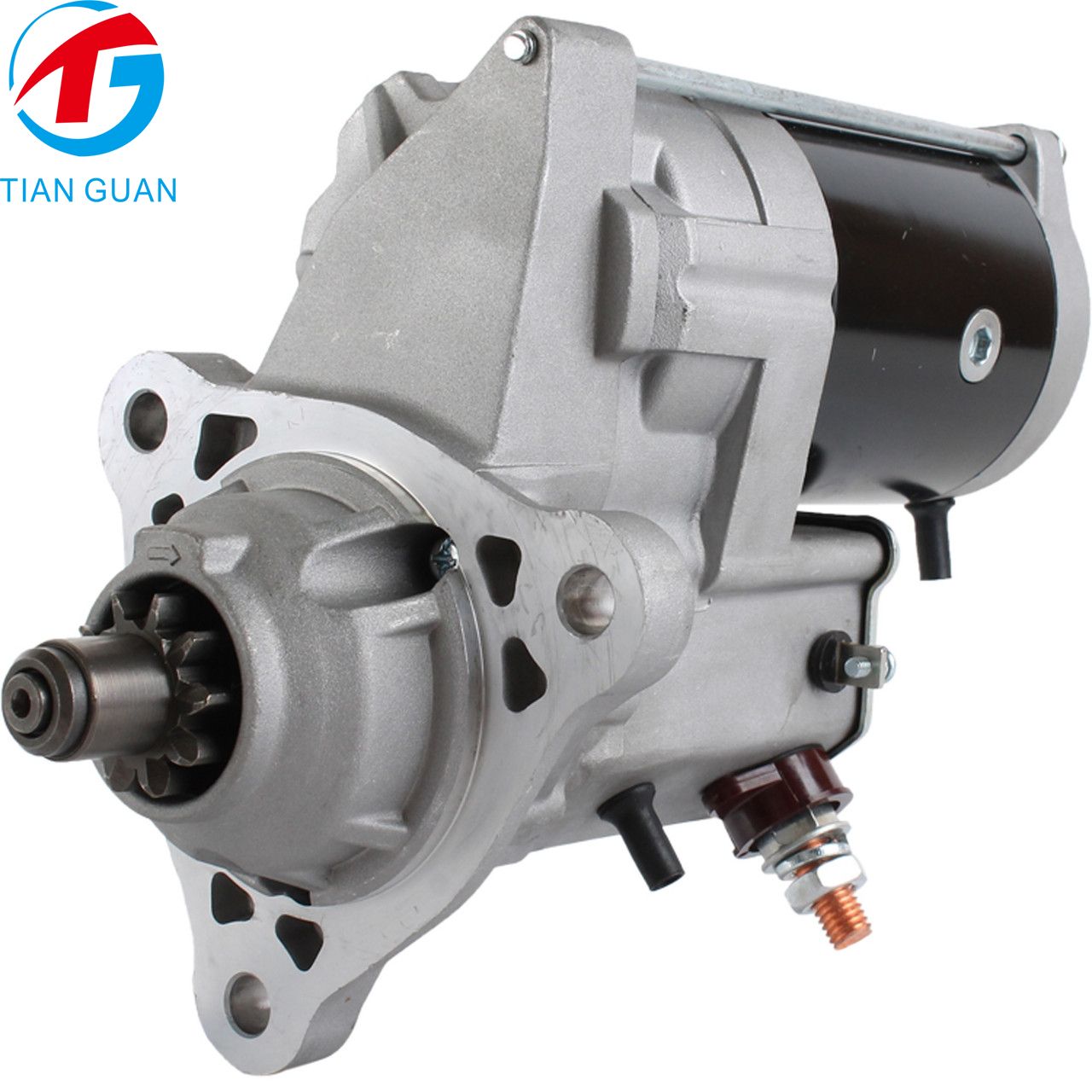

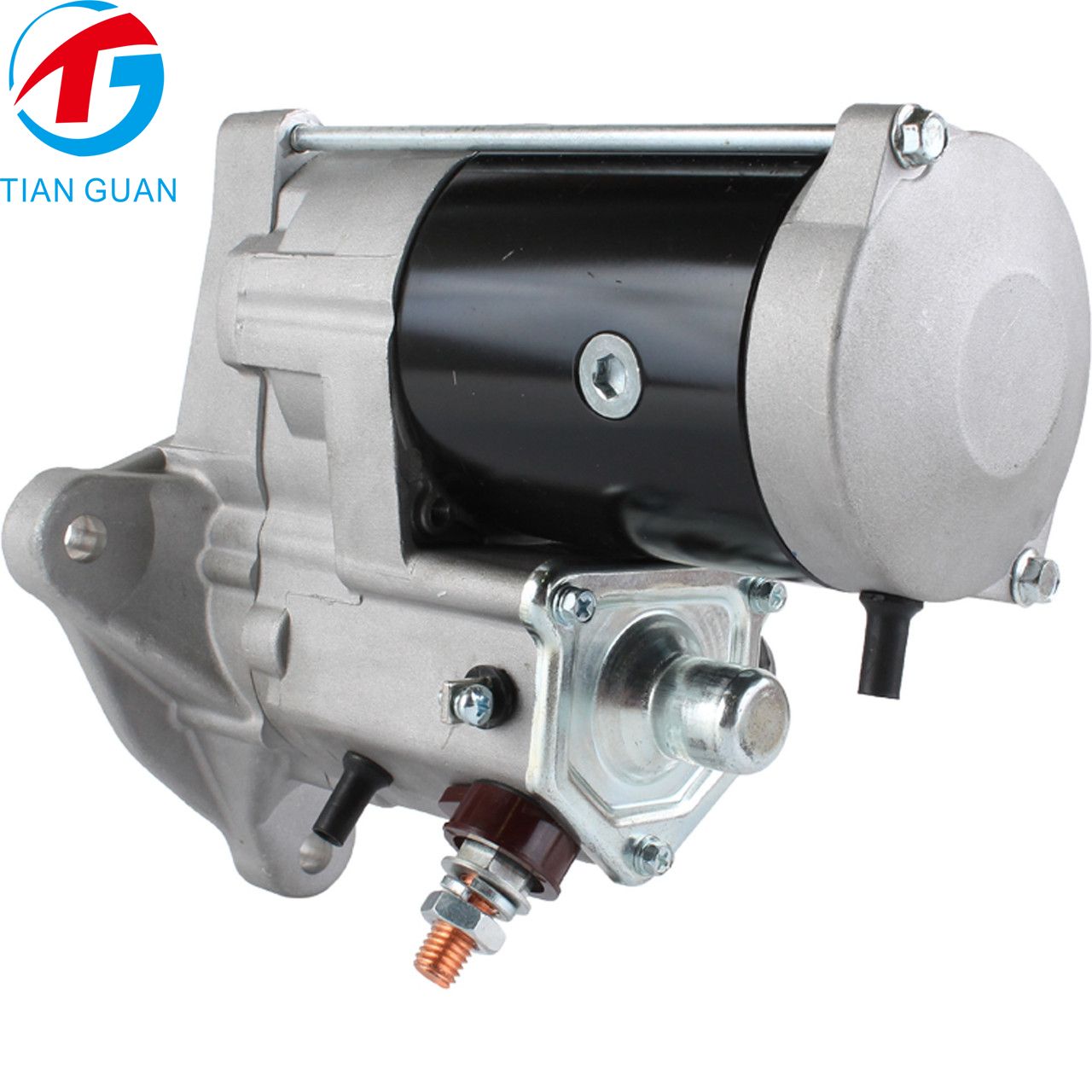

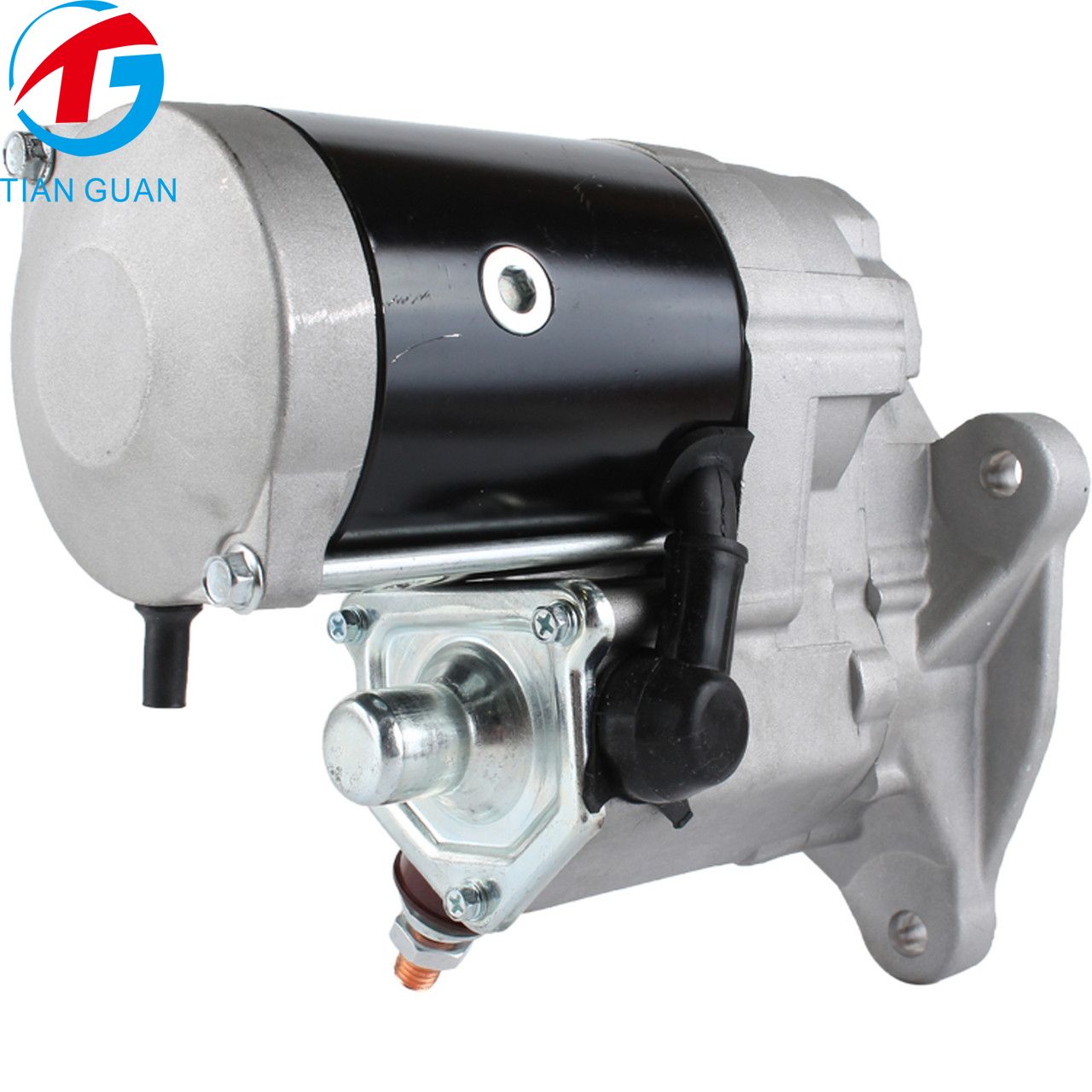

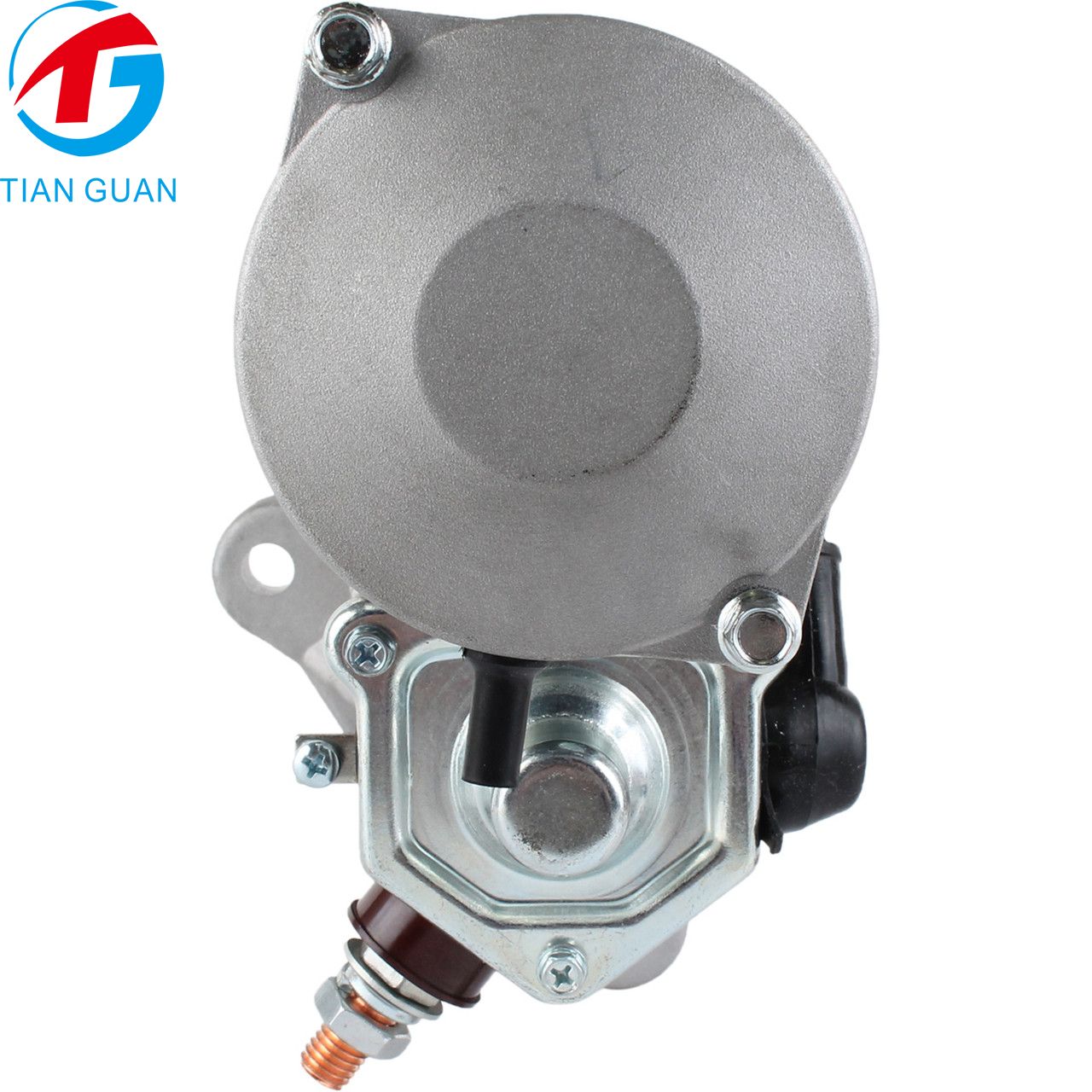

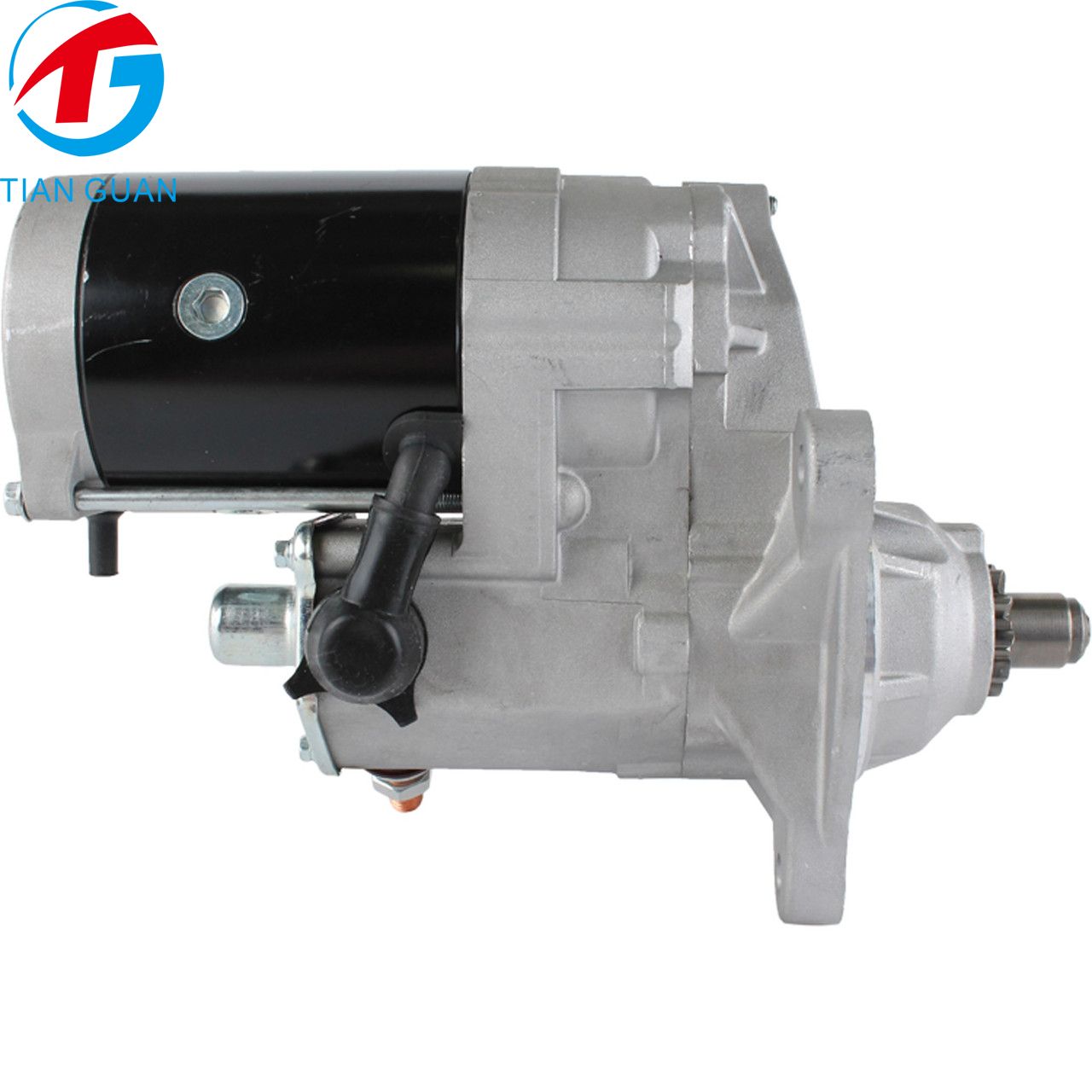

The STG52035 Starter Motor is a brand-new aftermarket replacement starter designed for selected Case IH articulated trucks and combines, as well as New Holland combine applications. Operating on a 24V electrical system with a rated output of 5.5 kW, it is intended for compatible heavy-duty diesel engine starting systems.

This starter features an overhung shift gear reduction (OSGR) design, clockwise (CW) rotation, and a 10-tooth pinion gear. It is cross-referenced to Iveco part numbers 42498115 and 99486046, Denso 228000-7550 and 228000-7551, Arrowhead SND0765, and other listed aftermarket references to help identify a potential replacement for the original starter.

The supplied application data lists Case IH 335, 335B, 340, and 340B articulated trucks with Case 6-787 engines; Case IH 8120 and 9120 combines; and New Holland CR9070 and CR9080 combines. Because starter configurations may vary by engine and equipment specification, verify the original part number, voltage, mounting arrangement, electrical connections, and pinion dimensions before ordering.

Key Features

• 24V, 5.5kW Output: Designed for compatible heavy-duty diesel starting systems.

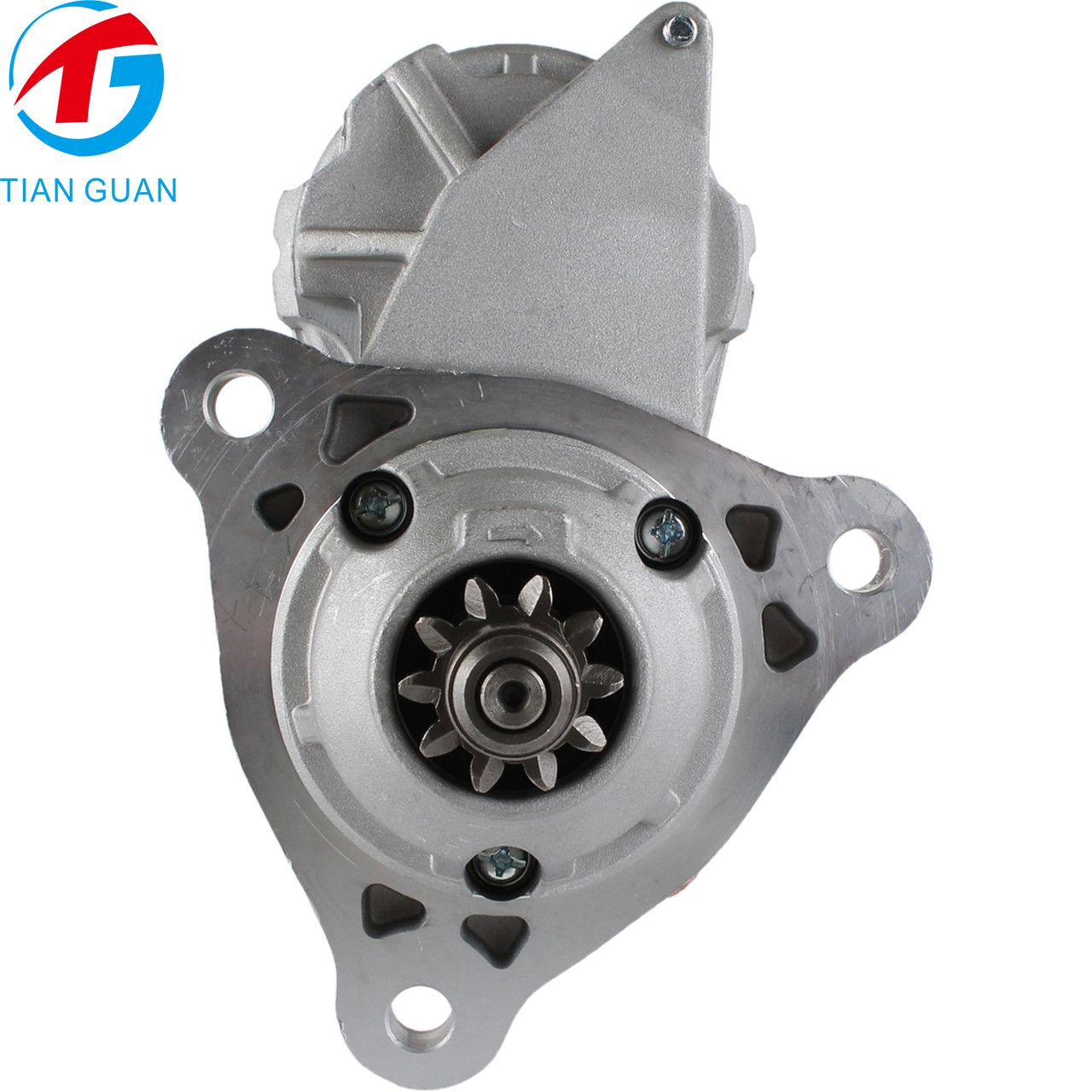

• OSGR Configuration: Features clockwise rotation and a 10-tooth pinion gear.

• Multiple Cross-References: Includes Iveco, Denso, Arrowhead, Mahle, and other listed starter references.

Product Specifications

Compatible Applications
