STG52041 Starter Motor 1162183 1174635 0001410069 for KHD DX Series Tractors and Deutz F6L413 Engines | 24V 5.4kW 11T CW DD Replacement

Part Numbers

Product Description

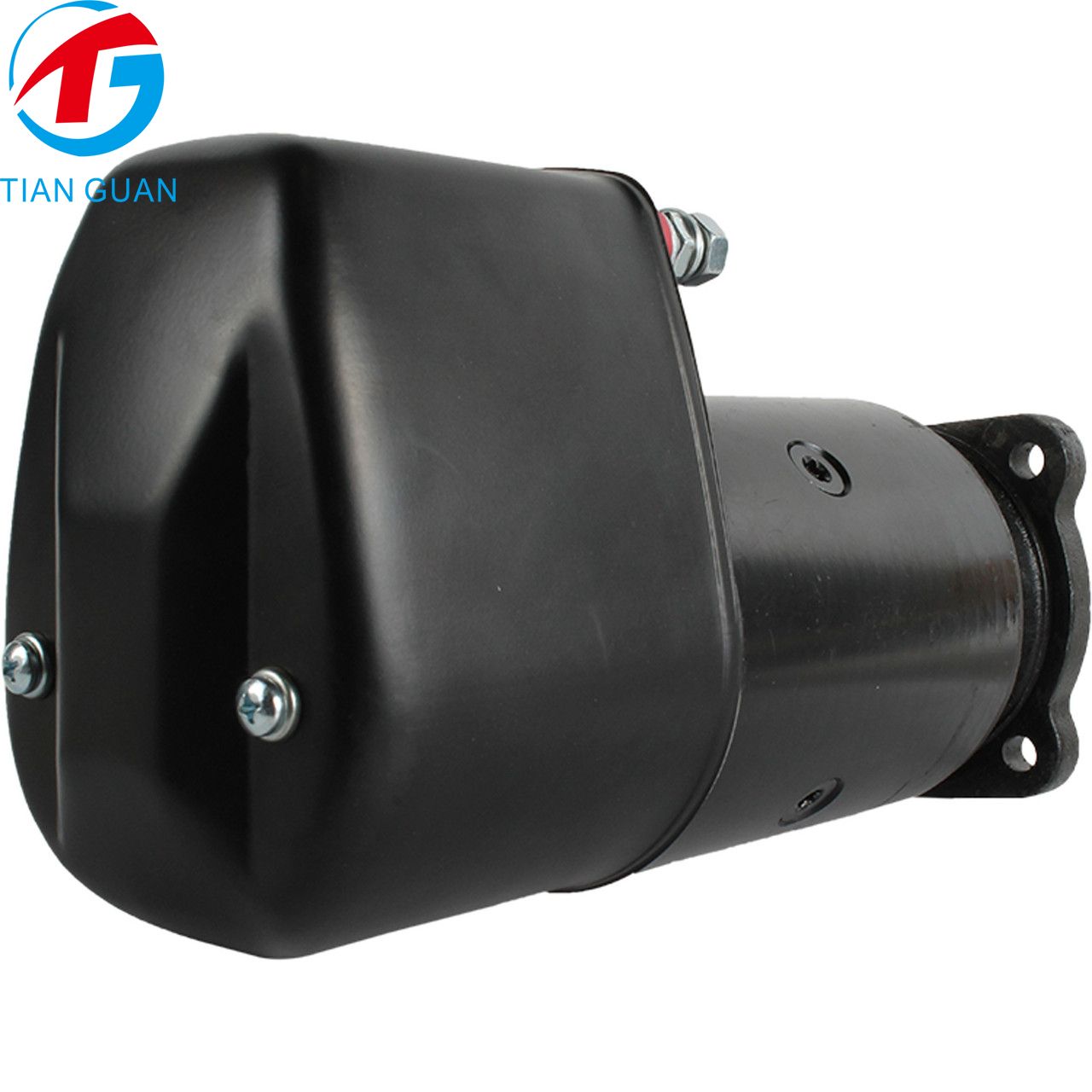

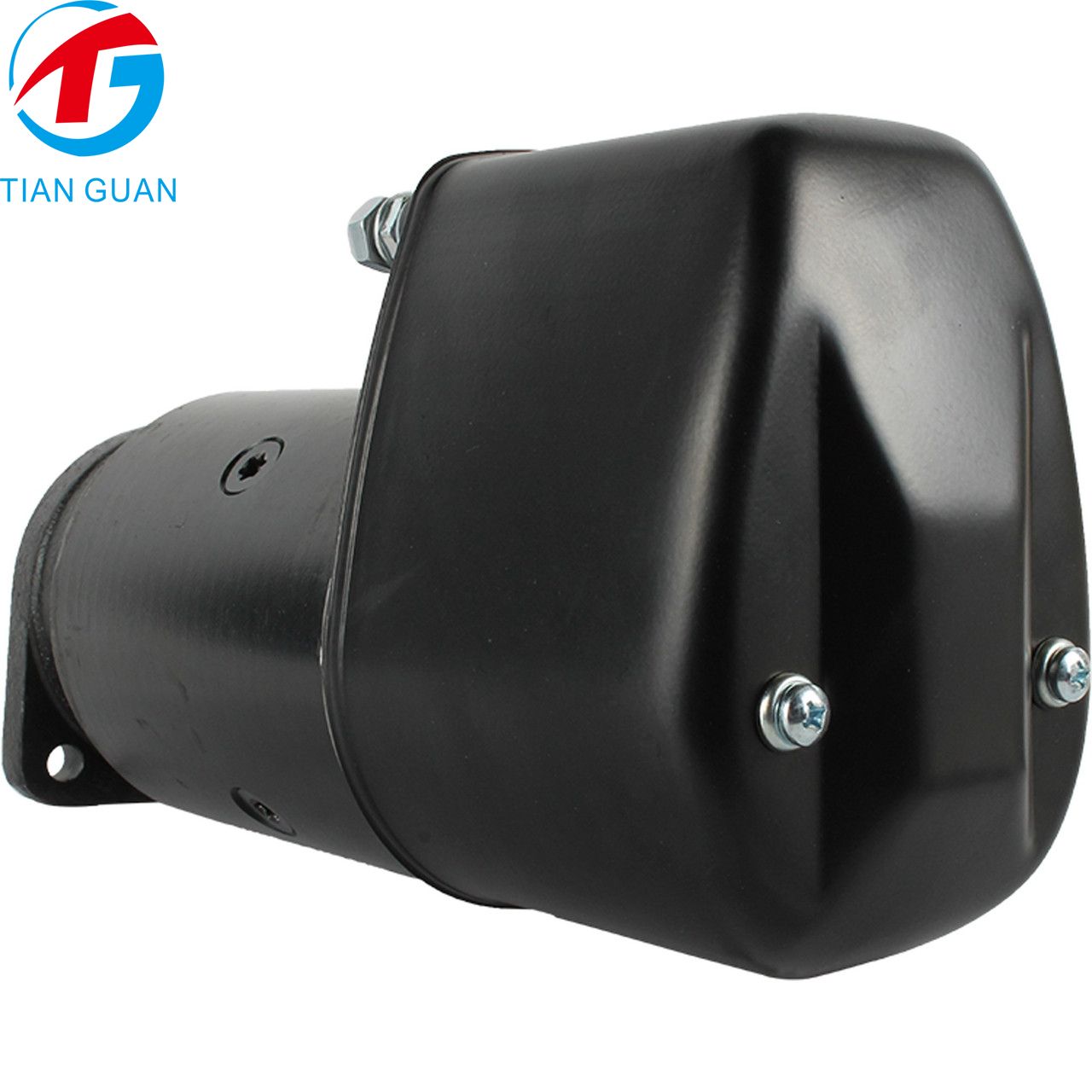

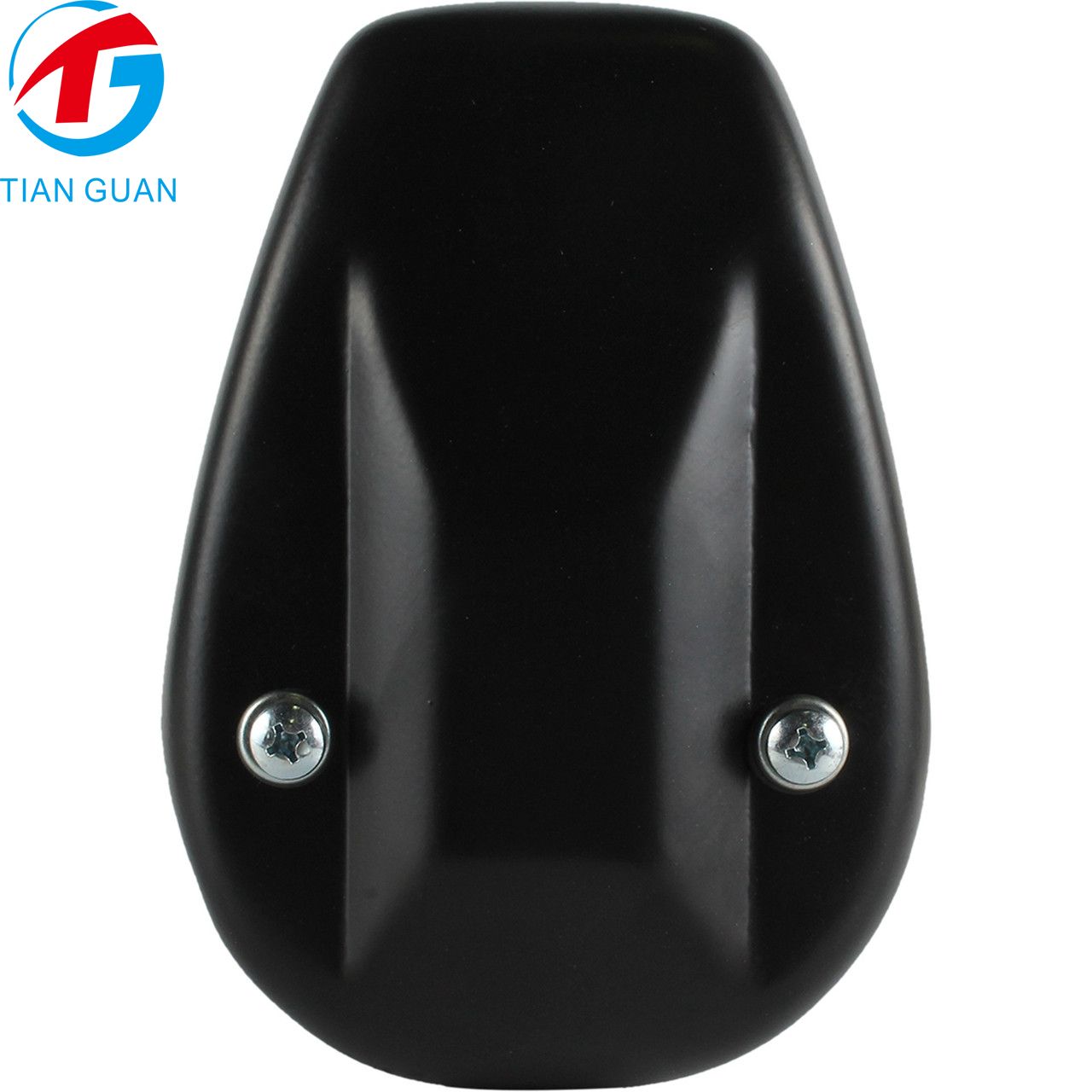

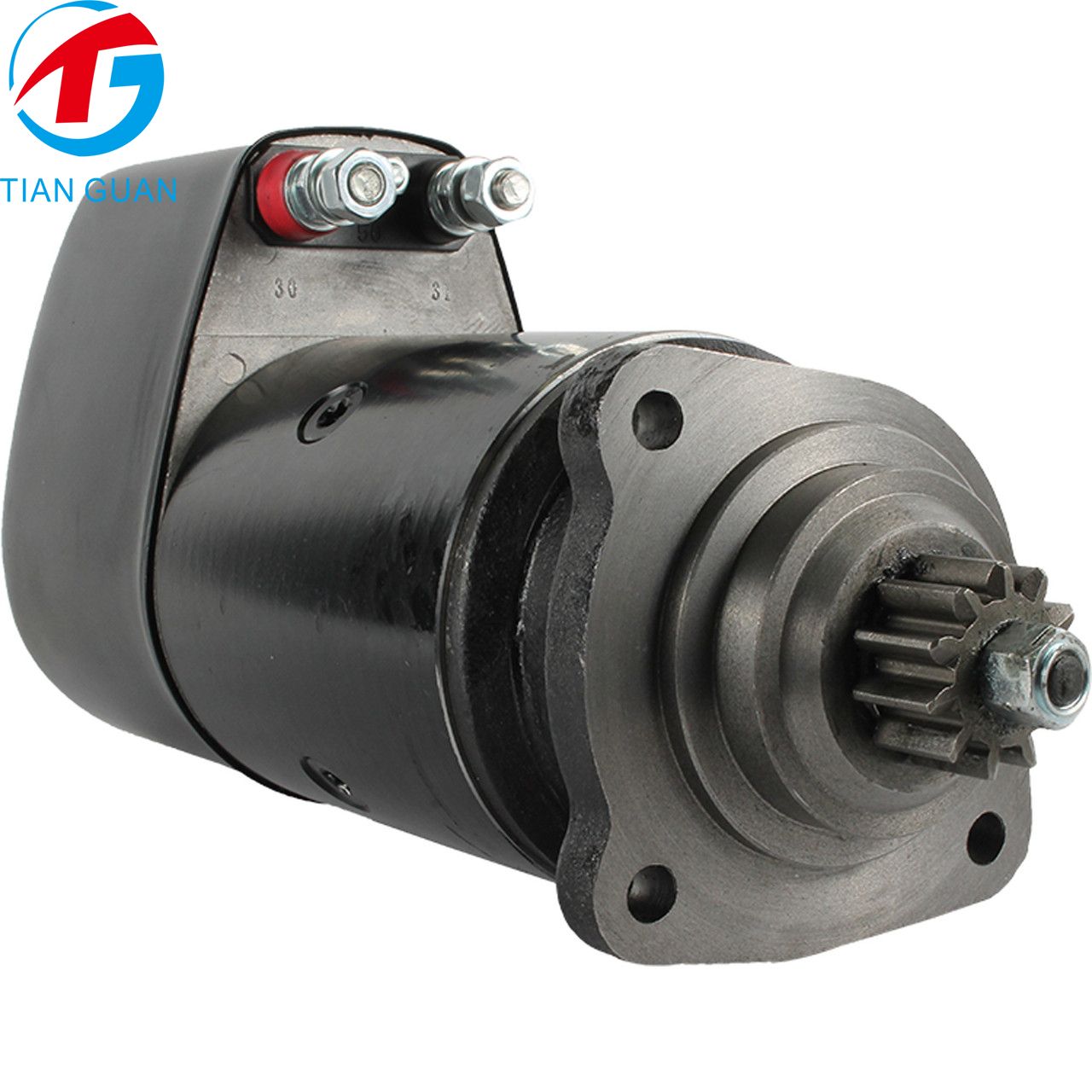

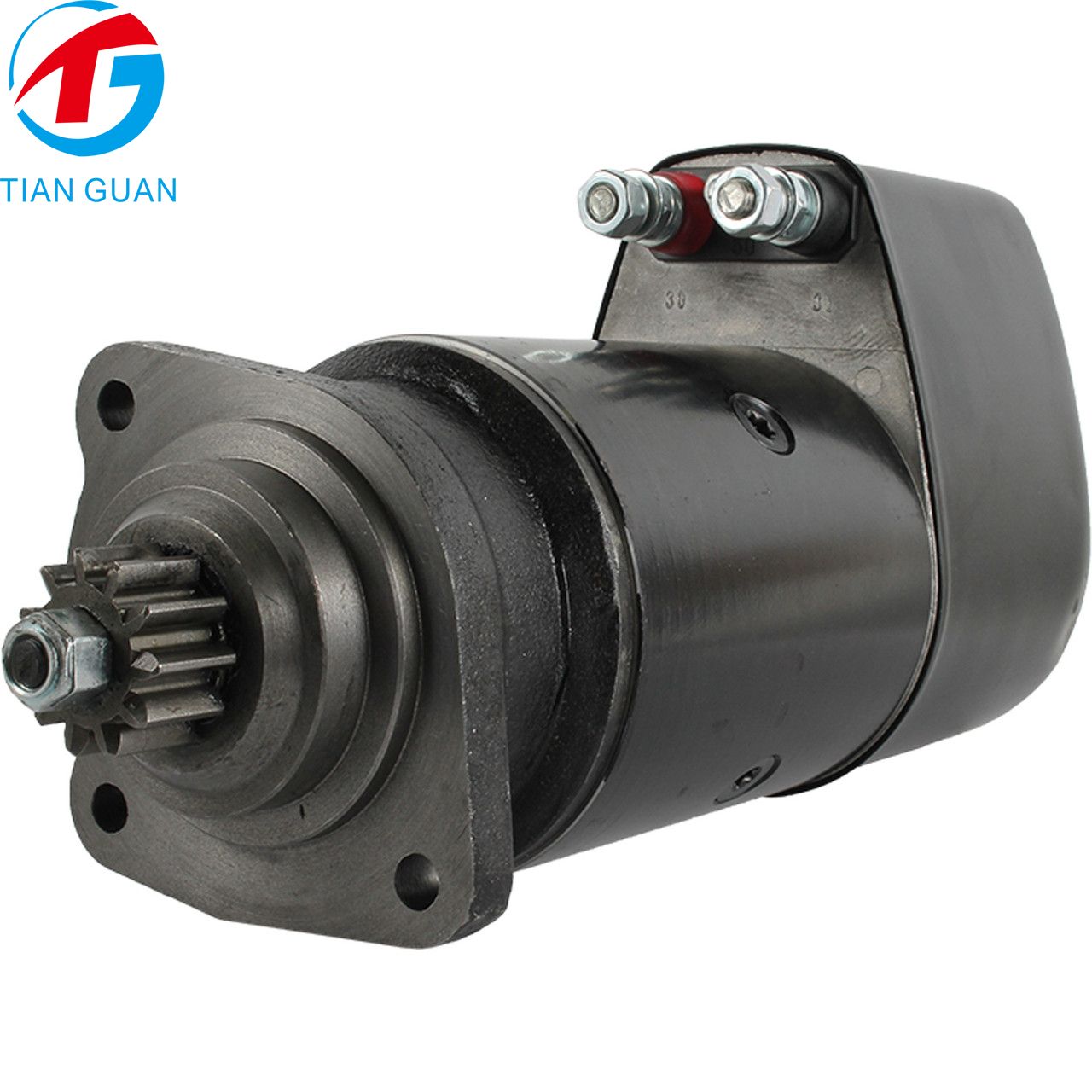

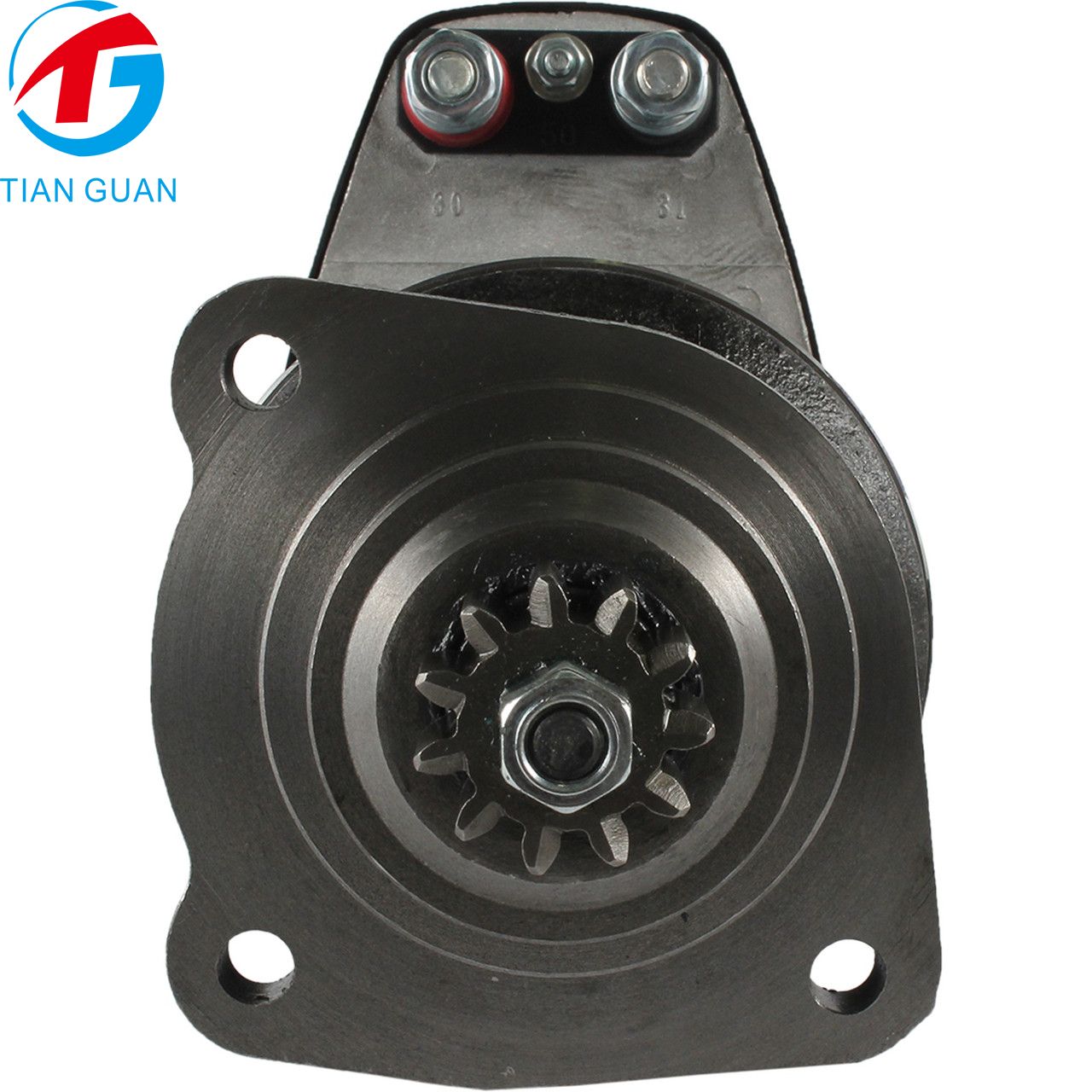

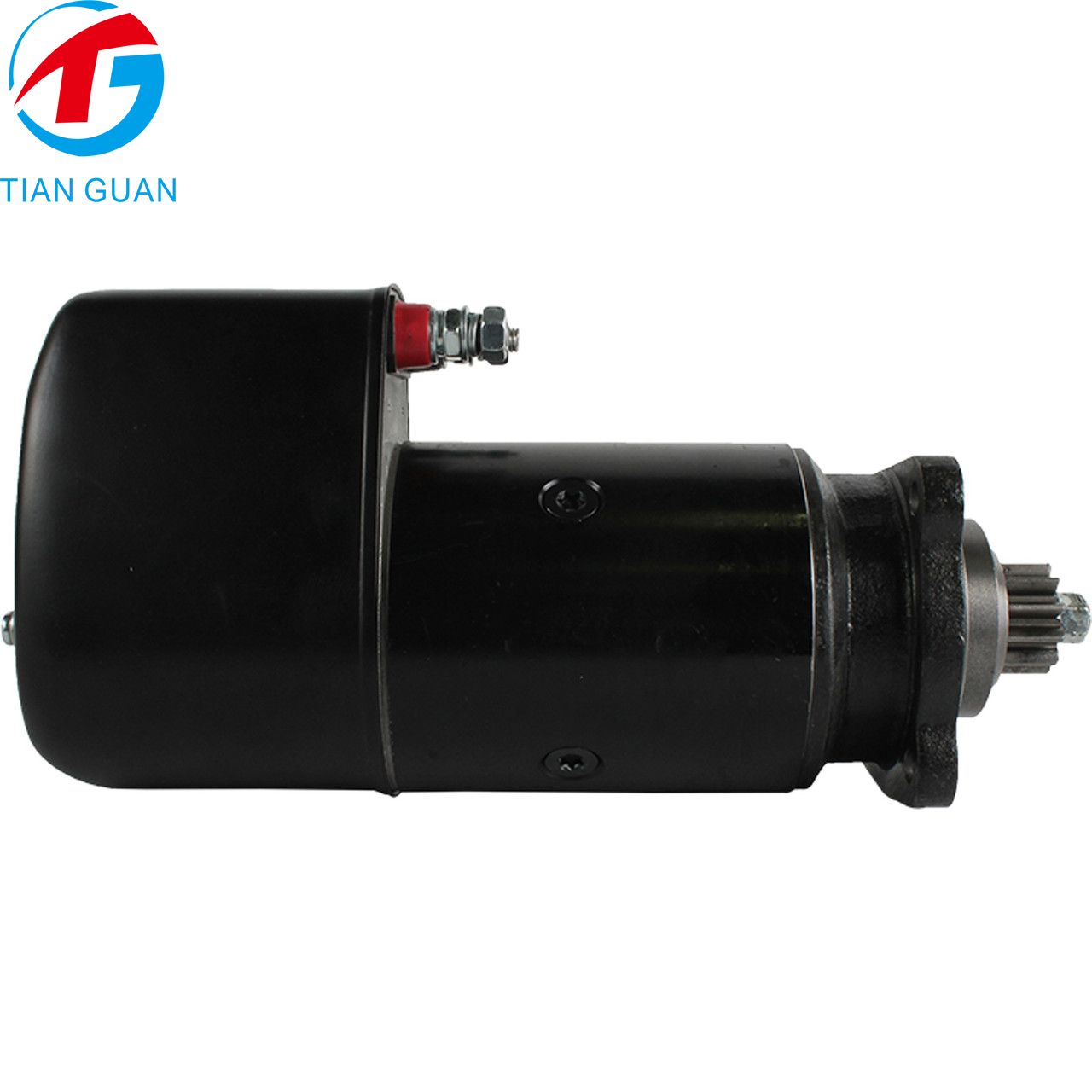

The STG52041 Starter Motor is a brand-new aftermarket replacement designed for selected KHD and Deutz diesel engine applications. Operating on a 24V electrical system with a rated output of 5.4 kW, this starter is designed to deliver strong cranking performance for compatible heavy-duty machinery and industrial engine systems.

Featuring a direct-drive (DD) design, clockwise (CW) rotation, and an 11-tooth pinion gear, the STG52041 is cross-referenced to AGCO 1162183 and 1174635, KHD 116-2183 and 117-4635, Bosch 0-001-410-069 and 0-001-416-031, and additional aftermarket references. Its specified gear and mounting dimensions help technicians compare the replacement unit with the original starter.

The supplied application information lists KHD DX Series tractors equipped with the BF6L413 9.6L engine from 1982–1985. Additional provided information references Deutz F6L413 engines and Poclain RC491 excavators. Since these applications span different equipment types and year ranges, verify the original starter part number, engine variant, mounting dimensions, electrical connections, and pinion specifications before ordering.

Key Features

• 24V, 5.4kW Output: Designed for compatible heavy-duty diesel engine starting systems.

• Direct-Drive Configuration: Features clockwise rotation and an 11-tooth pinion gear.

• Multiple Cross-References: Includes AGCO, KHD, Bosch, Arrowhead, Lester, Mahle, and Iskra references.

Product Specifications

Compatible Applications
