STG52042 Starter Motor 3604486RX 3675155RX 3911343 for Thomas Built Bus MVP-EF 1994-1995 Cummins 6B 5.9L 12V 3.0KW

3 Reviews

Add Your Review

US$135.00

ITEMNO： STG52042

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

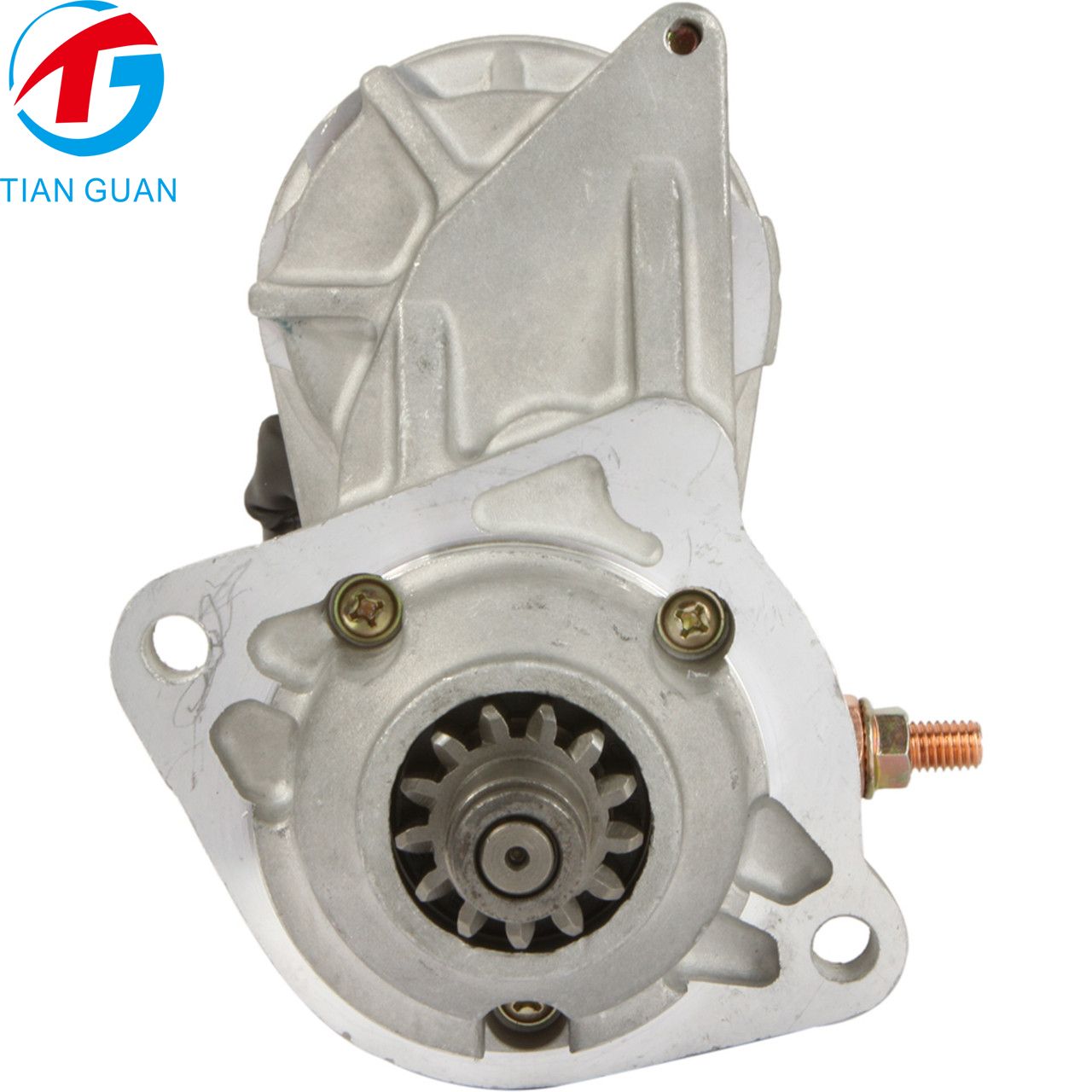

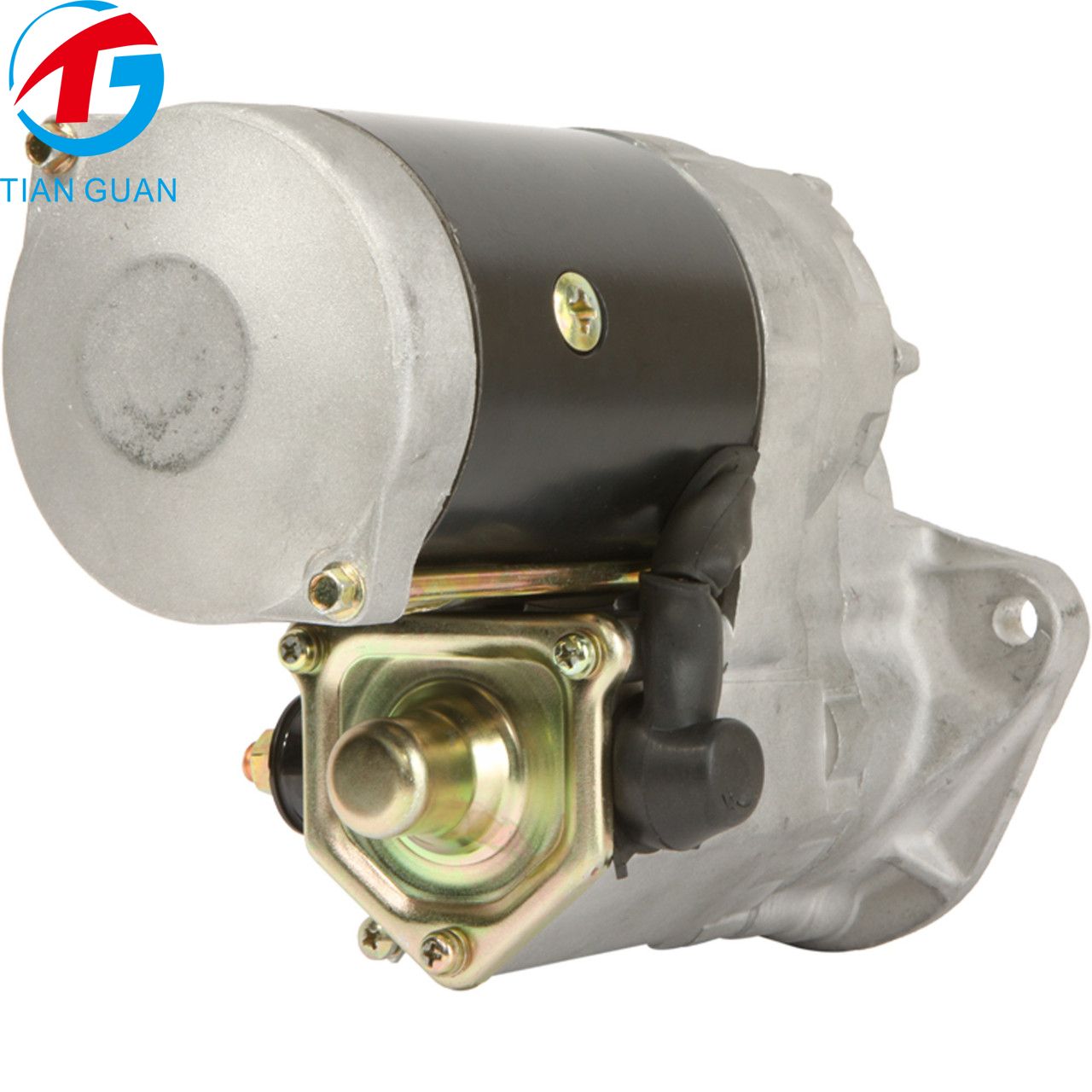

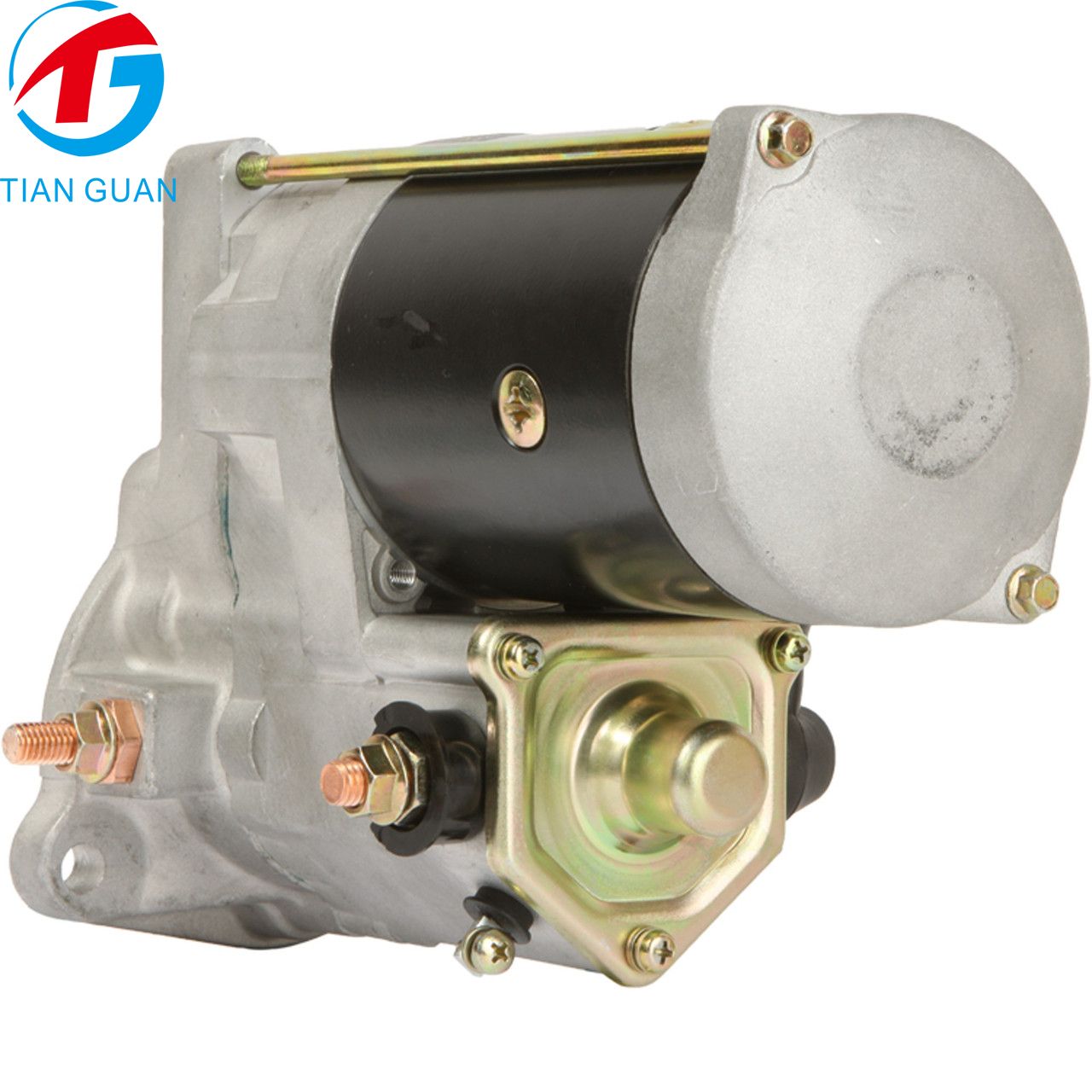

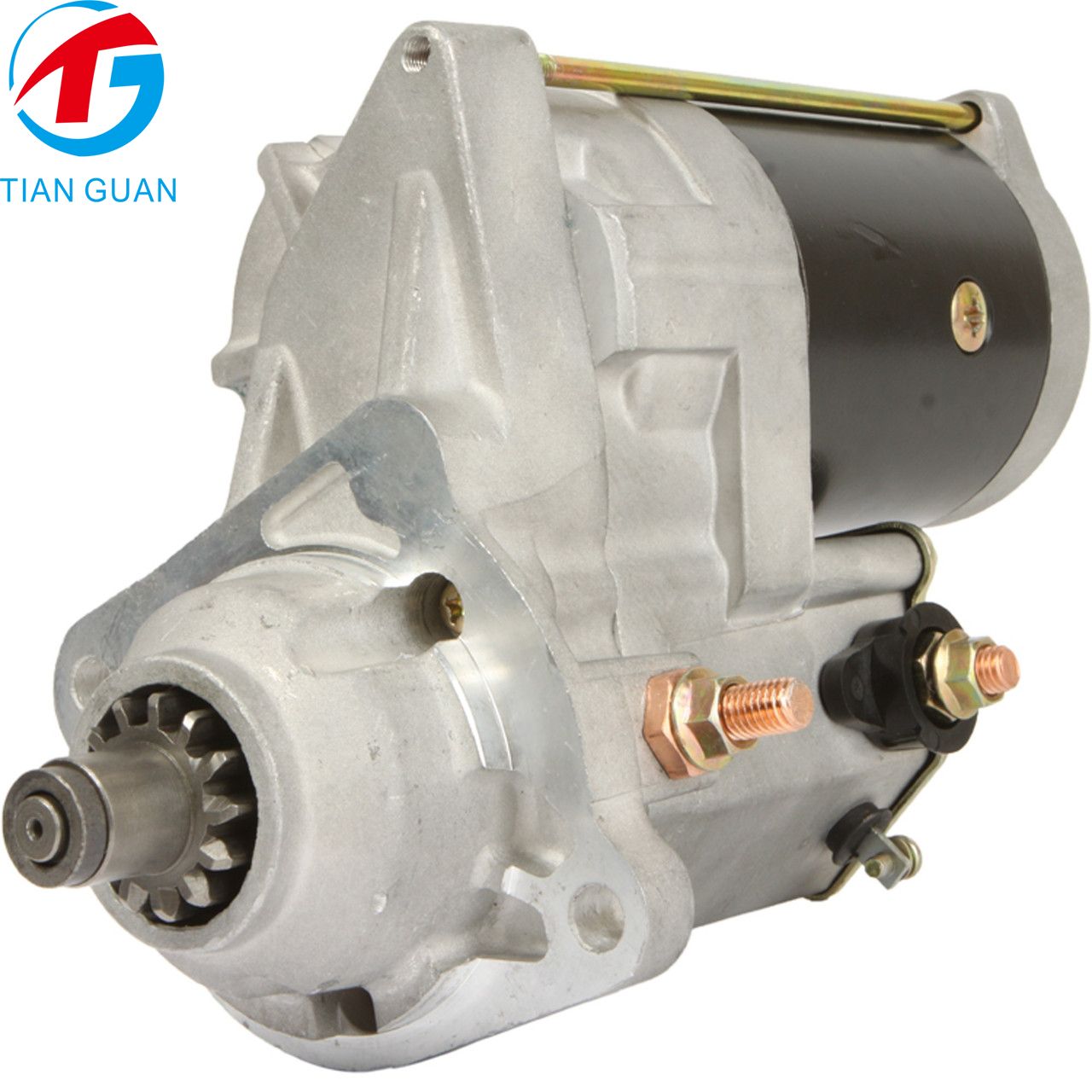

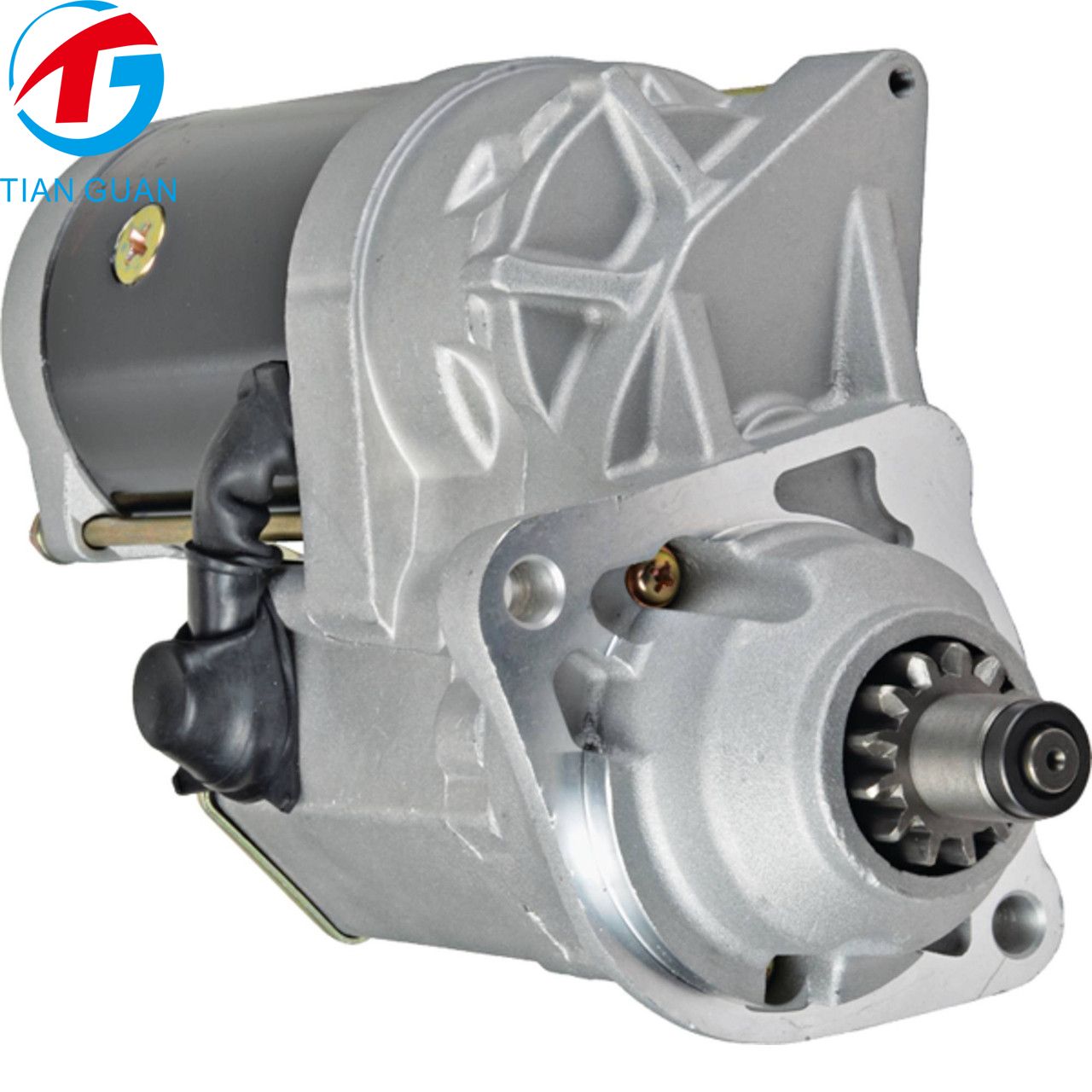

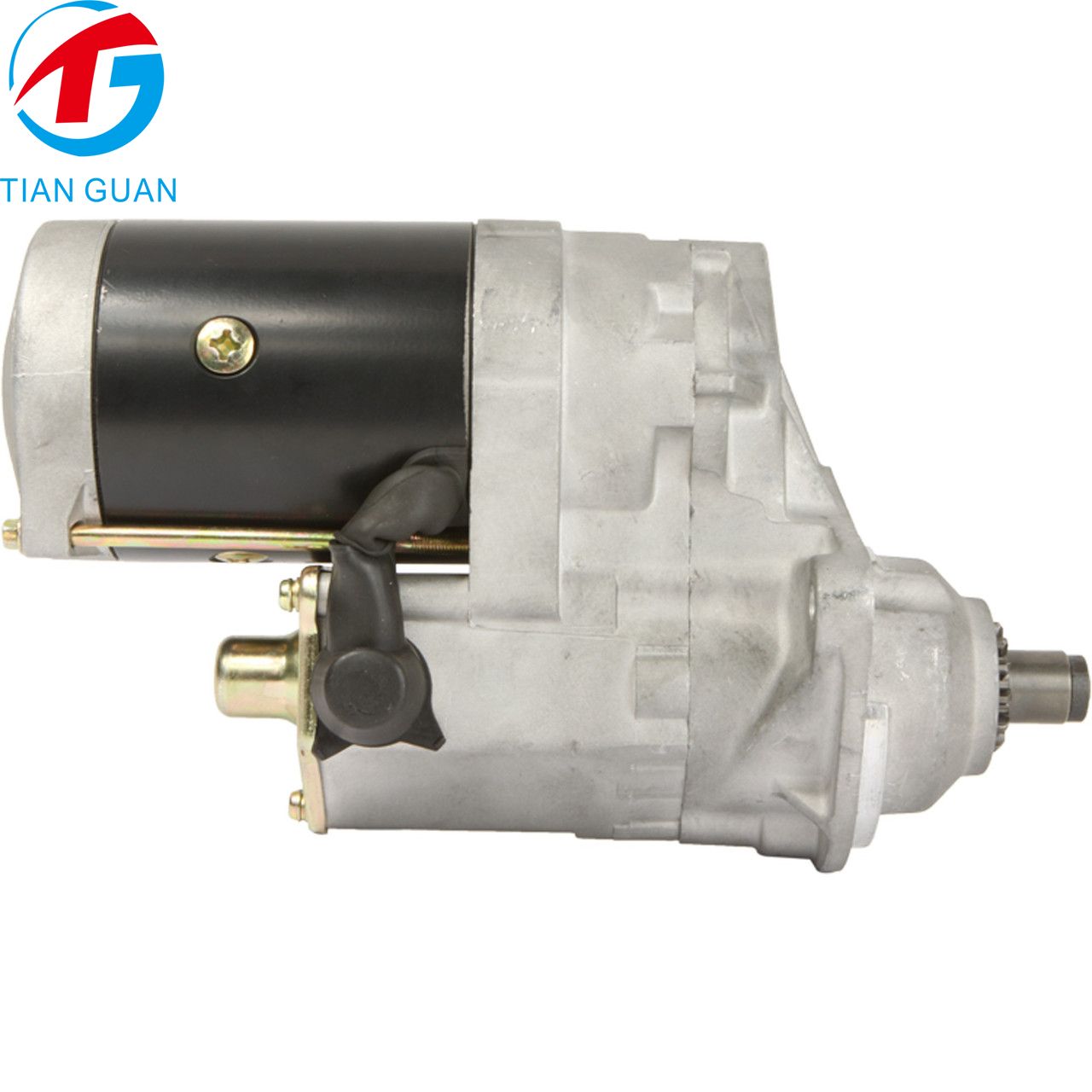

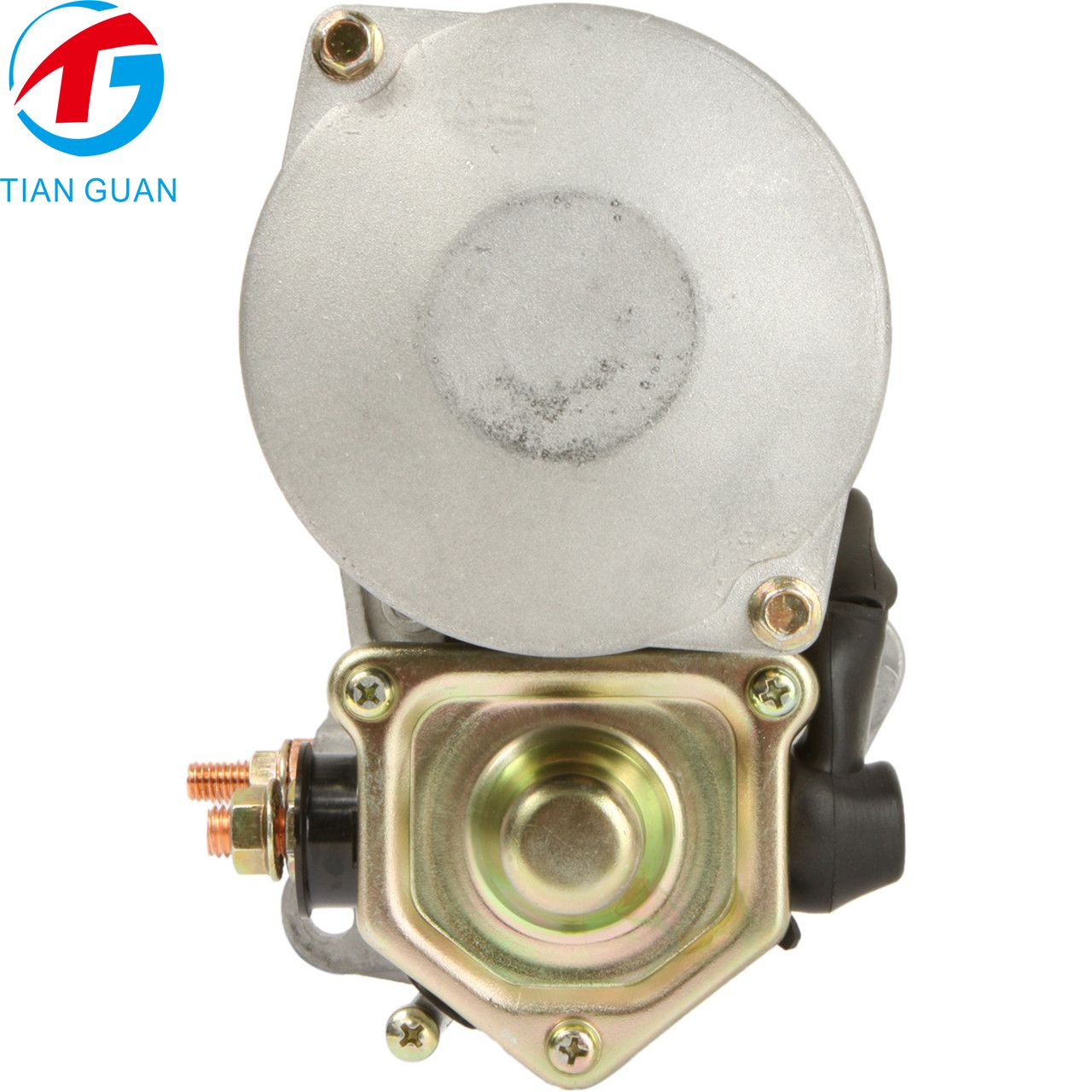

STG52042 Starter Motor 3604486RX 3675155RX 3911343 for Thomas Built Bus MVP-EF 1994-1995 Cummins 6B | 12V 3.0KW 13T CW OSGR Replacement

Part Numbers

ARROWHEAD	SND0254, ND228000-3311, ND228000-3321, ND9712809-422, NDTG228000-3311, ND228000-2671
CUMMINS	3604486RX, 3675155RX, 3911343, 3925045, 3957591, 395889
DENSO	128000-4220, 128000-4221, 228000-2670, 228000-2671, 228000-2672, 228000-3310, 228000-3311, 228000-3320, 228000-3321
DENSO REMAN	9712809-422
LESTER	17600
THOMAS BUS	61230354, 61230355

Product Description

The STG52042 starter motor is a new aftermarket replacement designed for Thomas Built Bus MVP-EF applications equipped with the Cummins 6B 5.9L diesel engine. It is rated at 12V and 3.0KW and features a 13-tooth pinion, clockwise rotation, and OSGR starter design for reliable engine cranking performance.

This starter cross-references multiple Cummins, Denso, Arrowhead, Denso Reman, Lester, and Thomas Built Bus part numbers, including 3604486RX, 3675155RX, 3911343, 3925045, 3957591, 128000-4220, 228000-3311, SND0254, 9712809-422, and 17600.

Designed as a replacement unit for compatible bus applications, this starter provides a practical solution for replacing a worn or failed original starter. Always compare the original unit and OEM number before installation to confirm voltage, tooth count, rotation, mounting configuration, and electrical connections.

Product Specs

Item Condition	Aftermarket Part
Unit Type	Starter
Part Type	UNIT
Voltage	12
Rotation	CW
Teeth	13
KW	3.0
Starter Type	OSGR
Fits	CUMMINS ENGINE 5.9L

MAKE	TYPE	MODEL	YEAR	ENGINE
THOMAS BUILT BUS	Bus	MVP-EF	1994	Cummins 6B
THOMAS BUILT BUS	Bus	MVP-EF	1995	Cummins 6B
THOMAS BUILT BUS	Bus	MVP-EF	1996	Cummins 6B
THOMAS BUILT BUS	Bus	MVP-EF	1997	Cummins 6B
THOMAS BUILT BUS	Bus	MVP-EF	1998	Cummins 6B
THOMAS BUILT BUS	Bus	MVP-EF	All	Cummins ISB
THOMAS BUILT BUS	Bus	SLF 200	All	Cummins ISB
TUG	Air Start	AS100	All	Cummins B5.9
TUG	GPU	GPU 400-100	All	Cummins QSB 6.7 Tier I, II
TUG	GPU	GPU 400-120	All	Cummins QSB 6.7 Tier I, II
TUG	GPU	GPU 400-90	All	Cummins B5.9

Packaging Information

Item	Estimated Details
Net Weight (NW)	Approx. 8.5 kg (18.7 lb)
Gross Weight (GW)	Approx. 9.5 kg (21.0 lb)
Package Dimensions	Approx. 35 × 25 × 25 cm
Packaging	1 × Starter Motor, protective inner packing and export carton

PRODUCT HIGHLIGHTS

Highlights

Feature	Description	Benefit
3.0KW Starting Power	12V starter rated at 3.0KW	Provides dependable cranking power for the Cummins 6B engine
OSGR Design	Offset gear reduction starter configuration	Delivers efficient starting performance
13-Tooth Pinion	13T clockwise-rotation drive	Matches the specified original starter configuration

SHIPPING

Item Details

Processing Time Orders are processed within 1-3 business days after payment confirmation

Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight

Estimated Delivery Time Express shipping: 3-7 business days, depending on destination

Packaging Export-standard cartons with protective inner packing

Tracking Tracking number will be provided once the order is shipped

Shipping Cost Calculated based on weight, dimensions, and destination
