STG52214 Starter M105615 M105R2515SE M110603 M110615 M110R2615SE M110R2615SE2D for Ford L6000
Part Numbers
ARROWHEAD: PLM110615, PLM110R2615SE
LEECE NEVILLE: M105615, M105R2515SE, M110603, M110615, M110R2615SE, M110R2615SE2D
DELCO: 10461033, 10461038, 10461052, 10461053, 10461126, 10461127, 10461164, 10461214, 10461267, 10461334, 10461592, 10461753, 10461777, 10461855, 10478810, 10478894, 10478895, 10479028, 10479037, 10479081, 10479150, 10479156, 10479160, 10479277, 10499072, 19011500, 19011505, 19011506, 19011508, 19011516, 19011518, 19011521, 19011529, 19011530, 19011531, 1990337, 1990352, 1990358, 1990375, 1990376, 1990386, 1990398, 1990400, 1990420, 1990423, 1990424, 1990450, 1990468, 1990470, 1990475, 1990478, 1990483, 1990490, 1990495, 1993803, 1993807, 1993816, 323-867, 323-871, 323-892, 3604322RX, 61003201, 8200029, 8200031, 8200033, 8200037, 8200038, 8200040, 8200050, 8200088, 8200090, 8200091, 8200104, 8200289, 8200290, 8200308, 8300017, 8300019, R0461126, R0461127
MITSUBISHI: 616002004, FL0579, FL0777, FL0975, IN1478, MIB970777, MIB970975, MIB970975FL, PC0979, PC1479, PC1879
Product Description

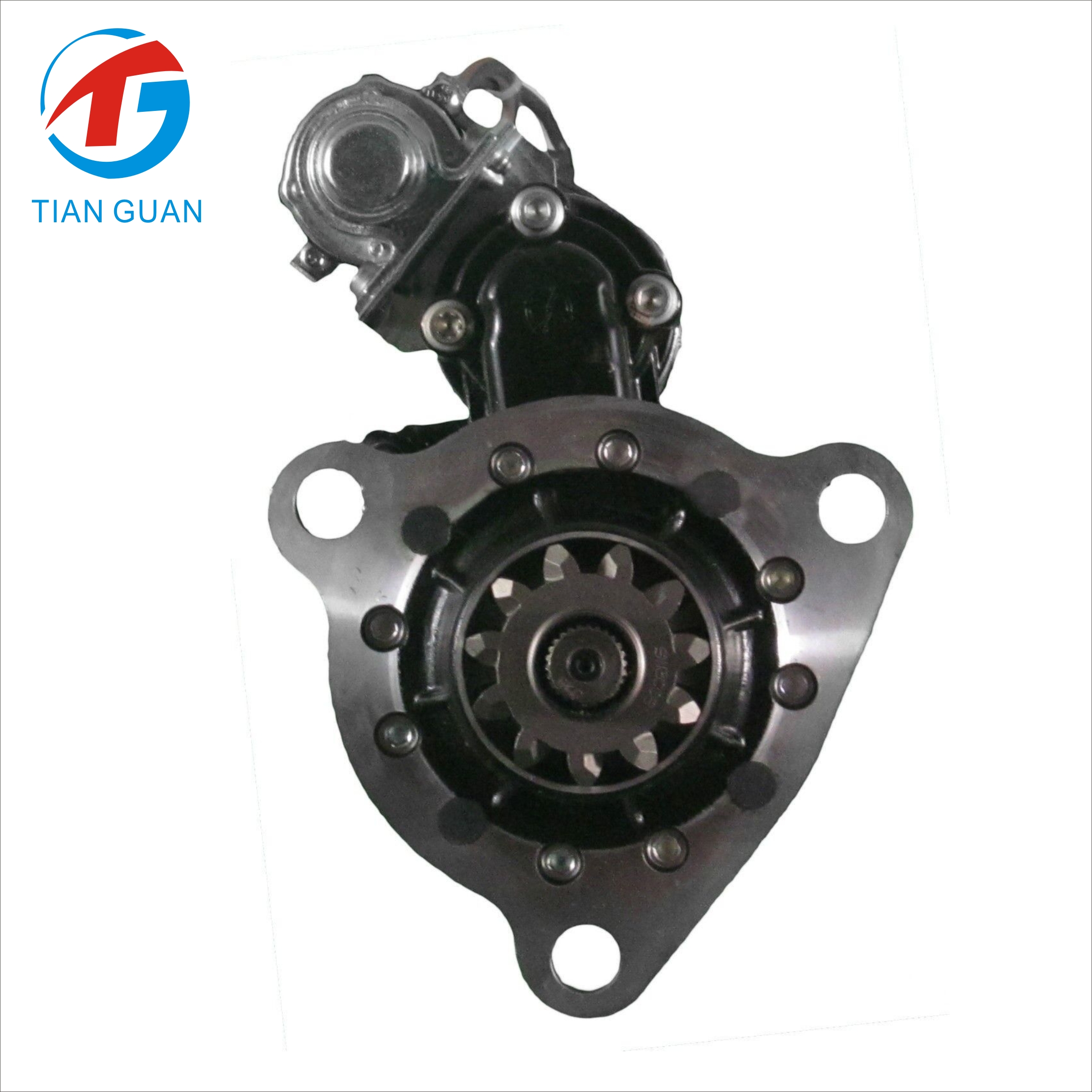

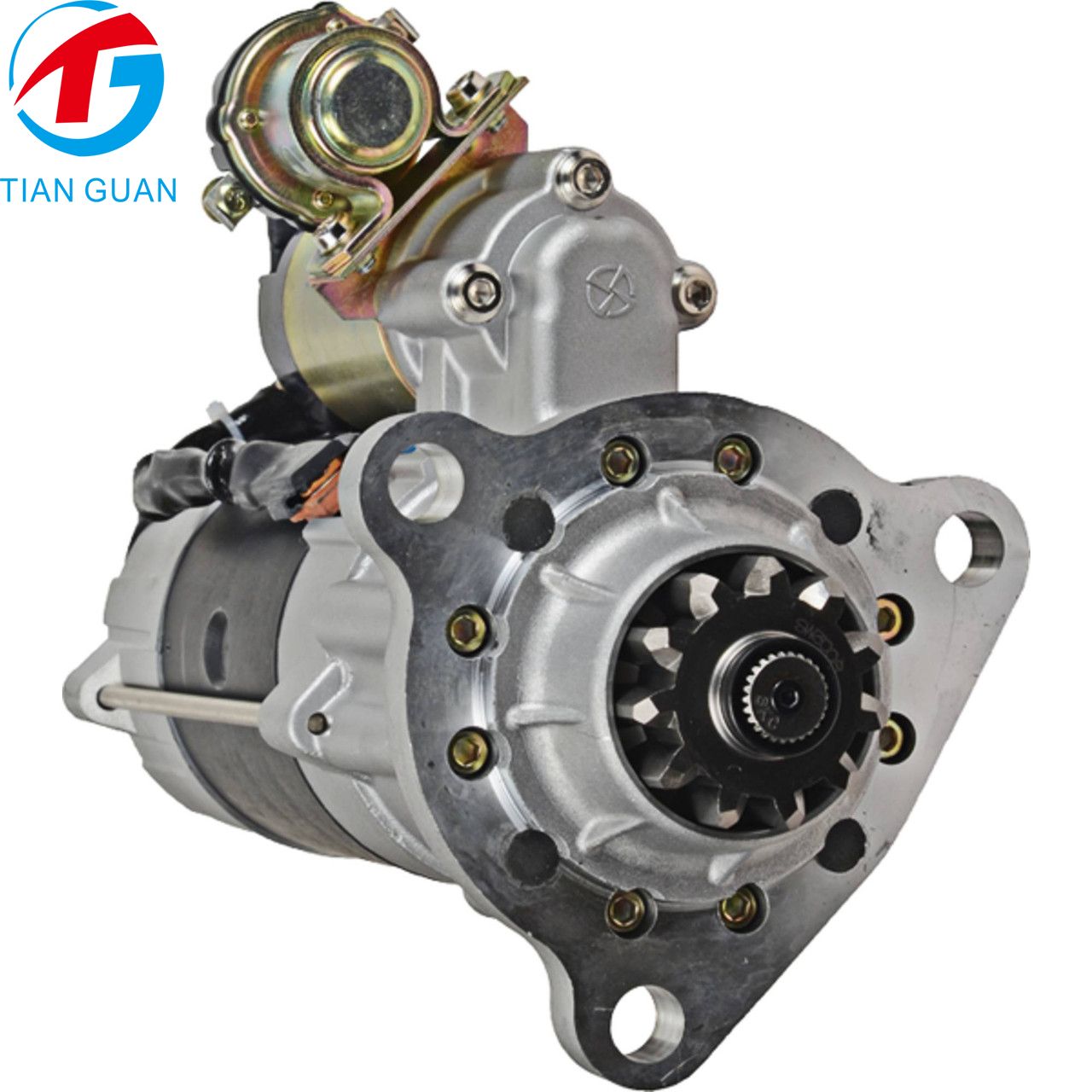

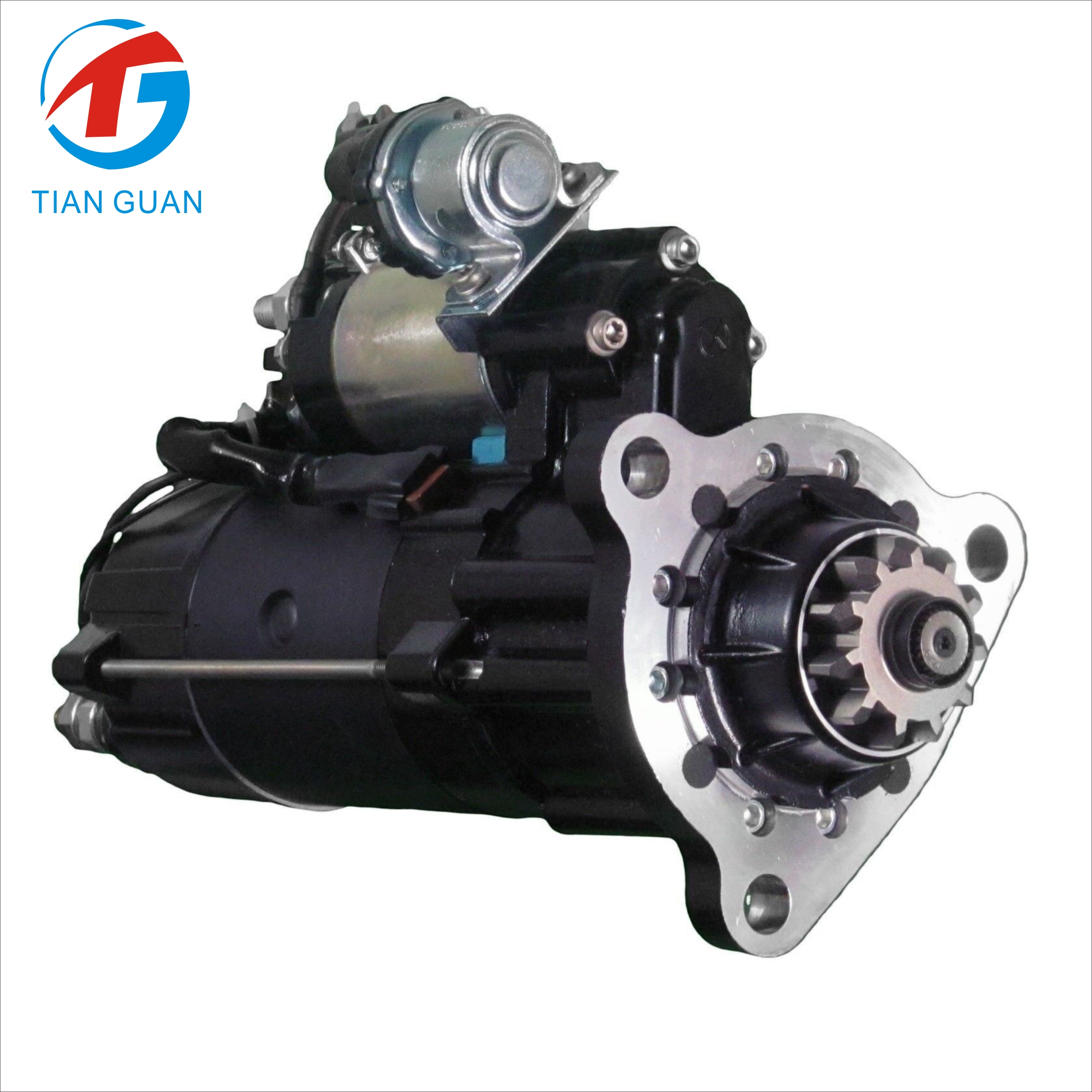

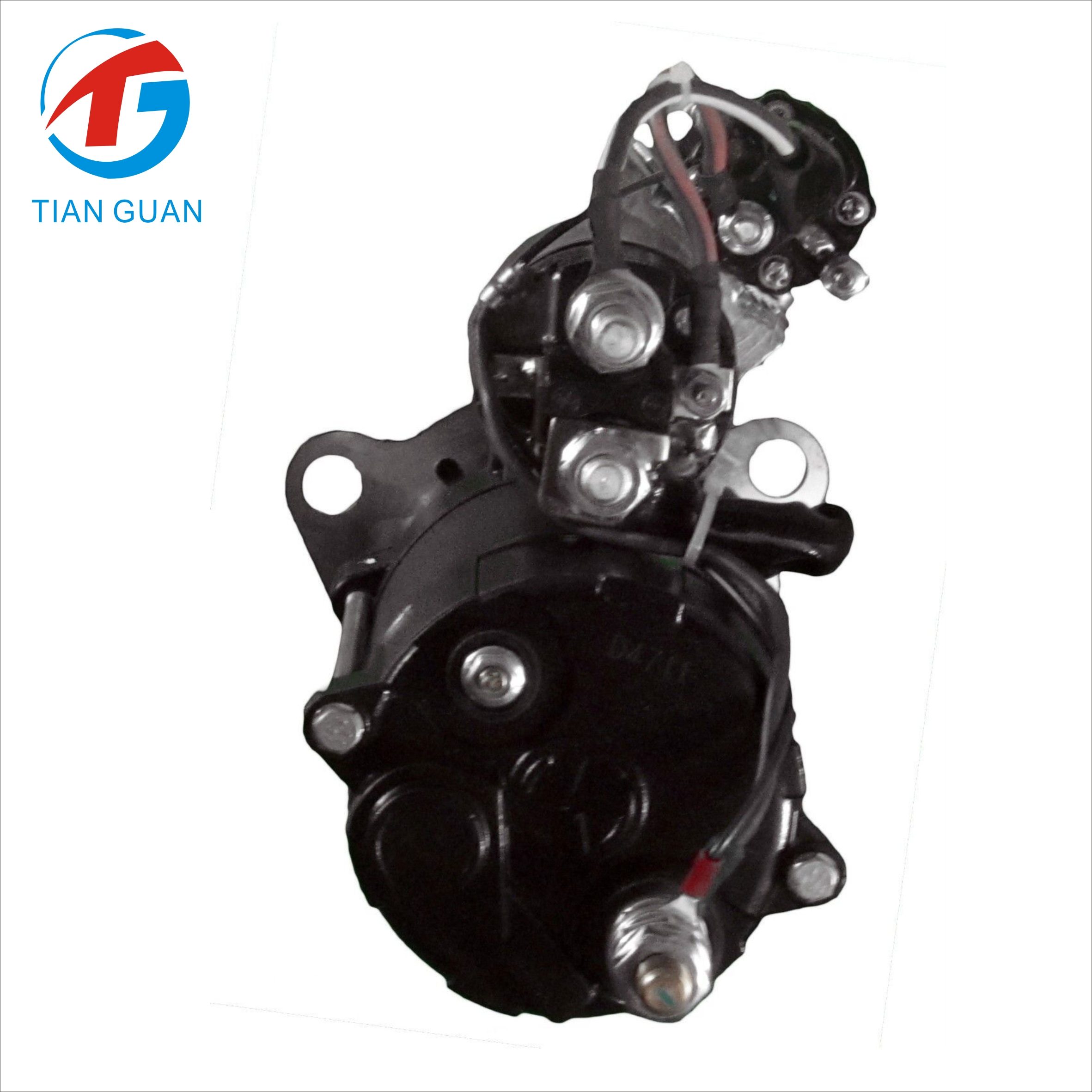

This premium aftermarket 12V 7.0KW Starter Motor is designed as a direct replacement for Ford L6000 / L7000 / L8000 / L9000 trucks, as well as a wide range of agricultural, construction, and heavy-duty truck applications. Built on the Leece Neville M110R family with Planetary Gear Reduction (PLGR) design, 11-tooth pinion gear, and clockwise rotation, it delivers fast, reliable engine starting and dependable performance in demanding applications.
This starter replaces OE part numbers PLM110615, PLM110R2615SE (Arrowhead), M105615, M105R2515SE, M110603, M110615, M110R2615SE, M110R2615SE2D (Leece Neville), 10461033, 10461038, 10461052, 10461053, 10461126, 10461127, 10461164, 10461214, 10461267, 10461334, 10461592, 10461753, 10461777, 10461855, 10478810, 10478894, 10478895, 10479028, 10479037, 10479081, 10479150, 10479156, 10479160, 10479277, 10499072, 19011500, 19011505, 19011506, 19011508, 19011516, 19011518, 19011521, 19011529, 19011530, 19011531, 1990337, 1990352, 1990358, 1990375, 1990376, 1990386, 1990398, 1990400, 1990420, 1990423, 1990424, 1990450, 1990468, 1990470, 1990475, 1990478, 1990483, 1990490, 1990495, 1993803, 1993807, 1993816, 323-867, 323-871, 323-892, 3604322RX, 61003201, 8200029, 8200031, 8200033, 8200037, 8200038, 8200040, 8200050, 8200088, 8200090, 8200091, 8200104, 8200289, 8200290, 8200308, 8300017, 8300019, R0461126, R0461127 (Delco), and 616002004, FL0579, FL0777, FL0975, IN1478, MIB970777, MIB970975, MIB970975FL, PC0979, PC1479, PC1879 (Mitsubishi).
12V starter motor
7.0KW power output
11-tooth pinion gear
Leece Neville M110R family
Planetary Gear Reduction (PLGR) design
Clockwise rotation
Gear OD: 2.224" / 56.500mm
Mount hole ID: 16.700mm, unthreaded (x3)
Housing rotatable
Maximum engine displacement: 14L
Reliable starting performance
Durable construction
Aftermarket replacement part
Approx. 14.8 kg
Specifications
Item Condition: Aftermarket Part
Description: Starter
Critical Note: Maximum Engine Displacement 14L
Family: Leece Neville M110R
Volt: 12V
Power: 7 KW
HP: 9.387
Condition: New
Rotation Direction: Clockwise
Electric Starter Type: Planetary Gear Reduction (PLGR)
Number Of Teeth: 11
Gear OD: 2.224" / 56.500mm
Mount Hole ID 1: 16.700mm
Mount Hole 1 Type: Unthreaded
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 16.700mm
Mount Hole 3 Type: Unthreaded
Housing Rotatable: TRUE
Weight: 14.8KG
Fitment
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1990-1998 – Caterpillar 3176
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1986-1999 – Caterpillar 3406
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1997-1999 – Caterpillar C-10
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1985-1992 – Cummins 855 (NHC, NTC)
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1990-1999 – Cummins N14
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1990-1999 – Detroit Diesel 60 Series
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1982-1988 – DD 6V-71
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1986-1991 – DD 6V-92
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1986-1990 – DD 8V-71
Ford – L-Series – 1990-1998 – Caterpillar 3176 / 3406 / C10 / Cummins N14 / DD 60 Series
Ford – L800 / LN700 / LN800 – 1982-1985 – 6V-71 / L10
Ford – 1156 – 1988-1992 – Cummins KTA-1150
Agco – MT835 / MT835B / MT835C / MT845 / MT845B / MT845C / MT855 / MT855B / MT855C / MT865 / MT865B / MT865C / MT875B / MT875C – 2002-2015 – Caterpillar 6-73 / 6-85 / 6-92 / 6-96 / 6-110
Case IH – 9170 / 9180 / 9250 / 9260 / 9270 / 9280 / 9350 / 9370 / 9370QT / 9380 / 9380QT / 9390 – 1986-2000 – Cummins 6-855 / 6-611
Caterpillar – 3406 / 3408 / 3412 Engines – 1985-1995
Caterpillar – 65E / 75 / 75C / 75D / 75E / 85C / 85D Challenger – Cat. 3176 / 3196
Champion – 720 / 720A / 740 / 740A / 750 / 750A / 760 / 780 / 780A – 1985-1994 – Cummins L10 / M11 / DD 6-71
Chevrolet / GMC – D9K Titan / D9L Titan / N9E Bison / N9F Bison / J8C / J9C Bruin – 1985-1989 – Caterpillar 3406 / Cummins L10 / NTC / DD 6V-92 / 8V-71 / 60 Series
Clark – C500-400 / 450 / 550 / 650 – 1986-1987 – Cummins 8-555
Cummins – 855 Series / L Series / V Series Engines – 1983-1994
Freightliner – Argosy / C112 Century Class / C120 Century Class – 1996-2007 – Caterpillar 3176 / 3406 / C-10 / Cummins IS / L10 / M11 / N14 / DD 60 Series
Compatible with equipment using M105615, M105R2515SE, M110603, M110615, M110R2615SE, M110R2615SE2D, PLM110615, PLM110R2615SE, 10461033, 10461038, 10461214, 10479277, 19011508, 1990337, 323-867, 8200031, 8200308, R0461126, or 616002004 starter motor part numbers.
