STG52231 Starter 35261110 35261110S M105312 M105612 M105R2012SE M105R2512SE MS2-521 MS2-521S for Blue Bird Bus B7 1999-2002 Chevrolet GMC B7 1999-2002

Part Numbers

ARROWHEAD: PLM105612, SLN0008-OE
BLUEBIRD: 00074299, 00112173
CASE IH: LNM105612, ZLNM105612
DELCO: 10461431, 10461434, 10461456, 10479014, 10479071, 10479098, 10479207, 10479215, 10479278, 1993883, 1993885, 1993891, 8200055
LEECE NEVILLE: 35261110, 35261110S, M105312, M105612, M105R2012SE, M105R2512SE, MS2-521, MS2-521S
LESTER: 6985
LUCAS ELECTRIC: 26025128, 9727487000
MERCEDES: LN M105612, LNM105612

Product Description

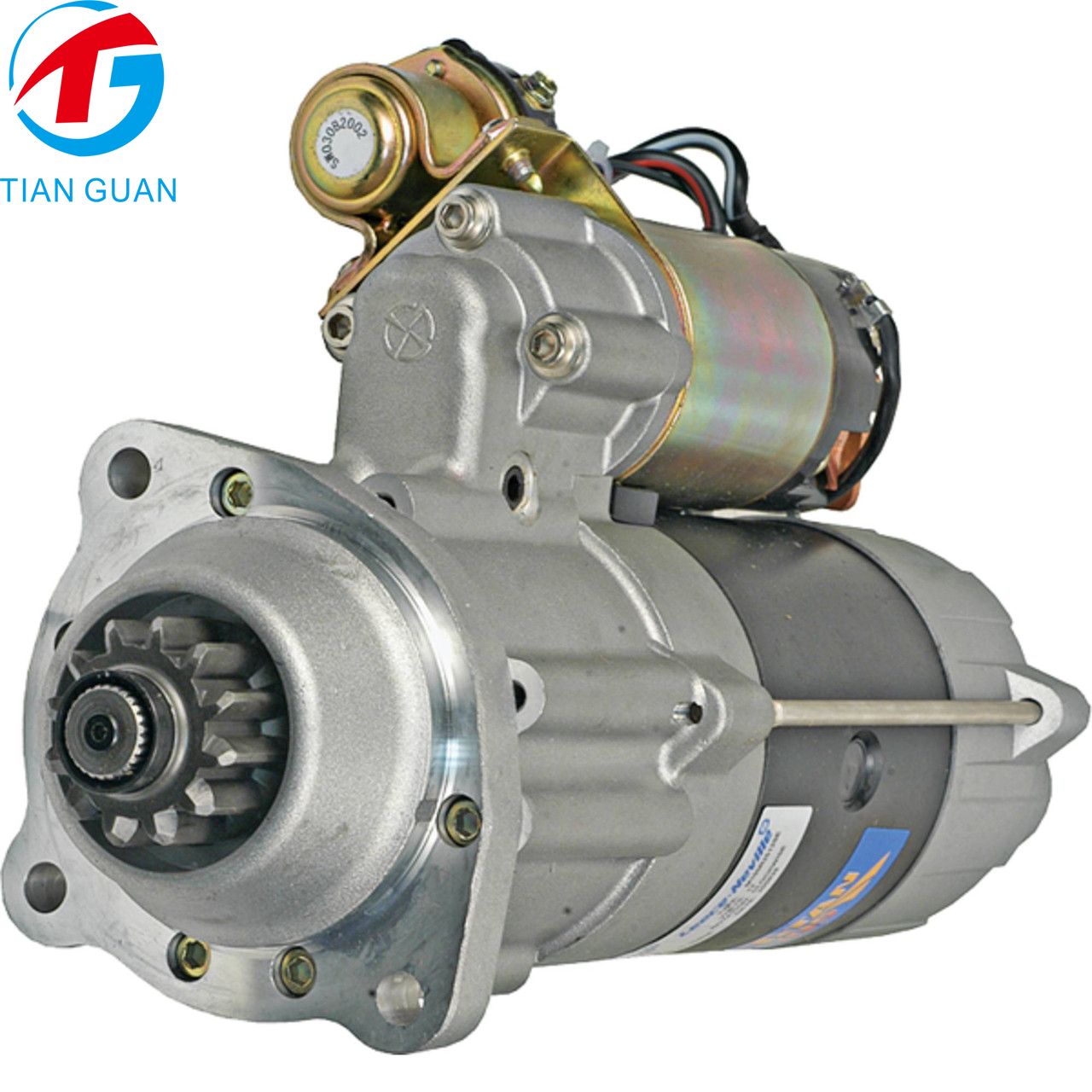

This premium aftermarket 12V 5.0KW Starter Motor is designed as a direct replacement for Blue Bird Bus, Chevrolet/GMC B7, and a wide range of medium and heavy-duty truck applications. Built on the Leece Neville Titan 105 family with Planetary Gear Reduction (PLGR) design, 12-tooth pinion gear, and clockwise rotation, it delivers fast, reliable engine starting and dependable performance in demanding commercial vehicle applications.

This starter replaces OE part numbers PLM105612, SLN0008-OE (Arrowhead), 00074299, 00112173 (Bluebird), LNM105612, ZLNM105612 (Case IH), 10461431, 10461434, 10461456, 10479014, 10479071, 10479098, 10479207, 10479215, 10479278, 1993883, 1993885, 1993891, 8200055 (Delco), 35261110, 35261110S, M105312, M105612, M105R2012SE, M105R2512SE, MS2-521, MS2-521S (Leece Neville), 6985 (Lester), 26025128, 9727487000 (Lucas Electric), and LN M105612, LNM105612 (Mercedes).

• 12V starter motor

• 5.0KW power output

• 12-tooth pinion gear

• Leece Neville Titan 105 family

• Planetary Gear Reduction (PLGR)

• Clockwise rotation

• Gear OD: 1.835" / 46.600mm

• Solenoid position: 127.5°

• Mount hole ID: 10.600mm unthreaded (x2)

• Rotatable housing

• Includes control relay

• Battery terminal M12-1.75

• For use on applications with displacements of 11L or less

• Aftermarket replacement part

• Approx. 14.3 kg

Specifications

Item Condition: Aftermarket Part
Description: Starter
Critical Note: For Use on Applications With Displacements of 11L or Less
Family: Leece Neville Titan 105
Volt: 12V
Power: 5 KW
HP: 6.705
Condition: New
Rotation Direction: Clockwise
Electric Starter Type: Planetary Gear Reduction (PLGR)
Number Of Teeth: 12
Gear OD: 1.835" / 46.600mm
Solenoid Position: 127.5°
Mount Hole ID 1: 10.600mm
Mount Hole 1 Type: Unthreaded
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 10.600mm
Mount Hole 3 Type: Unthreaded
Housing Rotatable: TRUE
Notes: Includes Control Relay; Battery Terminal M12-1.75
Weight: 14.3KG

Fitment

Blue Bird Bus – All Models – 1996-2001 – Caterpillar 3116 / 3126
Case IH – 782 – 1986-1989 – D-358 Diesel
Chevrolet – B7 – 1999-2002 – 6.6L 3116 / 7.2L 3126
Chevrolet / GMC – B7 – 1999-2002 – Caterpillar 3116 / 3126
Chevrolet / GMC – Topkick / Kodiak – 2000-2002 – Caterpillar C-Series
Ford – F-650 / F-750 SUPER-DUTY – 2000-2003 – Caterpillar 7.2L 3126
Ford – L6000 / 7000 / 8000 / 9000 / L-Series – 1998-1999 – Caterpillar 3126
Freightliner – FL 50 / FL 60 / FL 70 / FL 80 / FL50 / FL60 / FL70 / M2 106 / M2 Business Class – 1994-2004 – Caterpillar 3126
GMC – B7 – 1999-2002 – 6.6L 3116 / 7.2L 3126
John Deere – 544G / 624G / 643G / 644G / 653G / 843G – 1993-1994 – 6059 / 6068T Diesel
Kenworth – T300 – 1994-2007 – Caterpillar 3126 / C7
New Holland – TR86 / TR96 – 1985-1993 – Caterpillar 3208 Diesel
Peterbilt – 320 / 330 / 335 / 340 / 357 / 362 / 375 – 1995-2007 – Caterpillar 3126 / C-Series
Sterling – Acterra 5500 / 6500 / 7500 / 8500 / M5500 / M8500 / Condor / L7500 / L-Line 7500 / 8000 / 8500 / 9500 – 1999-2004 – Caterpillar 3126
Western Star – All Models – 2000-2003 – Caterpillar 3126

Compatible with equipment using 35261110, 35261110S, M105312, M105612, M105R2012SE, M105R2512SE, MS2-521, MS2-521S, PLM105612, SLN0008-OE, 10461431, 10461434, 10461456, 1993885, 8200055, or 6985 starter motor part numbers.
