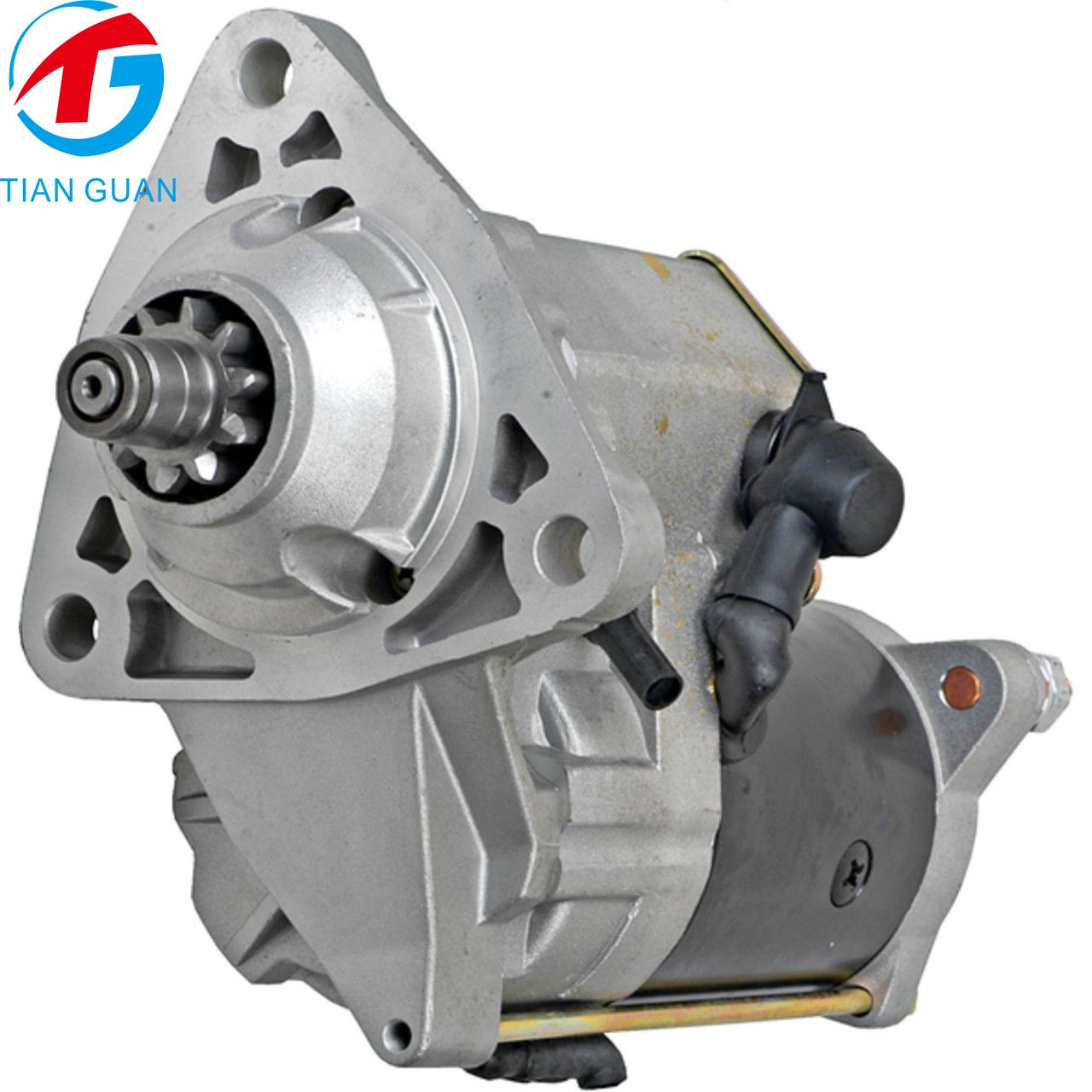

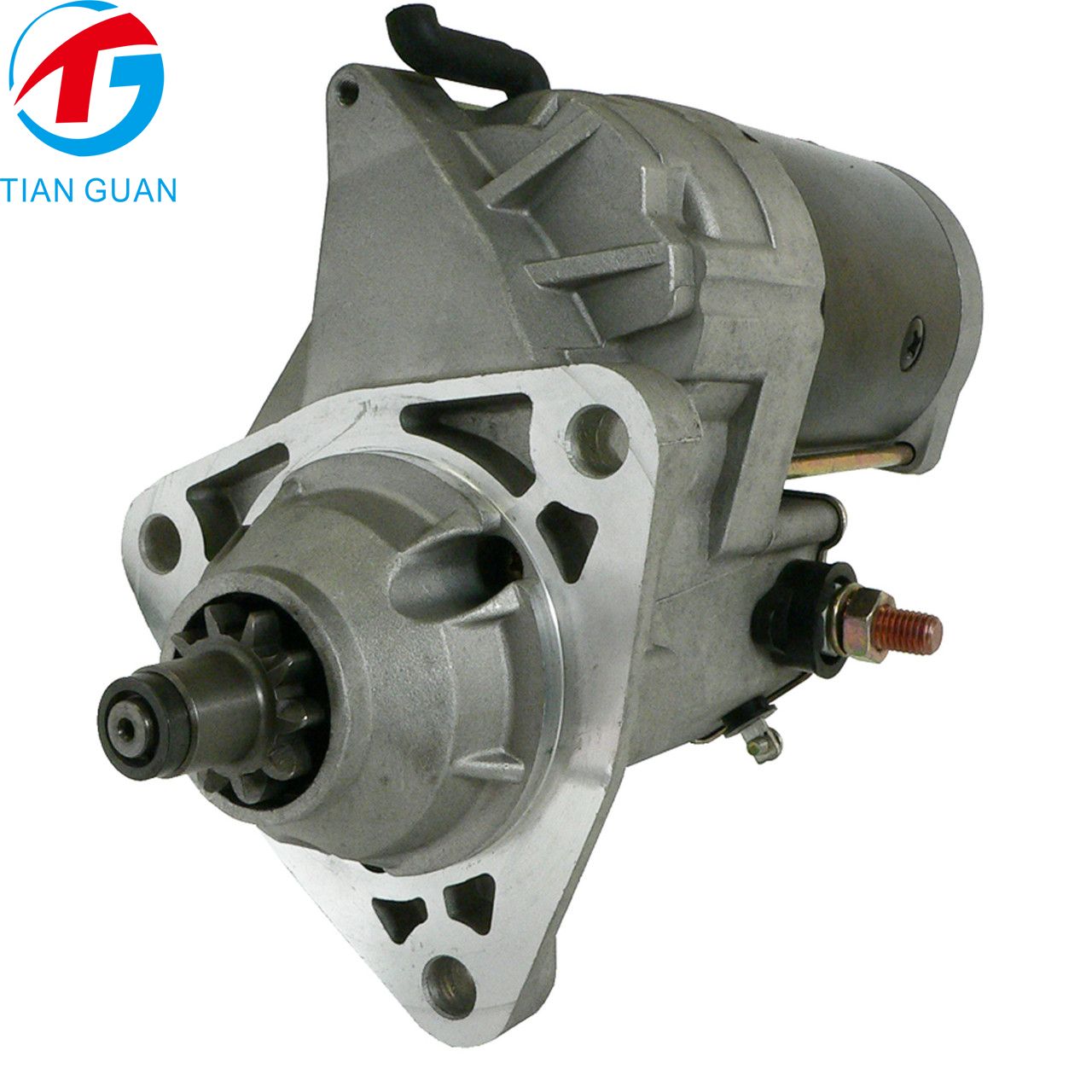

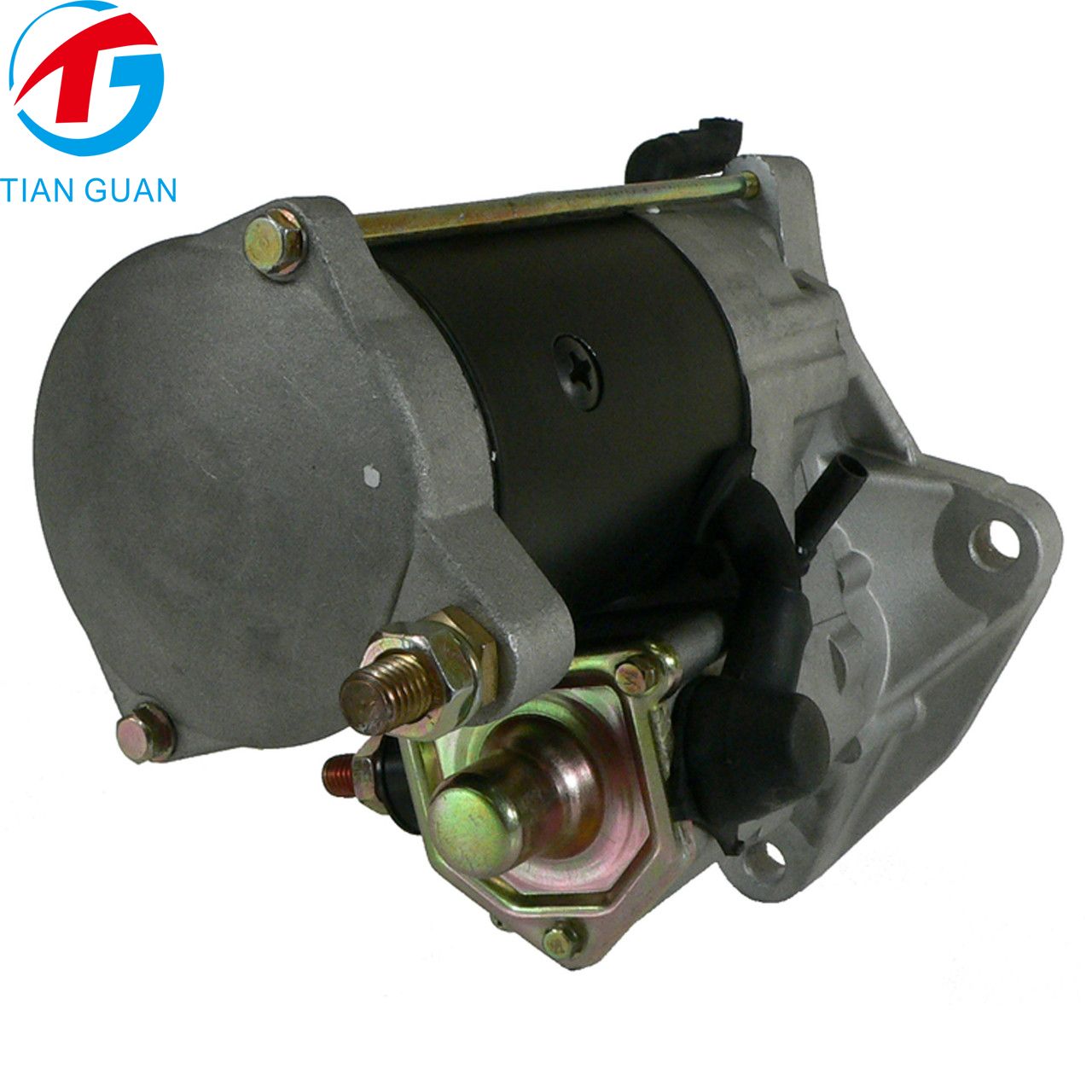

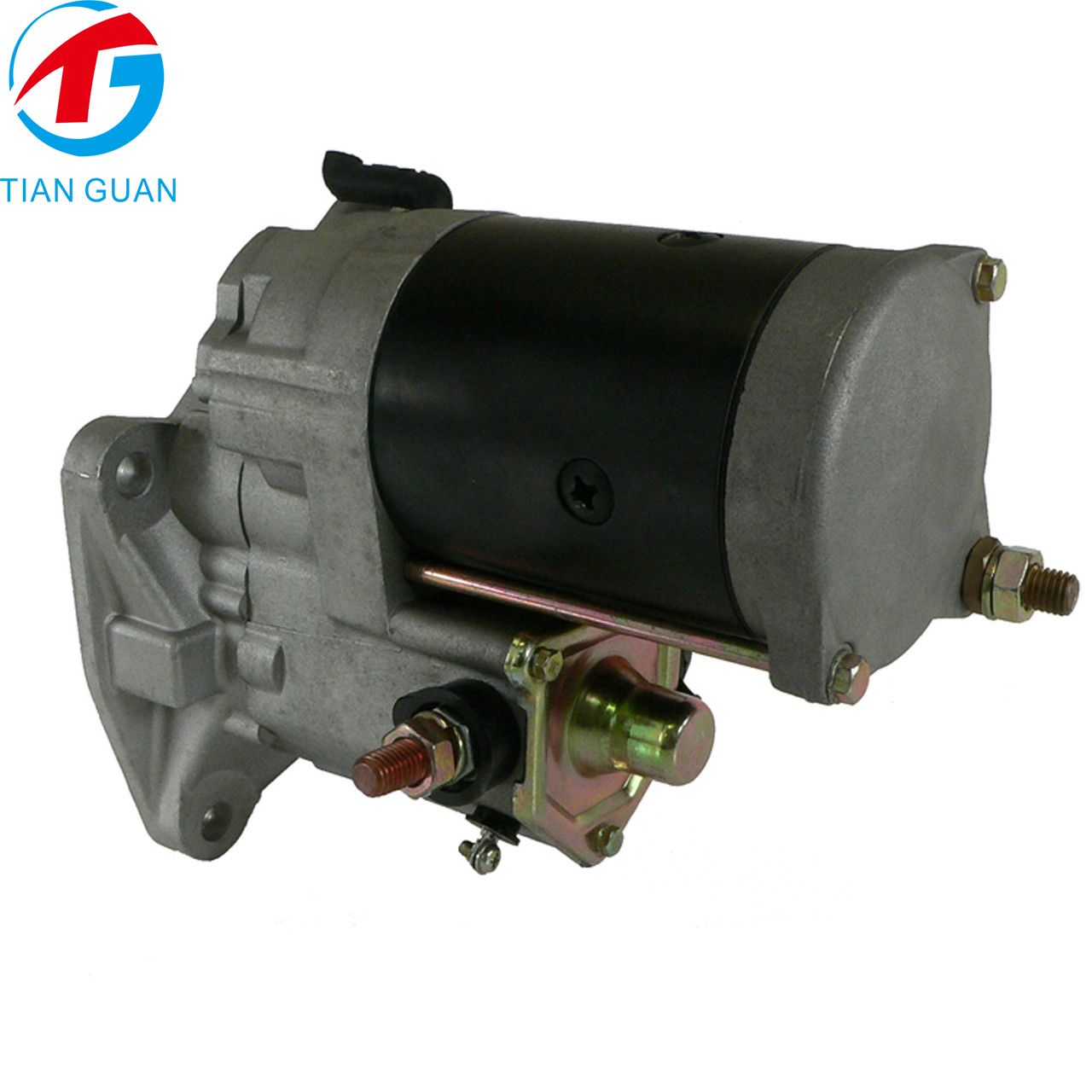

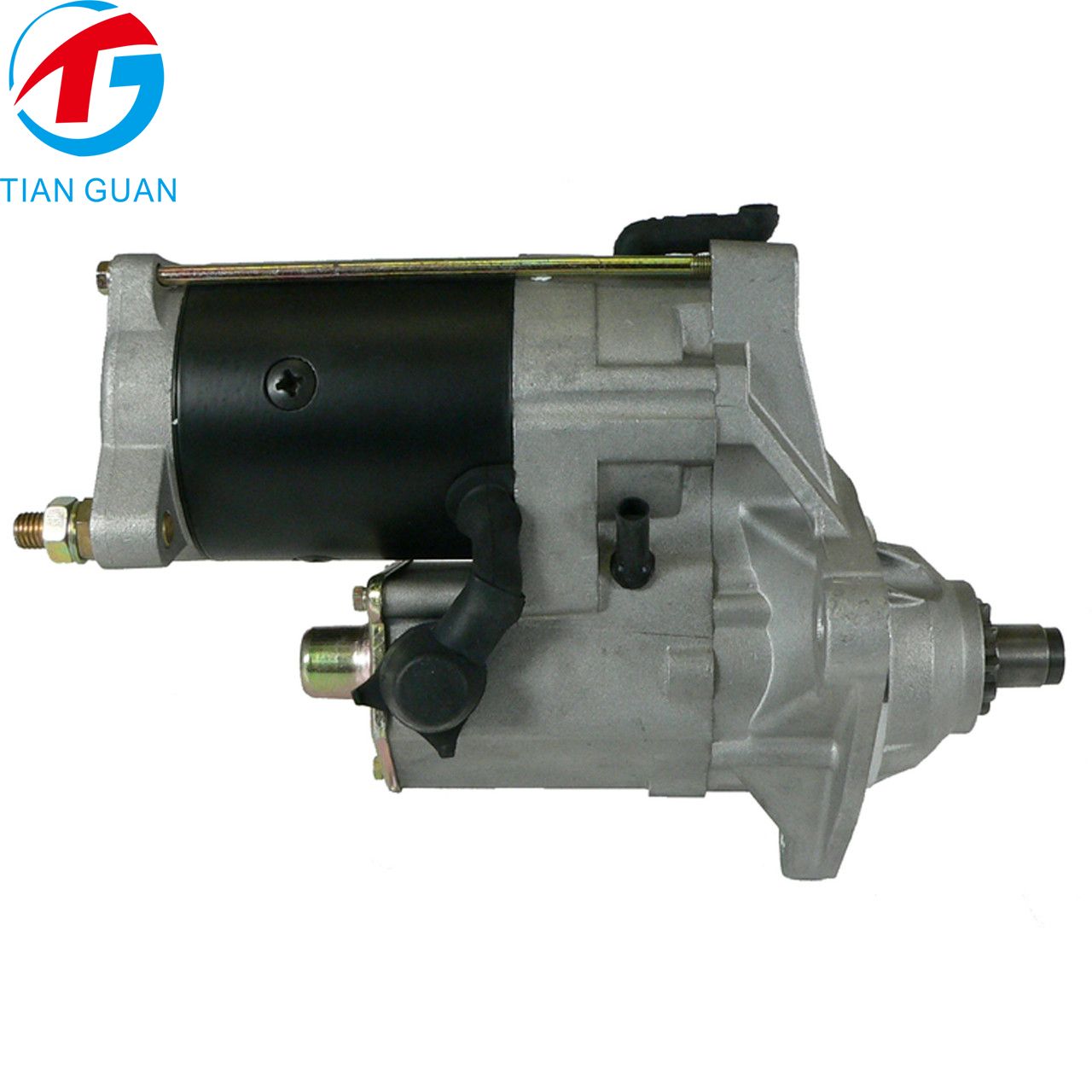

STG52257 Starter Motor 10461063 10461233 228000-9300 for Western Star Freightliner International Peterbilt Sterling Volvo Trucks | 12V 4.0kW 10T CW OSGR Replacement

3 Reviews

Add Your Review

US$148.00

ITEMNO： STG52257

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG52257 Starter Motor 10461063 10461233 228000-9300 for Western Star Freightliner International Peterbilt Sterling Volvo Trucks | 12V 4.0kW 10T CW OSGR Replacement

Part Numbers

Arrowhead: SND0591 / ND228000-9300
Denso: 228000-9300
J&N: 410-52203
Lester: 19790

Product Description

The STG52257 Starter Motor is an aftermarket replacement starter designed for compatible heavy-duty truck applications. This 12V, 4.0 kW unit features clockwise rotation, a 10-tooth pinion, and an offset gear reduction (OSGR) design.

The starter is listed for Western Star truck applications with C-10, C-12, and DD 60 engine references, as well as selected Freightliner, International (IHC), Peterbilt, Sterling, and Volvo trucks. It features a 38.25 mm (1.506 in) pinion gear outside diameter, 13 mm unthreaded mounting-ear holes, and M12-1.75 battery and ground studs in the CE housing. Verify the original starter number, engine configuration, and mounting details before ordering.

Product Specifications

Property	Value
SKU	STG52257
Product Type	Starter Motor
Item Condition	New Aftermarket Part
Voltage	12V
Power Output	4.0 kW
Rotation Direction	Clockwise (CW)
Number of Teeth	10
Starter Type	Offset Gear Reduction (OSGR)
Pinion Gear Outside Diameter	38.25 mm (1.506 in)
Mounting-Ear Hole Diameter	13 mm
Mounting Hole Type	Unthreaded
Battery Stud Thread	M12-1.75
Ground Stud Thread	M12-1.75
Housing Reference	CE housing
Approximate Weight	8.7kg

OEM / Cross Reference Numbers

Brand / Category	Part Numbers
Arrowhead	SND0591 / ND228000-9300
Denso	228000-9300
J&N	410-52203
Lester	19790
Additional Cross-References	10461063 / 10461233

Compatible Applications

Make / Brand	Vehicle / Engine Application	Model / Engine Reference
Western Star	Heavy-duty truck	C-10 / C-12 / DD 60
Freightliner	Truck	Exact models not specified
International (IHC)	Truck	Exact models not specified
Peterbilt	Truck	Exact models not specified
Sterling	Truck	Exact models not specified
Volvo	Truck	Exact models not specified

PRODUCT HIGHLIGHTS

Product Highlights

High-Power Starting	OSGR Gear Reduction Design	Heavy-Duty Mounting Features
4.0 kW output with a 12V electrical system	10-tooth pinion with clockwise rotation	38.25 mm gear OD, 13 mm unthreaded mounting holes, and M12-1.75 battery and ground studs
